HPE Alletra Storage Server 4110

QuickSpecs

The HPE Alletra Storage Server 4110 provides server-based data infrastructure designed to accelerate data-driven initiatives.

The HPE Alletra Storage Server 4110 is specifically designed to run your most performance demanding data storage-intensive workloads to power your data-driven initiatives to success. From data stores for machine learning (ML) and analytics to distributed and NoSQL databases, performance sensitive Software-Defined Storage, and data heavy hyperconverged infrastructure, it delivers the capabilities you need at ideal economics with trusted security and a cloud operating experience. This includes the option to consume as-a-service via HPE GreenLake enabling you to shift from owning and maintaining to simply utilizing it. HPE Alletra Storage Server 4000 systems provide the data infrastructure for any successful data driven organization.

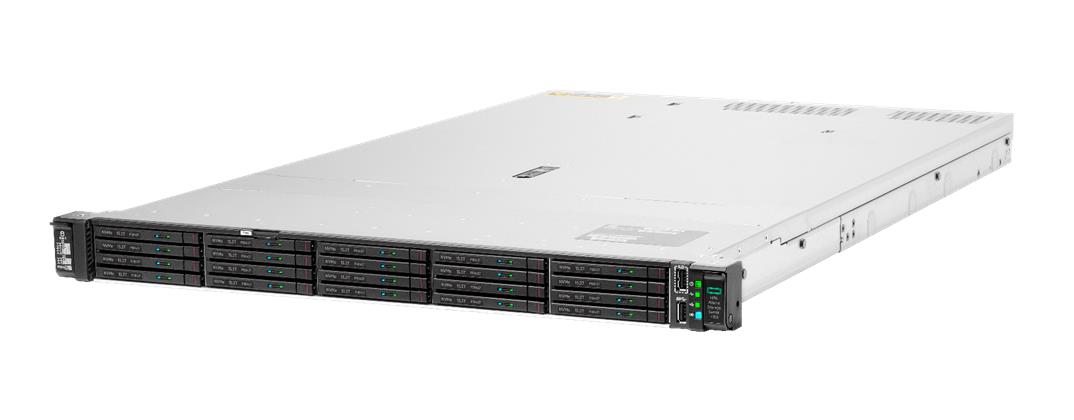

HPE Alletra Storage Server 4110 20EDSFF Configure-to-order System

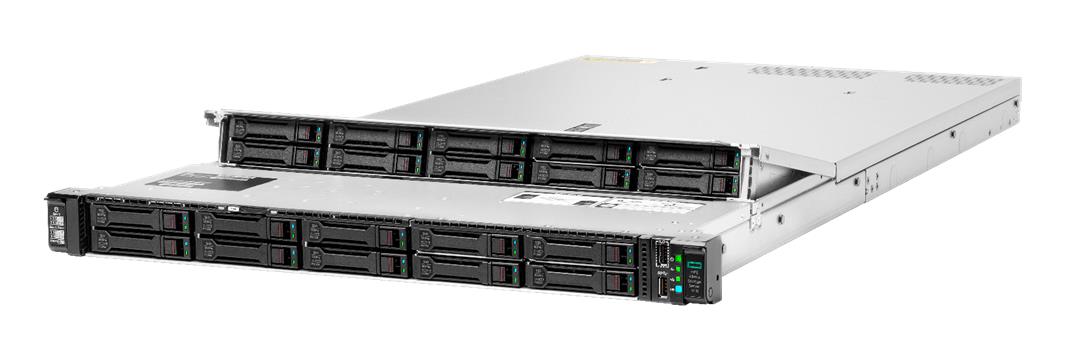

HPE Alletra Storage Server 4110 20SFF Configure-to-order System

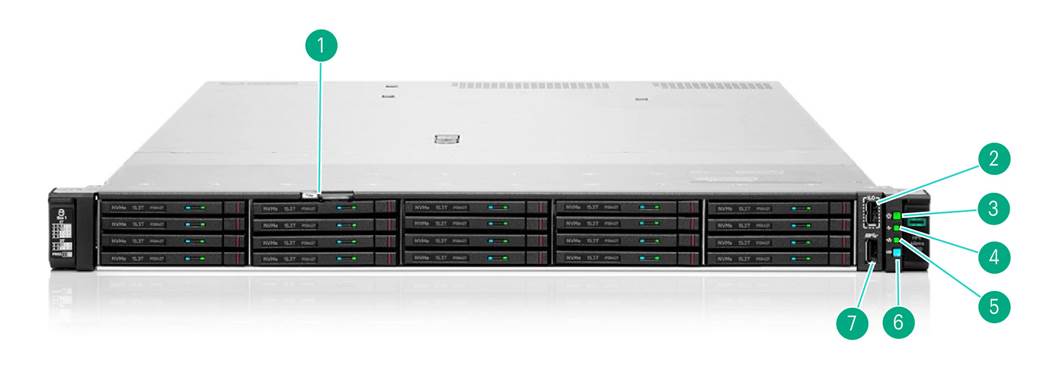

HPE Alletra Storage Server 4110 Configure-to-order System Front View (20EDSFF SKU shown)

Item

Description

Item

Description

1.

Serial number/iLO information pull tab

5.

NIC status LED

2.

iLO service port

6.

UID button/LED

3.

Power On/Standby button and

system power LED

7.

USB 3.0 port

4.

Health LED

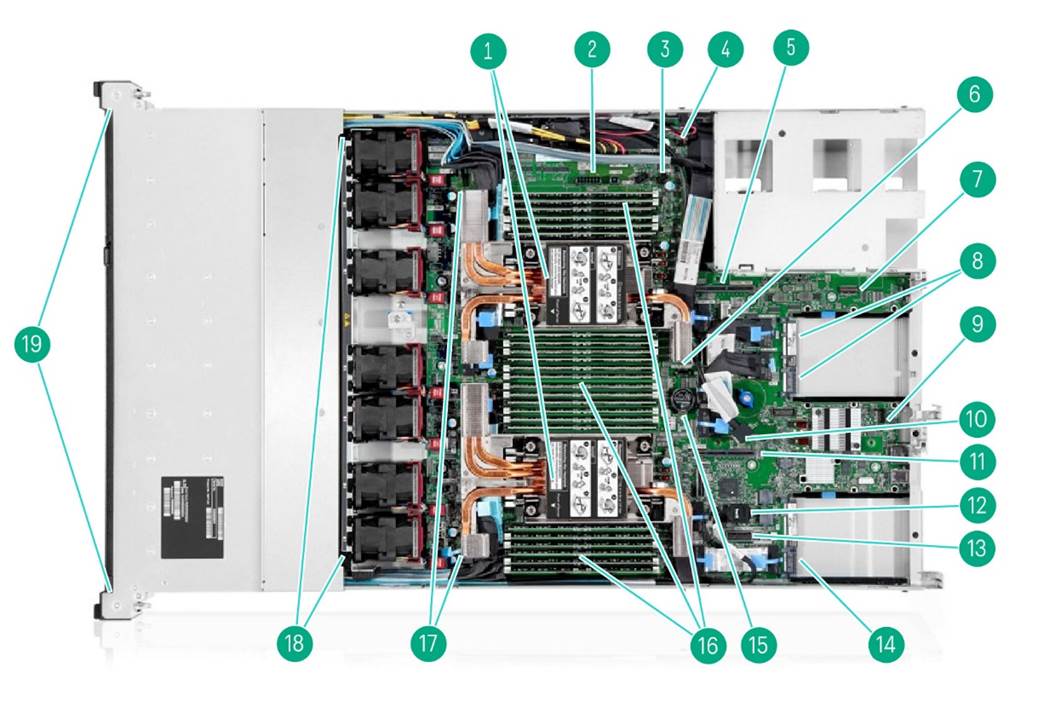

HPE Alletra Storage Server 4110 Configure-to-order System Internal View (20EDSFF SKU shown)

Item

Description

Item

Description

1.

Up to 2 processors (2 processors installed with performance heat sink shown)

11.

Primary riser connector

2.

Energy pack connector

12.

Front I/O connector

3.

Drive cage 2 power connector

13.

PCIe Gen3 connector

4.

Drive cage 1 power connector

14.

OCP1 connector

5.

Secondary riser connector

15.

System battery

6.

Processor Smart Cooling Module connector

16.

DDR5 DIMM slots (Fully populated 24 DIMMs shown)

7.

System maintenance switch

17.

MCIO Connectors

8.

OCP2 A & B connector

18.

System fans

9.

Serial port connector

19.

Drive Cage 1

10.

Internal USB connector

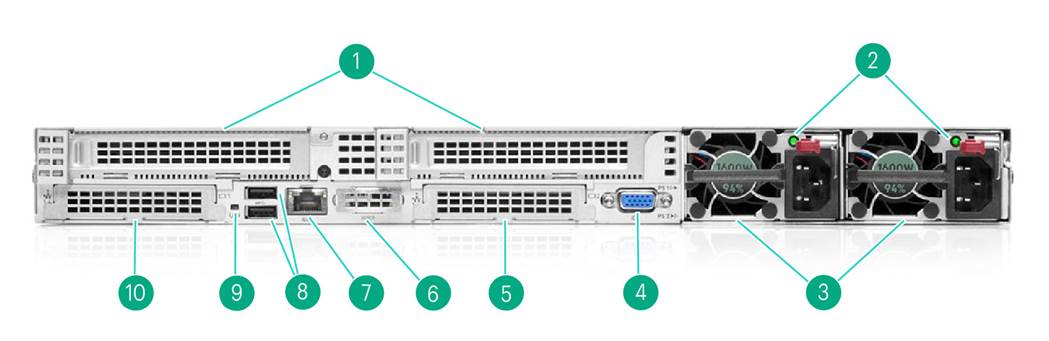

HPE Alletra Storage Server 4110 Configure-to-order System Rear View - Standard for all HPE Alletra Storage Server 4110

Item

Description

Item

Description

1.

PCIe slot 1 & 2

6.

Serial port (optional)

2.

Power supply LED (bay 1 & 2)

7.

iLO management port

3.

Hot-plug power supply bay 1 (standard) & 2 (optional)

8.

USB 3.0 ports

4.

Video port

9.

UID LED

5.

OCP slot (OCP2)

10.

OCP slot (OCP1)

Platform Information

Form Factor

- 1U rack.

Chassis Types

- 20 EDSFF E3.S 1T PCIe Gen5 x4 connected.

- 20 SFF NVMe PCIe Gen4 x4 connected.

System Fans

- 7 hot-pluggable system fan modules shipped as standard.

Notes: Choice of High Performance Fan Kit or Smart Cooling Fan Kit based on the processor selection.

Processors

- always 2 of the following, depending on model.

Notes:

- The 2nd digit of the processor model number "x4xx" is used to denote the processor generation (i.e. 4 = 4th generation).

- This table covers the public Intel offering only.

- For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Notes:

- 2 socket capable, 2S - 4 or 3 UPI @ 20 or 16 GT/s.

- 4th and 5th Generation: 8-Channel DDR5 1DPC @ 5600 - 4800 MT/s.

- 80 lanes PCIe 5.0, advanced RAS.

- Y Supports Intel Speed Select Technology - Performance Profile 2.0 (Intel SST-PP).

- + Feature Plus: Support AMX, DLB, DSA, IAA and QAT additionally.

Notes:

- 2 socket capable, 2S - 4 or 3 UPI @ 20 or 16 GT/s

- 4th and 5th Generation: 8-Channel DDR5 1DPC @ 5200 - 4000 MT/s.

- 80 lanes PCIe 5.0, advanced RAS.

- Y Supports Intel Speed Select Technology - Performance Profile 2.0 (Intel SST-PP).

- S SKUs are storage & hyperconverged infrastructure (HCI) optimized SKUs.

- +: Feature Plus: Support AMX, DLB, DSA, IAA and QAT additionally.

Notes:

- 2 socket capable, 2S - 2 UPI @ 16 GT/s.

- 4th and 5th Generation: 8-Channel DDR5 1DPC @ 4400 - 4000 MT/s.

- 80 lanes PCIe 5.0, advanced RAS.

- Y Supports Intel Speed Select Technology - Performance Profile 2.0 (Intel SST-PP).

- +: Feature Plus: Support AMX, DLB, DSA, IAA and QAT additionally.

Chipset

Intel C741 Chipset.

Notes: For more information regarding Intel® chipsets, please see the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

System Management Chipset

HPE iLO 6 ASIC.

Notes: Read and learn more in the iLO QuickSpecs.

Notes:

- The maximum memory speed is limited by the processor selection.

- The maximum capacity per system is limited by the overall configuration selection due to thermal capacity.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multi-bit error that occurs within a single DRAM chip.

Expansion Slots

Internal Storage Devices

- Hard Drives

None ship standard.

Storage Controllers

- NVMe Boot Devices

Optional HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device.

Notes:

- NS204i-u does not occupy a PCIe slot and internal only for Alletra Storage Server 4110.

- 2pcs of 480 GB M.2 NVMe SSD are included in the NS204i-u Hot Plug Boot Device.

- RAID 1 supported on the NS204i-u Hot Plug Boot Device.

Maximum Storage

Graphics

- Integrated video standard

• Video modes up to 1920 x 1200 @ 60 Hz (32 bpp)
• 16 MB Video Memory

- HPE iLO 6 on system management memory

• 32 MB Flash
• 4 GBit DDR3 with ECC protection

Power Supply

- HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

- HPE 1000 W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Notes: Available in 96% efficiency.

- HPE 1600 W Flex Slot -48VDC Hot Plug Power Supply Kit

- HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

• Available in 94% efficiency.
• 1600 W Power supplies only support high line voltage (200 VAC to 240 VAC).

- HPE 1800-2200 W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

Notes:

• Available in 96% efficiency.
• 1800-2200 W Power supplies only support high line voltage (200 VAC to 240 VAC).
• HPE 1600 W ~48VDC Power Supply Kit.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Interfaces

Operating Systems and Virtualization Software

- Windows Server 2019

- Windows Server 2022

- Red Hat Enterprise Linux (RHEL) 8.6

- Red Hat Enterprise Linux (RHEL) 9.0

- SUSE Linux Enterprise Server (SLES) 15 SP4

- VMware 7.0 U3

- VMware 8.0

- Canonical Ubuntu 20.04 LTS and 22.04 LTS

Notes: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server visit. http://www.HPE.com/info/ossupport

Industry Standard Compliance

- ACPI 6.4 Compliant

- PCIe 5.0 Compliant

- WOL Support

- Microsoft® Logo certifications

- PXE Support

- USB 3.2 Gen1 Compliant

- SMBIOS 3.4

- Redfish API

- IPMI 2.0

- Secure Digital 4.0

- TPM 2.0 support

- Advanced Encryption Standard (AES)

- Triple Data Encryption Standard (3DES)

- SNMP v3

- TLS 1.2

- DMTF Systems Management Architecture for Server Hardware Command Line (SMASH CLP)

- One Button Secure Erase Enhancements

- UEFI (Unified Extensible Firmware Interface Forum) 2.7

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.HPE.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.HPE.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at http://www.HPE.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.HPE.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.HPE.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.HPE.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

Learn more at https://www.HPE.com/us/en/servers/smart-update.html.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9, Gen10 and Gen10 Plus HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.HPE.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.HPE.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.HPE.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell.

Learn more at http://www.HPE.com/servers/powershell.

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.HPE.com/info/oneview.

HPE Compute Ops Management

HPE is intelligently transforming compute management with a completely new As a Service experience that delivers greater security, simplicity, and efficiency. Discover a completely modernized compute management experience delivered through HPE GreenLake that securely streamlines operations from edge-to-cloud, and automates key lifecycle tasks (onboard, update, manage and monitor HPE servers), bringing the agility and greater efficiencies to wherever compute devices reside via a unified single browser-based interface.

HPE Compute Ops Management is built on a unique cloud-native architecture that abstracts, manages and controls HPE servers regardless of physical location. The management application resides in the HPE GreenLake cloud platform (access via https://console.greenlake.HPE.com) and leverages the HPE GreenLake architecture, security, and unified operations.

Security

- UEFI Secure Boot and Secure Start support

- Immutable Silicon Root of Trust

- FIPS 140-2 validation

- Common Criteria certification

- Configurable for PCI DSS compliance

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

- Support for Commercial National Security Algorithms (CNSA)

- iLO Security Modes

- Granular control over iLO interfaces

- Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

- Tamper-free updates: components are digitally signed and verified.

- Secure Recovery - recover critical firmware to known good state on detection of compromised FW

- Ability to rollback firmware

- Secure erase of NAND

- TPM (Trusted Platform Module)

- Bezel Locking Kit

- Chassis Intrusion detection

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is included on pre-configured models and can be enabled and disabled using the BIOS.

Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.HPE.com/us/en/search-results.html?page=1&q=servers%20warranty&autocomplete=0.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9, Gen10 and Gen10 Plus servers. To learn more visit http://www.HPE.com/info/oneview.

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.HPE.com/info/cmu.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE Proliant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

- HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

- HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

- HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so your critical dense data center is covered in power outages.

- HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance:

https://h22174.www2.HPE.com/SimplifiedConfig/Welcome#

HPE Services

No matter where you are in your digital transformation journey, HPE Services deliver expert support across all stages of your digital transformation. HPE Services support your digital transformation goals from planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.HPE.com/services

Consulting Services

No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.HPE.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.HPE.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:

- A complete coverage approach -- edge to cloud

- An assigned HPE team

- Modular and fully personalized engagement

- Enhanced Incident Management experience with priority access

- Digitally enabled and AI driven customer experience

https://www.HPE.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enables customer experience to move your business forward. HPE Tech Care Service is available on three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.HPE.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:

- Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.

- HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.

- HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.

- Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.

- HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.HPE.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://h20195.www2.HPE.com/v2/Getdocument.aspx?docname=5981-9356enw

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

DC for Hyperscale

Complete Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high-volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.HPE.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

- Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

- Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.

- Customers purchasing from a commercial reseller can find services at https://ssc.HPE.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.HPE.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are, the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

- Get faster time to market

- Save on TCO, align costs to business

- Scale quickly, meet unpredictable demand

- Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.HPE.com/us/en/contact-HPE.html

For more information:

http://www.HPE.com/services

Step 1a: Operating Tracking SKUs (required to choose one of each category)

The OCA options and configuration rules will be different based on the operating tracking SKUs selected.

Inlet Ambient Operating Temperature Configuration Tracking SKUs

Description

SKU

HPE Alletra Storage Server 4XXX 30C Inlet Ambient Operating Temperature Configuration Tracking

S2V38AAE

Notes: for customers' data center with 30C or lower Inlet Ambient Operating Temperature

HPE Alletra Storage Server 4XXX 25C Inlet Ambient Operating Temperature Configuration Tracking

S2V33AAE

Notes: for customers' data center with 25C or lower Inlet Ambient Operating Temperature

Networking Operating Configuration Tracking SKUs

Description

SKU

HPE Alletra Storage Server 4XXX DAC Networking Operating Configuration Tracking

S2V32AAE

Notes: for customers using Direct Attach Copper (DAC) for the server networking connection

HPE Alletra Storage Server 4XXX AOC Networking Operating Configuration Tracking

S2V37AAE

Notes: for customers using Active Optical Cables (AOC) for the server networking connection

Step 2: Choose Required Options

Please select two matching processors.

Notes:

- Mixing of 2 different processor models is not supported.

- Processors with TDP equal to or greater than 270 W require Smart Cooling Module Kit (P51171-B21).

- Processors with TDP equal to or greater than 270 W require Smart Cooling Fan Kit (P51675-B21).

- Processors with TDP lower than 270 W require High Performance Heat Sink Kit (P51169-B21).

- Processors with TDP lower than 270 W require High Performance Fan Kit (P51673-B21).

Step 2a: Choose Processor Options

Processor Option Kits

5th Generation Intel Xeon-Platinum

Description

SKU

Intel Xeon-Platinum 8568Y+ 2.3 GHz 48-core 350 W Processor Kit for HPE Alletra Storage Server 41X0

P67405-B21

Intel Xeon-Platinum 8562Y+ 2.8 GHz 32-core 300 W Processor Kit for HPE Alletra Storage Server 41X0

P67408-B21

Intel Xeon-Platinum 8558 2.1 GHz 48-core 330 W Processor Kit for HPE Alletra Storage Server 41X0

P67406-B21

5th Generation Intel Xeon-Gold

Description

SKU

Intel Xeon-Gold 6554S 2.2 GHz 36-core 270 W Processor Kit for HPE Alletra Storage Server 41X0

P67407-B21

Intel Xeon-Gold 6548N 2.8 GHz 32-core 250 W Processor for HPE Alletra Storage Server 41X0

P75664-B21

Intel Xeon-Gold 6548Y+ 2.5 GHz 32-core 250 W Processor Kit for HPE Alletra Storage Server 41X0

P67410-B21

Intel Xeon-Gold 6544Y 3.6 GHz 16-core 270 W Processor Kit for HPE Alletra Storage Server 41X0

P67417-B21

Intel Xeon-Gold 6542Y 2.9 GHz 24-core 250 W Processor Kit for HPE Alletra Storage Server 41X0

P67415-B21

Intel Xeon-Gold 6538Y+ 2.2 GHz 32-core 225 W Processor Kit for HPE Alletra Storage Server 41X0

P67409-B21

Intel Xeon-Gold 6538N 2.1 GHz 32-core 205 W Processor Kit for HPE Alletra Storage Server 41X0

P67412-B21

Intel Xeon-Gold 6534 3.9 GHz 8-core 195 W Processor Kit for HPE Alletra Storage Server 41X0

P67401-B21

Intel Xeon-Gold 6530 2.1 GHz 32-core 270 W Processor Kit for HPE Alletra Storage Server 41X0

P67411-B21

Intel Xeon-Gold 6526Y 2.8 GHz 16-core 195 W Processor Kit for HPE Alletra Storage Server 41X0

P67418-B21

Intel Xeon-Gold 5520+ 2.2 GHz 28-core 205 W Processor Kit for HPE Alletra Storage Server 41X0

P67413-B21

Intel Xeon-Gold 5515+ 3.2 GHz 8-core 165 W Processor Kit for HPE Alletra Storage Server 41X0

P67402-B21

Intel Xeon-Gold 5512U 2.1 GHz 28-core 185 W Processor Kit for HPE Alletra Storage Server 41X0

P67414-B21

5th Generation Intel Xeon-Sliver

Description

SKU

Intel Xeon-Silver 4516Y+ 2.2 GHz 24-core 185 W Processor Kit for HPE Alletra Storage Server 41X0

P67416-B21

Intel Xeon-Silver 4514Y 2.0 GHz 16-core 150 W Processor Kit for HPE Alletra Storage Server 41X0

P67419-B21

Intel Xeon-Silver 4510 2.4 GHz 12-core 150 W Processor Kit for HPE Alletra Storage Server 41X0

P67420-B21

Intel Xeon-Silver 4509Y 2.6 GHz 8-core 125 W Processor Kit for HPE Alletra Storage Server 41X0

P67403-B21

4th Generation Intel Xeon-Platinum

Description

SKU

Intel Xeon-Platinum 9468 2.1 GHz 48-core 350 W Processor Kit for HPE Alletra Storage Server 41X0

P50810-B21

Intel Xeon-Platinum 9462 2.7 GHz 32-core 350 W Processor Kit for HPE Alletra Storage Server 41X0

P50814-B21

Intel Xeon-Platinum 9460 2.2 GHz 40-core 350 W Processor Kit for HPE Alletra Storage Server 41X0

P50815-B21

Intel Xeon-Platinum 8468 2.1 GHz 48-core 350 W Processor Kit for HPE Alletra Storage Server 41X0

P51959-B21

Intel Xeon-Platinum 8462Y+ 2.8 GHz 32-core 300 W Processor Kit for HPE Alletra Storage Server 41X0

P50799-B21

Intel Xeon-Platinum 8460Y+ 2.0 GHz 40-core 300 W Processor Kit for HPE Alletra Storage Server 41X0

P50800-B21

Intel Xeon-Platinum 8452Y 2.0 GHz 36-core 300 W Processor Kit for HPE Alletra Storage Server 41X0

P50807-B21

4th Generation Intel Xeon-Gold

Description

SKU

Intel Xeon-Gold 6454S 2.2 GHz 32-core 270 W Processor Kit for HPE Alletra Storage Server 41X0

P50809-B21

Intel Xeon-Gold 6448Y 2.1 GHz 32-core 225 W Processor Kit for HPE Alletra Storage Server 41X0

P50796-B21

Intel Xeon-Gold 6444Y 3.6 GHz 16-core 270 W Processor Kit for HPE Alletra Storage Server 41X0

P50798-B21

Intel Xeon-Gold 6442Y 2.6 GHz 24-core 225 W Processor Kit for HPE Alletra Storage Server 41X0

P50795-B21

Description

SKU

Intel Xeon-Gold 6438Y+ 2.0 GHz 32-core 205 W Processor Kit for HPE Alletra Storage Server 41X0

P50806-B21

Intel Xeon-Gold 6434 3.7 GHz 8-core 205 W Processor Kit for HPE Alletra Storage Server 41X0

P50797-B21

Intel Xeon-Gold 6430 2.1 GHz 32-core 270 W Processor Kit for HPE Alletra Storage Server 41X0

P50805-B21

Intel Xeon-Gold 6426Y 2.5 GHz 16-core 185 W Processor Kit for HPE Alletra Storage Server 41X0

P50794-B21

Intel Xeon-Gold 5420+ 2.0 GHz 28-core 205 W Processor Kit for HPE Alletra Storage Server 41X0

P50804-B21

Intel Xeon-Gold 5418Y 2.0 GHz 24-core 185 W Processor Kit for HPE Alletra Storage Server 41X0

P50803-B21

Intel Xeon-Gold 5418N 1.8 GHz 24-core 165 W Processor Kit for HPE Alletra Storage Server 41X0

P50816-B21

Intel Xeon-Gold 5416S 2.0 GHz 16-core 150 W Processor Kit for HPE Alletra Storage Server 41X0

P50808-B21

Intel Xeon-Gold 5415+ 2.9 GHz 8-core 150 W Processor Kit for HPE Alletra Storage Server 41X0

P50793-B21

4th Generation Intel Xeon-Silver

Description

SKU

Intel Xeon-Silver 4416+ 2.0 GHz 20-core 165 W Processor Kit for HPE Alletra Storage Server 41X0

P50802-B21

Intel Xeon-Silver 4410Y 2.0 GHz 12-core 150 W Processor Kit for HPE Alletra Storage Server 41X0

P50801-B21

Step 2b: Choose Memory Options

Please select two or more memory DIMMs from below.

For additional information, please see the HPE DDR5 Smart Memory QuickSpecs.

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 0, 1, 2, 4, 6, 8, or 12.

- The 5600 MT/s Memory SKUs are supported for 5th Gen processors only

- The 4800 MT/s Memory SKUs are supported for 4th Gen processors only

Registered DIMMs (RDIMMs)

Notes:

- Mixing of 3DS and non-3DS DIMMs not allowed.

- Rank and capacity mixing of DIMMs is not supported

Description

SKU

HPE 16 GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-K21

HPE 32 GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-K21

HPE 64 GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-K21

HPE 96 GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64708-K21

Notes: Do not support SPR EE LCC SKUs. Do not support quantity 2 or 4 per CPU socket.

HPE 128 GB (1x128GB) Quad Rank x4 DDR5-5600 CAS-52-45-45 EC8 Registered 3DS Smart Memory Kit

P64709-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 128 GB (1x128GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P69976-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 16 GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-K21

Description

SKU

HPE 32 GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-K21

HPE 64 GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-K21

Notes: If this SKU and processors equal or greater than 270 W are selected, the maximum drive quantity is 10.

HPE 128 GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

P43334-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 128 GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69974-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 256 GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

P43337-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

Step 2c: Choose Power Supplies

Please select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT supported.

HPE Flex Slot Power Supplies

Description

SKU

HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

HPE 1000 W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 1800 W -2200 W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 1600 W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

Step 3: Choose Additional (FIO) Factory Integratable Options

Each of the following may be selected if desired at time of factory integration

Description

SKU

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

Notes:

- Enables Fast Fault Tolerance mode, an HPE Memory RAS feature introduced in HPE Gen10 servers that survives up to two DRAM failures.

- This RAS feature combines Adaptive Double DRAM Device Correction (ADDC) with HPE Advanced Error Detection Technology, resulting in significantly better memory reliability and availability that what ADDDC provides on its own. For more information see our Memory RAS feature technical whitepaper.

HPE Security Options

HPE Server Security Optimized Service for HPE ProLiant (R9S59A) is an optional security upgrade intended for agencies and regulated industries with enhanced security and compliance needs. Applying this option to a HPE Alletra Storage Server 41X0 CTO system ensures it is hardened by turning on advanced safeguards in place against cyber-exploits throughout the server lifecycle. An iLO Advanced License required for High Security Mode and compatible intrusion detection device option kits are prerequisites for the full optimization service.

Step 4: Management software

Select your choice of cloud-native management or on-premises management software.

HPE Compute Ops Management for cloud-native management

Notes: HPE Compute Ops Management for cloud-native management of Alletra Storage Servers, as well as ProLiant servers. The SKUs below are for Alletra Storage Servers specifically and are billed upfront. If you want to be billed monthly or annually, please order R6Z73AAE standalone.

Recommended SKU

SKU

HPE Compute Ops Management Standard 5-year Upfront Alletra 4000 SaaS

S1E13AAE

Alternative SKUs

SKU

HPE Compute Ops Management Standard 3-year Upfront Alletra 4000 SaaS

S1E12AAE

HPE Compute Ops Management Advanced 3-year Upfront Alletra 4000 SaaS

S5E63AAE

HPE Compute Ops Management Advanced 5-year Upfront Alletra 4000 SaaS

S5E64AAE

Notes: The COM Advanced SKUs also include an iLO Advanced license and support so a standalone iLO Advanced license does not need to be ordered separately.

Required SKU when ordering through GreenLake Flex

SKU

HPE Compute Ops Management Standard with Alletra 4000 Enablement

S4P39AAE

Notes: Both the tracking SKU above as well as one of the COM SaaS SKUs (S1E12 AAE or S1E13AAE) are needed to allow COM to be included and transacted as part of a GL Flex solution and contracts.

HPE OneView

Description

SKU

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Unique Options

Cooling Options

Description

SKU

HPE Alletra Storage Server 4110 High Performance Heat Sink Kit

P51169-B21

HPE Alletra Storage Server 4110 Smart Cooling FIO Module Kit

P51171-B21

Notes: Required for processors with a TDP equal or greater than 270 W .

HPE Alletra Storage Server 4110 High Performance Fan Kit

P51673-B21

HPE Alletra Storage Server 4110 Smart Cooling Fan Kit

P51675-B21

Notes: Required for processors with a TDP equal or greater than 270 W .

Optical Drive Options

Description

SKU

HPE Mobile USB DVD-RW Optical Drive

701498-B21

Notes: This kit is supported on USB 3.0 ports only.

Security

Description

SKU

HPE Gen11 1U Storage Bezel Kit

P52247-B21

HPE Bezel Lock Kit

875519-B21

Notes: Requires Bezel Kit (P52247-B21).

HPE Memory

Please select two or more memory DIMMs from below.

For additional information, please see the HPE DDR5 Smart Memory QuickSpecs.

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 0, 1, 2, 4, 6, 8, or 12.

- The 5600 MT/s Memory SKUs are supported for 5th Gen processors only

- The 4800 MT/s Memory SKUs are supported for 4th Gen processors only

HPE DDR5 Memory

Registered DIMMs (RDIMMs)

Notes:

- Mixing of 3DS and non-3DS DIMMs not allowed.

- Rank mixing and capacity mixing of DIMMS is not supported

Description

SKU

HPE 16 GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-K21

HPE 32 GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-K21

HPE 64 GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-K21

HPE 96 GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64708-K21

Notes: Do not support SPR EE LCC SKUs. Do not support quantity 2 or 4 per CPU socket.

HPE 128 GB (1x128GB) Quad Rank x4 DDR5-5600 CAS-52-45-45 EC8 Registered 3DS Smart Memory Kit

P64709-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 128 GB (1x128GB) Quad Rank x4 DDR5-5600 CAS-52-45-45 EC8 Registered 3DS Smart Memory Kit

P64709-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 16 GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-K21

HPE 32 GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-K21

HPE 64 GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-K21

Notes: If this SKU and processors equal or greater than 270 W are selected, the maximum drive quantity is 10.

HPE 128 GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

P43334-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 128 GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69974-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE 256 GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

P43337-K21

Notes: This SKU cannot be selected if processors equal or greater than 270 W or GPU are selected.

HPE Boot Device

Description

SKU

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

Notes: Supported when processors equal or less than 270 W .

HPE Alletra Storage Server 41X0 Direct Attach NVMe M.2 OS Boot Device

P60350-B21

Notes:

- No NVMe M.2 SSD included and requires at least one NVMe SSD.

- Supported when processors equal or less than 270 W .

HPE 960 GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting PE9010 SSD

P80327-K21

HPE 480 GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80318-K21

HPE 960 GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80321-K21

HPE 1.92 TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80324-K21

HPE 480 GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi-Vendor SSD

P40513-B21

Description

SKU

HPE 960 GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi-Vendor SSD

P40514-B21

HPE 1.92 TB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi-Vendor SSD

P40515-B21

HPE Alletra Storage Server 4110 NVMe M.2 Enablement Kit

P51206-B21

Notes: Required when NVMe Boot Device is selected.

HPE Solid State Drives

For SSD selection guidance, please visit https://ssd.HPE.com/

Mixed Use - NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

Description

SKU

HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-K21

HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61195-K21

HPE 1.6 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-K21

HPE 3.2 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-K21

HPE 6.4 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-K21

HPE 1.6 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-K21

HPE 3.2 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-K21

HPE 6.4 TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-K21

Mixed Use - NVMe EDSFF - E3S EC1 EDSFF Self-Encrypting Solid-State Drives

Description

SKU

HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70669-K21

HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-K21

HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-K21

HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P79122-K21

Notes:

- For direct attach:

• Requires TPM 2.0 for Local Key encryption.
• iLO Advanced required for SED connectivity into customer's Remote Key Management environment.

HPE 3.2 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-K21

HPE 6.4 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-K21

HPE 12.8 TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-K21

Read Intensive - PCIe/NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

Description

SKU

HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-K21

HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57803-K21

HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-K21

HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-K21

HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-K21

Description

SKU

HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-K21

HPE 3.84 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-K21

HPE 7.68 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-K21

HPE 15.36 TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-K21

HPE 1.92 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-K21

HPE 3.84 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69237-K21

HPE 7.68 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69239-K21

HPE 15.36 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-K21

HPE 1.92 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-K21

HPE 7.68 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77273-K21

HPE 15.36 TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-K21

Very Read Optimized - PCIe/NVMe EDSFF - E3S EC1 EDSFF Solid State Drives

Description

SKU

HPE 3.84 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-K21

HPE 7.68 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-K21

HPE 15.36 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-K21

HPE 30.72 TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P79065-K21

Read Intensive - PCIe/NVMe U.3 - SFF Basic Carrier Solid State Drives

Description

SKU

HPE 1.92 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-K21

HPE 3.84 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50219-K21

HPE 7.68 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50222-K21

HPE 15.36 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50224-K21

HPE 960 GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi-Vendor SSD

P64842-K21

HPE 1.92 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi-Vendor SSD

P64844-K21

HPE 3.84 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi-Vendor SSD

P64846-K21

HPE 7.68 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi-Vendor SSD

P64848-K21

HPE 1.92 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63829-K21

HPE 3.84 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-K21

HPE 7.68 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-K21

HPE 15.36 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-K21

HPE 7.68 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-K21

HPE 15.36 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-K21

HPE 7.68 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84242-K21

HPE 3.84 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84244-K21

HPE 15.36 TB NVMe Gen4 Mainstream Performance Read Intensive BC U.3 Static V2 SPDM Multi-Vendor SSD

P84236-K21

HPE 15.36 TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-K21

Notes:

- For direct attach:

• Requires TPM 2.0 for Local Key encryption.
• iLO Advanced required for SED connectivity into customer's Remote Key Management environment.

SED (Self-Encryption Drive)

Description

SKU

HPE 1.92 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-K21

HPE 3.84 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-K21

HPE 7.68 TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-K21

Mixed Use - PCIe/NVMe U.3 - SFF Basic Carrier Solid State Drives

Description

SKU

HPE 1.6 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-K21

HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50230-K21

HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50233-K21

HPE 800 GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi-Vendor SSD

P64999-K21

HPE 1.6 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi-Vendor SSD

P65007-K21

HPE 3.2 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi-Vendor SSD

P65015-K21

HPE 6.4 TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi-Vendor SSD

P65023-K21

HPE 1.6 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-K21

HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-K21

HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-K21

HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-K21

HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-K21

Notes:

- For direct attach:

• Requires TPM 2.0 for Local Key encryption.
• iLO Advanced required for SED connectivity into customer's Remote Key Management environment.

SED (Self-Encryption Drive)

Description

SKU

HPE 1.6 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-K21

HPE 3.2 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-K21

HPE 6.4 TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-K21

Notes:

- For direct attach:

• Requires TPM 2.0 for Local Key encryption.
• iLO Advanced required for SED connectivity into customer's Remote Key Management environment.

HPE Smart IO

HPE Networking

1 Gigabit Ethernet adapters

Description

SKU

Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T Adapter for HPE

P51178-B21

Intel I350-T4 Ethernet 1 GB 4-port BASE-T Adapter for HPE

P21106-B21

10 Gigabit Ethernet adapters

Description

SKU

Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ Adapter for HPE

P26259-B21

25 Gigabit Ethernet adapters

Description

SKU

Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE

P26264-B21

Broadcom BCM57414 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE

P26262-B21

NVIDIA Ethernet 10/25 GB 2-port SFP28 NVMe-of Crypto Adapter for HPE

S2A69A

Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE

P08443-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25 GB 2-port SFP28 Adapter for HPE

P42044-B21

Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE

P08458-B21

Notes:

- Cannot be selected when processors equal or greater than 270 W or 3DS Smart Memory Kit are selected.

- Support limited to 25°C maximum inlet temperature.

100 Gigabit Ethernet adapters

Description

SKU

Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 Adapter for HPE

P21112-B21

Notes:

- Cannot be selected when processors equal or greater than 270 W or 3DS Smart Memory Kit are selected.

- Support limited to 25°C maximum inlet temperature.

Mellanox MCX623106AS-CDAT Ethernet 100 GB 2-port QSFP56 Adapter for HPE

P25960-B21

Notes:

- Cannot be selected when processors equal or greater than 270 W or 3DS Smart Memory Kit are selected.

- Support limited to 25°C maximum inlet temperature.

200 Gigabit Ethernet adapters

Description

SKU

Notes:

- Cannot be selected when processors equal or greater than 270 W or 3DS Smart Memory Kit are selected.

- Support limited to 25°C maximum inlet temperature.

OCP Adapters

Description

SKU

Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

Notes: Cannot be selected when processors equal or greater than 270 W are selected.

Intel I350-T4 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Notes: Cannot be selected when processors equal or greater than 270 W are selected.

Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Notes: Cannot be selected when processors equal or greater than 270 W are selected.

Description

SKU

Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Notes:

- Must add x16 OCP enablement kit (P36661-B21) if NIC x16 connectivity desired.

- Requires the High Performance Fan Kit (P26477-B21).

Broadcom BCM57414 Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Notes: Cannot be selected when processors equal or greater than 270 W are selected.

Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Notes:

- Cannot be selected when processors greater than 205 W are selected.

- Support limited to maximum 64 GB capacity per DIMM

- Support limited to 10 drives per system

Mellanox MCX631432AS-ADAI Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

Notes: Cannot be selected when processors equal or greater than 270 W are selected.

HPE OCP Thermal Enhancement Kit

P28727-B21

HPE InfiniBand

Notes: Cannot be selected when processors equal or greater than 270 W are selected.

Description

SKU

HPE InfiniBand NDR/Ethernet 400 GB 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter

P45641-B23

HPE InfiniBand NDR200/Ethernet 200 GB 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Adapter

P45642-B22

HPE InfiniBand NDR200/Ethernet 200 GbE 2-port QSFP112 PCIe5 x16 MCX755106AC-HEAT Adapter

P65333-B21

HPE Power Supplies

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Plus Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

HPE Flex Slot Hot-plug Power supplies

Description

SKU

HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

HPE 1000 W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 1800 W -2200 W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 1600 W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Compute Ops Management

Notes: HPE Compute Ops Management for cloud-native management is available in two tiers: Standard, for managing systems individually, or enhanced for management of multiple systems. Billing frequency is available as upfront, monthly, quarterly, or annual payments.

Description

SKU

HPE Compute Ops Management Standard 3-year Upfront Alletra 4000 SaaS

S1E12AAE

HPE Compute Ops Management Standard 5-year Upfront Alletra 4000 SaaS

S1E13AAE

HPE Compute Ops Management Advanced 3-year Upfront Alletra 4000 SaaS

S5E63AAE

HPE Compute Ops Management Advanced 5-year Upfront Alletra 4000 SaaS

S5E64AAE

Notes: The COM Advanced SKUs also include an iLO Advanced license and support so a standalone iLO Advanced license does not need to be ordered separately.

Embedded Management

HPE iLO Advanced

Description

SKU

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Common Password Setting

Description

SKU

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE Converged Infrastructure Management Software

HPE OneView Advanced (with HPE iLO Advanced)

Description

SKU

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView Advanced (without HPE iLO Advanced)

Description

SKU

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Notes:

- Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: https://www.HPE.com/us/en/integrated-systems/software.html

- Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

HPE Security

Description

SKU

HPE Gen11 1U Storage Bezel Kit

P52247-B21

HPE Bezel Lock Kit

875519-B21

Software RAID

Description

SKU

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes:

- The Intel® VROC Premium is available for RAID support 0, 1, 5, 10 at the field.

- If Intel® VROC Premium is the primary controller, then the following RAID levels are allowed: 0, 1, 5 (available from RAID FIO settings at HPE factory). Requires selection of NVMe Drives through Direct Attach supported only.

- If Intel® RAID is being selected in a configuration with VROC and internal controller, then Customer Defined RAID Setting (389692-B21) must be selected.

Intel Virtual RAID on CPU Premium E-RTU for HPE

R7J59AAE

Notes: Same as Intel Virtual RAID on CPU Premium FIO Software for HPE (R7J57A) but intended for field deployments.

Intel Virtual RAID on CPU Standard E-RTU for HPE

S0E38AAE

Notes: Same as Intel Virtual RAID on CPU Standard FIO Software for HPE (S0E37A) but intended for field deployments.

Essential RAID Controllers

Description

SKU

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Notes: For more information on the HPE Smart Array E208i-p SR Gen10 Controller, please refer to the QuickSpecs

GPU

Notes:

- There is no Energy Star 3.0 certification with Graphic cards.

- Please contact your HPE representative for the system thermal details

Description

SKU

NVIDIA A2 16 GB PCIe Non-CEC Accelerator for HPE

R9H23C

Notes: PCIe 4.0

NVIDIA L4 24 GB PCIe Accelerator for HPE

S0K89C

HPE Storage Options

Emulex Fibre Channel HBAs

Description

SKU

HPE SN1200E 16 GB Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE SN1200E 16 GB Dual Port Fibre Channel Host Bus Adapter

Q0L14A

HPE SN1610E 32 GB 1-port Fibre Channel Host Bus Adapter

R2J62A

HPE SN1610E 32 GB 2-port Fibre Channel Host Bus Adapter

R2J63A

HPE SN1700E 64 GB 1-port Fibre Channel Host Bus Adapter

R7N77A

HPE SN1700E 64 GB 2-port Fibre Channel Host Bus Adapter

R7N78A

QLogic Fibre Channel HBAs

Description

SKU

HPE SN1100Q 16 GB Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE SN1100Q 16 GB Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE SN1610Q 32 GB 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32 GB 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1700Q 64 GB 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter

R7N87A

HPE Rack Options

Rail Kits

Notes:

- HPE rail kits contain telescoping rails which allow for in-rack serviceability.

- Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations.

- Please refer to your installation instructions for proper tools and number of people to use for any installation.

Description

SKU

HPE Easy Install Rail 7 Kit

P52339-B21

Notes: Used with 20 SFF model.

HPE DL325 Gen10 Plus Cable Management Arm

P18546-B21

Notes: Used with HPE Easy Install Rail 7 Kit (P52339-B21).

HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit

P52341-B21

Notes: Used with 20 EDSFF model.

HPE ProLiant DL300 Gen10 Plus 1U Cable Management Arm for Rail Kit

P26489-B21

Notes: Used with HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit (P52341-B21).

HPE Racks

- Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.

- Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Power Distribution Units (PDUs)

- Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications. Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

- To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

- Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.

- Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

HPE USB and SD Options

Notes: In vSphere 7.0, VMware made changes that impact the use of an SD Card/USB media as a standalone boot device and will be removing support for them after version 7.x.

SD Card/USB media can still be used as a standalone boot option through all 7.x releases via published Customer Advisory Usage of SD Card/USB Devices As Standalone Boot Devices Has Changed Due to System Storage Changes For VMware ESXi 7.0 (Or Later).

For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option.

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

Description

SKU

HPE 32 GB microSD RAID 1 USB Boot Drive

P21868-B21

HPE Support Services

Installation & Start-up Services

Tech Care

Notes: For a full listing of support services available for this server, please visit http://www.HPE.com/services.

System Unit

Dimensions (Height x Width x Depth)

- 20 SFF Drives SKU

• 4.29 x 43.46 x 84.22 cm
• 1.69 x 17.11 x 33.16 in

- 20 EDSFF Drives SKU

• 4.29 x 43.46 x 73.27 cm
• 1.69 x 17.11 x 28.85 in

Weight (approximate)

- 20 SFF Drives SKU

• Minimum: 11.62 kg (25.62 lb)
• Maximum: 24.01 kg (52.93 lb)

- 20 EDSFF Drives SKU

• Minimum: 8.84 kg (19.49 lb)
• Maximum: 19.94 kg (43.96 lb)

Input Requirements (per power supply)

Rated Line Voltage

- For 1800-2200 W (Titanium): 200-240 VAC

- For 1600 W (Platinum): 200-240 VAC

- For 1000 W (Titanium): 200-240 VAC

- For 800 W (Platinum): 100-240 VAC

- For 1600 W (-48VDC): -40 Vdc to -72 Vdc

System Inlet Temperature

- Standard Operating Support

• 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
• System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).
• For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.HPE.com/servers/ashrae

Extended Ambient Operating Support

• For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system require the High Performance Fan Kit (P26477-B21) and are listed at the URL: http://www.HPE.com/servers/ashrae
• System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity (non-condensing)

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Emissions Classification (EMC)

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.HPE.com/support/Safety-Compliance-EnterpriseProducts

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Notes: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.
