HPE Ethernet 10Gb 2-port 562 Adapters

Extended SKU - This adapter is part of an extended catalog of products tailored for customers in specific markets or with specific workloads, requiring the utmost in performance or value, but typically have a longer lead-time.

The HPE Ethernet 10Gb 2-port 562 adapters (include HPE Ethernet 10Gb 2-port 562FLR-T Adapter and HPE Ethernet 10Gb 2-port 562T Adapter) for ProLiant servers are dual-port 10G BASE-T adapters featuring Intel X550 Controller in both FlexibleLOM (562FLR-T) and Stand up (562T) form factors. These adapters deliver full line-rate performance across all ports utilizing CAT 6A UTP cabling with distances up to 100 meters. Providing high performance Ethernet connectivity, it is ideal for virtual server and cloud computing environments.

The HPE Ethernet 562 adapters can provide up to 40Gbps of bi-directional Ethernet bandwidth, helping to alleviate network bottlenecks.

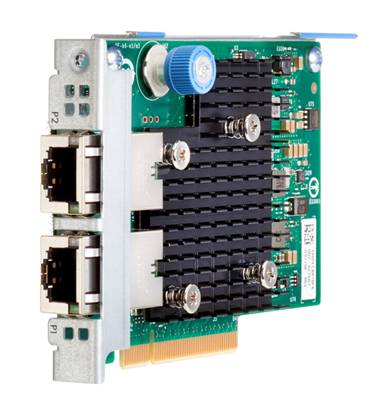

HPE Ethernet 10Gb 2-port 562FLR-T Adapter

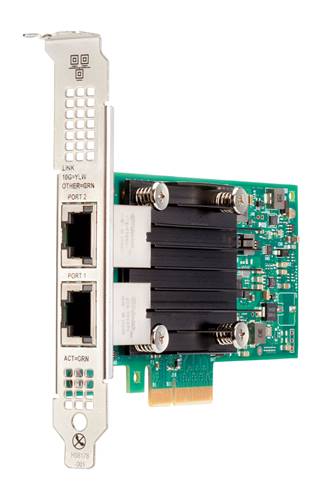

HPE Ethernet 10Gb 2-port 562T Adapter

Models

HPE Ethernet 10Gb 2-port 562FLR-T Adapter (Extended)

817745-B21

HPE Ethernet 10Gb 2-port 562T Adapter (Extended)

817738-B21

Kit Contents

HPE Ethernet 10Gb 2-port 562FLR-T Adapter

Quick install card

Product warranty statement

HPE Ethernet 10Gb 2-port 562T Adapter

Quick install card

Product warranty statement

Low-profile bracke

Compatibility

Supported Servers

HPE ProLiant DL20 Gen10 Server (562T)

HPE ProLiant DL120 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL160 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL180 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL360 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL380 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL385 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL560 Gen10 Server (562FLR-T, 562T)

HPE ProLiant DL580 Gen10 Server (562FLR-T, 562T)

HPE Apollo 2000 XL170r Gen10 Server (562FLR-T, 562T)

HPE Apollo 2000 XL190r Gen10 Server (562FLR-T, 562T)

HPE Apollo 4500 XL450 Gen10 Server (562FLR-T, 562T)

HPE Apollo 6000 XL230k Gen10 Server (562T)

HPE Apollo 6500 XL270d Gen10 Server (562T)

HPE ProLiant ML30 Gen10 Server (562T)

HPE ProLiant ML110 Gen10 Server (562T)

HPE ProLiant ML350 Gen10 Server (562T)

NOTE: This is a list of supported servers. Some may be discontinued.

At a Glance Features

Dual 10Gb ports provide up to 40 Gb/s bi-directional Ethernet bandwidth

Jumbo Frame

FlexibleLOM (562FLR-T) and Stand up (562T)

HPE Sea of Sensors 3D

Tunnel Offload(NVGRE and VxLAN)

Single-root input/output virtualizaton (SR-IOV)

IPv6 Acceleration

Preboot eXecution Environment (PXE)

Wake on Lan (WOL)- (only 562FLR-T)

Checksum & Segmentation Offload

VMware NetQueue and Microsoft Virtual Machine Queue (VMQ)

Precision Time Protocol (PTP)

Data Plane Development Kit (DPDK)

Throughput-Theoretical Bandwidth

This adapter delivers 20 Gb/s bi-directional Ethernet transfer rate per port (40 Gb/s per adapter), providing the network performance needed to improve response times and alleviate bottlenecks.

Checksum & Segmentation Offload

Normally the TCP Checksum is computed by the protocol stack. Segmentation Offload is technique for increasing outbound throughput of high-bandwidth network connections by reducing CPU overhead. The technique is also called TCP segmentation offload (TSO) when applied to TCP, or generic segmentation offload (GSO).

DPDK

This adapter supports DPDK with benefit for packet processing acceleration and use in NFV deployments.

Form Factor

This adapter series offers both FlexibleLOM and Stand up.

HPE Sea Of Sensors 3D

Support for the HPE Sea of Sensors which is a collection of 32 sensors that automatically track thermal activity - heat - across the server. When temperatures get too high, sensors can initiate fans and make other adjustments to reduce energy usage. A significant improvement lies in the ability to apply fan speed increases only to the portion of the system that is rising in temperature, rather than all six fans in unison, which reduces the amount of energy used for cooling.

IPv6

IPv6 uses 128-bit addressing allowing for more devices and users on the internet. IPv4 supported 32-bit addressing.

Jumbo Frames

This adapter supports Jumbo Frames (also known as extended frames), permitting up to a 9,600 byte (KB) transmission unit (MTU) when running Ethernet I/O traffic. This is over six times the size of a standard 1500-byte Ethernet frame. With Jumbo Frames, networks can achieve higher throughput performance and greater CPU utilization. These attributes are particularly useful for database transfer and tape backup operations.

Management Support

This adapter ships with agents that can be managed from HPE Systems Insight Manager or other management application that support SNMP.

Preboot eXecution Environment (PXE)

Support for PXE enables automatic deployment of computing resources remotely from anywhere. It allows a new or existing server to boot over the network and download software, including the operating system, from a management/ deployment server at another location on the network. Additionally, PXE enables decentralized software distribution and remote troubleshooting and repairs.

Server Integration

This adapter is a validated, tested, and qualified solution that is optimized for HPE ProLiant servers. Hewlett Packard Enterprise validates a wide variety of major operating systems drivers with the full suite of web-based enterprise management utilities including HPE Intelligent Provisioning and HPE Systems Insight Manager that simplify network management.

This approach provides a more robust and reliable networking solution than offerings from other vendors and provides users with a single point of contact for both their servers and their network adapters.

Single-Root I/O Virtualization

Single-Root I/O Virtualization (SR-IOV) provides a mechanism to bypass the host system hypervisor in virtual environments providing near metal performance and server efficiency. SR-IOV provides mechanism to create multiple Virtual Functions (VFs) to share single PCIe resources. The device is capable of SR-IOV, and requires Server BIOS support, controller firmware, and OS support.

Precision Time Protocol (IEEE 1588 PTP)

Synchronization of system clocks throughout a network, achieving clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems.

Tunnel Offload

Minimize the impact of overlay networking on host performance with tunnel offload support for VXLAN, NVGRE and GENEVE. By offloading packet processing to adapters, customers can use overlay networking to increase VM migration flexibility and virtualized overlay networks with minimal impact to performance. HPE Tunnel Offloading increases I/O throughput, reduces CPU utilization, and lowers power consumption. Tunnel Offload supports VMware's VXLAN, Microsoft's NVGRE solutions and Generic Network Virtualization Encapsulation (GENEVE) solutions.

VMware NewQueue and Microsoft Virtual Machine Queue (VMQ)

VMware NetQueue is technology that significantly improves performance of 10 Gigabit Ethernet network adapters in virtualized environments.

Windows Hyper-V VMQ (VMQ) is a feature available on servers running Windows Server 2008 R2 with VMQ-enabled Ethernet adapters. VMQ uses hardware packet filtering to deliver packet data from an external virtual machine network directly to virtual machines, which reduces the overhead of routing packets and copying them from the management operating system to the virtual machine.

Wake-on-LAN

This adapter provides Wake-on-LAN (WoL) support through the PCI Express bus. A system that supports Wake-on-LAN can remain available to the systems administrator during its normal downtime. Once the machine is awakened, the systems administrator can remotely control, audit, debug, or manage the machine.

Warranty

Maximum: The remaining warranty of the HPE product in which it is installed (to a maximum three-year, limited warranty).

Minimum: One year limited warranty.

NOTE: Additional information regarding worldwide limited warranty and technical support is available at:

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/index.aspx#.V4e3tPkrJhE

Service and Support

NOTE: This adapter is covered under HPE Support Services/ Service Contract applied to the HPE ProLiant Server or enclosure. No separate HPE Support Services need to be purchased.

Most HPE branded options sourced from HPE that are compatible with your product will be covered under your main product support at the same level of coverage, allowing you to upgrade freely. Additional support is required on select workload accelerators, switches, racks and UPS options 12KVA and over. Coverage of the UPS battery is not included under HPE support services; standard warranty terms and conditions apply.

Warranty and Support Services

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS options 12KVA and over. Coverage of the UPS battery is not included under TS support services; standard warranty terms and conditions apply.

Protect your business beyond warranty with HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HPE to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement to the support you need for your IT and business.

Protect your product, beyond warranty.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

Visit the Hewlett Packard Enterprise Service and Support website.

General Specifications

Power and Environmental Specifications

Operating System and Virtualization Support

The Operating Systems supported by this adapter are based on the server OS support. Please refer to the OS Support Matrix at https://www.hpe.com/us/en/servers/server-operating-systems.html.

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

02-Jul-2018

Version 5

Changed

Models and Compatibility sections were updated

07-May-2018

Version 4

Changed

Compatibility section was updated

05-Feb-2018

Version 3

Changed

Overview section was updated

16-Oct-2017

Version 2

Changed

Overview was updated.

25-Sep-2017

Version 1

Created

New QuickSpecs
