HPE ProLiant ML350 Gen11 QuickSpecs

Offers the most powerful and flexible 2P tower server with a rackable chassis design for various environments, delivering exceptional compute performance, security, reliability, and expandability.

Designed to fulfill a wide range of workloads for small offices, remote and branch offices of large enterprises, growing SMBs, and data centers. HPE ProLiant ML350 Gen11 server is an excellent choice to accelerate your growing business.

HPE ProLiant ML350 Gen11

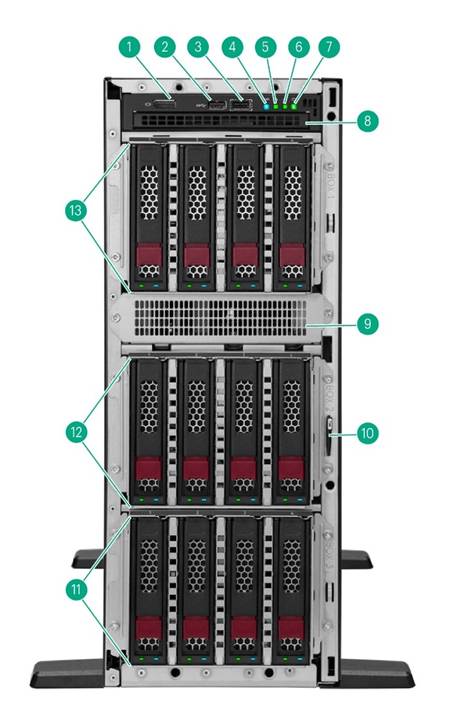

Front View - LFF chassis with optional Gen11 4LFF HDD Cage Kits shown (Tower mode)

Item

Description

Item

Description

1.

DisplayPort 1.1a

8.

Optical drive bay

2.

USB 3.2 Gen1 port

9.

Media bay filler panel

3.

iLO service port

10.

Serial number/iLO information pull tab

4.

UID button/LED

11.

Box 3: Default drive cage for 4LFF

5.

NIC status LED¹

12.

Box 2: Optional drive cage for 8SFF/4LFF

6.

Health LED

13.

Box 1: Optional drive cage for 8SFF/4LFF, or internal LTO tape drive

7.

Power on/Standby button and system power LED

Notes:¹ Front NIC LED display does not support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NICs.

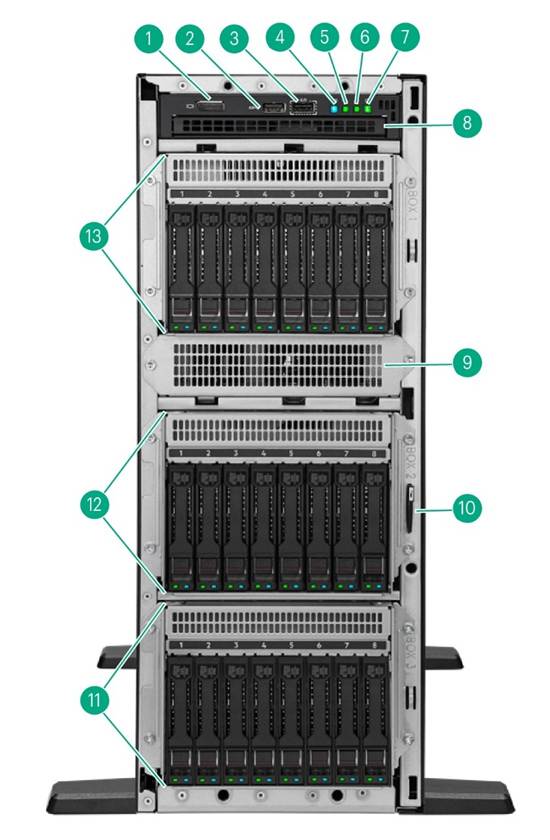

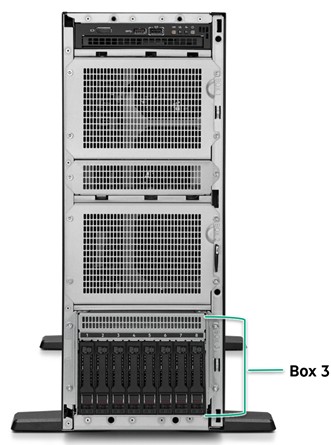

Front View - SFF chassis with optional Gen11 8SFF HDD Cage Kits shown (Tower mode)

Item

Description

Item

Description

1.

DisplayPort 1.1a

8.

Optical drive bay

2.

USB 3.2 Gen1 port

9.

Media bay filler panel

3.

iLO service port

10.

Serial number/iLO information pull tab

4.

UID button/LED

11.

Box 3: Default drive cage for 8SFF*

5.

NIC status LED

12.

Box 2: Optional drive cage for 8SFF

6.

Health LED

13.

Box 1: Optional drive cage for 8SFF, or internal LTO tape drive

7.

Power on/Standby button and system power LED

Notes: *Optional for 8SFF x4 U.3 drive kit or 12 EDSFF drive kit.

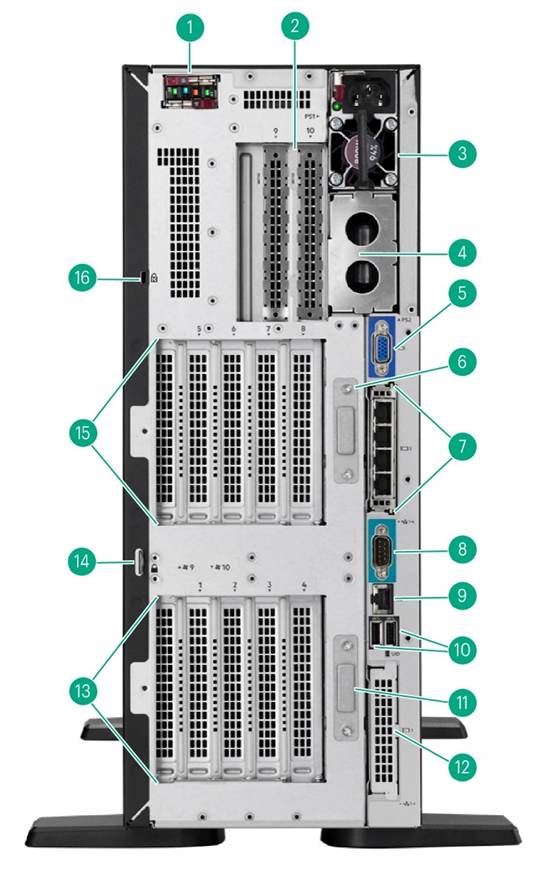

Rear View - With HPE Flex Slot RPS shown.

Item

Description

Item

Description

1.

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)

9.

iLO management port

2.

PCIe Slots 9-10 (Optional tertiary riser, 2^nd processor required for expansion card installation)

10.

USB 3.2 Gen 1 ports x2

3.

Flexible Slot power supply 1

11.

External Fan connector 10

4.

Flexible Slot power supply 2 (Optional)

12.

Slot 14 OCP 1 (Optional for OROC/NIC adapter)

5.

VGA Port

13.

PCIe Slots 1-4 (Primary riser)

6.

External Fan connector 9

14.

Padlock eye

7.

Slot 15 OCP 2 (Optional for NIC adapter)

15.

PCIe Slots 5-8 (Secondary riser)

8.

Serial port (Optional)

16.

Kensington slot

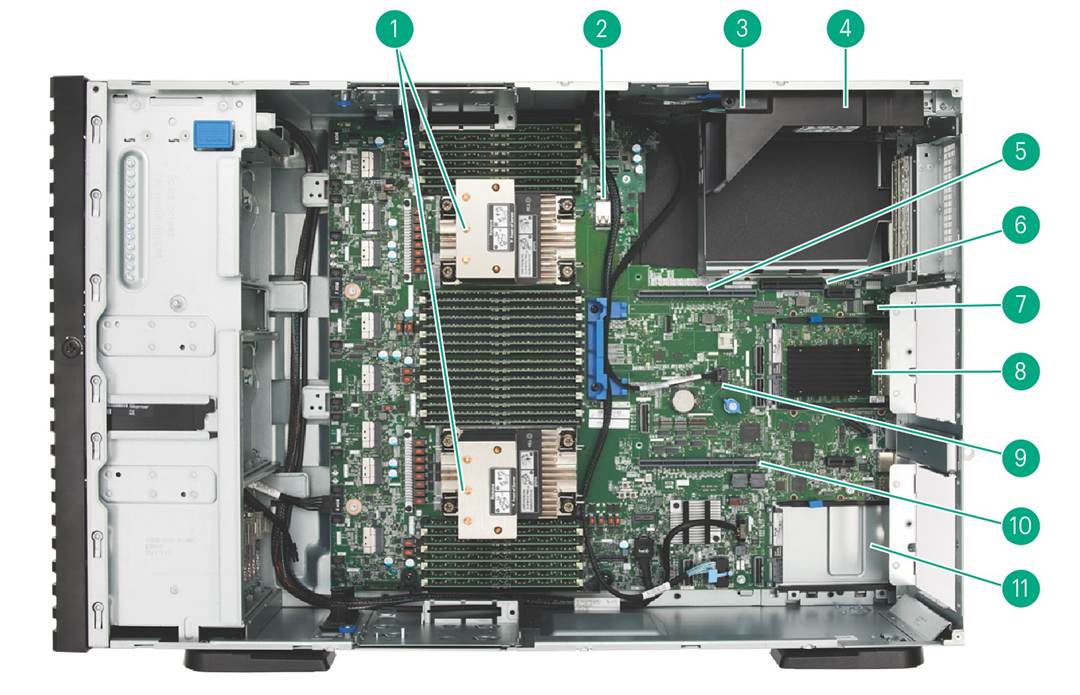

Internal View - with optional 2^nd CPU, OCP NIC adapter and NS204i-u shown

Item

Description

Item

Description

1.

CPU Socket 1¹ and 2²

7.

Serial port cable connector

2.

Dual USB port (Stacked, Top: USB 3.2 Gen 1 port, Bottom: USB 2.0 port)

8.

Slot 15 OCP 2 (Optional for NIC adapter)

3.

Megacell battery holder (Under)

9.

HPE NS204i-u power connector

4.

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device (Optional)

10.

Primary riser connector

5.

Secondary riser connector

11.

Slot 14 OCP 1 (Optional for OROC/NIC adapter)

6.

Tertiary riser sideband connector

Notes:

- ¹ CPU1 (bottom) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total).

- ² CPU2 (top) shown Standard Heatsink with fully memory populated in 16 slots (32 slots in total).

What's New

- Powered by 4th Generation Intel® Xeon® Scalable processors that support up to 60 cores at 350 W, 112.5 MB of L3 Cache, and 32 DIMMs for DDR5 memory up to 4800 MT/s.

- Increased memory bandwidth, performance and lower power requirements with DDR5 memory that supports up to 8 TB memory capacity with 8 channels per processor.

- Advanced data transfer rates from the PCIe Gen5 serial expansion bus.

- Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.

- Supports Tri-mode SFF backplane and hot-pluggable RAID1 protected NS204i-u M.2 NVMe boot option.

- New x4 U.3 NVMe drive cage and EDSFF drive cage to support up to 12 EDSFF PCIe Gen5 NVMe drives.

- Supports NVIDIA L40 48 GB PCIe Accelerator.

- Supports L4 and A16 NVIDIA Accelerators.

- Supports 1800W-2200W Flex Slot Titanium Hot Plug Power Supply.

- Supports 5th Generation Intel® Xeon® Scalable processors that support up to 64 cores at 350W/330W TDP, 320 MB Cache.

- Supports DDR5 5600 MT/s memory 16, 32, 64, 96, 128 GB DIMM modules with 5th Gen Intel® Xeon® Scalable processors.

- New pre-configured SKUs with 5th Generation Intel® Xeon® Scalable processors.

- Supports 24TB SAS/SATA 7.2K LFF LP HDDs.

- Supports internal LTO tape drive.

- Supports HPE MR408i-p Gen11 x8 Lanes 4 GB Cache PCI SPDM Plug-in Storage Controller

- Supports new HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device and HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

- Supports NVIDIA L40S 48 GB PCIe Accelerator, new 15.36 TB NVMe drives.

- Supports new 26 TB 7.2K SAS and SATA LFF drives.

Platform Information

Form Factor

- 4U tower with rack conversion capability

Notes: When deployed as a Rack model, this system will take up 5U-height space in a standard data center rack facility.

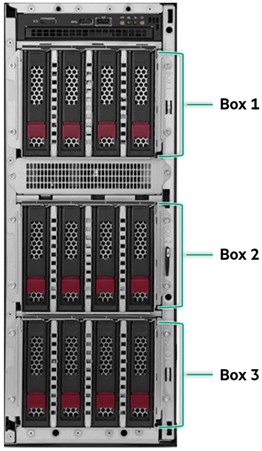

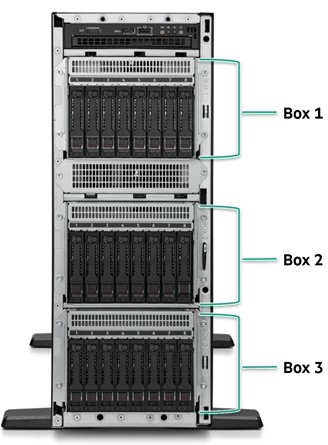

Chassis Types

- 8 SFF chassis with optional Tri-mode SFF cage kit (s), x4 NVMe SFF cage kit, 12 EDSFF cage kit, internal LTO tape drive and 1 slim-line DVD bay kit options.

- 4 LFF chassis with optional LFF or SFF cage kit (s), internal LTO tape drive and 1 slim-line DVD bay kit options.

Notes:

- Mixed SFF and LFF drive cages are supported with the LFF chassis, up to three drive cages.

- internal LTO tape drive supported up to 1.

- U.3 x4 NVMe 8SFF and 12 EDSFF drive cage kit are supported with SFF CTO server only, up to one drive cage.

System Fans

- Standard - 3 fans included.

Notes:

- Base models typically ship with 3 standard fans as default with every ML350 Gen11 server operation.

- Performance models typically ship with 8 standard fans which provides N+1 redundant fan feature in most situations. For support details or restrictions, refer to ML350 Gen11 User Guide.

- Optional Redundant Fan Kit (P47219-B21), Second CPU Fan Kit (P47902-B21) and External GPU Fan Kit (P47220-B21) provide advanced cooling and redundancy functionality in heavier configurations. Configurations that require fan kit are provided in later sections.

Processors

Up to 2 of the following processors, depending on model.

Notes:

- For more information regarding Intel® Xeon® processors, refer to the following: https://www.intel.com/content/www/us/en/products/details/processors/xeon/scalable.html.

- Field upgrade from 4th generation processors (x4xx) to 5th generation processors (x5xx) is not supported.

Intel® Fourth Generation Xeon® Scalable Processors

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache

TDP

UPI

(16 GT/s)

DDR5

SGX Enclave

size

Platinum Processors

Platinum 8490H Processor

1.9 GHz

60

112.5 MB

350W

4

4800 MT/s

512 GB

Platinum 8480+ Processor

2.0 GHz

56

105 MB

350W

4

4800 MT/s

512 GB

Platinum 8470N Processor

1.7 GHz

52

97.5 MB

300W

3

4800 MT/s

128 GB

Platinum 8470 Processor

2.0 GHz

52

105 MB

350W

4

4800 MT/s

512 GB

Platinum 8468 Processor

2.1 GHz

48

105 MB

350W

4

4800 MT/s

512 GB

Platinum 8468V Processor

2.4 GHz

48

97.5 MB

330W

3

4800 MT/s

128 GB

Platinum 8458P Processor

2.7 GHz

44

82.5 MB

350W

3

4800 MT/s

512 GB

Platinum 8460Y+ Processor

2.0 GHz

40

105 MB

300W

4

4800 MT/s

128 GB

Platinum 8452Y Processor

2.0 GHz

36

67.5 MB

300W

4

4800 MT/s

128 GB

Platinum 8444H Processor

2.9 GHz

16

45 MB

270W

4

4800 MT/s

512 GB

Gold Processors

Gold 6448H Processor

2.4 GHz

32

60 MB

250W

3

4800 MT/s

512 GB

Gold 6454S Processor

2.2 GHz

32

60 MB

270W

4

4800 MT/s

128 GB

Gold 6448Y Processor

2.1 GHz

32

60 MB

225W

3

4800 MT/s

128 GB

Gold 6430 Processor

2.1 GHz

32

60 MB

270W

3

4400 MT/s

128 GB

Gold 6438N Processor

2.0 GHz

32

60 MB

205W

3

4800 MT/s

128 GB

Gold 6438Y+ Processor

2.0 GHz

32

60 MB

205W

3

4800 MT/s

128 GB

Gold 6414U Processor*

2.0 GHz

32

60 MB

250W

N/A

4800 MT/s

128 GB

Gold 6421N Processor*

1.8 GHz

32

60 MB

185W

N/A

4400 MT/s

128 GB

Gold 6442Y Processor

2.6 GHz

24

60 MB

225W

3

4800 MT/s

128 GB

Gold 6418H Processor

2.1 GHz

24

60 MB

185W

3

4800 MT/s

512 GB

Gold 6416H Processor

2.2 GHz

18

45 MB

165W

3

4800 MT/s

512 GB

Gold 6426Y Processor

2.5 GHz

16

37.5 MB

185W

3

4800 MT/s

128 GB

Gold 6434 Processor

3.7 GHz

8

22.5 MB

195W

3

4800 MT/s

128 GB

Gold 5420+ Processor

2.0 GHz

28

52.5 MB

205W

3

4400 MT/s

128 GB

Gold 5418N Processor

1.8 GHz

24

45 MB

165W

3

4000 MT/s

128 GB

Gold 5418Y Processor

2.0 GHz

24

45 MB

185W

3

4400 MT/s

128 GB

Gold 5411N Processor*

1.9 GHz

24

45 MB

165W

N/A

4400 MT/s

128 GB

Gold 5416S Processor

2.0 GHz

16

30 MB

150W

3

4400 MT/s

128 GB

Gold 5415+ Processor

2.9 GHz

8

22.5 MB

150W

3

4400 MT/s

128 GB

Silver Processors

Silver 4416+ Processor

2.0 GHz

20

37.5 MB

165W

2

4000 MT/s

64 GB

Silver 4410Y Processor

2.0 GHz

12

30 MB

150W

2

4000 MT/s

64 GB

Bronze Processors

Bronze 3408U Processor*

1.8 GHz

8

22.5 MB

125W

N/A

4000 MT/s

64 GB

Intel® Fifth Generation Xeon® Scalable Processors

Intel® Xeon® Models

CPU Frequency

Cores

L3 Cache

TDP

UPI

(16 GT/s)

DDR5

SGX Enclave

size

Platinum Processors

Platinum 8592+ Processor

1.9 GHz

64

320 MB

350W

4

5600 MT/s

512 GB

Platinum 8592V Processor

2.0 GHz

64

320 MB

330W

3

4800 MT/s

512 GB

Platinum 8580 Processor

2.0 GHz

60

300 MB

350W

4

5600 MT/s

512 GB

Platinum 8581V Processor*

2.0 GHz

60

300 MB

270W

N/A

4800 MT/s

512 GB

Platinum 8570 Processor

2.1 GHz

56

300 MB

350W

4

5600 MT/s

512 GB

Platinum 8568Y+ Processor

2.3 GHz

48

300 MB

350W

4

5600 MT/s

512 GB

Platinum 8558 Processor

2.1 GHz

48

260 MB

330W

4

5200 MT/s

512 GB

Platinum 8558U Processor*

2.0 GHz

48

260 MB

300W

N/A

4800 MT/s

512 GB

Platinum 8558P Processor

2.7 GHz

48

260 MB

350W

3

5600 MT/s

512 GB

Gold Processors

Gold 6554S Processor

2.2 GHz

36

180 MB

270W

4

5200 MT/s

128 GB

Gold 6530 Processor

2.1 GHz

32

160 MB

270W

3

4800 MT/s

128 GB

Gold 6548Y+ Processor

2.5 GHz

32

60 MB

250W

3

5200 MT/s

128 GB

Gold 6548N Processor

2.8 GHz

32

60 MB

250W

3

5200 MT/s

128 GB

Gold 6538Y+ Processor

2.2 GHz

32

60 MB

225W

3

5200 MT/s

128 GB

Gold 6538N Processor

2.1 GHz

32

60 MB

205W

3

5200 MT/s

128 GB

Gold 6542Y Processor

2.9 GHz

24

60 MB

250W

3

5200 MT/s

128 GB

Gold 6526Y Processor

2.8 GHz

16

37.5 MB

195W

3

5200 MT/s

128 GB

Gold 6534 Processor

3.9 GHz

8

22.5 MB

195W

3

4800 MT/s

128 GB

Gold 5520+ Processor

2.2 GHz

28

52.5 MB

205W

3

4800 MT/s

128 GB

Gold 5515+ Processor

3.2 GHz

8

22.5 MB

165W

3

4800 MT/s

128 GB

Silver Processors

Silver 4516Y+ Processor

2.2 GHz

24

45 MB

185W

2

4400 MT/s

64 GB

Silver 4514Y Processor

2.0 GHz

16

30 MB

150W

2

4400 MT/s

64 GB

Silver 4510 Processor

2.4 GHz

12

30 MB

150W

2

4400 MT/s

64 GB

Silver 4509Y Processor

2.6 GHz

8

22.5 MB

125W

2

4400 MT/s

64 GB

Bronze Processors

Bronze 3508U Processor*

2.1 GHz

8

22.5 MB

125W

N/A

4400 MT/s

64 GB

Notes:

- 80 PCIe 5.0 lanes per processor.

- * "U" processors (i.e. 6414U, 3408U, 3508U), 6421N, 5411N, 8581V and 8558U are only supported in single socket configuration.

- Bronze Processors (3408U and 3508U) are supported up to PCIe Gen4.

- Processors with TDP equal to or greater than 195W require Performance Heatsink (P47224-B21).

- Processors with TDP equal to or greater than 300W require both Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- DDR5 memory speed is the maximum memory speed supported by the processor. Actual maximum memory speed is a function of the memory type, memory configuration, and processor model.

- Intel® VROC NVMe feature is not supported with 4510, 4509Y and 3508U processors.

Chipset

Intel® C741 Chipset

Notes: For more information regarding Intel® chipsets, refer to the following URL:
https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

System Management Chipset

HPE iLO 6 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

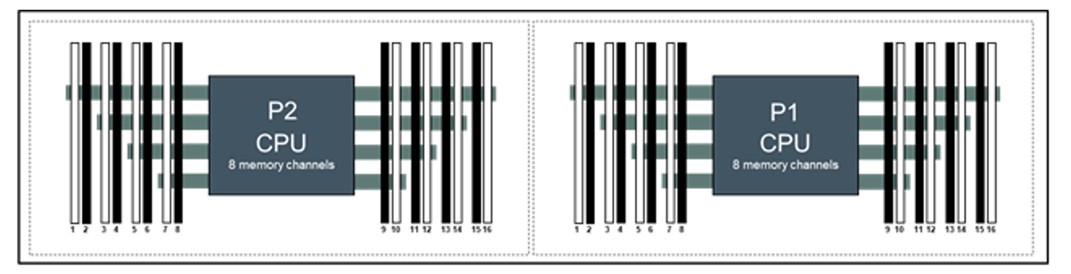

Memory

One of the following depending on model.

Notes:

- Actual maximum memory speed is a function of the memory type, memory configuration, and processor model.

- For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs.

- For General Server Memory and Persistent Memory Population Rules and Guidelines for Gen11 see details here:

http://www.hpe.com/docs/memory-population-rules

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occur within a single DRAM chip.

Expansion Slots

Primary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- There are two Primary riser configurations:

• Default with 4x8 Primary Riser Kit provides 4 slots with PCIe Gen5 x8 on Slot1-4.
• Optional 2x16 Primary FIO Riser Kit provides 2 slots with PCIe Gen5 x16 on Slot2 and 4.

Secondary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- There are two Secondary riser configurations as options:

• 4x8 Secondary Riser Kit provides 4 slots with PCIe Gen5 x8 on Slot5-8.
• 2x16 Secondary Riser Kit provides 2 slots with PCIe Gen5 x16 on Slot6 & 8.

Tertiary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- Tertiary Riser Kit provides 2 slots with PCIe Gen5 x8 on Slot9 & 10.

- Two CPU 2 MCIO connectors will be occupied to support expansion card on the riser.

- 2x8 Tertiary Riser Kit provides 2 slots with PCIe Gen5 x8 on Slot9 & 10.

Internal Storage Devices

- Optical Drive

Available as an option (DVD-ROM or DVD-RW).

- HDD/SSD

None shipped as standard.

Storage Controllers

NVMe Boot Devices

- HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device.

Hybrid RAID

Notes: Additional steps are required for OS installation with Intel® VROC, please refer to the link Intel Virtual RAID on CPU for HPE Gen11 User Guide - Installing OS on the Intel VROC RAID

Intel® VROC SATA for HPE ProLiant Gen11

Notes:

- All models feature embedded storage controllers that supports SATA RAID with up to 12 (4+4+4) LFF or 8SFF. Each LFF drive cages are separated drive groups, SFF drive cage also separates into two drive groups (Bay1-4 and Bay5-8).

- When NS204i-u is selected, embedded storage controller supports up to 8 (4+4) LFF or 8SFF drive bays.

- Intel® VROC for HPE ProLiant Gen11 is an enterprise, Hybrid RAID solution specifically designed for SSDs.

- Intel® VROC is a software-based solution utilizing Intel® CPU to RAID or HBA direct connected drives.

- RAID Support- 0/1/5/10.

- Windows and Linux OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- iLO Support- IML, Alert, SNMP, AHS.

- iLO Redfish- Redfish Read.

- Intel® VROC SATA for HPE ProLiant Gen11 will operate in UEFI mode only. For legacy support an additional storage controller will be needed.

- Intel® VROC SATA is off by default and must be enabled.

Intel® VROC NVMe for HPE ProLiant Gen11

Notes:

- All models feature 4 x8 PCIe 5.0 connectors per socket for NVMe connectivity, provides support for up to 8 direct attach x4 NVMe bays.

- Intel® VROC for HPE ProLiant Gen11 is an enterprise, Hybrid RAID solution specifically designed for NVMe SSDs connected directly to the CPU. Intel® VROC is a software-based solution utilizing Intel® CPU to RAID or HBA direct connected drives.

- Intel® Virtual RAID on CPU RAID 1 (S3Q19A/ S3Q39AAE) or Premium SKU for RAID 0/1/5/10 (R7J57A/ R7J59AAE) must be ordered to enable RAID support.

- Windows, Linux, VMware OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- Active health monitoring of NVMe M.2 drives requires use of SMART tools.

- Intel® VROC NVMe for HPE ProLiant Gen11 will operate in UEFI mode only. For legacy support an additional Tri-

Mode controller will be needed.

- For NVMe SSDs only, there is no PCIe card support.

- Intel® VROC NVMe feature is not supported with 4510, 4509Y and 3508U processors.

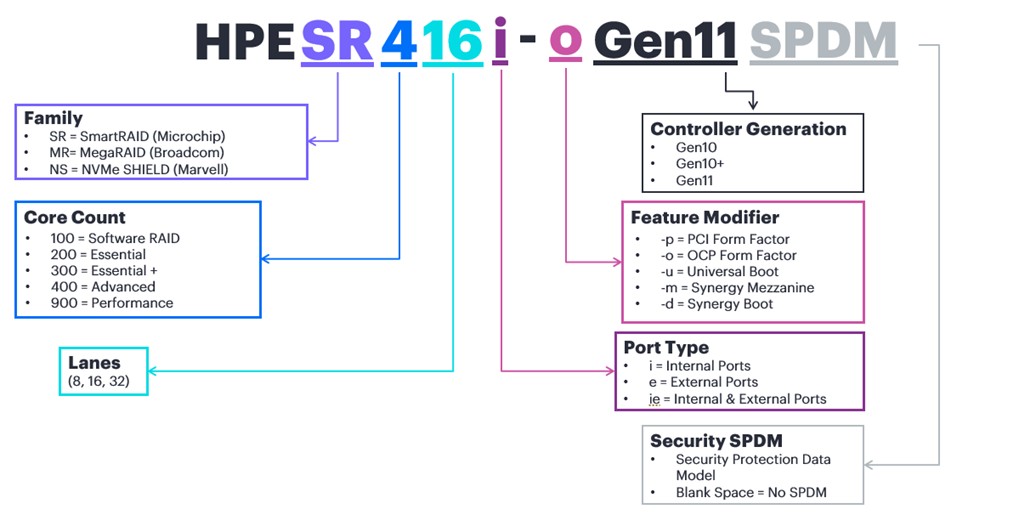

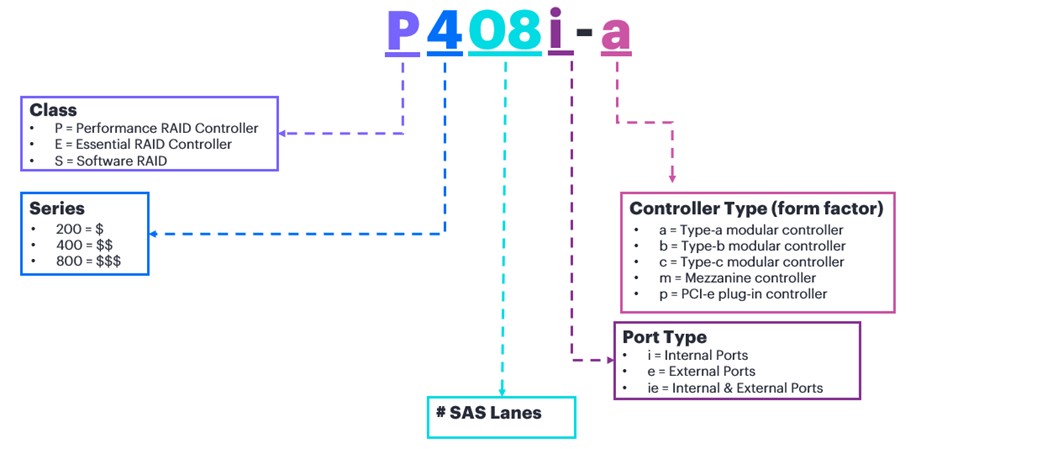

Essential RAID Controllers

- HPE Smart Array E208e-p SR Gen10 Controller.

Tri-mode RAID Controllers

- HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller.

- HPE MR216i-p Gen11 x16 Lanes without Cache OCP SPDM Storage Controller.

- HPE MR408i-o Gen11 x8 Lanes 4 GB Cache OCP SPDM Storage Controller.

- HPE MR408i-p Gen11 x8 Lanes 4 GB Cache PCI SPDM Plug-in Storage Controller.

- HPE MR416i-o Gen11 x16 Lanes 8 GB Cache OCP SPDM Storage Controller.

- HPE MR416i-p Gen11 x16 Lanes 8 GB Cache OCP SPDM Storage Controller.

- HPE SR932i-p Gen11 x32 Lanes 8 GB Wide Cache PCI SPDM Plug-in Storage Controller.

Maximum Storage

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200@60 Hz (32 bpp).

- 16MB Video Memory.

HPE iLO 6 on system management memory

- 64 MB Flash.

- 8 Gbit DDR 4 with ECC protection.

Power Supply

- HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: Available in 94%. Power Efficiency.

- HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: Available in 94%. Power Efficiency.

- HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit.

Notes: Available in 96%. Power Efficiency.

- HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit.

- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes:

- Available in 94% Power Efficiency.

- 200-240VAC power input only.

- HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply.

Notes:

- Available in 96% Power Efficiency.

- 200-240VAC power input only.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secure configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers, such as

- Secure Boot and Secure Start enabled for enhanced security.

- Operating system specific functionality.

- Support for > 2.2 TB (using GPT) boot drives.

- USB 3.2 Gen1 Stack.

- Embedded UEFI Shell.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- PXE boot support for IPv6 networks.

- Workload Profiles for simple performance optimization.

UEFI Boot Mode only

- TPM 2.0 Support.

- NVMe Boot Support.

- iSCSI Software Initiator Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Boot support for option cards that only support a UEFI option ROM.

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Industry Standard Compliance

- ACPI 6.1 Compliant.

- PCIe 5.0 Compliant.

- WOL Support.

- Microsoft® Logo certifications.

- Support for Microsoft Secure Code.

- PXE Support.

- VGA/DisplayPort.

- USB 3.2 Gen1 Compliant.

- USB 2.0 Compliant.

- OCP 3.0 SFF NIC Support.

- OCP 3.0 SFF Storage Support.

- Embedded TPM Support.

- ENERGY STAR®.

- SMBIOS 3.1.

- UEFI 2.7.

- UEFI Class 3 (Unified Extensible Firmware Interface Forum).

- Redfish API.

- IPMI 2.0.

- Advanced Encryption Standard (AES).

- Triple Data Encryption Standard (3DES).

- SNMP v3.

- TLS 1.2.

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- DMTF Redfish support for SecureBoot Key Management.

- ACPI DSM Drive LED Management.

- Memory Page Retire Support.

- Retire old VMware Secure Boot Key.

- MCTP over PCIe multi-segment (EDKII for GenoaPI 0.0.9.0, HPE under verifying0).

- Synergy: I3C Engine.

- APML.

- Active Directory v1.0.

- ASHRAE A3/A4.

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit https://www.hpe.com/support/ASHRAEGen11

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning

iLO RESTful API

iLO RESTful API is Redfish API conformant and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via  https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:
https://www.hpe.com/info/com-supported-servers

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

Learn more at https://www.hpe.com/us/en/servers/smart-update.html

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen11 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack

Notes: HPE iLO Amplifier Pack has been in EOS since November 1, 2024. For additional information, please visit https://hpe.seismic.com/Link/Content/DCdbDWRqG4RHWGmJDWbgcfHFF9hP

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool

Scripting Tools

Provision one, to many servers, using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell

HPE OneView Standard

HPE OneView is an on premises, multi-generational server monitoring and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees.  Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.

Security

- UEFI Secure Boot and Secure Start support.

- Immutable Silicon Root of Trust.

- FIPS 140-3 validation (iLO 6 certification in progress).

- Common Criteria certification (iLO 6 certification in progress).

- Configurable for PCI DSS compliance.

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser.

- Support for Commercial National Security Algorithms (CNSA).

- Tamper-free updates - components digitally signed and verified.

- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware.

- Ability to rollback firmware.

- Secure erase of NAND.

- TPM (Trusted Platform Module) 2.0.

- Front bezel key-lock feature - standard, available in both Tower and Rack models.

- Padlock slot, standard.

- Kensington Lock slot, standard.

- Chassis Intrusion detection option.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non-CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: https://www.hpe.com/support/ProLiantServers-Warranties

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced-

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit http://www.hpe.com/info/oneview.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We have a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.

https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

HPE Smart Choice Purchase Program

The HPE Smart Choice Purchase Program features popular fully configured products that can be quoted in minutes and shipped quickly through HPE Authorized Partners. Products are configured and tested in an HPE factory and stocked at HPE Authorized Distributors and Partners. The products arrive in a single box, making onsite integration easier and more efficient for partners and customers. Additionally, there are aggressively priced HPE Tech Care Services available only through the HPE Smart Choice program when you purchase an HPE Smart Choice product.

For HPE Smart Choice configuration and product details, please visit the Smart Choice Supplemental QuickSpecs: https://www.hpe.com/psnow/doc/a50009219enw

Pre-Configured models ship with the configurations below.

- Options can be selected from the Core or Additional options section of this QuickSpecs.

- Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will not be shipped inside the server.

- Network Choice models do not include embedded LOM.

Base Models

SKU Number

P53564-AA1

P53566-291

Model Name

HPE ProLiant ML350 Gen11 4410Y 2.0GHz 12-core 1P 32GB-R VROC 4LFF 800W RPS Server

HPE ProLiant ML350 Gen11 4410Y 2.0GHz 12-core 1P 32GB-R MR408i-o 8SFF 800W RPS Server

Chassis

HPE ProLiant ML350 Gen11 LFF Configure-to-order Server

HPE ProLiant ML350 Gen11 SFF Configure-to-order Server

Backplane

4 LFF

8 SFF

Processor

4410Y (12 core, 2.0 GHz, 150W)

Number of Processors

One with standard heatsink

Memory

32 GB (1x32 GB, 4800 MT/s)
Notes: Runs at 4000 MT/s due to processor limitation.

Network Controller

Broadcom BCM5719 Ethernet 1 Gb 4-port BASE-T OCP3 Adapter for HPE
Notes: Slot 15 OCP will be occupied along with CPU 1 MCIO port 1.

Storage Controller

Embedded Intel® VROC SATA controller
Notes: Embedded controller can only support SATA drive, additional storage controller is required to support SAS drive.

HPE MR408i-o Gen11 x8 Lanes 4 GB Cache OCP SPDM Storage Controller
Notes:

- Slot 14 OCP will be occupied, PCIe expansion slot is not required.

- This controller supports up to 8 SAS/SATA/NVMe Drives with performance RAID.

- Smart Storage battery included.

Included Hard Drives

None shipped as standard, 4 LFF supported

None shipped as standard, 8 SFF supported

Internal Storage

Default with 4LFF SAS/SATA Drive Cage Kit (P47216- B21), up to two additional drive cages.
Notes: Controller/cable kit may require for additional drive cage.

Default with 8 SFF SAS/SATA/NVMe x1 U.3 Drive Cage Kit (P47217-B21), up to two additional drive cages.
Notes: Controller/cable kit is required for additional drive cage.

Optical Drive

Optional. None shipped as standard.

Expansion Slots

Default with 4 x8 PCIe 5.0 slots with primary riser cage. Upgradable with additional riser kit.
Notes: Dual processors are required to support expansion card on PCIe slots 5-10.

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Notes: Additional Power Supply Kit (P38995-B21) provides 1+1 power redundancy feature.

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Notes: Additional Power Supply Kit (P38995-B21) provides 1+1 power redundancy feature.

Fans

Default with 3 standard fans, non-hot-plug. Optional Second CPU Fan Kit (P47902-B21) and Redundant Fan Kit (P47219-B21) provide advanced cooling and redundancy functionality in heavier configurations.
Notes: Configurations that require fan kits are provided in later sections

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)

TPM (Trusted Platform Module)

Form Factor

4U Tower, Optional Tower-to-Rack conversion kit (P47394-B21) to convert the unit to a 5U Rack-mount server.

Warranty

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.

Country Code Key

- -001 = North America.

- -291 = Japan.

- -371 = Asia Pacific.

- -421 = Europe, the Middle East and Africa.

- -AA1 = China.

Notes: European Union ErP Lot 9 2024 Regulation
Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements. HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They are intended to provide simple starting points to assist you in easily creating and customizing your desired Server solutions.  HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.

Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer's specific workload.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options.  Mainstream SKUs enjoy higher safety stock levels and have higher fulfilment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled +30% faster than non-Mainstream orders, have fewer shortages and better recovery dates.  This platform has Mainstream SKUs in the options portfolio, and is eligible for the improved Mainstream experience.  Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations.  All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory integrable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

- Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements. HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

- All CTO servers are ENERGY STAR® 3.0 compliant. After January 11, 2024, ENERGY STAR® 3.0 compliance is no longer valid. ENERGY STAR® 4.0 certification will be valid upon system configuration.

Step 1: Base Configuration (choose one of the following configurable models)

Notes:

- * 32 DIMM slots require selection of 2 processors.

- internal LTO tape can be selected 1 and Box1 space will be occupied.

- 8 SFF x4 NVMe or 12 EDSFF drive cage can only be selected with SFF chassis and default 8SFF drive cage will be removed.

- To get advanced cooling in richer configurations and/or under certain ambient environmental conditions, the additional Fan kits: Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21) may require.

- Second CPU Fan Kit (P47902-B21) is required when any following options are selected: Second processor, HPE NS204i-u Gen11 Hot Plug Boot Opt Dev, Tertiary riser kit (P49693-B21).

- Both Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21) are required with the following conditions: Redundant Fan feature, 300W~350W TDP processor, 256 GB memory, EDSFF, SAS4 24G MU SSD drive or GPU is selected.

- Mixed LFF and SFF Drive cages can be supported in one system. Please select the LFF CTO Server (P48404-B21) as the base configuration to start with.

- Refer to HPE Power Advisor Tool to review the power requirement for your selected configuration and determine what power supply module(s) to select.

Step 2: Choose Required Options (only one of the following unless otherwise noted)

Please select one or two matching processors.

For example: for a single Xeon®-Platinum 8452Y processor configuration select 1x P49616-B21. If dual Xeon®-Platinum 8452Y processor configuration, select 2x P49616-B21

Notes:

- Mixing two different processor models is not supported.

- Field upgrades from 4th generation processors (x4xx) to 5th generation processors (x5xx) is not supported.

- Bronze Processors (3408U and 3508U) are supported up to PCIe Gen4.

- Intel® VROC NVMe feature is not supported with 4510, 4509Y and 3508U processors.

- Processor kits don't include heat sink and fans.

- Processors with TDP equal to or greater than 195W require Performance Heatsink (P47224-B21).

- Processors with TDP equal to or greater than 300W require both Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- DDR5 memory speed is the maximum memory speed supported by the processor. Actual maximum memory speed is a function of the memory type, memory configuration, and processor model.

- CTO server includes 3 fans as standard. Second CPU Fan Kit (P47902-B21) is required for 2 processors configuration as 4th fan.

Step 2a: Choose Processors

Processor Option Kits - Intel® Fourth Generation Xeon® Scalable Processors

Notes:

- All SKUs ship with processor only. Adequate fan and heatsink kits (standard or performance) must be selected.

- 4800 MT/S maximum memory speed unless otherwise noted.

- 128 GB SGX Enclave unless otherwise noted.

- PCIe Gen5 supported unless otherwise noted.

- Performance Heatsink (P47224-B21) is required unless otherwise noted.

Intel® Xeon®-Platinum Processors

Intel® Xeon®-Platinum 8490H 1.9GHz 60-core 350W Processor for HPE

P49630-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

- 96 GB Dual Rank x4 DDR5-4800 memory supported.

Intel® Xeon®-Platinum 8480+ 2.0GHz 56-core 350W Processor for HPE

P49607-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

- 96 GB Dual Rank x4 DDR5-4800 memory supported.

Intel® Xeon®-Platinum 8468 2.1GHz 48-core 350W Processor for HPE

P49605-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

- 96 GB Dual Rank x4 DDR5-4800 memory supported.

Intel® Xeon®-Platinum 8452Y 2.0GHz 36-core 300W Processor for HPE

P49616-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 96 GB Dual Rank x4 DDR5-4800 memory supported.

Intel® Xeon®-Platinum 8444H 2.9GHz 16-core 270W Processor for HPE

P49625-B21

Notes:

- 512 GB SGX Enclave.

- 96 GB Dual Rank x4 DDR5-4800 memory supported.

Intel® Xeon®-Gold Processors

Intel® Xeon®-Gold 6448H 2.4GHz 32-core 250W Processor for HPE

P49622-B21

Notes: 512 GB SGX Enclave.

Intel® Xeon®-Gold 6430 2.1GHz 32-core 270W Processor for HPE

P49614-B21

Notes:

- 4400 MT/s maximum memory speed.

- 96 GB Dual Rank x4 DDR5-4800 memory supported.

Intel® Xeon®-Gold 6438Y+ 2.0GHz 32-core 205W Processor for HPE

P49615-B21

Notes:

- Only supported in single socket configuration.

- 96 GB Dual Rank x4 DDR5-4800 memory supported.

Intel® Xeon®-Gold 6421N 1.8GHz 32-core 185W Processor for HPE

P49641-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

- Only supported in single socket configuration.

Intel® Xeon®-Gold 6418H 2.1GHz 24-core 185W Processor for HPE

P49621-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 512 GB SGX Enclave.

Intel® Xeon®-Gold 6416H 2.2GHz 18-core 165W Processor for HPE

P49620-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 512 GB SGX Enclave.

Intel® Xeon®-Gold 6426Y 2.5GHz 16-core 185W Processor for HPE

P49598-B21

Notes: Requires Standard Heatsink (P47223-B21).

Intel® Xeon®-Gold 6434 3.7GHz 8-core 195W Processor for HPE

P49601-B21

Intel® Xeon®-Gold 5418Y 2.0GHz 24-core 185W Processor for HPE

P49612-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

Intel® Xeon®-Gold 5411N 1.9GHz 24-core 165W Processor for HPE

P49639-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

- Only supported in single socket configuration.

Intel® Xeon®-Gold 5416S 2.0GHz 16-core 150W Processor for HPE

P49653-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

Intel® Xeon®-Gold 5415+ 2.9GHz 8-core 150W Processor for HPE

P49597-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

Intel® Xeon®-Silver Processors

Intel® Xeon®-Silver 4416+ 2.0GHz 20-core 165W Processor for HPE

P49611-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4000 MT/s maximum memory speed.

- 64 GB SGX Enclave.

Intel® Xeon®-Silver 4410Y 2.0GHz 12-core 150W Processor for HPE

P49610-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4000 MT/s maximum memory speed.

- 64 GB SGX Enclave.

Processor Option Kits - Intel® Fifth Generation Xeon® Scalable Processors

Notes:

- All SKUs ship with processor only. Adequate fan and heatsink kits (standard or performance) must be selected.

- 5600 MT/S maximum memory speed unless otherwise noted.

- 128 GB SGX Enclave unless otherwise noted.

- PCIe Gen5 supported unless otherwise noted.

- Performance Heatsink (P47224-B21) is required unless otherwise noted.

Intel® Xeon®-Platinum Processors

Intel® Xeon®-Platinum 8592+ 1.9GHz 64-core 350W Processor for HPE

P67089-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

Intel® Xeon®-Platinum 8592V 2.0GHz 64-core 330W Processor for HPE

P67107-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 4800 MT/s maximum memory speed.

- 512 GB SGX Enclave.

Intel® Xeon®-Platinum 8580 2.0GHz 60-core 350W Processor for HPE

P67088-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

Intel® Xeon®-Platinum 8581V 2.0GHz 60-core 270W Processor for HPE

P67109-B21

Notes:

- 4800 MT/s maximum memory speed.

- 512 GB SGX Enclave.

- Only supported in single socket configuration.

Intel® Xeon®-Platinum 8570 2.1GHz 56-core 350W Processor for HPE

P67087-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

Intel® Xeon®-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE

P67086-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

Intel® Xeon®-Platinum 8558 2.1GHz 48-core 330W Processor for HPE

P67097-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 5200 MT/s maximum memory speed.

- 512 GB SGX Enclave.

Intel® Xeon®-Platinum 8558U 2.0GHz 48-core 300W Processor for HPE

P67102-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 4800 MT/s maximum memory speed.

- 512 GB SGX Enclave.

- Only supported in single socket configuration.

Intel® Xeon®-Platinum 8558P 2.7GHz 48-core 350W Processor for HPE

P67108-B21

Notes:

- Requires Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21).

- 512 GB SGX Enclave.

Intel® Xeon®-Gold Processors

Intel® Xeon®-Gold 6554S 2.2GHz 36-core 270W Processor for HPE

P67110-B21

Notes: 5200 MT/s maximum memory speed.

Intel® Xeon®-Gold 6530 2.1GHz 32-core 270W Processor for HPE

P67095-B21

Notes: 4800 MT/s maximum memory speed.

Intel® Xeon®-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE

P67082-B21

Notes: 5200 MT/s maximum memory speed.

Intel® Xeon®-Gold 6548N 2.8GHz 32-core 250W Processor for HPE

P67105-B21

Notes: 5200 MT/s maximum memory speed.

Intel® Xeon®-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE

P67096-B21

Notes: 5200 MT/s maximum memory speed.

Intel® Xeon®-Gold 6538N 2.1GHz 32-core 205W Processor for HPE

P67104-B21

Notes: 5200 MT/s maximum memory speed.

Intel® Xeon®-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE

P67081-B21

Notes: 5200 MT/s maximum memory speed.

Intel® Xeon®-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE

P67080-B21

Notes: 5200 MT/s maximum memory speed.

Intel® Xeon®-Gold 6534 3.9GHz 8-core 195W Processor for HPE

P67083-B21

Notes: 4800 MT/s maximum memory speed.

Intel® Xeon®-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE

P67079-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4800 MT/s maximum memory speed.

Intel® Xeon®-Silver Processors

Intel® Xeon®-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE

P67093-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

- 64 GB SGX Enclave.

Intel® Xeon®-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE

P67092-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

- 64 GB SGX Enclave.

Intel® Xeon®-Silver 4510 2.4GHz 12-core 150W Processor for HPE

P67091-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

- 64 GB SGX Enclave.

- Intel® VROC NVMe feature is not supported.

- 96 GB DDR5-5600 DIMM is not supported.

Intel® Xeon®-Silver 4509Y 2.6GHz 8-core 125W Processor for HPE

P67090-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

- 64 GB SGX Enclave.

- Intel® VROC NVMe feature is not supported.

- 96 GB DDR5-5600 DIMM is not supported.

Intel® Xeon®-Bronze Processors

Intel® Xeon®-Bronze 3508U 2.1GHz 8-core 125W Processor for HPE

P67100-B21

Notes:

- Requires Standard Heatsink (P47223-B21).

- 4400 MT/s maximum memory speed.

- 64 GB SGX Enclave.

- Only supported in single socket configuration.

- Up to PCIe Gen4 supported.

- Intel® VROC NVMe feature is not supported.

- 96 GB DDR5-5600 DIMM is not supported.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to:

https://www.hpe.com/docs/memory-population-rules

For Gen11 memory speed table, please go to: https://www.hpe.com/docs/memory-speed-table

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: https://www.hpe.com/psnow/doc/a50007802enw

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, 12 or 16.

- For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs.

- For General Server Memory and Persistent Memory Population Rules and Guidelines, for details see: http://www.hpe.com/docs/memory-population-rules

- HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested.  Because each server environment and requirements can vary, memory compatibility is based not only upon the server family but may also be affected by the amount and type of additional hardware options installed within a specific server configuration.  For this reason, some HPE memory DIMMs may be qualified for an HPE server model or family and yet occasionally not be supported with some configurations within that server family.

- The new 5600 DIMMs are for the Fifth generation Intel® Xeon® Scalable Processors, while the 4800 DIMMs are for the Fourth generation Intel® Xeon® Scalable Processors.

- 256 GB memory is limited to 25°C maximum inlet temperature with non-Redundant Fan configuration. 30°C maximum inlet temperature can be supported with Redundant Fan configuration.

- Note - The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Memory - for the Fourth Generation Intel® Xeon® Scalable Processors

Description

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66675-B21

Notes:

- Only 8 or 16 DIMMs per CPU configurations are supported. DIMM quantity must be 8, 16 or 32 with 96G memory SKU.

- Platinum and selected Gold processors are supported as noted in "Choose Processors" section.

- Mixing different capacity memory DIMMs is NOT supported with this 96G memory SKU.

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69974-B21

Memory - for the Fifth Generation Intel® Xeon® Scalable Processors

Description

HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64708-B21

Notes: 96 GB DDR5-5600 DIMM is not supported with 4510, 4509Y and 3508U processors.

HPE 128GB (1x128GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P69976-B21

Step 2c: Choose Power Supplies

Notes:

- Mixing 2 different power supplies is NOT supported.

- Selection of two HPE Flex Slot power supplies provide 1+1 power redundancy.

- To review the power requirements for your selected configuration, please use the HPE Power Advisor Tool.

Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

Notes: Support limited to single 125W Processor.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

Step 3: Choose Additional Factory Integrable Options

One of the following from each list may be selected if desired at time of factory integration.

Drive Cage

HPE ProLiant ML350 Gen11 8SFF x1 U.3 Tri-Mode Drive Cage Kit

P47217-B21

Notes: Support up to 24 SFF drives configuration (8+8+8).

HPE ProLiant ML350 Gen11 4LFF SAS/SATA Basic Drive Cage Kit

P47216-B21

Notes: Support up to 12 LFF drives configuration (4+4+4).

HPE ProLiant ML350 Gen11 8SFF x4 U.3 Tri-Mode FIO Drive Cage Kit

P47218-B21

Notes:

- When this drive cage is selected, default 8SFF Tri-Mode Drive Cage will be removed and no other drive cage can be selected.

- This drive cage kit supports two connections modes. Direct Attach and Tri-Mode controller modes.

- Direct Attach mode requires x4 NVMe Direct Attach FIO Cable Kit (P48399-B21).

- Controller mode requires HPE SR932i-p Gen11 Controller (P47184-B21) and x4 Tri-Mode FIO Cable Kit (P47234-B21).

- This drive cage doesn't allow field upgrade.

- Bronze Processors (3408U and 3508U) are supported up to PCIe Gen4 .

- Intel® VROC NVMe feature is not supported with 4510, 4509Y and 3508U processors.

HPE ProLiant ML350 Gen11 12EDSFF FIO Drive Cage Kit

P48401-B21

Notes:

- When this drive cage is selected, default 8SFF Tri-Mode Drive Cage will be removed and no other drive cage can be selected.

- This drive cage kit only supports Direct Attach mode and 12EDSFF x4 Direct Attach FIO Cable Kit (P48400-B21) is required.

- This drive cage kit requires dual processors configuration.

- Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21) are required.

- External Fan kit is included in this drive cage kit and installed in rear of chassis on external fan connector 10. The primary riser cage will be covered by the fan kit and external connectivity is not allowed.

- Support limited to 25°C maximum inlet temperature and system fans may operate at higher speed and higher acoustic level to maintain optimum system cooling condition while EDSFF is installed.

- This drive cage kit doesn't allow field upgrade.

- Bronze Processors (3408U and 3508U) are supported up to PCIe Gen4.

- Intel® VROC NVMe feature is not supported with 4510, 4509Y and 3508U processors.

Risers

HPE ProLiant Compute ML350 Gen11/Gen12 2x16 Primary FIO Riser Kit

P48406-B21

Notes: Identical to HPE ML350 G11/G12 2x16 Sec Riser Kit (P47238-B21), but only for factory integrable option (FIO). When this FIO riser kit is selected, default 4x8 Primary Riser will be replaced.

HPE ProLiant Compute ML350 Gen11/Gen12 4x8 Secondary Riser Kit

P48407-B21

Notes: When this Riser Kit is selected, second processor is required.

HPE ProLiant Compute ML350 Gen11/Gen12 2x16 Secondary Riser Kit

P47238-B21

Notes: When this Riser Kit is selected, second processor is required.

HPE ProLiant ML350 Gen11 2x8 Tertiary Riser Kit

P49693-B21

Notes: When this Riser Kit is selected, second processor is required to support expansion card installation and 2 MCIO connectors from CPU2 will be used. Without Second processor, the PCIe slots from tertiary riser will not have function and only can provide power source for internal LTO tape drive.

Cooling Options

HPE ProLiant ML350 Gen11 Standard Heat Sink Kit

P47223-B21

Notes: Processors with TDP less than 195W require Standard Heat Sink.

HPE ProLiant ML350 Gen11 Performance Heat Sink Kit

P47224-B21

Notes: Processors with TDP equal to or greater than 195W require Performance Heat Sink.

HPE ProLiant Compute ML350 Gen11/Gen12 Second CPU Fan Kit

P47902-B21

Notes: When either second processor, NS204i-u or Tertiary Riser is selected, this Fan Kit is required.

HPE ProLiant Compute ML350 Gen11/Gen12 Redundant Fan Kit

P47219-B21

Notes:

- Processors with TDP equal to or greater than 300W require this Fan Kit.

- When either EDSFF, SAS4 24G MU SSD drive, 256G memory, GPU selected, this fan kit is required.

- When this Fan Kit is selected, the Second CPU Fan Kit (P47902-B21) needs be selected together.

HPE ProLiant Compute ML350 Gen11/Gen12 External GPU Fan Kit

P47220-B21

Notes:

- With External GPU fan kit installed, rear side of riser cage will be covered, and no connectivity is allowed with Primary/Second riser cage.

- Up to 2 fan kits supported.

- External GPU fan kit provides advanced cooling in heavier configurations and allows system to run with higher inlet temperature.

- This fan kit has already included in 12EDSFF FIO Drive Cage Kit (P48401-B21) with quantity.

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Notes: The User Guide (UG) can help to explain the cable routing for each option.

Software as a Service Management

HPE Compute Ops Management

Base SKU

HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS

R7A11AAE

Upgrade SKU

HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS

R7A12AAE

HPE Compute Cloud Management Server FIO Enablement

S1A05A

HPE Compute Ops Management Advanced Flex with ProLiant Enablement

S6C28AAE

HPE Compute Ops Management Advanced 1-year Upfront ProLiant SaaS

S5E58AAE

HPE Compute Ops Management Advanced 3-year Upfront ProLiant SaaS

S5E59AAE

HPE Compute Ops Management Advanced 5-year Upfront ProLiant SaaS

S5E60AAE

HPE Compute Ops Management Advanced 7-year Upfront ProLiant SaaS

S5E61AAE

HPE Computation and Graphics Accelerators

Notes:

- System memory is recommended to be 2 times larger than the memory with accelerator card.

- Mixing different accelerators is not supported.

- Redundant Fan Kit (P47219-B21) and Second CPU Fan Kit (P47902-B21) are required for all GPU accelerators.

- System fans may operate at higher speed and higher acoustic levels to maintain optimum system cooling condition with accelerator card.

- GPU are all required x16 bandwidth unless otherwise noted. Therefore, 2x16 Primary FIO Riser Kit (P48406-B21) or 2x16 Secondary Riser Kit (P47238-B21) is required to support up to 2 GPUs with each riser kit.

-

NVIDIA L40 48GB PCIe Accelerator for HPE

S0K90C

Notes:

- GPU Power Cable Kit (P47221-B21) is required and support up to 1 L40 GPU with each cable kit.

- External GPU Fan Kit (P47220-B21) is recommended to provide advanced cooling and results DisplayPorts can't be connected and covered by the fan kit.

- Without External GPU Fan Kit installed, maximum inlet temperature is limited to 23°C with limited configuration: Up to 2 GPUs, up to 64 GB memory, up to TDP 195W processor(s) and one Drive Cage (8SFF/4LFF) only.

- Refer to following GPU information table for limited support inlet temperature with External GPU Fan Kit and Redundant Fan Kit on various configurations.

NVIDIA L40S 48GB PCIe Accelerator

S2L70C

Notes:

- Limited to support L40S to be installed on Slot 2 and/or Slot 6 with x16 Riser Cage.

- GPU Power Cable Kit (P47221-B21) is required and supports up to 1 L40S GPU with each cable kit.

- External GPU Fan Kit (P47220-B21) is recommended to provide advanced cooling and results DisplayPorts can't be connected and covered by the fan kit.

- Without External GPU Fan Kit installed, maximum inlet temperature is limited to 23°C with configuration: 2x Processor with TDP equal to or less than 190W, 1x GPU on Secondary Riser, up to 64GB memory, with only one Drive Cage.

- Refer to following GPU information table for limited support inlet temperature with External GPU Fan Kit and Redundant Fan Kit on various configurations.

HPE ProLiant ML350 12(8+4)-pin/16-pin Cable Kit for NVIDIA GPU

P47221-B21

Notes:

- This power Cable Kit (P47221-B21) is required for RTX4000 Ada and L40/L40S Accelerator.

- Each power Cable Kit supports up to one accelerator.

NVIDIA A16 64GB PCIe Non-CEC Accelerator for HPE

R8T26C

Notes:

- Power cable kit (P39102-B21) is required and support up to 3x A16 GPUs with each cable kit.

- External GPU Fan Kit (P47220-B21) is required to provide advanced cooling with this GPU.

- Refer to following GPU information table for limited support inlet temperature with External GPU Fan Kit and Redundant Fan Kit on various configurations.

HPE ProLiant DL300 Gen10 Plus GPU 8-pin Keyed Cable Kit

P39102-B21

Notes:

- This power cable kit (P39102-B21) is required for A16 Accelerator.

- Each Power Cable Kit supports up to 3x A16 Accelerators.

NVIDIA L4 24GB PCIe Accelerator for HPE

S0K89C

Notes:

- External GPU Fan Kit (P47220-B21) is required to provides advanced cooling with this GPU.

- Refer to following GPU information table for limited support inlet temperature with External GPU Fan Kit and Redundant Fan Kit on various configurations.

Accelerator configuration information

Notes: Accelerator information table indicated the limited support inlet temperature with both External GPU Fan Kit and Redundant Fan Kit selected on various configurations.

* With limited configuration: 2 Processors, up to 2 GPUs installed on Secondary Riser Kit with External GPU Fan Kit on slot 9.

*** L40S required limitation configuration: Processor TDP is equal to or less than 190W.

HPE Boot Controllers

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Notes:

- When NS204i-u is selected, Second CPU Fan Kit (P47902-B21) and ML350 Gen11 NS204i-u Enablement Kit (P48403-B21) are required.

- When NS204i-u is selected, up to 8 SATA drives within LFF CTO Server can be supported with embedded controller.

- Support limited to 25°C maximum inlet temperature with 3 SFF/LFF Drive Cages selected without Redundant Fan Kit (P47219-B21).

- System fans may operate at higher speed and higher acoustic level to maintain optimum system cooling condition while NS204i-u is installed.

HPE ProLiant ML350 Gen11 NS204i-u Enablement Kit

P48403-B21

Notes: When NS204i-u is selected, this Enablement Kit is required.

HPE Optical Drives

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

HPE Mobile USB DVD-RW Optical Drive

701498-B21

HPE Storage Controllers

Storage Controllers

Notes:

- When selecting SR RAID controllers for external storage (E208e-p, 804398-B21) and MR RAID controllers for internal storage (MR216i/MR416i/MR408i) in the order, please be aware these two products use different RAID configuration tools.

- Not supporting mixing of MR (MegaRAID) series internal controllers and SR (SmartRAID) series internal Controllers.

- OCP-type RAID (OROC) controller is only supported on Slot 14 OCP 1.

- OCP 1 enablement kit is not required for OROC controllers listed below.

- For more information on the HPE Gen11 Storage Controller, please refer to:

HPE Compute MR Gen11 Controllers QuickSpecs
HPE Compute SR Gen11 Controllers QuickSpecs

Essential RAID Controllers

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Notes: This controller supports up to 8 SAS/SATA Drives (external).

For more information on the HPE Smart Array E208e-p SR Gen10 Controller, please refer to the QuickSpecs

Tri-mode RAID Controllers

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

Notes:

- Does not occupy a PCIe expansion slot.

- This controller supports up to 16 SAS/SATA/NVMe Drives with RAID 0/1/10.

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Notes: This controller supports up to 16 SAS/SATA/NVMe Drives with RAID 0/1/10.

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Notes:

- Does not occupy a PCIe expansion slot.

- This controller supports up to 8 SAS/SATA/NVMe Drives.

- HPE 96W Smart Storage Battery (P01367-B21) or HPE Smart Hybrid Capacitor (P02381-B21 or P65042-B21) must be selected with this controller.

HPE MR408i-p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug-in Storage Controller

P74775-B21

Notes:

- This controller supports up to 8 SAS/SATA/NVMe Drives.

- HPE 96W Smart Storage Battery (P01367-B21) or HPE Smart Hybrid Capacitor (P02381-B21 or P65042-B21) must be selected with this controller.

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

Notes:

- Does not occupy a PCIe expansion slot.

- This controller supports up to 16 SAS/SATA/NVMe Drives.

- HPE 96W Smart Storage Battery (P01367-B21) or HPE Smart Hybrid Capacitor (P02381-B21 or P65042-B21) must be selected with this controller.

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Notes:

- This controller supports up to 16 SAS/SATA/NVMe Drives.

- HPE 96W Smart Storage Battery (P01367-B21) or HPE Smart Hybrid Capacitor (P02381-B21 or P65042-B21) must be selected with this controller.

HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller

P47184-B21

Notes:

- This controller supports up to 32 SAS/SATA/NVMe Drives.

- HPE 96W Smart Storage Battery (P01367-B21) or HPE Smart Hybrid Capacitor (P02381-B21 or P65042-B21) must be selected with this controller.

- This controller requires PCIe x16 bandwidth. 2x16 Primary FIO Riser Kit (P48406-B21) or 2x16 Secondary Riser Kit (P47238-B21) is required.

Controller Battery Cable Kits

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

P01367-B21

HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit

P02381-B21

HPE 16W Smart Hybrid Capacitor with 260mm Cable

P65042-B21

Notes: Above 260mm cable kits can't be selected together.

HPE ProLiant Compute ML350 Gen11/Gen12 Smart Storage Battery Cable Kit

P58199-B21

Notes: This cable kit is required when one of battery kits (P02377-B21, P01366-B21) is selected.

Hybrid RAID

Notes:

- Intel® VROC NVMe feature is not supported with 4510, 4509Y and 3508U processors.

- Requires UEFI, not supported in Legacy Mode.

- For NVMe SSDs only, there is no PCIe card support.

Additional steps are required for OS installation with Intel® VROC, please refer to the link:

 Virtual RAID on CPU for HPE Gen11 User Guide - Installing OS on the Intel VROC RAID

Intel® Virtual RAID on CPU RAID 1 FIO Software for HPE

S3Q19A

Notes: Support RAID 1.

Intel® Virtual RAID on CPU RAID 1 E-RTU for HPE

S3Q39AAE

Notes:

- Support RAID 1.

- Like Intel® Virtual RAID on CPU Standard FIO Software for HPE (S3Q19A), but intended for field deployments (BTO).

Intel® Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes: Support RAID 0/1/5/10.

Intel® Virtual RAID on CPU Premium E-RTU for HPE

R7J59AAE

Notes:

- Support RAID 0/1/5/10.

- Like Intel® Virtual RAID on CPU Premium FIO Software for HPE (R7J57A), but intended for field deployments (BTO).

HPE Drives

HPE Hard Disk Drives

Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Warranty FIPS 140-2 TAA-compliant HDD

P28622-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Warranty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

Business Critical - 12G SAS - LFF Drives

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68583-B21

HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80577-B21

Business Critical - 6G SATA - LFF Drives

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-B21

HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80578-B21

Notes: Requirements for MR Tri-mode controller SED support.

- TPM is not required for Local Key Management as key is stored in controller.

- iLO Advanced is required for Remote Key Management. Key is stored in remote key manager. (Ex. ESKM)

SSD Selection

For SSD selection guidance, please visit https://ssd.hpe.com/

Notes:

- LFF backplane supports up to 12G SAS.

- When SAS4 24G MU SSD drive is selected, Redundant Fan Kit (P47219-B21) is required.

Read Intensive - 12G/24G SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83347-B21

Mixed Use - 12G/24G SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83344-B21

Mixed Use - LFF- Solid State Drives

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

Read Intensive - 6G SATA - LFF - Solid State Drives

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Mixed Use - NVMe - SFF - Solid State Drives

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

Read Intensive - NVMe - SFF - Solid State Drives

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84244-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84242-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-B21

EDSFF

Mixed Use - NVMe - EDSFF - Solid State Drives

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91098-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91100-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91102-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91237-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91239-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91241-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91084-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91086-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91088-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85731-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85733-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85735-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85662-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85664-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85666-B21

Very-Read-Optimized - NVMe - EDSFF - Solid State Drives

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85739-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85741-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85743-B21

HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85745-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85668-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85670-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85672-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85674-B21

HPE 30.72TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85676-B21

Read Intensive - NVMe - EDSFF - Solid State Drives

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91229-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91231-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91233-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91243-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91245-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91247-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91249-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91090-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91092-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91094-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91096-B21

Notes:

- NVMe EDSFF drive can only be selected with 12EDSFF FIO Drive Cage Kit (P48401-B21).

- NVMe EDSFF drives are limited to 25°C maximum inlet temperature and system fans may operate at higher speed and higher acoustic level to maintain optimum system cooling condition while EDSFF is installed.

- HPE has qualified the NVMe drive portfolio using the Operating System inbox drivers, full detail on the HPE Solid State Drive QuickSpecs.
