HPE ProLiant MicroServer Gen10 Plus | |||
|
HPE ProLiant MicroServer Gen10 Plus delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud or even workloads demanding datacenter performance. It is the most compact MicroServer that we have launched so far, which can be placed flat or vertically depending on your space. The latest Intel Xeon® E and Pentium® processors supported to deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, whether you want a general purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server. | |||
|
| |||
|

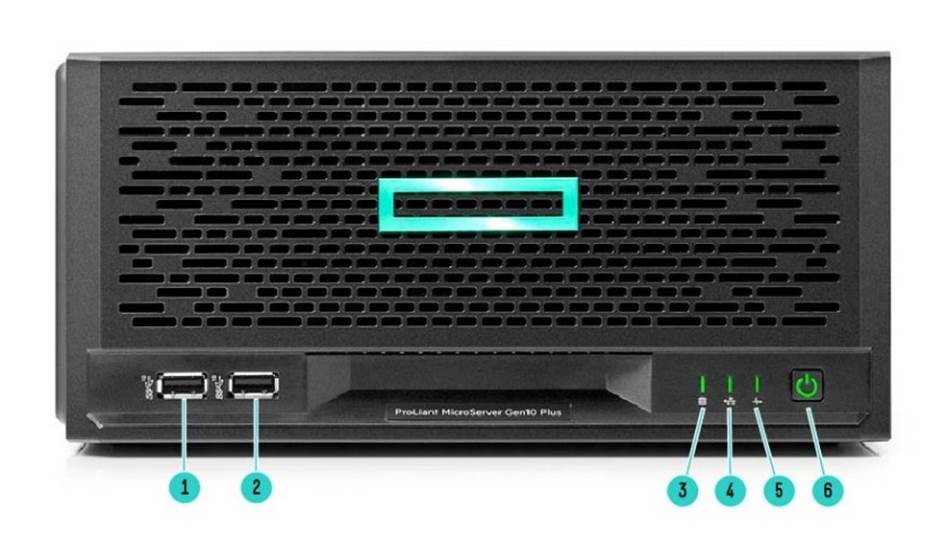

Front View (External): | |||
|
1. |
USB 3.2 Gen2 Type-A port |
4. |
NIC status LED |
|
2. |
USB 3.2 Gen2 Type-A port |
5. |
Health LED |
|
3. |
Drive activity LED |
6. |
Power on/Standby button and system power LED |
|
| ||||||
|

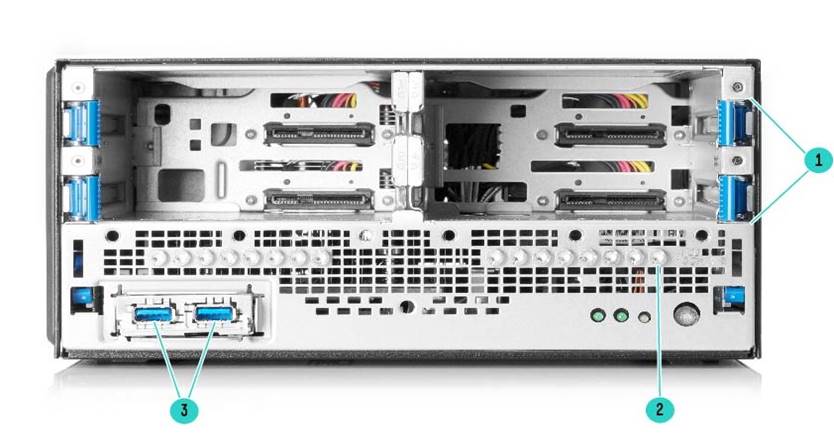

Front View (Internal): | ||||||
|
1. |
Four (4) LFF NHP SATA HDD cage |
3. |
USB 3.2 Gen2 Type-A ports | |||
|
2. |
Hard drive screws |
|
| |||
|
| ||||||
|

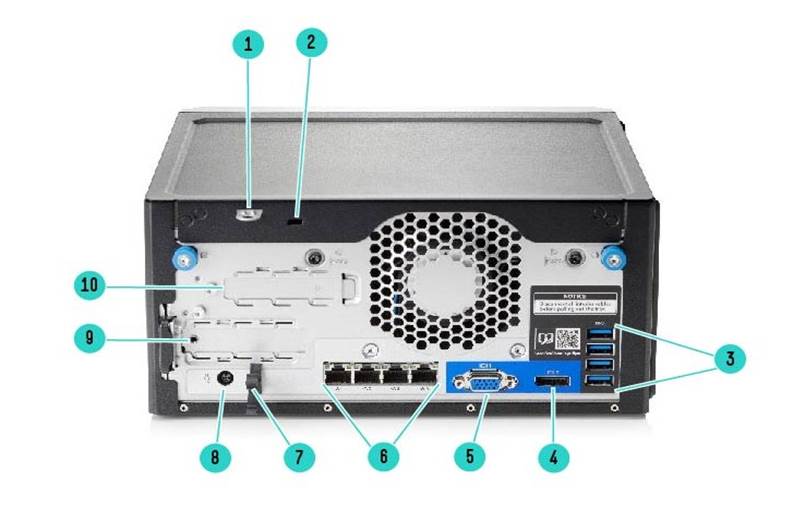

Rear View: | ||||||
|
1. |
Padlock eye |
6. |
Four (4) NIC ports (NIC1-4 from left) | |||
|
2. |
Kensington security slot |
7. |
Power clip hole (for the power cord clip to firmly secure the power adapter. Clip is by default installed) | |||
|
3. |
Four (4) USB 3.2 Gen1 Type-A ports |
8. |
Power jack | |||
|
4. |
DisplayPort 1.1a |
9. |
PCIe Gen3 low-profile slot (PCIe x16) | |||
|
5. |
VGA port |
10 |
iLO Enablement Kit slot (1x iLO Dedicated NIC port) | |||
|
| |||
|
Mainboard | |||
|

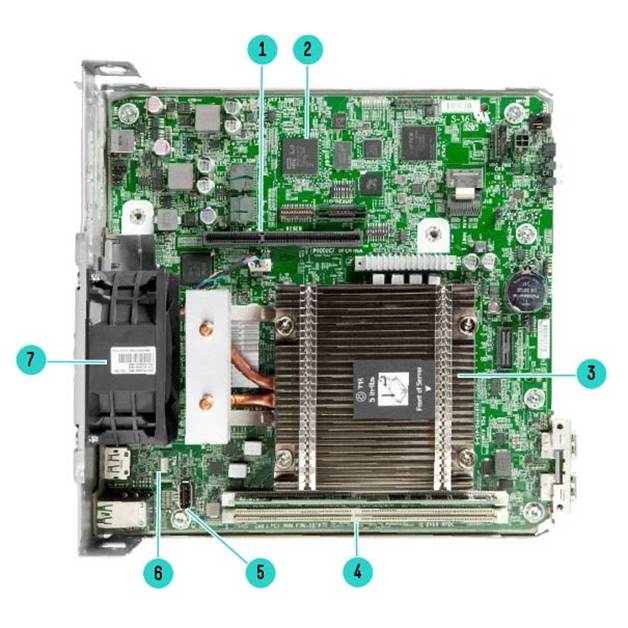

Internal View: | |||
|
1. |
Riser board connector |
5. |
One (1) internal USB 2.0 Type-A port |
|
2. |
iLO 5 chip onboard |
6. |
TPM connector |
|
3. |
One (1) processor and heatsink |
7. |
System fan |
|
4. |
Two (2) DDR4 UDIMM slots |
|
|
|
| |||
|
| |||
|
| |||
|

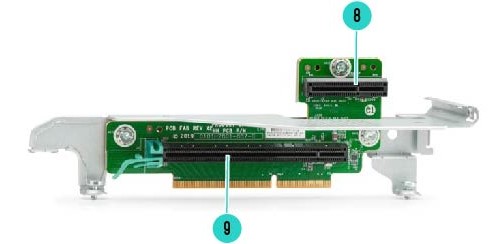

Riser Board | |||
|
8. |
Riser board - iLO Enablement Kit slot |
9. |
Riser board - Expansion low-profile slot, PCIe3 x16 |
|
|
|

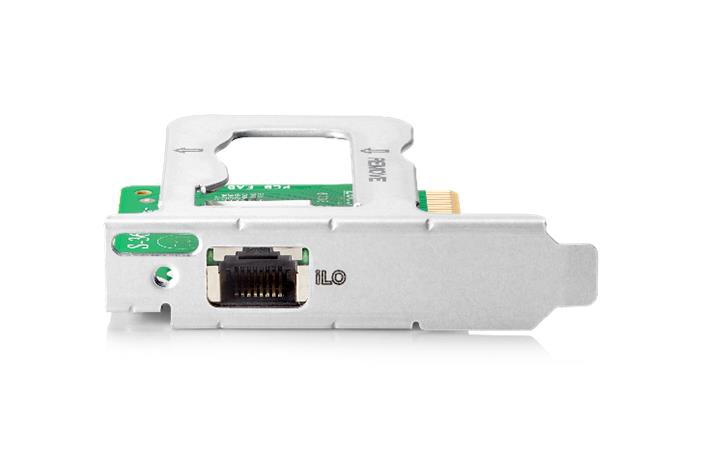

iLO Enablement Kit |
|
|
Standard Features
|
Processor Intel® Xeon® E Processor is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. This product also supports Intel® Pentium® processors. Choose one of the following processors based on the model: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon. | ||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||
|
Chipset Intel® C242 Chipset For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/ | ||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||
|
On System Management Chipset HPE iLO 5 ASIC Notes: - MicroServer Gen10 Plus does not support remote management/ out-of-band management by default. The MicroServer Gen10 Plus iLO Enablement Kit (P13788-B21) must be installed to activate remote management. Without the iLO Enablement Kit, the server only supports in-band management features.
- Email-Based Alerting - Integrated Remote Console (IRC/Virtual KVM - Supports text and graphics) - Virtual Media via Integrated Remote Console - iLO support will follow same warranty term as the server itself. - Read and learn more in the HPE iLO QuickSpecs. |
||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||
|
Memory
| ||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||
|
Memory Protection
|
||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||
|
Network Controller Embedded Intel i350 AM41Gb 4-port network controller The HPE ProLiant MicroServer Gen10 Plus server offers the customer a 4-port NIC standard with the option to upgrade with a variety of networking options. | ||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||
|
Expansion Slots
| ||||||||||||
|
| ||||||||||||
|
Storage Controller The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet. Software RAID
Notes: - HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed - The S100i only supports Windows. For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/
Essential RAID Controller
|
||||||||||||
|
| ||||||||||||
|
Internal Storage Devices
None ship standard
None ship standard |
||||||||||||
|
| ||||||||||||
|
Maximum Internal Storage
16TB (4 x 4TB) 3.5" SATA HDD 960GB (4x 240GB) 2.5" SATA SSD Notes: The maximum storage indicated is aligned with the current HDD & SSD option list supported. Maximum internal storage supported would change with the server's option support plan. |
||||||||||||
|
| ||||||||||||
|
Interfaces | ||||||||||||
|
| ||||||||||||
| ||||||||||||
|
Notes: If you connect two display devices to the VGA port and DisplayPort, the same image is shown on both devices-screen mirroring mode. The embedded video controller in the iLO 5 chipset does not support dual display or screen extension mode. | ||||||||||||
|
|
|
Server Power Cords All pre-configured models ship standard with one or more country-specific 6 ft/1.83m C5 power cords depending on models. If a different power cord is required, please check the HPE Power Cords and Cables web page. |
|
|
|
Power Supply
|
|
|
|
Form Factor
|
|
|
|
System Fans
|
|
|
|
Industry Standard Compliance
|
|
|
|
Operating Systems and Virtualization Software Support for HPE Servers HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment. Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices |
|
|
|
HPE Server UEFI/Legacy ROM Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode. Notes: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi. UEFI enables numerous new capabilities specific to HPE ProLiant servers such as
UEFI Boot Mode only
Notes: - For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. - Legacy FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPEProLiant Gen10 Server. |
|
|
|
Embedded Management
HPE Integrated Lights-Out (HPE iLO) Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo. Notes: - To activate iLO remote management, the MicroServer Gen10 Plus iLO Enablement Kit (P13788-B21) needs to be installed. - Without the MicroServer Gen10 Plus iLO Enablement Kit (P13788-B21), the Embedded Management, Server Utilities and iLO 5 Standard features will only be available for on-premise usage. |
|
|
|
UEFI Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi. |
|
|
|
Intelligent Provisioning Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning. |
|
|
|
iLO RESTful API iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi. | |
|
| |
|
Server Utilities
Active Health System The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs. | |
|
| |
|
Active Health System Viewer Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv. | |
|
| |
|
Smart Update Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at http://www.hpe.com/info/smartupdate. |
|
|
|
|
|
iLO Amplifier Pack Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack. |
|
|
|
|
|
HPE iLO Mobile Application Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp. |
|
|
|
|
|
RESTful Interface Tool RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool. |
|
|
|
|
|
Scripting Tools Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell. |
|
|
|
|
|
HPE Systems Insight Manager (HPE SIM) HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. |
|
|
|
|
|
Security
|
|
|
|
|
|
Warranty This product is covered by a global limited warranty and supported by HPE Services Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) Non CSR parts must be serviced by a trained authorized service engineer. Additional information regarding worldwide limited warranty and technical support is available at: https://www.hpe.com/us/en/search-results.html?page=1&q=servers%20warranty&autocomplete=0 Notes: Warranty does not cover support for ClearOS. Support for ClearOS is provided by ClearCenter. |
|
|
|
|
Optional Features
|
Server Management
MicroServer Gen10 Plus iLO Enablement Kit MicroServer Gen10 Plus does not support remote management/ out-of-band management by default. The MicroServer Gen10 Plus iLO Enablement Kit (P13788-B21) must be installed to activate remote management. Without the iLO Enablement Kit, the server only supports in-band management features. The iLO Enablement Kit supports below features: 1) It acts as an activation key for remote management to the server 2) An iLO dedicated NIC port comes with the kit 3) The iLO 5 Essentials features are activated upon installing the enablement kit:
iLO support will follow same warranty term as the server itself. |
|
|
|
iLO Advanced HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. |
|
|
|
HPE Compute Ops Management Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates. HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in HPE GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the HPE GreenLake architecture, security, and unified operations. For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw For information on supported HPE servers, the complete list can be found here: https://www.hpe.com/info/com-supported-servers |
|
|
|
HPE InfoSight for Servers HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The end result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities. Learn more at https://www.hpe.com/servers/infosight |
|
|
|
One Config Simple (SCE) SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. http://ocs.ext.hpe.com/. |
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience. Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Pre-configured Models
|
Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs. Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately. | ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Country Code Key XXX = 001 AMS XXX = 421 EMEA XXX = 371 AP XXX = 291 Japan XXX = AA1 PRC
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HPE Hard Drives | |
|
| |
|
6G SATA Non-Hot Plug LFF (3.5-inch) Standard (MDL) Drives |
|
|
HPE 1TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD |
801882-B21 |
|
HPE 4TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD |
801888-B21 |
|
6G SATA Non-Hot Plug LFF (3.5-inch) ETY HDD |
|
|
Notes: Please see the HPE Hard Drives QuickSpecs for Technical Specifications and additional information. | |
|
| |
|
HPE Networking | |
|
Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE |
P21106-B21 |
|
| |
Additional Options
|
Embedded Management | |
|
| |
|
HPE iLO Advanced | |
|
HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features |
512485-B21 |
|
HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features |
512487-B21 |
|
HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features |
E6U59ABE |
|
HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features |
E6U64ABE |
|
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features |
BD505A |
|
HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features |
BD507A |
|
| |
|
Software as a Service Management
|
|
|
HPE Compute Ops Management |
|
|
HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS |
R7A11AAE |
|
Additional Options |
|
|
HPE Compute Ops Management Standard 1-year Upfront ProLiant SaaS |
R7A10AAE |
|
HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS |
R7A12AAE |
|
Notes: For customers purchasing HPE Compute Ops Management, without a hardware purchase or a BTO purchase, use this base SKU within ASQ order: | |
|
HPE Compute Ops Management Base SaaS |
R6Z73AAE |
|
| |
|
HPE Security | |
|
HPE Trusted Platform Module 2.0 Gen10 Option |
864279-B21 |
|
Notes: - HPE Trusted Platform Module 2.0 option works with Gen10 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. - HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module. - The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss. | |
|
| |
|
HPE Smart Array Controllers | |
|

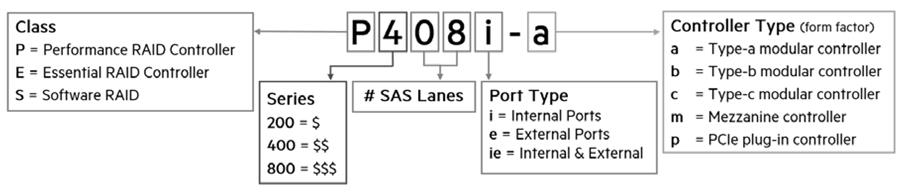

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet. | |
|
| |
|
Essential RAID Controllers |
|
|
HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
804394-B21 |
|
| |
|
HPE USB Options | |
|
| |
|
HPE Enterprise Mainstream Flash Media Kits for Memory Cards | |
|
HPE 32GB microSD RAID 1 USB Boot Drive |
P21868-B21 |
|
Notes: In vSphere 7.0, VMware made changes that impact the use of an SD Card/USB media as a standalone boot device and will be removing support for them after version 7.x. SD Card/USB media can still be used as a standalone boot option through all 7.x releases via published Customer Advisory Usage of SD Card/USB Devices As Standalone Boot Devices Has Changed Due to System Storage Changes For VMware ESXi 7.0 (Or Later). For any major release beyond VMware ESXi 7.x, VMware will require M.2 or another local persistent device as the standalone boot option. HPE Optical Drives | |
|
HPE Mobile USB DVD-RW Optical Drive |
701498-B21 |
|
| |
Memory
|
HPE ProLiant MicroServer Generation 10 Plus |
|
32GB of maximum memory is available with the installation of 2 x 16 GB UDIMM Memory kits. |
|
|
|
Maximum Memory |
|

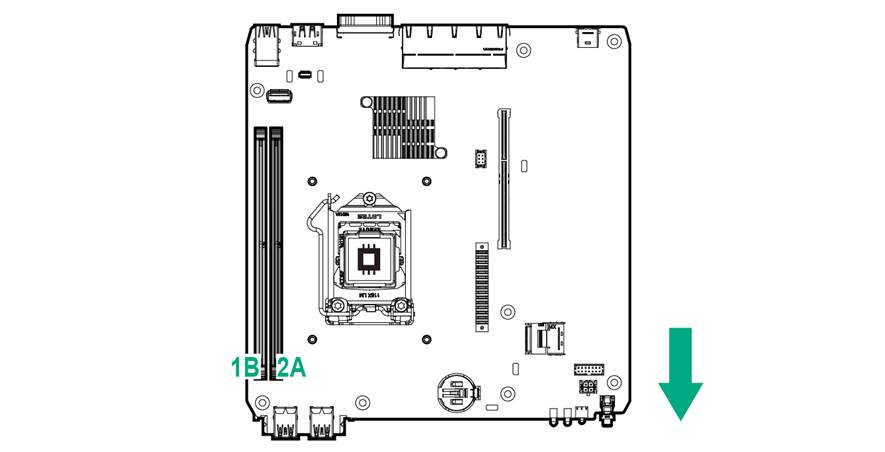

Memory Population | |||
|
Memory |
Slot 2A |
Slot 1B | |
|
Standard |
8 GB |
8 GB |
Empty |
|
16 GB |
16 GB |
Empty | |
|
Optional |
16 GB |
8 GB |
8 GB |
|
Maximum |
32 GB |
16 GB |
16 GB |
|
|
|
General Memory Population Rules and Guidelines:
|
|
|
Storage
|
|
|
|
|

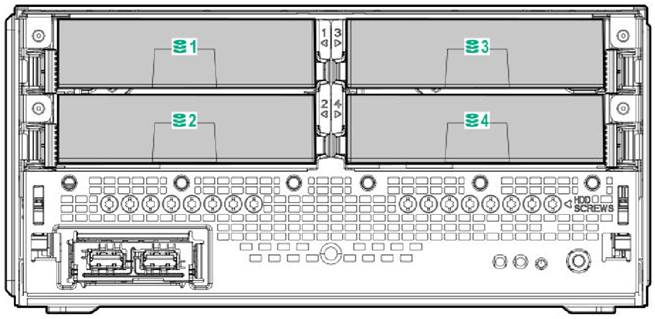

1-4 Four (4) non-hot plug drive bays |
|
Drive Support | |||
|
Drive |
Quantity Supported |
Position Supported |
Controller |
|
NHP SATA SSD |
4 |
1-4 |
S100i or E208i-p SR |
|
NHP SATA HDD |
4 |
1-4 |
S100i or E208i-p SR |
|
|
Technical Specifications
|
System Unit |
|
|
|
Dimensions
|
|
Weight (approximate)
|
|
|
|
Input Requirements (per power supply)
|
|
|
|
Power Specifications To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html |
|
|
|
Power Supply Output (per power supply)
|
|
|
|
Relative Humidity (non-condensing)
|
|
|
|
Altitude
|
|
|
|
System Inlet Temperature
|
||||||||||||
|
| ||||||||||||
|
Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.
| ||||||||||||
|
| ||||||||||||
|
Notes: - The listed sound levels apply to listed configurations. Additional options may result in increased sound levels. Please have your HPE Rep. refer to EMESC website for further technical details regarding the configurations listed above. - Acoustics levels presented here accounts for test configuration only and acoustics level will vary depending on system configuration - Values are subject to change without notification and are for reference only. | ||||||||||||
|
| ||||||||||||
|
Emissions Classification (EMC)
Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. |
|
|
|
Environment-friendly Products and Approach End-of-life Management and Recycling |
|
|
|
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
18-Aug-2025 |
Version 13 |
Changed |
Standard Features section was updated. |
|
16-Sep-2024 |
Version 12 |
Changed |
Standard Features (Operating Systems and Virtualization Software Support for HPE Servers) and Additional Options sections were updated. |
|
20-Nov-2023 |
Version 11 |
Changed |
HPE Services Rebranding |
|
01-May-2023 |
Version 10 |
Changed |
Optional Features and Additional Options sections were updated. |
|
07-Nov-2022 |
Version 9 |
Changed |
Standard Features, Optional Features and Additional Options sections were updated. |
|
18-Apr-2022 |
Version 8 |
Changed |
Pre-configured Models section was updated. |
|
07-Mar-2022 |
Version 7 |
Changed |
Core options section was updated. |
|
07-Feb-2022 |
Version 6 |
Changed |
Technical Specifications section was updated. |
|
06-Dec-2021 |
Version 5 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed. |
|
18-Oct-2021 |
Version 4 |
Changed |
Technical Specifications section was updated. Obsolete SKUs were removed. |
|
01-Jun-2020 |
Version 3 |
Changed |
Overview and Standard Features sections were updated. |
|
24-Feb-2020 |
Version 2 |
Changed |
Overview, Standard Features, Optional Features and Core Options sections were updated. |
|
03-Feb-2020 |
Version 1 |
New |
New QuickSpecs. |
