HPE ProLiant MicroServer Gen10

HPE ProLiant MicroServer Gen10 is a compact and uniquely designed server that is ideal for small and home offices looking to build their first IT server environment with a form factor that is easy to use.

HPE MicroServer Gen10 helps businesses to provide better and easy access to data, more efficiency in operations, while driving down their operating expenses.

HPE ProLiant MicroServer Gen10

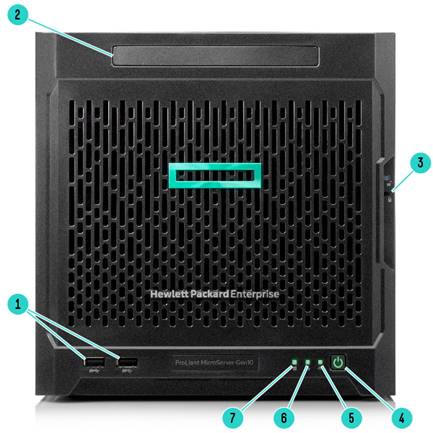

Front View (External):

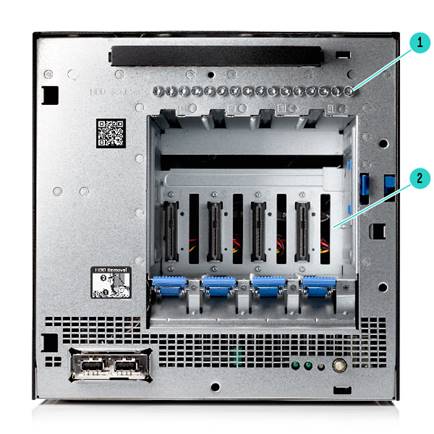

Front View (Internal):

1.

(2) USB 3.0 ports

1.

Hard drive screws

2.

Media bay (Optional (1) DVD-RW or (1) SATA SSD)

2.

Hard drive bays

3.

Front bezel lock/unlock indicators

4.

Power on/Standby button and system power LED

5.

Health LED

6.

NIC status LED

7.

Drive activity LED

HPE ProLiant MicroServer Gen10

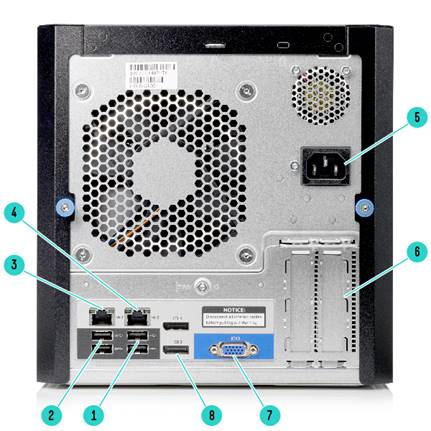

Rear View:

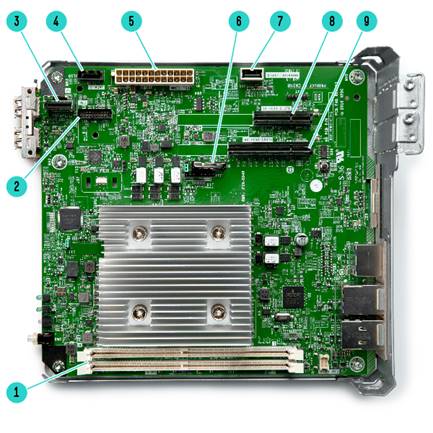

Internal View:

1.

(2) USB 2.0 ports

1.

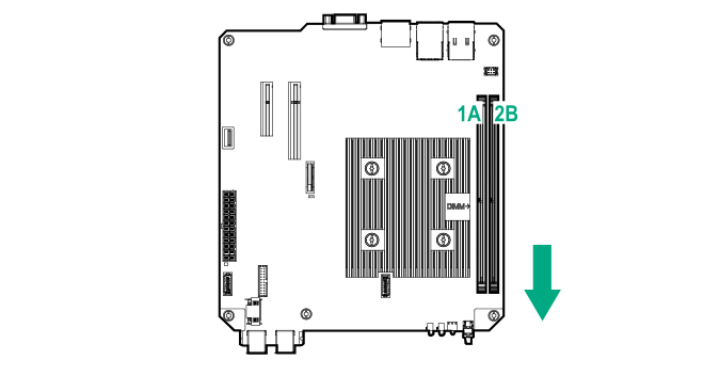

DIMM slots

2.

(2) USB 3.0 ports

2.

TPM connector

3.

NIC 1 port

3.

LFF/SFF SATA connector

4.

NIC 2 port

4.

SATA connector

5.

Power jack

5.

System board power connector

6.

PCIe Gen3 slots

6.

System battery

7.

VGA port

7.

Internal USB 2.0 port

8.

(2) Display Ports 1.2

8.

Expansion slot 2, PCIe3 x4 (1)

9.

Expansion slot 1, PCIe3 x8 (8, 4, 1)

What's New

New SKU Offerings

• For North America, a new Performance SKU (P07203-001) is replacing the previous Performance SKU (P07203-S01)

Processor

• AMD Opteron^TM X3216 Processor (1.6-3.0GHz/2 compute cores/4 graphic cores/1MB/12-15W)
• AMD Opteron^TM X3418 Processor (1.8-3.2GHz/4 compute cores/6 graphic cores/2MB/12-35W)
• AMD Opteron^TM X3421 Processor (2.1-3.4GHz/4 compute cores/8 graphic cores/2MB/12-35W)

Cache Memory

• 2MB (1 x 2MB) L2 Cache
  Notes: For X3421 and X3418 processors.
• 1MB (1 x 1MB) L2 Cache
  Notes: For X3216 processor.

Memory Protection

ECC

Memory

Type

HPE Standard Memory

DDR4 Unbuffered (UDIMM)

DIMM Slots Available

2

Standard

8GB (1 x 8GB) PC4-2400T DDR4 UDIMM

Maximum

32GB (2 x 16GB) PC4-2400T DDR4 UDIMM

Notes:

- HPE memory from previous generation servers are not fully compatible with the HPE ProLiant MicroServer Gen10.

- SKUs with X3421 and X3418 processors support memory speed up to 2400 MT/s.

- SKUs with X3216 processor support memory speed up to 1600 MT/s.

Network Controller

Embedded Broadcom BCM5720 Dual Port Gbe LOM

Storage Controller

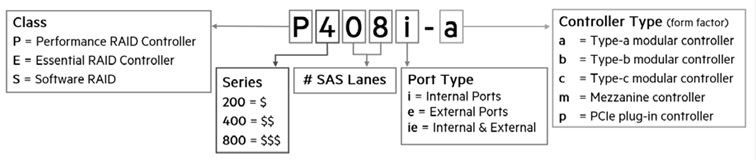

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the

HPE Smart Array Gen10 Controllers Data Sheet.

Embedded Storage Controller

Marvell 88SE9230 PCIe to SATA 6Gb/s Controller

Notes: Supports RAID 0/1/10 only. No FBWC support.

Essential RAID Controller

HPE Smart Array E208i-p SR Gen10 Controller

Notes: Supports RAID 0/1/5/10. No FBWC support.

Internal Storage Devices

Optical Drive

Optional: SATA DVD-RW drive

Optional: SATA SSD

Hard Drives

None ship standard

Solid State Drives

None ship standard

Maximum Internal Storage

Non-hot plug SATA

16TB (4 x 4TB) 3.5" SATA

Interfaces

Video

1 Rear VGA port

2 Rear Display ports 1.2

USB 2.0 Ports

3 total (2 rear, 1 internal)

USB 3.0 Ports

4 total (2 rear, 2 front)

Network RJ-45 (Ethernet)

2

Industry Standard Compliance

• ACPI V5.0 Compliant
• PCIe 3.0 Compliant
• PXE Support
• WOL Support
• EMC Class B
• USB 2.0
• USB 3.0
• SATA 6Gb/s

Server Power Cords

All pre-configured models ship standard with one or more country-specific 6 ft/1.83m C-13 power cords depending on models. If a different power cord is required, please check the

HPE Power Cords and Cables web page.

Power Specifications

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor

Notes: See Technical Specifications section at end of QuickSpecs for Power Specifications.

Power Supply

One (1) 200 Watts non-hot plug, non-redundant Power Supply

System Fans

One (1) non-redundant system fan shipped standard

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server 2012 R2

Microsoft Windows Server 2016

Red Hat Enterprise Linux (RHEL) 7.4

ClearOS

Notes:

- ClearOS, an easy to use OS with an application marketplace, allows you to build a fully functional server that is just right for you at no upfront cost. It is available via download.

- HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on- premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out or scaling, you decide what applications you need and pay as you grow. To learn more on what you can do, please visit http://www.hpe.com/servers/clearos

- For more information on The Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

https://www.hpe.com/us/en/servers/server-operating-systems.html#OperatingSystems and our driver download page: http://www.hpe.com/downloads/microservergen10

Form Factor

Ultra Micro Tower

Service and Support

HPE Pointnext for Industry Standard Servers

HPE Pointnext delivers confidence, reduces risk and helps customers realize agility and stability. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Packaged Support Services

HPE Packaged Support Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Optimized Care

Supports maintaining servers at optimum performance availability

Foundation Care 24x7, three-year Packaged Support Service

HPE Foundation Care 24x7 connects you to HPE 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed. Simplify your support experience and make HPE your first call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Standard Care

Supports maintaining high level of server availability

Foundation Care NBD, three-year Packaged Support Service

HPE Foundation Care Next Business Day connects you to HPE during business hours for assistance on resolving issues - features next business day hardware onsite response if needed and software call back within two hours. Simplify your support experience and make HPE your first call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Related Services

HPE ProLiant Server Hardware Installation

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

To learn more about HPE ProLiant servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner, or visit:

https://www.hpe.com/us/en/services/operational.html

Country Code Key

xxx = AA1 China

HPE Security

HPE Trusted Platform Module 2.0 Kit

745823-B21

Notes:

- The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.

- The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HPE Smart Array Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

Essential RAID Controllers

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

HPE Disk Backup

Notes:

- For the complete range of RDX drives and media see:

https://www.hpe.com/us/en/product-catalog/storage/disk-based-backup-systems.html.

- For hardware and software compatibility of HPE disk backup products see: http://www.hpe.com/storage/spock.

- Please see the HPE RDX Removable Disk Backup System QuickSpecs for additional part numbers, technical specifications, and additional information.

HPE RDX 500GB Removable Disk Cartridge

Q2042A

HPE RDX 1TB Removable Disk Cartridge

Q2044A

HPE RDX 2TB Removable Disk Cartridge

Q2046A

HPE RDX 3TB Removable Disk Cartridge

Q2047A

HPE RDX 4TB Removable Disk Cartridge

Q2048A

HPE RDX 1TB External Disk Backup System

B7B69B

HPE RDX 2TB External Disk Backup System

E7X53B

HPE RDX 4TB External Disk Backup System

Q2R33A

HPE RDX External Docking Station

C8S07B

HPE USB Keyboard and Mouse

HPE USB US Keyboard/Mouse Kit

631341-B21

HPE USB JP Keyboard/Mouse Kit

631360-B21

HPE USB AP/INTL Keyboard/Mouse Kit

672097-373

HPE ProLiant MicroServer Generation 10

Maximum Memory

32GB of maximum memory is available with the installation of 2 x 16 GB UDIMM Memory kits.

1-4

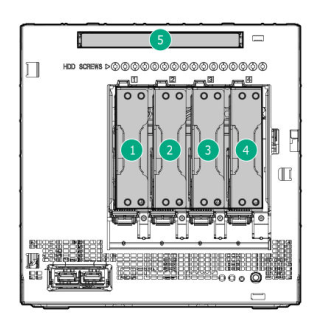

Four (4) non-hot plug drive bays

5

Media bay for optional (1) optical drive or (1) SATA SSD for boot-drive

Drive Support

Maximum Storage Capacity

Internal

• SATA

16.0TB (4 x 4TB)

System Unit

Dimensions (H x W x D) (with feet)

9.25 x 9.06 x 10.00 in (23.5 x 23.0 x 25.4 cm)

Weight (approximate)

Maximum
(Four drives, two DIMMs, optical drive or SSD and two expansion boards installed)

21.36 lb (9.70 kg)

Minimum
(one hard drive and one DIMM installed, no media drive or expansion board installed)

14.32 lb (6.50 kg)

Input Requirements
(per power supply)

Rated Line Voltage

 100 V AC to 240 V AC

Rated Input Current

3.5 A (at 100 V AC)

Rated Input Frequency

50 to 60 Hz

Rated Input Power

200W Power Supply
244 W (at 115 V AC)

Power Specifications

To review typical system power ratings use the Power Advisor which is available via the online tool located at URL: https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html

Power Supply Output
(per power supply)

Rated Steady-State Power

200 W Power Supply
200 W (at 100 VAC),
200 W (at 200 VAC)

Maximum Peak Power

200 W Power Supply
200 W (at 100 VAC),
200 W (at 200 VAC)

System Inlet Temperature

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.

Notes: System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Relative Humidity
(non-condensing)

Operating

The unit shall be fully functional from 10% to 90% relative humidity, 28°C maximum web bulb temperature, (non-condensing) across the operating temperature range of 0°C to 40°C.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Notes:

- The listed sound levels apply to listed configurations. Additional options may result in increased sound levels. Please have your HPE Rep. refer to EMESC website for further technical details regarding the configurations listed above.

- Acoustics levels presented here accounts for test configuration only and acoustics level will vary depending on system configuration

- Values are subject to change without notification and are for reference only.

Emissions Classification (EMC)

FCC Rating

Class B

Normative Standards

CISPR32, EN55032, EN55024

FCC CFR 47, Pt15; ICES-003; CNS13438; GB9254

K32; K24; EN61000-3-2;
EN61000-3-3;

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

© Copyright 2020 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

AMD, the AMD Arrow logo, AMD Opteron^TM, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

a00008701enw - 15950 - Worldwide  - V10 - 09-November-2020
