HPE ProLiant DX4120 Gen11 QuickSpecs

Are you looking for server-based data infrastructure with an optimal balance of performance and economic capacity for data-driven initiatives?

The HPE ProLiant DX4120 Gen11 is specifically designed to run the broadest range of data storage-intensive workloads to power your data-driven initiatives to success. From analytics data lakes and general-purpose file and object Software-Defined Storage to active archives, converged data protection, and so much more, it delivers the capabilities you need at ideal economics with trusted security and a cloud operating experience. This includes the option to consume as-a-service via GreenLake enabling you to shift from owning and maintaining to simply utilizing it. HPE ProLiant Server systems provide the data infrastructure for any successful data driven organization.

HPE ProLiant DX4120 Gen11

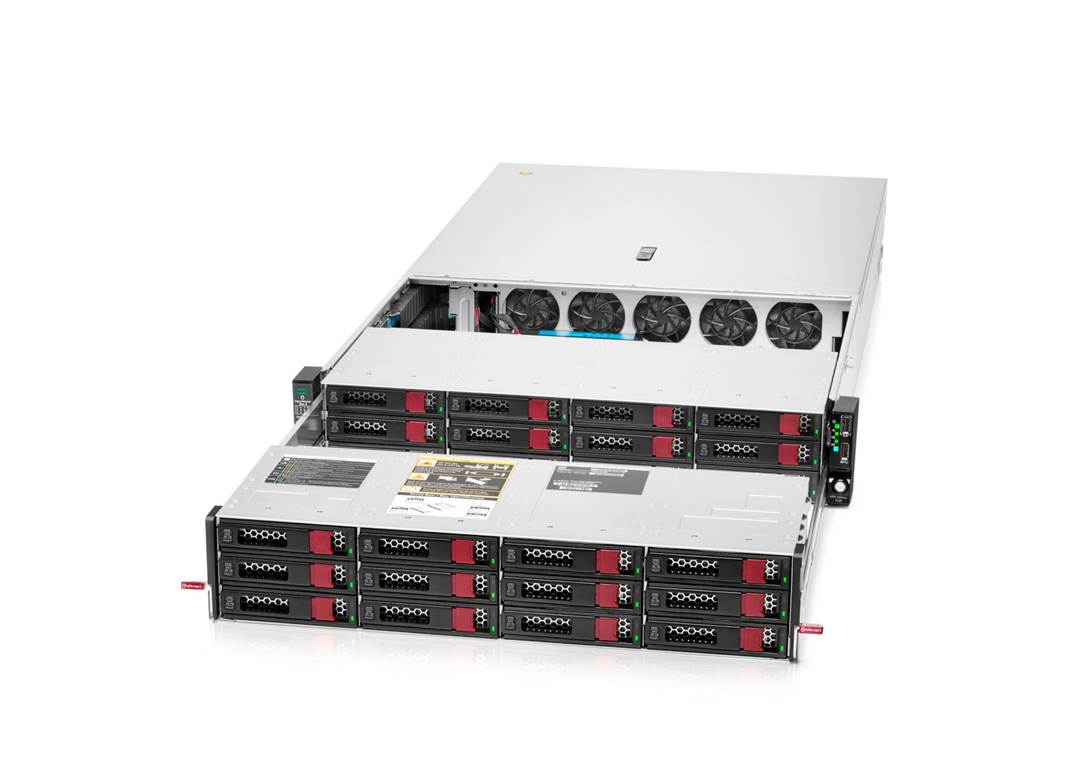

HPE ProLiant DX4120 Gen11 (24LFF SKU shown)

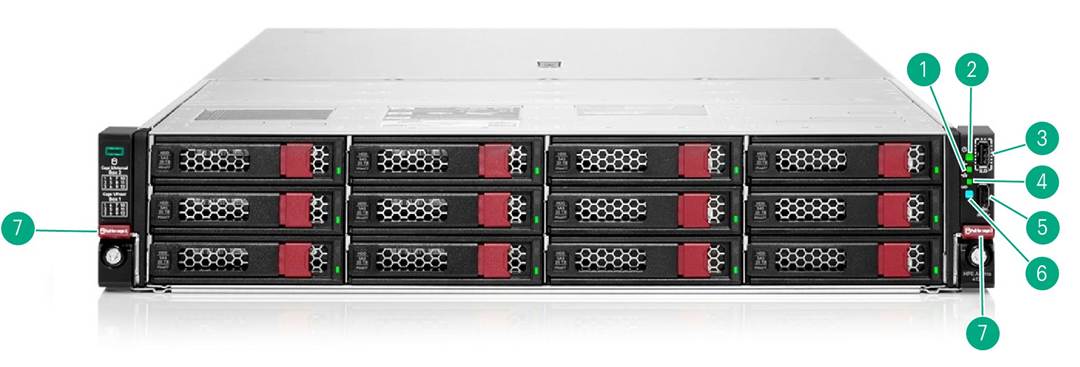

HPE ProLiant DX4120 Gen11 Configure-to-order System Front View (24LFF SKU shown)

Item

Description

Item

Description

1.

Health LED

5.

USB 3.0 port

2.

Power On/Standby button and system power LED

6.

UID button/LED

3.

iLO Service Port

7.

Drive cage 1 release latches

4.

NIC status LED

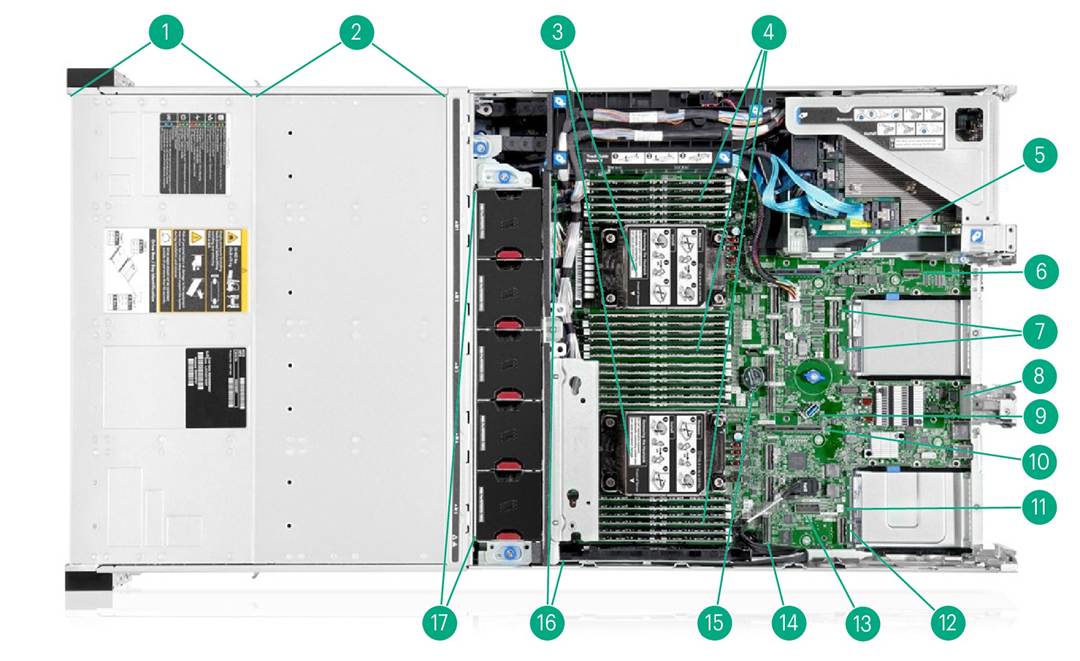

HPE ProLiant DX4120 Gen11 Configure-to-order System Internal View

Item

Description

Item

Description

1.

Drive Cage 1

10.

Primary riser connector

2.

Drive Cage 2

11.

VBU connector (OCP1)

3.

Up to 2 processors (2 processors installed with standard heat sink shown)

12.

OCP1 connector

4.

DDR5 DIMM slots (Fully populated 24 DIMMs shown)

13.

PCIe Gen3 connector

5.

Secondary riser connector

14.

MCIO connectors

6.

System maintenance switch

15.

System battery

7.

OCP2 connectors

16.

MCIO 1A connector

8.

Serial port connector

17.

System fans

9.

Internal USB connector

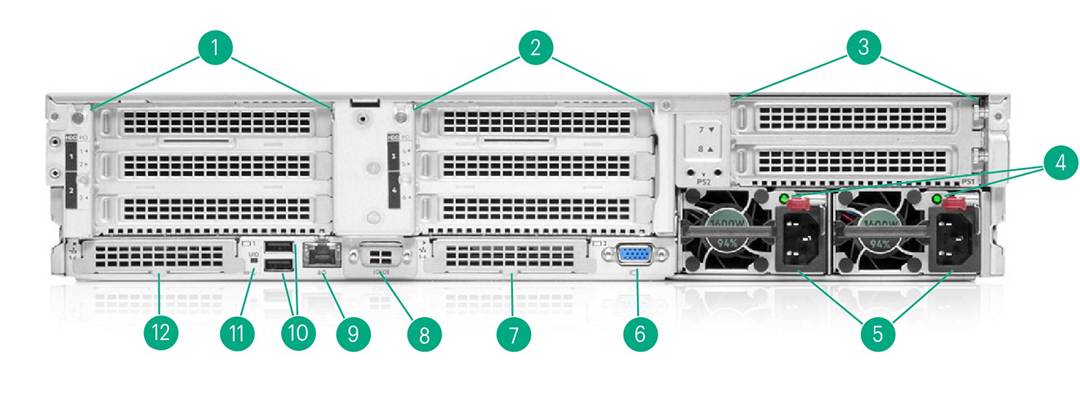

HPE ProLiant DX4120 Gen11 Configure-to-order System Rear View

Item

Description

Item

Description

1.

Primary riser or drive cage 4 (riser shown)

7.

OCP NIC 3.0 slot 2

2.

Secondary riser or drive cage 5 (riser shown)

8.

Serial port (optional)

3.

Tertiary riser

9.

iLO management port

4.

Power supply LED (bay 1 & 2)

10.

USB 3.0 ports

5.

Flex Slot power supply bay 1 & 2

11.

UID LED

6.

Video port

12.

OCP NIC 3.0 slot 1

What's New

- Successor to the industry-leading HPE ProLiant DX4200 Gen10 server.

- More data processing with the latest 4th generation Intel® Xeon® Scalable processors delivering more performance plus DDR5 memory with up to 50% more bandwidth.

- Enhanced zero trust security from silicon to software and factory to cloud with HPE Integrated Lights Out 6, including added support for the DMTF Security Protection Data Model.

Platform Information

Form Factor

- 2U rack

Chassis Types

- 24 LFF SAS 24Gb/SATA 6Gb

Notes:

- Optional Rear Drive Cages:

• 6 SFF SAS 24Gb/SATA 6Gb/NVMe U.3 x4 Tri-mode Drive Cage

System Fans

- 5 system dual-fan modules shipped as standard

Processors

Up to 2 of the following depending on model.

Notes:

- The 2nd digit of the processor model number "x4xx" is used to denote the processor generation (i.e., 4 = 4th generation).

- This table covers the public Intel® offering only.

- For more information regarding Intel® Xeon® processors, please see the following http://www.intel.com/xeon.

Notes:

- Supports up to two sockets, 2S - 4 or 3 UPI @ 16 GT/s.

- 4th Generation: 8-Channel DDR5 @ 4800 MT/s (2DPC @ 4400 MT/s).

- 80 lanes PCIe 5.0, advanced RAS.

- Y Supports Intel® Speed Select Technology - Performance Profile 2.0 (Intel® SST-PP).

Notes:

- Supports up to two sockets, 2S - 4 or 3 UPI @ 16 GT/s, except U SKUs.

- 4th Generation: 8-Channel DDR5 @ 4000-4800 MT/s (2DPC @ 4400 MT/s).

- 80 lanes PCIe 5.0, advanced RAS.

- Y Supports Intel® Speed Select Technology - Performance Profile 2.0 (Intel® SST-PP).

- U Supported in one-socket configurations only.

- S SKUs are storage & hyperconverged infrastructure (HCI) optimized SKUs

Notes:

- Supports up to two sockets, 2S - 2 UPI @ 16 GT/s, except U SKUs

- 4th Generation: 8-Channel DDR5 @ 4000 MT/s

- 80 lanes PCIe 5.0, advanced RAS.

- Y Supports Intel® Speed Select Technology - Performance Profile 2.0 (Intel® SST-PP).

Chipset

Intel® C741 Chipset

Notes: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

On System Management Chipset

HPE iLO 6 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and multi-bit errors that occur within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Notes: For more information see our Memory RAS feature technical whitepaper.

Expansion Slots

Primary Riser

Notes: Bus width indicates the number of physical electrical lanes running to the connector.

Secondary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- When 4th UPI enabled, Slot 4 is running PCIe 4.0 performance. The 4th UPI is disabled by default.

Primary and Secondary 1U Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- Primary and secondary 1U riser is included in 6SFF x4 Tri-Mode U.3 BC Rear Drive Cage (P51784-B21) and 12EDSFF E3.S 1T x4 Rear Drive Cage (P50875-B21) Upgrade Kit.

Tertiary Riser

Notes:

- Tertiary riser is shipped as standard.

- Bus width indicates the number of physical electrical lanes running to the connector.

- When 4th UPI enabled, Slot 8 is running PCIe 4.0 performance. The 4th UPI is disabled by default.

Internal Storage Devices

- Hard Drives

None ship standard

Storage Controllers

NVMe Boot Devices

-  HPE DX NS204i-u Gen11 NVMe Hot-Plug Boot FIO Optimized Storage Device

Notes:

- NS204i-u does not occupy a PCIe slot and internal only for HPE ProLiant DX 4120.

- 2pcs of 480GB M.2 NVMe SSD are included in the DX NS204i-u Hot-Plug Boot Device.

Smart Array Controller

- HPE DX MR216i-p Gen11 x16 Lanes without Cache PCI SPDM FIO Plug-in Storage Controller.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning. Learn more at

http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

https://www.hpe.com/us/en/servers/smart-update.html

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

Security

- UEFI Secure Boot and Secure Start support

- Immutable Silicon Root of Trust

- FIPS 140-2 validation

- Common Criteria certification

- Configurable for PCI DSS compliance

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

- Support for Commercial National Security Algorithms (CNSA)

- iLO Security Modes

- Granular control over iLO interfaces

- Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

- Tamper-free updates - components digitally signed and verified

- Secure Recovery - recover critical firmware to known good state on detection of compromised FW

- Ability to rollback firmware

- Secure erase of NAND

- TPM (Trusted Platform Module) 2.0 option

- Bezel Locking Kit

- Chassis Intrusion detection

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is included on Pre-Configured models and can be enabled and disabled using the BIOS.

Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/us/en/search-results.html?page=1&q=servers%20warranty&autocomplete=0.

Server Management

HPE iLO Advanced: Standard

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

Accelerator and GPGPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all of the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

This section lists some of the steps required to configure a Factory Integrated Model.

To ensure valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory installable option.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Network Choice (NC) Models

Network Choice models do not include embedded LOM. To enable networking capability please select a validated alternative NIC    -OCP or PCIe- from the Core Options section.

Notes: * HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country.

- HPE DX ProLiant platforms are a Server Appliance: and Energy Star except. Server Appliance: A computer server that is bundled with a pre-installed OS and application software that is used to perform a dedicated function or set of tightly coupled functions.  Server appliances deliver services through one or more networks (e.g., IP or SAN), and are typically managed through a web or command line interface.

Server appliance hardware and software configurations are customized by the vendor to perform a specific task (e.g., name services, firewall services, authentication services, encryption services, and voice-over-IP (VoIP) services), and are not intended to execute user-supplied software.

Step 2: Choose Required Options

Please select one or two matching processors for the 24LFF model, and two matching processors for the 48SFF model.

Notes:

- Mixing of 2 different processor models is not supported.

- Processors with TDP equal to or greater than 270W require High Performance Heat Sink Kit (P51832-B21).

- Processors with TDP lower than 270W require Standard Heat Sink Kit (P51833-B21).

Step 2a: Choose Processor Options

Processor Option Kits

4th Generation Intel® Xeon®-Platinum

Notes:

- All SKUs below ship with processor only. Adequate heatsinks (standard or high performance) must be selected.

- 4800 MT/s maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Platinum 8468 2.1GHz 48-core 350W FIO Processor for HPE DX

P62394-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 512GB SGX Enclave.

Intel Xeon-Platinum 8460Y+ 2.0GHz 40-core 300W FIO Processor for HPE DX

P62393-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Platinum 8452Y 2.0GHz 36-core 300W FIO Processor for HPE DX

P62398-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

4th Generation Intel® Xeon®-Gold

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks (standard or high performance) must be selected.

- 4800 - 4400 MT/S maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Gold 6454S 2.2GHz 32-core 270W FIO Processor for HPE DX

P62404-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6448Y 2.1GHz 32-core 225W FIO Processor for HPE DX

P62408-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6444Y 3.6GHz 16-core 270W FIO Processor for HPE DX

P62410-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6442Y 2.6GHz 24-core 225W FIO Processor for HPE DX

P62407-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6438Y+ 2.0GHz 32-core 205W FIO Processor for HPE DX

P62416-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6434 3.7GHz 8-core 195W FIO Processor for HPE DX

P62409-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6430 2.1GHz 32-core 270W FIO Processor for HPE DX

P62397-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6426Y 2.5GHz 16-core 185W FIO Processor for HPE DX

P62406-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5420+ 2.0GHz 28-core 205W FIO Processor for HPE DX

P62415-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5418Y 2.0GHz 24-core 185W FIO Processor for HPE DX

P62414-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Description

SKU

Intel Xeon-Gold 5418N 1.8GHz 24-core 165W FIO Processor for HPE DX

P62422-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5416S 2.0GHz 16-core 150W Processor for HPE DX

P62426-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5415+ 2.9GHz 8-core 150W FIO Processor for HPE DX

P62405-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

4th Generation Intel® Xeon®-Silver

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks (Standard or high performance) must be selected.

- 4000 MT/s maximum memory speed unless otherwise noted.

Intel Xeon-Silver 4416+ 2.0GHz 20-core 165W FIO Processor for HPE DX

P62413-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Silver 4410Y 2.0GHz 12-core 150W FIO Processor for HPE DX

P62412-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For additional information, please see the HPE DDR5 Smart Memory QuickSpecs.

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, or 12.

- If this SKU (Matera) is selected, Then Sapphire R SKUs (P62393-B21, P62394-B21, P62397-B21, P62398-B21, P62404-B21, P62405-B21, P62406-B21, P62407-B21, P62408-B21, P62409-B21, P62410-B21, P62411-B21, P62412-B21, P62413-B21, P62414-B21, P62415-B21, P62416-B21, P62426-B21, P62422-B21) cannot be selected.

- If this SKU (non-Matera) is selected, Then Emerald R SKUs (P67083-B21, P67079-B21, P67090-B21, P67086-B21, P67097-B21, P67110-B21, P67085-B21, P67096-B21, P67082-B21, P67095-B21, P67104-B21, P67094-B21, P67081-B21, P67093-B21, P67084-B21, P67080-B21, P67092-B21, P67091-B21) cannot be selected.

Registered DIMMs (RDIMMs)

Notes:

- Mixing of 3DS and non-3DS DIMMs is Not allowed.

- Mixing of R-DIMMs and LR-DIMMs is Not allowed.

Description

SKU

HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62601-B21

HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62603-B21

HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62604-B21

Notes: Support limited to 25°C maximum inlet temperature.

HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64708-B21

Notes:

- If 96G memory SKU (P64708-B21) is selected, Then DIMM qty can only be 12, 16, 24.

- If any of these SPR EE LCC CPUs (P67090-B21, P67091-B21) is selected, Then 96G memory (P64708-B21) cannot be selected.

HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-B21

Step 2c: Choose Power Supplies

Please select one or two power supplies from below.

Notes: Mixing of 2 different power supplies are NOT allowed.

HPE Flex Slot Power Supplies

HPE DX 800W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18223-B21

HPE DX 1000W Flex Slot Titanium Hot Plug FIO Power Supply Kit

P44807-B21

HPE DX 1600W Flex Slot Platinum Hot Plug Low Halogen FIO Power Supply Kit

P18222-B21

HPE DX 1800-2200W FS Ti HtPlg FIO PS Kit

P56724-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE DX 1600W Flex Slot -48VDC Hot Plug FIO Power Supply Kit

P60246-B21

HPE 1600W -48VDC Power Cable Lug Kit

P36877-B21

Step 3: Choose Additional (FIO) Factory Integratable Options

Each of the following may be selected if desired at time of factory integration

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

Notes:

­ Enables Fast Fault Tolerance mode, an HPE Memory RAS feature introduced in HPE Gen10 servers that survives up to two DRAM failures.

­ This RAS feature combines Adaptive Double DRAM Device Correction (ADDC) with HPE Advanced Error Detection Technology, resulting in significantly better memory reliability and availability that what ADDDC provides on its own. For more information see our Memory RAS feature technical whitepaper.

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Unique Options

Cooling Options

Description

SKU

HPE ProLiant DX4120 High Performance FIO Heat Sink Kit

P68977-B21

Notes: Required for processors with a TDP equal or greater than 270W.

System FIO Storage Controllers

HPE ProLiant DX MR216i-p Gen11 x16 Lanes without Cache PCI SPDM FIO Plug-in Storage Controller

P60333-B21

System FIO Storage Controller Mode for 24LFF Cage2

System OCP Options

Description

SKU

HPE Alletra Storage Server 4120 OCP2 Upgrade Cable Kit

P51943-B21

Notes: This SKU can improve the OCP2 slot bandwidth from X8 to X16 PCIe Gen5, and the 2nd processor is required.

System Racking Options

HPE 2U Shelf-Mount Adjustable Rail Kit

822731-B21

HPE Apollo 4200 Gen9 FIO Strap Shipping Bracket

822640-B21

Notes: This SKU is used for shipping servers that are integrated into a rack.

System NVMe Boot Device Enablement Options

HPE Alletra Storage Server 4120 NVMe M.2 Enablement Kit

P50885-B21

Notes: This SKU is required when HPE NS204i-u Gen11 NVMe Hot-Plug Boot Optimized Storage Device (P48183-B21) is installed.

HPE Processors

Please select one or two matching processors.

Notes:

- Mixing of 2 different processor models is not supported.

- Processors with TDP equal to or greater than 270W require High Performance Heat Sink Kit (P51832-B21).

- Processors with TDP lower than 270W require Standard Heat Sink Kit (P51833-B21).

- If any of these SKUs (Sapphire R) is selected, Then these memory SKUs (P64705-B21, P64706-B21, P64707-B21, P64708-B21, P64709-B21) can NOT be selected.

- If any of these SKUs (Emerald R) is selected, Then these memory SKUs (P62601-B21, P62603-B21, P62604-B21, P62605-B21, P62606-B21) can NOT be selected.

- If any of these SPR EE LCC CPUs (P67090-B21,  P67091-B21) is selected, Then 96G memory (P64708-B21) can NOT be selected.

Processor Option Kits

4th Generation Intel® Xeon®-Platinum

Notes:

- All SKUs below ship with processor only. Adequate heatsinks (standard, or high performance) must be selected.

- 4800 MT/S maximum memory speed unless otherwise noted.

Description

SKU

Intel Xeon-Platinum 8468 2.1GHz 48-core 350W FIO Processor for HPE DX

P62394-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 512GB SGX Enclave.

Intel Xeon-Platinum 8460Y+ 2.0GHz 40-core 300W FIO Processor for HPE DX

P62393-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Platinum 8452Y 2.0GHz 36-core 300W FIO Processor for HPE DX

P62398-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

5th Generation Intel® Xeon®-Platinum

Intel Xeon-Platinum 8562Y+ 2.8GHz 32-core 300W Processor for HPE

P67085-B21

Intel Xeon-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE

P67086-B21

Intel Xeon-Platinum 8558 2.1GHz 48-core 330W Processor for HPE

P67097-B21

4th Generation Intel® Xeon®-Gold

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks (standard, or high performance) must be selected.

- 44800 MT/S maximum memory speed unless otherwise noted.

Intel Xeon-Gold 6454S 2.2GHz 32-core 270W FIO Processor for HPE DX

P62404-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6448Y 2.1GHz 32-core 225W FIO Processor for HPE DX

P62408-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6444Y 3.6GHz 16-core 270W FIO Processor for HPE DX

P62410-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6442Y 2.6GHz 24-core 225W FIO Processor for HPE DX

P62407-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6438Y+ 2.0GHz 32-core 205W FIO Processor for HPE DX

P62416-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6434 3.7GHz 8-core 195W FIO Processor for HPE DX

P62409-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6430 2.1GHz 32-core 270W FIO Processor for HPE DX

P62397-B21

Notes:

- Requires High Performance Heat Sink Kit (P51832-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 6426Y 2.5GHz 16-core 185W FIO Processor for HPE DX

P62406-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5420+ 2.0GHz 28-core 205W FIO Processor for HPE DX

P62415-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5418Y 2.0GHz 24-core 185W FIO Processor for HPE DX

P62414-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5418N 1.8GHz 24-core 165W FIO Processor for HPE DX

P62422-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5416S 2.0GHz 16-core 150W Processor for HPE DX

P62426-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Gold 5415+ 2.9GHz 8-core 150W FIO Processor for HPE DX

P62405-B21

Intel Xeon-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE

P67079-B21

Intel Xeon-Gold 5520+ 2.2GHz 28-core 205W Processor for HPE

P67094-B21

5th Generation Intel® Xeon®-Gold 6

Intel Xeon-Gold 6554S 2.2GHz 36-core 270W Processor for HPE

P67110-B21

Intel Xeon-Gold 6538N 2.1GHz 32-core 205W Processor for HPE

P67104-B21

Intel Xeon-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE

P67080-B21

Intel Xeon-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE

P67081-B21

Intel Xeon-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE

P67082-B21

Intel Xeon-Gold 6534 3.9GHz 8-core 195W Processor for HPE

P67083-B21

Intel Xeon-Gold 6544Y 3.6GHz 16-core 270W Processor for HPE

P67084-B21

Intel Xeon-Gold 6530 2.1GHz 32-core 270W Processor for HPE

P67095-B21

Intel Xeon-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE

P67096-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

4th Generation Intel® Xeon®-Silver

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks (Standard or high performance) must be selected.

- 4000 MT/s maximum memory speed unless otherwise noted.

Intel Xeon-Silver 4416+ 2.0GHz 20-core 165W FIO Processor for HPE DX

P62413-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

Intel Xeon-Silver 4410Y 2.0GHz 12-core 150W FIO Processor for HPE DX

P62412-B21

Notes:

- Requires Standard Heat Sink Kit (P51833-B21).

- 128GB SGX Enclave.

5th Generation Intel® Xeon®-Silver

Intel Xeon-Silver 4509Y 2.6GHz 8-core 125W Processor for HPE

P67090-B21

Intel Xeon-Silver 4510 2.4GHz 12-core 150W Processor for HPE

P67091-B21

Notes: If any of these SPR EE LCC CPUs (P67090-B21,  P67091-B21) is selected, Then 96G memory (P64708-B21) can NOT be selected

Intel Xeon-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE

P67092-B21

Intel Xeon-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE

P67093-B21

HPE Memory

Please select two or more memory DIMMs from below.

For additional information, please see the HPE DDR5 Smart Memory QuickSpecs.

Notes:

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, or 12.

HPE DDR5 Memory

Notes: DIMMs must be selected in quantities of 1, 2, 4, 6, 8, or 12 per socket.

Registered DIMMs (RDIMMs)

Notes: Mixing of 3DS and non-3DS DIMMs not allowed.

HPE DX 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62601-B21

HPE DX 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62603-B21

HPE DX 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P62604-B21

Notes: Support limited to 25°C maximum inlet temperature.

HPE Boot Device

HPE DX NS204i-u Gen11 NVMe Hot Plug Boot Optimized FIO Storage Device

P60454-B21

Notes: No NVMe M.2 SSD included and requires at least one NVMe SSD.

HPE Alletra Storage Server 4120 NVMe M.2 Enablement Kit

P50885-B21

HPE Drives

Midline - 12G SAS - LFF Drives

Description

SKU

HPE DX 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e ISE FIO HDD

P60324-B21

HPE DX 16TB SAS 12G Business Critical 7.2K LFF (3.5in) LP 1yr Wty 512e ISE FIO HDD

P35152-B21

HPE DX 12TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty HE 512e Digitally Signed Firmware FIO HDD

P17966-B21

HPE DX 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware FIO HDD

P17965-B21

Read Intensive - NVMe - SFF - Solid State Drives

HPE DX 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD

P57758-B21

HPE DX 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static Multi Vendor FIO SSD

P57759-B21

HPE DX 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a FIO SSD

P57771-B21

HPE Networking

100 Gigabit Ethernet adapters

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 FIO Adapter for HPE DX

P43273-B21

Notes: Not supported if processors equal or greater than 270W

25 Gigabit Ethernet adapters

DX BCM 57414 10/25GbE 2p SFP28 FIO Adapter

P53862-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 FIO Adapter for HPE DX

P43273-B21

10 Gigabit Ethernet adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T FIO Adapter for HPE DX

P43271-B21

OCP 3.0 Adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 FIO Adapter for HPE DX

P43272-B21

DXBCM 57414 10/25G 2p SFP28 OCP3 FIO Adp

P53861-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 FIO Adapter for HPE DX

P60339-B21

HPE Power Supplies

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for Hot-Plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the HPE Power Cords web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies

HPE Flex Slot Platinum Hot-plug Power supplies

Description

SKU

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes: Only supports high line voltage (200 VAC to 240 VAC).

HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

Embedded Management

Notes: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE iLO Advanced: Standard

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Common Password: Standard

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE Security

HPE Gen11 2U Storage Bezel Kit

P51688-B21

HPE Bezel Lock Kit

875519-B21

HPE Smart Array Controllers

Notes:

- MR (MegaRAID) series controllers are not supported with Intelligent Provisioning features

- For more information on the HPE Gen11 Storage Controller, please refer to:

HPE Compute MR Gen11 Controllers QuickSpecs

HPE Tri-Mode Controllers

HPE ProLiant DX MR216i-p Gen11 x16 Lanes without Cache PCI SPDM FIO Plug-in Storage Controller

P60333-B21

HPE NVMe OS Boot Device: Defaulted

HPE DX NS204i-u Gen11 NVMe Hot Plug Boot Optimized FIO Storage Device

P60454-B21

HPE PCI-e Accelerators

GPU Controllers

DX NVIDIA L4 SW PCIe FIO Accelerator

P65461-B21

DX NVIDIA A2 16GB PCIe NonCEC FIO Accel

P66211-B21

Emissions Classification (EMC)

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts.

Environmentally friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires

manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise website. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

TCO Certified

The HPE ProLiant DX4120 Gen11 has been TCO Certified. All HPE TCO Certified products can be found on
TCO Certified Product Finder. More information on TCO Certified can be downloaded here: https://www.hpe.com/us/en/about/environment/eco-labels.html.

Have feedback on QuickSpecs? We're listening

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel® Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

a50007025enw - 17135 - Worldwide  - V5 - 20-July-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
