HPE ProLiant DL560 Gen11

QuickSpecs

The HPE ProLiant DL560 Gen11 Server is a high-density, four-socket (4S) server with high performance, scalability, and reliability, all in a 2U chassis.

Supporting the latest 4^th generation Intel® Xeon® Scalable processors, the HPE ProLiant DL560 Gen11 Server offers greater processing power, up to 16 TB of DDR5 memory, I/O up to six PCIe Gen5 slots, 2 OCP slots, plus the intelligence and simplicity of automated management with HPE OneView and HPE iLO 6.

HPE ProLiant DL560 Gen11

The HPE ProLiant DL560 Gen11 Server is the ideal server for business-critical workloads, in-memory databases, data analytics, virtualization, server consolidation, business processing, and general 4S data-intensive applications where data center space and the right performance are paramount.

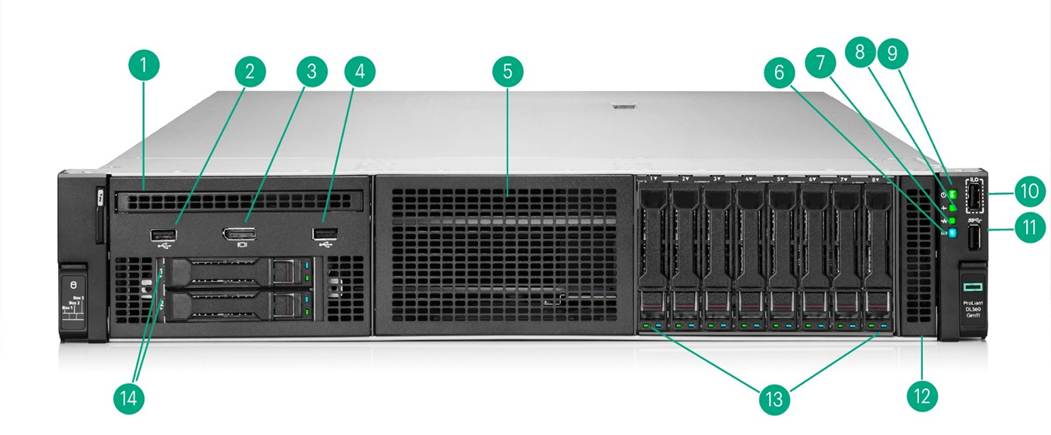

Front View - SFF chassis with optional Universal Media bay shown

Item

Description

Item

Description

1.

DVD-ROM (Optional) (or Box 1 can switch to 8SFF cage)

8.

Health LED

2.

USB 2.0 port

9.

Power On/Standby button/LED

3.

DisplayPort

10.

iLO Service Port

4.

USB 2.0 port

11.

USB 3.2 port

5.

8 SFF HDD/SSD/NVMe

12.

SID (Optional)

6.

UID button LED

13.

8 SFF HDD/SSD/NVMe

7.

NIC status LED

14.

2 SFF HDD/SSD/NVMe

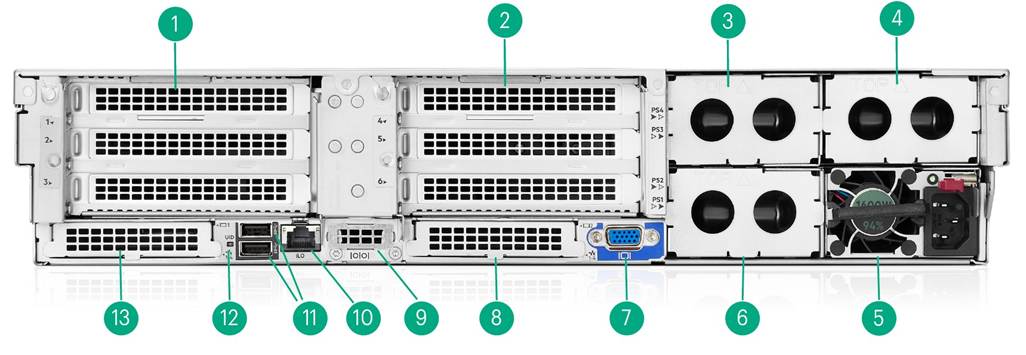

Rear View - Standard for all DL560 Gen11

Item

Description

Item

Description

1.

3 PCIe slots (Primary riser) (Slot 1-3)

8.

OCP 2 (Slot 15)

2.

3 PCIe slots (Secondary riser) (Slot 4-6)

9.

Serial port (optional)

3.

Power supply 4

10.

iLO Management Port

4.

Power supply 3

11.

USB 3.2 ports (2)

5.

Power supply 1

12.

UID

6.

Power supply 2

13.

OCP 1 (Slot 14)

7.

Video (VGA) port

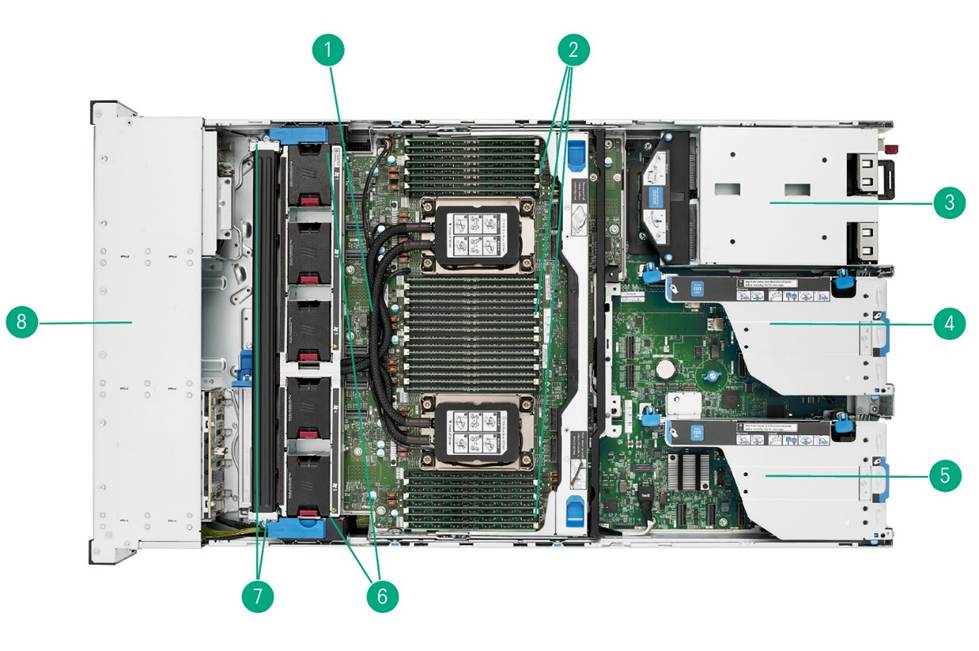

Internal View Liquid Cooling Chassis

Item

Description

Item

Description

1.

Liquid cooling tube

5.

3 PCIe slots (Primary riser)

2.

DDR5 DIMMs

6.

Redundant Fans

3.

Power supplies

7.

Liquid Cooling Radiator

4.

3 PCIe slots (Secondary riser)

8.

Drive cages

What's New

- All-new DL560 Gen11.

- Smart Closed-loop Liquid Cooling system design.

- New 4^th Generation Intel® Scalable Processors.

- New PCIe 5.0 support.

- New DDR5 Smart Memory - 4800 MT/s.

- New Storage Controllers.

- New NS204i-u Boot Device.

- New SSDs and HDDs.

Platform Information

Form Factor

- 2U rack.

Chassis Types

- 8 SFF (SAS/SATA/NVMe) option up to 24 SFF (SAS/SATA/NVMe) with optional SFF Universal Media Bay.

- EDSFF (direct attach) support, up to 16 (2P) or 24 (4P).

Notes:

- The 8 SFF chassis can be upgraded to up to 24SFF (front) with a variety of 8SFF Drive Cages to select from, including 8 SFF U.3 x1 and x4 SAS/SATA/NVMe or EDSFF (x4 Direct Attach). See "Drive Cages" section within this document for options.

- The Universal Media Bay is only available as an option and can only be populated in Box 1.

- Refer to CPU/Memory/Storage support matrix for validated system configuration.

System Fans

- High Performance Fan Kit.

Notes:

- On 8SFF air-cooled CTO server model ships with 6 high-performance fan kit.

- On 8SFF liquid-cooled CTO server model ships with 5 performance fan kit.

Processors - Up to 4 of the following depending on model.

The 2nd digit of the processor model number "x4xx" is used to denote the processor generation (i.e. 4=4^th generation Intel® Scalable Series Processors).

For more information regarding Intel® Xeon processors, refer to the following http://www.intel.com/xeon.

This table covers the public Intel® offering only.

Notes:

- 8-Channel DDR5 @ 1DPC 4800 MT/s/ 2DPC 4400 MT/s.

- 2 socket capable, 4 UPI @ 16 GT/s.

- 4 socket capable, 3 UPI @ 16 GT/s.

Model

HPE Option Kit

Long Name

TDP

Die

Socket

Thermal solution

2 Processor SKU

4 Processor

SKU

6416H

P49620-B21

Intel® Xeon®-G 6416H

2.2 GHz 18-core 165W

165

MCC

4S

AC

AC

6418H

P49621-B21

Intel® Xeon®-G 6418H

2.1 GHz 24-core 185W

185

MCC

4S

AC

AC

6448H

P49622-B21

Intel® Xeon®-G 6448H

2.4 GHz 32-core 250W

250

MCC

4S

AC

AC

6434H

P49623-B21

Intel® Xeon®-G 6434H

3.7 GHz 8-core 195W

195

MCC

4S

AC

LC

8444H

P49625-B21

Intel® Xeon®-P 8444H

2.9 GHz 16-core 270W

270

XCC

4S

AC

LC

8450H

P49626-B21

Intel® Xeon®-P 8450H

2.0 GHz 28-core 250W

250

XCC

4S

AC

AC

8460H

P49628-B21

Intel® Xeon®-P 8460H

2.2 GHz 40-core 330W

330

XCC

4S

AC

LC

8468H

P49629-B21

Intel® Xeon®-P 8468H

2.1 GHz 48-core 330W

330

XCC

4S

AC

LC

8490H

P49630-B21

Intel® Xeon®-P 8490H

1.9 GHz 60-core 350W

350

XCC

4S

AC

LC

Notes:

- AC: Air cooling solution CTO.

- LC: Liquid cooling solution CTO.

- MCC: Xeon® Gold.

- XCC: Xeon® Platinum.

- Air cooling cannot be upgraded to Liquid cooling, please choose Liquid cooling CTO at step 1 as needed.

Chipset

Intel® C741 Chipset

Notes: For more information regarding Intel® chipsets, refer to the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

On System Management Chipset

HPE iLO 6 ASIC

Read and learn more in the iLO QuickSpecs.

Notes: The maximum memory speed is limited by the processor selection. Total memory capacity support is CPU/Storage/Memory configuration dependent. Please refer to CPU/Storage/Memory support matrix.

The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Expansion Slots

Notes:

- There are 2 expansion slot riser cards, both can be used as primary or secondary.

- When 1 riser is selected, factory will install in primary slot.

- When 2 risers are selected, factory will install 3x16 risers in primary slot.

Notes:

- When 3x16 riser is selected, cable kit to connect with motherboard (for 2P) or mezzanine card (for 4P) must be selected.

- For DW GPU accelerator cards can only be populated in primary riser (slot 2) and secondary riser (slot 5).

- For GPU installation, must select the enable kit (P54816-B21)

- GPU Supports up to 10.5" length in slot 2 and 5.

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200 @ 60Hz (32 bpp).

- 16MB Video Memory.

Maximum Internal Storage

Notes: Storage capacity please refer to CPU/Storage/Memory support matrix.

Internal Storage Devices

- Optical Drive

Optional: DVD-ROM, DVD-RW.

- Hard Drives

None shipped as standard.

Power Supply

- HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit.

Notes: available in 96% efficiency.

Notes: Output capped at 1600W maximum on Gen10 & Gen10 Plus servers, greater than 1600W only feasible on Gen11." Similar to the one currently stated on FlexSlot PSUs.

- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: available in 94% efficiency.

- HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit.

Notes: available in 96% efficiency.

- HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: available in 94% efficiency.

- HPE 1600W FS 48VDC Hot Plug LH Power Supply Kit.

Notes: available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

The standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page to review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

European Union ErP Lot 9 Regulation

Beginning on January 1^st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Storage Controllers

The available Gen11 controllers are depicted below.

Essential RAID Controller

HPE Smart Array E208e-p SR Gen10 Controller.

Tri-Mode Controller

- HPE MR216i-p Gen11 Controller.

- HPE MR216i-o Gen11 Controller.

- HPE MR408i-o Gen11 Controller.

- HPE MR416i-p Gen11 Controller.

- HPE MR416i-o Gen11 Controller.

- HPE SR932i-p Gen11 Controller^1,.

Notes:

- PE80xx NVMe drives are not supported.

- ¹Requires x16 physical and electrical riser slot.

- Controllers with cache require either HPE 96W Smart Storage Battery 260mm Cable (P01367-B21) or HPE Smart Hybrid Capacitor w/ 260mm Cable (P02381-B21).

Hybrid RAID

- Intel® Virtual RAID on CPU (Intel® VROC) Premium FIO Software for HPE.

- Intel® Virtual RAID on CPU (Intel® VROC) Standard Software FIO for HPE.

Notes: In HPE ProLiant Gen11 servers, when secure boot is enabled, Intel® Virtual RAID on CPU (Intel® VROC) 8.0 Out-of-Band (OOB) management does not function with Linux kernel version 5.4 (or later). Intel® VROC OOB will not respond to any PLDM (over-MCTP-over-PCIe) requests from iLO (BMC). Intel® VROC Redfish resources will not function (e.g., Redfish actions); therefore, Intel® VROC over Redfish management is not available. This is due to a new security feature in Linux kernel version 5.4 (or later).

For more information, please visit Customer Advisory Document ID: a00128934en_us, at HPE Support Center.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices.

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation to support UEFI Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

- Secure Boot and Secure Start enable for enhanced security.

- Embedded UEFI Shell.

- Operating system specific functionality.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- Support for > 2.2 TB (using GPT) boot drives.

- PXE boot support for IPv6 networks.

- USB 3.2 Stack.

- Workload Profiles for simple performance optimization.

UEFI Boot Mode only

- TPM 2.0 Support.

- iSCSI Software Initiator Support.

- NVMe Boot Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Platform Trust Technology (PTT) can be enabled.

- Boot support for option cards that only support a UEFI option ROM.

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- Enabling TPM 2.0 no longer requires TPM module option kit for Gen11 is an embedded feature.

Industry Standard Compliance

- ACPI 6.3 Compliant.

- PCIe 5.0 Compliant.

- WOL Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA.

- DisplayPort.

Notes: This support is on the optional Universal Media Bay.

- USB 3.2 Compliant.

- USB 2.0 Compliant (via Universal Media Bay).

Notes: This support is on the optional Universal Media Bay.

- ENERGY STAR® 4.0.

- SMBIOS 3.2.

- Redfish API.

- IPMI 2.0.

- Secure Digital 4.0.

- TPM 1.2 and 2.0 Support.

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11 is an embedded feature.

- Advanced Encryption Standard (AES).

- Triple Data Encryption Standard (3DES).

- SNMP v3.

- TLS 1.2.

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- Active Directory v1.0.

- ASHRAE A3/A4.

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit http://www.hpe.com/servers/ashrae

- EU Lot9.

Notes: Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

- UEFI (Unified Extensible Firmware Interface Forum) 2.7.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/hpesc/public/docDisplay?docId=c04465280&docLocale=en_US

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers. Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on premise, multi-generational server monitoring and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen11 rack, tower, or micro server.

For more information, visit the HPE Compute Ops Management QuickSpecs:

https://www.hpe.com/psnow/doc/a50004263enw

Security

- UEFI Secure Boot and Secure Start support.

- Tamper-free updates - components digitally signed and verified.

- Immutable Silicon Root of Trust.

- Ability to rollback firmware.

- FIPS 140-2 validation.

- Secure erase of NAND/User data.

- Common Criteria certification.

- TPM (Trusted Platform Module) 1.2 option.

- Configurable for PCI DSS compliance.

- TPM (Trusted Platform Module) 2.0 option.

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11 is an embedded feature.

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser.

- Bezel Locking Kit option.

- Support for Commercial National Security Algorithms (CNSA).

- Chassis Intrusion detection option.

- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard, provides full-featured licenses which can be purchased for managing multiple HPE server generations.

To learn more visit http://www.hpe.com/info/oneview.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://ocs.ext.hpe.com/SimplifiedConfig/Welcome

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They are intended to provide simple starting points to assist you in easily creating and customizing your desired Server solutions.  HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.

Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer's specific workload.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options.  Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled up to 30% faster than non-Mainstream orders, have fewer shortages and better recovery dates.  This platform has Mainstream SKUs in the options portfolio, and is eligible for the improved Mainstream experience.  Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations.  All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.

Configuration Information

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory installable option.

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one (1) of the following configurable server models from the tables below)

The below (2) CTO server models provide flexibility in the networking choice and require a network adapter from the "HPE Networking" section be selected.

Step 2: Choose Required Options

Please select up to four processors required below.

Notes:

- Maximum memory capacity per processor is dependent on processor models and storage configuration.

- Mixing of 2 different processors models are NOT allowed.

- DDR5 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

Step 2a: Choose Processors

Processor Option Kits (Required Processor)

4^th Generation Intel® Xeon®-Platinum

Notes: All SKUs below ship with processor only. Adequate heatsinks must be selected.

Intel Xeon-Platinum 8490H 1.9GHz 60-core 350W Processor for HPE

P49630-B21

Notes:

- 4P configuration requires HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit (P54791-B21) for Liquid-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

Intel Xeon-Platinum 8468H 2.1GHz 48-core 330W Processor for HPE

P49629-B21

Notes:

- 4P configuration requires HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit (P54791-B21) for Liquid-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

Intel Xeon-Platinum 8460H 2.2GHz 40-core 330W Processor for HPE

P49628-B21

Notes:

- 4P configuration requires HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit (P54791-B21) for Liquid-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

Intel Xeon-Platinum 8450H 2.0GHz 28-core 250W Processor for HPE

P49626-B21

Notes:

- 4P configuration requires HPE ProLiant DL3XX/560 Gen11 High Performance Heat Sink Kit (P48905-B21 for Air-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

Intel Xeon-Platinum 8444H 2.9GHz 16-core 270W Processor for HPE

P49625-B21

Notes:

- 4P configuration requires HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit (P54791-B21) for Liquid-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

4^th Generation Intel® Xeon®-Gold

Intel Xeon-Gold 6448H 2.4GHz 32-core 250W Processor for HPE

P49622-B21

Notes:

- 4P configuration requires HPE ProLiant DL3XX/560 Gen11 High Performance Heat Sink Kit (P48905-B21 for Air-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

Intel Xeon-Gold 6434H 3.7GHz 8-core 195W Processor for HPE

P49623-B21

Notes:

- 4P configuration requires HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit (P54791-B21) for Liquid-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

Intel Xeon-Gold 6418H 2.1GHz 24-core 185W Processor for HPE

P49621-B21

Notes:

­ 4P configuration requires HPE ProLiant DL3XX/560 Gen11 High Performance Heat Sink Kit (P48905-B21 for Air-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

Intel Xeon-Gold 6416H 2.2GHz 18-core 165W Processor for HPE

P49620-B21

Notes:

- 4P configuration requires HPE ProLiant DL3XX/560 Gen11 High Performance Heat Sink Kit (P48905-B21 for Air-cooling CTO.

- 2P configuration requires HPE ProLiant DL380/DL560 Gen11 2U High Performance Heat Sink Kit (P48818-B21) for Air-cooling CTO.

HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit

P54791-B21

Notes:

- For 4P Liquid cooling configuration

- The HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit is subject to a Maximum Usage Limitation of not exceeding five (5) years of operation and is required to be replaced when reaching limitation. Parts and components that Hewlett Packard Enterprise determines have reached or exceeded their Maximum Usage limitations will not be provided, repaired, or replaced under warranty or service contract. Contact your local sales representative for additional information.

HPE ProLiant DL380/DL560 Gen11 High Performance 2U Heat Sink Kit

P48818-B21

Notes: For 2P Air cooling configuration.

HPE ProLiant DL3XX/560 Gen11 High Performance Heat Sink Kit

P48905-B21

Notes:

- For 4P Air cooling configuration:

- Air cooling cannot be upgraded to Liquid cooling, please choose Liquid cooling CTO at step 1 as needed.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to:

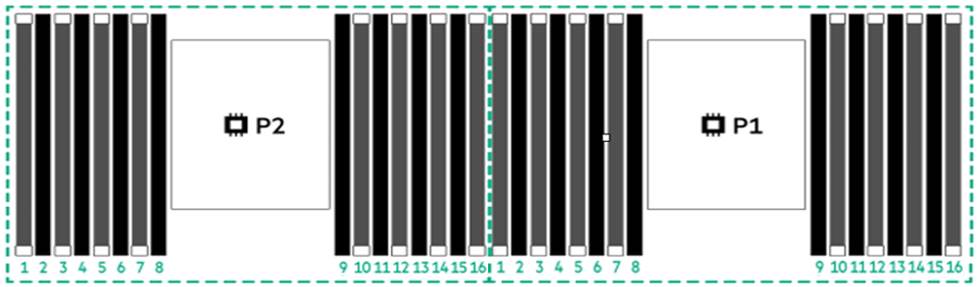

HPE Memory Population Rules

For details on the HPE Server Memory Options Population Rules, please go to:

Memory population rules for HPE Gen11 servers with 4th Generation Intel Scalable Processors

Notes:

- HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested.  Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration.  For this reason, some HPE memory DIMMs may be qualified for an HPE server model or family and yet occasionally not be supported with some configurations within that server family.

- Memory should be installed in even quantity of DIMMs.

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- DDR5-4800 Memory Kits are only supported with 4^th Generation Intel® Xeon® Scalable Series Processors.

- Memory compatibility may vary or be limited within a specific server family depending upon the specific configuration being requested.  Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration.  For this reason, some HPE memory DIMMs may be qualified for a server model or family and yet occasionally not be supported with limited configurations within that server family.

- Please consult with the HPE server QuickSpecs or your HPE representative if you have any questions regarding memory compatibility with a specific HPE server configuration.

Registered DIMMs DDR5 (RDIMMs)

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66675-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69974-B21

Notes:

- 4800 MT/s memory SKUs offer a transfer rate of 4800 MT/s at 1 DIMM per channel and 4400 MT/s at 2 DIMMs per channel.

- Mixing of 3DS memory and non-3DS memory is not supported.

- Please refer to CPU/Storage/Memory support matrix for memory support capacity

- If 128GB is desired, the 128GB (1x128GB) Quad Rank x4 DDR5-4800 (P63345-B21) must be selected for configuring Liquid Cooling CTO Server

- For 96 GB Smart Kit, it must be populated in half quantity or full quantity each CPU. (each CPU needs memory populated)

- 96GB Smart kit cannot be mixed up with any other capacity memory module.

CPU/Storage/Memory Support Matrix

DIMM Support Matrix

SKU

CPU

HDD configuration

Maximum Support

Ambient Temperature

CPU TDP

CPU list

Storage configuration

Box 1

Box 2

Box 3

64GB and Lower Capacity DDR5 DIMM

96GB

P66675-B21

128GB DDR5 DIMM

(P69974-B21

P43334-B21)

256GB DDR5 DIMM

(P43337-B21)

Air cooling

2 processor SKU

Up to 350W

6416H(165W) 6418H(185W) 6448H(250W) 6434H(195W)

8444H(270W) 8450H(250W)

8460H(330W) 8468H(330W)

8490H(350W)

8 SFF

Venting blank

Venting blank

8 SFF

35°C

35°C

25°C

12 EDSFF

Venting blank

12 EDSFF

Venting blank

35°C

35°C

Media bay +

8 SFF

Media bay

Venting blank

8 SFF

35°C

35°C

Media bay +

12 EDSFF

Media bay

12 EDSFF

Venting blank

35°C

35°C

8 SFF x2

8 SFF

Venting blank

8 SFF

35°C

30°C

8 SFF x2

(Direct Attach)

Venting blank

8 SFF

8 SFF

35°C

30°C

12 EDSFF x2

Venting blank

12 EDSFF

12 EDSFF

35°C

25°C

Media bay +

8 SFF x2

Media bay

8 SFF

8 SFF

35°C

30°C

Media bay +

12 EDSFF x2

Media bay

12 EDSFF

12 EDSFF

35°C

30°C

8 SFF x3

8 SFF

8 SFF

8 SFF

35°C

25°C

Notes: It is the responsibility of customers to ensure the datacenter inlet temperature meets the requirements above.

SKU

CPU

HDD configuration

Maximum Support

Ambient Temperature

CPU TDP

CPU list

Storage configuration

Box 1

Box 2

Box 3

64GB and Lower Capacity DDR5 DIMM

96GB

P66675-B21

128GB DDR5 DIMM

(P43334-B21

P69974-B21)

256GB DDR5 DIMM

(P43337-B21)

Air cooling

4 processor SKU

Up to 185W

6416H(165W)

6418H(185W)

8 SFF

Venting Blank

8 SFF

Venting Blank

35°C

35°C

25°C

12 EDSFF

Venting Blank

12 EDSFF

Venting Blank

35°C

30°C

25°C

Media bay +

8 SFF

Media bay

8 SFF

Venting Blank

35°C

30°C

20°C

Media bay +

12 EDSFF

Media bay

12 EDSFF

Venting Blank

35°C

30°C

20°C

8 SFF x2

8 SFF

Venting Blank

8 SFF

35°C

25°C

20°C

12 EDSFF x2

Venting Blank

12 EDSFF

12 EDSFF

30°C

20°C

Media bay +

8 SFF x2

Media bay

8 SFF

8 SFF

35°C

20°C

Media bay +

12 EDSFF x2

Media bay

12 EDSFF

12 EDSFF

30°C

20°C

8 SFF x3

8 SFF

8 SFF

8 SFF

35°C

Notes: It is the responsibility of customers to ensure the datacenter inlet temperature meets the requirements above.

SKU

CPU

HDD configuration

Maximum Support

Ambient Temperature

CPU TDP

CPU list

Storage configuration

Box 1

Box 2

Box 3

64GB and Lower Capacity DDR5 DIMM

96GB

P66675-B21

128GB DDR5 DIMM

(P43334-B21

P69974-B21)

256GB DDR5 DIMM

(P43337-B21)

Air cooling

4 processor SKU

Up to 250W

6448H(250W) 8450H(250W)

8 SFF

Venting blank

8 SFF

Venting blank

35°C

35°C

25°C

12 EDSFF

Venting blank

12 EDSFF

Venting blank

35°C

30°C

25°C

Media bay +

8 SFF

Media bay

8 SFF

Venting blank

35°C

30°C

20°C

Media bay +

12 EDSFF

Media bay

12 EDSFF

Venting blank

35°C

30°C

20°C

8 SFF x2

8 SFF

Venting blank

8 SFF

30°C

25°C

20°C

12 EDSFF x2

Venting blank

12 EDSFF

12 EDSFF

30°C

20°C

Media bay +

8 SFF x2

Media bay

8 SFF

8 SFF

30°C

20°C

Media bay +

12 EDSFF x2

Media bay

12 EDSFF

12 EDSFF

25°C

20°C

8 SFF x3

8 SFF

8 SFF

8 SFF

20°C

Notes:

- For listed as 'not supported' configuration, please check with Sales representative for special support if needed except 8SFFx3 configuration.

- It is the responsibility of customers to ensure the datacenter inlet temperature meets the requirements above.

SKU

CPU

HDD configuration

Maximum Support

Ambient Temperature

CPU TDP

CPU list

Storage configuration

Box 1

Box 2

Box 3

64GB and Lower Capacity DDR5 DIMM

96GB

P66675-B21

128GB DDR5 DIMM

(P63345-B21)

256GB DDR5 DIMM

(P43337-B21)

Liquid cooling

4 processor SKU

Up to 350W

6434H(195W)

8444H(270W)

8460H(330W) 8468H(330W)

8490H(350W)

8 SFF

Venting blank

8 SFF

Venting blank

35°C

30°C

20°C

12 EDSFF

Venting blank

12 EDSFF

Venting blank

30°C

30°C

20°C

Media bay + 8 SFF

Media bay

8 SFF

Venting blank

30°C

30°C

20°C

Media bay

+ 12 EDSFF

Media bay

12 EDSFF

Venting blank

25°C-

30°C*

25°C

20°C

8 SFF x2

8 SFF

Venting blank

8 SFF

25°C-

30°C*

25°C

20°C

12 EDSFF x2

Venting blank

12 EDSFF

12 EDSFF

25°C-

30°C*

25°C

Contact local Sales Representative

Media bay

+ 8 SFF x2

Media bay

8 SFF

8 SFF

25°C

30°C*

25°C

Media bay

+ 12 EDSFF x2

Media bay

12 EDSFF

12 EDSFF

20°C

20°C

8 SFF x3

8 SFF

8 SFF

8 SFF

Notes:

- For Liquid cooling CTO server, if 128GB Memory module is required, the P63345-B21 must be selected.

- * CPU dependency.

- It is the responsibility of customers to ensure the datacenter inlet temperature meets the requirements above.

Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

Step 2c: Choose Power Supplies

Select two or four power supplies from below.

HPE Flex Slot Power Supplies

HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes: Output capped at 1600W maximum on Gen10 & Gen10 Plus servers, greater than 1600W only feasible on Gen11." Similar to the one currently stated on FlexSlot PSUs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

Notes:

- Select a minimum (2), maximum (4) power supplies.

- Support Redundancy 1+1, 2+2, 3+1.

- 1600W Power supplies only support high line voltage (200VAC to 240VAC).

- Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:

https://poweradvisorext.it.hpe.com/?Page=Index.

- All power supplies in a server should match. Mixing Power Supplies is not supported.

- HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords for a full list of optional power cords.

- Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements. HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

HPE Security Options

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE Bezel Lock Kit

875519-B21

Notes: This option can be selected only if HPE Gen11 2U Bezel Kit (P50400-B21) is selected.

HPE ProLiant DL3XX Gen11 Intrusion Cable Kit

P48922-B21

HPE Gen11 2U Bezel Kit

P50400-B21

Factory Instructions and Server Settings

HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit

P54791-B21

Notes:

- Required for 4P Liquid cooling configuration.

- The HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit is designed as Factory Installation only & is not designated as a Customer Self-Repair (CSR) part to prevent damage to CPUs when customer is conducting the field upgrade on the Liquid Cooling modular itself or CPUs.

- The cooling liquid used in the liquid cooling heatsink is a mixture of purified water and ethylene with additional additives for corrosion resistance. The cooling liquid is not corrosive to the human body, but to avoid the risk of connection or damages in a longer term, it is recommended to use hand protection in the form of chemically resistant gloves and to wash hands with plenty of water after contact. Be sure to avoid any eye contact. If eye contact occurs accidentally, immediately flush eye with plenty of water or seek medical attention of any discomfort persists.

- There is no leak detection capability, yet the pumps inside of the system are redundant. If a pump or any of the components inside the solution fail, the CPU temperature or internal server temperature may increase leading to an iLO alert message.

- The HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit is offered with Standard (3/3/3) Warranty support along with the server. Customers can purchase extended support for years (4) and (5).

- This Closed-loop Liquid Cooling Solution is subject to a maximum usage (operational) limitation not to exceed (5) years and required to be replaced when this time limit has been reached. Parts and components that Hewlett Packard Enterprise determines have surpassed the standard (3) years warranty* will not be provided, repaired, or replaced under warranty coverage. Contact your local HPE sales representative for additional information. In addition:

- *Or to the extended (4) or (5) years of warranty contract purchased, and subject to the maximum usage (operation) limitation of (5) years. For more details, please refer to the warranty terms for other options available from Hewlett Packard Enterprise.

HPE ProLiant DL560 Gen11 2P FIO Air Baffle Kit

P55550-B21

Notes: Required for 2P Air cooling configuration.

HPE ProLiant DL560 Gen11 2P UPI Pass-Through FIO Enablement Kit

P54806-B21

HPE ProLiant DL560 Gen11 2SFF Removal Trigger FIO Direct Attach Cable Kit

P63143-B21

Notes: Required when configure 2SFF to connect with Tri-mode controller.

HPE iLO Common Password FIO Setting

P08040-B21

Notes: Sets common iLO password, instead of randomly generated password for each server during Factory Diagnostics.

HPE ProLiant Platform Certificate and IDevID iLO FIO Setting

P42104-B21

Notes:

- Initial Device Identity (IDevID) certificates are part of a Zero Trust Architecture. This SKU instructs factory to provision IdevID on HPE iLO.

- Directs HPE manufacturing site to create, digitally sign and store a platform certificate on the server.

- Requires HPE Trusted Platform Module (TPM).

HPE Converged Infrastructure Management Software

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Cage kit Options

HPE ProLiant DL560 Gen11 8SFF x1 Tri-Mode U.3 Drive Cage Kit

P54798-B21

Notes: Mix of x1 cage kit and x4 cage kit is not supported.

-

HPE ProLiant DL560 Gen11 8SFF x4 U.3 NVMe Drive Cage Kit

P54799-B21

Notes:  Mix of x1 cage kit and x4 cage kit is not supported.

HPE ProLiant DL560 Gen11 2SFF U.3 Drive Cage Kit

P54801-B21

HPE ProLiant DL560 Gen11 12EDSFF Drive Cage Kit

P54802-B21

Notes: Mix of x1, x4Trimode or EDSFF drive cage kit is not supported.

Cage Cable Kit Options

HPE ProLiant DL560 Gen11 Tri-Mode Box 1/2 Cable Kit

P55320-B21

Notes:  4P system storage configurations start with box 2. Upgradable to box 3 and then box 1.

HPE ProLiant DL560 Gen11 Tri-Mode Box 3 Cable Kit

P59144-B21

Notes:  2P system storage configurations start with Box3, upgradable to box 2 and then box 1.

Direct Attach Cable Kit Options

Notes: Mix up with direct attach drives and Trimode storage controller drives is not supported.

HPE ProLiant DL560 Gen11 Air Cooling 8SFF x4 NVMe Box 1 for 4P Direct Attach Cable Kit

P55321-B21

HPE ProLiant DL560 Gen11 Liquid Cooling 8SFF x4 NVMe Box 1 for 4P Direct Attach Cable Kit

P61767-B21

HPE ProLiant DL560 Gen11 Air Cooling 8SFF x4 NVMe Box 2 for 2P Direct Attach Cable Kit

P60005-B21

HPE ProLiant DL560 Gen11 Air Cooling 8SFF x4 NVMe Box 2 for 4P Direct Attach Cable Kit

P55316-B21

HPE ProLiant DL560 Gen11 Liquid Cooling 8SFF x4 NVMe Box 2 for 4P Direct Attach Cable Kit

P61770-B21

HPE ProLiant DL560 Gen11 Air Cooling 8SFF x4 NVMe Box 2 for 4P 24SFF Direct Attach Cable Kit

P58338-B21

HPE ProLiant DL560 Gen11 Air Cooling 8SFF x4 NVMe Box 3 for 2P Direct Attach Cable Kit

P60007-B21

HPE ProLiant DL560 Gen11 Air/Liquid Cooling 8SFF x4 NVMe Box 3 for 4P Direct Attach Cable Kit

P58339-B21

HPE ProLiant DL560 Gen11 Air/Liquid Cooling 8SFF SATA Box 3 SFF Direct Attach Cable Kit

P59141-B21

HPE ProLiant DL560 Gen11 Air Cooling 12EDSFF x4 Box 2 for 4P Direct Attach Cable Kit

P55325-B21

HPE ProLiant DL560 Gen11 Liquid Cooling 12EDSFF x4 Box 2 for 4P Direct Attach Cable Kit

P55328-B21

HPE ProLiant DL560 Gen11 Air Cooling 12EDSFF x4 Box 2 for 2P Direct Attach Cable Kit

P60011-B21

Notes: 2P configurations support up to total 16 EDSFF.

HPE ProLiant DL560 Gen11 Air/Liquid Cooling 12EDSFF x4 Box 3 for 4P Direct Attach Cable Kit

P55326-B21

HPE ProLiant DL560 Gen11 Air Cooling 12EDSFF x4 Box 3 for 2P Direct Attach Cable Kit

P60013-B21

Notes: 2P configurations support up to total 16 EDSFF.

OCP Cable Kit Options

HPE ProLiant DL560 Gen11 OCP1/2 to Box 2/1 x1 Backplane Cable Kit

P60009-B21

HPE ProLiant DL560 Gen11 OCP2 to Box 1/2 x2 Backplane Cable Kit

P61602-B21

Notes: Required x4 Tri-Mode U.3 Drive Cage Kit.

HPE ProLiant DL560 Gen11 OCP1 to Box 3 x2 Backplane Cable Kit

P61603-B21

Notes: Required x4 Tri-Mode U.3 Drive Cage Kit, support also OCP1 to Box3 x1 configuration.

HPE ProLiant DL560 Gen11 OCP2 to Box 2 x4 Backplane Cable Kit

P59142-B21

HPE ProLiant DL560 Gen11 OCP1 to Box 3 x1/x4 Backplane Cable Kit

P55318-B21

HPE ProLiant DL560 Gen11 OCP x16 to Motherboard Enablement Kit

P55322-B21

Notes: Required for 2P configuration.

HPE ProLiant DL560 Gen11 OCP x16 to Mezzanine Board Enablement Kit

P55324-B21

Notes: Required for 4P configuration.

Other Key Options:

HPE ProLiant DL560 Gen11 4P CPU Mezzanine Kit

P54803-B21

HPE ProLiant DL560 Gen11 4x Power Supply Enablement Kit

P54812-B21

HPE ProLiant DL380/DL560 Gen11 2U Rear Serial Port Cable Kit

P48824-B21

Notes: Required for serial port support on the rear side.

HPE ProLiant DL560 Gen11 Ball Bearing Rail 8 Kit

P61501-B21

HPE ProLiant DL560 Gen11 System Insight Display Kit

P54810-B21

HPE ProLiant DL560 Gen11 NS204i-u Front Enablement Kit

P55549-B21

HPE ProLiant DL380a/DL560 Gen11 NS204i-u Rear Enablement Kit

P55710-B21

HPE Apollo 4200 Gen10 Plus Cable Management Arm

P28726-B21

HPE Processors

Processor Option Kits

4^th Generation Intel® Xeon®-Platinum

Notes: All SKUs below ship with processor only. Adequate fans and heatsinks must be selected.

Intel Xeon-Platinum 8490H 1.9GHz 60-core 350W Processor for HPE

P49630-B21

Intel Xeon-Platinum 8468H 2.1GHz 48-core 330W Processor for HPE

P49629-B21

Intel Xeon-Platinum 8460H 2.2GHz 40-core 330W Processor for HPE

P49628-B21

Intel Xeon-Platinum 8450H 2.0GHz 28-core 250W Processor for HPE

P49626-B21

Intel Xeon-Platinum 8444H 2.9GHz 16-core 270W Processor for HPE

P49625-B21

4^th Generation Intel® Xeon®-Gold

Notes: All SKUs below ship with processor only. Adequate fans and heatsinks must be selected.

Intel Xeon-Gold 6448H 2.4GHz 32-core 250W Processor for HPE

P49622-B21

Intel Xeon-Gold 6434H 3.7GHz 8-core 195W Processor for HPE

P49623-B21

Intel Xeon-Gold 6418H 2.1GHz 24-core 185W Processor for HPE

P49621-B21

Intel Xeon-Gold 6416H 2.2GHz 18-core 165W Processor for HPE

P49620-B21

Heat Sink Kit

HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit

P54791-B21

Notes:

- For 4P Liquid cooling configuration

- The HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit is designed as Factory Installation only & is not designated as a Customer Self-Repair (CSR) part to prevent damage to CPUs when customer is conducting the field upgrade on the Liquid Cooling modular itself or CPUs.

- The cooling liquid used in the liquid cooling heatsink is a mixture of purified water and ethylene with additional additives for corrosion resistance. The cooling liquid is not corrosive to the human body, but to avoid the risk of connection or damages in a longer term, it is recommended to use hand protection in the form of chemically resistant gloves and to wash hands with plenty of water after contact. Be sure to avoid any eye contact. If eye contact occurs accidentally, immediately flush eye with plenty of water or seek medical attention of any discomfort persists.

- There is no leak detection capability, yet the pumps inside of the system are redundant. If a pump or any of the components inside the solution fail, the CPU temperature or internal server temperature may increase leading to an iLO alert message.

- The HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit is offered with Standard (3/3/3) Warranty support along with the server. Customers are able to purchase extended support for years (4) and (5).

- This Closed-loop Liquid Cooling Solution is subject to a maximum usage (operational) limitation not to exceed (5) years and required to be replaced when this time limit has been reached. Parts and components that Hewlett Packard Enterprise determines have surpassed the standard (3) years warranty* will not be provided, repaired, or replaced under warranty coverage. Contact your local HPE sales representative for additional information. In addition:

*Or to the extended (4) or (5) years of warranty contract purchased, and subject to the maximum usage (operation) limitation of (5) years. For more details, please refer to the warranty terms for other options available from Hewlett Packard Enterprise.

HPE ProLiant DL380/DL560 Gen11 High Performance 2U Heat Sink Kit

P48818-B21

Notes: For 2P Air Cooling CTO.

HPE ProLiant DL3XX/560 Gen11 High Performance Heat Sink Kit

P48905-B21

Notes: For 4P Air Cooling CTO.

Memory Selection

To streamline the configuration process for HPE ProLiant Gen11 servers and to provide the best product availability, HPE recommends memory from the list located here:

Best product availability is limited to US, Canada, and Latin America at this time.

Notes:

- HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested.  Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration.  For this reason, some HPE memory DIMMs may be qualified for an HPE server model or family and yet occasionally not be supported with some configurations within that server family

- Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.

HPE DDR5 Memory

Registered DIMMs (RDIMMs)

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66675-B21

Notes:

- Memory should be installed in even quantity of DIMMs

- 4800 MT/s memory SKUs offer a transfer rate of 4800 MT/s at 1 DIMM per channel and 4400 MT/s at 2 DIMMs per channel.

- Mixing of 3DS memory and non-3DS memory is not supported.

- Memory capacity please refer to CPU/Memory/Storage support matrix.

- If 128GB memory module is desired, in a Liquid cooling CTO server, 128GB (1x128GB) Quad Rank x4 DDR5-4800 (P63345-B21) must be selected.

HPE DDR Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

HPE Optical Drives

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

Notes: HPE ProLiant DL560 Gen11 SFF Universal Media Bay Kit (P60500-B21) is required for this option on a SFF model. No support in 12 LFF or 24 SFF models.

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

Notes: HPE ProLiant DL560 Gen11 SFF Universal Media Bay Kit (P60500-B21) is required for this option on a SFF model.

HPE Mobile USB DVD-RW Optical Drive

701498-B21

Media Bay Kits

HPE ProLiant DL560 Gen11 SFF Universal Media Bay Kit

P60500-B21

Notes:

- The Universal Media bay provides front DisplayPort and 2xUSB 2.0; plus 2x SFF front drives or 2 NVME front drives and ODD support (not included); and can only be located in Box1 with either an 8 SFF or 8+8 SFF model. Please refer to CPU/Memory/Storage matrix.

- This is a SFF model option only.

HPE Hard Disk Drives

Notes:  If need to configure the system without any drives, a x4 cage kit and a Direct attach cable must be selected. This will not require any controller selection.

Mission Critical - 12G SAS - SFF Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

Enterprise - 12G SAS - SFF Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

SSD Selection

For SSD selection guidance, please visit https://ssd.hpe.com/

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

Read Intensive - NVMe - SFF - Solid State Drives

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

Mixed Use - NVMe - SFF - Solid State Drives

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

EDSFF Selection NVMe

For EDSFF selection guidance, please visit https://ssd.hpe.com/

NVMe Read Intensive - EDSFF E3.S - -Solid State Drives

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P79122-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P79065-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

 NVMe Mixed Use - EDSFF E3.S - -Solid State Drives

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

Notes:

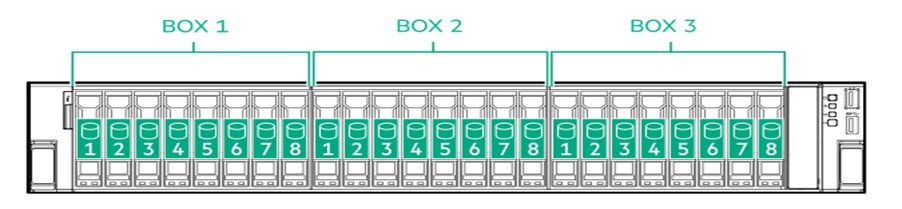

- For 2P configuration: support max. 8 EDSFF per box (only box 2 and 3 supported).

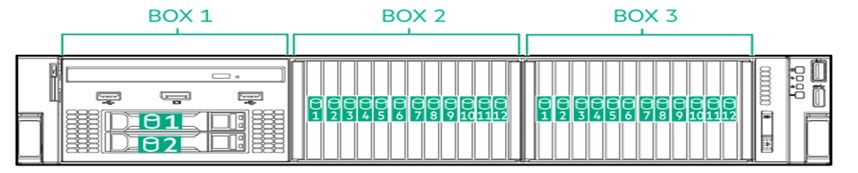

- For 4P configuration: support max. 12 EDSFF per fox (only box 2 and 3 supported).

Hard Drive Blank Kits

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE Networking

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P21106-B21

10 Gigabit Ethernet adapters

Notes: Unless otherwise noted, one of the below 10Gb networking adapters below can be selected as the primary networking choice.

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

25 Gigabit Ethernet adapters

NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE

S2A69A

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

100 Gigabit Ethernet Adapters

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE

P73111-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE

R8M41A

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

- Broadcom 5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE.

- Intel® I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE.

Maximum System Ambient Temperature

Storage Config

2 Processor

Air Cooling SKU

4 Processor

Air Cooling SKU

4 Processor

Liquid Cooling SKU

8SFF

35 °C

35 °C

30 °C

12EDSFF

35 °C

35 °C

30 °C

Media bay + 8 SFF

35 °C

35 °C

25 °C

Media bay + 12 EDSFF

35 °C

35 °C

25 °C

16SFF

35 °C

35 °C

30 °C

24EDSFF

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

25 °C

Not Supported

24SFF

35 °C

25 °C*

Not Supported

Notes: * Only can be supported with 6416H(165W) or 6418H(185W) CPU.

- Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE.

- Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE.

Maximum System Ambient Temperature

Storage Config

2 Processor

Air Cooling SKU

4 Processor

Air Cooling SKU

4 Processor

Liquid Cooling SKU

8SFF

35 °C

35 °C

30 °C

12EDSFF

35 °C

35 °C

30 °C

Media bay + 8 SFF

35 °C

35 °C

25 °C

Media bay + 12 EDSFF

35 °C

35 °C

25 °C

16SFF

35 °C

35 °C

30 °C

24EDSFF

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

25 °C

Not Supported

24SFF

35 °C

25 °C*

Not Supported

Notes: * Only can be supported with 6416H(165W) or 6418H(185W) CPU.

- Broadcom 57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE.

Maximum System Ambient Temperature

Storage Config

2 processor

Air Cooling SKU

4 processor

Air Cooling SKU

4 processor

Liquid Cooling SKU

8SFF

35 °C

35 °C

35 °C

12EDSFF

35 °C

35 °C

35 °C

Media bay + 8 SFF

35 °C

35 °C

30 °C

Media bay + 12 EDSFF

35 °C

35 °C

25 °C

16SFF

35 °C

35 °C

30 °C

24EDSFF

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

25 °C

Not Supported

24SFF

35 °C

25 °C*

Not Supported

Notes: * Only can be supported with 6416H(165W) or 6418H(185W) CPU.

- Broadcom 57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE.

- Intel® E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE.

- Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE.

- S2A69A NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE.

Maximum System Ambient Temperature

Storage Config

2 processor

Air Cooling SKU

4 processor

Air Cooling SKU

4 processor

Liquid Cooling SKU

8 SFF

35 °C

35 °C

35 °C*

12 EDSFF

35 °C

35 °C

30 °C*

Media bay + 8 SFF

35 °C

35 °C

30 °C*

Media bay + 12 EDSFF

35 °C

35 °C

25 °C*

8 SFF x2

35 °C

35 °C

30 °C*

12 EDSFF x2

30 °C

30 °C

25 °C*

Media bay + 8 SFF x2

30 °C

30 °C

25 °C*

Media bay + 12 EDSFF x2

30 °C

30 °C

20 °C

8 SFF x3

30 °C

30 °C**

Not Supported

Notes:

- *Is required to be installed in riser 1.

- ** Only can be supported with 6416H(165W) or 6418H(185W) CPU.

- Intel® E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE.

Maximum System Ambient Temperature

Storage Config

2 processor

Air Cooling SKU

4 processor

Air Cooling SKU

4 processor

Liquid Cooling SKU

8 SFF

35 °C

30 °C

30 °C*

12 EDSFF

35 °C

30 °C

30 °C*

Media bay + 8 SFF

35 °C

30 °C

30 °C*

Media bay + 12 EDSFF

35 °C

30 °C

25 °C*

8 SFF x2

35 °C*

25 °C*

25 °C*

12 EDSFF x2

35 °C*

30 °C*

25 °C*

Media bay + 8 SFF x2

35 °C*

30 °C*

25 °C*

Media bay + 12 EDSFF x2

30 °C*

25 °C*

Not Supported

8 SFF x3

35 °C*

25 °C**

Not Supported

Notes:

- * It is required to install the card on PCI-E riser 1.

- ** Only can be supported with 6416H(165W) or 6418H(185W) CPU.

- INT E810 100GbE 2p QSFP28 Adapter.

Maximum System Ambient Temperature

Storage Config

2 processor

Air Cooling SKU

4 processor

Air Cooling SKU

4 processor

Liquid Cooling SKU

8 SFF

35 °C

35 °C

25 °C

12 EDSFF

35 °C

35 °C

25 °C

Media bay + 8 SFF

35 °C

35 °C

30 °C

Media bay + 12 EDSFF

35 °C

35 °C

25 °C*

8 SFF x2

35 °C

35 °C

25 °C

12 EDSFF x2

35 °C

30 °C

25 °C*

Media bay + 8 SFF x2

35 °C

30 °C

30 °C*

Media bay + 12 EDSFF x2

35 °C

25 °C

20 °C

8 SFF x3

35 °C

25 °C**

Not Supported

Notes:

- *It is required to be installed in riser 1.

- **Only can be supported with 6416H(165W) or 6418H(185W) CPU.

- HPE 100GbE 1p QSFP28 MCX515A-CCAT Adapter.

Maximum System Ambient Temperature

Storage Config

2 processor

Air Cooling SKU

4 processor

Air Cooling SKU

4 processor

Liquid Cooling SKU

8SFF

35 °C

35 °C

30 °C

12EDSFF

35 °C

35 °C

30 °C

Media bay + 8 SFF

35 °C

35 °C

25 °C

Media bay + 12 EDSFF

35 °C

35 °C

25 °C

16SFF

35 °C

35 °C

30 °C

24EDSFF

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

25 °C

20 °C

24SFF

35 °C

20 °C

Not Supported

- Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE.

- NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE.

- Mellanox MCX623105AS VDAT Ethernet 200Gb 1-port QSFP56 Adapter for HPE.

Maximum System Ambient Temperature

Storage Config

2 processor

Air Cooling SKU

4 processor

Air Cooling SKU

4 processor

Liquid Cooling SKU

8 SFF

35 °C

30 °C

25 °C*

12 EDSFF

35 °C

30 °C

25 °C*

Media bay + 8 SFF

35 °C

30 °C

25 °C*

Media bay + 12 EDSFF

35 °C

30 °C

25 °C*

8 SFF x2

35 °C*

Not Supported

30 °C*

12 EDSFF x2

35 °C*

30 °C*

Not Supported

Media bay + 8 SFF x2

35 °C*

30 °C*

Not Supported

Media bay + 12 EDSFF x2

30 °C*

25 °C*

Not Supported

8 SFF x3

35 °C*

Not Supported

Not Supported

Notes: *. It is required to install the card on PCI-E riser 1.

OCP 3.0 Adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

- Broadcom 57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE.

- Broadcom 5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE.

- Intel® I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE.

- Broadcom 57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE.

- Broadcom 57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE.

- INT X710 10GbE 4p BASE-T OCP3 Special Adapter.

Maximum System Ambient Temperature

Storage Config

2 processor

Air Cooling SKU

4 processor

Air Cooling SKU

4 processor

Liquid Cooling SKU

8SFF

35 °C

35 °C

35 °C

12EDSFF

35 °C

35 °C

35 °C

Media bay + 8 SFF

35 °C

35 °C

30 °C

Media bay + 12 EDSFF

35 °C

35 °C

25 °C

16SFF

35 °C

35 °C

30 °C

24EDSFF

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

30 °C

25 °C

Media bay + 8 SFF x2

35 °C

25 °C

 20 °C

Media bay + 12 EDSFFx2

35 °C

25 °C

20 °C

24SFF

35 °C

25 °C*

Not Supported
