HPE ProLiant Compute DL580 Gen12

QuickSpecs

The HPE ProLiant Compute DL580 Gen12 is a high-performance 4U server engineered for the most demanding, data-intensive workloads in mission-critical enterprise environments.

Powered by up to four Intel® Xeon® 6 Scalable processors, it delivers exceptional compute capacity with up to 86 cores per processor.

Designed for scalability and reliability, the DL580 Gen12 supports up to 16TB of DDR5 memory and features high-throughput PCIe Gen5 I/O, making it ideal for databases, analytics, virtualization, and in-memory workloads such as SAP HANA.

HPE ProLiant Compute DL580 Gen12

The HPE ProLiant Compute DL580 Gen12 is built with a focus on reliability, security, and ease of management. The HPE ProLiant Compute DL580 Gen12 comes equipped with advanced features such as silicon root of trust technology to safeguard your critical data against cyber threats. It offers a comprehensive suite of management tools, including HPE Compute Ops Management and HPE iLO 7, which provide remote management capabilities, enabling IT administrators to manage and troubleshoot the server from anywhere, thereby reducing downtime and operational costs.

With its combination of massive memory bandwidth, compute density, and I/O flexibility, the DL580 Gen12 delivers a powerful foundation for modern enterprise IT. Its robust architecture supports a wide range of workloads, from core business applications to AI and high-performance computing. Whether deployed as a standalone system or within a broader IT strategy, the DL580 Gen12 enables organizations to scale with confidence and meet evolving performance demands.

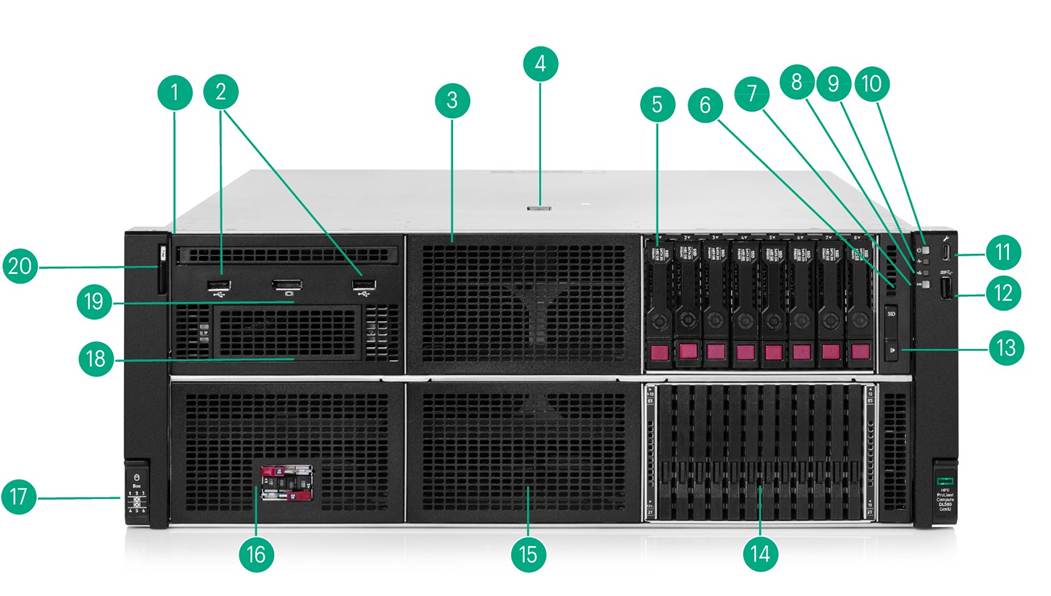

Front View - 8SFF chassis with optional multi-purpose cage

Item

Description

Item

Description

1.

Box 1 (shown empty; Optional Universal Media Bay)

11.

USB-C iLO Service Port

2.

2x USB-A 2.0 ports

12.

USB 3.2 Gen1 Port

3.

Box-2 (shown empty)

13.

System Insight Display (SID) Module

4.

Quick removal access panel

14.

Box-6 (12EDSFF shown)

5.

Box-3 (8SFF shown)

15

Box-5 (shown empty)

6.

Quick removal access panel

16

Box-4 (WM shown)

7.

Unit ID button/LED

17

Box Diagram

8.

NIC status

18

2X SFF (Shown empty)

9.

Health LED

19.

DisplayPort

10.

Power on /Standby button / LED

20.

Quick removal access panel

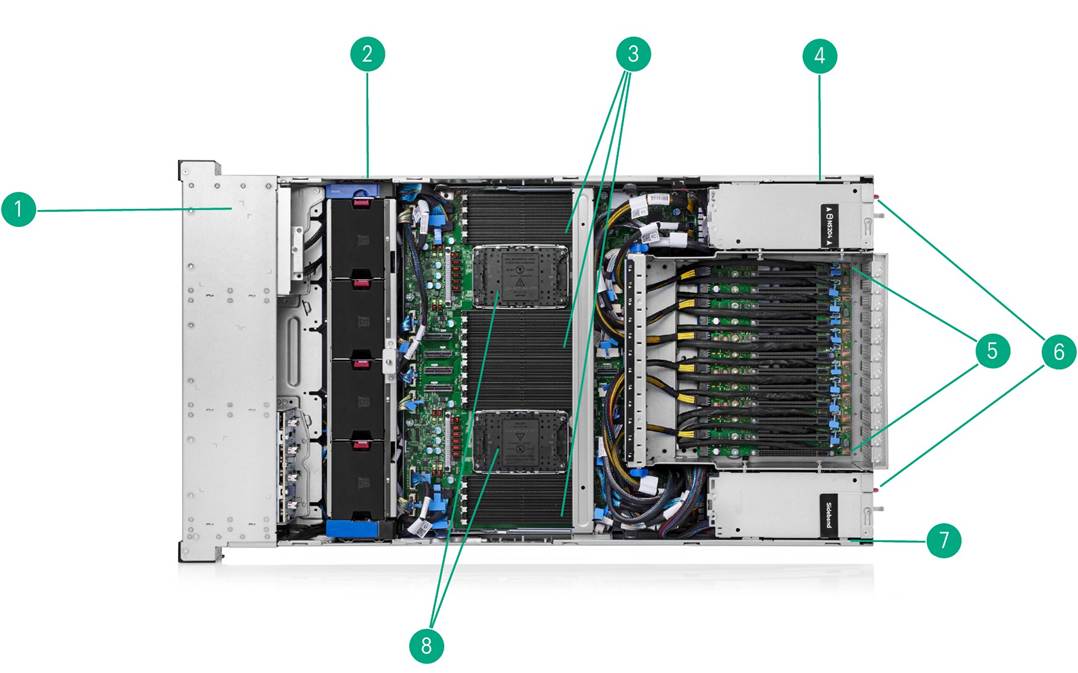

Internal View

Item

Description

Item

Description

1.

Front Option Cages

5.

12 x16 PCIe 5.0 Lanes (shown unpopulated)

2.

Hot Plug Fans

6.

Hot Plug Redundant HPE Flexible Slot Power Supplies

3.

DIMM Slots (shown unpopulated)

7.

Sideband Board

4.

NS204i-u boot device (optional)

8.

Processor and Performance Heatsinks

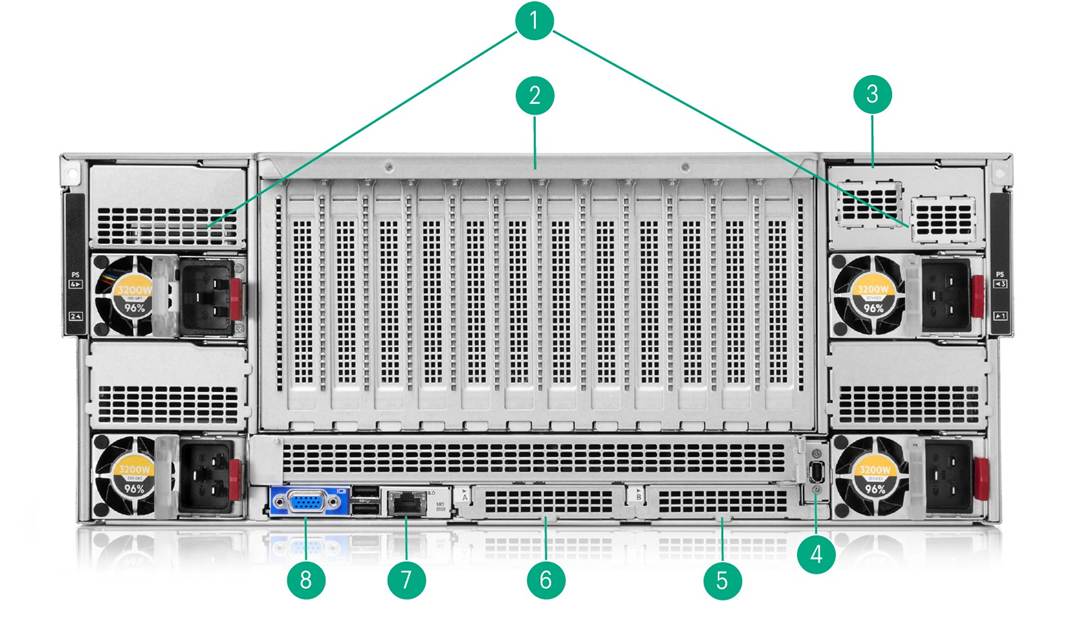

Rear View

Item

Description

Item

Description

1.

60mm M-CRPS

5.

OCP B

2.

12 Riser Cage

6.

OCP A

3.

External Boot Device (Optional)

7.

Dedicated iLO Management Port

4.

Serial Port (Optional)

8.

VGA Port

What's New

- Intel® Xeon® 6 Processors.

- Up to two rear OCP slots.

- NS204i-u front or rear install option.

- Up to 32 mixed EDSFF or SFF drives.

- Up to 16TB DDR5 6400 MT/s memory at 1DPC.

- Direct Liquid Cooling (DLC) Module.

- SAP HANA SKUs.

- Smart Array E208e-p.

Notes: Some memory configurations have delayed availability. Contact your HPE Sales Specialist for availability details.

Platform Information

Form Factor

- 4U rack.

Chassis Features

- Up to 4x 8SFF or 8EDSFF front drive cages.

- Optional front NS204i-U boot device.

- Optional front Universal Media Bay.

Notes: Field upgradeable from 2 to 4 sockets.

Processors

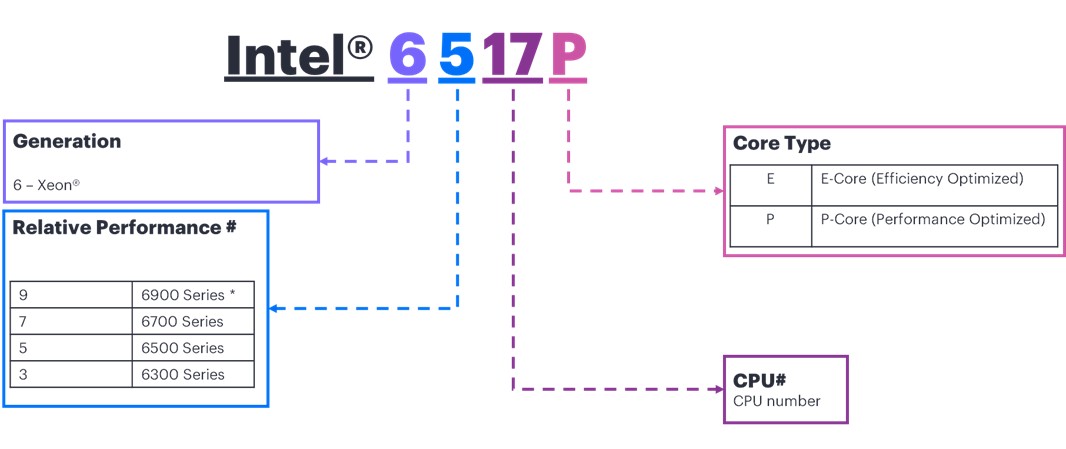

Intel® Xeon® 6 processor naming convention

* CPU Series not supported on HPE ProLiant Compute Gen12 platforms.

For more information regarding Intel Xeon processors, please see the following https://www.intel.com/xeon.

The HPE ProLiant Compute DL580 Gen12 server supports Intel® Xeon® 6 Performance-Core (P-Core) processors.  The below processors are (publicly) supported on the HPE ProLiant Compute DL580 Gen12 server.

Notes:

- *Intel® Xeon 6® Processors support DDR5 support maximum memory speed of 6400 MT/s @ 1 DIMMs per channel (DPC) and 5200 MT/s @ 2DPC.

- **Intel® HCC & XCC die processors have delayed availability. Contact your HPE Compute Sales Specialist for availability details.

ILO

HPE iLO 7 memory.

Read and learn more in the iLO QuickSpecs.

Notes:

- The maximum memory speed is limited by the processor selection.

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

- For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

- For memory configuration availability details, please contact your HPE Sales Specialist.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multi-bit errors that occur within a single DRAM chip.

Adaptive Double DRAM Device Correction (ADDDC)

Advanced Double DRAM Device Correction enables the server to dynamically map out a failing DRAM device.  Enabling it can have some impact to system performance under certain workloads. This is set to be enabled by default.

Mirroring

Memory Mirroring enables full memory redundancy.

Notes:  For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers.

Network Controller

There is no default network controller included.  The HPE ProLiant Compute DL580 Gen12 server offers the customer a variety of networking options which are outlined in the Core Options selection in this document.

PCIe Expansion Slots

The ProLiant Compute DL580 Gen12 can support up to six PCIe 5.0 risers, depending on processor selection. Each riser features 2x PCIe 5.0 slots and may accommodate a full-height, ¾-length card.

Notes:

- There is only one riser option.

- 2 processor configurations will default Risers 2 and 3 with their required cable kits.

- 4 processor configurations will default Risers 3 and 4 with their required cable kits.

- Correct cable kits will be automatically configured based on selected drive options and riser quantities.

- Bus width indicates the number of physical electrical lanes running to the connector.

- x16 cards installed on x8 slots could observe sub-optimal performance.

Riser Configurations:

Internal Storage Devices

- Optical Drive -  Available (DVD-ROM or DVD-RW).

- Hard Drives - None ship standard.

Drive Cage Configurations: The HPE ProLiant Compute DL580 Gen12 offers a high degree of flexibility when configuring internal storage options. This flexibility can make configuring the server a challenge and could result in suboptimal drive capacity or the inability to configure additional desired options. The following matrices provide a map of drive cage, PCIe and OCP slot utilization, and supported protocols based on desired storage layout. Please keep the occupied boxes and slots in mind when choosing additional chassis and networking options.

Notes:

- Cable kits will be automatically configured based on drive cage and riser selections.

- Optional Universal Media Bay requires Box 1 to be unused.

- Front enablement of NS204i-u Boot device requires Box 4 to be available.

2 or 4 Processor Configurations

4 Processor Exclusive Configurations:

Notes:

- In configurations including Universal Media Bay Kit, the maximum drive support is limited to 24SFF/ 24EDSFF.

- In configurations including the NS204i-u option with the Front enablement kit, the drive cage positioned in Box4 will be moved to Box1. This is because the NS204i-u boot device would be installed in Box4 position in this case.

- In configurations including both Universal Media Bay kit and NS204i-u with Front Enablement kit, the maximum drive cage support is limited to 8SFF/8EDSFF. Only the Box3 could be used for connection in this case.

Graphics

Integrated Video Standard

- VGA Port in the rear.

- DisplayPort with optional optical disk drive.

- Video modes up to 1920 x 1200@60Hz (32 bpp).

- 16MB Video Memory.

Interfaces

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Compute Gen12 servers have a UEFI Class 3 implementation to support UEFI Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

- Secure Boot and Secure Start enabled for enhanced security.

- Embedded UEFI Shell.

- Operating system specific functionality.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- Support for > 2.2 TB (using GPT) boot drives.

- PXE boot support for IPv6 networks.

- USB 3.0 Stack.

- Workload Profiles for simple performance optimization.

UEFI Boot Mode only

- TPM 2.0 Support.

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen12. It is an embedded feature.

- iSCSI Software Initiator Support.

- NVMe Boot Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Platform Trust Technology (PTT) can be enabled.

- Boot support for option cards that only support a UEFI option ROM.

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Industry Standard Compliance

- ACPI 6.5 Compliant.

- PCIe 5.0 Compliant.

- Wake on LAN (WOL) Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA.

- DisplayPort.

Notes: This support is on the optional Universal Media Bay.

- USB 3.2 Gen1 Compliant.

- USB 2.0 Compliant (via Universal Media Bay).

Notes: This support is on the optional Universal Media Bay.

- ENERGY STAR®.

- SMBIOS 3.7.

- Unified Extensible Firmware Interface (UEFI) 2.10.

- UEFI Class 3.

- Redfish API.

- IPMI 2.0.

- Advanced Encryption Standard (AES).

- SNMP v3.

- TLS 1.2.

- DMTF Redfish support for Secure Boot Key Management.

- ACPI DSM Drive LED Management.

- Memory Page Retire Support.

- Retire old VMware Secure Boot Key.

- APML.

- Active Directory v1.0.

- ASHRAE A3/A4.

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit DL380 Gen12 Extended Ambient Temperature Guidelines.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Compute Gen12 rack or tower server.

For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at https://www.hpe.com/info/iLO.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

OpenBMC Support

OpenBMC Capable through iLO7 Transfer of Ownership Process.

Learn more at OpenBMC Support

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/hpesc/public/docDisplay?docId=c04465280&docLocale=en_US

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at https://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at https://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information, please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at https://www.hpe.com/info/resttool.

HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at https://www.hpe.com/info/oneview.

Security

Experience unparalleled security benefits with HPE ProLiant Compute Gen12 servers, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:

- HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.

- Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.

- Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.

- Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.

- HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations.

- Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and chassis intrusion detection switch.

- HPE Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle.

Please refer to the HPE ProLiant Compute Gen12 Embedded Security QuickSpecs document for more detailed information at https://www.hpe.com/psnow/doc/a50009218enw

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from the date of purchase. Support for software and initial setup is available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available.

https://www.hpe.com/support/ProLiantServers-Warranties.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OpenView Standard, provides full-featured licenses which can be purchased for managing multiple HPE server generations.

To learn more, visit https://www.hpe.com/info/oneview.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require custom rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://ocs.ext.hpe.com/SimplifiedConfig/Welcome

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console, and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meets the current and future market trends. HPE is committed to providing a more predictable and faster experience for these options.  Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled +30% faster than non-Mainstream orders, have fewer shortages and better recovery dates.  This platform has Mainstream SKUs in the options portfolio and is eligible for the improved Mainstream experience.  Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Processors

Please select up to four processors required below.

Notes: Mixing of 2 different processor models is NOT allowed.

Intel® Xeon 6® Processors with Performance-Cores (P-Cores)

Performance General Purpose Processors

Intel Xeon 6714P 4.0GHz 8-core 165W Processor for HPE

P74508-B21

Intel Xeon 6724P 3.6GHz 16-core 210W Processor for HPE

P74509-B21

Intel Xeon 6728P 2.7GHz 24-core 210W Processor for HPE

P74572-B21

Intel Xeon 6738P 2.9GHz 32-core 270W Processor for HPE

P74577-B21

Intel Xeon 6748P 2.5GHz 48-core 300W Processor for HPE

P74579-B21

Intel Xeon 6768P 2.4GHz 64-core 330W Processor for HPE

P73835-B21

Intel Xeon 6788P 2.0GHz 86-core 350W Processor for HPE

P73838-B21

Heat Sinks

HPE ProLiant Compute DL580 Gen12 2U High Performance Heat Sink Kit

P80382-B21

Notes:

- Contains one Heat Sink per Kit.

- Correct quantity of Heat Sink kits will be configured automatically based on selected processor quantity.

Direct Liquid Cooling (DLC) Module

HPE ProLiant Compute DL580 Gen12 Direct Liquid Cooling Configure-to-order FIO Kit

P78016-B21

HPE ProLiant DL3XX Gen11 Direct Liquid Cooling 55cm Quick Disconnect Tube Set FIO Kit

P62042-B21

Notes:

- Contains 2 Cold Plate Modules and 1 Disconnect Module.

- Cannot be mixed with any other heat sinks.

- Qty 1 55cm Tube Kit must be selected.

Memory Options

For detailed information on HPE server memory options, population rules, whitepapers and optimal memory performance guidelines, please go to:

HPE Memory QuickSpecs and Technical White Papers.

Registered DIMMs DDR5 (RDIMMs)

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P69728-F21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P69729-F21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P69730-F21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart FIO Memory Kit

P73447-F21

Power Supplies

European Union ErP Lot 9 Regulation

Beginning on January 1^st , 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers P03178-B21 and P44712-B21 are 96% efficient, thus meeting requirements.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Compute Gen12 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

A standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To select the right size power supply for your ProLiant Server it is highly recommended to use "HPE Power Advisor" located at https://poweradvisorext.it.hpe.com/

For information on power specifications and technical content visit HPE Server power supplies.

Select one or two power supplies from below.

Notes:

- The mixing of 2 different power supplies is NOT allowed.

- For 2 processor configurations, select a minimum (1) and a maximum (2) power supplies.

- For 4 processor configurations, select either (2) or (4) power supplies.

Modular Common Redundant Power Supply (M-CRPS)

HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit

P67244-B21

HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit

P67248-B21

HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit

P67252-B21

HPE Power Options

HPE 2000-2200W -48VDC Power Lug Kit

P79839-B21

HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit

P73210-B21

Drive Cage and Backplane

HPE ProLiant Compute DL580 Gen12 8SFF x1 U.3 Tri-Mode Drive Cage Kit

P80429-B21

HPE ProLiant Compute DL580 Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit

P80430-B21

HPE ProLiant Compute DL580 Gen12 8EDSFF Drive Cage Kit

P80431-B21

HPE ProLiant Compute DL580 Gen12 2SFF U.3 Drive Cage Kit

P80432-B21

HPE ProLiant Compute DL580 Gen12 Universal Media Bay Kit

P80447-B21

Riser Cards

HPE ProLiant Compute DL580 Gen12 2x16 Riser Kit

P80379-B21

Riser Cards Accessories

HPE ProLiant Compute DL580 Gen12 4P Riser 2/5 Upgrade Cable Kit

P80380-B21

HPE ProLiant Compute DL580 Gen12 2P Riser Upgrade Cable Kit

P80381-B21

HPE ProLiant Compute DL580 Gen12 4P Riser 1/6 Upgrade Cable Kit

P81004-B21

OCP 3.0 Enablement

HPE ProLiant Compute DL580 Gen12 OCP SlotA x16 Enablement Kit

P80427-B21

HPE ProLiant Compute DL580 Gen12 OCP SlotB x16 Enablement Kit

P80428-B21

Boot Controllers

Notes:

- Front and Rear Enable kits cannot be selected together.

- Front enablement requires Box 4 to be unoccupied.

- If Box 4 is occupied by a drive cage, the Rear Enable kit must be selected.

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE ProLiant Compute DL580 Gen12 Front NS204i-u Boot Device Enablement Kit

P79031-B21

HPE ProLiant Compute DL580 Gen12 Rear NS204i-u Boot Device Enablement Kit

P80440-B21

Storage Controller

Notes: Please see the storage configuration matrices on pages 9 and 10 for storage controller quantities and slot utilization.

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

HPE MR408i-p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug-in Storage Controller

P74775-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

Storage Battery

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

P01367-B21

HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit

P02381-B21

HPE ProLiant Compute DL580 Gen12 MR416 Controller Data Retention Power Cable Kit

P80426-B21

Storage Upgrade

Notes: The P80426-B21 cable is a 1000mm cable providing retention power for the MR controller cache memory.  It connects from the MLB to the controller card. This cable is only required when you select the mega cell options kit. The DL580 uses the 260mm cable with the Li-ion/capacitor kit because the battery is located in the center of the chassis directly adjacent to the power connector on the MLB.  Power cable to connect the Megacell / Smart Capacitor to the MR416i/MR408i controller. Qty 1 Data Ret Power Cable can connect to up to 3 controllers.

Networking

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

10 Gigabit Ethernet adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

10/25 Gigabit Ethernet adapters

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

100 Gigabit Ethernet Adapters

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE

P73111-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

OCP Adapters

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

10 Gigabit Ethernet adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

10/25 Gigabit Ethernet adapters

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

100 Gigabit Ethernet adapters

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

HPE InfiniBand

Notes: HPE InfiniBand NICs will be available post-launch

HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Generic Adapter

P45642-H23

HPE Data Processing Unit InfiniBand NDR200/Ethernet 200Gb 2-port QSFP112 FHHL B3220 Adapter

P66386-H21

HPE Data Processing Unit InfiniBand NDR/Ethernet 400Gb 1-port QSFP112 HHHL B3140H Adapter

P66387-H21

HPE InfiniBand XDR PCIe Gen6 x16 Multi Host/Socket Direct Auxiliary Card with 250mm MCIO Cable Kit

P81264-H21

Cable Kits

HPE ProLiant Compute DL580 Gen12 2P 16EDSFF x4 Tri-Mode FIO Cable Kit

P80410-B21

HPE ProLiant Compute DL580 Gen12 4P 24EDSFF x4 Tri-Mode FIO Cable Kit

P80411-B21

HPE ProLiant Compute DL580 Gen12 4P 32EDSFF x4 Tri-Mode FIO Cable Kit

P80412-B21

HPE ProLiant Compute DL580 Gen12 4P Tri-Mode FIO Cable Kit

P80416-B21

HPE ProLiant Compute DL580 Gen12 4P 24SFF x4 X2BW FIO Tri-Mode Cable Kit

P80420-B21

HPE ProLiant Compute DL580 Gen12 4P 16EDSFF X2BW FIO Tri-Mode Cable Kit

P80423-B21

HPE ProLiant Compute DL580 Gen12 4P 24EDSFF X2BW FIO Tri-Mode Cable Kit

P80424-B21

HPE ProLiant Compute DL580 Gen12 4P 32EDSFF X2BW FIO Cable Kit

P80425-B21

HPE ProLiant Compute DL580 Gen12 2P 32SFF x1 Tri-Mode 32i FIO Cable Kit

P80745-B21

HPE ProLiant Compute DL580 Gen12 2P/4P 8SFF x4 Tri-Mode FIO Cable Kit

P80746-B21

HPE ProLiant Compute DL580 Gen12 2P/4P 16SFF x4 Tri-Mode 32i FIO Cable Kit

P80747-B21

HPE ProLiant Compute DL580 4P 24SFF x4 Tri-Mode 32i FIO Cable Kit

P80748-B21

HPE ProLiant Compute DL580 Gen12 4P 32SFF x4 Tri-Mode 32i FIO Cable Kit

P80749-B21

HPE ProLiant Compute DL580 Gen12 4P 32SFF x2 Tri-Mode 32i FIO Cable Kit

P80750-B21

HPE ProLiant Compute DL580 Gen12 2P 16SFF x4 WM FIO Direct Attached Cable Kit

P89800-B21

HPE ProLiant Compute DL580 Gen12 2P 16EDSFF x4 WM FIO Cable Kit

P89801-B21

HPE ProLiant Compute DL580 Gen12 2P/4P 16SFF x1 WM FIO Cable Kit

P89802-B21

HPE ProLiant Compute DL580 Gen12 2P/4P 24SFF x1 WM FIO Cable Kit

P89803-B21

HPE ProLiant Compute DL580 Gen12 2P/4P 16SFF x1 OCP WM FIO Cable Kit

P89804-B21

HPE ProLiant Compute DL580 Gen12 2P/4P 24SFF x1 OCP WM FIO Cable Kit

P89805-B21

HPE ProLiant Compute DL580 Gen12 4P 16SFF x4 WM FIO Direct Attached Cable Kit

P89806-B21

HPE ProLiant Compute DL580 Gen12 4P 24SFF x4 WM FIO Direct Attached Cable Kit

P89807-B21

HPE ProLiant Compute DL580 Gen12 4P 16EDSFF x4 WM FIO Cable Kit

P89808-B21

HPE ProLiant Compute DL580 Gen12 4P 24EDSFF x4 WM FIO Cable Kit

P89809-B21

HPE ProLiant Compute DL580 Gen12 4P 24SFF x4 32i FIO Cable Kit

P89810-B21

HPE ProLiant Compute DL580 Gen12 2P/4P 16SFF x2 OCP WM FIO Cable Kit

P89811-B21

HPE ProLiant Compute DL580 Gen12 2P 16EDSFF x4 M2 FIO Cable Kit

P89812-B21

HPE ProLiant Compute DL580 Gen12 2P 8SFF 8EDSFF FIO Cable Kit

P89813-B21

HPE ProLiant Compute DL580 Gen12 4P 8SFF 8EDSFF FIO Cable Kit

P89814-B21

HPE ProLiant Compute DL580 Gen12 4P 16SFF x2 WM FIO Cable Kit

P89815-B21

HPE ProLiant Compute DL580 Gen12 MR416 4P 24SFF WM FIO Cable Kit

P89816-B21

HPE ProLiant Compute DL580 Gen12 4P 24SFF x4 X2BW FIO Cable Kit

P89817-B21

HPE ProLiant Compute DL580 Gen12 4P 16EDSFF X2BW FIO Cable Kit

P89818-B21

HPE Security Options

HPE Trusted Supply Chain for HPE ProLiant

P36394-B21

Notes:

- HPE Trusted Supply Chain (P36394-B21) is an optional security upgrade intended for agencies and regulated industries needing enhanced security and compliance needs. Applying this option ensures it is built in the USA in a secure facility by vetted HPE personnel assigned to the manufacturing processes. A multitude of checkpoints/inspections for malicious microcode and counterfeit parts are performed throughout the server build, and additional safeguards are put in place against cyber-exploits throughout the server lifecycle. Learn more at https://www.hpe.com/security

- This option requires the selection of HPE Intrusion Detection Kit (P55713-B21).

- This option requires the selection of HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features (BD505A).

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE ProLiant Platform Certificate and IDevID iLO FIO Setting

P42104-B21

Notes:

- Initial Device Identity (IDevID) certificates are part of a Zero Trust Architecture. This SKU instructs factory to provision IDevID on HPE iLO.

- Directs HPE manufacturing site to create, digitally sign and store a platform certificate on the server.

- Requires HPE Trusted Platform Module (TPM).

HPE ProLiant Compute DL380a Gen12 4U Bezel Kit

P74911-B21

HPE ProLiant DL385 Gen11 Intrusion Cable Kit

P55713-B21

Notes: This option must be selected if HPE Trusted Supply Chain SKU (P36394-B21) is selected.

SSD Selection

For SSD selection guidance, please visit https://ssd.hpe.com/

Read Intensive - NVMe - EDSFF - Solid State Drives

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77273-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69237-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69239-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

Mixed Use - NVMe - EDSFF - Solid State Drives

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61195-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70669-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

Read Intensive - 24G SAS - SFF - Solid State Drives

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83347-B21

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

Mixed Use - 24G SAS - SFF - Solid State Drives

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83344-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

Read Intensive - NVMe - SFF - Solid State Drives

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64842-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

Mixed Use - NVMe - SFF - Solid State Drives

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50230-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65007-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

VRO - NVMe - SFF - Solid State Drives

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Embedded Management

HPE iLO Common Password FIO Setting

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE iLO Advanced

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE Converged Infrastructure Management Software

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView including 3yr 24x7 Support Track 1-server LTU

E5Y36A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support Bundle Track 1-server LTU

E5Y44A

Notes: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded.

HPE Tape Backup

For the complete range of tape drives, autoloaders, libraries and media see:

https://www.hpe.com/us/en/storage/storeever-tape-storage.html For hardware and software compatibility of Hewlett Packard Enterprise tape backup products https://www.hpe.com/storage/BURAcompatibility

HPE Storage Options

Emulex Fibre Channel HBAs

HPE SN1620E 32Gb 2p FC SecureHBA

S4S01A

HPE SN1720E 64Gb 2p FC SecureHBA

S4T09A

QLogic Fibre Channel HBAs

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter

R7N87A

HPE Racks

- Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks

- Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Power Distribution Units (PDUs)

- Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications. Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

- To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

- Please see the HPE Direct Flow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.

- Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

HPE Rack Options

Please see the HPE KVM Switches web page for information on these products and their specifications.

Rail Kits

To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative.

Notes:

- Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

- HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E.  In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer's own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

HPE ProLiant Compute DL380a Gen12 Ball Bearing Rail Kit

P69770-B21

Notes: Does not include Cable Management Arm (CMA) (P28726-B21).

HPE Apollo 4200 Gen10 Plus Cable Management Arm

P28726-B21

HPE Support Services

Installation & Startup Services

HPE ProLiant DL/ML Install Service

U4554E

HPE Proliant DL/ML Ons Startup Service

U4555E

Tech Care Services

HPE 3 Year Tech Care Essential DL380 Gen12 HW Service

H49RRE

HPE 3 Year Tech Care Essential wDMR DL380 Gen12 HW Service

H49RSE

HPE 5 Year Tech Care Essential DL380 Gen12 HW Service

H49SWE

HPE 5 Year Tech Care Essential wDMR DL380 Gen12 HW Service

H49SXE

Notes: For a full listing of support services available for this server, please visit https://www.hpe.com/services

System Unit

Dimensions (height x width x depth)

- 17.47 x 44.78 x 80.26 cm / 6.99 x 17.63 x 31.60 in

Notes: The depth is measured from the back of front ear to rear IO wall surface, does not include PSUs.

Weight (approximate)

- 4P Maximum: 48.75 KG, 107.49 lbs.

- Minimum: 38.77 KG, 85.47 lbs.

- 2P Maximum: 37.24 KG, 82.12 lbs.

- Minimum: 28.79 KG, 63.48 lbs.

System Inlet Temperature

- Standard Operating Temperature

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight.  Maximum rate of change is 20°C/hr. (36°F/hr.).  The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

- Extended Ambient Operating Temperature

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.).

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: DL380 Gen12 Extended Ambient Temperature Guidelines.

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

https://www.hpe.com/support/ASHRAEGen12

- Non-operating

30° to 60°C (-22° to 140°F). The maximum rate of change is 20°C/hr. (36°F/hr.).

Thermal Support Specs

2 Processor Configurations

CPU

Memory

PCIe-Cards:

OCP Cards

4 Processor Configurations

CPU

Memory

PCIe-Cards

OCP Cards

Relative Humidity (non-condensing)

- Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

- Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

- Operating

3050 m (10,000 ft.). This value may be limited by the type and number of options installed. The maximum allowable altitude change rate is 457 m/min (1500 ft./min).

- Non-operating

9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft./min).

Acoustic Noise

Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm) and the statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power

level, LWA,m when the product is operating in a 23 ± 2°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations.  Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Notes:

- All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109. Operating mode is represented by 50% of CPU.

- The results in this declaration apply only to the specific configuration listed below when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.

• Entry Configuration: 4x Intel Xeon 6724P CPU, 4x 64GB DIMM, 8x NVME U.3 SSD, 4x 1500W PSU, 4x Perf System Fan, 1x 10/25G NIC PCIe.
• Typical Configuration: 4x Intel Xeon 6738P CPU, 32x 64GB DIMM, 16x NVME U.3 SSD, 4x 1500W PSU, 4x Perf System Fan, 1x 10/25G NIC PCIe.
• Performance Configuration: 4x Intel Xeon 6768P CPU, 32x 64GB DIMM, 16x NVME E3.S SSD, 4x 2400W PSU, 4x Perf System Fan, 1x 100G NIC PCIe.
• Performance 2 Configuration: 4x Intel Xeon 6788P CPU, 64x 128GB DIMM, 16x NVME E3.S SSD, 4x 2400W PSU, 4x Perf System Fan, 1x 100G NIC PCIe.

- The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.

- A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.

- The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.

- The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m, such that there will be a 95% probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).

- The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.

- B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.

- Systems under abnormal conditions may increase the noise level, people in the vicinity of the product [cabinet] for extended periods of time should consider wearing hearing protection or using other means to reduce noise exposure.

Emissions Classification (EMC) - Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

https://www.hpe.com/support/Safety-Compliance-EnterpriseProducts

Environmentally friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Have feedback on QuickSpecs? We're listening

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

a50009226enw - 17258 - Worldwide  - V11 - 03-August-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
