HPE ProLiant DL380 Gen11

QuickSpecs

Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen11 Server delivers world-class performance with the right balance of expandability and scalability.

The HPE ProLiant DL380 Gen11 is designed for supreme versatility and resiliency while being backed by a comprehensive warranty, makes it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.

HPE ProLiant DL380 Gen11

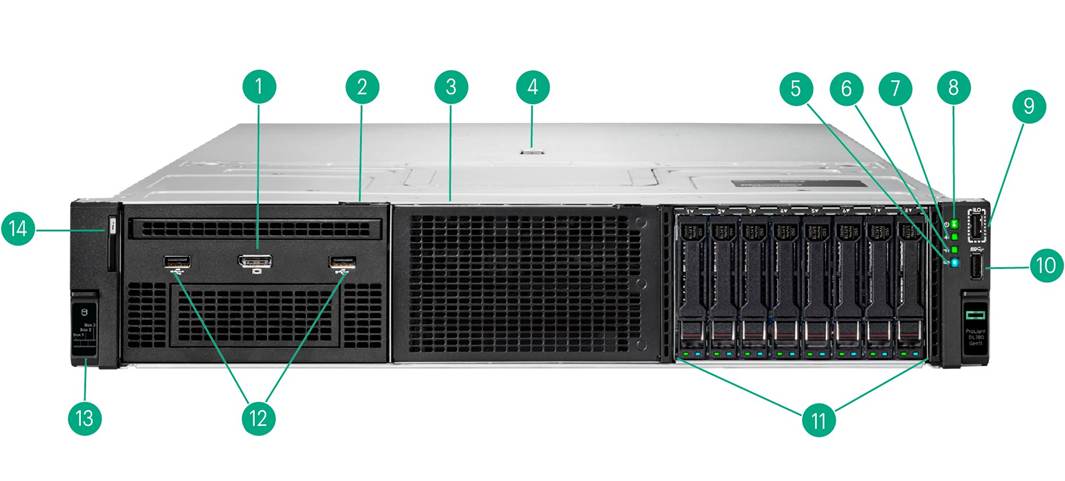

Front View - 8SFF chassis with optional Universal Media Bay shown

Item

Description

Item

Description

1.

Optional Front DisplayPort (via Universal Media Bay)

8.

Power On/Standby button/LED

2.

Box 1 (shown with optional Universal Media Bay installed)

9.

iLO Service Port

3.

Box 2 (Empty)

10.

USB 3.2 Gen1

4.

Quick removal access panel

11.

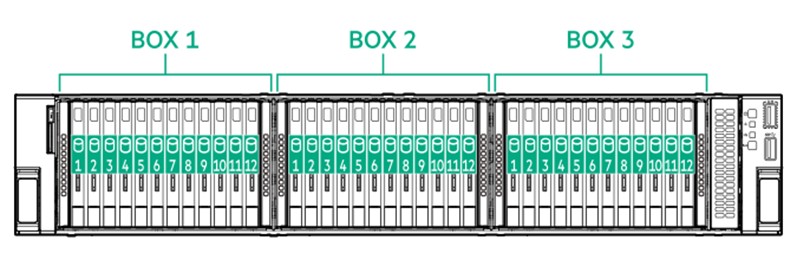

Box 3 (shown with 8SFF drives populated)

5.

Unit Identification button/LED

12.

Optional USB 2.0 port (via Universal Media Bay)

6.

NIC Status¹

13.

Drive Support Label

7.

Health LED

14.

Serial Number Label Pull Tab

Notes: ¹ Front NIC LED display doesn't support NIC LED ACT/LINK indication from ALOM/PCIe/FLOM NICs.

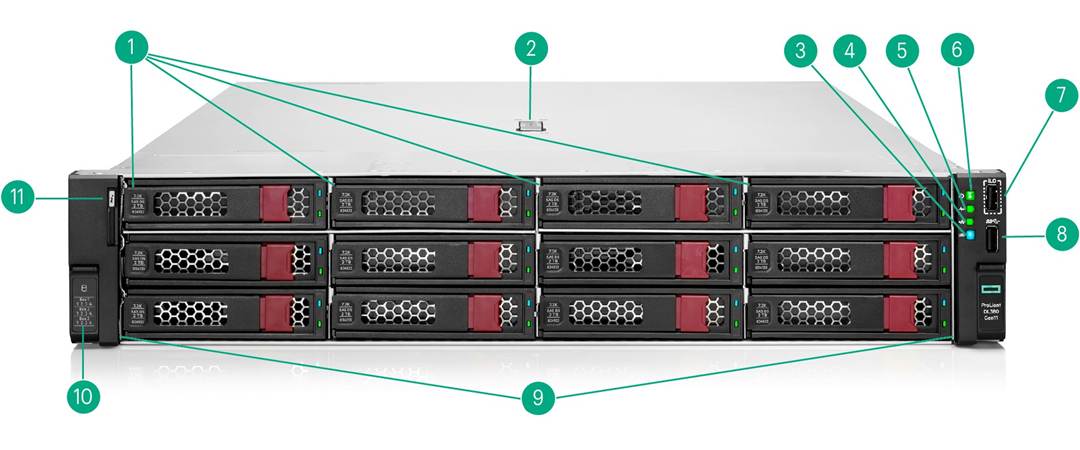

Front View - 12LFF chassis shown

Item

Description

Item

Description

1.

Quick removal access panel

6.

iLO Service Port

2.

Unit Identification Button/LED

7.

USB 3.2 Gen1 Port

3.

NIC Status

8.

12 x LFF Media

4.

Health LED

9.

Drive support label

5.

Power On/Standby button/LED

10.

Serial Number Label Pull Tab

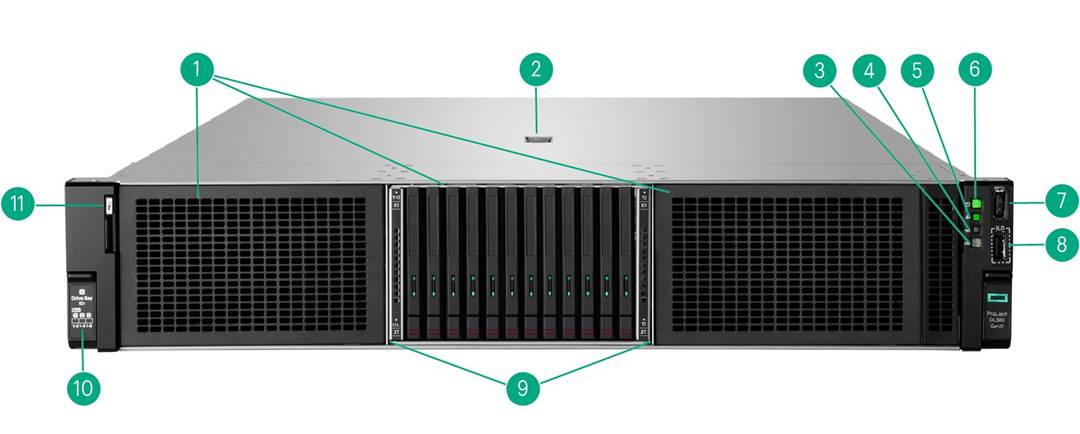

Front View -12EDSFF chassis shown

Item

Description

Item

Description

1.

12EDSFF drive bays optical drive

7.

iLO Service Port

2.

Quick removal access panel

8.

USB 3.2 Gen1

3.

UID Button/LED

9.

12x EDSFF Media

4.

NIC Status

10.

Drive support label

5.

Health LED

11.

Serial Number Label Pull Tab

6.

Power On/Standby button and LED

Internal View 8SFF chassis

Item

Description

Item

Description

1.

Hot Plug Fans¹

6.

Primary Riser

2.

Processors with heatsinks shown

7.

 DIMM slots, shown fully populated in 32 slots²

3.

Optional NS204i-u Boot Device

8.

Drive Backplanes

4.

Hot Plug redundant HPE Flexible Slot Power Supplies

9.

Drive Cages

5.

Secondary Riser (Optional) (Requires second processor)

Notes:

- ¹High-performance temperature fans optional.

- ²Shown fully populated in 32 slots (16 per processor).

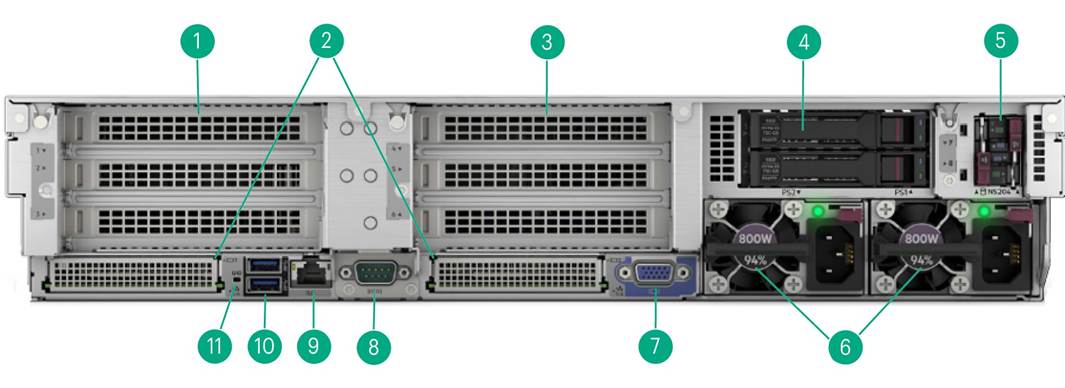

Rear View - Standard for all DL380 Gen11

Item

Description

Item

Description

1.

Primary Riser. PCIe 5.0 Slots (Slots 1-3)

7.

VGA Connector

2.

OCP NIC 3.0 Slots, shown covered

8.

Serial Port Optional

3.

Secondary Riser. PCIe 5.0 Slots (Slots 4-6)

9.

Dedicated iLO Management Port

4.

Tertiary Riser (Slots 7-8) shown with optional 2SFF drive cage installed

10.

USB 3.2 Gen1 Connectors (2)

5.

Optional NS204i-u Boot Device

11.

UID Indicator LED

6.

Power Supply

Notes:  ¹ Supports various NICs, and Storage controllers.

Platform Information

Form Factor

- 2U rack

Chassis Types

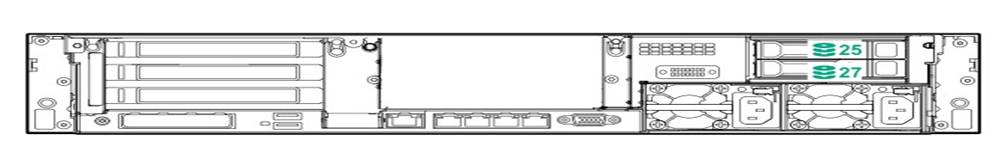

-  8SFF (SAS/SATA/NVMe) with optional 6SFF Universal Media Bay (P50728-B21), and/or up to 6SFF rear drive bay options.

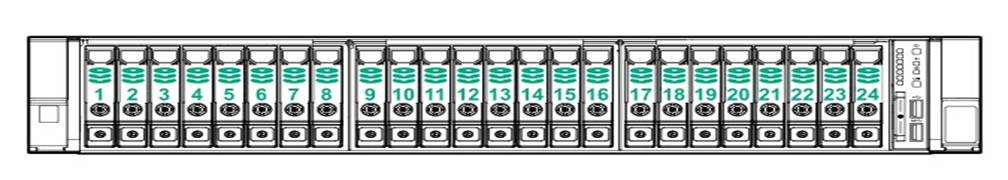

- 24SFF bay (SAS/SATA/NVMe) with up to 6SFF rear drive bay options for a total 30 SFF drives.

- 8LFF supporting 2SFF front, and up to 4LFF rear or 2SFF rear drive bay options.

- 12LFF with optional 4LFF rear for a total of 16LFF drives.

- 12EDSFF (NVMe) supporting up to 36 EDSFF in front and up to 2SFF rear drive bay option.

Notes:

- The 8SFF chassis is upgraded to support up to 24SFF (front) with a variety of 8SFF Drive Cages to select from, including 8SFF U.3 x4/x2 Trimode, 8SFF U.3 (x1 Trimode), and 8SFF SAS/SATA. See "Drive Cages" section within this document for options.

- The 8SFF chassis comes with an 8SFF U.3 x1 Trimode drive bay by default in bay 3.

- The Universal Media Bay (P50728-B21) is only available as an option for the 8SFF chassis and can only be populated in Box 1.

- The 2LFF primary and 2LFF secondary rear cages will consume all PCIe slots for the primary and secondary riser, respectively.

- The 8LFF chassis cannot be upgraded to 12LFF front in the field.

- The 2LFF primary and 2LFF secondary rear cages are supported in LFF chassis only.

System Fans

- High-performance Fan Kit - required for all CPUs over 205W TDP.

Notes:

- On 8SFF CTO server models ship with 4 standard fans.

- The 12LFF and 8LFF CTO server models ship with 4 standard fans.

- The 24SFF CTO server model ships with 6 high-performance fans.

- The High-Performance fan kit (P48820-B21) is available to meet ambient temperature requirements.

- In general, the Maximum Performance fan kit is required when rear drives, or >205W Processors SKUs, or High-performance NVMe drives, three drive cages, mid-tray, GPU card, or certain backplanes are populated. See notes under each option category or each individual option for specifics.

Processors - Up to 2 of the following depending on model.

- The 2nd digit of the processor model number "x4xx" is used to denote the processor generation (i.e. 4=4th generation Intel® Scalable Series Processors).

- The required firmware for the 5th Generation Intel® Xeon® Processors is not compatible with the DL380 Gen11 system board shipped with the 4th Generation Intel® Xeon® Processors. A new server order (latest firmware system board) is required for the activation of the 5th Generation Intel® Xeon® Processors. Field upgrade from the 4th Generation Intel® Xeon® Processors to the 5th Generation is not supported.

For more information regarding Intel® Xeon® processors, refer to the following https://www.intel.com/xeon.

This table covers the public Intel® offering only.

Notes:

- Processors do not ship with heatsinks or fan kits, these must be ordered separately.

- Processors with TDP equal to or less than 150W require Standard Heatsink (P49145-B21).

Chipset

Intel® C741 Chipset.

Notes: For more information regarding Intel® chipsets, refer to the following URL: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

On System Management Chipset

HPE iLO 6 ASIC.

Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model.

Notes:

- The maximum memory speed is limited by the processor selection.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Memory Protection

One of the following depending on model.

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multi-bit errors that occur within a single DRAM chip.

Expansion Slots

Primary Riser

Notes:

- Bus width indicates the number of physical electrical lanes running to the connector.

- There are 2 types of risers supported on Primary Slot.

- x16 cards installed on x8 slots could observe sub-optimal performance.

Notes: ** If Slot 1 of HPE ProLiant DL380 Gen11 2U 3x16 Prim Riser Kit needs to be enabled then 3 x16 Primary Cable Kit (P56073-B21) must be selected.

Secondary Riser:

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There are 2 types of risers support on Secondary Slot.

- x16 cards installed on x8 slots could observe sub-optimal performance.

Notes: * If Slot 4 of HPE ProLiant DL380 Gen11 2U 3x16 Sec Riser Kit needs to be enabled then 3 x16 Secondary Cable Kit (P56074-B21) must be selected.

Tertiary Riser

Notes:

- Bus Width Indicates the number of physical electrical lanes running to the connector.

- There is 1 type of riser supported on the Tertiary Slot.

- x16 cards installed on x8 slots could observe sub-optimal performance.

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200@60Hz (32 bpp).

- 16MB Video Memory.

Maximum Internal Storage

Notes:

- If all seven Drive cages are selected, then maximum SAS Drive support will be 30 drives (16+8+6).

- Maximum SAS Drive support can be 36 Drives (24+8+4), if one 2SFF Primary / Secondary cage is not selected.

Internal Storage Devices

- Optical Drive

Optional: DVD-ROM, DVD-RW.

- Hard Drives

None shipped as standard.

Power Supply

- HPE 1800W-2200W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit.

Notes: 1 available in 96% efficiency.

- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: 1 available in 94% efficiency.

- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

- HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit.

Notes: 1 available in 96% efficiency.

- HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: 1 available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

A standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.  review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Storage Controllers

The available Gen11 controllers are depicted below.

Hybrid RAID Controller

• Intel® VROC SATA for HPE ProLiant Gen11

Notes:

- All models feature an embedded storage controller, with embedded software SATA RAID support for up to 14 bays.

- Intel® VROC for HPE ProLiant Gen11 is an enterprise, hybrid RAID solution specifically designed for SSDs.

- Intel® VROC is a software-based solution utilizing Intel® CPU to RAID or HBA direct connected drives.

- RAID Support- 0/1/5/10.

- Windows and Linux OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- iLO Support- IML, Alert, SNMP, AHS.

- iLO Redfish- Redfish Read.

- Intel® VROC SATA for HPE ProLiant Gen11 will operate in UEFI mode only. For legacy support an additional storage controller will be needed.

- Intel® VROC SATA is off by default and must be enabled.

- VROC cannot support mix among SATA/sSATA/tSATA due to VROC limitation. Visit Intel Virtual RAID on CPU for HPE Gen11 User Guide.

• 12LFF: Mix of raid is not allowed across boxes/drive bays. Each LFF drive cage (box1/2/3) has four bays and is separated with different drive groups with Intel® VROC SATA RAID configuration.
• 8SFF: Mix of raids is not allowed across boxes/drive bays. One box contains 8 bays and is separated into two drive groups (Bay1-4 and Bay5-8) with Intel® VROC SATA RAID configuration.

• Intel® VROC NVMe for HPE ProLiant Gen11

Notes:

- All models feature 4 x8 PCIe 5.0 connectors per socket for NVMe connectivity, provides support for up to 8 direct attach x4 NVMe bays.

- Only supported on SFF models.

- Intel® VROC for HPE ProLiant Gen11 is an enterprise, hybrid RAID solution specifically

designed for NVMe SSDs connected directly to the CPU. Intel® VROC is a software-based solution

utilizing Intel® CPU to RAID or HBA direct connected drives.

- Intel® Virtual RAID on CPU Standard for RAID 0/1/10 (S3Q19A/S3Q39AAE) or Premium SKU for RAID 0/1/5/10 (R7J57A/R7J59AAE) must be ordered to enable RAID support.

- Windows, Linux, VMware OS support.

- Host Tools- Windows GUI/CLI, Linux CLI.

- UEFI Support- HII Utility, OBSE.

- Active health monitoring of NVMe M.2 drives requires use of SMART tools.

- Intel® VROC NVMe for HPE ProLiant Gen11 will operate in UEFI mode only. For legacy support an additional Tri-

- Mode controller will be needed.

- For NVMe SSDs only, there is no PCIe card support.

Essential RAID Controller

- HPE Smart Array E208e-p SR Gen10 Controller

Tri-Mode Controller

- HPE MR416i-p Gen11 Controller.

- HPE MR416i-o Gen11 Controller.

- HPE MR216i-p Gen11 Controller.

- HPE MR216i-o Gen11 Controller.

- HPE MR408i-o Gen11 Controller.

- HPE SR932i-p Gen11 Controller^1,2.

Notes:

- PE80xx NVMe drives are not supported.

- ¹Requires x16 physical and electrical riser slot.

- ²If second controller is required, you must select secondary riser.

- Controllers with cache require either P02377-B21 HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit or P01366-B21 HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit.

- Requires HPE ProLiant DL360 Gen11 Storage Controller Enablement Cable Kit (P48918-B21).

Interfaces

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation to support UEFI Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

- Secure Boot and Secure Start enable for enhanced security.

- Embedded UEFI Shell.

- Operating system specific functionality.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- Support for > 2.2 TB (using GPT) boot drives.

- PXE boot support for IPv6 networks.

- USB 3.0 Stack.

- Workload Profiles for simple performance optimization.

UEFI Boot Mode only

- TPM 2.0 Support.

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.

- iSCSI Software Initiator Support.

- NVMe Boot Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Platform Trust Technology (PTT) can be enabled.

- Boot support for option cards that only support a UEFI option ROM.

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Industry Standard Compliance

- ACPI 6.4 Compliant.

- PCIe 5.0 Compliant.

- Wake on LAN (WoL) Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA.

- DisplayPort.

Notes: This support is on the optional Universal Media Bay.

- USB 3.2 Gen1 Compliant.

- USB 2.0 Compliant (via Universal Media Bay).

Notes: This support is on the optional Universal Media Bay.

- ENERGY STAR®.

- SMBIOS 3.4.

- Redfish API.

- IPMI 2.0.

- Secure Digital 4.0.

- 2.0 Support.

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.

- Advanced Encryption Standard (AES).

- Triple Data Encryption Standard (3DES).

- SNMP v3.

- TLS 1.2.

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- Active Directory v1.0.

- ASHRAE A3/A4.

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit DL380 Gen11 Extended Ambient Temperature Guidelines

- European Union ErP Lot 9 Regulation.

Notes:

- Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

- HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

- Please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

- UEFI (Unified Extensible Firmware Interface Forum) 2.8.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at https://www.hpe.com/info/iLO.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/connect/s/product?language=en_US&kmpmoid=5219984&tab=manuals

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at https://www.hpe.com/info/restfulapi.

OpenBMC Support

OpenBMC Capable through iLO6 Transfer of Ownership Process.

Learn more at OpenBMC Support

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at https://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers. Use with an iLO Advanced License to unlock full capabilities.

Learn more at https://www.hpe.com/servers/iLOamplifierpack

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at https://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at https://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on premise, multi-generational server monitoring and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license all provided by the same tool. Learn more at https://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via  https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:

https://www.hpe.com/info/com-supported-servers

Security

- UEFI Secure Boot and Secure Start support.

- Tamper-free updates - components digitally signed and verified.

- Immutable Silicon Root of Trust.

- Ability to rollback firmware.

- FIPS 140-2 validation.

- Secure erase of NAND/User data.

- Configurable for PCI DSS compliance.

- TPM (Trusted Platform Module) 2.0 option.

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature.

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser.

- Bezel Locking Kit option.

- Support for Commercial National Security Algorithms (CNSA).

- Chassis Intrusion detection option.

- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed by Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available.

https://www.hpe.com/support/ProLiantServers-Warranties.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard, provides full-featured licenses which can be purchased for managing multiple HPE server generations.

To learn more visit https://www.hpe.com/info/oneview.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

HPE Smart Choice Purchase Program

The HPE Smart Choice Purchase Program features popular fully configured products that can be quoted in minutes and shipped quickly through HPE Authorized Partners. Products are configured and tested in an HPE factory and stocked at HPE Authorized Distributors and Partners. The products arrive in a single box, making onsite integration easier and more efficient for partners and customers. Additionally, there are aggressively priced HPE Tech Care Services available only through the HPE Smart Choice program when you purchase an HPE Smart Choice product.

For HPE Smart Choice configuration and product details, please visit the Smart Choice Supplemental QuickSpecs: https://www.hpe.com/psnow/doc/a50009219enw

Pre-Configured models ship with the configurations below.

- Options can be selected from the Core or Additional options section of this QuickSpecs.

- Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will not be shipped inside the server.

- Network Choice models do not include embedded LOM.

Country Code Key

- -B21 = Worldwide.

- -291 = Japan.

- -421 = Europe, the Middle East and Africa.

- -AA1 = China.

- -D61 = India.

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They are intended to provide simple starting points to assist you in easily creating and customizing your desired Server solutions.  HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.

Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer's specific workload.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options.  Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled +30% faster than non-Mainstream orders, have fewer shortages and better recovery dates.  This platform has Mainstream SKUs in the options portfolio, and is eligible for the improved Mainstream experience.  Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations.  All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory installable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

SAP Solution Configuration

For customers configuring the HPE ProLiant DL380 Gen11 for SAP solutions, please use the following solution SKU:

S0V50A: HPE ProLiant DL380 Gen11 Solution Server.

For additional details on HPE's SAP solutions, please visit the HPE SAP solutions portfolio on HPE.COM

Step 1: Base Configuration (choose one (1) of the following four (4) configurable server models from the tables below)

The below (4) CTO server models, denoted with "NC" in the SKU description, provide flexibility in the networking choice and require a network adapter from the "HPE Networking" section be selected.

Notes:

- Network Choice (NC) server models require a networking selection of a network adapters in the "HPE Networking" section.

- HPE Trusted Supply Chain (P36394-B21) is an optional security upgrade intended for agencies and regulated industries needing enhanced security and compliance needs. Applying this option to a DL380 Gen11 CTO server ensures it is built in the USA in a secured facility by vetted HPE personnel assigned to the manufacturing processes. A multitude of checkpoints/inspections for malicious microcode and counterfeit parts are performed throughout the server build, and additional safeguards are put in place against cyber-exploits throughout the server lifecycle. The HPE ProLiant DL380 Gen11 is re-branded as a HPE ProLiant DL380T Gen11 to denote the HPE Trusted Supply Chain security enhancements. The DL380T is Trade Agreement Act (TAA) compliant. See "HPE Security" section within this document for more detail and learn more at https://www.hpe.com/security

- *HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

- All CTO servers are ENERGY STAR® 3.0 compliant.

Notes: This applies to CTO configurations; field upgrades may differ depending on field configuration.

Step 2: Choose Required Options

Please select the two processors required below (a maximum of two).

Notes:

- 8SFF, 8LFF, and 12LFF CTO models ship with 4 standard fans.

- 24SFF CTO Servers ship with 6 High-performance fans included. Maximum Performance fan kit is available to meet ambient temperature environments and are required for rear drives or NVMe configurations.

- Maximum memory capacity per processor is dependent on processor models. All processors support up to 4TB max memory per processor.

- Mixing of 2 different processor models are NOT allowed.

- Processors with TDP greater than 150W require High-performance Heatsink (P48818-B21).

- Q series processors require Max Performance Heat Sink (P48817-B21)

- DDR5 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

Step 2a: Choose Processors

Processor Option Kits (Required Processor)

5^th Generation Intel® Xeon®-Platinum

All SKUs below ship with processors only. Adequate fans and heatsinks must be selected.

Supports "HPE DDR5 Smart Memory - Registered (RDIMM), 5600MT/s".

Intel® Xeon®-Platinum 8593Q 2.2GHz 64-core 385W Processor for HPE

P68449-B21

Notes:

- XCC die.

- Max 2.

- Qty 2 of processor must be selected.

- Max Performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected and defaulted.

- Max Performance Heat Sink is defaulted however customer is allowed to deselect and select DLC Module.

- Without DLC Module, drives above 11W cannot be populated in Rear Drive cages.

- If Full Length (FL) GPU is selected with this Processor then DLC Module must be selected for Processors.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8592+ 1.9GHz 64-core 350W Processor for HPE

P67089-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected and defaulted.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8592V 2.0GHz 64-core 330W Processor for HPE

P67107-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected and defaulted.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8581V 2.0GHz 60-core 270W Processor for HPE

P67109-B21

Notes:

- XCC die.

- Max 1.

- High-performance Heat Sink must be selected.

- DLC Module cannot be selected.

- High-performance Fan Kit must be selected.

- Cannot be selected with EDSFF CTO Server.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8580 2.0GHz 60-core 350W Processor for HPE

P67088-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8570 2.1GHz 56-core 350W Processor for HPE

P67087-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8568Y+ 2.3GHz 48-core 350W Processor for HPE

P67086-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8562Y+ 2.8GHz 32-core 300W Processor for HPE

P67085-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8558P 2.7GHz 48-core 350W Processor for HPE

P67108-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8558 2.1GHz 48-core 330W Processor for HPE

P67097-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Platinum 8558U 2.0GHz 48-core 300W Processor for HPE

P67102-B21

Notes:

- XCC die.

- Max 1.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Single socket processor and DLC Module cannot be selected together.

- Cannot be selected with EDSFF CTO Server.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6558Q 3.2GHz 32-core 350W Processor for HPE

P67098-B21

Notes:

- MCC die.

- Qty 2 of processor must be selected.

- Max Performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

- If Full Length (FL) GPU is selected with this Processor then DLC Module must be selected for Processors.

Intel® Xeon®-Gold 6554S 2.2GHz 36-core 270W Processor for HPE

P67110-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6548N 2.8GHz 32-core 250W Processor for HPE

P67105-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6548Y+ 2.5GHz 32-core 250W Processor for HPE

P67082-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6544Y 3.6GHz 16-core 270W Processor for HPE

P67084-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6542Y 2.9GHz 24-core 250W Processor for HPE

P67081-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6538N 2.1GHz 32-core 205W Processor for HPE

P67104-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6538Y+ 2.2GHz 32-core 225W Processor for HPE

P67096-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6534 3.9GHz 8-core 195W Processor for HPE

P67083-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6530 2.1GHz 32-core 270W Processor for HPE

P67095-B21

Notes:

- XCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 6526Y 2.8GHz 16-core 195W Processor for HPE

P67080-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 5520+ 2.2GHz 28-core 205W Processor for HPE

P67094-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Gold 5515+ 3.2GHz 8-core 165W Processor for HPE

P67079-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Silver 4516Y+ 2.2GHz 24-core 185W Processor for HPE

P67093-B21

Notes:

- MCC die.

- Max 2.

- High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Silver 4514Y 2.0GHz 16-core 150W Processor for HPE

P67092-B21

Notes:

- MCC die.

- Max 2.

- Standard Heat Sink or High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

Intel® Xeon®-Silver 4510 2.4GHz 12-core 150W Processor for HPE

P67091-B21

Notes:

- EE LCC die.

- Max 2.

- Standard Heat Sink or High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

- 96GB 5600B Memory cannot be selected.

Intel® Xeon®-Silver 4509Y 2.6GHz 8-core 125W Processor for HPE

P67090-B21

Notes:

- EE LCC die.

- Max 2.

- Standard Heat Sink or High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

- If "HPE ENERGY STAR® 4.0 configuration FIO kit" is selected then Qty2 of this Processor cannot be selected.

- 96GB 5600B Memory cannot be selected.

Intel® Xeon®-Bronze 3508U 2.1GHz 8-core 125W Processor for HPE

P67100-B21

Notes: 18, 282, 283, 284, 285, 288, 309, 319, 320, 322, 323, 430, 436, 499, 500, 501, 510

- EE LCC die.

- Max 1.

- Standard Heat Sink or High-performance Heat Sink or DLC Module must be selected.

- Standard Fan kit or High-performance Fan Kit must be selected.

- Supports only PC5-5600B/ PC5-5200B Memory.

- If "HPE ENERGY STAR® 4.0 configuration FIO kit" is selected then Qty2 of this Processor cannot be selected.

- 96GB 5600B Memory cannot be selected.

- Supports PCIe4.0 Only29, 30, 31, 32, 34, 259, 445, 449, 458, 475, 499.

4^th Generation Intel® Xeon®-Platinum

Notes:

- All SKUs below ship with processor only. Adequate fans and heatsinks must be selected.

- Processors with TDP equal to or greater than 150W require High-performance Heatsink (P48818-B21).

- Q series processors require Max Performance Heat Sink (P48817-B21).

- 8470Q processor is not supported with 12LFF CTO Server and 24SFF CTO Server.

Intel® Xeon®-Platinum 9462 2.7GHz 32-core 350W Processor for HPE

P49645-B21

Notes:

- This is Intel High Bandwidth Memory (HBM) CPU.

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8490H 1.9GHz 60-core 350W Processor for HPE

P49630-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8480+ 2.0GHz 56-core 350W Processor for HPE

P49607-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8470 2.0GHz 52-core 350W Processor for HPE

P49606-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8470N 1.7GHz 52-core 300W Processor for HPE

P49649-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8468 2.1GHz 48-core 350W Processor for HPE

P49605-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8462Y+ 2.8GHz 32-core 300W Processor for HPE

P49603-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8458P 2.7GHz 44-core 350W Processor for HPE

P49632-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8460Y+ 2.0GHz 40-core 300W Processor for HPE

P49604-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8452Y 2.0GHz 36-core 300W Processor for HPE

P49616-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Platinum 8444H 2.9GHz 16-core 270W Processor for HPE

P49625-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

4^th Generation Intel® Xeon®-Gold

Intel® Xeon®-Gold 6448H 2.4GHz 32-core 250W Processor for HPE

P49622-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Gold 6448Y 2.1GHz 32-core 225W Processor for HPE

P49600-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Gold 6444Y 3.6GHz 16-core 270W Processor for HPE

P49602-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Gold 6442Y 2.6GHz 24-core 225W Processor for HPE

P49599-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Gold 6438Y+ 2.0GHz 32-core 205W Processor for HPE

P49615-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Gold 6434 3.7GHz 8-core 195W Processor for HPE

P49601-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Gold 6430 2.1GHz 32-core 270W Processor for HPE

P49614-B21

Notes:

- Requires High-performance Heat Sink.

- Requires High-performance Fan Kit.

Intel® Xeon®-Gold 6426Y 2.5GHz 16-core 185W Processor for HPE

P49598-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Gold 6421N 1.8GHz 32-core 185W Processor for HPE

P49641-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Gold 6418H 2.1GHz 24-core 185W Processor for HPE

P49621-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Gold 6416H 2.2GHz 18-core 165W Processor for HPE

P49620-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Gold 5415+ 2.9GHz 8-core 150W Processor for HPE

P49597-B21

Notes: Requires Standard Heat Sink.

Intel® Xeon®-Gold 5416S 2.0GHz 16-core 150W Processor for HPE

P49653-B21

Notes: Requires Standard Heat Sink.

Intel® Xeon®-Gold 5418N 1.8GHz 24-core 165W Processor for HPE

P49640-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Gold 5418Y 2.0GHz 24-core 185W Processor for HPE

P49612-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Gold 5415+ 2.9GHz 8-core 150W Processor for HPE

P49597-B21

Notes:

- Requires Standard Heat Sink.

- 4th Generation Intel® Xeon®-Silver.

Intel® Xeon®-Gold 5411N 1.9GHz 24-core 165W Processor for HPE

P49639-B21

Notes: Requires High-performance Heat Sink.

Intel® Xeon®-Silver 4410Y 2.0GHz 12-core 150W Processor for HPE

P49610-B21

Notes: Requires Standard Heatsink.

Intel® Xeon®-Silver 4416+ 2.0GHz 20-core 165W Processor for HPE

P49611-B21

Notes:

- Requires Standard Heatsink.

- 4th Generation Intel® Xeon®-Bronze.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to:

HPE Memory Population Rules

For details on the HPE Server Memory Options Population Rules, please go to:

Memory population rules for HPE Gen11 servers with 4th Generation Intel Scalable Processors

Notes:

- HPE Server Memory compatibility for a specific server platform may vary or be limited within a server platform depending upon the specific configuration being requested.  Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration.  For this reason, some HPE memory DIMMs may be qualified for an HPE server model or family and yet occasionally not be supported with some configurations within that server family

- Memory should be installed in even quantity of DIMMs

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- DDR5-4800 Memory Kits are only supported with 4th Generation Intel® Xeon® Scalable Series Processors.

- Memory compatibility may vary or be limited within a specific server family depending upon the specific configuration being requested.  Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration.  For this reason, some HPE memory DIMMs may be qualified for a server model or family and yet occasionally not be supported with limited configurations within that server family.

- Please consult with the HPE server QuickSpecs or your HPE representative if you have any questions regarding memory compatibility with a specific HPE server configuration.

- 96GB DIMMs supported only on XCC and MCC CPUs.

Registered DIMMs DDR5 (RDIMMs)

HPE 16GB (1x16GB) Single Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64705-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64706-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64707-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P64708-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-5600 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P90554-B21

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43322-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43328-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P43331-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66675-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-5600 CAS-46-45-45 EC8 Registered Smart Memory Kit

P69976-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-4800 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P90550-B21

Notes:

- Memory should be installed in even quantity of DIMMs

- If Memory Fault Tolerance is selected then only x4 memory options can be selected.

- 4800 MT/s memory SKUs offer a transfer rate of 4800 MT/s at 1 DIMM per channel and 4400 MT/s at 2 DIMMs per channel.

- Mixing of 3DS memory and non-3DS memory is not supported.

- Mixing of x4 and x8 memory is not allowed.

- Memory with larger than 96GB capacity will need High-performance Fan Kit (P48820-B21) and ambient limitation.

- 256GB DIMM will need to limit the maximum front-end cage to two.

- If 96GB or higher density memory is selected, then High-performance Fan Kit must be selected.

- 96GB memory cannot be mixed with any other memory.

- 96GB 5600 Memory cannot be selected with EE LCC (Edge Enhanced Low Core Count) die of the New 5th Generation Intel® Xeon® Scalable Processors.

- 96GB memory configuration must be either 8 or 16 only on 1 processor unit.

- 96GB memory configuration must be either 16 or 32only on 2 processor unit.

- For 1 Processor, the allowed qty of 96GB 5600 Memory is 1, 6, 8, 12,16 only.

- For 2 Processor, the allowed qty of 96GB 5600 Memory is 2, 12, 16, 24, 32 only.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes: DIMM Blanks are optional and not required.

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

Notes:

- Select a minimum (1), maximum (2) power supplies.

- 1600W Power supplies only support high line voltage (200VAC to 240VAC).

- Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:

https://poweradvisorext.it.hpe.com/?Page=Index.

- All power supplies in a server should match.

- Mixing Power Supplies is not supported.

- HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords for a full list of optional power cords.

- Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, or Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output.

- HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements. HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

HPE Security Options

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE Bezel Lock Kit

875519-B21

Notes: This option can be selected only if HPE Gen11 2U Bezel Kit (P50400-B21) is selected.

HPE ProLiant DL3XX Gen11 Intrusion Cable Kit

P48922-B21

Notes: This option must be selected if HPE Trusted Supply Chain SKU (P36394-B21) is selected.

HPE Gen11 2U Bezel Kit

P50400-B21

Factory Instructions and Server Settings

HPE ProLiant DL380 Gen11 8NVMe 1P FIO Bundle Kit

P69548-B21

Notes:

- This bundle provides Direct Attach to 8NVMe Drives through First/ Single Processor.

- If NVMe bundle is selected then defaulted Controller has to be deselected.

- If this NVMe Bundle is selected then Qty 1 of HPE ProLiant DL380 Gen11 8NVMe CPU1/2 Cable Kit must be selected and defaulted.

- If this NVMe Bundle/ EDSFF Bundle is selected then Qty 1 of High-Performance Fan Kit must be selected and defaulted.

- If 8NVMe Bundle is selected then Qty 1 (min/max) of 8SFF U.3 x4 cage OR 8SFF U.2 x4 cage must be selected.

- NVMe Bundle is supported with 8SFF CTO Server Only.

- If 8SFF U.3 x1 Cage is selected along with 8 OR 16 NVMe bundle then controller must be selected except SR308i-o/SR308i-p.

- If 8NVMe 1P Bundle is selected then Primary 3 x16 Cable Kit cannot be selected and vice-versa.

HPE ProLiant DL380 Gen11 36EDSFF FIO Bundle Kit

P56075-B21

HPE ProLiant DL380 Gen11 20EDSFF FIO Bundle Kit

P56076-B21

Notes:

- If this NVMe Bundle/ EDSFF Bundle is selected then Qty 1 of High-Performance Fan Kit must be selected.

- If NVMe Bundle/ EDSFF Bundle is selected then Second Processor must be selected.

- For 12EDSFF CTO Server, If EDSFF Bundle is selected then Max Quantity of 256GB Memory is limited to 16.

- EDSFF Drive cage supports Direct attach Only and requires selection of EDSFF Bundle.

- If EDSFF Bundle is selected then Qty1 of HPE ProLiant DL380 Gen11 12EDSFF CPU1/2 Cable Kit must be selected

- If EDSFF Bundle is selected then Qty2 of HPE ProLiant DL380/DL560 G11 2U 12EDSFF NVMe Kit must be selected.

- EDSFF Bundle is supported with 12EDSFF CTO Server Only.

- If EDSFF Bundle is selected then OCP1 x16 Enablement Kit AND OCP2 x16 Enablement Kit AND CPU1 OCP2 x8 Enable kit cannot be selected.

- If EDSFF Bundle is selected then Tertiary Riser cannot be selected.

- If EDSFF Bundle is selected then HPE ProLiant DL380 Gen11 x16/x16/x16 Prim Cable Kit AND HPE ProLiant DL380 Gen11 x16/x16/x16 Sec Cable Kit cannot be selected.

- If 20EDSFF Bundle is selected then Maximum 20 EDSFF Drives only can be selected.

HPE ProLiant DL380 Gen11 32NVMe Balanced FIO Bundle Kit

P53639-B21

Notes:

- If NVMe bundle is selected then default storage controller cannot be selected.

- If this NVMe Bundle is selected then Qty 1 of HPE ProLiant DL380 Gen11 8NVMe CPU1/2 Cable Kit must be selected.

- If this NVMe Bundle/ EDSFF Bundle is selected then Qty 1 of High-Performance Fan Kit must be selected.

- If 24NVMe Bundle/ 32NVMe Bundle is selected then Qty 3 (min/max) of 8SFF U.3 x4 cage must be selected.

- If 24NVMe Bundle/ 32NVMe Bundle is selected then Qty 1 of HPE ProLiant DL380 Gen11 3x16 Primary riser must be selected.

- If 24NVMe Bundle/ 32NVMe Bundle is selected then Qty 1 of HPE ProLiant DL380 Gen11 3x16 SEC Riser must be selected.

- If 24NVMe Bundle/ 32NVMe Bundle is selected then Qty 1 of OCP1 x16 Enablement Kit must be selected.

- If 24NVMe Bundle/ 32NVMe Bundle is selected then Qty 1 of OCP2 x16 Enablement Kit must be selected.

- If 24NVMe Bundle/ 32NVMe Bundle is selected then Qty 1 of HPE Gen4 Re-timer/-p Cable Kit must be selected.

- NVMe Bundle is supported with 8SFF CTO Server Only.

- If NVMe Bundle/ EDSFF Bundle is selected, then Second Processor must be selected.

- If 24NVMe/ 32NVMe Bundle is selected, then Tertiary Riser cannot be selected.

- For 8SFF CTO Server, 8SFF U.3 x4 Mid Tray requires selection of 32NVMe Bundle or SR932i controller.

- If 32NVMe Bundle is selected, then Qty 1 (min/max) of HPE ProLiant DL380 G11 2U 8SFF x4 U.3 Mid TM Kit must be selected.

- If 32NVMe Bundle is selected, then Qty 4 of HPE DL385 Gen10+ 12Gb NVMe 2p Adapter must be selected.

HPE ProLiant DL380 Gen11 8NVMe Balanced FIO Bundle Kit

P53633-B21

Notes:

- If this NVMe Bundle is selected, then Qty 1 of HPE ProLiant DL380 Gen11 8NVMe CPU1/2 Cable Kit (P48825-B21) must be selected and defaulted.

- If this NVMe Bundle is selected, then Qty 1 of High-Performance Fan Kit (P48820-B21) must be selected and defaulted.

- If 8NVMe Bundle is selected, then Qty 1 (min) of 8SFF U.3 x4 drive must be selected.

- If NVMe Bundle is selected, then 8SFF U.3 x4 Cage is defaulted.

- NVMe Bundle is supported with 8SFF CTO Server Only.

- If NVMe Bundle is selected, then Second Processor must be selected.

- If 8SFF U.3 x1 Cage is selected along with 8 OR 16 NVMe bundle, then controller must be selected.

HPE ProLiant DL380 Gen11 16NVMe Balanced FIO Bundle Kit

P53634-B21

Notes:

- If NVMe bundle is selected, then defaulted Controller must be deselected.

- If this NVMe Bundle is selected, then Qty 1 of HPE ProLiant DL380 Gen11 8NVMe CPU1/2 Cable Kit (P48825-B21) must be selected and defaulted.

- If this NVMe Bundle is selected, then Qty 1 of High-Performance Fan Kit (P48820-B21) must be selected and defaulted.

- If 16NVMe Bundle is selected, then Qty 2 (min) of 8SFF U.3 x4 drive cage must be selected.

- If NVMe Bundle is selected, then 8SFF U.3 x4 drive cage will be defaulted.

- NVMe Bundle is supported with 8SFF CTO Server Only.

- If 16NVMe/ 24NVMe Bundle is selected, then Universal Media Bay kit cannot be selected.

- If NVMe Bundle is selected, then Second Processor must be selected.

- If Tertiary Riser is selected along with 16NVMe Bundle, then 2x16 Tertiary FIO x8 Enable Kit (P53632-B21) must be selected.

- If 8SFF U.3 x1 drive cage (P48813-B21) is selected along with 8 OR 16 NVMe bundle, then controller must be selected.

HPE ProLiant DL380 Gen11 24NVME Balanced I/O FIO Bundle Kit

P53635-B21

Notes:

- If NVMe bundle is selected, then defaulted Controller must be deselected.

- If NVMe Bundle is selected, then 8SFF U.3 x1 drive cage (P48813-B21) cannot be selected.

- If this NVMe Bundle is selected, then Qty 1 of HPE ProLiant DL380 Gen11 8NVMe CPU1/2 Cable Kit (P48825-B21) must be selected and defaulted.

- If this NVMe Bundle is selected, then Qty 1 of High-Performance Fan Kit (P48820-B21) must be selected and defaulted.

- If 24NVMe Bundle is selected, then Qty 3 (min) of 8SFF U.3 x4 drives must be selected.

- If 24NVMe Bundle is selected, then Qty 1 of HPE ProLiant DL380 Gen11 3x16 Primary Riser (P48803-B21) must be selected and defaulted.

- If 24NVMe Bundle is selected, then Qty 1 of HPE ProLiant DL380 Gen11 3x16 Secondary Riser (P51083-B21) must be selected and defaulted.

- If 24NVMe Bundle is selected, then Qty 1 of OCP1 x16 Enablement Kit (P48827-B21) must be selected and defaulted.

- If 24NVMe Bundle is selected, then Qty 1 of OCP2 x16 Enablement Kit (P48828-B21) must be selected and defaulted.

- If 24NVMe Bundle is selected, then Qty 2 of HPE DL385 Gen10+ 12Gb NVMe 2p Adapter (P25527-B21) must be selected and defaulted.

- If 24NVMe Bundle is selected, then Qty 1 of HPE Gen4 Re-timer/-p Cable Kit must be selected and defaulted.

- If NVMe Bundle is selected, then 8SFF U.3 x4 drive cage will be defaulted.

- NVMe Bundle is supported with 8SFF CTO Server Only.

- If 16NVMe/ 24NVMe Bundle is selected, then Universal Media Bay kit cannot be selected.

- If NVMe Bundle is selected, then Second Processor must be selected.

- If 24NVMe Bundle is selected, then Tertiary Riser cannot be selected.

- If 24NVMe Balanced or 24NVMe DIFF IO-3 Bundle is selected, then CPU1 OCP2 x8 enablement OR CPU2 OCP2 x8 enablement kit cannot be selected.

- If 24NVMe Bundle is selected, then Primary 3 x16 Cable OR Secondary 3 x16 Cable cannot be selected.

HPE ProLiant DL380 Gen11 24NVME Differential I/O OCP1/2 x8 FIO Bundle Kit

P53636-B21

Notes:
