HPE ProLiant DL365 Gen11 QuickSpecs

The new HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, enhanced data transfer rates, and increased memory capacity for 2P configurations.

Powered by 5th Generation AMD EPYC^TM Processors with up to 160 cores, increased memory bandwidth (up to 6 TB). It also features high-speed PCIe Gen5 I/O, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution.

The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server boots.

The HPE ProLiant DL365 Gen11 server is an excellent choice for those who require increased compute density with built-in security and flexibility. A scalable, compute dense solution for high performance workloads such as general-purpose virtualization, Virtual Desktop Infrastructure (VDI), Electronic Design Automation (EDA) or Compute-Aided Design (CAD) and more.

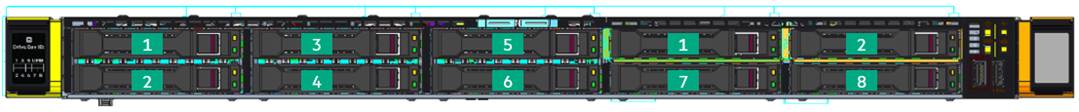

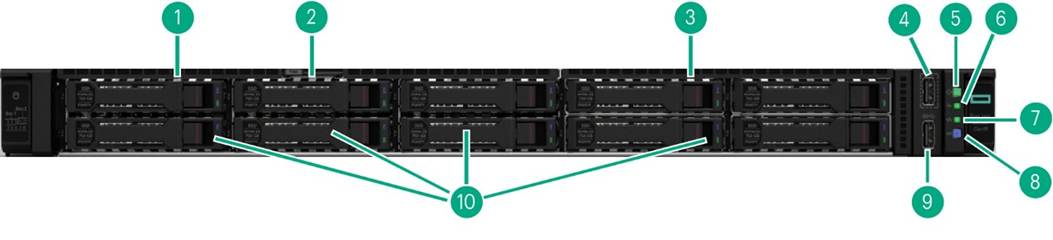

8 SFF Front View - 8 SFF & No Media Option Shown

Item

Description

Item

Description

1.

Quick removal access panel

6.

Health LED

2.

Serial no. label pull tab

7.

NIC status LED¹

3.

Optional Media Bay*

8.

UID button LED

4.

HPE iLO service port

9.

USB 3.2 Gen 1 port

5.

Power On/Standby button and system power LED

10.

8 SAS/SATA/NVMe drive bays

Notes:

­ Optional: +2 SFF U.3 Tri-mode drive cage (total max 10 SFF).

­ Optional: 9.5mm SATA DVD-ROM/RW Optical Drive.

­ ¹ Front NIC LED display does not support NIC LED ACT/LINK indication from ALOM/PCIE/FLOM NICs.

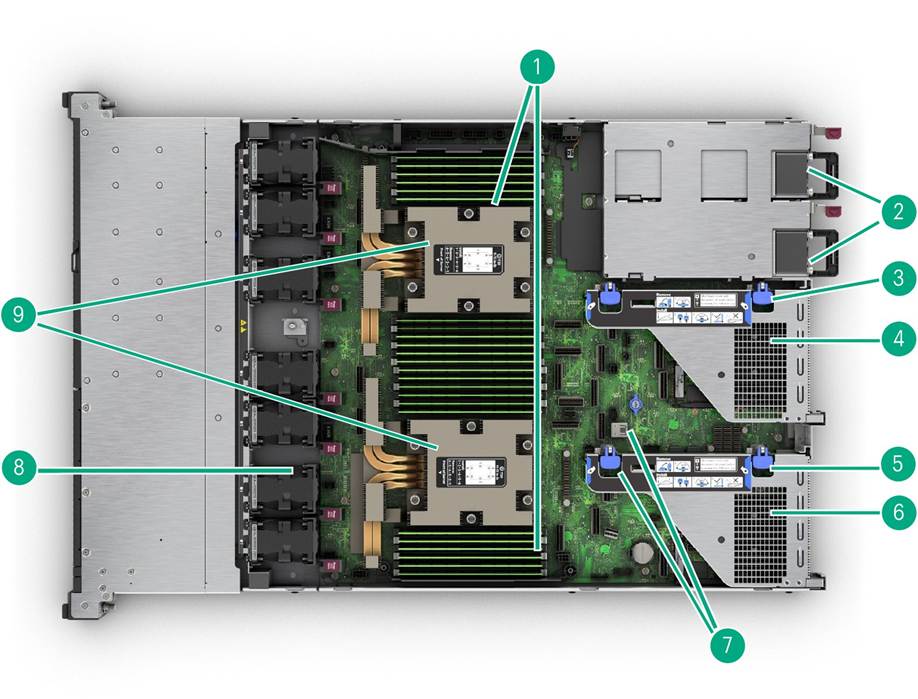

Internal View

Item

Description

Item

Description

1.

DDR5 DIMM slots. Shown populated in 24 slots

6.

(Under) OCP 3.0 Slot 1

2.

Hot-plug redundant HPE Flexible Slot Power supplies

7.

2x USB 3.2 Gen 1 ports

3.

Secondary Riser connector cage, optional

8.

Fan cage shown with 7 High Performance Fans

4.

(Under) OCP 3.0 Slot 2

9.

2 Processors (heatsinks shown)

5.

Primary PCIe riser cage, standard

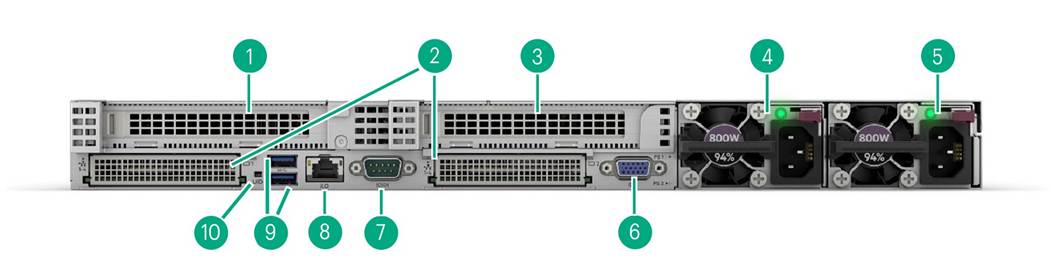

Rear View - Standard for all DL365 Gen11

Item

Description

Item

Description

1.

Slot 1 PCIe 5.0

6.

VGA port

2.

OCP 3.0 Slots

7.

Serial port (optional)

3.

Slot 2 PCIe 5.0

8.

Dedicated iLO management port

4.

Hot-plug Power Supply 2

9.

USB 3.2 Gen 1 ports

5.

Hot-plug Power Supply 1

10.

UID LED

What's New

- Supports the 5^th and 4^th Generation AMD EPYC^TM Processors that support up to 160 cores.

- 12 DIMM channels per processor for up to 6TB total DDR5 memory now supports 6400MT/s (5^th Gen AMD EPYC^TM CPUs).

- New CTO servers include 8SFF, 20 EDSFF, and GPU CTO servers.

- Supports up to 2x Single Width or 2x Double Width GPU cards at the front chassis.

- NVIDIA A16 and NVIDIA L4 GPUs added.

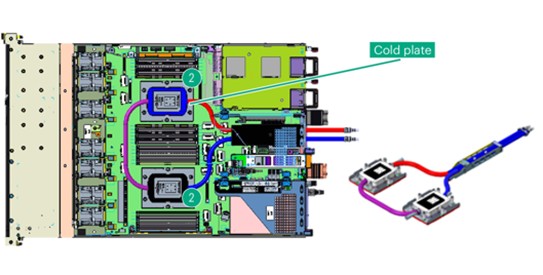

- Direct Liquid Cooling (DLC) is now supported.

- 96GB, 128GB, and 256GB DDR5 RDIMM is now supported.

- Advanced data transfer rate and higher network speed from the PCIe Gen5 serial expansion bus.

- Includes HPE Integrated Lights-Out 6 (iLO 6) server management software.

- Supports hot-pluggable, high-availability RAID M.2 boot options.

- OpenBMC Capable through iLO6 Transfer of Ownership Process.

Platform Information

Form Factor

- 1U rack.

Chassis Types

- 8 SFF with optional optical drive kit, and optional SFF or NVMe drive bay options.

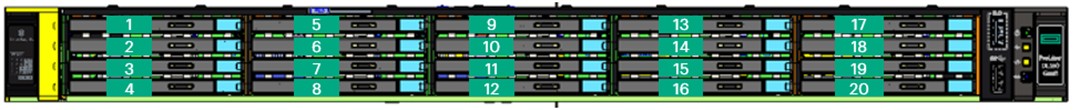

- 20 EDSFF drive bay.

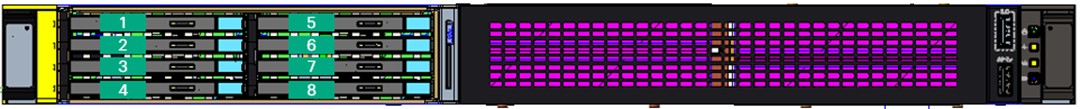

- 2 Single Width or 2 Double Width GPUs with 8 EDSFF or 4SFF U.3 NVMe drive bay.

System Fans

- Choice of Standard Fan Kit and Performance Fan Kit. One fan per kit.

- 2 CPUs

• Standard fan kits should be supported when the processors are equal to or lower than cTDP 240W.
• Performance fan kits should be supported when the processors are higher than cTDP 240W.
• Performance fan kits should be required when drive is NVMe or SAS4 drives.
• Performance fan kits should be required when 10 SFF SAS/SATA/NVMe is configured.
• Performance fan kits should be required when EDSFF or GPU CTO Servers are configured.

Notes:

- The DL365 Gen11 supports up to 7 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could trigger warning and imminent server shutdown.

- Each Fan kit is designated to operate under different configurations. For more information, please refer to the Cooling option message in the Unique option section.

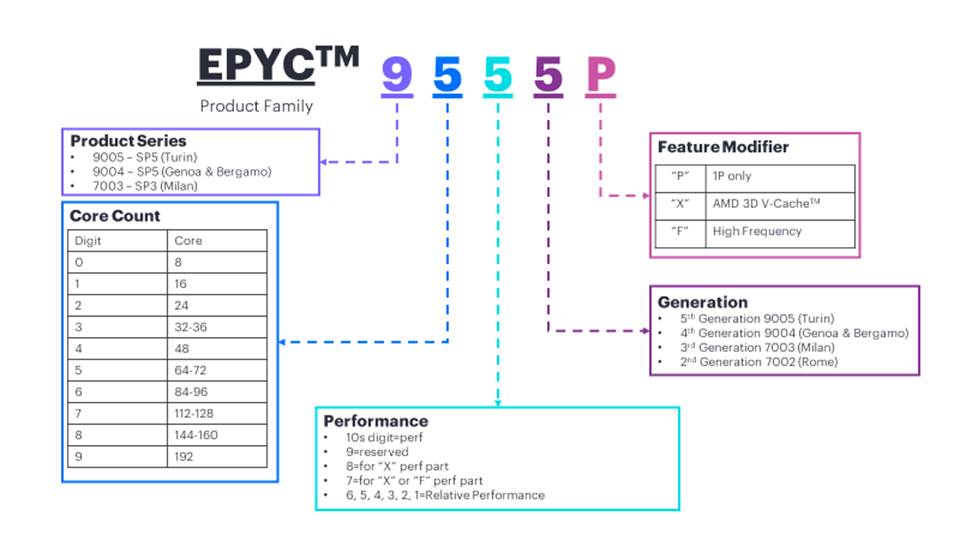

Processors Up to 2 of the following depending on model.

Notes: For more information regarding AMD EPYC^TM processors, refer to the following: https://www.amd.com/en/products/processors/server/epyc.html

Notes:

- 5^th generation AMD EPYC^TM 9005 processors now support 6400 MT/s

- All 4^th and 5^th generation AMD EPYC^TM processors can support up to 3TB of memory each under 1DPC, 12 channel per processor. 6 TB of memory per two processors.

- 160 PCIe 5.0 lanes support with two sockets. Motherboard supports 3XGMI two-processor interconnected by default.

- The wattage information indicates the default cTDP (Configurable TDP) of the processor.

Chipset

No chipset - System on Chip (SoC) design.

System Management Chipset

HPE iLO 6 ASIC.

Notes: Read and learn more in the iLO QuickSpecs.

Notes:

- All processors support up to 3 TB of memory per server.

- LRDIMM and Persistent Memory are not supported.

- For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs.

- For General Server Memory and Persistent Memory Population Rules and Guidelines, see details here:

http://www.hpe.com/docs/memory-population-rules

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit errors that occur within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Notes: For more information see our Memory RAS feature technical whitepaper.

Expansion Slots

Primary Riser

Notes:

- Secondary riser position supports both Low Profile and FHHL cards. Only one can be supported at a time.

- When NS204i-u Hot-plug Boot Optimized Storage Device is selected, low profile secondary riser (P55029-B21) must be in the configuration.

- When both the Secondary Slot 2 & GPU Riser #1 Slot 4 are supported, Slot 2 & Slot 4 combined can support up to 112GB/s bandwidth due to processor limitations.

- When both the GPU Riser #2 Slot 5 & Slot 21 (OCP1) are supported, Slot 5 & Slot 21 combined can support up to 112GB/s bandwidth due to processor limitations.

Storage Controllers

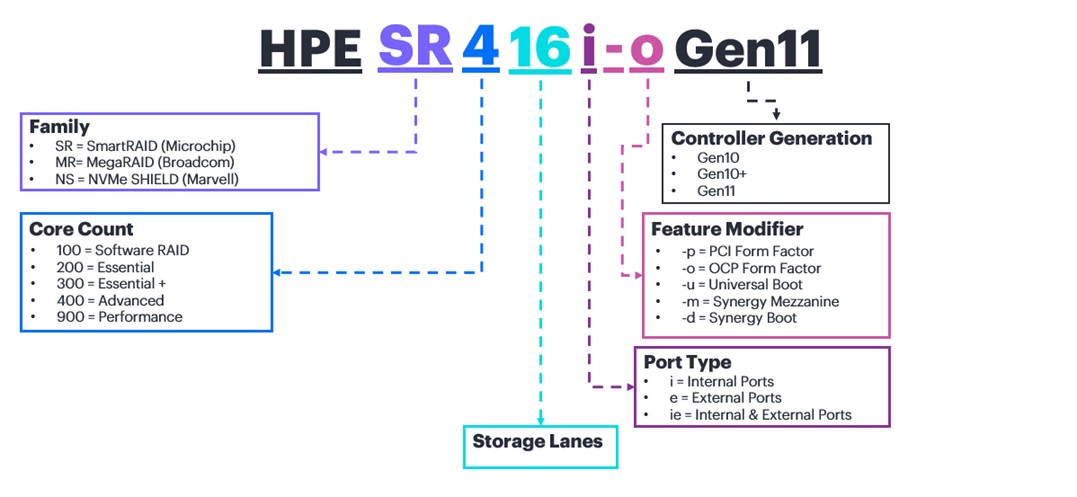

The Gen11 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen11 Smart Array Controllers visit the controller data sheet.

NVMe Boot Device

- HPE NS204i-u Gen11 NVMe Hot-plug Boot Optimized Storage Device.

Notes:

- This kit does not occupy a PCIe slot.

- NS204i-u is externally accessible.

- NS204i-u includes embedded 2x 480GB NVMe SSD.

- RAID 1 is supported on the NS204i-u boot optimized storage device.

Software RAID

Software RAID is not supported on AMD Gen11 servers.

Essential RAID Controllers

- HPE Smart Array E208e-p SR Gen10 Controller.

Performance RAID Controllers

- HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller.

- HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller.

- HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller.

- HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller.

- HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller.

- HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller.

Notes:

- For additional details, please visit:

HPE Compute MR Gen11 Controllers QuickSpecs

HPE Compute SR Gen11 Controllers QuickSpecs

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200@60Hz (32 bpp).

- 16 MB Video Memory.

HPE iLO 6 on system management memory

- 64 MB Flash.

- 8 Gbit DDR 4 with ECC protection.

Internal Storage Devices

Optical Drive

- Available on 8 SFF CTO Servers as an option (DVD-ROM or DVD-RW).

Hard Drives

- None ship standard.

Maximum Storage

Power Supply

- HPE 800W Flex Slot Platinum Hot-plug Low Halogen Power Supply Kit.

- HPE 1600W Flex Slot Platinum Hot-plug Low Halogen Power Supply Kit.

Notes: Available in 94% Power Efficiency.

- HPE 1000W Flex Slot Titanium Hot-plug Power Supply Kit.

Notes: Available in 96% Power Efficiency.

- HPE 1600W Flex Slot -48VDC Hot-plug Power Supply Kit.

Notes:

- Available in 94% Power Efficiency.

- 200-240VAC power input only.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot-plug, tool-less installation into HPE ProLiant Gen11 Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and a more secure configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as

- Secure Boot and Secure Start enable enhanced security.

- Operating system specific functionality.

- Support for > 2.2 TB (using GPT) boot drives.

- USB 3.1 Gen 1 Stack.

- Embedded UEFI Shell.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- PXE boot support for IPv6 networks.

- Workload Profiles for simple performance optimization.

- Embedded TPM Support.

UEFI Boot Mode only

- TPM 2.0 Support.

- NVMe Boot Support.

- iSCSI Software Initiator Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Boot support for option cards that only support a UEFI option ROM.

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- Enabling TPM 2.0 no longer requires TPM module option kit on Gen11. It is an embedded feature.

Industry Standard Compliance

- ACPI 6.1 Compliant.

- PCIe 5.0 Compliant.

- WOL Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA/Display Port.

- USB 3.2 Gen 1 Compliant.

- USB 2.0 Compliant.

- ENERGY STAR® 4.0.

- SMBIOS 3.1.

- UEFI 2.7.

- UEFI Class 3.

- Redfish API.

- IPMI 2.0.

- Secure Digital 2.0.

- Advanced Encryption Standard (AES).

- Triple Data Encryption Standard (3DES).

- SNMP v3.

- TLS 1.2.

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- Active Directory v1.0.

- European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen11 servers are compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit:

https://www.hpe.com/us/en/about/environment/msds-specs-more.html

- ASHRAE A3/A4.

- UEFI (Unified Extensible Firmware Interface Forum).

- APML 1.0.

Notes:

- ENERGY STAR® 4.0 is supported. Please configure P68503-B21 to trigger ENERGY STAR® 4.0

- For additional technical thermal details regarding ambient temperatures, humidity and features support please visit:  https://support.hpe.com/hpesc/public/docDisplay?docId=sd00002260en_us&page=GUID-EFACB705-52C8-44E4-9ED9-C2B275676D5F.html

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at: http://www.hpe.com/info/ilo

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at: http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at: https://support.hpe.com/connect/s/product?language=en_US&kmpmoid=5219984&tab=manuals

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at: http://www.hpe.com/info/restfulapi.

OpenBMC Support

OpenBMC Capable through iLO6 Transfer of Ownership Process.

Learn more at OpenBMC enablement on HPE ProLiant servers | HPE

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at: http://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

https://www.hpe.com/servers/smart-update.html

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9, Gen10, Gen10 Plus, and Gen11 HPE servers. Use with an iLO Advanced License to unlock full capabilities.

Learn more at: http://www.hpe.com/servers/iLOamplifierpack.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at: http://www.hpe.com/info/resttool.

Scripting Tools

Provision one too many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at: http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees.  Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at: http://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:
https://www.hpe.com/info/com-supported-servers

Security

- UEFI Secure Boot and Secure Start support.

- Immutable Silicon Root of Trust.

- FIPS 140-3 validation (iLO 6 certification in progress).

- Common Criteria certification (iLO 6 certification in progress).

- Configurable for PCI DSS compliance.

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser.

- Support for Commercial National Security Algorithms (CNSA).

- Tamper-free updates - components digitally signed and verified.

- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware.

- Ability to rollback firmware.

- Secure erase of NAND/User data.

- TPM (Trusted Platform Module) 2.0 option.

- Bezel Locking Kit option.

- Chassis Intrusion detection option

Notes: Enabling TPM 2.0 no longer requires TPM module option kit on Gen11. It is an embedded feature.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:
https://www.hpe.com/support/ProLiantServers-Warranties

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template-driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard, provides full-featured licenses which can be purchased for managing multiple HPE server generations. To learn more visit http://www.hpe.com/info/oneview.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

- A complete coverage approach

- An assigned HPE team.

- Modular and fully personalized engagement.

- Enhanced Incident Management experience with priority access.

- Digitally enabled and AI-driven customer experience.

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI-driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available on three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

- Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.

- HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.

- HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.

- Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.

- HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product, go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

- Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.

- Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

GreenLake

GreenLake is the cloud to run and manage your entire hybrid landscape-private, public, and edge. It helps you to:

- Streamline IT Operations across compute, storage, and networking without the chaos

- Unify and secure data, as you move faster

- Accelerate AI, from pilot to production

The result: greater operational efficiency, lower TCO, and faster AI delivery-all from one unified, intelligent platform built for today's hybrid enterprise.

HPE Smart Choice Purchase Program

The HPE Smart Choice Purchase Program features popular fully configured products that can be quoted in minutes and shipped quickly through HPE Authorized Partners. Products are configured and tested in an HPE factory and stocked at HPE Authorized Distributors and Partners. The products arrive in a single box, making onsite integration easier and more efficient for partners and customers. Additionally, there are aggressively priced HPE Tech Care Services available only through the HPE Smart Choice program when you purchase an HPE Smart Choice product.

For HPE Smart Choice configuration and product details, please visit the Smart Choice Supplemental QuickSpecs: https://www.hpe.com/psnow/doc/a50009219enw

Notes: This applies to CTO configurations; field upgrades may differ depending on field configuration.

Backplane Types - Compatible Drive Type

Notes: U.2 backplanes are supported only as private options.  U.2 backplanes do not support static drives, only the dynamic U.3 drives. U.2 backplanes also do not support SAS/SATA drives.

Step 2: Choose Required Options (only one of the following unless otherwise noted)

Please select one -B21 processor required below.

For second processor, please select the same processor model with -B21 from Core Options - HPE Processors section.

Notes:

- 4^th generation AMD EPYC^TM 9004 series processors are compatible with 4800 MT/s memory DIMMs, 5^th generation AMD EPYC^TM 9005 series processors are compatible with 6400 MT/s

- 5^th generation AMD EPYC^TM 9005 processors are compatible with NS204i-u V2

- For processors less than or equal to 240W, standard heatsink, and standard fan kit are required. Users are allowed to change to performance heatsink and performance fan kit.

- For processors more than 240W, performance heatsink, and performance fan kit are required. Users are allowed to remove performance heatsink and select DLC module.

- For processors more than or equal to 320W, maximum eight quantity of 8SFF drives can be selected, and maximum 12 quantity of EDSFF drives can be selected.

- Mixing of two different processor models is NOT allowed. For example: first processor, select P53696-B21 then for second processor, select P53696-B21 as well.

- Processor kits don't include heat sink and fans.

Step 2a: Choose Processors

Processor Option Kits

AMD EPYC^TM 5^th Generation 9005 Series

AMD EPYC 9845 2.1GHz 160-core 390W Processor for HPE

P72646-B21

AMD EPYC 9825 2.2GHz 144-core 390W Processor for HPE

P72647-B21

AMD EPYC 9745 2.4GHz 128-core 400W Processor for HPE

P72648-B21

AMD EPYC 9655 2.6GHz 96-core 400W Processor for HPE

P72650-B21

AMD EPYC 9645 2.3GHz 96-core 320W Processor for HPE

P72649-B21

AMD EPYC 9565 3.15GHz 72-core 400W Processor for HPE

P72651-B21

AMD EPYC 9575F 3.3GHz 64-core 400W Processor for HPE

P72758-B21

AMD EPYC 9555 3.2GHz 64-core 360W Processor for HPE

P72653-B21

AMD EPYC 9535 2.4GHz 64-core 300W Processor for HPE

P72652-B21

AMD EPYC 9475F 3.65GHz 48-core 400W Processor for HPE

P72666-B21

AMD EPYC 9455 3.15GHz 48-core 300W Processor for HPE

P72654-B21

AMD EPYC 9365 3.4GHz 36-core 300W Processor for HPE

P72655-B21

AMD EPYC 9375F 3.80GHz 32-core 320W Processor for HPE

P72667-B21

AMD EPYC 9355 3.55GHz 32-core 280W Processor for HPE

P72657-B21

AMD EPYC 9335 3.0GHz 32-core 210W Processor for HPE

P72656-B21

AMD EPYC 9275F 4.1GHz 24-core 320W Processor for HPE

P72668-B21

AMD EPYC 9255 3.20GHz 24-core 200W Processor for HPE

P72658-B21

AMD EPYC 9175F 4.2GHz 16-core 320W Processor for HPE

P72669-B21

AMD EPYC 9135 3.65GHz 16-core 200W Processor for HPE

P72660-B21

AMD EPYC 9115 2.6GHz 16-core 125W Processor for HPE

P72659-B21

AMD EPYC 9015 3.6GHz 8-core 125W Processor for HPE

P72661-B21

AMD EPYC^TM 4^th Generation 9004 Series

AMD EPYC 9754 2.25GHz 128-core 360W Processor for HPE

P60463-B21

AMD EPYC 9684X 2.55GHz 96-core 400W Processor for HPE

P63493-B21

AMD EPYC 9654 2.4GHz 96-core 360W Processor for HPE

P53696-B21

AMD EPYC 9634 2.25GHz 84-core 290W Processor for HPE

P53705-B21

AMD EPYC 9554 3.1GHz 64-core 360W Processor for HPE

P53700-B21

AMD EPYC 9534 2.45GHz 64-core 280W Processor for HPE

P53699-B21

AMD EPYC 9474F 3.6GHz 48-core 360W Processor for HPE

P53706-B21

AMD EPYC 9454 2.75GHz 48-core 290W Processor for HPE

P53708-B21

AMD EPYC 9384X 3.1GHz 32-core 320W Processor for HPE

P63492-B21

AMD EPYC 9374F 3.85GHz 32-core 320W Processor for HPE

P53710-B21

AMD EPYC 9354 3.25GHz 32-core 280W Processor for HPE

P53701-B21

AMD EPYC 9334 2.7GHz 32-core 210W Processor for HPE

P53712-B21

AMD EPYC 9274F 4.05GHz 24-core 320W Processor for HPE

P53711-B21

AMD EPYC 9254 2.9GHz 24-core 200W Processor for HPE

P53707-B21

AMD EPYC 9224 2.5GHz 24-core 200W Processor for HPE

P58540-B21

AMD EPYC 9184X 3.55GHz 16-core 320W Processor for HPE

P63491-B21

AMD EPYC 9174F 4.1GHz 16-core 320W Processor for HPE

P53698-B21

AMD EPYC 9124 3.0GHz 16-core 200W Processor for HPE

P53702-B21

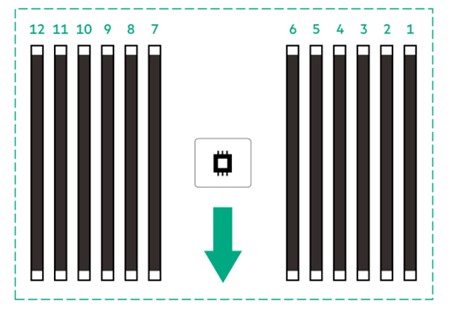

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to

For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs.

Notes:

- Memory DIMM availability with a server platform is dependent upon completion of certification testing.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- Memory compatibility may vary or be limited within a specific server family depending upon the specific configuration being requested.  Because each server environment and requirements can vary, memory compatibility is based not only upon the server family but may also be affected by the amount and type of additional hardware options installed within a specific server configuration.  For this reason, some HPE memory DIMMs may be qualified as a server model or family and yet occasionally not be supported with limited configurations within that server family. Please consult with the HPE server QuickSpecs or your HPE representative if you have any questions regarding memory compatibility with a specific HPE server configuration.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs

Registered DIMMs (RDIMMs)

4800 MT/s DDR5 DIMMs compatible with AMD EPYC^TM 4^th Generation CPUs

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50309-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50311-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50312-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66676-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69982-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-4800 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P90552-B21

6400 MT/s DDR5 DIMMs compatible with AMD EPYC^TM 5th Generation CPUs

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64984-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64985-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64986-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64987-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64988-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P73446-B21

Notes:

- HPE Gen11 DDR5 6400 MT/s Smart Memory is compatible with AMD EPYC^TM 5^th Generation CPUs.

- Mixing of x4 & x8 memory is not allowed.

- Mixing of Non-3DS and 3DS DIMMs is not allowed.

- 96GB/128GB/128GB 2Rx4 memory cannot be mixed with any other memory.

- The 128GB 2Rx4 RDIMM (P69982-B21) for 4th Gen AMD EPYC^TM and 128GB 2Rx4 RDIMM (P64988-B21) for 5th Gen AMD EPYC^TM are not 3DS DIMMs.

- If 128GB/256GB Memory is selected, then Performance Heatsink, and 7 Performance Fan must be selected.

- 256GB DIMM imposes more configuration restrictions due to its high-profile thermal condition. Refer to the HPE configurator tool for detailed instructions.

- For more detailed information regarding memory population rules, please visit https://www.hpe.com/docs/server-memory

Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes: DIMM blank kit cannot be selected when 24 DIMMs are ordered.

Thermal Support Matrix - Processors

Notes: Scopes listed above are general support guidance. Support conditions may vary depending on other options selected.

DIMM Support Matrix for Ambient Temperature

256 GB Support Max Quantity

16 GB, 32 GB, 64 GB, 128 GB Support Max Quantity

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

Notes:

- Mixing of different Power Supply SKU is not allowed.

- 1600W -48VDC PSU requires 1x HPE 1600W DC PSU power lug option kit or HPE 1600W DC PSU Power Cable Kit.

- 1800W-2200W PSU only supports high line voltage (200VAC to 240VAC).

- Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/poweradvisor

- HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). Visit HPE power cords for a full list of optional power cords.

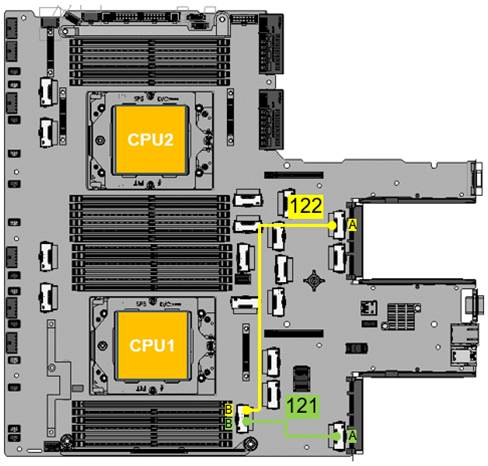

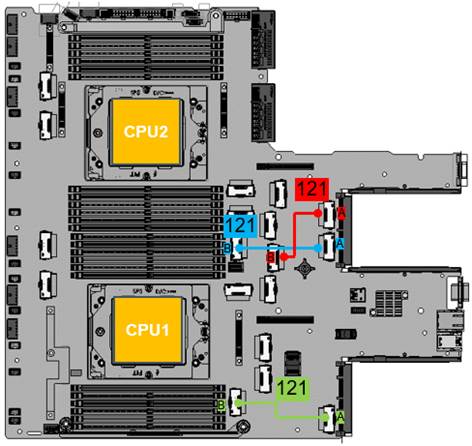

Step 2d: Choose Backplane

If front drives are needed in the server, please select one backplane from list below

HPE ProLiant DL365 Gen11 8SFF Tri-Mode U.3 x1 BC FIO Backplane Kit

P55020-B21

Notes:

- x1 U.3 8SFF Drive cage can only support SAS/SATA/NVMe drives.

- Configurable up to 1.

- OROC and PCIe controllers support this backplane. OROC x1 or PCIe x1 cable kit selection is needed for controller support.

- Mixture of x1 U.3 8SFF and x4 U.3 8SFF backplanes is ALLOWED.

HPE ProLiant DL365 Gen11 8SFF Tri-Mode U.3 x4 BC FIO Backplane Kit

P55021-B21

Notes:

- x4 U.3 8SFF Drive cage can support SAS/SATA/NVMe drives.

- Configurable up to one.

- OROC and PCIe controllers support this backplane. OROC x1/x2/x4 or PCIe x1/x4 cable kit is supportable for controller support.

- Mixing of NVMe and SAS/ SATA is NOT allowed in the same drive cage if any Tri-mode controller is not selected for drive cage.

HPE ProLiant DL365 Gen11 2SFF Tri-Mode U.3 x4 BC Balanced Backplane Kit

P55025-B21

Notes:

- x4 U.3 2SFF Drive cage can support SAS/SATA/NVMe drives.

- Configurable up to one.

- OROC and PCIe controllers support this backplane. OROC x1/x2/x4 or PCIe x1/x4 cable kit is supportable for controller support.

HPE ProLiant DL365 Gen11 4SFF Tri-Mode U.3 x4 BC FIO Backplane Kit

P63212-B21

Notes:

- Supported with GPU CTO model only.

- Min/Max = 1 of this drive cage must be selected for GPU CTO model.

- Supports NVMe drives only.  SAS/SATA drives are not supported.

- If this drive cage is selected, then internal controllers cannot be selected.  Will be direct attached to motherboard.

HPE ProLiant DL365 Gen11 8EDSFF NVMe FIO Backplane Kit

P63215-B21

Notes:

- Supported with GPU CTO model only.

- Min/Max = 1 of this drive cage must be selected for GPU CTO model.

- If this drive cage is selected, then internal controllers cannot be selected.  Will be direct attached to motherboard.

HPE ProLiant DL365 Gen11 GPU 4SFF x2 OCP Tri-Mode Bundle Kit

P71757-B21

Notes:

- Supported with GPU CTO model only.

- If P71757-B21 is selected, then MR408i-o controller must be selected. Other controllers are not allowed.

- Mixing of NVMe and SAS/SATA is NOT allowed in the same drive cage if any of the Tri-Mode controller is not selected for drive cage.

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

System Insight Display Options

HPE ProLiant DL365 Gen11 SFF System Insight Display Module Kit

P56924-B21

Notes: Only a quantity of one can be supported.

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

Supported Servers - CTO only.  No OEM. - Complete list can be found here: Latest Supported Server List: https://www.hpe.com/info/com-supported-servers

HPE Unique Options

Riser Kits

The CTO or BTO server has 1x Primary riser by default. Here are the additional risers available to select

HPE ProLiant DL3X5 Gen11 1U x16 Low Profile Secondary Riser Kit

P55029-B21

HPE ProLiant DL3X5 Gen11 1U x16 Riser Kit

P56915-B21

Notes:

- Both riser kits are in the secondary slot.

- Low Profile Secondary riser kit (P55029-B21) must be selected when HPE NS204i-u Gen11 NVMe boot device (P48183-B21) in the order.

Cooling Options

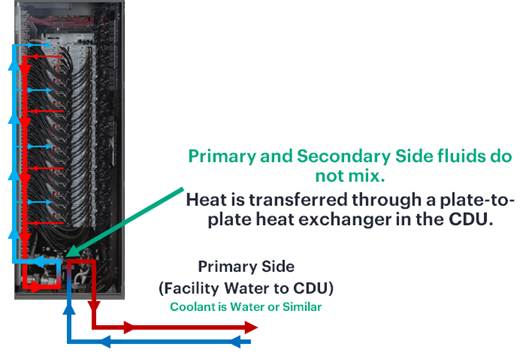

Direct Liquid Cooling (DLC) is available on the HPE ProLiant DL365 Gen11 server. Direct Liquid Cooling is a fully rack-contained and integrated water-cooled system that enhances power usage effectiveness (PUE) and reduces cooling costs, resulting in lower operating costs. The HPE direct liquid cooling distribution unit manages server heat by directing coolant through cold plates that sit directly on the hottest components inside the server (namely, the CPUs). Coolant flows through these cold plates, captures heat, and then pumps it elsewhere to be cooled. This very energy-efficient approach cools the most powerful CPUs on the market today, without the typical thermal issues created by air cooling.

HPE ProLiant DL3X5 Gen11 1U CPU Standard Heat Sink Kit

P58456-B21

HPE ProLiant DL3X5 Gen11 1U CPU Performance Heat Sink Kit

P58457-B21

HPE ProLiant DL3X5 Gen11 Direct Liquid Cooling Cold Plate Module FIO Kit From Boot Device

P62032-B21

HPE ProLiant DL3X5 Gen11 Direct Liquid Cooling Cold Plate Module FIO Kit From PCIe

P62035-B21

HPE ProLiant DL3XX Gen11 Direct Liquid Cooling 55cm Quick Disconnect Tube Set FIO Kit

P62042-B21

HPE ProLiant Direct Liquid Cooling 450mm Female-Male Connection Quick Disconnect Tube Set FIO Kit

P62046-B21

Notes:

- Mixing of both Standard and Performance Heatsink is not allowed.

- If any of "U.3 x4 drive cage" is selected, "Performance Heatsink or DLC Module" and 7 Performance Fans must be selected.

- For processors less than 240W with 8x SAS/SATA drives configured, standard heat sink (P58456-B21) and standard fan kit (P58461-B21) are required.

- For processors less than 240W with 10x SAS/SATA or NVMe drives configured, standard heat sink (P58456-B21) and performance fan kit (P58462-B21) are required.

- For processors above 240W, performance heat sink kit (P58457-B21) and performance fan kit (P58462-B21), or DLC module and performance fan kit are required.

- If "PCIe DLC Module" is selected, then Maximum limit for PCIe card limit will be reduced from 2 to 1 per server. (DLC PCIe Module occupies Slot# 2).

- If DLC Module is selected, then quantity 2 of Processor and 1 of Secondary LP module must be selected.

- For EDSFF CTO model, if selected processor wattage is greater than or equal to 320W, then DLC module must be selected.

- Max of 1 tube set can be selected.

- If DLC Module is selected, then tube set must be selected and vice versa.

- 55cm Quick Disconnect Tube Set supported with 8SFF/EDSFF CTO model only.

- 450mm(45cm) Quick Disconnect Tube Set supported with GPU CTO model only.

HPE ProLiant DL3XX Gen11 1U Standard Fan Kit

P58461-B21

HPE ProLiant DL3XX Gen11 1U Performance Fan Kit

P58462-B21

Notes:

- Gen11 Fan Kits contain only 1 fan.

- 1-socket config 5 Standard Fan kits, 2-socket config needs 7 Standard Fan kits.

- 1-socket config 5 Performance Fan kits, 2-socket config needs 7 Performance Fan kits.

HPE Boot Controllers

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

HPE ProLiant DL3X5 Gen11 NS204i-u NVMe Hot Plug Boot Device Cable Kit

P57013-B21

Notes:

- NS204i-u is the HPE Gen11 Hot-pluggable M.2 NVMe RAIDed Boot Device.

- HPE DL3X5 Gen11 NS204i-u NVMe Boot Cable Kit is required when the NS204i-u boot device is configured along with the 4LFF rear cage.

- If NS204i-u is selected, then 7 quantities of fan must be selected.

- If NS204i-u is selected and secondary riser is required, HPE DL3X5 Gen11 1U x16 LP Sec Riser Kit must be selected.

- If AMD EPYC^TM 5th Generation CPUs are selected, then NS204i-u V2 P78279-B21 must be selected.

HPE Optical Drives and Option Kit

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

HPE Mobile USB DVD-RW Optical Drive

701498-B21

HPE ProLiant DL365 Gen11 2SFF Display Port ODD Blank Kit

P56899-B21

Notes:

- Maximum 1 Optical Drive is supported.

- ODD needs selection of a HPE DL365 Gen11 2SFF DP ODD Blank Kit.

HPE RAID Controllers

Notes:

- When selecting SR RAID controllers for external storage (E208e, 804398-B21) and MR RAID controllers for internal storage (MR216i/MR416i/MR408i) in the order, please be aware these two products use different RAID configuration tools.

- Not supporting mixing of MR (MegaRAID) series internal controllers and SR (SmartRAID) series internal controllers.

- MR (MegaRAID) series controllers are not supported with Intelligent Provisioning feature.

- For more information on the HPE Gen11 Storage Controller, please refer to:

HPE Compute MR Gen11 Controllers QuickSpecs

HPE Compute SR Gen11 Controllers QuickSpecs

Essential RAID Controllers

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Notes:

- This controller supports up to 8 SAS/SATA Drives (external).

- For E208e-p Controller:

• Controller Based Encryption (CBE) with a remote key management server is not supported.  Local key management (LKM) is supported.
• One Button Secure Erase (OBSE) is used to sanitize drives, and factory reset the controller is not supported.

- For more information on the HPE Smart Array E208i-p SR Gen10 Controller, please refer to the QuickSpecs

Tri-mode RAID Controllers

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

Notes:

- This is an OROC type controller which takes up an OCP slot.

- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; eight x2 NVMe drives can be supported).

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Notes:

- This is an OROC type controller which takes up an OCP slot.

- This controller supports up to 8 SAS/SATA/NVMe Drives (Only 2 x4 NVMe drives can be supported; four x2 NVMe drives can be supported).

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

Notes:

- This is an OROC type controller which takes up an OCP slot.

- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; eight x2 NVMe drives can be supported).

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Notes:

- This is a PCIe type controller which takes up a PCIe slot.

- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; eight x2 NVMe drives can be supported).

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Notes:

- This is a PCIe type controller which takes up a PCIe slot.

- This controller supports up to 16 SAS/SATA/NVMe Drives (Only 4 x4 NVMe drives can be supported; eight x2 NVMe drives can be supported).

HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller

P47184-B21

Notes:

- This is a PCIe type controller which takes up a PCIe slot.

- This controller supports up to 32 SAS/SATA/NVMe Drives (Only 8 x4 NVMe drives can be supported; 16 x2 NVMe drives can be supported).

Controller Battery Cable Kits

HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit

P02381-B21

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

P01367-B21

HPE ProLiant DL3X5 Gen11 Smart Storage Battery 2P 96W Cable Kit

P57884-B21

Notes:

- The two 260mm battery cable kit cannot be selected together.

- The Extension cable kit is required for either the selection of Hybrid Capacitor or 96W Smart Storage Battery

HPE Drives

HDD Selection

Enterprise - 12G SAS - SFF Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

SED (Self-Encryption Drive)

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

Notes:

- Requirements for MR Tri-mode controller SED support.

• TPM is not required for Local Key Management as keys are stored in controller.
• iLO Advanced is required for Remote Key Management. Key is stored in remote key manager (Ex. SKM).

SSD Selection

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

Read Intensive - 12G & 24G SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83347-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83344-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

Read Intensive - NVMe High Performance - SFF - Solid State Drives

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85668-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91243-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85670-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91245-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85672-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91247-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91249-B21

HPE 30.72TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85676-B21

Read Intensive - NVMe Mainstream Performance - SFF - Solid State Drives

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84244-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84242-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-B21

Mixed Use - NVMe High Performance - SFF - Solid State Drives

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85662-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91237-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78801-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78784-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85664-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91239-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78804-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78787-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85666-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91241-B21

Mixed Use - NVMe Mainstream Performance - SFF - Solid State Drives

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

Mixed Use - NVMe Mainstream Performance - EDSFF E3.S - Solid State Drives

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91084-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91086-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91088-B21

Read Intensive - NVMe Mainstream Performance - EDSFF E3.S - Solid State Drives

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91090-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91092-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91094-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91096-B21

Read Intensive - NVMe High Performance - EDSFF E3.S - Solid State Drives

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85739-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91229-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91231-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91233-B21

HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85745-B21

Very Read Intensive - NVMe Mainstream Performance - EDSFF E3.S - Solid State Drives

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P79065-B21

Mixed Use - NVMe High Performance - EDSFF E3.S - Solid State Drives

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78784-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85731-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91098-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78787-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85733-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91100-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85735-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91102-B21

HPE Computation and Graphics Accelerator and related option kits

NVIDIA A16 64GB PCIe Non-CEC Accelerator for HPE

R8T26C

NVIDIA L4 24GB PCIe Accelerator for HPE

S0K89C

NVIDIA RTX PRO 4500 Blackwell Server Edition 32GB PCIe Accelerator for HPE

S6W30C

HPE ProLiant DL365 Gen11 CPU 8-pin GPU Power Cable Kit

P56919-B21

HPE ProLiant DL365 Gen11 CPU 16-pin GPU Power Cable Kit

P92166-B21

Notes:

- Supported with GPU CTO model only.

- If more than one quantity of Graphics option is selected, then part number must be same. Different Graphics option cannot be mixed within the server.

- NVIDIA L4 does not require Power Cable Kit.

- When NVIDIA A16 is selected, then "HPE DL365 Gen11 CPU 8p GPU Power Cable Kit" must be selected per Graphics Option.

- When NVIDIA 4500 is selected, then "HPE DL365 Gen11 CPU 16-pin GPU Power Cable Kit" must be selected per Graphics Option.

HPE Tape Backup

For the complete range of tape drives, autoloaders, libraries and media see:

https://www.hpe.com/us/en/storage/storeever-tape-storage.html

For hardware and software compatibility of Hewlett Packard Enterprise tape backup products please visit the StoreEver Tape Solutions in SPOCK (requires registration/login) https://h20272.www2.hpe.com/SPOCK/default.aspx.

Only external drives are supported

All libraries and autoloaders supported via compatible FC or SAS controller. Refer to the StoreEver Tape Solutions Compatibility Matrix link above.

HPE Storage Options

Emulex Fibre Channel HBAs

HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter

R2J62A

HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter

R2J63A

HPE SN1700E 64Gb 1-port Fibre Channel Host Bus Adapter

R7N77A

HPE SN1700E 64Gb 2-port Fibre Channel Host Bus Adapter

R7N78A

QLogic Fibre Channel HBAs

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter

R7N87A

HPE Networking

1 Gigabit Ethernet adapters

Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P21106-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

10 Gigabit Ethernet adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

10/25 Gigabit Ethernet adapters

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE

S2A69A

AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter for HPE

P87940-B21

100/200 Gigabit Ethernet adapters

NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE

R8M41A

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE

P73111-B21

HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC

R4K46A

Notes:

- Almost all PCIe Networking Cards need 7x Performance Fans. Refer to OCA configurator for exceptions and details.

- Ambient temperature for above cards (P08458-B21, P25960-B21, P21112-B21, P10180-B21) is

25 °C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables).

- Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Refer to the related NIC QuickSpecs for Technical Specifications and additional information: https://h20195.www2.hpe.com/v2/getpdf.aspx/A00002507ENW.pdf

OCP Adapter

1 Gigabit Ethernet OCP adapters

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

10 Gigabit Ethernet OCP Adapters

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

10/25 Gigabit Ethernet OCP adapters

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

100/200 Gigabit Ethernet adapters

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

Notes:

- Almost all PCIe Networking Cards need 7x Performance Fans. Refer to OCA configurator for exceptions and details.

- P22767-B21 and P26269-B21 needs selection of an OCP upgrade cable kit.

- Ambient temperature for above cards (P26269-B21) is 25C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables).

- P22767-B21 not allowed to select under configuration of 8SFF SAS/SATA/NVMe/SAS4, with AOC (Active Optical Cables).

- Ambient temperature for above cards (P22767-B21) is 25C under configuration of 8SFF SAS/SATA/NVMe/SAS4, with Direct Attach Cable (DAC).

HPE InfiniBand

HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Generic Adapter

P45642-H23

HPE InfiniBand NDR200/Ethernet 200GbE 2-port QSFP112 PCIe5 x16 MCX755106AC-HEAT Adapter

P65333-H21

HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter

P45641-H23

HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Generic Adapter

P45641-H24

Notes:

- InfiniBand NDR 200Gb/400Gb requires Performance Heatsink or DLC module and 7 performance fan kits.

- If InfiniBand NDR 200Gb/400Gb (P45642-H23/P45641-H23/P45641-H24) is selected, 256GB Memory is limited to 12 quantity. This restriction is not applicable to DLC Module

- If InfiniBand NDR 200Gb/400Gb (P45642-H23/P45641-H23/P45641-H24) is selected, 8SFF CTO model is restricted to 6 quantity of SFF drives

- For more information, please visit: HPE InfiniBand Options for HPE ProLiant and Apollo Servers

HPE ProLiant DL3X5 Gen11 x16 OCP1 1P Upgrade Cable Kit

P57882-B21

Notes:

- This cable kit cannot be selected when 2 processors are configured.

- This cable kit upgrades OCP1 from x8 to x16.

- When this kit is selected, max of 1 OCP card can be selected per server.

HPE ProLiant DL3X5 Gen11 x16 OCP1 OCP2 2P Upgrade Cable Kit

P57849-B21

Notes:

- This cable kit needs 2 configured processors.

- This cable kit upgrades OCP1 from x8 to x16 and OCP2 from x8 to x16.

- When this cable kit is selected then the Secondary Riser Upgrade Kit cannot be configured.

- When this cable kit is selected then 8SFF x4 U.3 Mid Cage cannot be supported with Direct Attach.

HPE 1600W -48VDC Power Cable Lug Kit

P36877-B21

Notes: Must be selected along with HPE 1600W Flex Slot -48VDC Hot-plug Power Supply Kit (P17023-B21).

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

Cable Kits

HPE ProLiant DL365 Gen11 XGMI Interconnection Cable Kit

P63125-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- If selected, then 2 processors must be selected.

- Supported with 8SFF CTO model only.

HPE ProLiant DL365 Gen11 8SFF OROC x1 SAS/SATA/NVMe Cable Kit

P56901-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- This cable kit supports the HPE DL365 G11 8SFF TM U.3 x1 FIO Backplane Kit and an OROC storage controller.

HPE ProLiant DL365 Gen11 8SFF x1 SAS/SATA/NVMe PCIe Cable Kit

P56903-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- This cable kit supports the HPE DL365 G11 8SFF TM U.3 x1 FIO Backplane Kit and a PCIe storage controller.

HPE ProLiant DL365 Gen11 2SFF OROC x1 SAS/SATA Cable Kit

P56905-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- This cable kit supports below backplane kits:

- HPE DL365 G11 2SFF TM U.3 x4 Bal BP Kit.

HPE ProLiant DL365 Gen11 2SFF x1 SAS/SATA PCIe Cable Kit

P56907-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- This cable kit supports below backplane kits.

- HPE DL365 G11 2SFF TM U.3 x4 Bal BP Kit.

HPE ProLiant DL365 Gen11 2SFF SATA Direct Attach Cable Kit

P56909-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- This cable kit only supports the HPE DL365 G11 2SFF TM U.3 x4 Bal Backplane Kit.

HPE ProLiant DL365 Gen11 8SFF x4 Tri-Mode PCIe Cable Kit

P56911-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- This cable kit supports below backplane kits.

- HPE DL365 G11 8SFF TM U.3 x4 Bal BP Kit.

HPE ProLiant DL365 Gen11 8SFF OROC Tri-Mode Splitter Cable Kit

P56913-B21

Notes:

- Maximum quantity of 1 can be selected per system.

- This cable kit supports connection with an 8SFF Tri-mode U.3 x4 backplane and an OROC controller.

HPE ProLiant DL365 Gen11 8SFF NVMe Direct Attach Balanced Cable Kit

P56917-B21

HPE ProLiant DL365 Gen11 2SFF NVMe Direct Attach Balanced Cable Kit

P56918-B21

Notes: The 8SFF and 2SFF NVMe Direct Attach Balance Cable kits support direct attach for the NVMe drives on the 8SFF and 2SFF TM backplanes.

HPE ProLiant DL36X Gen11 Rear Serial Port Cable Kit

P59431-B21

HPE ProLiant DL365 Gen11 GPU 4SFF x4 OCP Tri-Mode Cable Kit

P69876-B21

HPE ProLiant DL3X5 Gen11 GPU 4SFF x4 PCIe Tri-Mode Cable Kit

P70318-B21

Notes: GPU CTO

- Maximum 1 Quantity of GPU 4SFF Cable kit can be selected.

- If P69876-B21 is selected, then 4SFF x4 U.3 Drive Cage and MR416i-o controller must be selected.

- If P70318-B21 is selected, then 4SFF x4 U.3 Drive Cage and MR416i-p controller must be selected.

HPE ProLiant DL365 Gen11 GPU 8EDSFF x4 PCIe Tri-Mode Cable Kit

P69874-B21

Notes:

- Supported with CPU CTO model only.

- Maximum 1 of anyone (not all) of the following cable kit can be selected (HPE DL365 Gen11 GPU 8EDSFF PCIe Tri-Mode Cable Kit, HPE DL365 Gen11 GPU 4SFF x4 OCP Tri-Mode Cable Kit, or HPE DL3x5 Gen11 GPU 4SFF x4 Tri-Mode Cable Kit.

- If P69874-B21 is selected, then SR932i-p controller must be selected.

HPE ProLiant DL3X5 Gen11 16EDSFF x2 PCIe Tri-Mode Cable Kit

P69878-B21

Notes:

- Supported for EDSFF CTO model only.

- Maximum 1 quantity of cable kit can be selected.

- If P69878-B21 is selected, then SR932i-p controller must be selected.

HPE Racks

- Refer to the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks

- Refer to the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Power Distribution Units (PDUs)

- Refer to the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Refer to the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications. Refer to the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.

- Refer to the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

- To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

- Refer to the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.

- Refer to the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

HPE Support Services Installation & Start-up Services

Installation Services

HPE ProLiant DL/ML Install Service

U4554E

HPE ProLiant DL/ML Ons Startup Service

U4555E

Tech Care

HPE 3 Year Tech Care Essential DL365 Gen11 Service

H79C4E

HPE 3 Year Tech Care Essential wDMR DL365 Gen11 Service

H79C5E

HPE 5 Year Tech Care Essential DL365 Gen11 Service

H79E8E

HPE 5 Year Tech Care Essential wDMR DL365 Gen11 Service

H79E9E

Notes: For a full listing of support services available for this server, please visit http://www.hpe.com/services

Memory Population guidelines

CPU 1

CPU 2

Front side of the server

General Memory Population Rules and Guidelines

- Install DIMMs only if the corresponding processor is installed.

- If only one processor is installed in a two-processor system, only half of the DIMM slots are available.

- To maximize performance, it is recommended to balance the total memory capacity between all installed processors.

- When two processors are installed, balance the DIMMs across the two processors.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required. For additional information, refer to the: HPE DDR5 Smart Memory QuickSpecs

- For General Server Memory and Persistent Memory Population Rules and Guidelines, see details here:
https://support.hpe.com/hpesc/public/docDisplay?docId=sd00002129en_us

- For details on the HPE Server Memory speed, visit: Server memory population rules for HPE ProLiant Gen11 servers with AMD EPYC^TM 9004 series processors

Storage

8 SFF device bay numbering

8 SFF + 2 SFF device bay numbering

20 EDSFF device bay numbering - E.3S

GPU Server with 8 EDSFF (image shows both 2 single-wide and 2 double-wide GPU scenarios)

System Unit

Dimensions (Height x Width x Depth)

The chassis depth excludes front ear depth and rear power supply handle.

- SFF: 4.29 X 43.46. X 64.94 cm; 1.69 X 17.11 X 25.57 in

- EDSFF: 4.29 X 43.46 X 70.89 cm; 1.69 X 17.11 X 27.91 in

- GPU: 4.29 X 43.46 X 81.84 cm; 1.69 X 17.11 X 32.22 in

- Packaging

• SFF: 91.6 X 60.0 X 24.2 cm; 36.06 X 23.63 X 9.53 in
• EDSFF: 91.6 X 60.0 X 24.2 cm; 36.06 X 23.63 X 9.53 in
• GPU: 100.1 X 60.0 X 24.2 cm; 39.41 X 23.63 X 9.53 in

Item
