HPE ProLiant DL325 Gen11

QuickSpecs

Are you looking for a scalable, low-cost and high-performance server solution for your virtualized and software-defined compute workloads?

 The HPE ProLiant DL325 Gen11 server is a low-cost 1U, 1P solution that delivers exceptional value balancing compute, memory, and network bandwidth at 1P economics. Powered by 4th and 5th Generation AMD EPYC^TM Processors with up to 160 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, and supporting up to 2 double-width GPUs at the front, this server is a superb low-cost, 1U 1P, performance solution for your virtualized workloads.

HPE ProLiant DL325 Gen11

The silicon root of trust anchors the server firmware, creating a fingerprint for the AMD Secure Processor that must be matched exactly before the server boot. The HPE ProLiant DL325 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.

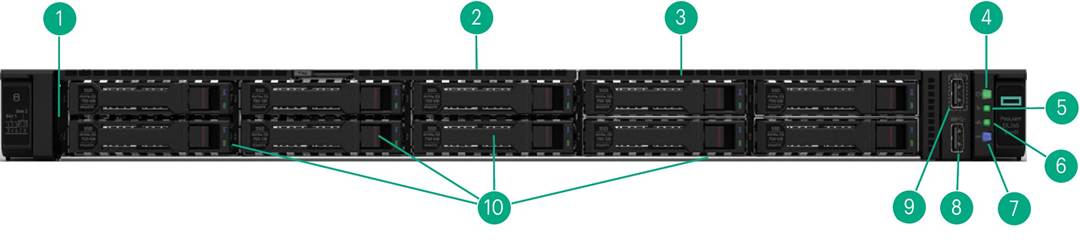

Front View - 8 SFF + optional 2 SFF Drive Bay shown

Item

Description

Item

Description

1.

Serial number pull tab

6.

NIC status LED ²

2.

Quick removal access panel

7.

Unit ID button/LED

3.

2 SFF Cage Bay (Optional - shown) ¹

8.

USB 3.2 Gen1 port

4.

Power On/Standby button and system power LED

9.

iLO Service Port

5.

Health LED

10.

8 SFF Cage Bay

Notes:

- ¹ Optional: Optical Drives.

- ²Front NIC LED display doesn't support NIC LED ACT/LINK indication from PCIe NICs.

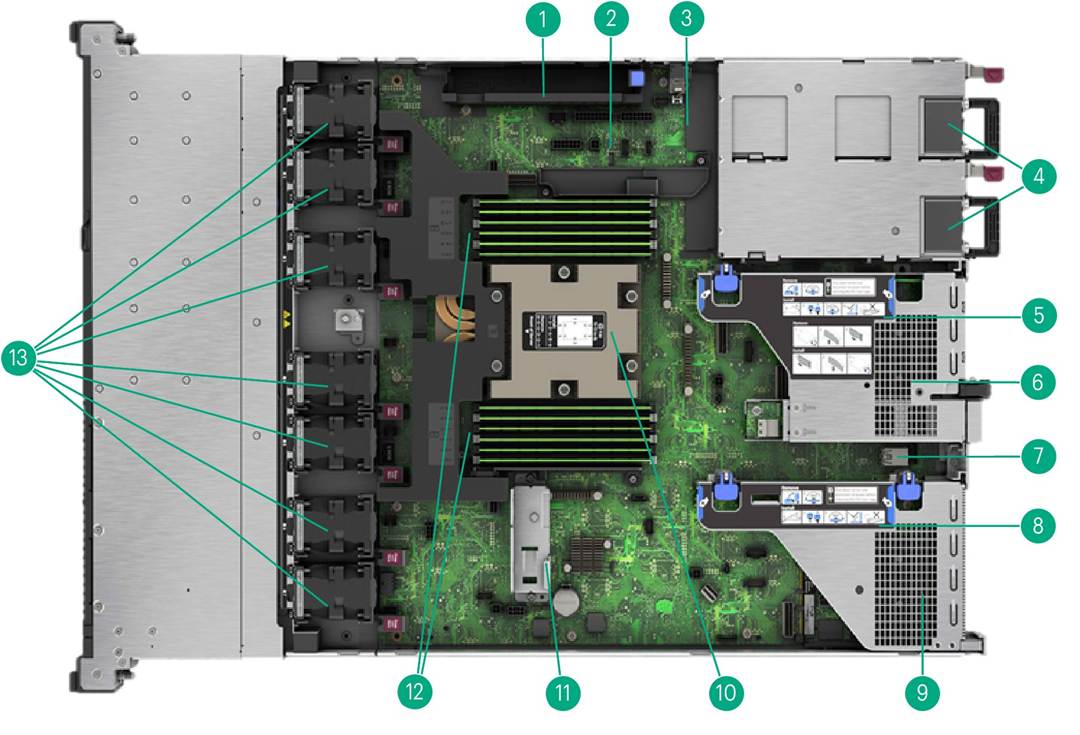

Internal View - Standard for all HPE ProLiant DL325 Gen 11

Item

Description

Item

Description

1.

Megacell battery holder

8.

Primary PCIe 5.0 riser

2.

Hard drive backplane power connectors

9.

OCP 3.0 Slot 21 (Under)

3.

Chassis intrusion detection connector

10.

Processor is shown with Performance heat sink¹ (Up to 1)

4.

Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies

11.

FHFL PCIe card holder

5.

Secondary PCIe 5.0 riser

12.

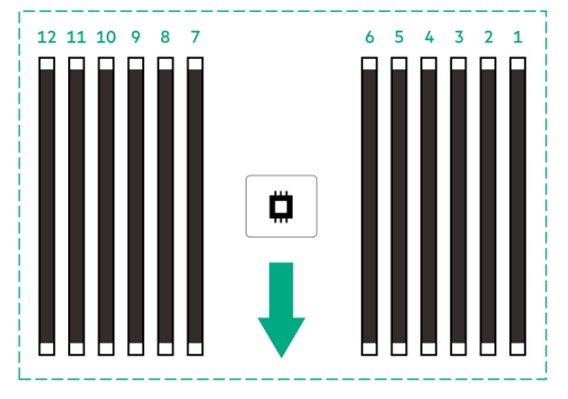

DDR5 DIMM slots²

6.

OCP 3.0 Slot 22 (Under)

13.

Hot-plug fans³

7.

Internal Dual USB 3.2 Gen1 port

Notes:

- ¹Optional: Standard Heat Sink and Closed-Loop Liquid Cooling Heat Sink.

- ²Fully populated 12 DIMMs shown.

- ³7 dual-rotor standard fans shown. Optional: Performance Fans and Liquid Cooling Fans.

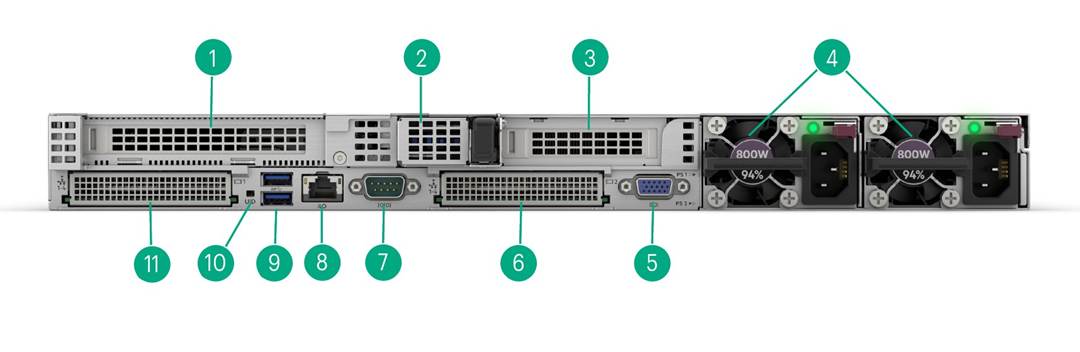

Rear View - Secondary Low-Profile Riser Shown

Item

Description

Item

Description

1.

Slot 1 Primary PCIe 5.0 Riser

7.

Optional Serial port

2.

Optional NS204i-u hot-plug NVMe boot device

8.

Dedicated iLO management port

3.

Slot 2 Secondary PCIe 5.0 Riser¹

9.

USB 3.1 Gen1 Ports (2)

4.

Hot-plug Power Supply 1 and 2²

10.

Unit ID LED

5.

Video (VGA) port

11.

OCP 3.0 Slot 21

6.

OCP 3.0 Slot 22

Notes:

- ¹Low profile and full height options.

- ²Hot-plug Power Supply 2 is optional.

What's New

- All new HPE ProLiant DL325 Gen11.

- New 4^th and 5^th Generation AMD EPYC Processors, up to 160 cores, 400 W, and 1150 MB of L3 Cache.

- New DDR5 Smart Memory - up to 6400 MT/s.

- New PCIe Gen5 support.

- New HPE Integrated Lights-Out 6 (iLO 6) server management software.

- New hot-pluggable NS204i-u Boot Device.

- New 20 EDSFF E3.S 1T Drive bays.

- New GPU support, up to four single-width or two double-width GPUs.

- OpenBMC Capable through iLO6 Transfer of Ownership Process.

 Platform Information

Form Factor

- 1U rack

Chassis Types

- 8 SFF with optional 2 SFF drive bay or optical drive.

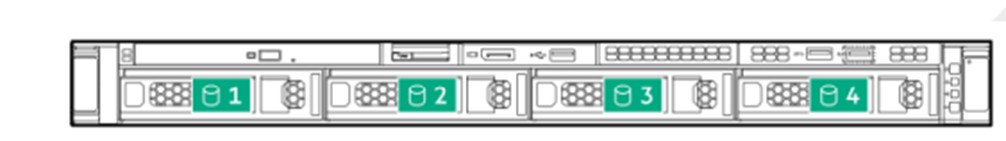

- 4 LFF with an optional optical drive.

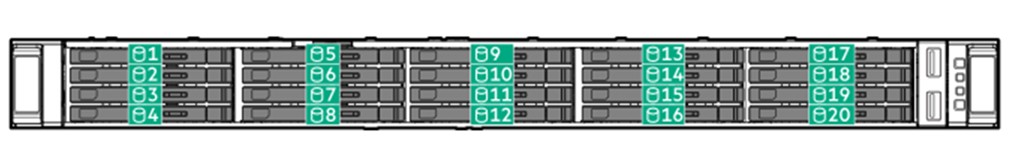

- 20 EDSFF E3.S 1T drive bay.

- 2 Single-Width or 2 Double-Width GPUs with 8 EDSFF or 4 SFF drive bay.

System Fans

- Choice of Standard Fan Kit, Performance Fan, and Liquid cooling Fan Kit.

Notes:

- The DL325 Gen11 supports up to 7 fans with fan redundancy built in. One fan rotor failure will place the server in degraded mode but fully functional. Two fan rotor failures could provide a warning and imminent server shutdown.

- Each Fan kit is designated to operate under different configurations. Please refer to the cooling option message in the unique option section for more information.

Processors - One of the following, depending on the model.

Notes: For more information regarding AMD EPYC processors, please see the following:

https://www.amd.com/en/products/processors/server/epyc.html

5^th Gen AMD EPYC Processor

Cores

Base Frequency

Max Frequency

Max Memory

Wattage

L3 Cache (MB)

Memory

EPYC 9845

160

2.1 GHz

3.7 GHz

3 TB

390

320

6400MT/s

EPYC 9825

144

2.2 GHz

3.7 GHz

3 TB

390

384

6400MT/s

EPYC 9745

128

2.4 GHz

3.7 GHz

3 TB

400

256

6400MT/s

EPYC 9645

96

2.3 GHz

3.7 GHz

3 TB

320

256

6400MT/s

EPYC 9655P

96

2.6 GHz

4.5 GHz

3 TB

400

384

6400MT/s

EPYC 9565

72

3.15 GHz

4.3 GHz

3 TB

400

384

6400MT/s

EPYC 9535

64

2.4 GHz

4.3 GHz

3 TB

300

256

6400MT/s

EPYC 9575F

64

3.3 GHz

5 GHz

3 TB

400

256

6400MT/s

EPYC 9555P

64

3.2 GHz

4.4 GHz

3 TB

360

256

6400MT/s

EPYC 9475F

48

3.65 GHz

4.8 GHz

3 TB

400

256

6400MT/s

EPYC 9455P

48

3.15 GHz

4.4 GHz

3 TB

300

256

6400MT/s

EPYC 9365

36

3.4 GHz

4.3 GHz

3 TB

300

192

6400MT/s

EPYC 9335

32

3 GHz

4.4 GHz

3 TB

210

128

6400MT/s

EPYC 9375F

32

3.8 GHz

4.8 GHz

3 TB

320

256

6400MT/s

EPYC 9355P

32

3.55 GHz

4.4 GHz

3 TB

280

256

6400MT/s

EPYC 9255

24

3.25 GHz

4.3 GHz

3 TB

200

128

6400MT/s

EPYC 9275F

24

4.1 GHz

4.8 GHz

3 TB

320

256

6400MT/s

EPYC 9135

16

3.65 GHz

4.3 GHz

3 TB

200

64

6400MT/s

EPYC 9115

16

2.6 GHz

4.1 GHz

3 TB

125

64

6400MT/s

EPYC 9175F

16

4.2 GHz

5 GHz

3 TB

320

512

6400MT/s

EPYC 9015

8

3.6 GHz

4.1 GHz

3 TB

125

64

6400MT/s

4^th Gen AMD EPYC Processor

Cores

Base Frequency

Max Frequency

Max Memory

Wattage

L3 Cache (MB)

Memory

EPYC 9754

128

2.25 GHz

3.1 GHz

3 TB

360

256

4800MT/s

EPYC 9734

112

2.2 GHz

3.0 GHz

3 TB

340

256

4800MT/s

EPYC 9654P

96

2.4 GHz

3.7 GHz

3 TB

360

384

4800MT/s

EPYC 9684X

96

2.55 GHz

3.7 GHz

3 TB

400

1150

4800MT/s

EPYC 9634

84

2.25 GHz

3.7 GHz

3 TB

290

384

4800MT/s

EPYC 9554P

64

3.1 GHz

3.75 GHz

3 TB

360

256

4800MT/s

EPYC 9534

64

2.45 GHz

3.7 GHz

3 TB

280

256

4800MT/s

EPYC 9454P

48

2.75 GHz

3.8 GHz

3 TB

290

256

4800MT/s

EPYC 9474F

48

3.6 GHz

4.1 GHz

3 TB

360

256

4800MT/s

EPYC 9354P

32

3.25 GHz

3.8 GHz

3 TB

280

256

4800MT/s

EPYC 9334

32

2.7 GHz

3.9 GHz

3 TB

210

128

4800MT/s

EPYC 9374F

32

3.85 GHz

4.3 GHz

3 TB

320

256

4800MT/s

EPYC 9384X

32

3.1 GHz

3.9 GHz

3 TB

320

768

4800MT/s

EPYC 9254

24

2.9 GHz

4.15 GHz

3 TB

200

128

4800MT/s

EPYC 9224

24

2.5 GHz

3.7 GHz

3 TB

200

64

4800MT/s

EPYC 9274F

24

4.05 GHz

4.3 GHz

3 TB

320

256

4800MT/s

EPYC 9124

16

3 GHz

3.7 GHz

3 TB

200

64

4800MT/s

EPYC 9174F

16

4.1 GHz

4.4 GHz

3 TB

320

256

4800MT/s

EPYC 9184X

16

3.55 GHz

4.2 GHz

3 TB

320

768

4800MT/s

Notes:

- 6096 pin LGA SP5 socket type, 128 PCIe 5.0 Lanes per processor.

- All 4th and 5^th generation AMD EPYC processors can support up to 3 TB of memory each under 1DPC, 12 channels per processor.

- The wattage information indicates the processor's default cTDP (Configurable TDP).

Chipset

No chipset - System on Chip (SoC) design.

On System Management Chipset

HPE iLO 6 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

Notes:

- All processors support up to 3 TB of memory per server.

- LRDIMM and Persistent Memory are not supported.

- For additional information, please see the HPE DDR5 Smart Memory QuickSpecs.

- For the Memory Population Rules and Guidelines with AMD EPYC 9004 and 9005 series processors, see details here: https://www.hpe.com/psnow/doc/a50007481enw.

Memory Protection

Advanced ECC

Advanced ECC uses single-device data correction to detect and correct single and all multibit errors that occur within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Notes: For more information see our Memory RAS feature technical whitepaper.

Expansion Slots

Notes:

- Both OCP slots (slot 21 and 22) support shared NIC and WOL (wake on LAN) functions.

- If NS204i-u Boot Device is selected then low-profile secondary riser (P55029-B21) must be selected.

- Requires a FHFL card holder to support the full-length cards at primary riser.

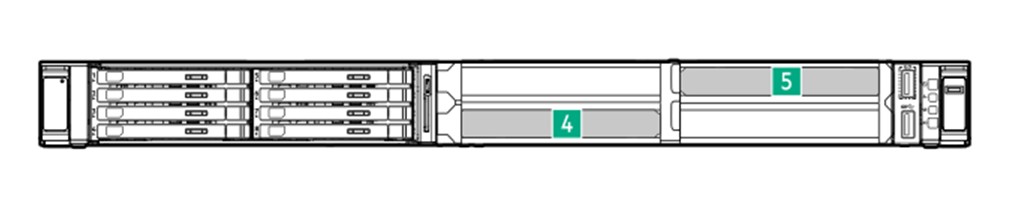

Front risers of GPU CTO server

Notes:

- When supporting Slot4 & Slot21 scenario, Slot4 & OCP 21 slot combined can support up to 112GB/s bandwidth due to AMD CPU limitation.

- When supporting Slot5 & Slot1 scenario, Slot 5 & Slot1 combined can support up to 112GB/s bandwidth due to AMD CPU limitation.

- The extension slots at the front of the GPU CTO server do not support external cabling.

Storage Controllers

Boot Device

- HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device.

Notes:

- Can only be selected without M.2 enablement kit.

- Includes Hot Plug capable dual 480GB NVMe M.2 automatically configured into a RAID 1 Mirror.

- Externally accessible but does not occupy a PCIe slot.

- Requires specific cable kit and secondary low-profile riser along with specific cooling selections based on configuration.

Essential RAID Controller

- HPE Smart Array E208e-p SR Gen10 Controller.

MR Gen11 Storage Controller

- HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller.

- HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller.

- HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller.

- HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller.

- HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller.

SR Gen11 Storage Controller

- HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage.

Notes: For additional details, please visit:

HPE Compute MR Gen11 Controllers QuickSpecs

HPE Compute SR Gen11 Controllers QuickSpecs

Internal Storage Devices

Optical Drive

- Available on 8SFF and 4LFF CTO Servers as an option (DVD-ROM or DVD-RW).

Drives

- None ship standard.

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200@60Hz (32 bpp).

- 16MB Video Memory.

HPE iLO 6 on system management memory

- 64 MB Flash.

- 8 Gbit DDR 4 with ECC protection.

Power Supply

- HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: Available in 94% Power Efficiency.

- HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: Available in 94% Power Efficiency.

- HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit.

Notes: Available in 96% Power Efficiency.

- HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit.

Notes: Available in 94% Power Efficiency.

- HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit.

Notes:  Available in 94% Power Efficiency. 200-240VAC power input only.

- HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, and tool-less installation into HPE ProLiant Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

Notes: Minimum required version includes all future updates of the indicated release unless a maximum is listed in the Notes.

Industry Standard Compliance

- ACPI 6.1 Compliant.

- PCIe 5.0 Compliant.

- WOL Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA/Display Port.

- USB 3.2 Gen1 Compliant.

- USB 2.0 Compliant.

- ENERGY STAR® 4.0.

- SMBIOS 3.1.

- UEFI 2.7.

- UEFI Class 3.

- Redfish API.

- IPMI 2.0.

- Secure Digital 2.0.

- Advanced Encryption Standard (AES).

- Triple Data Encryption Standard (3DES).

- SNMP v3.

- TLS 1.2.

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- Active Directory v1.0.

- ASHRAE A3/A4.

Notes: For additional technical thermal details regarding ambient temperatures, humidity, and features support please visit:  Extended Ambient Temperature Guidelines for HPE Gen11 servers

- UEFI (Unified Extensible Firmware Interface Forum).

- APML 1.0.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Intelligent Provisioning

Hassle-free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/hpesc/public/docDisplay?docId=c04465280&docLocale=en_US

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

OpenBMC Support

OpenBMC Capable through iLO6 Transfer of Ownership Process.

Learn more at OpenBMC Support

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secure configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as

- Secure Boot and Secure Start enable enhanced security.

- Operating system specific functionality.

- Support for > 2.2 TB (using GPT) boot drives.

- USB 3.1 Gen1 Stack.

- Embedded UEFI Shell.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- PXE boot support for IPv6 networks.

- Workload Profiles for simple performance optimization.

- Embedded TPM Support.

UEFI Boot Mode only

- NVMe Boot Support.

- iSCSI Software Initiator Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Boot support for option cards that only support a UEFI option ROM.

Notes:

- For UEFI Boot Mode, boot environment and OS image installation should be configured properly to support UEFI.

- TPM is embedded on the DL325 Gen11 mainboard and does not require additional option kit selection to enable this function.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

https://www.hpe.com/us/en/servers/smart-update.html

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory, and update Gen8, Gen9, Gen10, and Gen10 Plus HPE servers. Use an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring, and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees.  Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via  https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:
https://www.hpe.com/info/com-supported-servers

Security

- UEFI Secure Boot and Secure Start support.

- Immutable Silicon Root of Trust.

- FIPS 140-3 validation (iLO 6 certification in progress).

- Common Criteria certification (iLO 6 certification in progress).

- Configurable for PCI DSS compliance.

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser.

- Support for Commercial National Security Algorithms (CNSA).

- Tamper-free updates - components digitally signed and verified.

- Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware.

- Ability to rollback firmware.

- Secure erase of NAND/User data.

- TPM (Trusted Platform Module) 2.0 option.

Notes: TPM is embedded on the DL325 Gen11 mainboard and does not require additional option kit selection to enable this function.

- Bezel Locking Kit option.

- Chassis Intrusion detection option.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard and provides full-featured licenses which can be purchased for managing multiple HPE server generations. To learn more visit http://www.hpe.com/info/oneview.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup is available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, and 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management, and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with the enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher-density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments, and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs, and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

HPE Smart Choice Purchase Program

The HPE Smart Choice Purchase Program features popular fully configured products that can be quoted in minutes and shipped quickly through HPE Authorized Partners. Products are configured and tested in an HPE factory and stocked at HPE Authorized Distributors and Partners. The products arrive in a single box, making onsite integration easier and more efficient for partners and customers. Additionally, there are aggressively priced HPE Tech Care Services available only through the HPE Smart Choice program when you purchase an HPE Smart Choice product.

For HPE Smart Choice configuration and product details, please visit the Smart Choice Supplemental QuickSpecs: https://www.hpe.com/psnow/doc/a50009219enw

Pre-Configured models ship with the configurations below.

- Options can be selected from the Core or Additional options section of this QuickSpecs.

- Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will not be shipped inside the server.

- Network Choice models do not include embedded LOM.

Country Code Key

- -B21 = Worldwide.

- -291 = Japan.

- -421 = Europe, the Middle East and Africa.

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They are intended to provide simple starting points to assist you in easily creating and customizing your desired Server solutions.  HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.

Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer's specific workload.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options.  Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled +30% faster than non-Mainstream orders, have fewer shortages, and better recovery dates.  This platform has Mainstream SKUs in the options portfolio and is eligible for an improved Mainstream experience.  Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations.  All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability, and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.

European Union ErP Lot 9 Regulation

Beginning on January 1st, 2024, units sold into the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland or Turkey, must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory installable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one (1) of the following configurable server models from the tables below)

Notes:

- HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed into a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

- TAA compliant configuration requires TAA versions of the CTO Server SKUs.

- HPE Trusted Supply Chain (P36394-B21) is an optional security upgrade intended for agencies and regulated industries needing enhanced security and compliance needs. Applying this option to a DL325 Gen11 CTO server ensures it is built in the USA in a secured facility by vetted HPE personnel assigned to the manufacturing processes. A multitude of checkpoints/inspections for malicious microcode and counterfeit parts are performed throughout the server build, and additional safeguards are put in place against cyber-exploits throughout the server lifecycle. See "HPE Security" section within this document for more detail and learn more at http://www.hpe.com/security

- All CTO servers are ENERGY STAR® 4.0 compliant.

Notes:

- This applies to CTO configurations; field upgrades may differ depending on field configuration.

- Drive cage kits need to be ordered separately for the 8SFF CTO server and GPU CTO server.

Step 2: Choose Core Options

- Choice of 1 Processor model and Heat Sink Kit

• Requires necessary Heat Sink for different processor wattage.

- Choice of DDR5 memory options.

• Requires necessary Fan Kits for different memory configurations and subjects to the recommended system ambient temperature.

- Choice of Drive cage, Storage Controllers, and Storage Controller Cables.

- Choice of SSD, HDD, and Optical Drive.

- Choice of OS Boot Devices.

- Choice of Riser Cards.

- Choice of Networking options.

• PCIe standup or OCP 3.0.  Requires necessary Fan Kits and subjects to the recommended system ambient temperature.

- Choice of Accelerator options.

- Choice of Power and Cooling options.

- Choice of Security options.

- Choice of Software as a Service Management - HPE Compute Ops Management and HPE OneView.

Step 3: Choose Additional Options

- Choice of Embedded Management.

- Choice of Rail Kits.

- Choice of Rack options.

- Choice of Support Services.

Choice of Core Options

Processor

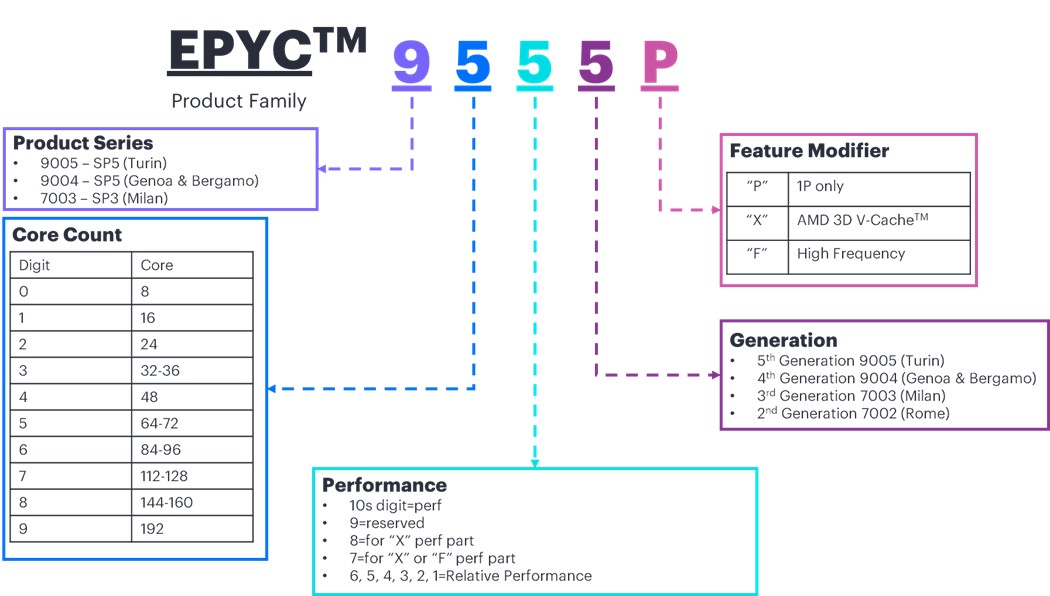

Please select one 4^th or 5^th Generation AMD EPYC Processor

5^th Generation AMD EPYC Processor

AMD EPYC 9845 2.1GHz 160-core 390W Processor for HPE

P72646-B21

AMD EPYC 9825 2.2GHz 144-core 390W Processor for HPE

P72647-B21

AMD EPYC 9745 2.4GHz 128-core 400W Processor for HPE

P72648-B21

AMD EPYC 9645 2.3GHz 96-core 320W Processor for HPE

P72649-B21

AMD EPYC 9655P 2.6GHz 96-core 400W Processor for HPE

P72662-B21

AMD EPYC 9565 3.15GHz 72-core 400W Processor for HPE

P72651-B21

AMD EPYC 9535 2.4GHz 64-core 300W Processor for HPE

P72652-B21

AMD EPYC 9575F 3.3GHz 64-core 400W Processor for HPE

P72758-B21

AMD EPYC 9555P 3.2GHz 64-core 360W Processor for HPE

P72663-B21

AMD EPYC 9475F 3.65GHz 48-core 400W Processor for HPE

P72666-B21

AMD EPYC 9455P 3.15GHz 48-core 300W Processor for HPE

P72664-B21

AMD EPYC 9365 3.4GHz 36-core 300W Processor for HPE

P72655-B21

AMD EPYC 9335 3.0GHz 32-core 210W Processor for HPE

P72656-B21

AMD EPYC 9375F 3.80GHz 32-core 320W Processor for HPE

P72667-B21

AMD EPYC 9355P 3.55GHz 32-core 280W Processor for HPE

P72665-B21

AMD EPYC 9255 3.20GHz 24-core 200W Processor for HPE

P72658-B21

AMD EPYC 9275F 4.1GHz 24-core 320W Processor for HPE

P72668-B21

AMD EPYC 9135 3.65GHz 16-core 200W Processor for HPE

P72660-B21

AMD EPYC 9115 2.6GHz 16-core 125W Processor for HPE

P72659-B21

AMD EPYC 9175F 4.2GHz 16-core 320W Processor for HPE

P72669-B21

AMD EPYC 9015 3.6GHz 8-core 125W Processor for HPE

P72661-B21

4^th Generation AMD EPYC Processor

AMD EPYC 9754 2.25GHz 128-core 360W Processor for HPE

P60463-B21

AMD EPYC 9654P 2.4GHz 96-core 360W Processor for HPE

P53697-B21

AMD EPYC 9684X 2.55GHz 96-core 400W Processor for HPE

P63493-B21

AMD EPYC 9634 2.25GHz 84-core 290W Processor for HPE

P53705-B21

AMD EPYC 9534 2.45GHz 64-core 280W Processor for HPE

P53699-B21

AMD EPYC 9554P 3.1GHz 64-core 360W Processor for HPE

P53703-B21

AMD EPYC 9454P 2.75GHz 48-core 290W Processor for HPE

P53709-B21

AMD EPYC 9474F 3.6GHz 48-core 360W Processor for HPE

P53706-B21

AMD EPYC 9334 2.7GHz 32-core 210W Processor for HPE

P53712-B21

AMD EPYC 9354P 3.25GHz 32-core 280W Processor for HPE

P53704-B21

AMD EPYC 9374F 3.85GHz 32-core 320W Processor for HPE

P53710-B21

AMD EPYC 9384X 3.1GHz 32-core 320W Processor for HPE

P63492-B21

AMD EPYC 9254 2.9GHz 24-core 200W Processor for HPE

P53707-B21

AMD EPYC 9224 2.5GHz 24-core 200W Processor for HPE

P58540-B21

AMD EPYC 9274F 4.05GHz 24-core 320W Processor for HPE

P53711-B21

AMD EPYC 9124 3.0GHz 16-core 200W Processor for HPE

P53702-B21

AMD EPYC 9174F 4.1GHz 16-core 320W Processor for HPE

P53698-B21

AMD EPYC 9184X 3.55GHz 16-core 320W Processor for HPE

P63491-B21

Notes:

- Processors less than or equal to 240W require Standard Heat Sink (P58456-B21).

- Processors more than 240W and less than or equal to 300W require Performance Heat Sink  (P58457-B21)

- Processors more than or equal to 320W require Closed-Loop Liquid Cooling Heat Sink (P58463-B21).

- The supported system ambient temperature of EPYC 9254 is 25C.

- The supported system ambient temperature of EPYC 9384X is 25C and cannot support with EDSFF CTO server.

Memory

Please select one or more memory from below.

For new DDR5 memory, please go to HPE DDR5 Smart Memory QuickSpecs

For details on the Memory Population Rules and Guidelines with AMD EPYC 9004 series processors, please go to: https://www.hpe.com/psnow/doc/a50007481enw

Notes:

- Quantity of memory DIMMs selected per socket must be 1, 2, 4, 6, 8, 10, or 12.

- The maximum memory speed and capacity is a function of the memory type, memory configuration, and processor model.

- The maximum speed capability of the memory system is governed by the combination of the CPU and any other DIMMs installed in the server.  If higher speed DIMMs are installed with a CPU that only supports a lower memory speed, the DIMMs will only run at the (lower) memory speed supported by the processor.  Likewise, if memory DIMMs are mixed with slower DIMMs within a server, all DIMMs will run at a slower memory speed.  For further information please refer to the Memory Population Rules for your specific server.

- The -B21 memory SKUs shown in this document are to be used when ordering stand -alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Registered DIMMs DDR5 (RDIMMs)

DDR5-6400 (applies to the 5^th Generation AMD® EPYC® Processors)

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64984-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64985-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64986-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64987-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64988-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P73446-B21

DDR5-4800 (applies to the 4^th Generation AMD® EPYC® Processors)

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50309-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50311-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50312-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66676-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69982-B21

Notes:

- Mixing of x4 memory and x8 memory is not supported.

- Mixing of 3DS memory and non-3DS memory is not supported.

- Supported memory configuration and recommended system ambient temperature:

SFF/LFF/GPU CTO server

EDSFF CTO server

Memory

Std Fans

(P58461-B21)

Perf Fans

(P58462-B21)

LC Fans

(P59668-B21)

Perf Fans

(P58462-B21)

LC Fans

(P59668-B21)

<= 64GB DIMM

30C

30C

30C

25C

25C

P66676-B21

P50313-B21

P69982-B21

Not Supported

30C

25C

25C

25C
Max = 8 for 128G DIMM

P64987-B21

P64988-B21

30C

30C

25C

25C

25C
Max = 8 for 128G DIMM

P50314-B21

Not Supported

25C

25C
Max = 4

25C

Not Supported

P73446-B21

Not Supported

30C

25C

25C

25C

Max = 8

Notes:

- Not Supported = Configuration not allowed because of thermal limitation.

- Requires Performance or Liquid Cooling Fan Kit for 96GB, 128GB and 256GB DIMMs.

Storage

Drive cages

Notes:

- For the 8SFF CTO server, If 8SFF Backplane is not selected then Internal Controllers, Controller cables and Drives must not be allowed for selection. This config will be shipped as a driveless config.

- Maximum one (1) 2SFF backplane kits can be selected together with 8SFF backplane kit, to support up to 10SFF in total.

- The type of drives that each drive cage supports are listed in the below table.

HPE ProLiant DL325 Gen11 8SFF x1 Tri-Mode U.3 Backplane Kit

P54999-B21

Notes:

- Supports 8 SFF SAS/SATA/ NVMe (U.3) Basic Carrier (BC) Drives.

- This drive cage can only be selected with 8SFF CTO Server.

- Max = 1.

- Requires Tri-Mode controllers if NVMe u.3 drives are selected with this backplane kit.

- if this Backplane kit is selected then one of the following cable options is supported:

• with PCIe controllers:  8SFF x1 Tri-Mode Secondary Cable Kit (P57009-B21).
• with OCP controllers:  8SFF x1 OCP2 Tri-Mode Cable Kit (P59619-B21).
• Onboard SATA: no cable kit selection required.

HPE ProLiant DL325 Gen11 8SFF x4 Tri-Mode U.3 BC Backplane Kit

P55000-B21

Notes:

- Supports 8 SFF SAS/SATA/ NVMe (U.3) Basic Carrier (BC) Drives.

- This drive cage can only be selected with 8SFF CTO Server.

- Max = 1.

- Requires Tri-Mode controllers if SAS/SATA SFF drives are selected with this backplane kit.

- if this 8SFF x4 U.3 Backplane kit is selected then one of the following cable options is supported:

• with SR932i-p: 8SFF x4 Primary SR932i-p Tri-Mode Cable Kit (P57004-B21) or 8SFF x4 Secondary SR932i-p Tri-Mode Cable Kit (P57005-B21).
• with PCIe controllers:  8SFF x2 Tri-Mode Secondary Cable Kit (P57006-B21).
• with OCP controllers: 8SFF x2 Tri-Mode OCP2 Cable Kit (P57008-B21).
• NVMe Direct Attach: no cable kit selection required.

- Requires Performance Fan Kit (P58462-B21) or Liquid Cooling Fan Kits (P59668-B21).

HPE ProLiant DL325 Gen11 2SFF x4 Tri-Mode U.3 BC Backplane Kit

P56652-B21

Notes:

- Supports 2 SFF SAS/SATA/ NVMe (U.3) Basic Carrier (BC) Drives.

- This drive cage can only be selected with 8SFF CTO Server.

- Max = 1.

- if this 2SFF U.3 Backplane kit is selected then one of the following cable options is supported:

• with PCIe controllers: 2SFF x4 Secondary Tri-Mode Cable Kit (P59621-B21).
• with OCP controllers: 2SFF x4 OCP2 Tri-Mode Cable Kit (P59620-B21).
• NVMe Direct Attach: no cable kit selection required.
• Onboard SATA: 2SFF SATA Direct Attach Cable Kit (P59617-B21).

- Requires 8SFF x1 U.3 Backplane Kit (P54999-B21) or 8SFF x4 U.3 Backplane Kit (P55000-B21) in the order.

- If this drive cage is selected then optical drives (726536-B21 & 726537-B21) cannot be selected.

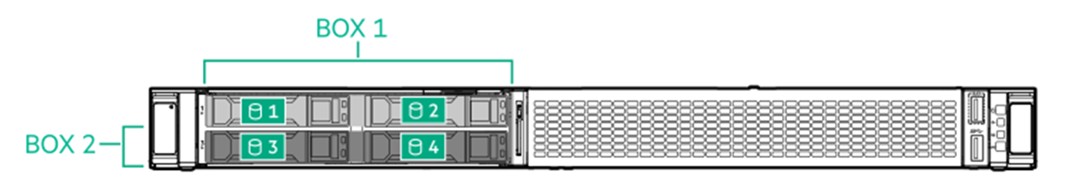

HPE ProLiant DL325 Gen11 4SFF x4 NVMe Drive Cage Kit

P64521-B21

Notes:

- Supports 4 SFF NVMe (U.3) Basic Carrier (BC) Drives.

- This drive cage can only be selected with GPU CTO Server.

- Max = 1.

- if this 4SFF U.3 Backplane kit is selected then one of the following cable options is supported:

• with PCIe controllers: 4SFF x4 Secondary Tri-Mode Cable Kit (P70318-B21).
• with OCP controllers: 4SFF x4 OCP2 Tri-Mode Cable Kit (P69876-B21).
• NVMe Direct Attach: no cable kit selection required.

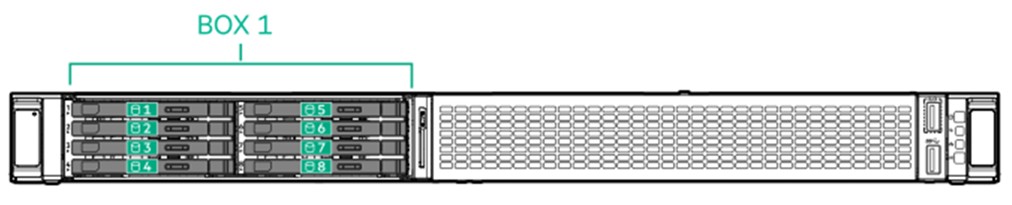

HPE ProLiant DL325 Gen11 8EDSFF x4 Drive Cage Kit

P64522-B21

Notes:

- Supports 8 EDSFF NVMe Drives direct attach. No additional cable kit selection required.

- This drive cage can only be selected with GPU CTO Server.

- Max = 1.

HPE ProLiant DL325 Gen11 GPU 4SFF x2 OCP Tri-Mode Backplane Kit

P70287-B21

Notes:

- Supports 4 SFF NVMe (U.3) Basic Carrier (BC) Drives.

- This drive cage can only be selected with GPU CTO Server.

- Max = 1.

- This drive cage can only support connection to OCP controllers in x2 bandwidth.

Storage Controller

The Gen11 storage controller portfolio has been updated to include new technology like OCP3.0 as well as PCIe adapters. For a more detailed breakout of the available Gen11 controllers visit the storage controllers QuickSpecs site:

HPE Compute MR Gen11 Controllers QuickSpecs

HPE Compute SR Gen11 Controllers QuickSpecs

Notes:

- When selecting SR RAID controllers for external storage (E208e-p, 804398-B21) and MR RAID controllers for internal storage, please be aware these two products use different RAID configuration tools.

- Mixing of MR (MegaRAID) series controllers and SR (SmartRAID) series controllers is not allowed.

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Notes:

- This controller supports up to 8 SAS/SATA Drives (external).

- Controller Based Encryption (CBE) with a remote key management server is not supported.  Local key management(LKM) is supported.

- One Button Secure Erase (OBSE) is used to sanitize drives, and factory reset the controller is not supported.

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

Notes: This controller supports up to 16 SAS/SATA/NVMe Drives.

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Notes:

- This controller supports up to 8 SAS/SATA/NVMe Drives.

- Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

Notes:

- This controller supports up to 16 SAS/SATA/NVMe Drives.

- Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Notes: This controller supports up to 16 SAS/SATA/NVMe Drives.

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Notes:

- This controller supports up to 16 SAS/SATA/NVMe Drives.

- Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller

P47184-B21

Notes:

- This controller supports up to 32 SAS/SATA/NVMe Drives.

- Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

Battery and Hybrid Capacitor

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

HPE ProLiant DL325 Gen11 Megacell Extension Cable Kit

P56659-B21

Notes:

- If HPE 96W Smart Stg Li-ion Batt 145mm Kit is selected then HPE Smart Hybrid Capacitor 145mm kit cannot be selected and vice versa.

- If M.2 enablement Kit and "96W Smart Stg Li-ion Batt 145mm Kit OR Smart Hybrid Capacitor w/ 145mm Kit" are selected then Megacell Ext Cable Kit must be selected.

Storage Controller Cables

HPE ProLiant DL325 Gen11 8SFF x4 Primary SR932i-p Tri-Mode Cable Kit

P57004-B21

Notes: Supports 8 SFF U.3 SAS/SATA/NVMe connecting to SR932i-p controllers at the primary riser slot with up to x4 speed.

HPE ProLiant DL325 Gen11 8SFF x4 Secondary SR932i-p Tri-Mode Cable Kit

P57005-B21

Notes: Supports 8 SFF U.3 SAS/SATA/NVMe connecting to SR932i-p controllers at the secondary riser slot with up to x4 speed.

HPE ProLiant DL325 Gen11 8SFF x2 Secondary Tri-Mode Cable Kit

P57006-B21

Notes: Supports 8 SFF U.3 SAS/SATA/NVMe connecting to storage controllers at primary riser slot with x2 speed.

HPE ProLiant DL325 Gen11 8SFF x2 OCP2 Tri-Mode Cable Kit

P57008-B21

Notes: Supports 8 SFF U.3 SAS/SATA/NVMe connecting to storage controllers at OCP22 slot with x2 speed.

HPE ProLiant DL325 Gen11 8SFF x1 Secondary Tri-Mode Cable Kit

P57009-B21

Notes: Supports 8 SFF U.3 SAS/SATA/NVMe connecting to storage controllers at secondary riser slot with x1 speed.

HPE ProLiant DL325 Gen11 8SFF x1 OCP2 Tri-Mode Cable Kit

P59619-B21

Notes: Supports 8 SFF U.3 SAS/SATA/NVMe connecting to storage controllers at OCP22 slot with x1 speed.

HPE ProLiant DL325 Gen11 2SFF SATA Direct Attach Cable Kit

P59617-B21

Notes: Supports 2 SFF SATA direct attach.

HPE ProLiant DL325 Gen11 2SFF x4 OCP2 Tri-Mode Cable Kit

P59620-B21

Notes: Supports 2 SFF U.3 SAS/SATA/NVMe connecting to storage controllers at OCP22 slot with up to x4 speed.

HPE ProLiant DL325 Gen11 2SFF x4 Secondary Tri-Mode Cable Kit

P59621-B21

Notes: Supports 2 SFF U.3 SAS/SATA/NVMe connecting to storage controllers at secondary riser slot with up to x4 speed.

HPE ProLiant DL325 Gen11 20EDSFF x2 NVMe Direct Attach Cable Kit

P57010-B21

Notes:  Supports 20 EDSFF E3.S 1T NVMe direct attach with x2 speed.

HPE ProLiant DL3X5 Gen11 16EDSFF x2 PCIe Tri-Mode Cable Kit

P69878-B21

Notes: Supports 16 EDSFF NVMe connecting to storage controllers at Primary riser with up to x2 speed.

HPE ProLiant DL3X5 Gen11 GPU 4SFF x4 PCIe Tri-Mode Cable Kit

P70318-B21

Notes: Supports 4 SFF SAS/SATA/NVMe connecting to storage controllers at secondary riser slot with up to x4 speed in GPU CTO server.

HPE ProLiant DL365 Gen11 GPU 4SFF x4 OCP Tri-Mode Cable Kit

P69876-B21

Notes: Supports 4 SFF SAS/SATA/NVMe connecting to storage controllers at OCP22 slot with up to x4 speed in GPU CTO server.

HPE ProLiant DL3X5 Gen11 1P GPU 8SFF/EDSFF x4 Tri-Mode PCIe Cable Kit

P70406-B21

Notes: Supports 8 EDSFF NVMe connecting to storage controllers at Primary riser with up to x4 speed in GPU CTO server.

Supported Storage Configurations

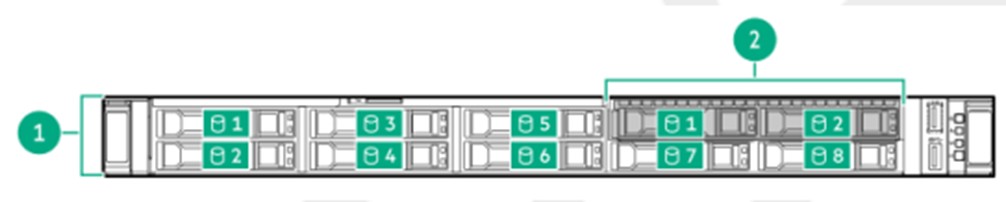

8SFF CTO server

Drives

Backplane

Storage Controller + Cable Kit

Max Qty

SAS

SATA

U.3 NVMe

Box1

Box2

8

 -

8

 -

P54999-B21

 -

8SFF DA (SATA)

8

8

8

8

P54999-B21

 -

OCP Ctrlr + P59619-B21

8

8

8

8

P54999-B21

 -

PCIe Ctrlr + P57009-B21

8

 -

-

8

P55000-B21

 -

8SFF DA (NVMe x4)

8

8

8

8

P55000-B21

 -

8SFF x4 SR932i-p + P57004-B21 (Pri.)

8

8

8

8

P55000-B21

 -

8SFF x4 SR932i-p + P57005-B21 (Sec.)

8

8

8

8

P55000-B21

 -

8SFF x2 PCIe Ctrlr + P57006-B21 (Pri.)

8

8

8

8

P55000-B21

 -

8SFF x2 OCP Ctrlr + P57008-B21

10

 -

8

2

P54999-B21

P56652-B21

8SFF DA (SATA); 2SFF DA (NVMe x4)

10

 -

10

 -

P54999-B21

P56652-B21

10SFF DA (SATA) + P59617-B21

10

2

10

2

P54999-B21

P56652-B21

8SFF DA (SATA); 2SFF OCP Ctrlr + P59620-B21

10

8

8

10

P54999-B21

P56652-B21

8SFF x1 OCP Ctrlr + P59619-B21; 2SFF DA (NVMe x4)

10

8

10

8

P54999-B21

P56652-B21

8SFF x1 OCP Ctrlr + P59619-B21; 2SFF DA (SATA) + P59617-B21

10

10

10

10

P54999-B21

P56652-B21

8SFF x1 OCP Ctrlr + P59619-B21; 2SFF x4 PCIe Ctrlr + P59621-B21 (Sec.)

10

10

10

10

P54999-B21

P56652-B21

10SFF x1 OCP Ctrlr + P59619-B21 & P59620-B21

10

10

10

10

P54999-B21

P56652-B21

10SFF x1 PCIe Ctrlr + P57009-B21 & P59621-B21 (Sec.)

10

 -

-

10

P55000-B21

P56652-B21

10SFF DA (NVMe x4)

10

 -

10

8

P55000-B21

P56652-B21

8SFF DA (NVMe x4); 2SFF DA (SATA) + P59617-B21

10

2

10

10

P55000-B21

P56652-B21

8SFF DA (NVMe x4); 2SFF x4 PCIe Ctrlr + P59621-B21 (Sec.)

10

2

10

10

P55000-B21

P56652-B21

8SFF DA (NVMe x4); 2SFF x4 OCP Ctrlr + P59620-B21

10

10

10

10

P55000-B21

P56652-B21

8SFF x4 SR932i-p + P57004-B21 (Pri.); 2SFF OCP Ctrlr + P59620-B21

10

8

8

10

P55000-B21

P56652-B21

8SFF x4 SR932i-p + P57004-B21 (Pri.); 2SFF DA (NVMe x4)

10

8

10

8

P55000-B21

P56652-B21

8SFF x4 SR932i-p + P57004-B21 (Pri.); 2SFF DA (SATA) + P59617-B21

10

10

10

10

P55000-B21

P56652-B21

8SFF x4 SR932i-p + P57005-B21 (Sec.); 2SFF OCP Ctrlr + P59620-B21

10

8

8

10

P55000-B21

P56652-B21

8SFF x4 SR932i-p + P57005-B21 (Sec.); 2SFF DA (NVMe x4)

10

8

10

8

P55000-B21

P56652-B21

8SFF x4 SR932i-p + P57005-B21 (Sec.); 2SFF DA (SATA) + P59617-B21

10

10

10

10

P55000-B21

P56652-B21

10SFF x2 SR932i-p + P57006-B21 & P59621-B21 (Sec.)

10

10

10

10

P55000-B21

P56652-B21

8SFF x2 OCP Ctrlr + P57008-B21; 2SFF PCIe Ctrlr + P59621-B21 (Sec.)

10

10

10

10

P55000-B21

P56652-B21

8SFF x2 PCIe Ctrlr + P57006-B21 (Sec.); 2SFF OCP Ctrlr + P59620-B21

Notes:

- DA = Direct Attach; Ctrlr = controller

- If no controller or cable kit information in the table then cable kit selection is not required.

Drives

Backplane

Storage Controller + Cable Kit

Max Qty

SAS

SATA

U.3 NVMe

EDSFF

Box1

Box2

4

 -

-

 -

-

P64521-B21

 -

4SFF NVMe x4 DA

4

4

4

4

P64521-B21

 -

PCIe Ctrlr + P70318-B21

4

4

4

4

P64521-B21

 -

OCP Ctrlr + P69876-B21 (x4 speed)

4

4

4

4

P70287-B21

 -

OCP Ctrlr (x2 speed)

8

-

-

-

8

P64522-B21

 -

8EDSFF NVMe x4 DA

8

-

-

-

8

P64522-B21

 -

SR932i-p + P70406-B21

Drives

Backplane

Storage Controller + Cable Kit

Max Qty

SAS

SATA

U.3 NVMe

EDSFF

Box1

Box2

20

 -

-

 -

20

Included

 -

20EDSFF NVMe x4 DA

20

-

-

-

20

Included

 -

P57010-B21 (x2 DA)

16

-

-

-

16

Included

 -

SR932i-p + P69878-B21

Notes:

- DA = Direct Attach; Ctrlr = controller; Included = item included in the CTO server or option kit.

- If no controller or cable kit information in the table then cable kit selection is not required.

HPE Drives

Solid State Drives

For SSD selection guidance, please visit  https://ssd.hpe.com/

Read Intensive - 12G SAS - SFF

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

Mixed Use - 12G SAS - SFF

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

Mixed Use - 12G SAS- LFF

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Read Intensive - 6G SATA - SFF

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

Mixed Use - 6G SATA - SFF

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

Read Intensive - 6G SATA - LFF

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Read Intensive - NVMe - SFF

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78808-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78810-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-B21

Mixed Use - NVMe - SFF

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78801-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78804-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

SED (Self-Encryption Drive) - SATA- SFF

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

SED (Self-Encryption Drive) - NVMe SFF

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

Read Intensive - NVMe - EDSFF E3.S 1T

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91229-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91231-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91233-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91243-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91245-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91247-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91249-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91090-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91092-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91094-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91096-B21

Mixed Use - NVMe - EDSFF E3.S 1T

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78784-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78787-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91098-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91100-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91102-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91237-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91239-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91241-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91084-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91086-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91088-B21

Very Read Optimized - NVMe - EDSFF E3.S 1T

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P79065-B21

SED (Self-Encryption Drive) - NVMe - EDSFF E3.S 1T

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

Hard Disk Drive

Enterprise - 12G SAS - SFF Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

Notes: If 15K drives are selected then 25C is the recommended system ambient temperature.

Midline - 12G SAS - LFF Drives

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

Midline - 6G SATA - LFF Drives

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

SED (Self-Encryption Drive)

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

Optical Drive

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

HPE Mobile USB DVD-RW Optical Drive

701498-B21

HPE ProLiant DL325 Gen11 8SFF Display Port/USB/Optical Drive Blank Kit

P56654-B21

HPE ProLiant DL325 Gen11 4LFF Display Port/USB/Optical Drive Blank Kit

P56655-B21

Notes:

- If the 2SFF drive cage (P56652-B21) is selected then optical drives cannot be selected and vice versa.

- If the optical drive is selected along with the 8SFF CTO server (P54199-B21), then the 8SFF ODD blank kit (P56654-B21) must be selected.

- If the optical drive is selected along with the 4LFF CTO server (P54200-B21), then the 4LFF ODD blank kit

(P56655-B21) must be selected.

- Both 8SFF ODD blank kit (P56654-B21) and 4LFF ODD blank kit (P56655-B21) support one (1) Display Port and one (1) USB 2.0 port.

Boot Controllers

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Notes:

- RAID 1 is preconfigured on this option and additional RAID cannot be applied on this Boot Device.

- Requires Performance Fan Kits (P58462-B21) or Liquid Cooling Fan Kits (P59668-B21).

- If this NS204i-u boot device is selected along with the SFF/LFF CTO servers and Liquid Cooling Fan Kits, then the 2SFF drive cage (P56652-B21) cannot be selected, and recommended system ambient temperature is 25C.

- Not allowed If this NS204i-u boot device is selected along with the EDSFF CTO servers and Liquid Cooling Fan Kit.

- If this NS204i-u boot device is selected then the Secondary Low-Profile riser (P55029-B21) and NS204i-u Cable Kit

(P57013-B21) must be selected.

- For additional information, please visit HPE OS Boot Device QuickSpecs

HPE ProLiant DL3X5 Gen11 NS204i-u NVMe Hot Plug Boot Device Cable Kit

P57013-B21

HPE ProLiant DL325 Gen11 NVMe/SATA M.2 Enablement Kit

P57014-B21

Notes:

- Requires two (2) M.2 SSD Drives In the same interface (SATA or NVMe).

- No RAID is supported on this M.2 enablement kit.

- If this M.2 enablement kit is selected along with the SFF/LFF CTO servers and Liquid Cooling Fan Kit (P59668-B21), then the 2SFF drive cage (P56652-B21) cannot be selected and recommended system ambient temperature is 25C.

- Not allowed If this M.2 enablement kit is selected along with the EDSFF CTO servers and Liquid Cooling Fan Kit.

Read Intensive - 6G SATA - M.2 - Solid State Drives

HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD

P47818-B21

HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80318-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80321-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80324-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting PE9010 SSD

P80327-B21

Risers

Notes: The Primary riser shipping default in ALL CTO server is PCIe Gen5 x16 FH HL.

HPE ProLiant DL3X5 Gen11 1U x16 Low Profile Secondary Riser Kit

P55029-B21

HPE ProLiant DL3X5 Gen11 1U x16 Riser Kit

P56915-B21

Notes:

- Both riser kits are in the secondary slot.

- Requires Low Profile Secondary riser kit if NS204i-u (P48183-B21) is selected.

HPE ProLiant DL325 Gen11 FHFL Add-on Cards Support Kit

P64520-B21

Notes: this kit supports single-width FHFL add-on PCIe cards at the primary riser position.

HPE Networking

Notes: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information: https://h20195.www2.hpe.com/v2/getpdf.aspx/A00002507ENW.pdf

PCIe Adapters

1 Gigabit Ethernet adapter

Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P21106-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

10 Gigabit Ethernet adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

10/25 Gigabit Ethernet adapters

Notes: Require Performance Fan Kits (P58462-B21) or Liquid Cooling fan kits (P59668-B21) and subject to the recommended system ambient temperature.

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE

S2A69A

100/200 Gigabit Ethernet adapters

Notes: Require Performance Fan Kits (P58462-B21) or Liquid Cooling fan kits (P59668-B21) and subject to the recommended system ambient temperature.

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE

P73111-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE

R8M41A

HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC

R4K46A

OCP 3.0 Adapter

1 Gigabit Ethernet OCP adapters

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

10 Gigabit Ethernet OCP Adapters

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

10/25 Gigabit Ethernet OCP adapters

Notes: Require Performance Fan Kits (P58462-B21) or Liquid Cooling fan kits (P59668-B21) and subject to the recommended system ambient temperature.

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

100/200 Gigabit Ethernet adapters

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Notes:

- Require Performance Fan Kits (P58462-B21) or Liquid Cooling fan kits (P59668-B21) and subject to the recommended system ambient temperature.

- Requires OCP1 upgrade cable kit (P56658-B21) to support PCIe Gen5 x16 bandwidth on OCP21 slot.

Recommended System Ambient Temperature

P/N

SFF/LFF CTO servers

EDSFF CTO server

Perf Fans

(P58462-B21)

LC Fans

(P59668-B21)

Perf Fans

(P58462-B21)

LC Fans

(P59668-B21)

Pri. Riser

Sec. Riser

Pri. Riser

Sec. Riser

Pri. Riser

Sec. Riser

Pri. Riser

Sec. Riser

P08443-B21

30C

30C

30C

30C

30C

25C

25C

Not Supported

P26264-B21

30C

25C

30C

25C

30C

Not Supported

25C

Not Supported

P42044-B21

30C

25C

30C

25C

30C

Not Supported

25C

Not Supported

S2A69A

30C

25C

30C

25C

30C

Not Supported

25C

Not Supported

P08458-B21

30C

25C

30C

25C

30C

Not Supported

25C

Not Supported

P21112-B21

30C

25C

30C

25C

30C

Not Supported

25C

Not Supported

P10180-B21

30C

Not Supported

25C

Not Supported

30C

Not Supported

Not Supported

Not Supported

P25960-B21

30C

Not Supported

25C

Not Supported

30C

Not Supported

Not Supported

Not Supported

R8M41A

30C

Not Supported

25C

Not Supported

30C

Not Supported

Not Supported

Not Supported

P/N

OCP21

OCP22

OCP21

OCP22

OCP21

OCP22

OCP21

OCP22

P10106-B21

30C

25C

30C

25C

30C

25C

25C

Not Supported

P42041-B21

30C

25C

30C

25C

30C

Not Supported

Not Supported

Not Supported

P26269-B21

30C

Not Supported

30C

Not Supported

30C

Not Supported

Not Supported

Not Supported

P22767-B21

30C

Not Supported

30C

Not Supported

30C

Not Supported

Not Supported

Not Supported

P/N

GPU CTO server*

Perf Fans (P58462-B21)

LC Fans (P59668-B21)

Pri. Riser

Sec. Riser

Pri. Riser

Sec. Riser

P08443-B21

30C

25C

30C

25C

P26264-B21

30C

Not Supported

25C

Not Supported

P42044-B21

30C

Not Supported

25C

Not Supported

S2A69A

30C

Not Supported

25C

Not Supported

P08458-B21

30C

Not Supported

25C

Not Supported

P21112-B21

30C

Not Supported

25C

Not Supported

P10180-B21

30C

Not Supported

Not Supported

Not Supported

P25960-B21

30C

Not Supported

Not Supported

Not Supported

R8M41A

30C

Not Supported

Not Supported

Not Supported

P/N

OCP21

OCP22

OCP21

OCP22

P10106-B21

30C

25C

30C

25C

P42041-B21

30C

25C

30C

25C

P26269-B21

30C

Not Supported

25C

Not Supported

P22767-B21

30C

Not Supported

25C

Not Supported

Notes:

- Not Supported = configuration not allowed because of thermal limitation.

- The thermal condition of GPU CTO server is based on 2pcs 72W GPUs installed at the front cage.

Recommended System Ambient Temperature

P/N

SFF/LFF CTO servers

EDSFF CTO server

Perf Fans

(P58462-B21)

LC Fans

(P59668-B21)

Perf Fans

(P58462-B21)

LC Fans

(P59668-B21)

Pri. Riser

Sec. Riser

Pri. Riser

Sec. Riser

Pri. Riser

Sec. Riser

Pri. Riser

Sec. Riser

P23665-B21

30C

30C

30C

30C

30C

25C

25C

Not Supported

P23664-B21

30C

25C

30C

25C

30C

Not Supported

25C

Not Supported
