HPE ProLiant DL380 Gen12

QuickSpecs

The HPE ProLiant Compute DL380 Gen12 is a robust and versatile server designed to handle demanding workloads in today's dynamic IT environments.

Known for its exceptional performance, the DL380 is a 2U rack server that supports up to two Intel® Xeon® 6 processors, each offering up to 144 E-cores or 86 P-cores. It provides up to 8 TB of memory capacity and includes high-speed PCIe Gen5 connectivity with flexible I/O options for accelerators such as GPUs. Its 2U form factor strikes a balance between density and expandability, offering ample headroom for future growth with support for a wide range of storage configurations.

HPE ProLiant Compute DL380 Gen12

The HPE ProLiant Compute DL380 Gen12 is built with a focus on security, performance, and automation. The HPE ProLiant Compute DL380 Gen12 is equipped with advanced features such as Silicon Root of Trust technology to safeguard your critical data against current and future cyber threats. It offers a comprehensive suite of management tools, including HPE Compute Ops Management and HPE iLO 7, which provide remote management capabilities, enabling IT administrators to manage and troubleshoot the server from anywhere, thereby reducing downtime and operational costs. Whether you are a small business looking to scale or a large enterprise managing complex workloads in the data center, the HPE ProLiant Compute DL380 Gen12 delivers unparalleled performance, flexibility, and resilience to support both AI-driven innovation and core enterprise IT workloads, helping drive your business initiatives forward.

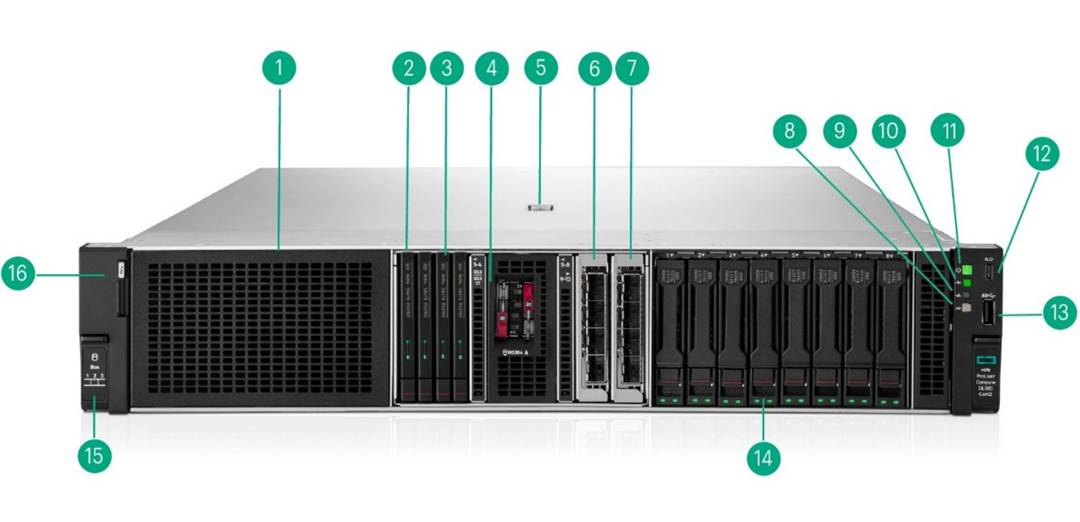

Front View -SFF CTO Server with optional multipurpose cage

Item

Description

Item

Description

1.

Box 1 for 8SFF drives or Optional Universal Media Bay (ODD, DisplayPort and 2 USB 3.2 Gen 1 Ports) with 2SFF drives, shown empty

9.

NIC status¹

2.

Box 2 for 8SFF drives or optional multipurpose cage (shown)

10.

Health LED

3.

Optional 4 EDSFF drives (shown in multipurpose cage in Box 2)

11.

Power on / standby button / LED

4.

Optional front NS204i-u (shown in multipurpose cage in Box2)

12.

USB-C iLO service port

5.

Quick-removal access panel

13.

USB 3.2 Gen 1 Port

6.

Optional front Primary OCP Slot (shown in multipurpose cage in Box 2)

14.

Box 3 for 8SFF drives (shown)

7.

Optional front Secondary OCP Slot (shown in multipurpose cage in Box 2)

15.

Drive support label

8.

Unit identification button / LED

16

Serial number label pull tab

Notes:

- ¹ Front NIC LED display doesn't support NIC LED ACT/LINK indication from PCIe NICs.

- Default SFF CTO Server 8 SFF drive cage installation sequence is Box 3, Box 2, then Box 1.

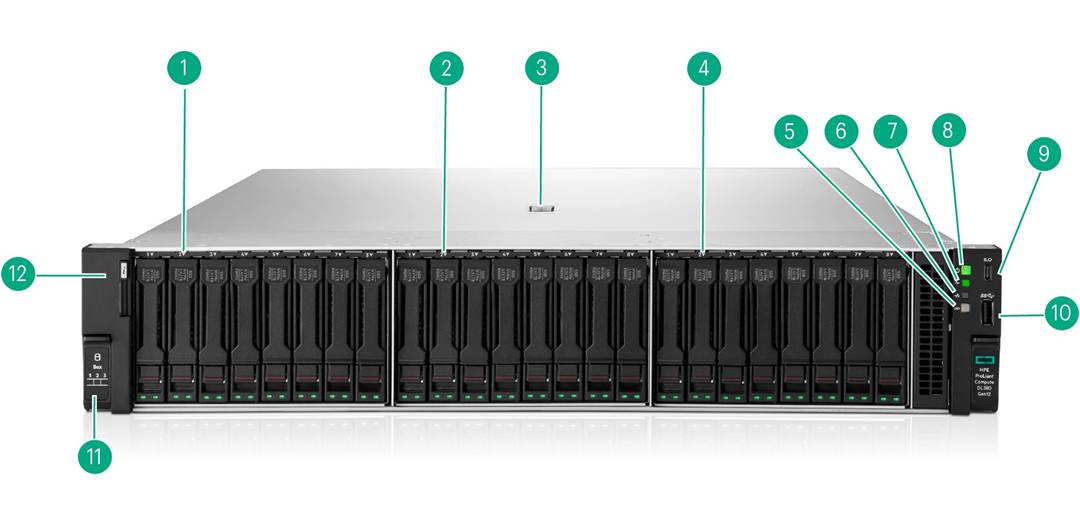

Front View - 24 SFF CTO Server

Item

Description

Item

Description

1.

Box 1 for 8 SFF drives (shown)

7.

Health LED

2.

Box 2 for 8 SFF drives (shown)

8.

Power on / standby button / LED

3.

Quick-removal access panel

9.

USB-C iLO service port

4.

Box 3 for 8 SFF drives (shown)

10.

USB 3.2 Gen 1 port

5.

Unit identification button / LED

11.

Drive support label

6.

NIC status

12.

Serial number label pull tab

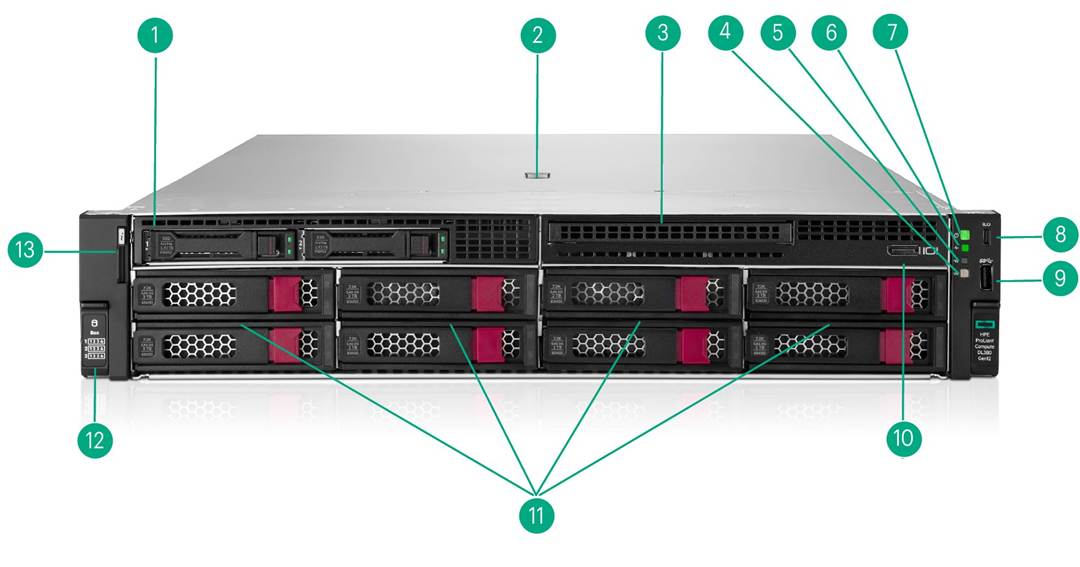

Front View - 8 LFF CTO Server with optional 2SFF and Universal Media Bay

Item

Description

Item

Description

1.

Optional 2 SFF drives in Box 1

8.

USB-C iLO service port

2.

Quick-removal access panel

9.

USB 3.2 Gen1 port

3.

Optional ODD Kit in Box 1 (shown without the ODD)

10.

Optional DisplayPort via ODD Kit in Box 1 (shown)

4.

NIC status

11.

Box 2 and 3 for 4 LFF drives in each box (shown)

5.

Power on / standby button / LED

12.

Drive support label

6.

Health LED

13.

Serial number label pull tab

7.

Power on / standby button / LED

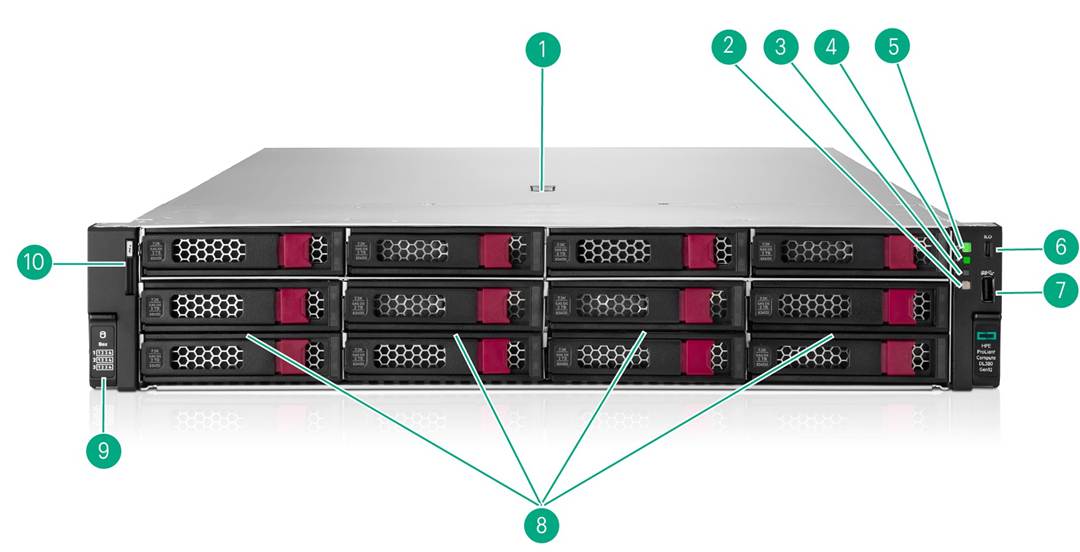

Front View - 12 LFF CTO Server

Item

Description

Item

Description

1.

Quick-removal access panel

6.

USB-C iLO service port

2.

Unit identification button / LED

7.

USB 3.2 Gen1 port

3.

NIC status

8.

Box 1, 2 and 3 for 4 LFF drives in each box (shown)

4.

Health LED

9.

Drive support label

5.

Power on / standby button / LED

10.

Serial number label pull tab

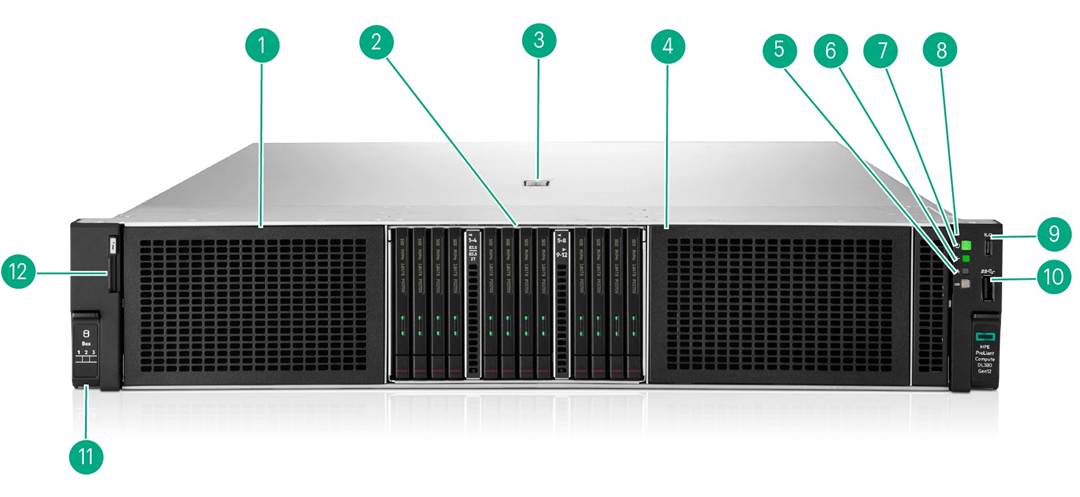

Front View - EDSFF CTO Server

Item

Description

Item

Description

1.

Box 1 for 12 EDSFF drives or 8SFF drive (shown empty)

7.

Health LED

2.

Box 2 for 12 EDSFF drives (shown) or multipurpose cage

8.

Power on / standby button / LED

3.

Quick-removal access panel

9.

USB-C iLO service port

4.

Box3 for 12 EDSFF drives or 8SFF drives (shown empty)

10.

USB 3.2 Gen 1 port

5.

Unit identification button / LED

11.

Drive support label

6.

NIC status

12.

Serial number label pull tab

Notes: Default EDSFF CTO Server drive cage installation sequence is Box 2, Box 3, then Box 1.

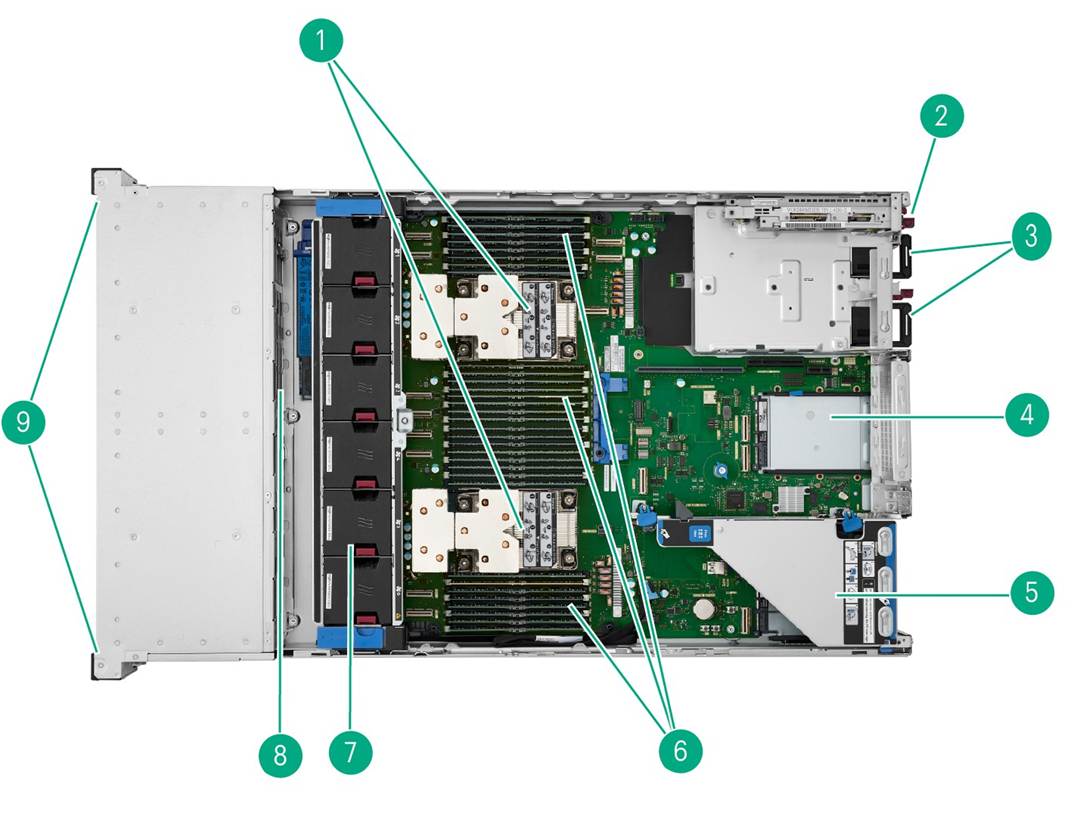

Internal View SFF chassis- Air Cooled

Item

Description

Item

Description

1.

Processors, heatsinks (shown)

6.

DIMM slots, shown fully populated in 32 slots

2.

Optional NS204i-u Boot Device

7.

Hot Plug Fans

3.

Hot Plug redundant HPE Flexible Slot Power Supplies

8.

Drive Backplanes

4.

Secondary Riser (Optional-not shown, Requires second processor)

9.

Drive Cages

5.

Primary Riser

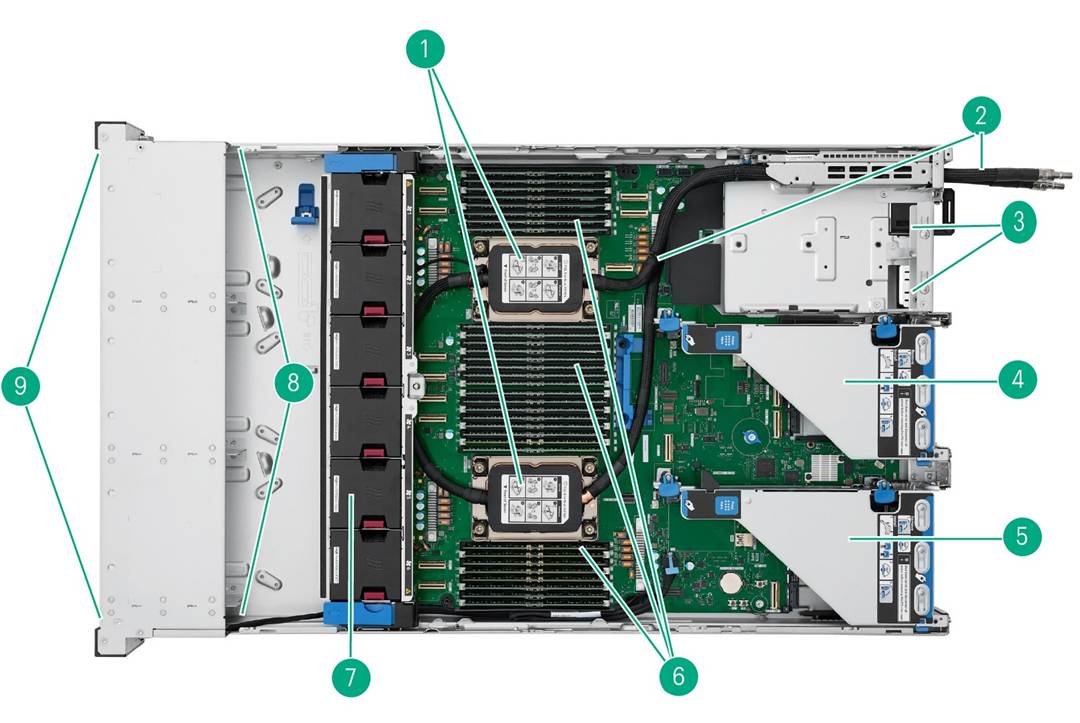

Internal View 12LFF Chassis - Direct Liquid Cooling

Item

Description

Item

Description

1.

Processors, heatsinks (shown)

6.

DIMM slots, shown fully populated in 32 slots

2.

Direct Liquid Cooling tubes (NS204i-u version)

7.

Hot Plug Fans

3.

Hot Plug redundant HPE Flexible Slot Power Supplies

8.

Drive Backplanes

4.

Secondary Riser (Optional shown, Requires second processor)

9.

Drive Cages

5.

Primary Riser

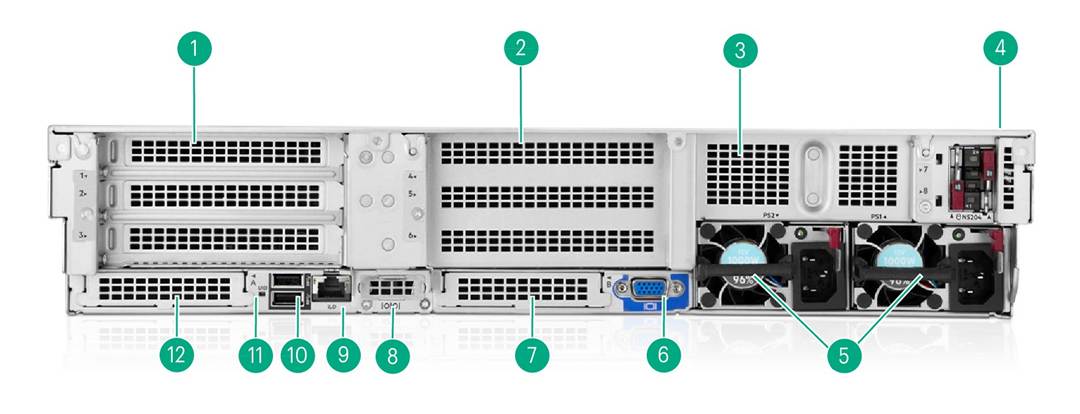

Rear View -  DL380 Gen12 Air Cooled

Item

Description

Item

Description

1.

Box 4 for Primary Riser (Default PCIe 5.0 Slots 1, 2 & 3) or optional 2 SFF drive & slot 3 or Optional 2 LFF

7.

OCP 3.0 Slot-B

2.

Box 5 for Secondary Riser (Optional PCIe 5.0 Slots 4, 5 & 6) or optional 2 SFF drives & slot 6 or Optional 2 LFF

8.

Serial Port (Optional)

3.

Box 6 for Tertiary riser (slots 7 & 8) or optional 2 SFF

9.

Dedicated iLO Management Port

4.

NS204i-u Boot Device (Optional)

10

USB 3.2 Gen 1 Connectors (2)

5.

Power Supply 1 & 2

11.

UID Indicator LED

6.

VGA Connector

12.

OCP 3.0 Slot-A

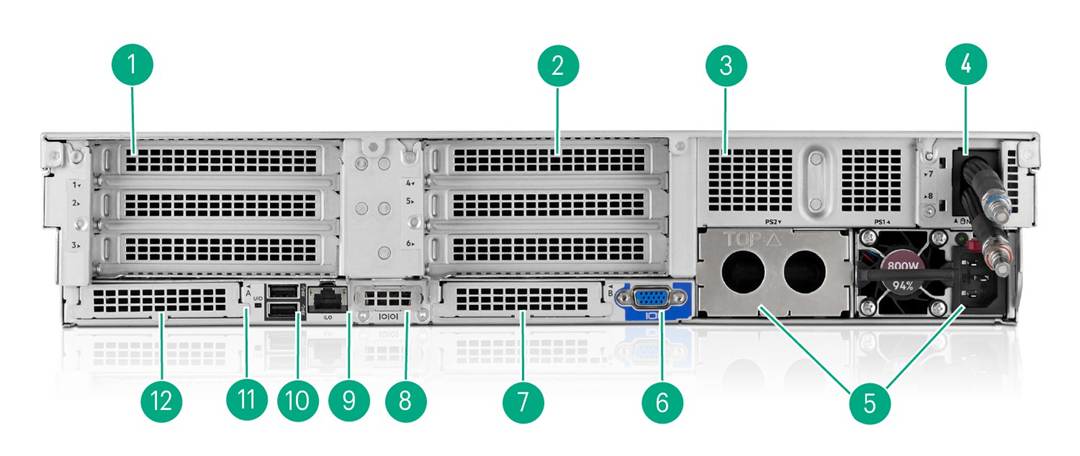

Rear View -  DL380 Gen12 Direct Liquid Cooling

Item

Description

Item

Description

1.

Box 4 for Primary Riser (Default PCIe 5.0 Slots 1, 2 & 3) or optional 2 SFF drive & slot 3 or Optional 2 LFF

7.

OCP 3.0 Slot-B

2.

Box 5 for Secondary Riser (Optional PCIe 5.0 Slots 4, 5 & 6) or optional 2 SFF drives & slot 6 or Optional 2 LFF

8.

Serial Port (Optional)

3..

Box 6 for Tertiary riser (slots 7 & 8) or optional 2 SFF

9.

Dedicated iLO Management Port

4.

DLC Tubes (NS204i-u position)

10

USB 3.2 Gen 1 Connectors (2)

5.

Power Supply 1 (Blank shown for Power Supply 2)

11.

UID Indicator LED

6.

VGA Connector

12.

OCP 3.0 Slot-A

What's New

- Support for 16 EDSFF drives attached to HPE MR932i-p controller using the new P92742-B21/HPE ProLiant Compute DL380 Gen12 x2 EDSFF Controller Attach FIO Kit. Selection of this kit automatically configures the required drive cages, controller, cables, and power cabling.

- NVIDIA H200 NVL 141GB PCIe Accelerator.

- AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter.

- NVIDIA RTX PRO^TM 4500 Blackwell Server.

- HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller.

- NVIDIA RTX PRO 6000 96GB PCIe Accelerator.

Platform Information

Form Factor

- 2U rack.

Chassis Types

- SFF CTO Server: Supports up to 24SFF front drive cages, or alternate front configurations using the Universal Media Bay, multipurpose cage, and up to 6SFF rear drive cage options.

- 24SFF CTO Server: Includes 24SFF front drive cages and supports up to 6SFF rear drive cage options.

- 8LFF CTO Server: Includes 8LFF front drive cages and supports optional 2SFF front drive cages, optional 4LFF midplane drive cage, and rear drive cage options up to 4LFF or 2SFF.

- 12LFF CTO Server: Includes 12LFF front drive cages and supports optional 4LFF midplane drive cage and rear drive cage options up to 4LFF or 2SFF.

- EDSFF CTO Server: Supports up to 36EDSFF front drive cages, or 12EDSFF plus up to 16SFF front drive cages, and up to 2SFF rear drive cages.

Notes:

- The SFF CTO Server can be configured to support up to 24SFF front drive using supported 8SFF drive cage options, including 8SFF U.3 x1 tri-mode and 8SFF U.3 x4 tri-mode drive cages. See the Drive Cages section for available options.

- The 8LFF CTO Server cannot be upgraded to 12LFF front drives in the field.

- The SFF CTO Server -

Processors

Intel® Xeon® 6 processor naming convention

Notes:

*CPU Series not supported on HPE ProLiant Compute Gen12 platforms.

The information provided here is subject to change without notice. Intel® may make changes to specifications and product descriptions at any time, without notice. Please contact your Intel® representative to obtain the latest Intel® product specifications and roadmaps.

For more information regarding Intel® Xeon® processors, refer to the following https://www.intel.com/xeon.

The HPE ProLiant Compute DL380 Gen12 server supports Intel® Xeon® 6.

Up to 2 of the following, depending on the model.

Efficient Core (E-Core) and Performance Core (P-Core) processors.

The below processors are publicly supported on the HPE ProLiant Compute DL380 Gen12 server.

Notes: *Intel® Xeon 6® Processors support DDR5 support maximum memory speed of 6400 MT/s @ 1 DIMMs per channel (DPC) and 6000 MT/s @ 2DPC.

iLO

HPE iLO 7 ASIC.

Read and learn more in the iLO QuickSpecs.

Notes:

- The maximum memory speed is limited by the processor selection.

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

- For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multi-bit errors that occur within a single DRAM chip.

Adaptive Double DRAM Device Correction (ADDDC)

Advanced Double DRAM Device Correction enables the server to dynamically map out a failing DRAM device.  Enabling it can have some impact on system performance under certain workloads.  This is set to be enabled by default.

Mirroring

Memory Mirroring enables full memory redundancy.

Notes: For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers.

Network Controller

There is no default network controller included.  The HPE ProLiant Compute DL380 Gen12 server offers the customer a variety of networking options which are outlined in the Core Options selection in this document.

PCIe Expansion Slots

Notes:

- Bus width indicates the number of electrical lanes connected to the slot. Connector width indicates the physical slot size.

- Installing a PCIe card that requires more lanes than the slot supports may result in reduced performance.

- A second processor is required when selecting a secondary or tertiary riser.

- The 3x16 secondary riser and tertiary riser cannot be selected together.

Final PCIe slot availability is configuration dependent and may vary by riser selection, cable kit selection, processor count, storage configuration, and FIO bundle selection. Validate the final configuration in HPE One Config Advanced.

Primary Riser

Notes: Two Primary Riser types are supported.

Notes:

- Only one Primary Riser can be selected per server.

- Selecting Primary Riser Option 2 will replace the default Primary Riser Option 1.

- ^a PCIe Slot Availability (Without Cable Kit)

• If the HPE DL380 Gen12 x16/x16/x16 Cable Kit (P76471-B21) is not selected:

- Only Slot 2 and Slot 3 are available for PCIe card selection.

- Slot 1 is disabled (no PCIe cards can be selected).

- ^b Enabling Slot 1 (Full Functionality)

• To enable Slot 1 on the DL380 Gen11 2U 3x16 Primary Riser Kit:
• Select Qty 2 × P76471-B21 (HPE DL380 Gen12 x16/x16/x16 Cable Kit), and
• Select the associated trigger SKU P78117-B21 (HPE ProLiant Compute DL380 Gen12 Primary Riser x16 FIO Bundle Kit).

- ^c Factory Bundle Kit Behavior (Slot 1 bandwidth):

• For the following bundle kits:

- P77961-B21 (HPE ProLiant Compute DL380 Gen12 24SFF x2 Direct Attach x16/x16/x16 OCP FIO Bundle Kit)

- P77946-B21 (HPE ProLiant Compute DL380 Gen12 12EDSFF x16/x16/x16 OCP Direct Attach PCIe FIO Bundle Kit)

- P77964-B21 (HPE ProLiant Compute DL380 Gen12 12EDSFF x2 1P Direct Attach x16/x16/x16 PCIe FIO Bundle Kit)

• Slot 1 operates at x8 (not x16)

Notes:

- *If the HPE DL380 Gen12 x16/x16/x16 Cable Kit (P76471-B21) is not selected:

• Only Slot 5 and Slot 6 are available.
• Slot 4 is disabled (no PCIe card support).

- ** To enable Slot 4:

• Select Qty 2 × P76471-B21 (HPE DL380 Gen12 x16/x16/x16 Cable Kit), and
• Select trigger SKU P78120-B21.

- *** Factory Bundle behavior (Slot 4 bandwidth):

• For the following bundle kits:

- P77961-B21 (HPE DL380 Gen12 24SFF x2 Direct Attach x16/x16/x16 OCP FIO Bundle Kit).

- P77946-B21 (HPE DL380 Gen12 12EDSFF Direct Attach x16/x16/x16 OCP FIO Bundle Kit).

• Slot 4 operates at x8 (not x16).

Tertiary Riser

Notes:

- Up to one Tertiary Riser can be selected per server.

- Two Tertiary Riser options are supported.

OCP Expansion Slots

Notes:

- ¹Can be extended to x16 with one processor if we don't use the other OCP, with 2 processors we can have both OCPA and OCP B as x16.

- ²Provides the share-NIC function with Network Controller Sideband Interface (NCSI).Front and rear OCPs cannot be enabled at the same time.

- Front OCPs are enabled with the multipurpose cage (only with SFF and EDSFF CTO Server) and can only support networking cards.

OCP 3.0 Slot Priority Support Matrix

Internal Storage Devices

- Optical Drive -  Available on SFF and EDSFF CTO Servers as an option (DVD-ROM or DVD-RW).

- Hard Drives - None ship standard.

Graphics

Integrated Video Standard

- VGA Port in the rear.

- DisplayPort with optional optical disk drive.

- Video modes up to 1920 x 1200@60Hz (32 bpp).

- 16MB Video Memory.

Maximum Internal Storage

Interfaces

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Compute Gen12 servers have a UEFI Class 3 implementation to support UEFI Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

- Secure Boot and Secure Start enable for enhanced security.

- Embedded UEFI Shell.

- Operating system specific functionality.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- Support for > 2.2 TB (using GPT) boot drives.

- PXE boot support for IPv6 networks.

- USB 3.0 Stack.

- Workload Profiles for simple performance optimization.

UEFI Boot Mode only

- TPM 2.0 Support.

Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen12. It is an embedded feature.

- iSCSI Software Initiator Support.

- NVMe Boot Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Platform Trust Technology (PTT) can be enabled.

- Boot support for option cards that only support a UEFI option ROM.

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Industry Standard Compliance

- ACPI 6.5 Compliant.

- PCIe 5.0 Compliant.

- Wake on LAN (WOL) Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA.

- DisplayPort.

Notes: This support is on the optional Universal Media Bay.

- USB 3.2 Gen1 Compliant.

- USB 2.0 Compliant (via Universal Media Bay).

Notes: This support is on the optional Universal Media Bay.

- Energy Star.

- SMBIOS 3.7.

- Unified Extensible Firmware Interface (UEFI) 2.10.

- UEFI Class 3.

- Redfish API.

- IPMI 2.0.

- Advanced Encryption Standard (AES).

- SNMP v3.

- TLS 1.2.

- DMTF Redfish support for Secure Boot Key Management.

- ACPI DSM Drive LED Management.

- Memory Page Retire Support.

- Retire old VMware Secure Boot Key.

- APML.

- Active Directory v1.0.

- ASHRAE A3/A4.

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit DL380 Gen12 Extended Ambient Temperature Guidelines.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Compute Gen12 rack or tower server.

For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at https://www.hpe.com/info/iLO.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

OpenBMC Support

OpenBMC Capable through iLO7 Transfer of Ownership Process.

Learn more at OpenBMC Support

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at HPE Intelligent Provisioning.

Notes: Please refer to Advisory: HPE ProLiant Compute Gen12 Servers - HPE Intelligent Provisioning 5.00 Is Available with Limited Feature Support.

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at https://www.hpe.com/info/restfulapi.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at https://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile

devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at https://www.hpe.com/info/resttool.

HPE OneView Standard

HPE OneView is an on premise, multi-generational server monitoring and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license all provided by the same tool. Learn more at https://www.hpe.com/info/oneview.

Security

Experience unparalleled security benefits with HPE ProLiant Compute Gen12 servers, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:

- HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.

- Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.

- Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.

- Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.

- HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations.

- Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and chassis intrusion detection switch.

- HPE Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle

Please refer to the HPE ProLiant Compute Gen12 Embedded Security QuickSpecs document for more detailed information at: https://www.hpe.com/psnow/doc/a50009218enw.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed by Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. Travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available.

https://www.hpe.com/support/ProLiantServers-Warranties.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OpenView Standard, provides full-featured licenses which can be purchased for managing multiple HPE server generations.

To learn more visit https://www.hpe.com/info/oneview.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions includes a console, and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

HPE Smart Choice Purchase Program

The HPE Smart Choice Purchase Program offers popular, factory-configured products that can be quoted in minutes and delivered quickly through HPE Authorized Partners. These Smart Choice SKUs replace the previous BTO SKUs, streamlining the purchasing process. Each system is configured and tested at an HPE facility, stocked with Authorized Distributors and Partners, and shipped in a single box to simplify and accelerate on-site integration. When you purchase an HPE Smart Choice product, you also gain access to exclusive, competitively priced HPE Tech Care Services available only through the Smart Choice Purchase Program. Please visit the Smart Choice Supplemental QuickSpecs or the website for details.

Configuration Details

This section lists some of the steps required to configure a Factory Integrated Model.

To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- FIO indicates that this option is only available as a factory installable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

- HPE ProLiant Compute DL380 Gen12 is highly configurable, the configuration information below does not include all CTO configuration rules. Please use one of HPE's approved configurators for the final configuration validation.

SAP Solution Configuration

For customers configuring the HPE ProLiant Compute DL380 Gen12 for SAP solutions, please use the following solution SKU:

- P79970-B21 HPE ProLiant Compute DL380 Gen12 Solution Server.

For additional details on HPE's SAP solutions, please visit the HPE SAP solutions portfolio on HPE.com.

Step 1: Base Configuration (choose one of the following configurable server models)

CTO Server models do not include embedded LOM. To enable networking capability please select a validated alternative NIC -OCP or PCIe- from the Core Options section.

Notes:

- *HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed into a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

- Energy Star 4.0 Compliance: No restriction from processors when server shipment starts, but the Platinum Power Supply 800W & 1600W are not compatible.

STEP 1: PROCESSORS

Step 1a: Processors

Intel® Xeon 6® Scalable Processors

Notes:

- Mixing of 2 different processor models is NOT allowed.

- 4LFF Midplane drive cage (P74741-B21) can be selected with 225W or below Processors only.

Intel® Xeon 6® Scalable Processors with Efficient-Cores (E-Cores)

Efficient - Performance per Watt

Intel Xeon 6710E 2.4GHz 64-core 205W Processor for HPE

P71117-B21

Intel Xeon 6731E 2.2GHz 96-core 250W Processor for HPE

P71118-B21

Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE

P71119-B21

Intel Xeon 6746E 2.0GHz 112-core 250W Processor for HPE

P71120-B21

Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE

P71121-B21

Intel Xeon 6766E 1.9GHz 144-core 250W Processor for HPE

P71122-B21

Efficient - Performance

Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE

P71124-B21

Intel® Xeon 6® Processors with Performance-Cores (P-Cores)

Performance - General Purpose

Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE

P74504-B21

Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE

P74507-B21

Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE

P74570-B21

Intel Xeon 6725P 3.7GHz 16-core 235W Processor for HPE

P87302-B21

Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE

P74573-B21

Intel Xeon 6732P 3.8GHz 32-core 350W Processor for HPE

P74578-B21

Intel Xeon 6736P 2.0GHz 36-core 205W Processor for HPE

P74575-B21

Intel Xeon 6737P 2.9GHz 32-core 270W Processor for HPE

P74576-B21

Intel Xeon 6745P 3.1GHz 32-core 300W Processor for HPE

P81591-B21

Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE

P73831-B21

Intel Xeon 6762P 2.9GHz 64-core 350W Processor for HPE

P90157-B21

Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE

P73834-B21

Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE

P73837-B21

Mainline Processors

Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE

P74503-B21

Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE

P74506-B21

Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE

P74568-B21

Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE

P74571-B21

Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE

P73829-B21

Intel Xeon 6760P 2.2GHz 64-core 330W Processor for HPE

P73832-B21

Intel Xeon 6714P 4.0GHz 8-core 165W Processor for HPE

P74508-B21

Intel Xeon 6724P 3.6GHz 16-core 210W Processor for HPE

P74509-B21

Intel Xeon 6728P 2.7GHz 24-core 210W Processor for HPE

P74572-B21

Scalable Socket Processors

Intel Xeon 6738P 2.9GHz 32-core 270W Processor for HPE

P74577-B21

Intel Xeon 6748P 2.5GHz 48-core 300W Processor for HPE

P74579-B21

Intel Xeon 6768P 2.4GHz 64-core 330W Processor for HPE

P73835-B21

Intel Xeon 6788P 2.0GHz 86-core 350W Processor for HPE

P73838-B21

Step 1b: Heatsink

Notes:

- One Config Advanced automatically selects the required heat sink option based on the selected processor model and system thermal requirements.

- Mixing heat sink types is not supported.

HPE ProLiant DL380 Gen11 Standard Heat Sink Kit

P49145-B21

Notes:

- 2U heat sink.

- Includes one heat sink.

- Supports processors up to 185W.

HPE ProLiant Compute DL380 Gen12 Max Performance Heat Sink Kit

P74794-B21

Notes:

- 2U heat sink.

- Supported with 2-processor configurations only.

- Includes two heat sinks.

HPE ProLiant Compute DL380 Gen12 Performance Heat Sink Kit

P74792-B21

Notes:

- 2U heat sink.

- Includes one heat sink.

HPE ProLiant Compute DL3XX Gen12 High Performance Heat Sink Kit

P74787-B21

Notes:

- 1U heat sink.

- Includes one heat sink.

Direct Liquid Cooling (DLC) Modules

Notes:

- Direct Liquid Cooling (DLC) module configurations include two cold plate modules and one quick disconnect module.

- DLC modules cannot be mixed with air-cooled heat sink kits.

- DLC modules and the mid tray cannot be selected together.

- Two DLC module options are available:

- NS204i-u DLC configuration.

- PCIe DLC configuration.

- The required quick-disconnect tube set depends on the selected DLC module location.

HPE ProLiant Compute DL380 Gen12 Cold Plate Module NS204 Quick Disconnect Tube Set FIO Kit

P74204-B21

Notes

- Requires Qty 1 of 65cm Quick Disconnect Tube Set FIO Kit (P62038-B21).

- Cannot be selected with the NS204i-u Rear Enable Kit (P74755-B21).

HPE ProLiant Compute Direct Liquid Cooling 0.65m Quick Disconnect Tube Set FIO Kit

P62038-B21

Notes: Provides the 65cm quick-disconnect tube set required for the NS204i-u DLC configuration.

HPE ProLiant Compute DL3XX Gen12 Cold Plate Module FIO Kit from PCIe

P74208-B21

Notes:

- Requires Qty 1 of 55cm Quick Disconnect Tube Set FIO Kit (P62042-B21).

- Requires a Secondary Riser Kit.

- PCIe Slot 6 on the Secondary Riser is unavailable when this kit is selected.

HPE ProLiant DL3XX Gen11 Direct Liquid Cooling 55cm Quick Disconnect Tube Set FIO Kit

P62042-B21

Notes:

- Maximum quantity: 1

- Supported with the PCIe DLC configuration.

HPE Gen12 DLC Infrastructure

Notes:

- iLO 7 provides built-in leak detection alerting and can initiate system shutdown if a leak event is detected.

- HPE ProLiant DL3XX Gen12 Direct Liquid Cooling solutions require compatible rack-level liquid cooling infrastructure, including a supported 800mm x 1200mm HPE rack, rack manifold, coolant distribution unit (CDU), primary hose kit, and secondary hose kit.

- The required DLC rack infrastructure must be included and validated for the DLC server configuration to function.

- Supported DLC rack options include:

• Rack 42U 800mm x 1200mm Enterprise G2, applicable for DL3XX Gen12 DLC.
• Rack 48U 800mm x 1200mm Enterprise G2, applicable for DL3XX Gen12 DLC.

- HPE Services should be engaged to validate and enable the complete DLC rack solution.

- Key DLC infrastructure validation factors include:

• Server-to-manifold connectivity.
• DLC rack capability, including liquid supply temperature, loop flow rate, and CDU capacity.
• CDU settings, including coolant type, number of servers per rack, and any mixed-server rack configuration.

- If a customer already has compatible HPE DLC rack infrastructure installed, standalone server shipment or field upgrade may be supported by exception. Approval from ProLiant Product Management is required, and the existing infrastructure must be validated before shipment.

STEP 2: MEMORY

Step 2a: Memory Options

For detailed information on HPE server memory options, population rules, whitepapers and optimal memory performance guidelines, please go to:

HPE Memory QuickSpecs and Technical White Papers.

Registered DIMMs DDR5 (RDIMMs)

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69726-B21

Notes: 16 GB memory can only be supported with 1DPC configurations.

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69727-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69728-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69729-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69730-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P73447-B21

Notes: The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Step 2b: Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes:

- DIMM blank used in empty memory slots to help maintain proper system airflow.

- DIMM blanks are optional and are not required.

STEP 3: SMART CHASSIS

Smart Chassis is a feature in One Config Advanced (OCA) that automatically selects the required cable kits based on the chosen drive cages and storage controllers.

Notes:

- Internal Storage Cable Kits are not part of the Smart Chassis selection.

- After completing your Smart Chassis configuration, set the Smart Chassis quantity to 1. OCA will automatically select the required cables, which will appear under Storage Devices (Step 5) > Internal Storage Controller Cables.

- No manual cable selection is required.

Follow the steps below to configure your Smart Chassis:

3a. Top-Selling Smart Chassis Configurations (Optional)

Notes:

- These configurations represent the most commonly ordered customer setups.

- Selecting a top-selling configuration will automatically pre-populate:

• Drive cage(s).
• Direct Attach FIO Bundle Kit (If applicable).
• Riser card(s).
• Riser accessories.
• Storage controller.

- You can modify any of these selections or adjust quantities as needed.

3b: Drive Cage(s)

HPE ProLiant Compute DL3XX Gen12 8SFF x1 U.3 Tri-Mode Drive Cage Kit

P75740-B21

Notes:

- Adds an 8SFF U.3 x1 tri-mode cage for SAS, SATA, or NVMe drives when connected to an MR tri-mode controller.

- Available with SFF and EDSFF CTO Server models only.

HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit

P75741-B21

Notes:

- Adds an 8SFF U.3 x4 cage for higher-bandwidth NVMe storage, either direct-attached to the processors or connected to a tri-mode controller.

- Supported connection: x4 (Higher PCIe bandwidth) and x2 (Reduced PCIe Bandwidth).

- Available with SFF and EDSFF CTO Server models only.

HPE ProLiant Compute DL3XX Gen12 Multipurpose Drive Cage Kit

P76449-B21

Notes:

- Adds the multipurpose cage in Box 2 so the server can host front NS204i-u, front OCP NICs, and/or a 4EDSFF drive cage.

- Available with SFF and EDSFF CTO Server models only.

HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit

P76450-B21

Notes:

- Adds a 4EDSFF drive cage that fits inside the multipurpose cage.

- Available with SFF and EDSFF CTO Server models only.

HPE ProLiant Compute DL3XX Gen12 Rear 2SFF U.3 HDD Stacking Drive Cage Kit

P74743-B21

Notes:

- Replaces Tertiary riser position with rear stacked 2SFF U.3 drive cage above the power supplies.

- Available with all CTO  Server models.

HPE ProLiant Compute DL380 Gen12 2SFF Rear Primary/Secondary Riser Cage Kit

P74734-B21

Notes:

- Replaces a primary or secondary riser position with a rear 2SFF cage while retaining one PCIe slot in that riser position.

- Available with SFF and 24SFF CTO Server models only.

HPE ProLiant Compute DL3XX Gen12 SFF Universal Media Bay Kit

P74749-B21

Notes:

- Converts Box 1 into the Universal Media Bay, adding support for front Display Port, two front USB 2.0 ports, an internal optical drive, and the optional front 2SFF cage.

- Available with SFF CTO Server model only.

HPE ProLiant Compute DL3XX Gen12 Front SFF for 2SFF Enablement U.3 HDD Front Cage Kit

P75807-B21

Notes:

- Adds a front stacked 2SFF U.3 cage in the Universal Media Bay for two front SFF drives.

- Available with SFF CTO Server model only.

HPE ProLiant Compute Gen12 12EDSFF Drive Cage Kit

P74738-B21

Notes:

- Adds a 12EDSFF drive cage for high-density front EDSFF NVMe storage.

- Available with EDSFF CTO Server model only.

HPE ProLiant Compute DL3XX Gen12 Front LFF for 2SFF Enablement Side-by-Side U.3 HDD Front Cage Kit

P74744-B21

Notes:

- Adds a front side-by-side 2SFF U.3 cage for 8LFF CTO server model

- Available with 8LFF CTO Server model only

HPE ProLiant Compute DL380 Gen12 2LFF Rear Primary Drive Cage Kit

P74746-B21

Notes:

- Adds a rear 2LFF drive cage in the primary rear cage position in place of the primary riser.

- Available with 8LFF and 12LFF CTO Server models only.

HPE ProLiant Compute DL380 Gen12 2LFF Rear Secondary Drive Cage Kit

P76875-B21

Notes:

- Adds a rear 2LFF drive cage in the secondary rear position in place of the secondary riser.

- Available with 8LFF and 12LFF CTO Server models only.

HPE ProLiant Compute DL380 Gen12 2LFF Rear/Tertiary Drive Cage Kit

P75411-B21

Notes:

- Adds a rear 2LFF drive cage together with the special tertiary-riser arrangement used for LFF rear expansion.

- Available with 8LFF and 12LFF CTO Server models only.

HPE ProLiant Compute DL380 Gen12 4LFF SAS/SATA LP Midplane Drive Cage Kit

P74741-B21

Notes:

- Adds a 4LFF midplane cage above the processors for extra internal LFF storage.

- Available with 8LFF and 12LFF CTO Server models only.

- Requires 1U Heatsink.

3c. Define connectivity for x4-capable drive cages, if applicable

This may apply to configurations such as 8SFF x4 or applicable EDSFF x4 configurations presented in OCA.

These configurations may support both x4 and x2 PCIe connectivity:

- x4 connection: Higher PCIe bandwidth, preferred for performance-sensitive workloads.

- x2 connection: Reduced PCIe bandwidth, used where required by the selected configuration.

Select the appropriate Controller x4 or Controller x2 option based on the desired performance and configuration requirements.

For direct attach configurations, select the applicable Direct Attach FIO Bundle Kit so OCA can add the correct cable kits.

Notes:

- Cable Kits are not part of the Smart Chassis selection.

- After completing your Smart Chassis configuration, set the Smart Chassis quantity to 1. OCA will automatically select the required cables, which will appear under Storage Devices (Step 5) → Internal Storage Controller Cables.

- No manual cable selection is required.

HPE ProLiant Compute DL380 Gen12 8SFF x4 1P Direct Attach FIO Bundle Kit

P78070-B21

Notes:

- Factory bundle that configures a single 8SFF x4 direct-attach storage cage in the 1-processor layout and includes the required high-performance fan kit and cabling.

- Available for SFF CTO Server configurations with 1 or 2 processors.

Bundle components:

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P77489-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2/3 Cable Kit).

HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Balanced FIO Bundle Kit

P78047-B21

Notes:

- Factory bundle that configures a single 8SFF x4 direct-attach storage cage in balanced 2-processor mode and includes the required high-performance fan kit and cabling.

- Available for SFF CTO Server configurations with 2 processors only.

Bundle components:

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P76462-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2 Cable Kit).

HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Multiple Purpose Cage FIO Bundle Kit

P78058-B21

Notes:

- Factory bundle that configures a single 8SFF x4 direct-attach storage cage with the multi-purpose cage and includes the required high-performance fan kit, front 4EDSFF support, front NS204i-u boot device support, front OCP enablement, and cabling.

- Available for SFF CTO Server configurations with 2 processors only.

Bundle components:

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P76468-B21 (HPE ProLiant Compute DL380 Gen12 Front 8SFF x4 Direct Attach Box 1/3 Cable Kit).

- P76449-B21 (HPE ProLiant Compute DL380 Gen12 Multi-purpose Cage Kit).

- 4EDSFF support: P76450-B21 (HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit) + P77476-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF Front Cable Kit).

- NS204i-u front boot support: P74759-B21 (HPE ProLiant Compute Gen12 NS204i-u Front Hot Plug Enablement Kit) + one supported HPE NS204i-u V2 Hot Plug Boot Optimized Storage Device.

- Front OCP support: P74757-B21 (HPE ProLiant Compute Gen12 Front Primary OCP Box2 Bay9 Enablement Kit) + P74758-B21 (HPE ProLiant Compute Gen12 Front Secondary OCP Box2 Bay11 Enablement Kit) to enable two front OCP slots.

HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach UMB Multiple Purpose Cage FIO Bundle Kit

P78061-B21

Notes:

- Factory bundle that configures a single 8SFF x4 direct-attach storage cage with the Universal Media Bay and multi-purpose cage, and includes the required high-performance fan kit, front 4EDSFF support, front NS204i-u boot device support, front OCP enablement, and cabling.

- Available for SFF CTO Server configurations with 2 processors only.

Bundle components:

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P76468-B21 (HPE ProLiant Compute DL380 Gen12 Front 8SFF x4 Direct Attach Box 1/3 Cable Kit).

- P74749-B21 (HPE ProLiant Compute DL3XX Gen12 SFF Universal Media Bay Kit).

- P76449-B21 (HPE ProLiant Compute DL380 Gen12 Multi-purpose Cage Kit).

- 4EDSFF support: P76450-B21 (HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit) + P77476-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF Front Cable Kit).

- NS204i-u front boot support: P74759-B21 (HPE ProLiant Compute Gen12 NS204i-u Front Hot Plug Enablement Kit) + one supported HPE NS204i-u V2 Hot Plug Boot Optimized Storage Device.

- Front OCP support: P74757-B21 (HPE ProLiant Compute Gen12 Front Primary OCP Box2 Bay9 Enablement Kit) + P74758-B21 (HPE ProLiant Compute Gen12 Front Secondary OCP Box2 Bay11 Enablement Kit) to enable two front OCP slots.

HPE ProLiant Compute DL380 Gen12 16SFF x4 Direct Attach Balanced FIO Bundle Kit

P77931-B21

Notes:

- Factory bundle that configures two 8SFF x4 direct-attach storage cages in balanced 2-processor mode and includes the required high-performance fan kit and cabling.

Bundle components:

Qty 2:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P77489-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2/3 Cable Kit).

- P76461-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 1/2 for 2 Processors Cable Kit).

HPE ProLiant Compute DL380 Gen12 16SFF x4 Direct Attach Universal Media Bay FIO Bundle Kit

P77934-B21

Notes:

- Factory bundle that configures 16SFF x4 direct-attach storage with the Universal Media Bay and includes the required high-performance fan kit and cabling.

Bundle components:

Qty 2:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P74749-B21 (HPE ProLiant Compute DL3XX Gen12 SFF Universal Media Bay Kit).

- P77489-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2/3 Cable Kit).

- P76461-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 1/2 for 2 Processors Cable Kit).

HPE ProLiant Compute DL380 Gen12 16SFF x4 Direct Attach Multiple Purpose Cage FIO Bundle Kit

P78064-B21

Notes:

- Factory bundle that configures 16SFF x4 direct-attach storage with the multi-purpose cage, retimer cards, risers, required high-performance fan kit, front support options, and cabling.

Bundle components:

Qty 2:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P25527-B21 (HPE DL385 Gen10 Plus 12Gb NVMe 2-port Adapter).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P76449-B21 (HPE ProLiant Compute DL380 Gen12 Multi-purpose Cage Kit).

- 4EDSFF support: P76450-B21 (HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit) + P77476-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF Front Cable Kit).

- NS204i-u front boot support: P74759-B21 (HPE ProLiant Compute Gen12 NS204i-u Front Hot Plug Enablement Kit) + one supported HPE NS204i-u V2 Hot Plug Boot Optimized Storage Device.

- Front OCP support: P74757-B21 (HPE ProLiant Compute Gen12 Front Primary OCP Box2 Bay9 Enablement Kit) + P74758-B21 (HPE ProLiant Compute Gen12 Front Secondary OCP Box2 Bay11 Enablement Kit) to enable two front OCP slots.

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit).

- P48802-B21 (HPE ProLiant DL380 Gen11 2U x8/x16/x8 Secondary Riser Kit).

- P76463-B21 (HPE ProLiant Compute DL380 Gen12 16SFF x4 2x Gen4 Retimer Card Box 1/3 Cable Kit).

HPE ProLiant Compute DL380 Gen12 16SFF x2 1P Direct Attach FIO Bundle Kit

P77955-B21

Notes:

- Factory bundle that configures 16SFF direct-attach storage in x2 connection mode from processor 1 and includes the required high-performance fan kit, drive cages, and cabling.

- Available for SFF CTO Server configurations with 1 or 2 processors.

Bundle components:

Qty 2:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P77486-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x2 Direct Attach Cable Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

HPE ProLiant Compute DL380 Gen12 16SFF x2 1P Direct Attach Universal Media Bay FIO Bundle Kit

P77958-B21

Notes:

- Factory bundle that configures 16SFF direct-attach storage in x2 connection mode from processor 1 with the Universal Media Bay, and includes the required high-performance fan kit, drive cages, and cabling.

- Available for SFF CTO Server configurations with 1 or 2 processors.

Bundle components:

Qty 2:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P77486-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x2 Direct Attach Cable Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P74749-B21 (HPE ProLiant Compute DL3XX Gen12 SFF Universal Media Bay Kit).

HPE ProLiant Compute DL380 Gen12 24SFF x16/x16/x16 OCP Balanced FIO Bundle Kit

P77937-B21

Notes:

- Factory bundle that configures 24SFF x4 direct-attach storage with two Gen4 retimer cards and the associated x16 OCP and riser layout.

Bundle components:

Qty 3:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

Qty 2:

- P25527-B21 (HPE DL385 Gen10 Plus 12Gb NVMe 2-port Adapter).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit); Slot 1 unavailable.

- P51083-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Secondary Riser Kit); Slot 4 unavailable.

- Rear OCP x16 support: P72201-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotA x16 Cable Kit) + P72207-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x16 Cable Kit).

- P76463-B21 (HPE ProLiant Compute DL380 Gen12 16SFF x4 2x Gen4 Retimer Card Box 1/3 Cable Kit).

- P76462-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2 Cable Kit).

HPE ProLiant Compute DL380 Gen12 24SFF x16/x16/x16 OCP Gen4 Retimer Card FIO Bundle Kit

P77940-B21

Notes:

- Factory bundle that configures 24SFF x4 direct-attach storage with two processors, x16 OCP support, and one Gen4 retimer card. In this configuration, primary riser slots 1 and 3 are not available.

Bundle components:

Qty 3:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit).

- P48802-B21 (HPE ProLiant DL380 Gen11 2U x8/x16/x8 Secondary Riser Kit).

- P25527-B21 (HPE DL385 Gen10 Plus 12Gb NVMe 2-port Adapter).

- P77492-B21 (HPE ProLiant Compute DL380 Gen12 16SFF x4 1x Gen4 Retimer Card Box 1/3 Direct Attach Cable Kit).

- P76462-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2 Cable Kit).

- P72201-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotA x16 Cable Kit).

HPE ProLiant Compute DL380 Gen12 Tertiary Riser 24SFF x16/x16/x16 OCP Balanced FIO Bundle Kit

P77943-B21

Notes:

- Factory bundle that configures 24SFF x4 direct-attach storage in balanced 2-processor mode with x16 OCP support and two Gen4 retimer cards. In this configuration, primary riser slots 1 and 3 and secondary riser slot 5 are not available.

Bundle components:

Qty 3:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

Qty 2:

- P25527-B21 (HPE DL385 Gen10 Plus 12Gb NVMe 2-port Adapter).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit).

- P48802-B21 (HPE ProLiant DL380 Gen11 2U x8/x16/x8 Secondary Riser Kit).

- P76462-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2 Cable Kit).

- P76463-B21 (HPE ProLiant Compute DL380 Gen12 16SFF x4 2x Gen4 Retimer Card Box 1/3 Cable Kit).

- P72201-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotA x16 Cable Kit).

- P72207-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x16 Cable Kit).

HPE ProLiant Compute DL380 Gen12 24SFF x2 Direct Attach x16/x16/x16 OCP FIO Bundle Kit

P77961-B21

Notes:

- Factory bundle that configures 24SFF x2 direct-attach storage with two processors and x16 OCP support. In this configuration, primary riser slot 1 and secondary riser slot 4 operate at x8 bus width.

Bundle components:

Qty 3:

- P75741-B21 (HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit).

- P77486-B21 (HPE ProLiant Compute DL380 Gen12 8SFF x2 Direct Attach Cable Kit).

Qty 2:

- P76471-B21 (HPE ProLiant Compute DL380 Gen12 x16/x16/x16 Cable Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit); Slot 1 with x8 only.

- P51083-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Secondary Riser Kit); Slot 4 with x8 only.

- P72201-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotA x16 Cable Kit).

- P72207-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x16 Cable Kit).

HPE ProLiant Compute DL380 Gen12 12EDSFF x16/x16/x16 OCP Direct Attach PCIe FIO Bundle Kit

P77946-B21

Notes:

- Factory bundle that configures 12EDSFF x4 direct-attach storage with two processors and x16 OCP support in an EDSFF CTO Server configuration. In this configuration, primary riser slot 1 and secondary riser slot 4 operate at x8 bus width.

Bundle components:

Qty 2:

- P76471-B21 (HPE ProLiant Compute DL380 Gen12 x16/x16/x16 Cable Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P74738-B21 (HPE ProLiant Compute Gen12 12EDSFF Drive Cage Kit).

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit).

- P51083-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Secondary Riser Kit).

- P76465-B21 (HPE ProLiant Compute DL380 Gen12 12EDSFF x4 Direct Attach Box 2 Cable Kit).

- P72201-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU1 to Rear OCP SlotA x16 Cable Kit).

- P72207-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x16 Cable Kit).

HPE ProLiant Compute DL380 Gen12 12EDSFF x2 1P Direct Attach x16/x16/x16 PCIe FIO Bundle Kit

P77964-B21

Notes:

- Factory bundle that configures 12EDSFF x2 direct-attach storage from CPU1 in an EDSFF CTO Server configuration. In this configuration, primary riser slot 1 operates at x8 bus width.

- Supported with EDSFF CTO Server configurations only.

- The HPE ProLiant Compute DL380 Gen12 Primary Riser x16 FIO Bundle Kit (P78117-B21) and HPE ProLiant Compute DL380 Gen12 Secondary Riser x16 FIO Bundle Kit (P78120-B21) cannot be selected with this bundle.

Bundle components:

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P74738-B21 (HPE ProLiant Compute Gen12 12EDSFF Drive Cage Kit).

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit).

- P76471-B21 (HPE ProLiant Compute DL380 Gen12 x16/x16/x16 Cable Kit).

- P76467-B21 (HPE ProLiant Compute DL380 Gen12 12EDSFF x2 Direct Attach Box 1/2 Cable Kit).

HPE ProLiant Compute DL380 Gen12 20EDSFF x4 FIO Bundle Kit

P77949-B21

Notes:

- Factory bundle that configures 20EDSFF x4 direct-attach storage with two processors in an EDSFF CTO Server configuration. In this configuration, OCP A and OCP B operate at x8 bus width.

Bundle components:

Qty 3:

- P74738-B21 (HPE ProLiant Compute Gen12 12EDSFF Drive Cage Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P72205-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x8 Cable Kit).

- P76465-B21 (HPE ProLiant Compute DL380 Gen12 12EDSFF x4 Direct Attach Box 2 Cable Kit).

- P77490-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 1 Cable Kit).

- P77491-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 3 Cable Kit).

HPE ProLiant Compute DL380 Gen12 12EDSFF x4 Direct Attach Multiple Purpose Cage FIO Bundle Kit

P78067-B21

Notes:

- Factory bundle that configures 12EDSFF x4 direct-attach storage with the multi-purpose cage in an EDSFF CTO Server configuration.

Bundle components:

Qty 2:

- P74738-B21 (HPE ProLiant Compute Gen12 12EDSFF Drive Cage Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P76449-B21 (HPE ProLiant Compute DL380 Gen12 Multi-purpose Cage Kit).

- P76450-B21 (HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit).

- P77476-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF Front Cable Kit).

- P48803-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit).

- P51083-B21 (HPE ProLiant DL380 Gen11 2U x16/x16/x16 Secondary Riser Kit).

- P77490-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 1 Cable Kit).

- P77491-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 3 Cable Kit).

- NS204i-u front boot support: P74759-B21 (HPE ProLiant Compute Gen12 NS204i-u Front Hot Plug Enablement Kit) + P78279-B21 (HPE NS204i-u V2 Hot Plug Boot Optimized Storage Device).

- One front OCP slot: P74757-B21 (HPE ProLiant Compute Gen12 Front Primary OCP Box2 Bay9 Enablement Kit).

- Two front OCP slots: P74757-B21 (HPE ProLiant Compute Gen12 Front Primary OCP Box2 Bay9 Enablement Kit)+ P74758-B21 (HPE ProLiant Compute Gen12 Front Secondary OCP Box2 Bay11 Enablement Kit).

HPE ProLiant Compute DL380 Gen12 36EDSFF x4 Direct Attach x8/x8 OCP SlotA FIO Bundle Kit

P77952-B21

Notes:

- Factory bundle that configures 36EDSFF x4 direct-attach storage with two processors and paddle cards in an EDSFF CTO Server configuration. In this configuration, primary, secondary, and tertiary riser slots are not available, and OCP A and OCP B operate at x8 bus width.

Bundle components:

Qty 3:

- P74738-B21 (HPE ProLiant Compute Gen12 12EDSFF Drive Cage Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P72205-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x8 Cable Kit).

- P76465-B21 (HPE ProLiant Compute DL380 Gen12 12EDSFF x4 Direct Attach Box 2 Cable Kit).

- P77490-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 1 Cable Kit).

- P77491-B21 (HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 3 Cable Kit).

- P83356-B21 (HPE ProLiant Compute DL380 Gen12 Primary Riser Paddle Card FIO Kit).

- P80997-B21 (HPE ProLiant Compute DL380 Gen12 Secondary Riser Paddle Card FIO Kit).

HPE ProLiant Compute DL380 Gen12 36EDSFF x2 Direct Attach 2xOCP x8 FIO Bundle Kit

P77967-B21

Notes:

- Factory bundle that configures 36EDSFF x2 direct-attach storage with two processors and OCP x8 support in an EDSFF CTO Server configuration.

Bundle components:

Qty 3:

- P74738-B21 (HPE ProLiant Compute Gen12 12EDSFF Drive Cage Kit).

Qty 1:

- P48820-B21 (HPE ProLiant DL380/DL560 Gen11 2U High Performance Fan Kit).

- P72205-B21 (HPE ProLiant Compute DL3XX/ML350 Gen12 CPU2 to Rear OCP SlotB x8 Cable Kit).

3d. Model-X Component Removal/Replacement Setting

Notes:

- Select this SKU in the smart chassis section to build drive less configuration with SFF CTO Server.

- Selecting this SKU adds a bay blank instead of a drive cage.

HPE ProLiant Compute DL380 No Drive Configuration FIO Kit

873763-B21

3e. Riser Card(s) and Accessories

Notes: Refer to the PCIe Expansion Slot section above for detailed Riser card and accessory selection guidance.

Riser Cards

Notes:

- Review the PCIe Expansion Slots section for slot numbering, bus width, processor requirements, and riser configuration details.

- A second processor is required when selecting a secondary or tertiary riser.

- The 3x16 secondary riser and tertiary riser cannot be selected together.

HPE ProLiant DL380 Gen11 2U x16/x16/x16 Primary Riser Kit

P48803-B21

HPE ProLiant DL380 Gen11 2U x8/x16/x8 Secondary Riser Kit

P48802-B21

HPE ProLiant DL380 Gen11 2U x16/x16/x16 Secondary Riser Kit

P51083-B21

HPE ProLiant Compute DL380 Gen12 2U x8/x16 Tertiary Riser Kit

P74737-B21

HPE ProLiant Compute DL380 Gen12 2U 2x16 Tertiary Riser Kit

P76451-B21

Riser Cards Accessories

Notes: Review the PCIe Expansion Slots section for slot enablement details and configuration dependencies.

HPE ProLiant Compute DL380 Gen12 x8 Riser Enablement Cable Kit

P76471-B21

Notes:

- Required cable kit used to enable the top slot on a 3x16 primary or 3x16 secondary riser.

- Select Qty 2 with the applicable primary or secondary riser x16 FIO bundle kit.

HPE ProLiant Compute DL380 Gen12 Primary Riser x16 FIO Bundle Kit

P78117-B21

Notes: Factory Integrated Only bundle used with Qty 2 of P76471-B21 to enable Slot 1 on the 3x16 primary riser at x16 from processor 1.

HPE ProLiant Compute DL380 Gen12 Secondary Riser x16 FIO Bundle Kit

P78120-B21

Notes: Factory Integrated Only bundle used with Qty 2 of P76471-B21 to enable Slot 4 on the 3x16 secondary riser at x16 from processor 2.

3f. Storage Controller

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

HPE MR408i-p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug-in Storage Controller

P74775-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

HPE DL385 Gen10 Plus 12Gb NVMe 2-port Adapter

P25527-B21

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

Notes: The MR932i-p controller supports SAS and NVMe SSDs only. It does not support HDDs.

3g. Finalize Smart Chassis Selection

Once configuration is complete, set Smart Chassis quantity = 1.

STEP 4: AMBIENT TEMPERATURE

Notes:

- Only one ambient temperature configuration tracking SKU can be selected.

- Ambient temperature selection may impact the availability of thermally sensitive options, including select GPUs and high-speed networking adapters.

- Selecting a higher ambient temperature may restrict options that are supported only at lower ambient temperature selections.

- Final configuration support must be validated in HPE One Config Advanced.

HPE ProLiant Compute 30C Maximum Recommended Ambient Temperature Configuration Tracking

P79552-B21

HPE ProLiant Compute 27C Maximum Recommended Ambient Temperature Configuration Tracking

P79555-B21

HPE ProLiant Compute 25C Maximum Recommended Ambient Temperature Configuration Tracking

P79558-B21

HPE ProLiant Compute 23C Maximum Recommended Ambient Temperature Configuration Tracking

P79561-B21

HPE ProLiant Compute 20C Maximum Recommended Ambient Temperature Configuration Tracking

P79564-B21

HPE ProLiant Compute 18C Maximum Recommended Ambient Temperature Configuration Tracking

P79567-B21

STEP 5: STORAGE DEVICES

Smart Storage Battery

Notes:

- Smart storage battery is required when an MR416 or MR408 internal storage controller is selected.

- Smart storage battery is not required with the MR932i-p controller because battery backup is integrated with the controller.

- Max 1 of Smart storage battery can be selected per server.

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

HPE 16W Smart Hybrid Capacitor with 145mm Cable

P65038-B21

Internal Storage Controller Cables

Notes:

- After completing your Smart Chassis configuration, OCA will automatically select the required cables.

- No manual cable selection is required.

HPE ProLiant DL360 Gen11 Storage Controller Enablement Cable Kit

P48918-B21

HPE ProLiant Compute DL380 Gen12 8SFF/2SFF UMB OROC Cable Kit

P76452-B21

HPE ProLiant Compute DL380 Gen12 8SFF/2SFF UMB PCIe Cable Kit

P76453-B21

HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 1 for 2 Processors Cable Kit

P76461-B21

HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2 Cable Kit

P76462-B21

HPE ProLiant Compute DL380 Gen12 8SFF x4 Direct Attach Box 2/3 for 1P Cable Kit

P77489-B21

HPE ProLiant Compute DL380 Gen12 8SFF x2 Direct Attach Cable Kit

P77486-B21

HPE ProLiant Compute DL380 Gen12 Front 8SFF x4 Direct Attach Box 1/3 Cable Kit

P76468-B21

HPE ProLiant Compute DL380 Gen12 8SFF x4 PCIe for 2 Controllers Box 1/2 Cable Kit

P77488-B21

HPE ProLiant Compute DL380 Gen12 8SFF x2 PCIe Box 2 Controller Cable Kit

P76456-B21

HPE ProLiant Compute DL380 Gen12 OROC 8SFF x2 Controller Cable Kit

P76454-B21

HPE ProLiant Compute DL380 Gen12 16SFF x4 2x Gen4 Retimer Card Box 1/3 Cable Kit

P76463-B21

HPE ProLiant Compute DL380 Gen12 36EDSFF x2 Direct Attach Cable Kit

P76464-B21

HPE ProLiant Compute DL380 Gen12 12EDSFF x4 Direct Attach Box 2 Cable Kit

P76465-B21

HPE ProLiant Compute DL380 Gen12 12EDSFF x2 Direct Attach Box 1/2 Cable Kit

P76467-B21

HPE ProLiant Compute DL380 Gen12 8LFF PCIe Controller Box 2/3 Cable Kit

P76473-B21

HPE ProLiant Compute DL380 Gen12 8LFF OROC Box 2/3 Cable Kit

P76474-B21

HPE ProLiant Compute DL380 Gen12 2SFF x4 PCIe Box 6 Cable Kit

P76475-B21

HPE ProLiant Compute DL380 Gen12 2SFF x4 U.3 Side-by-Side Cable Kit

P76476-B21

HPE ProLiant Compute DL380 Gen12 8LFF PCIe Box 1/7 Cable Kit

P77474-B21

HPE ProLiant Compute DL380 Gen12 8LFF OROC Box 1/7 Cable Kit

P77475-B21

HPE ProLiant Compute DL380 Gen12 4EDSFF Front Cable Kit

P77476-B21

HPE ProLiant Compute DL380 Gen12 2SFF x4 OROC Box 6 OCP SlotB Cable Kit

P77477-B21

HPE ProLiant Compute DL380 Gen12 2SFF HDD Stacking Drive Direct Attach Cable Kit

P77478-B21

HPE ProLiant Compute DL380 Gen12 OROC 2SFF U.3 Side-by-Side Cable Kit

P77480-B21

HPE ProLiant Compute DL380 Gen12 2SFF U.3 Side-by-Side Direct Attach Cable Kit

P77481-B21

HPE ProLiant Compute DL380 Gen12 2SFF Rear PCIe Cable Kit

P77482-B21

HPE ProLiant Compute DL380 Gen12 2SFF Rear OROC Cable Kit

P77483-B21

HPE ProLiant Compute DL380 Gen12 2LFF Rear PCIe Cable Kit

P77484-B21

HPE ProLiant Compute DL380 Gen12 2LFF Rear OROC Cable Kit

P77485-B21

HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 1 Cable Kit

P77490-B21

HPE ProLiant Compute DL380 Gen12 4EDSFF x4 Direct Attach Box 3 Cable Kit

P77491-B21

HPE ProLiant Compute DL380 Gen12 16SFF x4 1x Gen4 Retimer Card Box 1/3 Direct Attach Cable Kit

P77492-B21

HPE ProLiant Compute DL380 Gen12 2SFF x4 Direct Attach Box 6 Cable Kit

P77493-B21

HPE ProLiant DL380/DL560 Gen11 2U GPU Power Cable Kit

P56072-B21

HPE ProLiant Compute DL380 Gen12 Secondary Riser Paddle Card FIO Kit

P80997-B21

HPE ProLiant Compute DL380 Gen12 Primary Riser Paddle Card FIO Kit

P83356-B21

Notes: The Riser Padder Card Kits (P83356-B21 & P83356-B21) are offered to configure up to 36 EDSFF drives as x4 direct attach.

HPE ProLiant Compute DL380 Gen12 MR932i-p 8SFF x4 Cable Kit

P83800-B21

HPE ProLiant Compute DL380 Gen12 MR932i-p 8SFF x2 Cable Kit

P83801-B21

HPE ProLiant Compute DL380 Gen12 MR932i-p 8SFF x1 Cable Kit

P84481-B21

HPE ProLiant Compute DL380 Gen12 12EDSFF Power Cable Kit

P87968-B21

HPE ProLiant Compute DL380 Gen12 MR932i-p 4EDSFF x4 Signal Cable Kit

P83798-B21

HPE ProLiant Compute DL380 Gen12 MR932i-p 4EDSFF x2 Signal Cable Kit

P83799-B21

HPE ProLiant Compute DL380 Gen12 MR932i-p Rear 2SFF Box 4/5 Cable Kit

P87235-B21

HPE ProLiant Compute DL380 Gen12 MR932i-p Rear 2SFF Box 6 Cable Kit

P87236-B21

HPE ProLiant Compute DL380 Gen12 12EDSFF Controller Attach Rear GPU FIO Bundle Kit

P87692-B21

Hard Disk Drives

Mission Critical - 12G SAS - SFF Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

Business Critical - 12G SAS - LFF Drives

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68583-B21

HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80577-B21

Business Critical - 6G SATA - LFF Drives

HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80578-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-B21

Solid State Drives

Notes: For SSD selection guidance, please visit https://ssd.hpe.com/

Read Intensive - NVMe - EDSFF - Solid State Drives

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85739-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85741-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85743-B21

HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD

P85745-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91090-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91092-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91094-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91096-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91229-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91231-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD

P91233-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD

P78914-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD

P78921-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD

P78917-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD

P78919-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD

P79965-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P79122-B21

Mixed Use - NVMe - EDSFF - Solid State Drives

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85731-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85733-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD

P85735-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91084-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91086-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91088-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91098-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91100-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD

P91102-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78784-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78787-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

Read Intensive   - SAS - SFF - Solid State Drives

HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83347-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

Mixed Use -SAS - SFF - Solid State Drives

HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83344-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

Mixed Use - 12G SAS - LFF -Solid State Drives

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Read Intensive - 6G SATA - LFF - Solid State Drives

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Read Intensive - NVMe - SFF - Solid State Drives

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85668-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85670-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85672-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85674-B21

HPE 30.72TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD

P85676-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91243-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91245-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91247-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91249-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78808-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78810-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21
