HPE ProLiant Compute DL340 Gen12

The HPE ProLiant Compute DL340 Gen12 is powered by Intel® Xeon® 6 processors with up to 144 cores, increased memory capability (up to 4TB), and high-speed PCIe Gen5. The DL340 Gen12 SP server is a great 2U single socket performance solution driving better datacenter efficiency.

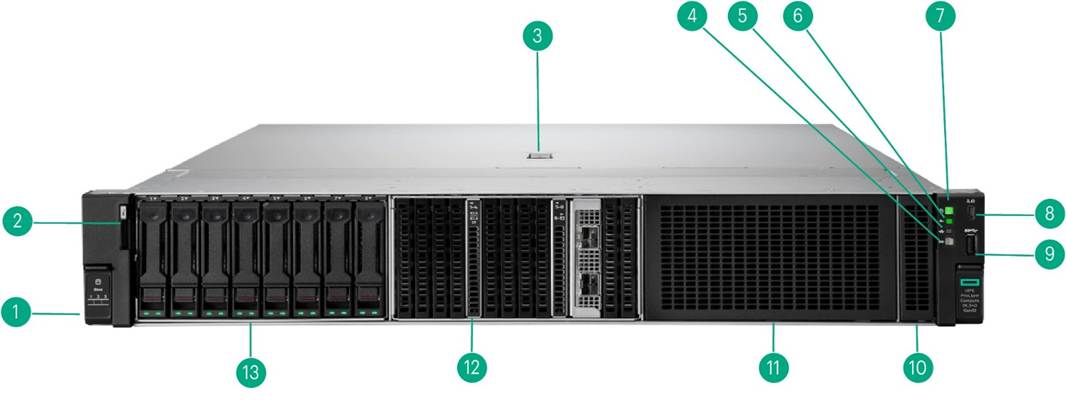

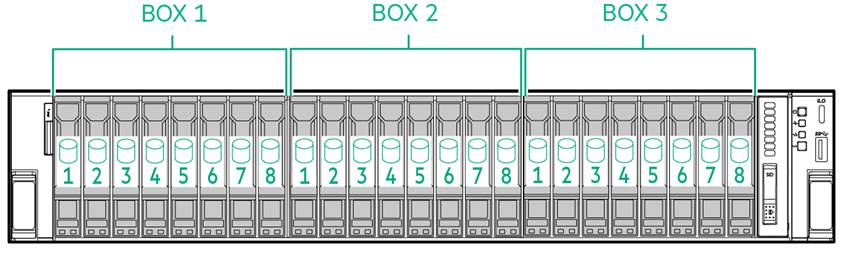

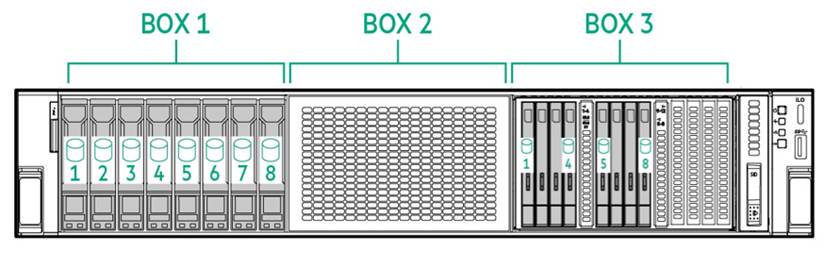

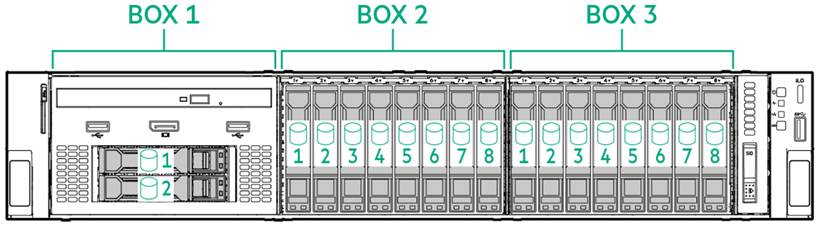

Front View - SFF chassis with optional  EDSFF blank, OCP, and Drive Bay blank shown

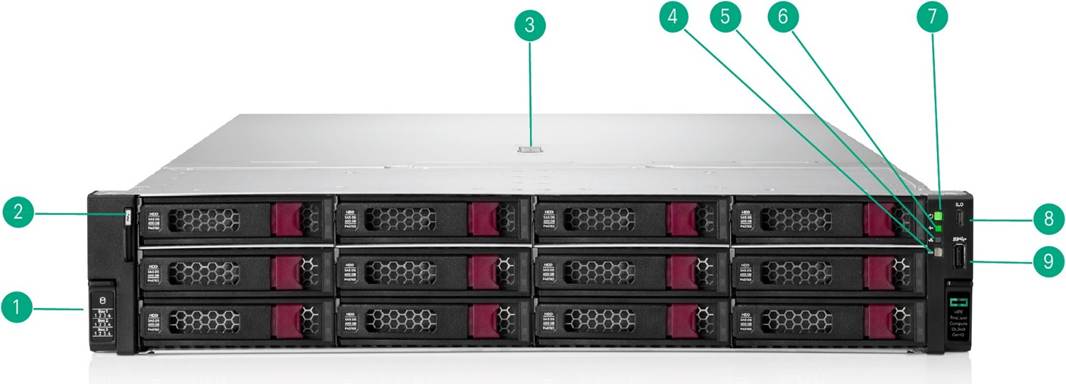

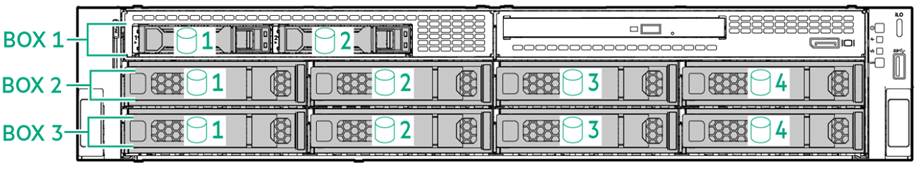

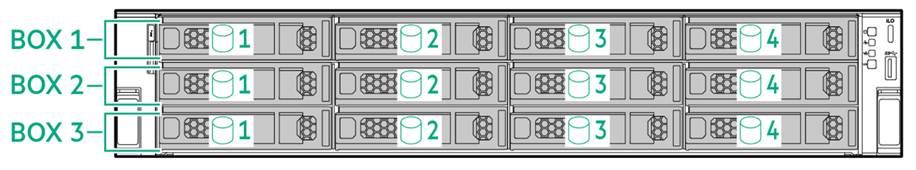

Front View - LFF chassis

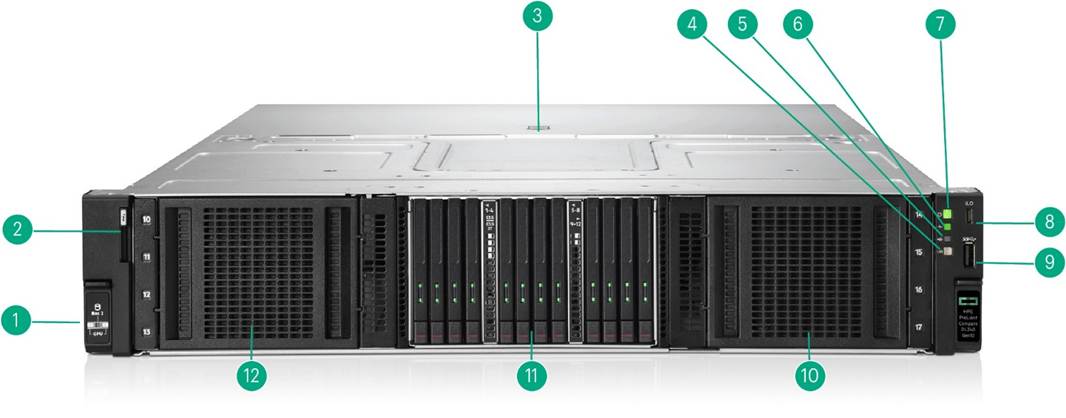

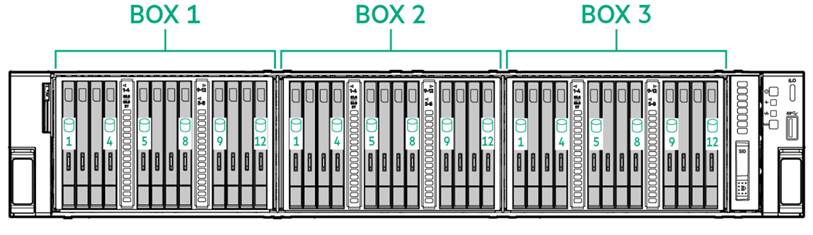

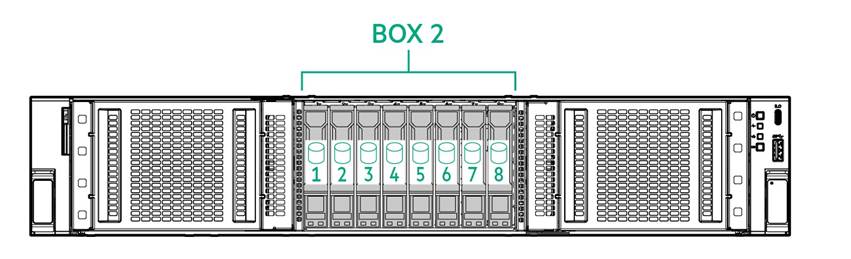

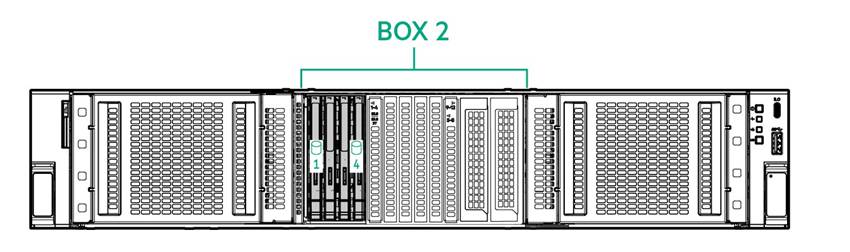

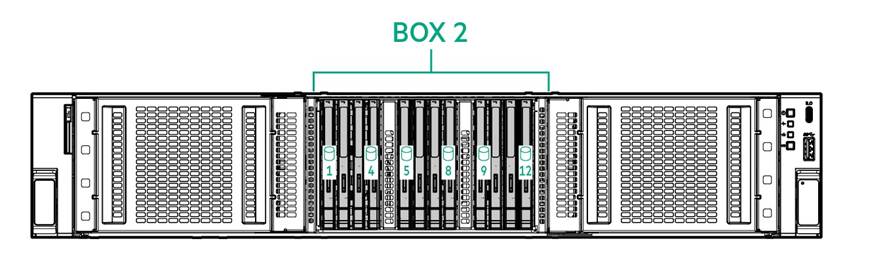

Front View - GPU chassis

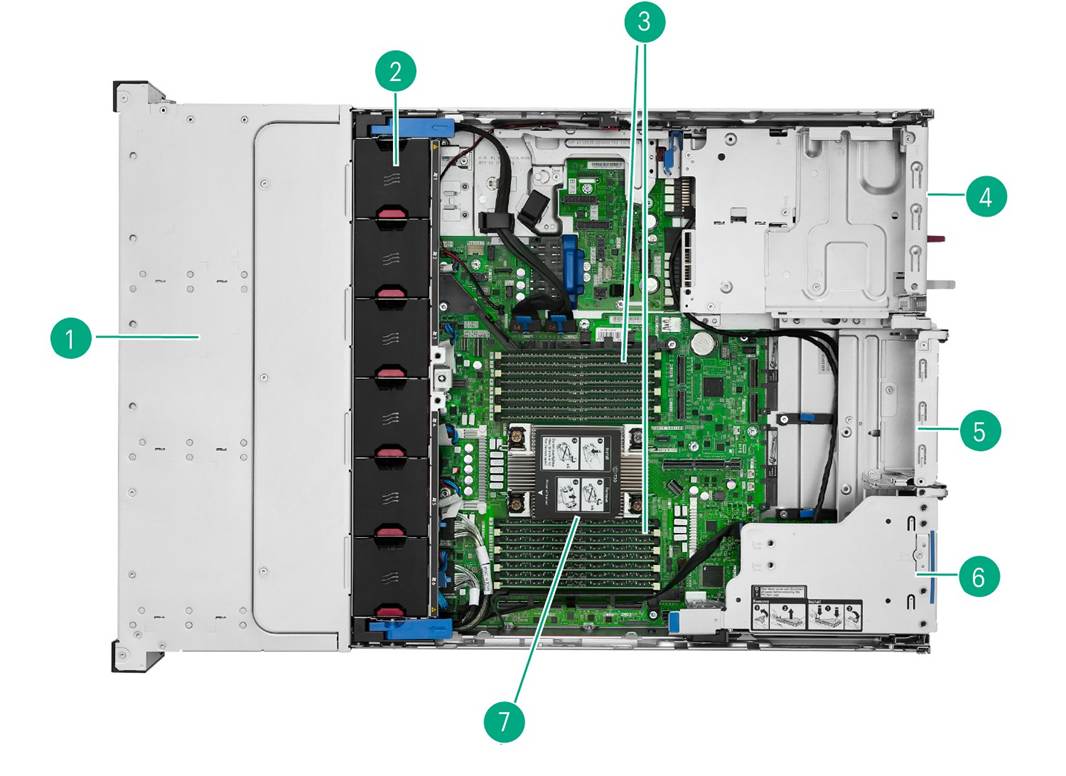

Internal View - SFF chassis

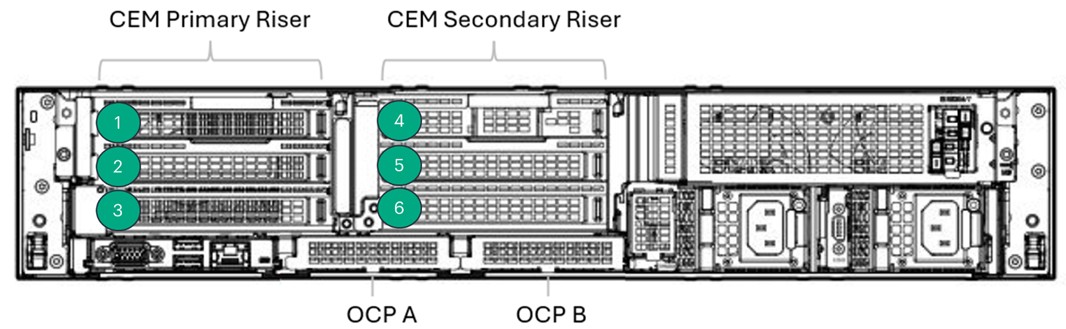

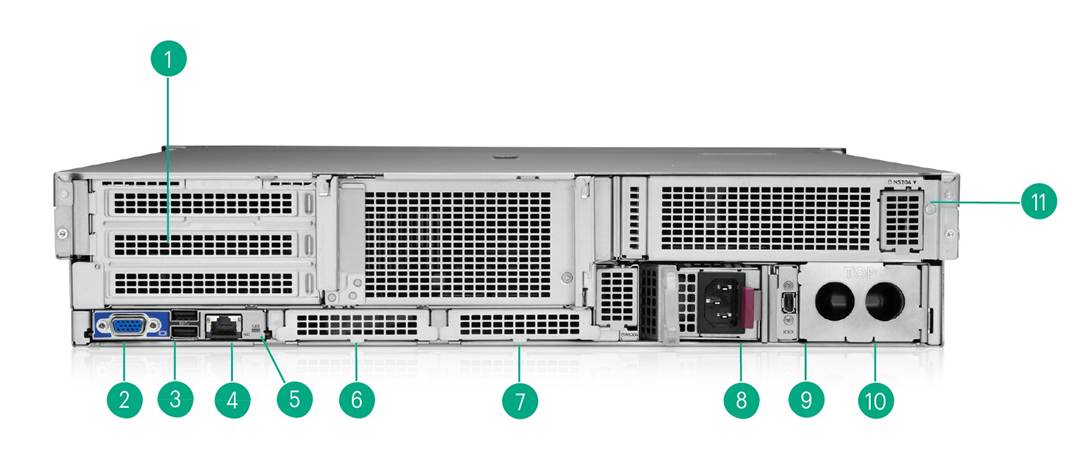

Rear View - SFF chassis

What's New

- All-New DL340 Gen12 server.

- Intel® Xeon® 6 Processors:

• Single Socket / RICH I/O Processor support (i.e., 136 PCIe lanes).

- Data Center - Modular Hardware System (DC-MHS) design.

- Modular - Common Redundant Power Supply (M-CRPS) design.

- OCP 3.0 (Front and Rear).

- NS204i-u front install option based on configuration.

- DDR5 6400 MT/s memory.

Platform Information

Form Factor

- 2U rack.

Chassis Types

- 8 SFF (P71452-B21) with optional:

• Front OCP Cage Kit.
• Optical Disk Drive.
• Front / Rear OS Boot Device support.
• EDSFF Front Cage supporting up to 36EDSFF drives.

- 12 LFF (P75727-B21) with optional:

• Optical Disk Drive.

- Front GPU (P75728-B21) with optional:

• Front OCP Cage Kit.
• Front / Rear OS Boot Device support.
• 8SFF Front Cage Kit.
• 12EDSFF Front Cage Kit.

System Fans (6 fans required)

Choice of Standard or Performance Fan Kit:

- HPE ProLiant DL3X5 Gen11 2U Standard Fan Kit (P58464-B21), Kit includes (1) fan, (6) required.

- HPE ProLiant DL3X5 Gen11 2U Performance Fan Kit (P58465-B21), Kit includes (1) fan, (6) required.

Notes:

- The High-Performance fan kit is required for GPU CTO server.

- The High-Performance fan kit is required for NEBS configurations.

- Standard & performance fans cannot be mixed.

Memory

Type

HPE DDR5 Smart Memory

Registered (RDIMM)

DIMM Slots Available

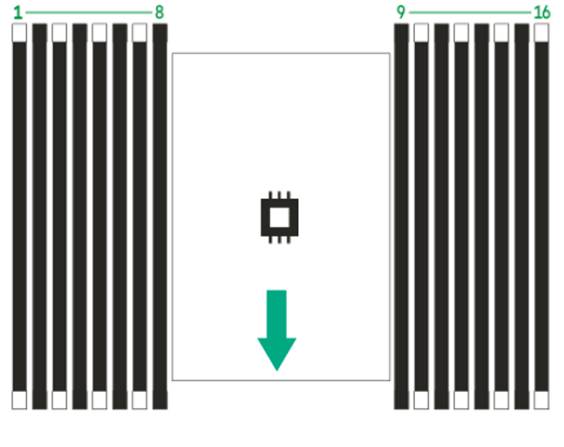

16 DIMM Slots, 8 channels, 2 DIMMs per channel.

Maximum capacity (RDIMM)

4TB

16 x 256 GB RDIMM 6400 MT/s @ 1 DPC and 5200 MT/s @ 2 DPC

Expansion Slots #

Technology

Bus Width

Connector Width

1 Rear OCP A (OCP 3.0) embedded

1 Rear OCP B (OCP 3.0) optional

2 Front (OCP3.0) optional (1) w/NCSI support

PCIe 5.0

x16

x16

Chassis

Drive Type

Drive Capacity

Total Storage

HPE DL340 Gen12 SFF CTO Server

SFF SAS HDD

2.4 TB

57.6 TB (24 x 2.4TB)

HPE DL340 Gen12 SFF CTO Server

SFF SATA SSD

3.84 TB

92.2 TB (24 x 3.84 TB)

HPE DL340 Gen12 SFF CTO Server

SFF SAS SSD

15.36 TB

368.6 TB (24 x 15.36 TB)

HPE DL340 Gen12 SFF CTO Server / EDSFF Drive Cage

SFF NVMe

15.36 TB

552.9 TB (36 x 15.36 TB)

HPE DL340 Gen12 LFF CTO Server

SFF SATA HDD

24 TB

288 TB (12 x 24 TB)

HPE DL340 Gen12 LFF CTO Server

SFF SAS HDD

24 TB

288 TB (12 x 24 TB)

HPE DL340 Gen12 Front GPU CTO Server

SFF SATA SSD

3.84 TB

30.7 TB (8 x 3.84 TB)

HPE DL340 Gen12 Front GPU CTO Server

SFF SAS SSD

15.36 TB

122.8 TB (8 x 15.36 TB)

HPE DL340 Gen12 Front GPU CTO Server / EDSFF Drive Cage

SFF NVMe

15.36 TB

184.3 TB (12 x 15.36 TB)

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template-driven approach to

provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9, Gen10 & Gen10 Plus servers. To learn more visit http://www.hpe.com/info/oneview.

HPE InfoSight for Servers

HPE InfoSight for Servers combines the cloud-based machine learning of InfoSight with the health and performance monitoring of Active Health System (AHS) and iLO to optimize performance and predict and prevent problems. The result is an intelligent environment that modernizes IT operations and enhances the support experience by predicting and preventing the infrastructure issues that lead to application disruptions, wasted IT staff time and missed business opportunities. Learn more at https://www.hpe.com/servers/infosight

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages. HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They intend to provide simple starting points to assist you in easily creating and customizing your desired Server solutions. HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.

Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer's specific workload.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options. Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled 30% faster than non-Mainstream orders, have fewer shortages, and better recovery dates. This platform has Mainstream SKUs in the options portfolio and is eligible for an improved Mainstream experience.

Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations. All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability, and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.

European Union ErP Lot 9 Regulation

Switzerland must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE Flexible Slot power supplies are single-output, and part numbers 865438-B21, P03178-B21, and P44712-B21 are 96% efficient, thus meeting requirements.

HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

This section lists the steps required to configure a Factory Integrated Model. To ensure only valid configurations are

ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales

representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- Factory Integrated Option (FIO) indicates that this option is only available as a factory installable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives.

- ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- FIO indicates that this option is only available as a factory installable option.

- All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration - choose one (1) of the following three (3) configurable server models from the table below.

Step 2: Choose Core Options

- Choice of 1 Processor model and Heat Sink Kit:

• Requires necessary Heat Sink for different processor wattage.

- Choice of DDR5 memory options:

• Requires necessary Fan Kits for different memory configurations and subjects to the recommended system ambient temperature.

- Choice of Backplane / Drive cage / Enablement kit.

- Choice of Riser Cards.

- Choice of Storage Controllers, and Storage Controller Cables.

- Choice of SSD, HDD, and Optical Drives.

- Choice of OS Boot Devices, Intel® VROC.

- Choice of Networking options:

• PCIe standup or OCP 3.0. Requires necessary Fan Kits and subjects to the recommended system ambient

temperature.

- Choice of Accelerator options.

- Choice of Power and Cooling options.

- Choice of Management Options.

Step 3: Choose Additional Options

- Choice of Security options.

- Choice of Software as a Service Management - HPE Compute Ops Management and HPE OneView.

- Choice of Embedded Management.

- Choice of Rail Kits.

- Choice of Rack options.

- Choice of Support Services.

Step 2: Choice of Core Options

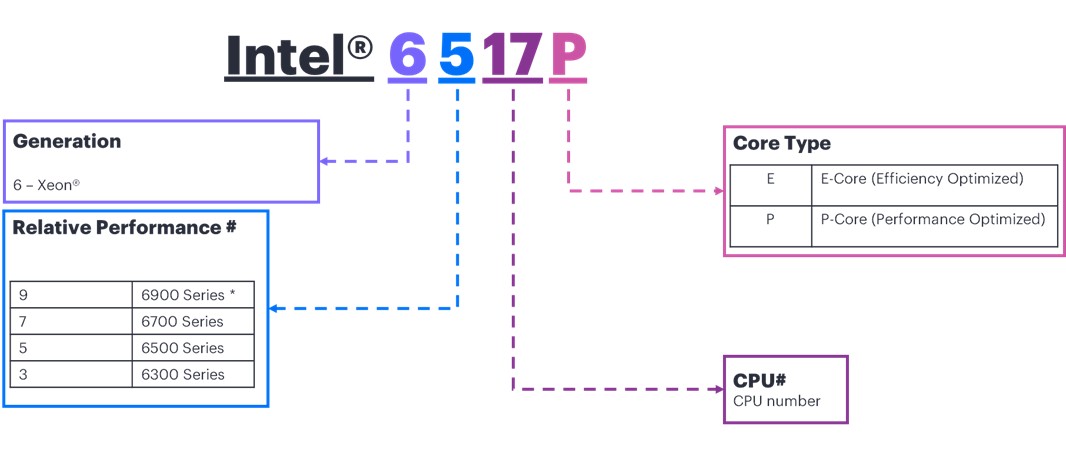

Processor - Select one of the below processors.

Intel® Xeon 6® Efficient-Core (E-Core) Performance per Watt Processors

Intel Xeon 6710E 2.4GHz 64-core 205W Processor for HPE

P71117-B21

Intel Xeon 6731E 2.2GHz 96-core 250W Processor for HPE

P71118-B21

Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE

P71119-B21

Intel Xeon 6746E 2.0GHz 112-core 250W Processor for HPE

P71120-B21

Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE

P71121-B21

Intel Xeon 6766E 1.9GHz 144-core 250W Processor for HPE

P71122-B21

Intel® Xeon 6® Efficient-Core (E-Core) Performance Processors

Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE

P71124-B21

Intel® Xeon 6® Performance-Core (P-Core) Processors

Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE

P74504-B21

Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE

P74507-B21

Intel Xeon 6725P 3.7GHz 16-core 235W Processor for HPE

P87302-B21

Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE

P74570-B21

Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE

P74573-B21

Intel Xeon 6732P 3.8GHz 32-core 350W Processor for HPE

P74578-B21

Intel Xeon 6736P 2.0GHz 36-core 205W Processor for HPE

P74575-B21

Intel Xeon 6737P 2.9GHz 32-core 270W Processor for HPE

P74576-B21

Intel Xeon 6745P 3.1GHz 32-core 300W Processor for HPE

P81591-B21

Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE

P73831-B21

Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE

P73834-B21

Intel Xeon 6774P 2.5GHz 64-core 350W Processor for HPE

P87298-B21

Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE

P73837-B21

Intel® Xeon 6® Mainline Processors

Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE

P74503-B21

Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE

P74506-B21

Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE

P74568-B21

Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE

P74571-B21

Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE

P73829-B21

Intel Xeon 6760P 2.2GHz 64-core 330W Processor for HPE

P73832-B21

Intel® Xeon 6® Single Socket Processors (RICH I/O)

Intel Xeon 6511P 2.3GHz 16-core 150W Processor for HPE

P74505-B21

Intel Xeon 6521P 2.6GHz 24-core 225W Processor for HPE

P74569-B21

Intel Xeon 6731P 2.5GHz 32-core 245W Processor for HPE

P74574-B21

Intel Xeon 6741P 2.5GHz 48-core 300W Processor for HPE

P73830-B21

Intel Xeon 6761P 2.5GHz 64-core 350W Processor for HPE

P73833-B21

Intel Xeon 6781P 2.0GHz 80-core 350W Processor for HPE

P73836-B21

Memory - Please select one or more memory DIMMs from the below.

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69726-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69727-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69728-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69729-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69730-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P73447-B21

Notes:

- All SKUs below ship with one processor only. Adequate fans and heatsinks must be selected.

- High-performance fan kit required with 9 DIMMs and above.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Backplane / Drive cage / Enablement Kit

Please select from the appropriate CTO Server compatibility category (SFF, LFF, GPU CTO Server)

Compatible with HPE DL340 Gen12 SFF CTO Server

HPE ProLiant Compute DL3XX Gen12 8SFF x1 U.3 Tri-Mode Drive Cage Kit

P75740-B21

Notes: Supports up to 8 SAS/SATA/NVMe U.3 drives.

HPE ProLiant Compute DL3XX Gen12 8SFF x4 U.3 Tri-Mode Drive Cage Kit

P75741-B21

Notes: Supports up to 8 SAS/SATA/NVMe U.3 drives.

HPE ProLiant Compute DL340 Gen12 8SFF x4 U.2 NVMe Drive Cage Kit

P71465-B21

Notes: Supports up to 8 NVMe U.3 dynamic drives.

HPE ProLiant Compute DL3XX Gen12 Front SFF for 2SFF Enablement U.3 HDD Front Cage Kit

P75807-B21

Notes: Supports up to 2 NVMe U.3 drives.

HPE ProLiant Compute DL340 Gen12 8SFF Primary Front OCP Enablement Kit

P71480-B21

Notes: In SFF CTO server, if 6XX1P processor is selected along with EDSFF drive cage then 'Front OCP enable kit' can be selected only when '16EDSFF x4 R1S DA Cable Kit' is selected.

HPE ProLiant Compute DL340 Gen12 8SFF Secondary Front OCP Enablement Kit

P75768-B21

Notes: In SFF CTO server, if 6XX1P processor is selected along with EDSFF drive cage then 'Front OCP enable kit' can be selected only when '16EDSFF x4 R1S DA Cable Kit' is selected.

HPE ProLiant Compute DL3XX Gen12 Multipurpose Drive Cage Kit

P76449-B21

Notes: Required to support 4EDSFF or front OCP or front NS204i-u configurations.

HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit

P76450-B21

Notes: Supports up to 4 EDSFF drives.

HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit

P71432-B21

Compatible with HPE DL340 Gen12 LFF CTO Server

HPE ProLiant Compute Gen12 4LFF Backplane Kit

P75760-B21

Notes: Supports up to 4 LFF SAS/SATA drives.

HPE ProLiant Compute DL3XX Gen12 Front LFF for 2SFF Enablement Side-by-Side U.3 HDD Front Cage Kit

P74744-B21

Notes: Supports up to 2 NVMe U.3 drives.

HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit

P71432-B21

Compatible with HPE DL340 Gen12 Front GPU CTO Server

HPE ProLiant Compute DL3XX Gen12 Multipurpose Drive Cage Kit

P76449-B21

Notes: Required to support 4EDSFF or front OCP or front NS204i-u configurations.

HPE ProLiant Compute Gen12 4EDSFF Drive Cage Kit

P76450-B21

Notes: Supports up to 4 EDSFF drives.

HPE ProLiant Compute DL340 Gen12 Front GPU Primary Front OCP Enablement Kit

P77277-B21

HPE ProLiant Compute DL340 Gen12 Front GPU Secondary Front OCP Enablement Kit

P75767-B21

Notes:

- Primary and Secondary Front OCP Enablement Kits must be selected together.

- Cannot be selected if more than (1) 4EDSFF drive cage is selected.

HPE ProLiant Compute DL340 Gen12 Front 2x GPU Enablement Kit

P75813-B21

Notes: Not supported with Intel® Xeon 6® Single Socket Processors (6XX1P).

HPE ProLiant Compute DL340 Gen12 Front 4x GPU Enablement Kit

P75816-B21

Notes: Requires an Intel® Xeon 6® Single Socket Processor (6XX1P).

HPE ProLiant Compute DL3X0 Gen12 SP MHS Serial Port Enablement Kit

P71432-B21

Risers

HPE ProLiant Compute DL3X0 Gen12 x16 PCIe Primary Riser Kit

P71430-B21

Notes:

- For use in Slot 3 as the primary riser.

- In SFF CTO Server Slot 3 can be enabled only if 8SFF x4 DAC or 8SFF/EDSFF cable kit or 36EDSFF x2 R1S DA Cable Kit or Internal controller is selected.

HPE ProLiant Compute DL340 Gen12 Rear Captive Riser Kit

P75818-B21

Notes:

- A maximum of 2 rear captive riser kits allowed.

- Available with SFF and LFF CTO servers with Intel® Xeon 6® Single Socket Processors (6XX1P).

- Rear Captive riser cannot be selected with SFF CTO Server if OCPB cable kit is selected.

HPE ProLiant Compute DL3X0 Gen12 Secondary CEM Riser Cage Kit

P75014-B21

Notes:

- For use in Slot 6 as a secondary riser.

- Mixing with NEBS riser is not allowed.

HPE ProLiant Compute DL340 Gen12 NEBS-compliant Riser Kit

P74368-B21

Notes:

- Mixing of NEBS riser with other risers is not allowed.

- A maximum of 2 NEBS risers allowed.

- High-performance heat sink and six high-performance fan kits required.

Storage Controller - Please select a storage controller from the below list.

Drive / Interface Support Matrix

Please refer to the storage controller QuickSpecs for more detailed information:

HPE Compute MR Gen11 Controllers QuickSpecs

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Notes: These controllers support up to 16 SAS/SATA/NVMe Drives.

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Notes:

- This controller supports up to 8 SAS/SATA/NVMe Drives.

- Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Notes:

- These controllers support up to 16 SAS/SATA/NVMe Drives.

- Requires 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21) or Smart Hybrid Capacitor w/ 145mm Cable (P02377-B21).

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

Notes:

- This controller supports up to 32 SAS/NVMe Drives.
This controller comes with an onboard battery.

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Battery and Hybrid Capacitor

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

Notes: If HPE 96W Smart Stg Li-ion Batt 145mm Kit is selected then HPE Smart Hybrid Capacitor 145mm kit cannot be selected and vice versa.

Cables

Compatible with HPE DL340 Gen12 SFF CTO Server

HPE ProLiant Compute DL340 Gen12 8SFF x1 for PCIe Cable Kit

P75742-B21

HPE ProLiant Compute DL340 Gen12 8SFF x4 Direct Attach Cable Kit

P77392-B21

HPE ProLiant Compute DL340 Gen12 8SFF x4 Direct Attach Front OCP Cable Kit

P75745-B21

HPE ProLiant Compute DL340 Gen12 16SFF x4 Direct Attach Cable Kit

P75747-B21

HPE ProLiant Compute DL340 Gen12 16SFF x4 Direct Attach Front OCP Cable Kit

P75750-B21

HPE ProLiant Compute DL340 Gen12 16SFF x1 for OCP Cable Kit

P77711-B21

HPE ProLiant Compute DL340 Gen12 8SFF x2 for PCIe Cable Kit

P90988-B21

HPE ProLiant Compute DL340 Gen12 16SFF x2 for PCIe Cable Kit

P90990-B21

HPE ProLiant Compute DL340 Gen12 24SFF x2 for PCIe Cable Kit

P75752-B21

HPE ProLiant Compute DL340 Gen12 24SFF x1 for PCIe Cable Kit

P75754-B21

HPE ProLiant Compute DL340 Gen12 24SFF x4 Direct Attach Cable Kit

P75756-B21

HPE ProLiant Compute DL340 Gen12 24SFF x2 Direct Attach Cable Kit

P75758-B21

HPE ProLiant Compute DL340 Gen12 8SFF Secondary Front OCP Enablement Kit

P75768-B21

HPE ProLiant Compute DL340 Gen12 8EDSFF x4 Direct Attach Cable Kit

P75778-B21

HPE ProLiant Compute DL340 Gen12 8EDSFF Direct Attach Front OCP Cable Kit

P76584-B21

HPE ProLiant Compute DL340 Gen12 16EDSFF x4 R1S Direct Attach Cable Kit

P75784-B21

HPE ProLiant Compute DL340 Gen12 16EDSFF x4 Direct Attach Cable Kit

P76588-B21

HPE ProLiant Compute DL340 Gen12 24EDSFF x4 R1S Direct Attach Cable Kit

P75786-B21

HPE ProLiant Compute DL340 Gen12 36EDSFF x2 R1S Direct Attach Cable Kit

P75794-B21

HPE ProLiant Compute DL340 Gen12 8SFF/8EDSFF Hybrid Cable Kit

P75800-B21

HPE ProLiant Compute DL340 Gen12 Front SFF for 2SFF Enablement Cable Kit

P77394-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB for R1S MCIO Cable Kit

P75154-B21

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

HPE ProLiant Compute DL340 Gen12 8SFF Primary Front OCP Enablement Kit

P71480-B21

Compatible with HPE DL340 Gen12 LFF CTO Server

HPE ProLiant Compute DL340 Gen12 12LFF for PCIe Cable Kit

P75761-B21

HPE ProLiant Compute DL340 Gen12 Front LFF for 2SFF Enablement Cable Kit

P77395-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB for R1S MCIO Cable Kit

P75154-B21

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

Compatible with HPE DL340 Gen12 Front GPU CTO Server

HPE ProLiant Compute DL340 Gen12 Front GPU 8SFF x1 for PCIe Cable Kit

P75770-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 8SFF x4 R1S Direct Attach Cable Kit

P77397-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 8SFF x4 Direct Attach Cable Kit

P75772-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 4EDSFF Direct Attach Cable Kit

P75774-B21

HPE ProLiant Compute DL340 Gen12 Front GPU 12EDSFF Direct Attach Cable Kit

P75776-B21

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

HPE Drives

Solid State Drives

For SSD selection guidance, please visit https://ssd.hpe.com/

Please refer to the HPE Solid State Disk Drives QuickSpecs for more detailed information:

HPE Solid State Disk Drives QuickSpecs

Read Intensive - 24G SAS - SFF

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

Mixed Use - 24G SAS - SFF

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

Read Intensive - 12G SAS - SFF

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80577-B21

Mixed Use - 12G SAS - SFF

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

Mixed Use - 12G SAS - LFF

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Read Intensive - 6G SATA - SFF

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80578-B21

Mixed Use - 6G SATA - SFF

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

Read Intensive - 6G SATA - LFF

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Read Intensive - NVMe - SFF

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

Mixed Use - NVMe - SFF

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

Read Intensive - NVMe - EDSFF E3.S 1T

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

Mixed Use - NVMe - EDSFF E3.S 1T

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

Very-Read-Optimized - NVMe - EDSFF E3.S 1T

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

SED (Self-Encryption Drive) - SATA SFF

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

SED (Self-Encryption Drive) - NVMe - SFF

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

Hard Disk Drive

Please refer to the HPE Hard Disk Drives QuickSpecs for more detailed information:

HPE Hard Disk Drives QuickSpecs

Mission Critical / Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

Business Critical / Midline - 12G SAS - LFF Drives

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68583-B21

Business Critical / Midline - 6G SATA - LFF Drives

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-B21

SED (Self-Encryption Drive)

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

Optical Drives

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

HPE Mobile USB DVD-RW Optical Drive

701498-B21

Notes:

- SFF CTO Server requires the HPE ProLiant Compute DL3XX Gen12 SFF Universal Media Bay Kit (P74749-B21) and HPE ProLiant Compute Gen12 Optical Disk Drive USB to SATA Signal Cable Kit (P72199-B21).

- LFF CTO Server requires the HPE ProLiant Compute Gen12 LFF ODD/DisplayPort Enablement Kit (P74752-B21) and HPE ProLiant Compute Gen12 Optical Disk Drive USB to SATA Signal Cable Kit (P72199-B21).

- Optical drive is not supported on GPU CTO Server.

OS Boot Device

Please refer to the HPE Boot Device Options QuickSpecs for more detailed information:

HPE Boot Device Options QuickSpecs

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Notes:

- Includes (2) NVMe SSDs.

- RAID 1 is preconfigured on the NS204i-u boot device and no additional RAID can be applied.

- HPE ProLiant Compute DL3XX Gen12 NS204i-u Boot Extension Enablement Kit (P71433-B21) is required when NS204i-u v2 is selected.

- SFF and GPU CTO Servers support front mounting of the NS204i-u v2 OS Boot Device which requires HPE ProLiant Compute Gen12 NS204i-u Front Enablement Kit (P74759-B21) and HPE ProLiant Compute DL3XX Gen12 Multipurpose Drive Cage Kit (P76449-B21).

Intel® VROC for HPE

Please refer to the Intel® VROC for HPE QuickSpecs for more detailed information:

Intel VROC for HPE QuickSpecs

Intel Virtual RAID on CPU Premium E-RTU for HPE

R7J59AAE

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes:

- Supports RAID 0,1,5,10.

- Supports up to 32 NVMe drives, depending on processor.

- SATA drives not supported.

Intel Virtual RAID on CPU RAID 1 E-RTU for HPE

S3Q39AAE

Intel Virtual RAID on CPU RAID 1 FIO Software for HPE

S3Q19A

Notes:

- Supports RAID 1.

- Supports up to 32 NVMe drives, depending on processor.

- SATA drives not supported.

Management

HPE ProLiant Compute DL340 Gen12 System Insight Display Module Kit

P75823-B21

Notes: Not supported on LFF or GPU CTO server.

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Security

HPE Trusted Supply Chain for HPE ProLiant

P36394-B21

Notes:

- HPE Trusted Supply Chain is an optional security upgrade intended for agencies and regulated industries needing enhanced security and compliance needs. Applying this option to a DL345 Gen11 CTO server ensures it is built in the USA in a secured facility by vetted HPE personnel assigned to the manufacturing processes. A multitude of checkpoints/inspections for malicious microcode and counterfeit parts are performed throughout the server build, and additional safeguards are put in place against cyber-exploits throughout the server lifecycle. Learn more at http://www.hpe.com/security.

- This option requires the selection of HPE Gen11 Intrusion Detection Kit (P48922-B21).

- This option requires the selection of either HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features (BD505A) or HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features (512485-B21).

- This option is limited to stand-alone DL345Gen11 CTO servers only. The HPE Trusted Supply Chain configuration will not be available if the server is ordered as factory integrated into a rack.

- One instance of the following Electronic License to Use is required per order (not per server):

- R6X85AAE (HPE Trusted Supply Chain E-LTU)

- This option cannot be selected with TAA instruction SKU or TAA CTO Models.

HPE ProLiant DL385 Gen11 Intrusion Cable Kit

P55713-B21

Notes: This provides a physical connection from the chassis board and hood and detects any physical intrusion into the chassis, providing security during the entire supply chain process of shipping, receiving distribution, and operation.

HPE Bezel Lock Kit

875519-B21

HPE Gen11 2U Bezel Kit

P50400-B21

Notes: The Bezel lock kit (875519-B21) must be selected along with the bezel kit (P50400-B21).

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

Server Management

HPE Compute Ops Management

HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS

R7A11AAE

HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS

R7A12AAE

HPE Compute Cloud Management Server FIO Enablement

S1A05A

HPE Compute Ops Management Advanced Flex with ProLiant Enablement

S6C28AAE

HPE OneView

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView including 3yr 24x7 Support Track 1-server LTU

E5Y36A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support Bundle Track 1-server LTU

E5Y44A

For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

Supported Servers - CTO only. No OEM. - Complete list can be found here: Latest Supported Server List:

https://www.hpe.com/info/com-supported-servers

Embedded Management

HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE Support Services

Installation & Startup Services

HPE ProLiant DL/ML Install Service

U4554E

HPE ProLiant DL/ML Ons Startup Service

U4555E

Tech Care Services

HPE 3 Year Tech Care Essential DL340 Gen12 SP HW Service

H44VWE

HPE 3 Year Tech Care Essential wDMR DL340 Gen12 SP HW Service

H44VXE

HPE 5 Year Tech Care Essential DL340 Gen12 SP HW Service

H44XBE

HPE 5 Year Tech Care Essential wDMR DL340 Gen12 SP HW Service

H44XCE

Rail Kits

Easy Install rail kits contain telescoping rails which allow for in-rack serviceability.

To assist in the installation of the server into the rack an optional installation tool is available by contacting your

local services representative.

Notes:

- HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E. In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer's own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

- Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and the number of people to use for any installation.

HPE DL3XX Gen11 Easy Install Rail 2 Kit

P52351-B21

Notes: Not supported on GPU CTO Server.

HPE DL38X Gen10 Plus 2U Cable Management Arm for Rail Kit

P22020-B21

Notes: Not supported on GPU CTO Server.

HPE Cable Management Arm 2 for Ball Bearing Rail Kit

P69776-B21

Notes: This rail kit is supported on GPU CTO Server.

HPE ProLiant Compute DL3XX Gen12 2U Cable Management Arm for Rail Kit

P70744-B21

Notes: This rail kit is supported on SFF and LFF CTO Servers.

HPE Ball Bearing Rail 6 Kit

P69769-B21

Notes: This rail kit is supported on the GPU CTO Server.

HPE Racks

- Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks

- Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks

HPE Power Distribution Units (PDUs)

- Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

- To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

- Please see the HPE Line Interactive Rack/Tower Uninterruptible Power System QuickSpecs for information on these products and their specifications.

- Please see the HPE Online Double Conversion Rackmount Uninterruptible Power System QuickSpecs for information on these products and their specifications.

The arrow points to the front of the server

Notes:.

- ¹ Support Hemi (hemisphere mode).

- ² Support Software Guard Extensions (SGX).

General Memory Population Rules and Guidelines:

- Install DIMMs only after the corresponding processor is installed.

- All DIMMs must be DDR5.

- x4 and x8 DIMMs can be mixed in the same channel.

- Mixing of non-3DS and 3DS LRDIMMs is not allowed on the same channel.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

- Use of 256GB DIMMs requires a high-performance fan kit.

- For additional information, please reference the HPE DDR5 Smart Memory QuickSpecs

System Unit

Dimensions (Height x Width x Depth)

- 8SFF, 24SFF and EDSFF chassis

• 8.75 x 44.8 x 63.95 cm.
• 3.45 x 17.64 x 25.18 in.

- 12LFF chassis:

• 8.75 x 44.8 x 65.61 cm.
• 3.45 x 17.64 x 25.83 in.

- GPU chassis:

• 8.75 x 44.8 x 83.71 cm.
• 3.45 x 17.64 x 32.96 in.

Weight (approximate)

- SFF chassis:

• Minimum: SFF chassis with 1 drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, 1 MR controller, and 6 standard fans.

- 17.6 kg (38.8 lb).

• Maximum: SFF chassis with 24 drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, 1 MR PCIe controller, and 6 performance fans.

- 30.9 kg (68.12 lb).

- SFF chassis / EDSFF front cage:

• Minimum: EDSFF chassis with 1 drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, and 6 standard fans.

- 17.4 kg (38.36 lb).

• Maximum: EDSFF chassis with 36 drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, and 6 performance fans.

- 30.71 kg (67.7 lb).

- LFF chassis:

Minimum: LFF chassis with 1 drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, 1 MR

controller, and 6 standard fans.

- 18.98 kg (41.84 lb).

• Maximum: LFF chassis with 12 drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, 1 MR PCIe controller, and 6 performance fans.

- 32.88 kg (72.49 lb).

- GPU chassis:

• Minimum: GPU chassis with 1 single-width accelerator, 1 EDSFF drive, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, and 6 standard fans.

- 26.5 kg (58.42 lb).

• Maximum: GPU chassis with 4 double-wide accelerators, 12 EDSFF drives, 1 processor, 2 power supply, 1 performance heatsink, 16 DIMM, and 6 performance fans.

- 36.3 kg (80.02 lb).

Input Requirements (per power supply)

Rated Line Voltage

- Low-line input voltage: 100 VAC to 120 VAC.

- High-line input voltage: 200 VAC to 240 VAC.

- 240 VDC for China.

BTU Rating

Maximum

- For 3200W M-CRPS Power Supply: 5142 (at 100 VAC), 11699 (at 240VAC).

- For 2400W M-CRPS Power Supply: 4268 (at 100 VAC), 8532 (at 240VAC).

- For 1500W M-CRPS Power Supply: 3792 (at 100 VAC), 5560 (at 200 VAC).

- For 1000W M-CRPS Power Supply: 3044 (at 100 VAC), 3680 (at 200 VAC).

Power Supply Output (per power supply)

Rated Steady-State Power

- For 3200W M-CRPS Power Supply: 1600W: (at 100-127 VAC), 3200W (at 200-240 VAC), 3200W (at 240 VDC) input for China only.

- For 2400W M-CRPS Power Supply: 1200W: (at 100-127 VAC), 2400W (at 200-240 VAC), 2400W (at 240 VDC) input for China only.

- For 1500W M-CRPS Power Supply: 1000W: (at 100 VAC), 1100W (at 110-120VAC), 1500W (at 200-240 VAC), 1500W (at 240 VDC) input for China only.

- For 1000W M-CRPS Power Supply: 800W: (at 100-120 VAC), 1000W (at 200-240 VAC), 1000W (at 240 VDC) input for China only.

Maximum Peak Power

- For 3200W M-CRPS Power Supply: 1600W: (at 100-127 VAC), 3200W (at 200-240 VAC), 3200W (at 240 VDC) input for China only.

- For 2400W M-CRPS Power Supply: 2400W (at 100 to 127 VAC), 2400W (at 200 to 240 VAC), 2400W (at 240 VDC) input for China only.

- For 1500W M-CRPS Power Supply: 1000W: (at 100 VAC), 1100W (at 110-120VAC), 1500W (at 200-240 VAC), 1500W (at 240 VDC) input for China only.

- For 1000W M-CRPS Power Supply: 800W: (at 100-120 VAC), 1000W (at 200-240 VAC), 1000W (at 240 VDC) input for China only.

For more information on power specifications and technical content, reference the HPE M-CRPS QuickSpecs.

System Inlet Temperature

- Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. The maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

- Extended Ambient Operating Support

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen12

For approved hardware configurations, the supported system inlet range is extended to be 40°C to 45°C (104°F to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.)

above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: https://www.hpe.com/support/ASHRAEGen12

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

- Non-operating

-30° to 60°C (-22° to 140°F). The maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity (non-condensing)

- Operating

8% to 90% - Relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

- Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

- Operating

3050 m (10,000 ft.). This value may be limited by the type and number of options installed. The maximum allowable altitude change rate is 457 m/min (1500 ft./min).

- Non-operating

9144 m (30,000 ft.). The maximum allowable altitude change rate is 457 m/min (1500 ft./min).

Emissions Classification (EMC)

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=c03471072

Acoustic Noise

Listed are the declared mean A-Weighted sound power levels (LWA,m), declared average bystander position A-Weighted sound pressure levels (LpAm) and the statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m when the product is operating in a 23 ± 2 °C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations.  Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Notes:

- All measurements made to conform to ISO 7779 / ECMA-74 and declared to conform to ISO 9296 / ECMA-109. Operating mode is represented by 50% of CPU.

- The results in this declaration apply only to the specific configuration listed below when operating and tested according to the indicated modes and standards. A system with additional configuration components or increased operating functionality may increase the noise emission values.

• Entry-SFF Configuration: 1x Xeon 6505P CPU, 2x SAS 10K SFF BC HDD, 1x 32GB DIMM, 1x 1000W PSU, 6x STD Fan, 1x MR416i-p PCIe, 1x 1Gb 4p BASE-T OCP Adptr.
• Base-LFF Configuration: 1x Xeon 6505P CPU, 8x SAS 7.2K LFF 512e ISE HDD, 4x 16GB DIMM, 1x 1000W PSU, 6x STD Fan, 1x MR416i-p PCIe, 1x 1Gb 4p BASE-T OCP Adptr, 1x Gen12 Ht Plg Boot Opt Dev.

- The declared mean A-weighted sound power level, LWA,m, is computed as the arithmetic average of the measured.

- A-weighted sound power levels for a randomly selected sample, rounded to the nearest 0,1 B.

- The declared mean A-weighted emission sound pressure level, LpA,m, is computed as the arithmetic average of the measured A-weighted emission sound pressure levels at the bystander positions for a randomly selected sample, rounded to the nearest 1 dB.

- The statistical adder for verification, Kv, is a quantity to be added to the declared mean A-weighted sound power level, LWA,m, such that there will be a 95% probability of acceptance, when using the verification procedures of ISO 9296, if no more than 6,5 % of the batch of new equipment, has A-weighted sound power levels greater than (LWA,m + Kv).

- The quantity, LWA,c (formerly called LWAd), can be computed from the sum of LWA,m and Kv.

- B, dB, abbreviations for bels and decibels, respectively, where 1 B = 10 dB.

- Systems under abnormal conditions may increase the noise level, people in the vicinity of the product [cabinet] for extended periods of time should consider wearing hearing protection or using other means to reduce noise exposure.

Environment-friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of in a responsible manner.

The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires

manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise website. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

03-Aug-2026

Version 14
