HPE ProLiant Compute DL325 Gen12

QuickSpecs

Do you need a 1U single-socket rack-mount server that maximizes rack utilization? This server mitigates virtualization risks in power-constrained environments.

The HPE ProLiant DL325 Gen12 maximizes your rack utilization while mitigating virtualization risks in power-constrained environments. Power your workloads with a server providing greater memory capacity compared to previous generations.

HPE ProLiant Compute DL325 Gen12

With 5th Gen AMD EPYC^TM processors up to 192 cores, increased memory capability (up to 6 TB), and new iLO 7, this server helps provide a high-performance solution with better datacenter efficiency.

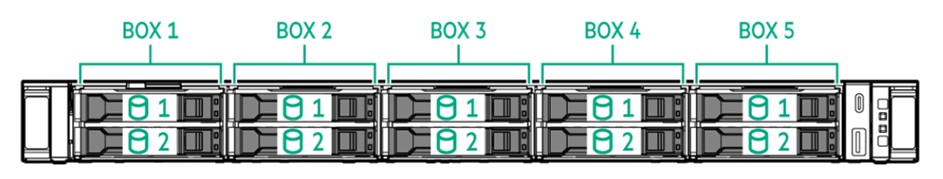

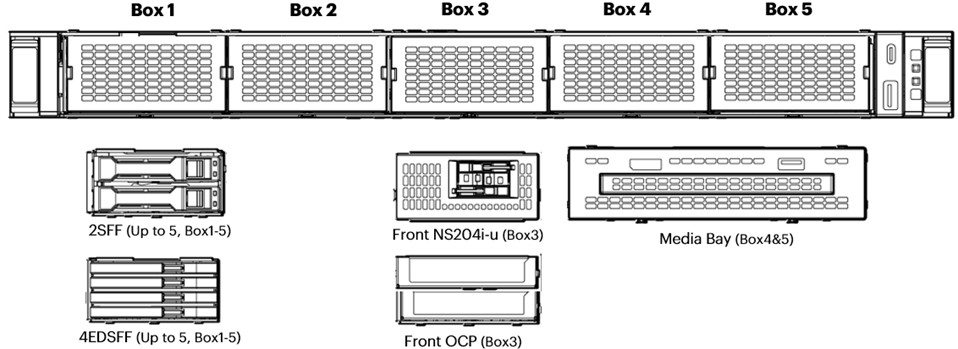

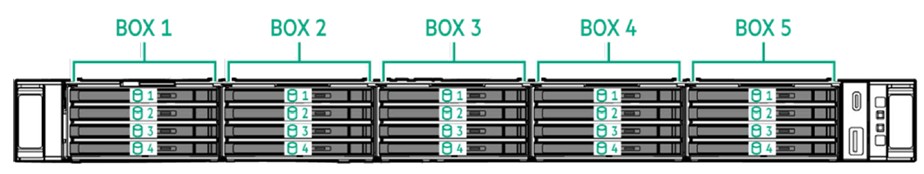

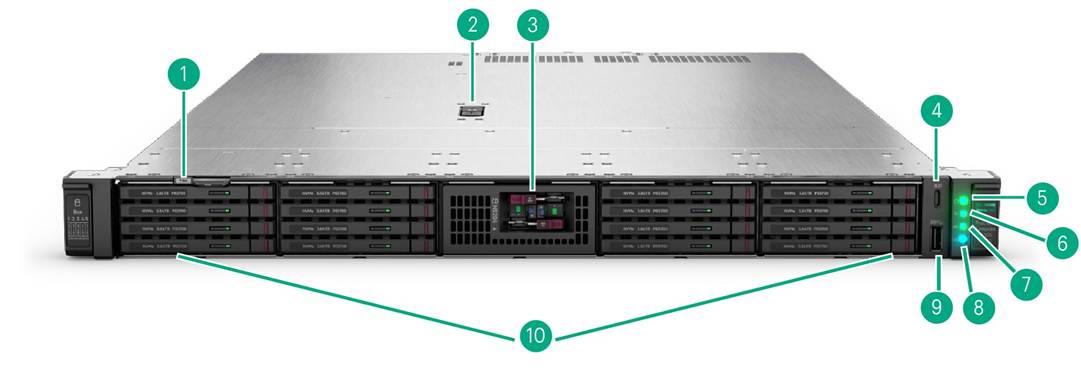

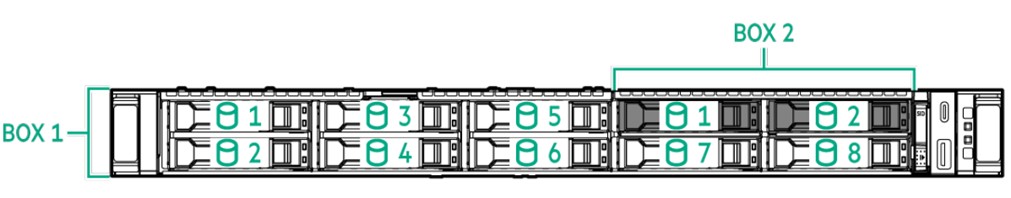

Front View - SFF/EDSFF CTO Server

Item

Description

Item

Description

1.

Serial number pull tab

6.

Health LED

2.

Quick removal access panel

7.

NIC status LED

3.

Optional NS204i-u hot-plug NVMe boot device

8.

Unit ID button/LED

4.

iLO Service port

9.

USB 3.2 Gen1 port

5.

Power On/Standby button and system power LED

10.

Front multi-purpose cage, Box 1 to 5

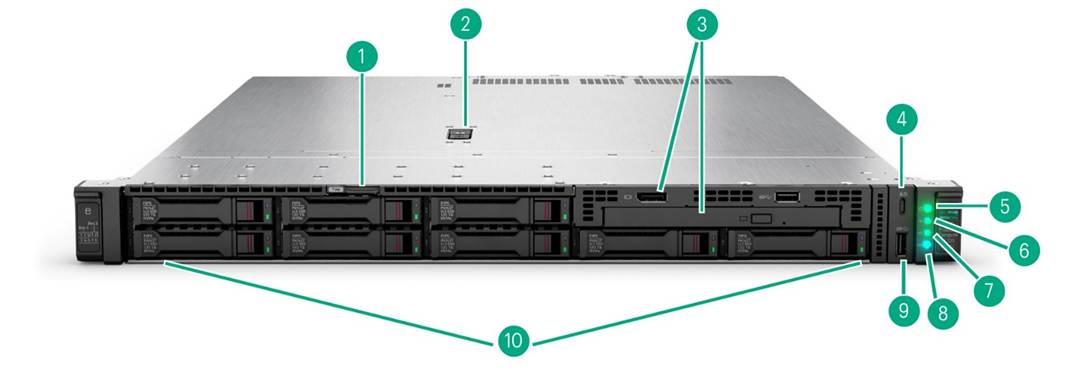

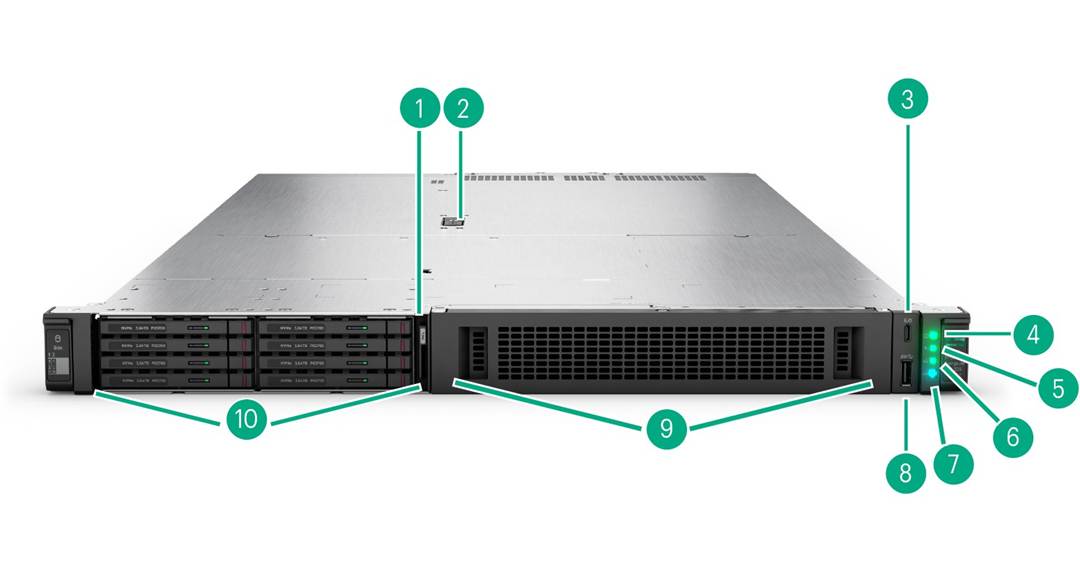

Front View - 8SFF CTO Server

Item

Description

Item

Description

1.

Serial number pull tab

6.

Health LED

2.

Quick removal access panel

7.

NIC status LED

3.

Optional optical drive and DisplayPort

8.

Unit ID button/ LED

4.

iLO Service port

9.

USB 3.2 Gen 1 port

5.

Power On/Standby button and system power LED

10.

8SFF SAS/SATA/NVMe drive bay

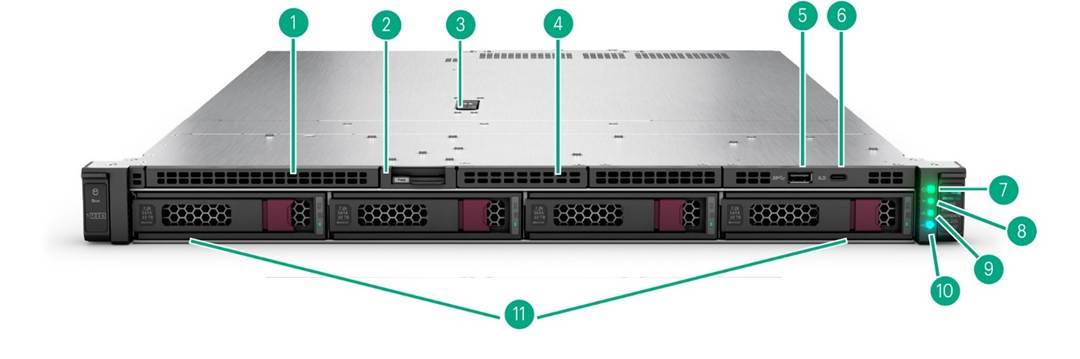

Front View - 4LFF CTO Server

Item

Description

Item

Description

1.

Optional optical drive (blank shown)

7.

Power On/Standby button and system power LED

2.

Serial number pull tab

8.

Health LED

3.

Quick removal access panel

9.

NIC status LED

4.

Optional DisplayPort and USB 2.0 (blank shown)

10.

Unit ID button/ LED

5.

USB 3.2 Gen 1 port

11.

Default 4LFF SAS/SATA drive bay

6.

iLO Service port

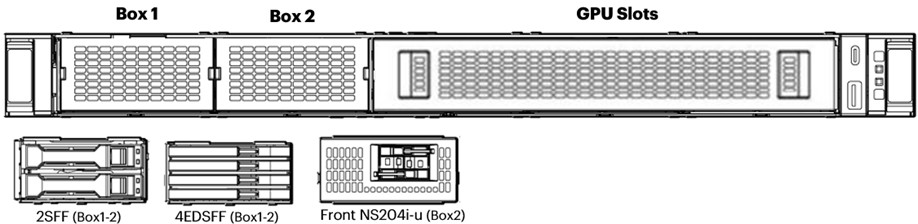

Front View - GPU CTO Server

Item

Description

Item

Description

1.

Serial number pull tab

6.

NIC status LED

2.

Quick removal access panel

7.

Unit ID button/ LED

3.

iLO Service port

8.

USB 3.2 Gen 1 port

4.

Power On/Standby button and system power LED

9.

GPU Cage

5.

Health LED

10.

Front multi-purpose cage, Box 1 to 2

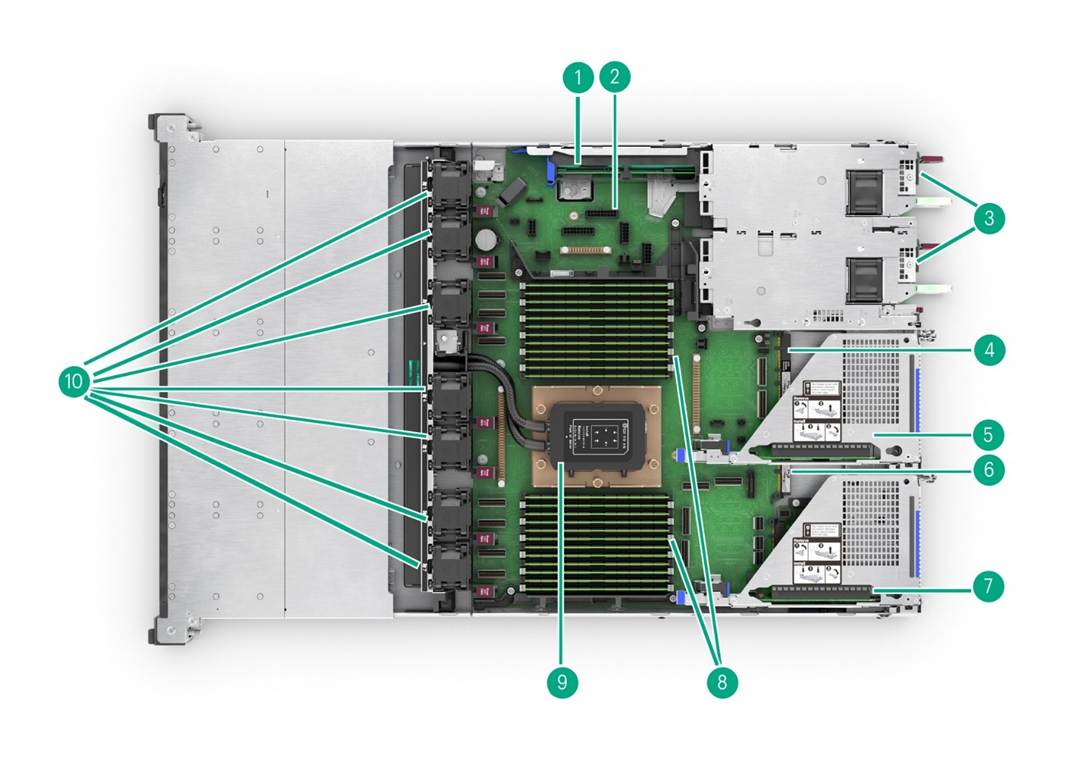

Internal View

Item

Description

Item

Description

1.

Megacell battery holder

6.

OCP 3.0 Slot A (under)

2.

Storage backplane power connectors

7.

Optional PCIe 5.0 Riser Slot 1

3.

Up to two HPE M-CRPS Power Supplies

8.

24 DDR5 DIMM slots¹

4.

OCP 3.0 Slot B (under)

9.

Processor and heat sink²

5.

Default PCIe 5.0 Riser Slot 2

10.

Hot-plug fans³

Notes:

- ¹ Fully populated 24 DIMMs shown.

- ² Closed-loop liquid cooling heat sink shown. Optional: Standard, Performance heat sink, and direct liquid cooling kit.

- ³ Seven liquid cooling fans shown. Optional: Standard or Performance fans.

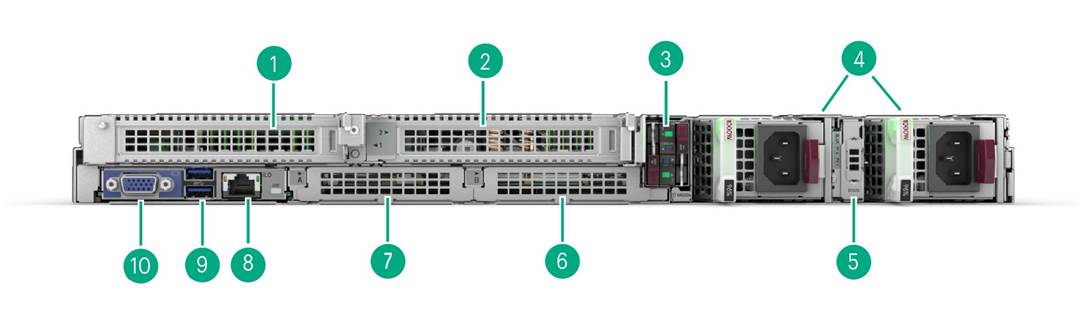

Rear View

Item

Description

Item

Description

1.

Optional PCIe 5.0 Riser Slot 1¹

6.

Optional OCP 3.0 Slot B

2.

Default PCIe 5.0 Riser Slot 2

7.

Default OCP 3.0 Slot A

3.

Optional NS204i-u hot-plug NVMe boot device

8.

Dedicated iLO management port

4.

HPE M-CRPS Power Supplies 1 and 2²

9.

USB 3.1 Gen 1 ports (2)

5.

Optional Serial port

10.

Video (VGA) port

Notes:

- ¹Low profile and full height options.

- ²Power Supply 2 is optional.

What's New

- Introducing the all-new HPE ProLiant Compute DL325 Gen12 server.

- New 5^th Generation AMD EPYC^TM Processors, up to 192 cores, 500W, and 512MB of L3 Cache.

- New memory support: 24 DIMM slots, up to 6 TB.

- New HPE Integrated Lights-Out 7 (iLO 7) server management.

- New NS204i-u hot-pluggable NVMe boot device, at the front or rear of the chassis.

- New flexible drive cage design, supporting mixing between SFF and EDSFF drive bays.

- New front OCP 3.0 slots capability.

- New GPU support for up to four single-width or two double-width GPUs.

- New direct liquid cooling option.

Platform Information

Form Factor

- 1U rack.

Chassis Types

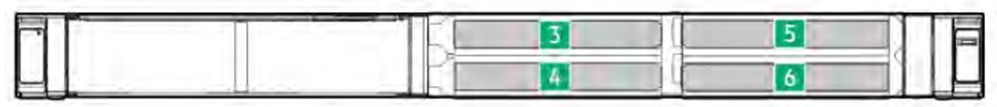

- 8 SFF with optional 2 SFF drive bay or optical drive.

- 4 LFF with an optional optical drive.

- 10 SFF Basic Carriers (BC) drive cages, or 20 E3.S 1T drive cages (support mixing configuration).

- 4 Single-Width or 2 Double-Width GPUs with 8 E3.S 1T or 4 SFF drive bay.

System Fans

- Choice of Standard Fan, Performance Fan, and Liquid Cooling Fan Kit.

Notes:

- The HPE DL325 Gen12 supports up to 7 fans with fan redundancy. One fan rotor failure will place the server in degraded mode, but the server will remain fully operational. Two fan rotor failures could provide a warning of an imminent server shutdown.

- Each Fan kit is designed to operate in different configurations. For more information, please refer to the Power and Cooling options portion of the Core Options section.

Processors - One of the following, depending on the model.

Notes: For more information regarding AMD EPYC^TM processors, refer to the following:

https://www.amd.com/en/products/processors/server/epyc/9005-series.html

5^th Gen AMD EPYC^TM Processor

Cores

Base Frequency

Max Frequency

Max Memory

Wattage

L3 Cache (MB)

DIMM Rated Speed

EPYC^TM 9965

192

2.25 GHz

3.7 GHz

6 TB

500

384

6400 MT/s

EPYC^TM 9845

160

2.1 GHz

3.7 GHz

6 TB

390

320

6400 MT/s

EPYC^TM 9825

144

2.2 GHz

3.7 GHz

6 TB

390

384

6400 MT/s

EPYC^TM 9755

128

2.7 GHz

4.1 GHz

6 TB

500

512

6400 MT/s

EPYC^TM 9745

128

2.4 GHz

3.7 GHz

6 TB

400

256

6400 MT/s

EPYC^TM 9645

96

2.3 GHz

3.7 GHz

6 TB

320

256

6400 MT/s

EPYC^TM 9655P

96

2.6 GHz

4.5 GHz

6 TB

400

384

6400 MT/s

EPYC^TM 9565

72

3.15 GHz

4.3 GHz

6 TB

400

384

6400 MT/s

EPYC^TM 9535

64

2.4 GHz

4.3 GHz

6 TB

300

256

6400 MT/s

EPYC^TM 9575F

64

3.3 GHz

5 GHz

6 TB

400

256

6400 MT/s

EPYC^TM 9555P

64

3.2 GHz

4.4 GHz

6 TB

360

256

6400 MT/s

EPYC^TM 9475F

48

3.65 GHz

4.8 GHz

6 TB

400

256

6400 MT/s

EPYC^TM 9455P

48

3.15 GHz

4.4 GHz

6 TB

300

256

6400 MT/s

EPYC^TM 9365

36

3.4 GHz

4.3 GHz

6 TB

300

192

6400 MT/s

EPYC^TM 9335

32

3 GHz

4.4 GHz

6 TB

210

128

6400 MT/s

EPYC^TM 9375F

32

3.8 GHz

4.8 GHz

6 TB

320

256

6400 MT/s

EPYC^TM 9355P

32

3.55 GHz

4.4 GHz

6 TB

280

256

6400 MT/s

EPYC^TM 9255

24

3.25 GHz

4.3 GHz

6 TB

200

128

6400 MT/s

EPYC^TM 9275F

24

4.1 GHz

4.8 GHz

6 TB

320

256

6400 MT/s

EPYC^TM 9135

16

3.65 GHz

4.3 GHz

6 TB

200

64

6400 MT/s

EPYC^TM 9115

16

2.6 GHz

4.1 GHz

6 TB

125

64

6400 MT/s

EPYC^TM 9175F

16

4.2 GHz

5 GHz

6 TB

320

512

6400 MT/s

EPYC^TM 9015

8

3.6 GHz

4.1 GHz

6 TB

125

64

6400 MT/s

Notes:

- 6096-pin LGA SP5 socket type, 128 PCIe 5.0 Lanes per processor.

- All 5th-generation AMD EPYC^TM processors can support up to 6 TB of memory each under 2DPC, 12 channels per processor.

- The DL325 Gen12's maximum memory operating speed is 5200 MT/s on 1DPC and 4400 MT/s on 2DPC. Please refer to the memory section of the Core Options section for more information.

- The wattage information indicates the processor's default cTDP (Configurable TDP).

Chipset

No chipset - System on Chip (SoC) design.

On System Management Chipset

HPE iLO 7 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

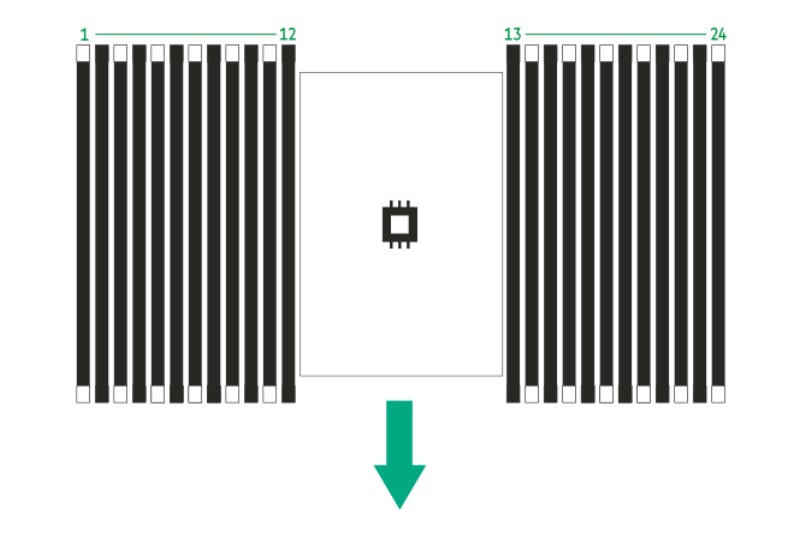

Memory

- 12 channels DDR5 per socket.

- 2 DIMMs per channel (2DPC), 24 DIMM slots in total.

- DDR5 - Up to 5200 MT/s 1DPC or 4400 MT/s 2DPC.

- 6 TB maximum memory per processor.

- VR-on-DIMM Architecture.

- RAS - Advanced ECC.

Notes:

­ All processors support up to 6 TB of memory per server.

­ LRDIMM and Persistent Memory are not supported.

­ For additional information, please refer to the HPE DDR5 Smart Memory QuickSpecs.

­ For the Memory Population Rules and Guidelines with AMD EPYC^TM 9005 series processors, please refer to: https://www.hpe.com/psnow/doc/a50012817enw

Expansion Slots

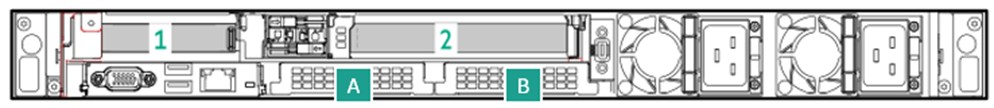

Rear slots - All CTO servers

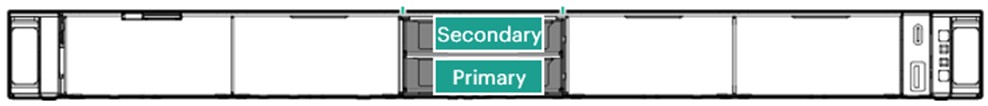

Front OCP Slots - SFF/EDSFF CTO server

Front PCIe Slots - GPU CTO server

Notes:

- Both rear OCP slots (slot A and B) and Front Primary OCP (Box3 Bay3) support shared-NIC and WOL (Wake on LAN) functions. Front Secondary OCP (Box3 Bay1) only supports WOL without the shared-NIC function.

- Bandwidth of the OCP B slot depends on the number of enablement kits selected.

- If the NS204i-u Boot Device is selected and installed at the rear of the server, then the low-profile primary riser (P81927-B21) must be selected.

- According to AMD's CPU limitation, a maximum of 112GB/s bandwidth can be supported for each of the following configurations.

• Slot 3 and OCP A.
• Slot 4 and Slot 2.
• Slot 6 and Slot 1.
• Slot 5 and OCP B.

Storage Controllers

Boot Device Options

- HPE NS204i-u v2 NVMe Hot Plug Boot Optimized Storage Device.

- HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device.

- HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device.

Notes:

- x4 PCIe Gen3.0 OS Boot device includes 2x M.2 NVMe SSDs, with preconfigured hardware RAID1.

- For additional information, refer to the HPE OS Boot Device Options QuickSpecs or HPE NS204i Boot Device User Guide.

HPE Hardware RAID Controller Options

- HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller.

- HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller.

- HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller.

- HPE MR408i-p Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller.

- HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller.

- HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller.

- HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller.

Notes: For additional details, please visit: HPE Compute MR Controllers QuickSpecs.

Internal Storage Devices

Optical Drive

- Available as an option.

Drives

- No standard drive shipped.

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200@60Hz (32 bpp).

- 16MB Video Memory.

Modular Common Redundant Power Supplies (M-CRPS)

HPE M-CRPS power supplies are certified for high-efficiency operation and offer multiple power output options-both high-line and low-line-enabling users to right-size the power supply for specific server configurations. In addition to more secure firmware upgrades, and ease of serviceability, their flexibility helps reduce power waste, lower overall energy costs, and prevent "trapped" power capacity in the data center. HPE M-CRPS power supplies are available in two physical design options (73.5mm and 60mm widths), allowing for hot-plug, tool-less installation into select HPE ProLiant Compute Gen12 Performance Servers. This server supports the following power supplies:

- HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit.

- HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit.

- HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit.

- HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit.

Notes:All of the above power supplies, except the 800W M-CRPS kit, are rated for 96% efficiency.

For information on power specifications and technical content, visit HPE Server power supplies.

To determine the power requirements for your configuration, please use the HPE Power Advisor Tool. For information on power cords specifications visit the HPE Power Cords and Cables guide.

European Union ErP Lot 9 Regulation

Beginning January 1, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Ireland, Switzerland, or Turkey must include higher-efficiency AC power supplies: 94% efficiency for multi-output and 96% for single-output. HPE M-CRPS power supplies are single-output, and part numbers P67240-B21, P67244-B21, P67248-B21, and P67252-B21 meet the 96% efficiency requirement.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure their products are optimized, certified, and fully supported within your HPE server environment. Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support and Certification Matrices

Notes: Minimum required version includes all future updates of the indicated release unless a maximum is listed in the Notes.

Industry Standard Compliance

- ACPI 6.1 Compliant.

- PCIe 5.0 Compliant.

- WOL Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA.

- DisplayPort.

Notes: Support from the optional Universal Media Bay.

- USB 3.2 Gen 1 Compliant.

- USB 2.0 Compliant.

- ENERGY STAR® 4.0.

- SMBIOS 3.1.

- UEFI 2.7.

- UEFI Class 3.

- Redfish API.

- IPMI 2.0.

- Secure Digital 2.0.

- Advanced Encryption Standard (AES).

- Triple Data Encryption Standard (3DES).

- SNMP v3.

- TLS 1.2.

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- Active Directory v1.0.

- ASHRAE A3/A4.

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit Extended Ambient Temperature Guidelines.

- APML 1.0.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle-free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/hpesc/public/docDisplay?docId=c04465280&docLocale=en_US

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

OpenBMC Support

OpenBMC Capable through iLO 7 Transfer of Ownership Process.

Learn more at OpenBMC Support

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secure configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Compute Gen12 servers have a UEFI Class 3 implementation.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as

- Secure Boot and Secure Start enabled for enhanced security

- Operating system specific functionality.

- Support for > 2.2 TB (using GPT) boot drives.

- USB 3.1 Gen1 Stack.

- Embedded UEFI Shell.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- PXE boot support for IPv6 networks.

- Workload Profiles for simple performance optimization.

- Embedded TPM Support.

UEFI Boot Mode only

- NVMe Boot Support.

- iSCSI Software Initiator Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Boot support for option cards that only support a UEFI option ROM.

Notes:

- For UEFI Boot Mode, boot environment and OS image installation should be configured properly to support UEFI.

- TPM is embedded in the DC-SCM and does not require additional option kit selection to enable this function.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations. To learn more, visit http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at  https://www.hpe.com/us/en/servers/smart-update.html

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information, please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring, and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees.  Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at https://www.hpe.com/us/en/software/oneview.html.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via  https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Compute Gen12 rack, tower, or micro server.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:

https://www.hpe.com/info/com-supported-servers

Security

Experience unparalleled security benefits with HPE ProLiant Compute Gen12 servers, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:

- HPE Integrated Lights-Out (HPE iLO 7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.

- Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.

- Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.

- Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.

- HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations.

- Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and chassis intrusion detection switch.

- Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle.

Please refer to the HPE ProLiant Compute Gen12 Embedded Security QuickSpecs document for more detailed information at http://psnow.ext.hpe.com/doc/a50009218enw

- UEFI Secure Boot and Secure Start support.

- Secure Enclave - Silicon Root of Trust 2.0.

- Quantum resistant (PQC) readiness for signing firmware - CNSA 2.0.

- FIPS 140-3 validation (Planned).

- Common Criteria certification (Planned).

- USGv6 ready (Section 508 - VPAT).

- Secure Standard Mode - default security mode (equivalent of higher security mode in Gen 11).

- Configurable for PCI DSS compliance.

- Advanced Encryption Standard (AES) on browser.

- Support for Commercial National Security Algorithms (CNSA).

- Tamper-free updates - components digitally signed and verified.

- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware.

- Ability to roll back firmware.

- Secure erase of NAND.

- TPM (Trusted Platform Module) 2.0.

- Front bezel key-lock feature - standard, available in both Tower and Rack models.

- Padlock slot, standard.

- Kensington Lock slot, standard.

- Chassis Intrusion detection option.

HPE Trusted Platform Module

Enabling HPE Trusted Platform Module (TPM) 2.0 no longer requires TPM module option kit for Gen12. It is an embedded feature for global shipments. User may manually disable TPM2.0 from the BIOS setting.

Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates, and encryption keys.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard and provides full-featured licenses which can be purchased for managing multiple HPE server generations. To learn more visit http://www.hpe.com/info/oneview.

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning, and virtual desktop deployments. These accelerators deliver all the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup is available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, and 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management, and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with the enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher-density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments, and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs, and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

HPE Smart Choice Purchase Program

The HPE Smart Choice Purchase Program features popular fully configured products that can be quoted in minutes and shipped quickly through HPE Authorized Partners. Products are configured and tested in an HPE factory and stocked at HPE Authorized Distributors and Partners. The products arrive in a single box, making onsite integration easier and more efficient for partners and customers. Additionally, there are aggressively priced HPE Tech Care Services available only through the HPE Smart Choice program when you purchase an HPE Smart Choice product.

For HPE Smart Choice configuration and product details, please visit the Smart Choice Supplemental QuickSpecs: https://www.hpe.com/psnow/doc/a50009219enw

Smart Templates from HPE

HPE is releasing new Smart Template technology in the One Config Advanced (OCA) configurator. These Templates represent the CTO equivalents of the top-selling BTO configurations. They are intended to provide simple starting points to assist you in easily creating and customizing your desired Server solutions.  HPE Servers that have Platform Templates, developed by HPE Product Managers, will have a separate tab in the HPE OCA configurator.

Workload Solutions Templates from HPE

The Workload Solutions Templates are built on the Smart Templates technology to easily develop working configurations of the most compelling Workload Solutions. The templates complement the Reference Builds developed by HPE. Workload Solutions templates preconfigure some of the key architecture decisions and make it easier for Sellers to get started and complete a differentiated server solution for your customer's specific workload.

Mainstream SKUs

HPE launched the Mainstream SKU initiative as a market-driven approach to Demand Steering. It is a simplified portfolio of our top selling options that meet the current and future market trends. HPE has committed to providing a more predictable and faster experience for these options.  Mainstream SKUs enjoy higher safety stock levels and have higher fulfillment service levels than non-Mainstream SKUs. Mainstream orders are fulfilled +30% faster than non-Mainstream orders, have fewer shortages, and better recovery dates.  This platform has Mainstream SKUs in the options portfolio and is eligible for an improved Mainstream experience.  Mainstream SKUs are designated with a Mainstream symbol in our configurators.

Mainstream Configurations

HPE is using the new Smart Templates technology to present Mainstream configurations.  All the options in a Mainstream configuration are pre-selected Mainstream SKUs to optimize the performance, predictability, and fulfillment experience. Check the Template section in our configurators for eligible Mainstream configurations.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory installable option.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one (1) of the following configurable models from the tables below)

Notes: HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed into a designated country. TAA compliance is only provided when HPE options are included as part of factory-integrated orders (CTO).

Step 2: Smart Chassis

Smart Chassis is a new automation tool in One Config Advanced that reduces the effort required to build a valid configuration.

Three steps to get the right configuration from the Smart Chassis.

- Select the System inlet ambient temperature and the Type of networking adaptor:

• 30 °C is the default ambient temperature. The lower the temperature, the higher the wattage processors or high-speed networking cards can be supported.
• AOC (Active-Optical Cable) has higher cooling requirements than DAC (Direct-Attach Copper). Thus, a lower ambient temperature is required for AOC.

- Select the Front cage configuration:

• Please start by selecting the backplanes based on the form factor, interface, and number of drives required.
• If desired, please select the front NS204i-u, OCP, and media bay at this step, as these options are accessible in the front cage.

- Select the Type of storage connections (Direct attach or to Storage Controller):

• After selecting the desired type of connection for each kind of backplane, please continue to pick the storage controller if required.

- After completing the above steps, Smart Chassis will present config IDs with an I/O description regarding how many PCIe and OCP slots can be supported.  Please select ONE config ID that fits your requirement.

- Please proceed to the menu to choose options such as processors, memory, etc.

Step 3: Choose Core Options

- Choice of 1 Processor model and Heat Sink Kit:

• A heat sink is required for different processor wattages.

- Choice of DDR5 memory options.

- Choice of Storage options:

• Storage backplanes, controllers, and cables are covered in the smart chassis section.

- Choice of SSD, HDD, and Optical Drive.

- Choice of Riser Cards.

- Choice of Networking options.

• PCIe stand-up or OCP 3.0, including Ethernet and InfiniBand adapters and Fiber Channel HBAs.

- Choice of Graphic options.

- Choice of Power and Cooling options.

- Choice of Security options.

- Choice of Accessories.

- Choice of Rack options.

- Choice of HPE Compute Ops Management.

Step 4: Choose Additional Options

- Choice of Server Management Software.

- Choice of HPE Rack, PDU, and UPS options.

- Choice of Support Services.

Ambient Temperature

HPE ProLiant Compute 30C Maximum Recommended Ambient Temperature Configuration Tracking

P79552-B21

HPE ProLiant Compute 27C Maximum Recommended Ambient Temperature Configuration Tracking

P79555-B21

HPE ProLiant Compute 25C Maximum Recommended Ambient Temperature Configuration Tracking

P79558-B21

HPE ProLiant Compute 23C Maximum Recommended Ambient Temperature Configuration Tracking

P79561-B21

HPE ProLiant Compute 20C Maximum Recommended Ambient Temperature Configuration Tracking

P79564-B21

HPE ProLiant Compute 18C Maximum Recommended Ambient Temperature Configuration Tracking

P79567-B21

Notes:

- Select one option for the maximum ambient temperature in the data center or user environment.

- Please select P79552-B21 for ambient temperature in the range of 30°C - 35°C.

Networking Adapter Cabling Option

HPE ProLiant Compute AOC Networking Cable Operating Configuration Tracking

P79630-B21

HPE ProLiant Compute DAC ACC Networking Cable Operating Configuration Tracking

P79633-B21

Notes:

- Select one option for the maximum ambient temperature in the data center or user environment.

- Please select P79633-B21 for 1/2.5/10 Gb BASE-T NIC adapters that apply RJ45 CAT cable.

- Transceivers cannot be configured if P79633-B21 is selected.

Front Cage Configuration

Available options of 8SFF CTO Server (P81967-B21)

HPE ProLiant Compute DL3XX Gen12 1U 8SFF x1 Tri-Mode U.3 L-Shaped Backplane Kit

P75084-B21

HPE ProLiant Compute DL320 Gen12 8SFF x4 NVMe U.3 Backplane Kit

P75085-B21

HPE ProLiant Compute DL3XX Gen12 1U 8SFF Front Display Port/USB/Optical Drive Enablement Kit

P72225-B21

HPE ProLiant Compute DL3XX Gen12 1U 2SFF x4 Tri-Mode U.3 Side-by-Side Backplane Kit

P75086-B21

Notes:

- Supporting drive less configuration with a quantity of zero (0) backplanes.

- The 2SFF x4 backplane kit (P75086-B21) cannot be selected without the selection of the 8SFF backplane kits for power connection.

- If the Universal Media Bay enablement kit (P72225-B21) is selected, then the 2SFF x4 backplane kit (P75086-B21) cannot be selected and vice versa.

Available options of 4LFF CTO Server (P81965-B21)

4LFF SAS/SATA backplane

HPE ProLiant Compute Gen12 Optical Disk Drive USB to SATA Signal Cable Kit

P72199-B21

Notes:

- One (1) 4LFF backplane is included in the CTO server. No selection is required.

- P72199-B21 enables the optical drive in the front cage.

Available options of SFF/EDSFF CTO Server (P81967-B21)

HPE ProLiant Compute DL3XX Gen12 1U 2SFF x4 Tri-Mode U.3 Stacking Backplane Kit

P72223-B21

HPE ProLiant Compute DL3XX Gen12 1U 4EDSFF NVMe Stacking Backplane Kit

P72221-B21

HPE ProLiant Compute DL3XX Gen12 1U SFF/EDSFF Hybrid Display Port/USB/Optical Drive Enablement Kit

P72227-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u Front Cable Kit

P77186-B21

HPE ProLiant Compute DL325 Gen12 OCP Slot B to Front Primary OCP Enablement Kit

P82200-B21

HPE ProLiant Compute DL325 Gen12 OCP Slot A to Front Secondary OCP Enablement Kit

P82201-B21

Notes:

- This CTO server supports up to five (5) backplanes or devices, illustrated above.

- Mixing SFF and EDSFF backplanes is supported. For more information, please refer to the storage configuration section.

- The Front OCP enablement kits (P72596-B21, P72597-B21) cannot be selected together with the Front NS204i-u enablement kits (P77186-B21), vice versa.

- If the Front OCP enablement kits (P72596-B21, P72597-B21) or the Front NS204i-u cable kits (P77186-B21) are selected, up to 4 backplanes can be supported, as those options occupy the Box3 position.

- The Front Secondary OCP enablement kit (P82201-B21) can only be selected after selecting the Front Primary OCP enablement kit (P82200-B21).

- Of the two front OCP slots, only the Front Primary OCP slot (P82200-B21) provides the shared-NIC function with Network Controller Sideband Interface (NCSI).

- If the Universal Media Bay enablement kit (P72227-B21) is selected, up to 3 backplanes can be supported, as the kit occupies the Box4 and Box5 positions.

Available options of GPU CTO Server (P84204-B21)

HPE ProLiant Compute DL3XX Gen12 1U 2SFF x4 Tri-Mode U.3 Stacking Backplane Kit

P72223-B21

HPE ProLiant Compute DL3XX Gen12 1U 4EDSFF NVMe Stacking Backplane Kit

P72221-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u Front Cable Kit

P77186-B21

Notes:

- This CTO server supports up to two (2) backplanes or devices.

- Both the front OCP enablement kit and universal media bay are not supported on this CTO server. The Front NS204i-u can only be installed at Box 2.

- The SATA AHCI mode is not supported on this CTO server.

Available options of Storage Controllers

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

HPE MR408i-p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug-in Storage Controller

P74775-B21

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Processor

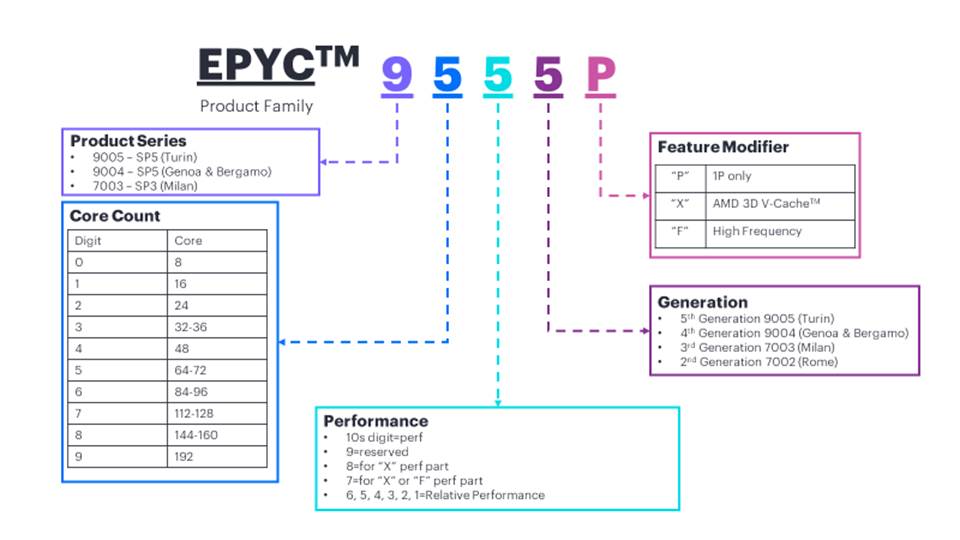

Please select ONE 5^th Generation AMD EPYC^TM Processor

AMD EPYC 9965 2.25GHz 192-core 500W Processor for HPE

P75019-B21

AMD EPYC 9845 2.1GHz 160-core 390W Processor for HPE

P72646-B21

AMD EPYC 9825 2.2GHz 144-core 390W Processor for HPE

P72647-B21

AMD EPYC 9755 2.7GHz 128-core 500W Processor for HPE

P75022-B21

AMD EPYC 9745 2.4GHz 128-core 400W Processor for HPE

P72648-B21

AMD EPYC 9645 2.3GHz 96-core 320W Processor for HPE

P72649-B21

AMD EPYC 9655P 2.6GHz 96-core 400W Processor for HPE

P72662-B21

AMD EPYC 9565 3.15GHz 72-core 400W Processor for HPE

P72651-B21

AMD EPYC 9535 2.4GHz 64-core 300W Processor for HPE

P72652-B21

AMD EPYC 9575F 3.3GHz 64-core 400W Processor for HPE

P72758-B21

AMD EPYC 9555P 3.2GHz 64-core 360W Processor for HPE

P72663-B21

AMD EPYC 9475F 3.65GHz 48-core 400W Processor for HPE

P72666-B21

AMD EPYC 9455P 3.15GHz 48-core 300W Processor for HPE

P72664-B21

AMD EPYC 9365 3.4GHz 36-core 300W Processor for HPE

P72655-B21

AMD EPYC 9335 3.0GHz 32-core 210W Processor for HPE

P72656-B21

AMD EPYC 9375F 3.80GHz 32-core 320W Processor for HPE

P72667-B21

AMD EPYC 9355P 3.55GHz 32-core 280W Processor for HPE

P72665-B21

AMD EPYC 9255 3.20GHz 24-core 200W Processor for HPE

P72658-B21

AMD EPYC 9275F 4.1GHz 24-core 320W Processor for HPE

P72668-B21

AMD EPYC 9135 3.65GHz 16-core 200W Processor for HPE

P72660-B21

AMD EPYC 9115 2.6GHz 16-core 125W Processor for HPE

P72659-B21

AMD EPYC 9175F 4.2GHz 16-core 320W Processor for HPE

P72669-B21

AMD EPYC 9015 3.6GHz 8-core 125W Processor for HPE

P72661-B21

The air-cooling solution matrix according to CPU wattage is as follows:

CPU Wattage

Heat Sink

Fan

<= 240W

Standard (P58456-B21)

Standard (P71954-B21)

260-300W

Performance (P81955-B21)

Performance (P71958-B21)

>= 320W

Closed-loop Liquid cooling (P81954-B21)

Liquid cooling (P81953-B21)

CTO Server

4LFF

8SFF

SFF/EDSFF

GPU

Front Storage

4LFF

8/10SFF

5x 2SFF

5x 4EDSFF

2x Cages

All

Standard

30°C

30°C

30°C

25°C

30°C

30°C

P72658-B21

EPYC^TM 9255

30°C

27°C

27°C

25°C

30°C

30°C

P72660-B21

EPYC^TM 9135

27°C

27°C

25°C

30°C

P72665-B21

EPYC^TM 9355P

27°C

27°C

20°C

20°C

P72652-B21

EPYC^TM 9535

30°C

30°C

25°C

27°C

P72655-B21

EPYC^TM 9365

27°C

27°C

20°C

23°C

P72664-B21

EPYC^TM 9455P

30°C

30°C

25°C

27°C

P72668-B21

EPYC^TM 9275F

23°C

23°C

23°C

20°C

23°C

N/A

P72666-B21

EPYC^TM 9475F

30°C

25°C

25°C

23°C

30°C

N/A

P75022-B21

EPYC^TM 9755

25°C

25°C

23°C

N/A

Notes:

- If a direct liquid cooling kit is selected, then 30°C is applied for every processor.

- >300W processors require a direct liquid cooling kit on the GPU CTO server.

Memory

Please select one or more memory kits from the list below.

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64985-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64986-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64987-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64988-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P73446-B21

CTO Server

4LFF and 8SFF

SFF/EDSFF

GPU

Front Storage

All

5x 2SFF Cages

5x 4EDSFF Cages

All

CPU Wattage

<=300W

>300W

<=300W

>300W

<=300W

>300W

All

P64984-B21

30°C

30°C

30°C

30°C

30°C

25°C

30°C

P64985-B21

P64986-B21

P64987-B21

25°C

25°C

Not Supported

P64988-B21

25°C

25°C

Not Supported

P73446-B21

Not Supported

Not Supported

25°C

Not Supported

25°C

For more information about memory, please go to HPE DDR5 Smart Memory QuickSpecs.

For details on the Memory Population Rules and Guidelines with AMD EPYC^TM 9005 series processors, please go to: https://www.hpe.com/psnow/doc/a50012817enw.

Notes:

- The quantity of DIMMs selected per socket must be 1, 2, 4, 6, 8, 10, 12, 16, 20, or 24.

- Mixing of x4 memory and x8 memory is not supported.

- Mixing of 3DS memory and non-3DS memory is not supported.

- 1DPC speed: Quantity of 1/2/4/6/8/10/12 DIMMs installed.

- 2DPC speed: Quantity of 16/20/24 DIMM installed.

- 5600 MT/s and 4800 MT/s DIMMs with Turin processors.

- The -B21 memory SKUs shown in this document are to be used when ordering standalone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Storage

Please select the preferred storage configuration for each CTO server and choose the available controller and cable options.

Storage configurations of each CTO server

Notes: Config ID = Smart Chassis config ID#; DA = Direct Attach; Controller = HPE Storage Controllers; Lanes = number of lanes per drive. For example, x4 NVMe DA means that each NVMe drive has a direct PCIe 4-lane connection to the processor.

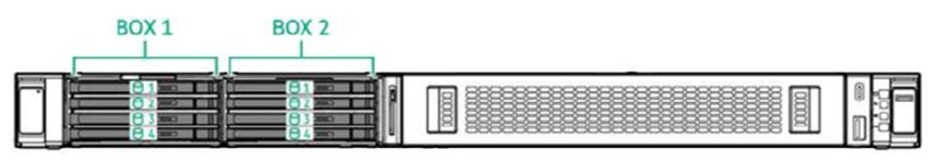

8SFF CTO server (P81967-B21)

Config ID

Drives

Backplanes

Lanes & Controllers

Max Qty

SAS

SATA

U.3 NVMe

Box1

Box2

Box1

Box2

1-1

0

0

0

0

-

-

-

-

1-2

8

0

8

0

8SFF x1

-

SATA DA

-

1-3

8

8

8

8

8SFF x1

-

OCP Controller

-

1-4

10

0

8

2

8SFF x1

2SFF

SATA DA

x4 NVMe DA

1-5

10

2

10

2

8SFF x1

2SFF

SATA DA

OCP Controller

1-6

10

8

8

10

8SFF x1

2SFF

OCP Controller

x4 NVMe DA

1-7

10

10

10

10

8SFF x1

2SFF

OCP Controller

1-8

8

0

0

8

8SFF x4

-

x4 NVMe DA

-

1-9

8

8

8

8

8SFF x4

-

x4 PCIe Controller

-

1-10

10

0

0

10

8SFF x4

2SFF

x4 NVMe DA

x4 NVMe DA

1-11

10

2

2

10

8SFF x4

2SFF

x4 NVMe DA

OCP Controller

1-12

10

8

8

10

8SFF x4

2SFF

x4 PCIe Controller

x4 NVMe DA

1-13

10

10

10

10

8SFF x4

2SFF

x4 PCIe Controller

OCP Controller

Config ID

Drives

Drive Cages

Lanes and Controller

Max Qty

SAS

SATA

U.3 NVMe

EDSFF

Box1

Box2

Box3

Box4

Box5

Box1

Box2

Box3

Box4

Box5

2-1

4

4

4

4

0

2SFF

2SFF

-

-

-

x4 OCP Controller

-

-

-

2-2

4

4

4

4

0

-

-

-

2SFF

2SFF

-

-

-

x4 OCP Controller

2-3

8

0

0

8

0

2SFF

2SFF

-

2SFF

2SFF

x4 NVMe DA

-

x2 NVMe DA

2-4

8

0

0

8

0

2SFF

2SFF

-

2SFF

2SFF

x4 NVMe DA

-

x4 NVMe DA

2-5

8

8

8

8

0

2SFF

2SFF

-

2SFF

2SFF

x2 OCP Controller

-

x2 OCP Controller

2-6

8

8

8

8

0

2SFF

2SFF

-

2SFF

2SFF

x4 OCP Controller

-

x4 OCP Controller

2-7

10

0

0

10

0

2SFF

2SFF

2SFF

2SFF

2SFF

x2 NVMe DA

2-8

10

0

0

10

0

2SFF

2SFF

2SFF

2SFF

2SFF

x4 NVMe DA

2-9

8

0

0

0

8

4EDSFF

4EDSFF

-

-

-

x4 NVMe DA

-

-

-

2-10

12

0

0

0

12

4EDSFF

4EDSFF

-

4EDSFF

-

x4 NVMe DA

-

x4 NVMe DA

-

2-11

16

0

0

0

16

4EDSFF

4EDSFF

-

4EDSFF

4EDSFF

x2 NVMe DA

-

x2 NVMe DA

2-12

16

0

0

0

16

4EDSFF

4EDSFF

-

4EDSFF

4EDSFF

x2 PCIe Controller

-

x2 PCIe Controller

2-13

16

0

0

0

16

4EDSFF

4EDSFF

-

4EDSFF

4EDSFF

x4 NVMe DA

-

x4 NVMe DA

2-14

20

0

0

0

20

4EDSFF

4EDSFF

4EDSFF

4EDSFF

4EDSFF

x2 NVMe DA

2-15

20

0

0

0

20

4EDSFF

4EDSFF

4EDSFF

4EDSFF

4EDSFF

x4 NVMe DA

2-16

12

4

4

4

8

4EDSFF

4EDSFF

-

2SFF

2SFF

x4 NVMe DA

-

x4 OCP Controller

2-17

16

4

4

4

12

4EDSFF

4EDSFF

4EDSFF

2SFF

2SFF

x4 NVMe DA

x4 OCP Controller

2-18

8

8

8

8

0

2SFF

2SFF

-

2SFF

2SFF

x4 PCIe Controller

-

x4 PCIe Controller

2-19

8

8

8

8

0

2SFF

2SFF

-

2SFF

2SFF

x2 MR932i-p

-

x2 MR932i-p

2-20

8

0

0

0

8

4EDSFF

4EDSFF

-

-

-

X4 MR932i-p

-

-

-

2-21

16

0

0

0

16

4EDSFF

4EDSFF

-

4EDSFF

4EDSFF

x2 MR932i-p

-

x2 MR932i-p

2-22

16

0

0

0

16

4EDSFF

4EDSFF

-

4EDSFF

4EDSFF

x2 OCP Controller

-

x2 OCP Controller

Config ID

Drives

Drive Cages

Lanes and Controller

Max Qty

SAS

SATA

U.3 NVMe

EDSFF

Box1

Box2

Box1

Box2

4-1

2

0

0

2

 0

2SFF

-

x4 NVMe DA

-

4-2

4

0

0

4

 0

2SFF

2SFF

x4 NVMe DA

4-3

4

4

4

4

 0

2SFF

2SFF

x4 PCIe Controller

-

4-4

4

4

4

4

 0

2SFF

2SFF

x4 OCP Controller

-

4-5

4

 0

0

0

4

4EDSFF

-

x4 NVMe DA

-

4-6

4

 0

0

0

4

4EDSFF

-

x4 PCIe Controller

-

4-7

4

 0

0

0

4

4EDSFF

-

x4 OCP Controller

-

4-8

8

 0

0

0

8

4EDSFF

4EDSFF

x4 NVMe DA

4-9

8

 0

0

0

8

4EDSFF

4EDSFF

x4 PCIe Controller

4-10

8

 0

0

0

8

4EDSFF

4EDSFF

x4 OCP Controller

4-11

8

0

0

0

8

4EDSFF

4EDSFF

x4 MR932i-p

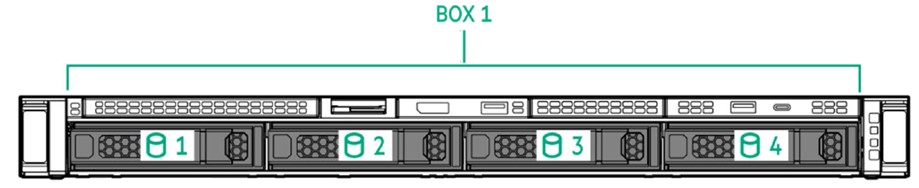

4LFF CTO server (P81965-B21)

Config ID

Drives

Backplane

Lanes and Controller

Max Qty

SAS

SATA

U.3 NVMe

Box1

Box1

3-1

4

0

4

0

Included in CTO

SATA DA

3-2

4

4

4

0

Included in CTO

OCP Controller

Storage Controller

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

HPE MR408i-p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug-in Storage Controller

P74775-B21

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Battery and Hybrid Capacitor

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

HPE 16W Smart Hybrid Capacitor with 145mm Cable

P65038-B21

Notes: Max one (1) of the Storage Batteries can be selected per server.

Internal Storage Controller Cables

Available options of 8SFF CTO Server (P81967-B21)

HPE ProLiant Compute DL325 Gen12 8SFF x4 NVMe Direct Attach Cable Kit

P81910-B21

HPE ProLiant Compute DL325 Gen12 2SFF x4 NVMe Direct Attach Cable Kit

P81911-B21

HPE ProLiant Compute DL325 Gen12 8SFF SATA Direct Attach Cable Kit

P81912-B21

HPE ProLiant Compute DL320 Gen12 8SFF x1 U.3 OROC Cable Kit

P75090-B21

HPE ProLiant Compute DL320 Gen12 2SFF OROC Cable Kit

P78558-B21

Available options of 4LFF CTO Server (P81965-B21)

HPE ProLiant Compute DL325 Gen12 4LFF SATA Direct Attach Cable Kit

P81909-B21

HPE ProLiant Compute DL320 Gen12 4LFF OROC Cable Kit

P75097-B21

Available options of SFF/EDSFF CTO Server (P81966-B21)

HPE ProLiant Compute DL325 Gen12 8EDSFF x4 NVMe Direct Attach Box 1/2 Cable Kit

P81913-B21

HPE ProLiant Compute DL325 Gen12 4EDSFF x4 NVMe Direct Attach Box 3/4 Cable Kit

P81914-B21

HPE ProLiant Compute DL325 Gen12 4EDSFF x4 NVMe Direct Attach Box 5 Cable Kit

P81915-B21

HPE ProLiant Compute DL325 Gen12 16EDSFF x2 NVMe Direct Attach Cable Kit

P81916-B21

HPE ProLiant Compute DL325 Gen12 4EDSFF x2 NVMe Direct Attach Cable Kit

P81917-B21

HPE ProLiant Compute DL325 Gen12 16EDSFF x2 Tri-Mode PCIe Cable Kit

P81918-B21

HPE ProLiant Compute DL325 Gen12 8SFF x4 NVMe Direct Attach Box 1/2/4/5 Cable Kit

P81919-B21

HPE ProLiant Compute DL325 Gen12 2SFF x4 NVMe Direct Attach Box 3 Cable Kit

P81920-B21

HPE ProLiant Compute DL325 Gen12 8SFF x2 NVMe Direct Attach Box 1/2/4/5 Cable Kit

P81921-B21

HPE ProLiant Compute DL325 Gen12 2SFF x2 NVMe Direct Attach Box 3 Cable Kit

P81922-B21

HPE ProLiant Compute DL325 Gen12 8SFF x2 OROC OCP SlotB Cable Kit

P81923-B21

HPE ProLiant Compute DL325 Gen12 8SFF x4 Tri-Mode PCIe Cable Kit

P81924-B21

HPE ProLiant Compute DL325 Gen12 4SFF x4 OROC Box 4/5 OCP SlotA Cable Kit

P81925-B21

HPE ProLiant Compute DL325 Gen12 4SFF x4 OROC Box 1/2 OCP SlotB Cable Kit

P81893-B21

HPE ProLiant Compute DL325 Gen12 16EDSFF x2 Box 1/2/4/5 OCP Controller Cable Kit

P84199-B21

HPE ProLiant Compute DL325 Gen12 16EDSFF x2 MR932i-p Cable Kit

P87896-B21

HPE ProLiant Compute DL325 Gen12 8SFF/EDSFF x4 MR932i-p Cable Kit

P87897-B21

Available options of GPU CTO Server (P84204-B21)

HPE ProLiant Compute DL325 Gen12 4SFF x4 Front GPU Box 1/2 PCIe Slot2 Controller Cable Kit

P84197-B21

HPE ProLiant Compute DL325 Gen12 4SFF x4 Front GPU Box 1/2 OCP SlotB Controller Cable Kit

P84198-B21

HPE ProLiant Compute DL325 Gen12 4EDSFF x4 Front GPU Box 1 PCIe Slot2 Controller Cable Kit

P84206-B21

HPE ProLiant Compute DL325 Gen12 8EDSFF x4 Front GPU Box 1/2 OCP Controller Cable Kit

P84203-B21

HPE ProLiant Compute DL325 Gen12 SFF/EDSFF x4 2NVMe Front GPU Box 1/2 Direct Attach Cable Kit

P84363-B21

HPE ProLiant Compute DL325 Gen12 GPU 8EDSFF x4 MR932i-p Cable Kit

P87894-B21

HPE OS Boot Device Options

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u Front Cable Kit

P77186-B21

HPE ProLiant Compute DL3XX Gen12 NS204i-u Rear Cable Kit

P71433-B21

Notes:  Three (3) locations to support NS204i-u boot device, depending on configuration.

- At the position of primary riser (Slot1), the low-profile riser kit (P81926-B21) is required.

- Besides M-CRPS Power Supply 2, a cable kit (P71433-B21) is required and only compatible with 60mm wide M-CRPS.

- At the front cage, Box 3 of the SFF/EDSFF CTO server or Box 2 of the GPU CTO server. The front cable kit (P77186-B21) is required.

The thermal support matrix for the NS204i-u boot device is as follows:

CTO Server

4LFF

8SFF

Front Storage

4LFF

8SFF

10SFF

CPU Wattage

<= 300W

>300W

<= 300W

>300W

<= 300W

>300W

Rear Slot 1

27°C

25°C

27°C

25°C

27°C

20°C

Besides PSU 2

CTO Server

SFF/EDSFF

GPU

All (DLC)

Front Storage

5x 2SFF

5x 4EDSFF

All

All

CPU Wattage

<= 300W

>300W

<= 300W

>300W

<= 300W

>300W

All

Front Box3

30°C

30°C

30°C

30°C

Rear Slot 1

27°C

Not Supported

25°C

Not Supported

25°C

27°C

27°C

Besides PSU 2

20°C

27°C

27°C

27°C

30°C

HPE Drives

SFF Solid State Disk Drives

SATA Interface

Read Intensive Drives

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

Mixed Use Drives

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

Self-Encryption Drives (SED)

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

SAS Interface

Read Intensive Drives

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

Mixed Use Drives

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49047-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49029-B21

Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) Drives

HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83347-B21

HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD

P83344-B21

PCIe/NVMe Interface

Read Intensive Drives

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78808-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78810-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84242-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84244-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-B21

Mixed Use Drives

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78801-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78804-B21

Self-Encrypting Drives (SED) and Federal In Processing Standards (FIPS) Drives

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

EDSFF E3.S Solid State Disk Drives

PCIe/NVMe Interface

Very-Read-Optimized Drives

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P79065-B21

Read Intensive Drives

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD

P79965-B21

Mixed Use Drives

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78784-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD

P78787-B21

Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) Drives

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P79122-B21

LFF Solid State Disk Drives

SATA Interface

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

SAS Interface

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

LFF Hard Disk Drives

SAS Interface

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68583-B21

HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80577-B21

SATA Interface

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-B21

HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80578-B21

SFF Hard Disk Drive

SAS Interface

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

Optical Drives

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

HPE Mobile USB DVD-RW Optical Drive

701498-B21

Riser Cards

HPE ProLiant Compute DL325 Gen12 x16 Low Profile Slot 1 Riser Kit

P81926-B21

HPE ProLiant Compute DL325 Gen12 x16 Full Height Slot 1 Riser Kit

P81927-B21

Notes:

­ PCIe Slot 2 riser is the default in all CTO servers. Both riser kits above are in PCIe Slot 1.

­ Low-profile riser kit can support NS204i-u boot device.

HPE ProLiant Compute DL3X5 Gen12 OCP SlotB x8 Enablement Kit

P81908-B21

HPE ProLiant Compute DL325 Gen12 OCP Slot B to Front Primary OCP Enablement Kit

P82200-B21

HPE ProLiant Compute DL325 Gen12 OCP Slot A to Front Secondary OCP Enablement Kit

P82201-B21

Notes:

­ OCP slot B is not hardwired to the processor. Any device installed on OCP B requires one or two OCP B enablement kits (P81908-B21), depending on the bandwidth required from the device.

­ Both Front OCP enablement kits can only be supported in the SFF/EDSFF CTO server.

­ The Front Secondary OCP enablement Kit (P82201-B21) can only be selected after selecting the Front Primary OCP enablement Kit (P82200-B21).

Networking

HPE Ethernet Adapters

PCIe Stand up

AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter for HPE

P87940-B21

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE

S2A69A

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE

R8M41A

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 Adapter for HPE

P73111-B21

OCP 3.0

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

HPE InfiniBand Adapters

PCIe Stand up

HPE InfiniBand NDR200/Ethernet 200GbE 2-port QSFP112 PCIe5 x16 MCX755106AC-HEAT Adapter

P65333-H21

HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Generic Adapter

P45641-H24

HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Generic Adapter

P45642-H23

HPE InfiniBand XDR/Ethernet 2x400GbE 1-port OSFP PCIe6 x16 HHHL CX8 Crypto Adapter

P79114-H21

HPE InfiniBand XDR400/Ethernet 400GbE 2-port QSFP112 PCIe6 x16 HHHL CX8 Crypto Adapter

P79115-H21

HPE InfiniBand XDR PCIe Gen6 x16 Multi Host/Socket Direct Auxiliary Card with 250mm MCIO Cable Kit

P81264-H21

HPE Fibre Channel Host Bus Adapter

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter

R7N87A

HPE SN1620E 32Gb 2p FC SecureHBA

S4S01A

HPE SN1720E 64Gb 2p FC SecureHBA

S4T09A

The thermal support matrix for the networking options with the AOC (Active Optical Cables)  is as follows:

CTO Server

4LFF

8SFF

Front Storage

4LFF

8 or 10 SFF

CPU Wattage

<= 300W

>300W

All with DLC

<= 300W

>300W

All with DLC

PCIe Standup

P26262-B21

30°C

27°C

30°C

30°C

27°C

30°C

P08443-B21

P42044-B21

S2A69

P26264-B21

Slot1: 30°C

Slot2: 25°C

20°C

30°C

Slot1: 30°C

Slot2: 25°C

Slot1: Not Supported

Slot2: 23°C

30°C

P73111-B21

P08458-B21

P45642-H23

P45641-B23/H23

Slot1: 27°C

Slot2: 20°C

Not Supported

27°C

Slot1: 27°C

Slot2: 20°C

Not Supported

27°C

P25960-B21

R8M41A

P21112-B21

P65333-B21/H21

P79114-H21

P79115-H21

Slot1: 20°C

Slot2: Not Supported

Not Supported

20°C

Slot1: 20°C

Slot2: Not Supported

Not Supported

20°C

OCP

P10115-B21

30°C

30°C

30°C

30°C

30°C

30°C

P10106-B21

OCP A: 27°C

27°C

P42041-B21

P26269-B21

27°C

25°C

27°C

27°C

OCP A: Not Supported

OCP B: 23°C

27°C

P22767-B21

P73114-B21

25°C

23°C

25°C

25°C

25°C

P41614-B21

CTO Server

SFF/EDSFF

Front Storage

5x 2SFF

5x 4EDSFF

CPU Wattage

<= 300W

>300W

All w DLC

<= 300W

>300W

All w DLC

PCIe Standup

P26262-B21

30°C

Slot1: 25°C
Slot2: 27°C

30°C

Slot1: 30°C
Slot2: 25°C

Slot1: Not Supported
Slot2: 25°C

30°C

P08443-B21

P42044-B21

S2A69

P26264-B21

Slot1: 30°C
Slot2: 25°C

20°C

30°C

Slot1: 25°C
Slot2: Not Supported

Not Supported

25°C

P73111-B21

P08458-B21

P45642-H23

P45641-B23/H23

Slot1: 27°C
Slot2: 20°C

Not Supported

27°C

Slot1: 20°C
Slot2: Not Supported

Not Supported

20°C

P25960-B21

R8M41A

P21112-B21

P65333-B21/H21

P79114-H21

P79115-H21

Slot1: 20°C

Slot2: Not Supported

Not Supported

20°C

Not Supported

Not Supported

Not Supported

OCP

P10115-B21

30°C

30°C

30°C

30°C

25°C

25°C

P10106-B21

OCP A: 27°C
OCP B: 25°C

25°C

OCP A: 23°C
OCP B: Not Supported

P42041-B21

P26269-B21

27°C

OCP A: 20°C
OCP B: 23°C

27°C

25°C

Not Supported

P22767-B21

P73114-B21

25°C

25°C

20°C

20°C

P41614-B21

Card

CTO Server

GPU

Front Storage

All

All

CPU Wattage

<= 300W

>300W DLC

PCIe Standup

P26262-B21

30°C

30°C

P08443-B21

P42044-B21

S2A69

P26264-B21

Slot1: 27°C
Slot2: 23°C

27°C

P73111-B21

P08458-B21

P45642-H23

P45641-B23/H23

Slot1: 20°C
Slot2: Not Supported

20°C

P25960-B21

R8M41A

P21112-B21

P65333-B21/H21

P79114-H21

Not Supported

Not Supported

P79115-H21

OCP

P10115-B21

30°C

30°C

P10106-B21

25°C

P42041-B21

P26269-B21

25°C

27°C

P22767-B21

P73114-B21

20°C

25°C

P41614-B21

Notes:

­ Options that are not on the list can be supported at 30 °C with AOC.

­ If the slot number is not identified in the matrix, then the ambient temperature applies to all available slots of that type (PCIe standup or OCP).
