HPE ProLiant Compute DL320 Gen12

QuickSpecs

Based on industry-standard modular server design, the HPE ProLiant Compute DL320 Gen12 provides a right-sized, efficient compute solution.

It is a 1U 1P server that provides best-in-class performance, with maximum I/O capabilities for cloud-native, Infrastructure-as-a-Service (IaaS), and general-purpose workloads while consuming considerably less energy than 2P systems.

HPE ProLiant Compute DL320 Gen12

The HPE ProLiant Compute DL320 Gen12 is purpose-built for edge computing, delivering exceptional performance and optimized economics and is an excellent choice for both virtualized and containerized workloads.

The HPE ProLiant Compute DL320 Gen12 is powered Intel® Xeon® 6 Processors with up to 144 cores - including Intel® Rich I/O options, increased memory capability (up to 4 TB 6400 MT/s), and high-speed PCIe Gen5. It supports up to four single-wide GPUs (or two double-wide) with front or rear-facing I/O, and capacity for up to 20 EDSFF drives. The HPE ProLiant Compute Gen12 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

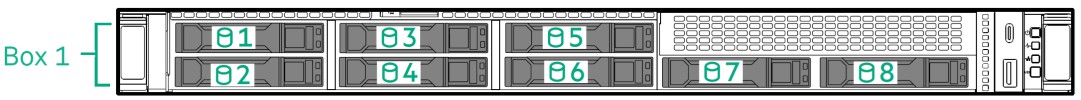

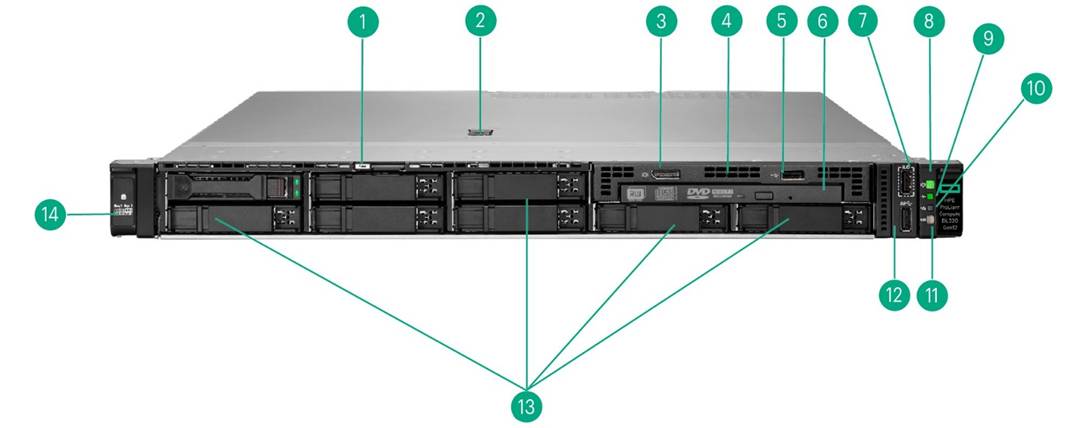

SFF Front View with optional Universal Media Bay, optical Drive, DisplayPort, USB 2.0

Item

Description

Item

Description

1.

Quick removal access panel

9.

Health LED

2.

Serial number/iLO information pull tab

10.

NIC Status ¹

3.

DisplayPort (optional - shown)

11.

UID Button/LED

4.

Universal Media Bay (optional):

12.

USB 3.2 Gen1 port

- Option 1: Optical drive bay + DisplayPort & USB 2.0 port kit (shown)

13.

Drive bays; backplanes options

- Option 1: 8SFF x1 Tri-Mode 24G U.3 BC Backplane

- Option 2: 2 SFF x4 Tri-Mode 24G U.3 BC Drive Cage

5.

USB 2.0 port (optional - shown)

- Option 2: 8SFF x4 Tri-Mode 24G U.3 BC

Backplane

6.

Optical Drive (optional- shown)

7.

iLO Service Port

14.

Drive support label

8.

Power On / Standby button and system power LED

Notes: ¹ Front NIC LED display does not support NIC LED ACT/LINK indication from OCP NICs.

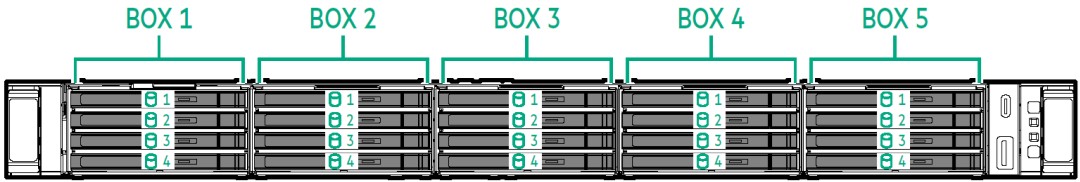

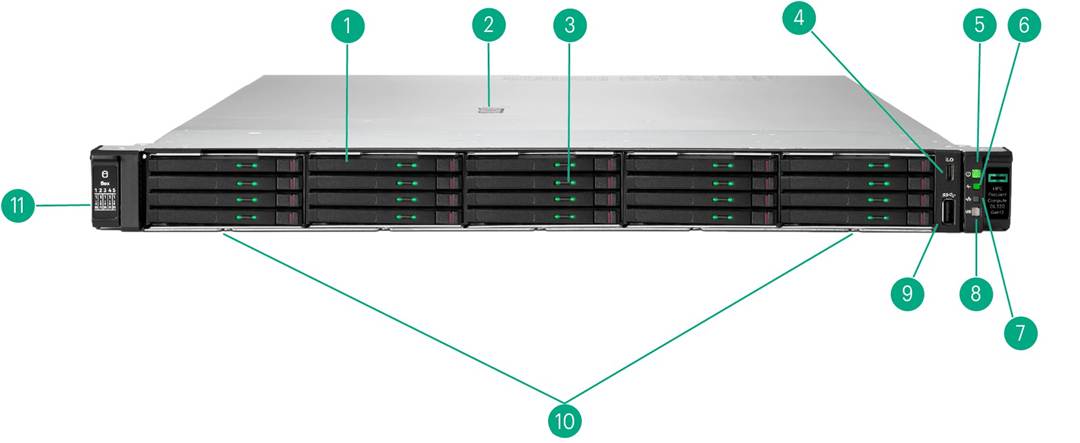

SFF/EDSFF Front View - 20 EDSFF Drives shown

Item

Description

Item

Description

1.

Serial number/iLO information pull tab

6.

Health LED

2.

Quick Removal Access Panel

7.

NIC Status

3.

Drive Cage 3: (EDSFF shown)

8.

UID Button/LED

- Option 1: 2x Front OCP 3.0

- Option 2: NS204i Hot-Plug Boot Device

9.

USB 3.2 Gen1 port

4.

iLO Service Port

10.

Drive Cage 1-5: (EDSFF Shown)

5.

Power On/Standby Button and LED

- Option 1: 4x EDSFF per cage

- Option 2: 2x 2SFF per cage

- Option 3: Blank

11.

Drive Cage Information label

Notes: ¹ Front NIC LED display does not support NIC LED ACT/LINK indication from OCP NICs.

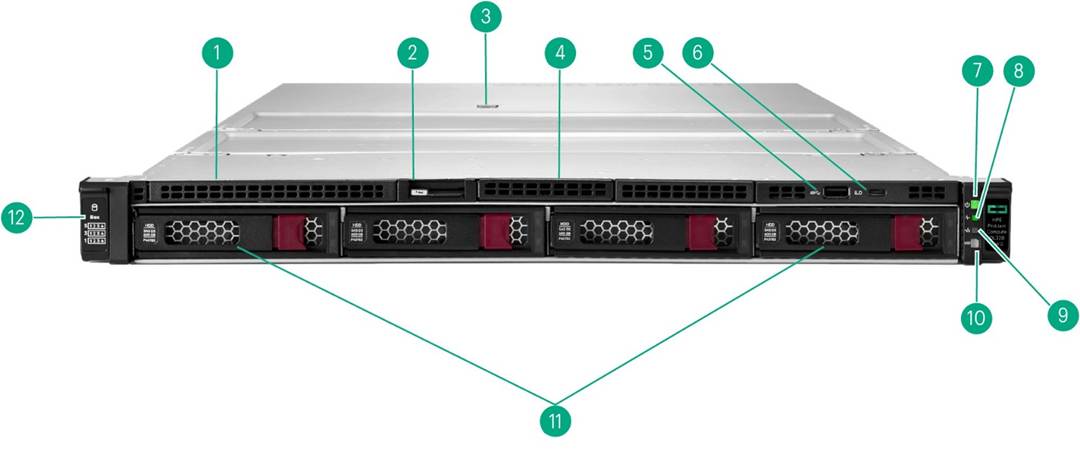

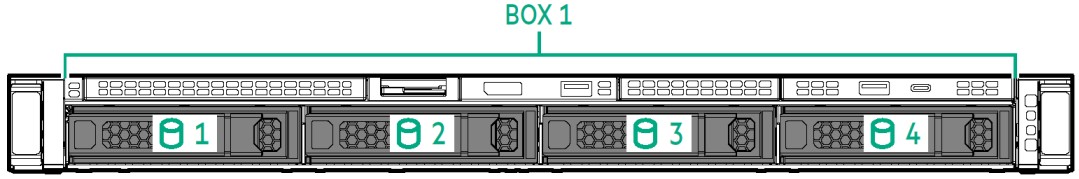

4 LFF Front View - 4 LFF drives shown

Item

Description

Item

Description

1.

Optical Drive Bay (optional - not shown)

7.

Power On/Standby button and system power LED

2.

Serial number/iLO information pull tab

8.

Health LED

3.

Quick removal access panel

9.

NIC Status¹

4.

Optional DisplayPort & USB 2.0 port bundle kit

10.

UID Button/LED

5

USB 3.2 Gen1 port

11.

SAS/SATA drive bays (shown, populated)

6.

iLO Service Port

12.

Drive Support label

Notes: ¹ Front NIC LED display does not support NIC LED ACT/LINK indication from OCP NICs.

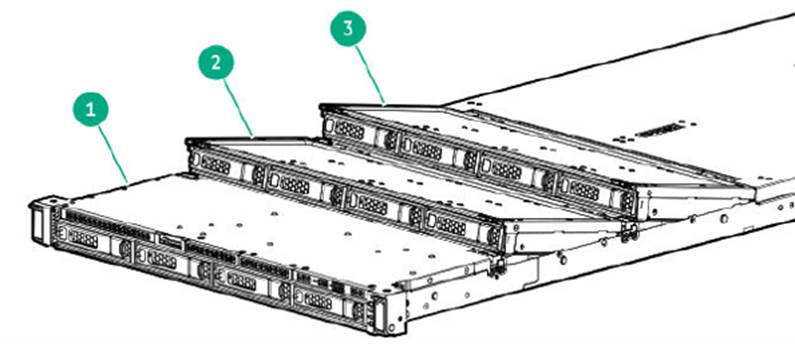

12 LFF Front View - 12 LFF + SAS drives shown

Item

Description

Item

Description

1.

Drive cage 2 & 3 access points

7.

Power On/Standby button and system power LED

2.

Serial number/iLO information pull tab

8.

Health LED

3.

Quick removal access panel

9.

NIC Status¹

4.

Optional DisplayPort & USB 2.0 port bundle kit

10.

UID Button/LED

5

USB 3.2 Gen1 port.

11.

SAS/SATA drive bays (shown, populated)

6.

iLO Service Port

12.

Drive Support label

Notes: ¹ Front NIC LED display does not support NIC LED ACT/LINK indication from OCP NICs.

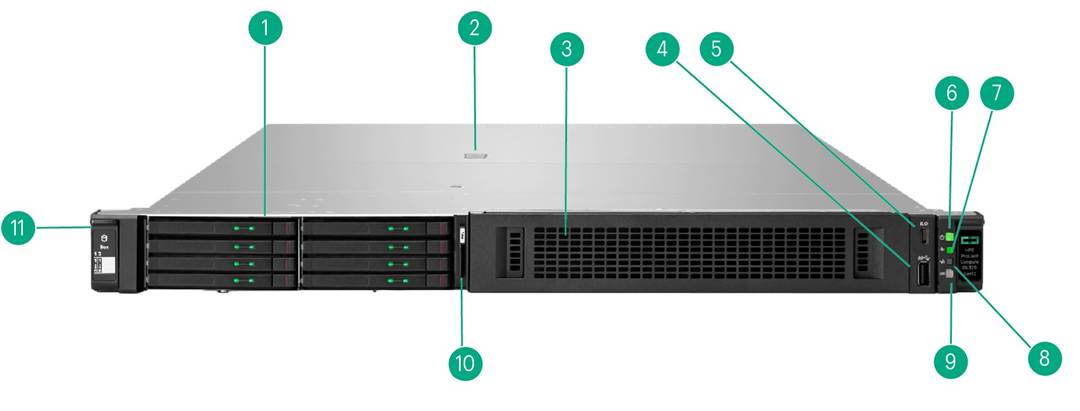

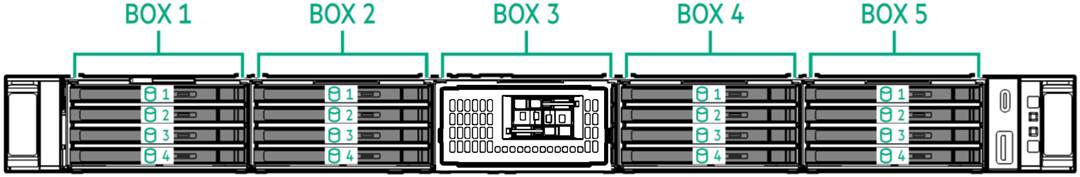

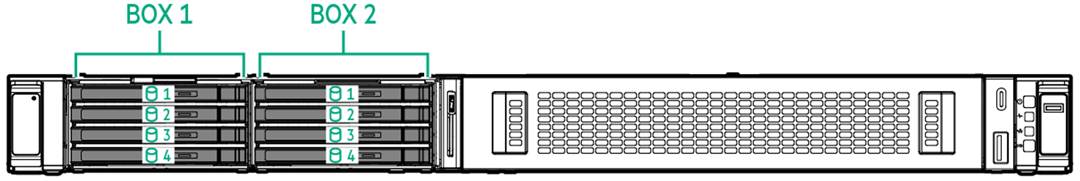

Front View - GPU CTO Server

Item

Description

Item

Description

1.

Two (2) Stacking Drive Cages

6.

UID Button/LED Power On/Standby button and LED

- Option1: 2x 4EDSFF Drive Cage (shown)

7.

Health LED

- Option2: 2x 2SFF Drive Cage

8.

NIC Status

2.

Quick removal access panel

9.

UID Button/LED

3

GPU Cage (PCIe Slots 3-6 shown, covered). Supports 2x DW GPU or 4x SW GPU.

10.

Serial number/iLO information pull tab

4.

USB 3.2 Gen1 port

11.

Drive cage information label

5.

iLO Service Port

Notes: ¹ Front NIC LED display does not support NIC LED ACT/LINK indication from OCP NICs.

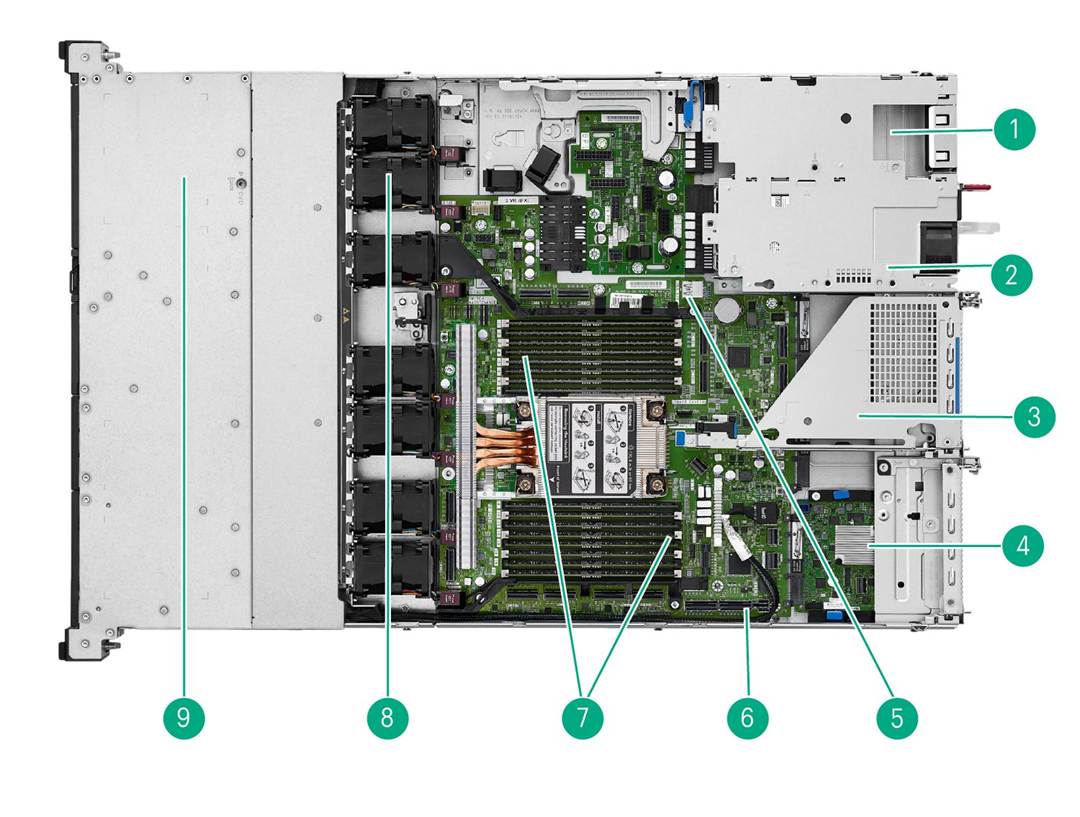

Internal View - Standard for all DL320 Gen12

Item

Description

Item

Description

1.

PSU Blank

6.

DIMM Slots

2.

PSU

7.

System Fans (7)

3

Secondary Riser

8.

Drive Bays

4

DC-SCM Module

9.

USB 3.0 port

5.

Primary Riser Slot

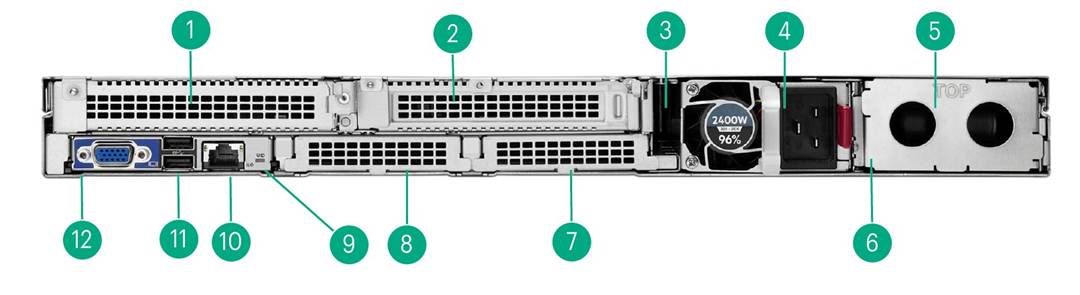

Rear View - Standard for all DL320 Gen12

Item

Description

Item

Description

1.

PCIe Slot1 (Primary Riser, optional)

7.

Slot 21 OCP 3.0 Slot B (optional), shown covered

2.

PCIe Slot2 (Secondary Riser, optional)

8.

Slot 20 OCP 3.0 Slot A, shown covered

3.

NS204i-u Boot Device (Optional - not shown)

9.

UID Indicator LED on DC SCM

4,

60mm Power Supply Slot 2

10.

Dedicated iLO network port on DC SCM

5.

60mm Power Supply Slot 1 (unpopulated)

11.

Two (2) USB 3.2 ports on DC SCM

6.

Serial port location (optional - not shown)

12.

Video (VGA) port on DC SCM

What's New

- All-new DL320 Gen12 server.

- Intel® Xeon® 6 Processors with Rich I/O options.

- Data Center - Modular Hardware System (DC-MHS) design.

- Modular - Common Redundant Power Supply (M-CRPS) design.

- OCP 3.0 (Front or Rear).

- NS204i-u front or rear install option based on configuration.

- DDR5 6400 MT/s memory.

- iLO7 on DC-SCM module.

Platform Information

Form Factor

- 1U rack.

Chassis Types

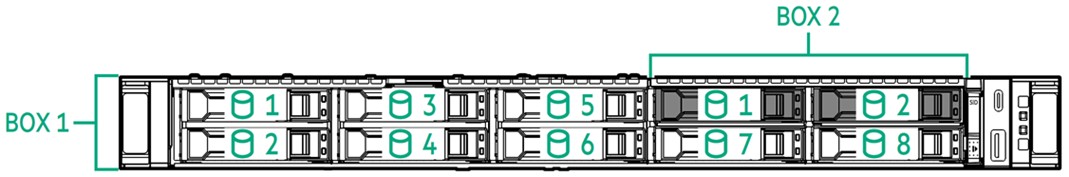

- SFF Server (P71437-B21) supports 8SFF drives (standard) and 10 SFF with optional:

• 8+2 SFF cage.
• Optical Drive Tray with Optical Drive, DisplayPort, USB 2.0.
• System Insight Display.

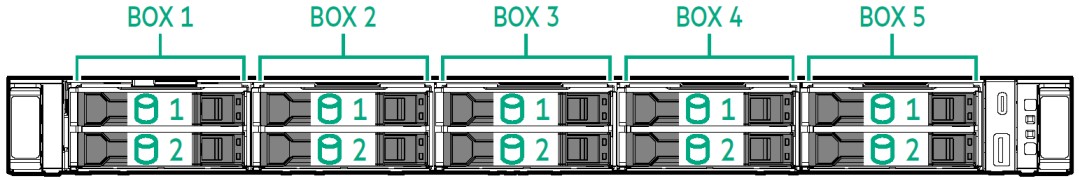

- SFF/EDSFF Server(P75217-B21) supports up to 10 SFF or 20 EDSFF drives with optional:

• Media Bay containing Optical Drive, DisplayPort, USB 2.0.
• 2 Front OCP3.0 slots or hot-plug M.2 boot device.

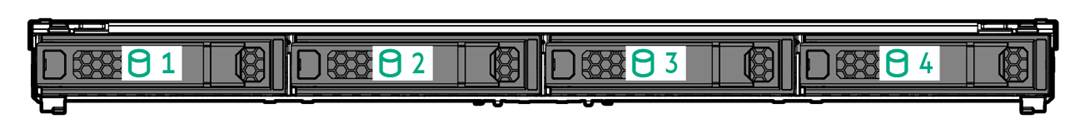

- 4 LFF Server (P75218-B21) with optional:

• Optical Drive.

- 12 LFF Server (P75219-B21).

- GPU Server (P75220-B21) supports up to two DW or 4 SW GPUs with optional:

• SFF and EDSFF drive options.

System Fans (7 fans required)

- HPE ProLiant Compute Gen12 1U Standard Fan Kit, includes one fan.

- HPE ProLiant Compute Gen12 1U High Performance Fan Kit, includes one fan.

- HPE ProLiant Compute DL320 Gen12 1U Closed-loop Liquid Cooling FIO Fan Kit, includes one fan.

Notes:

- High-Performance fan kits are required when >185W Processor SKUs, High-Performance NVMe drives, or certain backplanes are populated. See notes under each option category or each individual option for specifics.

- Closed-loop Liquid Cooling FIO Fan Kit required for > 270W Processor SKUs.

- Seven (7) fan kits are required for all CTO server models.

Processors

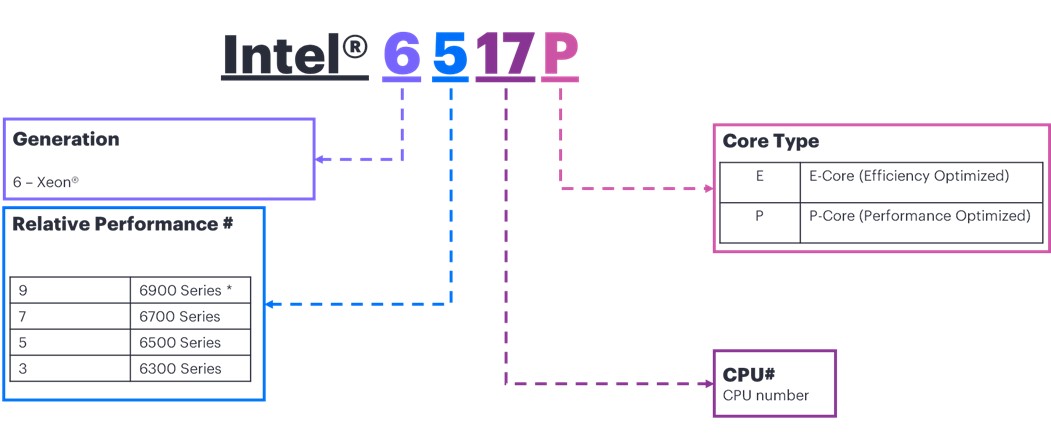

Intel® Xeon® 6 processor naming convention

* CPU Series not supported on HPE ProLiant Compute Gen12 platforms.

For more information regarding Intel® Xeon® 6 processors, refer to the following https://www.intel.com/content/www/us/en/now/xeon-6.html.

The DL320 Gen12 platform supports Intel® Xeon® 6 Efficient Core (E-Core) and Performance-Core (P-Core) processors.  The below processors are supported on the DL320 Gen12 platform.  Select one of the processors below.

Notes:

- ** Intel® HCC & LCC die processors have delayed availability.

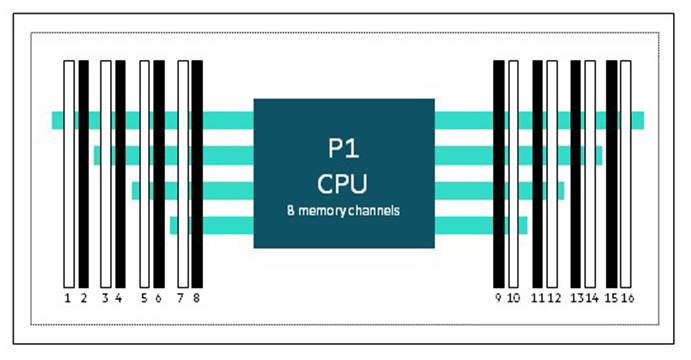

- * DDR5 MT/s is 6400 MT/s @ 1 DIMMs per channel (DPC) and 5200 MT/s @ 2DPC.

Notes:

- ** Intel® HCC & LCC die processors have delayed availability.

- * DDR5 MT/s is 6400 MT/s @ 1 DIMMs per channel (DPC) and 5200 MT/s @ 2DPC.

Notes:

- ** Intel® HCC & LCC die processors have delayed availability.

- * DDR5 MT/s is 6400 MT/s @ 1 DIMMs per channel (DPC) and 5200 MT/s @ 2DPC.

System Management Chipset

HPE iLO 7 ASIC on DC-SCM Module required, included.

Notes: Refer to the iLO QuickSpecs.

Notes:

All processors listed support up to 4 TB memory.

- The maximum memory speed is limited by the processor selection.

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

For additional information, please visit the HPE Memory QuickSpecs and Technical White Papers or HPE DDR5 Smart Memory QuickSpecs.

Memory Protection Features

Advanced ECC

Advanced ECC uses device data correction to detect and correct single-bit and all multibit errors within a single DRAM chip.

Adaptive Double DRAM Device Correction (ADDDC)

Advanced Double DRAM Device Correction enables the server to dynamically map out a failing DRAM device.  Enabling it can have some impact to system performance under certain workloads.  This is set to enabled by default.

Network Controller

The HPE ProLiant Compute DL320 Gen12 server does not include a network controller but offers the customer a variety of networking options listed in the Core Options section.

PCIe Expansion Slots

OCP Expansion Slots

Internal Storage Devices

- Optical Drive - Available on SFF, SFF/EDSFF and LFF CTO Servers as an option (DVD-ROM or DVD-RW) .

- Drives - None shipped standard.

Graphics

Integrated Video Standard

- VGA port on DC-SCM module.

- DisplayPort with optional optical disk drive.

- Video modes up to 1920 x 1200@60Hz (32 bpp).

- 16MB Video Memory.

Maximum Storage

Storage Controllers

NVMe Boot Devices

- HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device.

Notes:

- NS204i-u Boot device includes 2x 480GB M.2 NVMe SSDs, with preconfigured hardware RAID1.

- Front Hot Plug, Rear Hot Plug or internal (non-Hot Plug) location options.

Does not occupy a PCIe slot.

For additional details refer to: HPE OS Boot Device QuickSpecs.

Software RAID Controller

Intel® Virtual RAID on CPU (Intel® VROC)

Notes:

- Supports up to 8 direct attach NVMe bays.

- Intel® VROC NVMe is disabled by default. Requires licensing.

- RAID support - 0/1/5/10, depending on licensing options.

- For additional details refer to: Intel VROC for HPE ProLiant QuickSpecs.

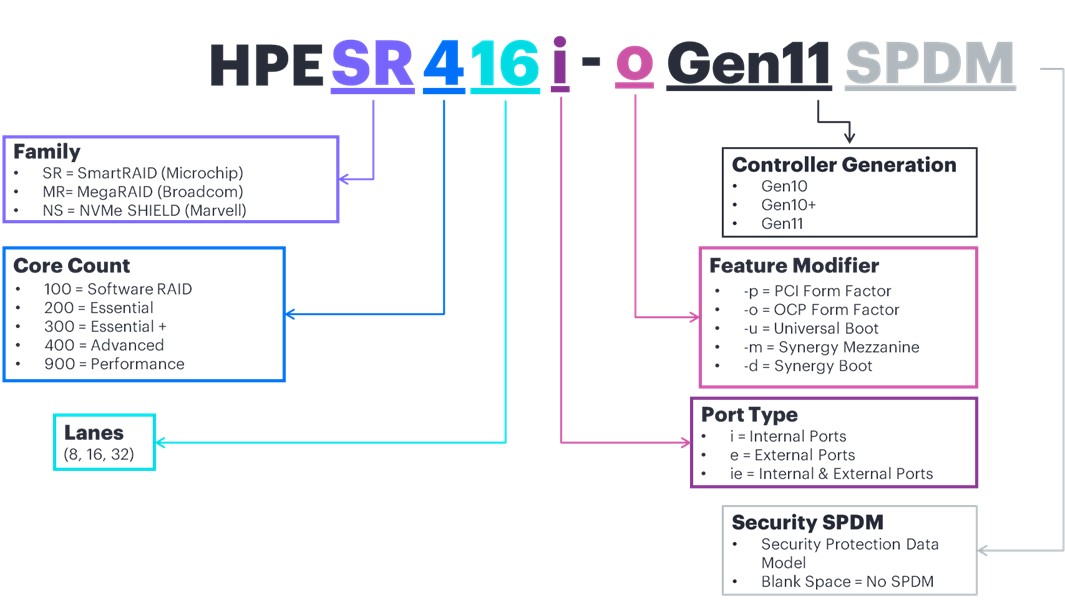

Essential RAID Controllers

- HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller.

- HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller.

Performance RAID Controllers

- HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller.

- HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller.

- HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller.

Notes: For additional details, refer to HPE Compute MR Gen11 Controllers QuickSpecs.

Power Supply

- HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit.

- HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit.

- HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit.

Notes: All power supplies rated for 96% efficiency. Power supplies ship without power cords. For information on power specifications and technical content, visit HPE Server power supplies.

European Union ErP Lot 9 Regulation

Beginning on January 1^st, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Switzerland, or Turkey must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE M-CRPS power supplies are single-output, and part numbers P67240-B21, P67244-B21, P67248-B21, and P67252-B21 are 96% efficient, thus meeting requirements.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry-standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Compute Gen12 servers have a UEFI Class 3 implementation to support UEFI Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=sd00005905en_us.

UEFI enables numerous new capabilities specific to HPE ProLiant servers, such as:

- Secure Boot and Secure Start enabled for enhanced security.

- Embedded UEFI Shell.

- Operating system-specific functionality

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- Support for > 2.2 TB (using GPT) boot drives.

- PXE boot support for IPv6 networks.

- USB 3.0 Stack.

- Workload Profiles for simple performance optimization.

- Embedded TPM Support.

UEFI Boot Mode only:

- iSCSI Software Initiator Support.

- NVMe Boot Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Boot support for option cards that only support a UEFI option ROM.

Industry Standard Compliance

- ACPI 6.3 Compliant.

- Advanced Encryption Standard (AES).

- Active Directory v1.0.

- ASHRAE A3/A4.
Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit https://www.hpe.com/support/ASHRAEGen112

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- Energy Star.

- EU Lot9 Compliant.

- IPMI 2.0.

- Microsoft® Logo certifications.

- PCIe 3.0 Compliant.

- PCIe 4.0 Compliant.

- PCIe 5.0 Compliant.

- PXE Support.

- Redfish API.

- Secure Digital 4.0.

- SMBIOS 3.2.

- SNMP v3.

- TLS 1.2.

- TPM 2.0 Support.

- Triple Data Encryption Standard (3DES).

- UEFI (Unified Extensible Firmware Interface Forum) 2.7.

- USB 2.0 Compliant.

- USB 3.0 Compliant.

- VGA Port.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Learn more at https://www.hpe.com/support/hpeuefisystemutilities-quicklinks.

Intelligent Provisioning

Hassle-free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at https://www.hpe.com/support/hpeintelligentprovisioning-quicklinks.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation, such as configuration and maintenance tasks based on modern industry standards. Learn more at https://www.hpe.com/support/restfulinterface/docs.

OpenBMC Support

OpenBMC Capable through iLO6 Transfer of Ownership Process.

Learn more at OpenBMC Support

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE selfrepair recommendations, to learn more visit http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

Learn more at https://www.hpe.com/us/en/servers/smart-update.html.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one too many servers, using your scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring and management solution. HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via  https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Compute Gen12 rack, tower, or micro server.

For a complete list of software as-a-service subscription SKUs and more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

For information on supported HPE servers, the complete list can be found here:

https://www.hpe.com/info/com-supported-servers

Security

Experience unparalleled security benefits with HPE ProLiant Compute Gen12 servers, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:

- HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.

- Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.

- Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.

- Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.

- HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations.

- Physical Security Options: System maintenance switch, USB security, rack and power security, bezel lock, and chassis intrusion detection switch.

- HPE Trusted Supply Chain: HPE Trusted Supply Chain offers enhanced security and compliance for organizations worldwide. Servers built with this option undergo rigorous inspections and checkpoints to detect and mitigate malicious microcode and counterfeit parts throughout the server build and lifecycle

Please refer to the HPE ProLiant Compute Gen12 Embedded Security QuickSpecs document for more detailed information at https://www.hpe.com/psnow/doc/a50009218enw

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup is available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one-year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, and 3-Year Onsite support with next business day response. Warranty repairs may be completed using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

https://www.hpe.com/support/ProLiantServers-Warranties

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionalities for all HPE ProLiant servers without compromise. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template-driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OpenView Standard and provides full-featured licenses which can be purchased for managing multiple HPE server generations.

To learn more, visit http://www.hpe.com/info/oneview.

Accelerator and GPU Information

Hewlett Packard Enterprise supports various accelerators on select HPE ProLiant servers to support different workloads. The accelerators enable seamless integration of GPU computing with HPE ProLiant servers for high-performance computing, large data center graphics, deep learning and virtual desktop deployments. These accelerators deliver all the standard benefits of GPU computing while enabling maximum reliability and tight integration with system monitoring and management tools such as HPE Insight Cluster Management Utility.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We have reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, practical, and efficient. In other words, we have created a more robust, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management, and system access.

Learn more about HPE Racks, KVM, PDUs, and UPSs at HPE Rack and Power Infrastructure.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where, and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are on your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

- A complete coverage approach.

- An assigned HPE team.

- Modular and fully personalized engagement.

- Enhanced Incident Management experience with priority access.

- Digitally enabled and AI-driven customer experience.

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI-driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

- Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.

- HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.

- HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.

- Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.

- HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product, go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and service options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

- Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.

- Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

GreenLake

GreenLake is the cloud to run and manage your entire hybrid landscape-private, public, and edge. It helps you to:

- Streamline IT Operations across compute, storage, and networking without the chaos.

- Unify and secure data, as you move faster.

- Accelerate AI, from pilot to production.

The result: greater operational efficiency, lower TCO, and faster AI delivery-all from one unified, intelligent platform built for today's hybrid enterprise.

Step 2: Choose Core Options

- Choice of 1 Processor model and Heat Sink Kit
Requires necessary Heat Sink for rated processor wattage.

- Choice of DDR5 memory options.
Requires necessary Fan Kits for different memory configurations subject to the recommended system ambient temperature.

- Choice of Backplane / Drive cage.

- Choice of Riser Cards.

- Choice of Storage Controllers, OS Boot Devices and VROC.

- Choice of Storage Controller Cables.

- Choice of SSD, HDD, and Optical Drives.

- Choice of Networking options: PCIe standup or OCP 3.0. May require necessary Fan Kits subject to recommended system ambient temperature.

- Choice of Accelerator options.

- Choice of Power and Cooling options.

Step 3: Choose Additional Options

- Choice of Security options.

- Choice of Optical Drives and Enablement Kits.

- Choice of Software as a Service Management - HPE Compute Ops Management and HPE OneView.

- Choice of Embedded Management.

- Choice of Rail Kits.

- Choice of Rack options.

- Choice of Support Services.

Choice of Core Options

Choose one (1) Processor

Intel® Xeon 6® Efficient-Core (E-Core) Performance per Watt Processors

Intel Xeon 6710E 2.4GHz 64-core 205W Processor for HPE

P71117-B21

Intel Xeon 6731E 2.2GHz 96-core 250W Processor for HPE

P71118-B21

Intel Xeon 6740E 2.4GHz 96-core 250W Processor for HPE

P71119-B21

Intel Xeon 6746E 2.0GHz 112-core 250W Processor for HPE

P71120-B21

Intel Xeon 6756E 1.8GHz 128-core 225W Processor for HPE

P71121-B21

Intel Xeon 6766E 1.9GHz 144-core 250W Processor for HPE

P71122-B21

Intel Xeon 6780E 2.2GHz 144-core 330W Processor for HPE

P71124-B21

Intel® Xeon 6® Performance-Core (P-Core) Processors

Intel Xeon 6507P 3.5GHz 8-core 150W Processor for HPE

P74504-B21

Intel Xeon 6517P 3.2GHz 16-core 190W Processor for HPE

P74507-B21

Intel Xeon 6725P 3.7GHz 16-core 235W Processor for HPE

P87302-B21

Intel Xeon 6725P 3.7GHz 16-core 235W Processor for HPE

P87302-B21

Intel Xeon 6527P 3.0GHz 24-core 255W Processor for HPE

P74570-B21

Intel Xeon 6730P 2.5GHz 32-core 250W Processor for HPE

P74573-B21

Intel Xeon 6732P 3.8GHz 32-core 350W Processor for HPE

P74578-B21

Intel Xeon 6736P 2.0GHz 36-core 205W Processor for HPE

P74575-B21

Intel Xeon 6737P 2.9GHz 32-core 270W Processor for HPE

P74576-B21

Intel Xeon 6745P 3.1GHz 32-core 300W Processor for HPE

P81591-B21

Intel Xeon 6747P 2.7GHz 48-core 330W Processor for HPE

P73831-B21

Intel Xeon 6767P 2.4GHz 64-core 350W Processor for HPE

P73834-B21

Intel Xeon 6787P 2.0GHz 86-core 350W Processor for HPE

P73837-B21

Intel® Xeon 6® Mainline Processors

Intel Xeon 6505P 2.2GHz 12-core 150W Processor for HPE

P74503-B21

Intel Xeon 6515P 2.3GHz 16-core 150W Processor for HPE

P74506-B21

Intel Xeon 6520P 2.4GHz 24-core 210W Processor for HPE

P74568-B21

Intel Xeon 6530P 2.3GHz 32-core 225W Processor for HPE

P74571-B21

Intel Xeon 6740P 2.1GHz 48-core 270W Processor for HPE

P73829-B21

Intel Xeon 6760P 2.2GHz 64-core 330W Processor for HPE

P73832-B21

Intel® Xeon 6® Single Socket Processors (Rich I/O)

Intel Xeon 6511P 2.3GHz 16-core 150W Processor for HPE

P74505-B21

Intel Xeon 6521P 2.6GHz 24-core 225W Processor for HPE

P74569-B21

Intel Xeon 6731P 2.5GHz 32-core 245W Processor for HPE

P74574-B21

Intel Xeon 6741P 2.5GHz 48-core 300W Processor for HPE

P73830-B21

Intel Xeon 6761P 2.5GHz 64-core 350W Processor for HPE

P73833-B21

Intel Xeon 6781P 2.0GHz 80-core 350W Processor for HPE

P73836-B21

Notes:

- Adequate fans and heatsinks must be selected.

- Processors with TDP > 185W require:
High Performance Heatsink (P71956-B21) and 7x High-Performance Fan Kit (P71958-B21).

- Processors with TDP > 270W require:
Closed-loop Liquid Cooling FIO Heat Sink Kit (P76605-B21) and 7x Closed-loop Liquid Cooling FIO Fan Kit (P76603-B21).

Choose Memory Options

Please select one or more memory DIMMs from below.

For the new Gen12 memory population rule whitepaper and optimal memory performance guidelines and memory speed table, please go to: http://www.hpe.com/docs/memory-population-rules

For memory Reliability, Accessibility, and Serviceability (RAS) features whitepaper like Fast Fault Tolerance and legacy mirrored memory feature, etc., please click here.

Registered DIMMs DDR5 (RDIMMs)

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69726-B21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69727-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69728-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69729-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69730-B21

HPE 256GB (1x256GB) Quad Rank x4 DDR5-6400 CAS-60-52-52 EC8 Registered 3DS Smart Memory Kit

P73447-B21

Notes:

- Total memory selection must be in quantities of 1, 2, 4, 6, 8 or 16. For more detailed information regarding memory population rules, please refer to -  https://www.hpe.com/docs/server-memory.

- Certain memory configurations may be restricted in the GPU CTO Server, based on ambient inlet temperature.

- 96 GB and higher DIMMs require high performance fan kits.

- For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs

- The maximum memory speed is 6400 MT/s at 1 DPC and 5200 MT/s at 2 DPC.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

Memory Blank Kit

HPE DDR4 DIMM Blank Kit

P07818-B21

Notes: Memory DIMM blanks must be installed in each empty slot.

Choose backplane /drive cage

HPE ProLiant Compute DL320 Gen12 SFF Configure-to-order Server

P71437-B21

Supported Drive Cages

HPE ProLiant Compute DL320 Gen12 SP 8SFF x4 NVMe U.2 Backplane Kit

P71421-B21

HPE ProLiant Compute DL3XX Gen12 1U 8SFF x1 Tri-Mode U.3 L-Shaped Backplane Kit

P75084-B21

HPE ProLiant Compute DL320 Gen12 8SFF x4 NVMe U.3 Backplane Kit

P75085-B21

HPE ProLiant Compute DL3XX Gen12 1U 2SFF x4 Tri-Mode U.3 Side-by-Side Backplane Kit

P75086-B21

HPE ProLiant Compute DL320 Gen12 2SFF x4 NVMe U.2 BC Backplane Kit

P75087-B21

Notes:

- Direct Attach NVMe drive capability depends on PCIe lane availability.

- SATA SFF drives supported only with appropriate controller.

HPE ProLiant Compute DL320 Gen12 SFF/EDSFF Configure-to-order Server

P75217-B21

Supported Drive Cages

HPE ProLiant Compute DL3XX Gen12 1U 4EDSFF NVMe Stacking Backplane Kit

P72221-B21

HPE ProLiant Compute DL3XX Gen12 1U 2SFF x4 Tri-Mode U.3 Stacking Backplane Kit

P72223-B21

Notes:

- Direct Attach NVMe drive capability depends on PCIe lane availability.

- SATA SFF drives supported only with appropriate controller.

HPE ProLiant Compute DL320 Gen12 GPU Configure-to-order Server

P75220-B21

Supported Drive Cages

HPE ProLiant Compute DL3XX Gen12 1U 4EDSFF NVMe Stacking Backplane Kit

P72221-B21

HPE ProLiant Compute DL3XX Gen12 1U 2SFF x4 Tri-Mode U.3 Stacking Backplane Kit

P72223-B21

Notes:

- GPU Server requires Rich I/O CPU to support sufficient PCIe lanes for PCIe slots and drive cages.

- SATA SFF drives supported only with appropriate controller.

Front OCP Enablement kits

HPE ProLiant Compute DL320 Gen12 Primary Front OCP Enablement Kit

P77261-B21

HPE ProLiant Compute DL320 Gen12 Secondary Front OCP Enablement Kit

P76982-B21

Choose Risers

Please select one or more from below.

HPE ProLiant Compute DL3X0 Gen12 x16 PCIe Primary Riser Kit

P71430-B21

HPE ProLiant Compute DL320 Gen12 SP x16 PCIe Secondary Riser Kit

P72152-B21

HPE ProLiant Compute DL320 Gen12 x16 Low Profile NS204i-t Boot Controller Riser Kit

P77555-B21

Notes: P77555-B21 required for rear hot plug NS204i support with P67252-B21 2400W 73.5mm PSU.

Choose Storage Controller

Please select one or more from below.

Notes: For more information on the HPE Gen11 Storage Controller, please refer to the following: HPE Compute MR Gen11 Controllers QuickSpecs

Essential RAID Controllers

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

Performance RAID Controllers

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Notes:

- All Performance RAID Controllers require Li-ion battery or Smart Capacitor option (below).

- GPU Server requires Rich I/O CPU to support sufficient PCIe lanes for PCIe slots and drive cages.

- All HPE MRxxx RAID controllers support SAS, SATA, and NVMe drives.

Battery and Hybrid Capacitor

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

Notes: If HPE 96W Smart Stg Li-ion Batt 145mm Kit is selected then HPE Smart Hybrid Capacitor 145mm kit cannot be selected and vice versa.

M.2 NVMe OS Boot Device

HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device

P78279-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u Internal Cable Kit

P76627-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u GPU Internal Cable Kit

P76628-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u Front Cable Kit

P77186-B21

HPE ProLiant Compute DL3XX Gen12 NS204i-u Rear Cable Kit

P71433-B21

HPE ProLiant Compute DL320 Gen12 x16 Low Profile NS204i-t Boot Controller Riser Kit

P77555-B21

Notes: P77555-B21 required for rear hot plug NS204i support with P67252-B21 2400W 73.5mm PSU.

CPU-Based RAID Controller (Intel® VROC)

Intel Virtual RAID on CPU RAID 1 FIO Software for HPE

S3Q19A

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes: VROC supports up to 8 NVMe direct attach drives. SATA drives not supported.

Storage Controller

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Platform Compatible Cable Kits

Cables are listed by supported CTO model.

Notes:

- PCIe Cable Kits connect to PCIE RAID Controller.

- OROC Cable Kits connect to OCP RAID Controller.

- Direct Attach Cable Kits connect directly to MLB Riser connector.

- MCIO Direct Attach Cable Kits connect to MCIO connectors on MLB.

HPE ProLiant Compute DL320 Gen12 Common Cable Kits

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB for R1S MCIO Cable Kit

P75154-B21

HPE ProLiant Compute DL3X0 Gen12 Direct Attach OCP SlotB MXIO Cable Kit

P77556-B21

HPE ProLiant DL320 Gen11 Intrusion Detection Cable Kit

P55417-B21

HPE ProLiant Compute DL320 Gen12 SFF Configure-to-order Server (P71437-B21)

HPE ProLiant Compute DL320 Gen12 8SFF x1 U.3 PCIe Cable Kit

P75088-B21

HPE ProLiant Compute DL320 Gen12 8SFF x1 U.3 OROC Cable Kit

P75090-B21

HPE ProLiant Compute DL320 Gen12 2SFF Direct Attach Cable Kit

P75092-B21

HPE ProLiant Compute DL320 Gen12 2SFF MCIO Direct Attach Cable Kit

P79306-B21

HPE ProLiant Compute DL320 Gen12 2SFF PCIe Cable Kit

P75095-B21

HPE ProLiant Compute DL320 Gen12 2SFF OROC Cable Kit

P78558-B21

HPE ProLiant Compute DL320 Gen12 2SFF OROC Cable Kit

P78558-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL320 Gen12 SFF/EDSFF Configure-to-order Server (P75217-B21)

HPE ProLiant Compute DL320 Gen12 MR932i-p 12EDSFF Cable Kit

P75133-B21

HPE ProLiant Compute DL320 Gen12 4EDSFF Direct Attach Cable Kit

P75124-B21

HPE ProLiant Compute DL320 Gen12 GPU MR932i-p 8EDSFF Cable Kit

P76618-B21

HPE ProLiant Compute DL320 Gen12 8EDSFF Direct Attach Front OCP Cable Kit

P76619-B21

HPE ProLiant Compute DL320 Gen12 MR932i-p 8SFF Cable Kit

P87472-B21

HPE ProLiant Compute DL320 Gen12 12EDSFF Direct Attach Cable Kit

P75130-B21

HPE ProLiant Compute DL320 Gen12 16EDSFF Direct Attach Cable Kit

P75135-B21

HPE ProLiant Compute DL320 Gen12 MR932i-p 16EDSFF Cable Kit

P76621-B21

HPE ProLiant Compute DL320 Gen12 MR932i-p 16EDSFF x2 Front OCP Kit

P76623-B21

HPE ProLiant Compute DL320 Gen12 16EDSFF OCP Direct Attach Cable Kit

P76620-B21

HPE ProLiant Compute DL320 Gen12 20EDSFF Direct Attach Cable Kit

P75140-B21

HPE ProLiant Compute DL320 Gen12 MR932i-p 20EDSFF x2 Cable Kit

P76624-B21

HPE ProLiant Compute DL320 Gen12 10SFF Hybrid x4 Direct Attach Cable Kit

P75144-B21

HPE ProLiant Compute DL320 Gen12 8SFF Hybrid x4 Direct Attach Front OCP Cable Kit

P76625-B21

HPE ProLiant Compute DL320 Gen12 MR416i-o 8SFF Hybrid x4 Cable Kit

P75148-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u Front Cable Kit

P77186-B21

HPE ProLiant Compute DL320 Gen12 4LFF Configure-to-order Server (P75218-B21)

HPE ProLiant Compute DL320 Gen12 4LFF OROC Cable Kit

P75097-B21

HPE ProLiant Compute DL320 Gen12 4LFF PCIe Cable Kit

P75100-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u Internal Cable Kit

P76627-B21

HPE ProLiant Compute DL320 Gen12 12LFF Configure-to-order Server (P75219-B21)

HPE ProLiant Compute DL320 Gen12 12LFF OROC Cable Kit

P75102-B21

HPE ProLiant Compute DL320 Gen12 12LFF PCIe Cable Kit

P75105-B21

HPE ProLiant Compute DL3X0 Gen12 OCP SlotB MCIO Cable Kit

P71426-B21

HPE ProLiant Compute DL320 Gen12 GPU Configure-to-order Server (P75220-B21)

HPE ProLiant Compute DL320 Gen12 4xGPU Enablement Kit

P75107-B21

HPE ProLiant Compute DL320 Gen12 GPU 4SFF Direct Attach Cable Kit

P75114-B21

HPE ProLiant Compute DL320 Gen12 GPU 4SFF PCIe Cable Kit

P76617-B21

HPE ProLiant Compute DL320 Gen12 GPU 4SFF OROC Cable Kit

P75118-B21

HPE ProLiant Compute DL320 Gen12 GPU 8EDSFF Direct Attach Cable Kit

P75120-B21

HPE ProLiant Compute DL320 Gen12 GPU FF 8SFF Direct Attach Cable Kit

P75150-B21

HPE ProLiant Compute DL320 Gen12 GPU FF 6SFF Direct Attach Cable Kit

P75152-B21

HPE ProLiant Compute DL320 Gen12 NS204i-u GPU Internal Cable Kit

P76628-B21

HPE ProLiant Compute DL3XX Gen12 Front GPU L40S Power Cable Kit

P75110-B21

Choose Storage - SSD/NVMe/HDD Drives

Solid State Drives

For SSD selection guidance, please visit https://ssd.hpe.com/

Please refer to the HPE Solid State Disk Drives QuickSpecs for more detailed information:

HPE Solid State Disk Drives QuickSpecs

Read Intensive - 24G SAS - SFF

HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49031-B21

HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49035-B21

HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49041-B21

HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD

P49045-B21

Mixed Use - 24G SAS - SFF

HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49049-B21

HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49053-B21

HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD

P49057-B21

Read Intensive - 12G SAS - SFF

HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40506-B21

HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40507-B21

HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40508-B21

HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD

P40509-B21

Mixed Use - 12G SAS - SFF

HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40510-B21

HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40511-B21

HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD

P40512-B21

Mixed Use - 12G SAS - LFF

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-B21

Read Intensive - 6G SATA - SFF

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

Mixed Use - 6G SATA - SFF

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40505-B21

Read Intensive - 6G SATA - LFF

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-B21

Read Intensive - NVMe - SFF

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64842-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64844-B21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-B21

Mixed Use - NVMe - SFF

HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P64999-B21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65007-B21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65015-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50230-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-B21

Read Intensive - NVMe - EDSFF E3.S 1T

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77269-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87719-B21

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85121-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77271-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69237-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77273-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69239-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD

P77275-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-B21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85128-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57799-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61179-B21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61183-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD

P57807-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD

P61187-B21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-B21

Mixed Use - NVMe - EDSFF E3.S 1T

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77262-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87715-B21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85114-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77265-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD

P87717-B21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85117-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61191-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87721-B21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85124-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD

P77267-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD

P61195-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-B21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD

P85119-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD

P87723-B21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD

P85126-B21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-B21

Very-Read-Optimized - NVMe - EDSFF E3.S 1T

HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63930-B21

HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63934-B21

HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD

P63938-B21

SED (Self-Encryption Drive) - SATA SFF

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

SED (Self-Encryption Drive) - NVMe - SFF

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-B21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70669-B21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-B21

Hard Disk Drives

Please refer to the HPE Hard Disk Drives QuickSpecs for more detailed information:

HPE Hard Disk Drives QuickSpecs

Mission Critical / Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

Business Critical / Midline - 12G SAS - LFF Drives

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-B21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-B21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-B21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-B21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-B21

HPE 24TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68583-B21

HPE 26TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80577-B21

Business Critical / Midline - 6G SATA - LFF Drives

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-B21

HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861681-B21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-B21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-B21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-B21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-B21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-B21

HPE 24TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P68585-B21

HPE 26TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P80578-B21

SED (Self-Encryption Drive)

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

HPE Networking Options

Select one or more Networking Options.

Notes:

- Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Refer to the related NIC QuickSpecs for Technical Specifications and additional information: https://h20195.www2.hpe.com/v2/getpdf.aspx/A00002507ENW.pdf

- 25 Gb or faster Ethernet adapter requires high performance fan selection.

HPE Networking

PCIe Adapters

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

10 Gigabit Ethernet adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

10/25 Gigabit Ethernet adapters

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

NVIDIA Ethernet 10/25Gb 2-port SFP28 NVMe-oF Crypto Adapter for HPE

S2A69A

AMD Solarflare X4522-PLUS 10/25GbE 2-port SFP56 Adapter for HPE

P87940-B21

Notes:

- Recommended ambient temperature with high performance fans installed.

- 25 Gb or faster Ethernet adapter requires high performance fan selection.

- If 1 or 2 Single Wide GPUs installed in front, it is advisable to install the GPUs in PCIe slots 4 and 6, with the Ethernet adapter installed in PCIe slot 1.

- If there's 1 Double Wide GPU in front, it is advisable to install the GPU in PCIe slots 5 and 6, with the Ethernet adapter installed in PCIe slot 2.

- *Conditional support, with DAC (direct attach copper) cable only.

100/200/400 Gigabit Ethernet Adapters

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC

R4K46A

NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE

R8M41A

HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Generic Adapter

P45641-H24

Notes:

- Recommended ambient temperature with high performance fans installed.

- 25 Gb or faster Ethernet adapter requires high performance fan selection.

- If 1 or 2 Single Wide GPU is installed in front, it is advisable to install the GPUs in PCIe slots 4 and 6, with the Ethernet adapter installed in PCIe slot 1.

- If 1 Double Wide GPU is installed in front, it is advisable to install the GPU in PCIe slots 5 and 6, with the Ethernet adapter installed in PCIe slot 2.

- *Conditional support, with DAC (direct attach copper) cable only.

OCP 3.0 Adapters

1 Gigabit Ethernet adapters

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

10 Gigabit Ethernet adapters

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

10/25 Gigabit Ethernet adapters

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

Notes:

- Recommended ambient temperature with high performance fans installed.

- 25 Gb or faster Ethernet adapter requires high performance fan selection.

- If 1 or 2 Single Wide GPU is installed in front, it is advisable to install the GPUs in PCIe slots 4 and 6, with the Ethernet adapter installed in OCP slot A.

- If 1 Double Wide GPU is installed in front, it is advisable to install the GPU in PCIe slots 5 and 6, with the Ethernet adapter installed in OCP slot B.

100 Gigabit Ethernet adapters

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Broadcom BCM57608 Ethernet 100Gb 2-port QSFP112 OCP3 Adapter for HPE

P73114-B21

Notes:

- Recommended ambient temperature with high performance fans installed.

- 25 Gb or faster Ethernet adapter requires high performance fan selection.

- If 1 or 2 Single Wide GPU is installed in front, it is advisable to install the GPUs in PCIe slots 4 and 6, with the Ethernet adapter installed in OCP slot A.

- If 1 Double Wide GPU is installed in front, it is advisable to install the GPU in PCIe slots 5 and 6, with the Ethernet adapter installed in OCP slot B.

HPE InfiniBand

HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Generic Adapter

P45642-H23

Notes:

- Recommended ambient temperature with high performance fans installed.

- If InfiniBand adapter is selected, high performance fans are required.

- If 1 or 2 Single Wide GPU is installed in front, it is advisable to install the GPUs in PCIe slots 4 and 6, with the InfiniBand adapter installed in PCIe slot 1.

- If 1 Double Wide GPU is installed in front, it is advisable to install the GPU in PCIe slots 5 and 6, with the InfiniBand adapter installed in PCIe slot 2.

- *Conditional support, with DAC (direct attach copper) cable only.

HPE Storage Adapters

Fibre Channel HBA

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter

R7N87A

HPE SN1620E 32Gb 2p FC SecureHBA

S4S01A

HPE SN1720E 64Gb 2p FC SecureHBA

S4T09A

Computational and Graphics Accelerators

NVIDIA L4 24GB PCIe Accelerator for HPE

S0K89C

Notes:

- Compatible with GPU CTO Server.

- Requires performance fans to be installed.

NVIDIA L40S 48GB PCIe Accelerator

S2L70C

Notes:

- Compatible with GPU CTO Server.

- Requires performance fans to be installed.

- Requires HPE ProLiant Compute DL3XX Gen12 Front GPU L40S Power Cable Kit (P75110-B21).

Power and Cooling

Please select power supplies, fans, and heat sink options below.

Cooling Options

HPE ProLiant Compute Gen12 1U Standard Fan Kit

P71954-B21

HPE ProLiant Compute Gen12 1U High Performance Fan Kit

P71958-B21

HPE ProLiant Compute DL320 Gen12 1U Closed-loop Liquid Cooling FIO Fan Kit

P76603-B21

Notes:

- Fan Kit Includes one fan, seven (7) required per server.

- High Performance Fans required for processors with a TDP > 185W.

- Closed Loop Liquid Cooling Fans required for processors with a TDP > 270W.

HPE ProLiant DL3X0 Gen11 1U Standard Heat Sink Kit

P48904-B21

HPE ProLiant Compute DL320 Gen12 Performance Heat Sink Kit

P71956-B21

HPE ProLiant Compute DL320 Gen12 1U Closed-loop Liquid Cooling FIO Heat Sink Kit

P76605-B21

Notes:

- High Performance Heat Sink required for processors with a TDP > 185W.

- Closed Loop Liquid Cooling FIO Heat Sink required for processors with a TDP > 270W.

Direct Liquid Cooling (DLC)

HPE ProLiant Compute DL320 Gen12 Direct Liquid Cooling FIO Kit

P84312-B21

HPE ProLiant Compute Direct Liquid Cooling 0.65m Quick Disconnect Tube Set FIO Kit

P62038-B21

HPE ProLiant Direct Liquid Cooling 450mm Female-Male Connection Quick Disconnect Tube Set FIO Kit

P62046-B21

Notes:

- Six (6) performance fan kits are required with the direct liquid cooling kit.

- When configured as the direct liquid cooling system, the server can only be shipped to the customer as the whole rack. Racks below are allowed in the configuration:

- Rack 42U 800mm x 1200mm Ent G2.

- Rack 48U 800mm x 1200mm Ent G2.

HPE M-CRPS Titanium Hot Plug Power Supply Kits

HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit

P73190-B21

HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit

P67240-B21

HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit

P82412-B21

HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit

P67244-B21

HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit

P73210-B21

HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit

P67252-B21

Notes:

- All power supplies rated for 96% efficiency.

- Mixing power supplies is not supported.

- Power supplies ship without jumper cords.

HPE Power Options

HPE Hardwire -48VDC 3.5m 1000-1300W Power Cord

P79842-B21

HPE 1000-1300W -48VDC Power Lug Kit

P79845-B21

HPE Hardwire -48VDC 3.5m 2000-2200W Power Cord

P73874-B21

HPE 2000-2200W -48VDC Power Lug Kit

P79839-B21

Notes:

- P79842-B21 and P79845-B21 are to be used with HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit.

- P73874-B21 and P79839-B21 are to be used with HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit.

- Only one power cable kit or power cable lug kit needs to be selected with the power supply.

Step 3: Choose Additional Factory Integratable Options (FIO)

Security Options

HPE Trusted Supply Chain for HPE ProLiant

P36394-B21

Notes:

- HPE Trusted Supply Chain is an optional security upgrade intended for agencies and regulated industries needing enhanced security and compliance needs. Applying this option to a CTO server ensures it is built in the USA in a secured facility by vetted HPE personnel assigned to the manufacturing processes. A multitude of checkpoints/inspections for malicious microcode and counterfeit parts are performed throughout the server build, and additional safeguards are put in place against cyber-exploits throughout the server lifecycle. Learn more at http://www.hpe.com/security.

- This option requires the selection of HPE DL320 Gen11 Intrusion Cable Kit.

- This option requires the selection of either HPE iLO Advanced 1-server License with 3-year Support on iLO Licensed Features (BD505A) or HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features (512485-B21).

- This option is limited to stand-alone CTO servers only. The HPE Trusted Supply Chain configuration will not be available if the server is ordered as factory integrated into a rack.

- One instance of the following Electronic License to Use is required per order (not per server):

R6X85AAE (HPE Trusted Supply Chain E-LTU).

This option cannot be selected with TAA instruction SKU or TAA CTO Models.

HPE ProLiant Gen11 1U Common Bezel Kit

P50450-B21

HPE ProLiant DL320 Gen11 Intrusion Detection Cable Kit

P55417-B21

HPE Bezel Lock Kit

875519-B21

Notes: Requires ProLiant Gen11 1U Common Bezel Kit.

Factory Configuration Settings

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password with an HPE-defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE ProLiant DL300 Gen10 Plus Platform RAS OS Control FIO Setting

P27078-B21

Notes:

- Firmware first is ProLiant servers BIOS default selection. In this mode, monitoring functionality built into the design of the server is first on the scene of correctable problems to determine quickly and accurately what's wrong and how to fix it. Firmware first enables many platform-specific actions for errors, including predictive fault analysis. This technology functions independently of the operating system and does not depend on O/S-based tools.

- This SKU instructs factories to enable O/S first mode, a BIOS switch that allows experienced customers to have the operating system handle correctable hardware errors. More errors could be observed in this mode, including soft ones that do not necessarily indicate issues with the component or cause warranty replacement.

RAID Settings

HPE RAID 0 Drive 1 FIO Setting

339777-B21

HPE RAID 1 Drive 1 FIO Setting

339778-B21

HPE RAID 5 Drive 1 FIO Setting

339779-B21

HPE Raid 5 w/SP Drive 1 FIO Setting

339780-B21

HPE RAID FIO Advanced Data Guarding Option

339781-B21

Notes:

- General RAID rules:

• Smart Array controller must be selected.
• Matching (same part number) drives must be selected.
• One RAID set will be offered and applied to all applicable drives installed in a server.
• RAID must be selected if both Factory Installed OS and Smart Array controller are present.

- RAID level selection is limited by Storage controller selection.

- If RAID is selected in a configuration with VROC and internal controller, then Customer Defined RAID Setting (389692-B21) must be selected.

HPE Customer Defined RAID Setting Service

389692-B21

Notes:

- At least 1 hard drive must be on order.

- Preinstalled OS must be on order.

- A Customer Intent Document (CID) must be supplied if this part number is ordered.

- This Customer Intent Document should include all details about the desired RAID custom configuration (This includes Drive part numbers and quantities, RAID levels desired, which drives should be applied to each RAID level, and if a preinstalled OS has been ordered - which RAID set it should be installed on).

Optical Drives and Enablement Kits

HPE Mobile USB DVD-RW Optical Drive

701498-B21

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

Notes:

- SFF or SFF/EDSFF CTO server requires appropriate Optical Drive Enablement Kit.

- 4LFF CTO Server does not require enablement kit.

- Optical Drive not supported with 12LFF or GPU CTO Server.

HPE ProLiant Compute DL3XX Gen12 1U SFF/EDSFF Hybrid Display Port/USB/Optical Drive Enablement Kit

P72227-B21

Notes: Supported only with SFF/EDSFF CTO Server.

HPE ProLiant Compute DL3XX Gen12 1U 8SFF Front Display Port/USB/Optical Drive Enablement Kit

P72225-B21

Notes: Supported only with SFF CTO Server.

HPE ProLiant Compute DL3XX Gen12 1U 4LFF Front Display Port/USB Enablement Kit

P72229-B21

Notes: Supported only with 4LFF CTO Server.

HPE Converged Infrastructure Management Software

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

Software as a Service Management

HPE Compute Ops Management

Base SKU

HPE Compute Ops Management Standard 3-year Upfront ProLiant SaaS

R7A11AAE

Upgrade SKUs

HPE Compute Ops Management Standard 1-year Upfront ProLiant SaaS

R7A10AAE

HPE Compute Ops Management Standard 5-year Upfront ProLiant SaaS

R7A12AAE

HPE Compute Ops Management Advanced 7-year Upfront ProLiant SaaS

S5E61AAE

HPE OneView

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Notes: For customers purchasing HPE Compute Ops Management, without a hardware purchase or a BTO purchase, use this base SKU within ASQ order:

HPE Compute Ops Management Base SaaS

R6Z73AAE

For more information, visit the HPE Compute Ops Management QuickSpecs: https://www.hpe.com/psnow/doc/a50004263enw

Supported Servers - CTO only.  No OEM. - Complete list can be found here: Latest Supported Server List: https://www.hpe.com/info/com-supported-servers

Embedded Management

HPE iLO Common Password FIO Setting

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password with an HPE-defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE Converged Infrastructure Management Software

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

Notes: Licenses ship without media. The HPE OneView Media Kit can be ordered separately or downloaded.

HPE Tape Backup

For the complete range of tape drives, autoloaders, libraries, and media, see:

https://www.hpe.com/us/en/storage/storeever-tape-storage.html For hardware and software compatibility of Hewlett Packard Enterprise tape backup products http://www.hpe.com/storage/BURAcompatibility

HPE Racks

- Refer to the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Advanced Series Racks.

- Refer to the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications. HPE G2 Enterprise Series Racks.

HPE Power Distribution Units (PDUs)

- Refer to the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

- Refer to the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications. Refer to the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.

- Refer to the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

Uninterruptible Power Systems (UPS)

- To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

- Refer to the HPE Direct Flow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.

- Refer to the HPE Line Interactive Single-Phase UPS QuickSpecs for information on these products and their specifications.

HPE Rack Options

Refer to the HPE KVM Switches web page for information on these products and their specifications.

Easy Install Rail Kits

Easy Install rail kits contain telescoping rails, which allow for in-rack serviceability.

To assist in installing the server into the rack, an optional installation tool is available by contacting your local services representative.

Notes:

- Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and the number of people to use for any installation.

- HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E.  In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer's own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.
