HPE Nimble Storage All Flash Arrays

Experience the Power of Predictive

HPE Nimble Storage All Flash Arrays combine a flash-efficient architecture with HPE InfoSight predictive analytics to achieve fast, reliable access to data and 99.9999% guaranteed availability. Radically simple to deploy and use, the arrays are cloud-ready - providing data mobility to the cloud through HPE Cloud Volumes. Your storage investment made today will support you well into the future, thanks to our technology and business-model innovations. HPE Nimble Storage All Flash Arrays include all-inclusive licensing, easy upgrades, and flexible payment options - while also being future-proofed for new technologies, such as NVMe and SCM.

What's new

Now HPE Nimble Storage All Flash Arrays are NEBS certified.

A new all-flash array platform that is up to 65% faster and twice the scalability of previous all-flash arrays. HPE Nimble Storage All Flash Arrays are guaranteed provide more effective capacity per terabyte of raw storage than competitive all-flash arrays².

The new platform is future-proofed with an architecture for NVMe and Storage Class Memory (SCM). The arrays are designed to be upgraded with SCM for greater performance in the future. These all-flash arrays reflect Hewlett Packard Enterprise  commitment to deliver business value today and tomorrow as demonstrated by our timeless storage.

Notes: For more information about the entire HPE Nimble Storage product portfolio, go to:

https://www.hpe.com/us/en/storage/nimble.html.

HPE Nimble Storage All Flash Array

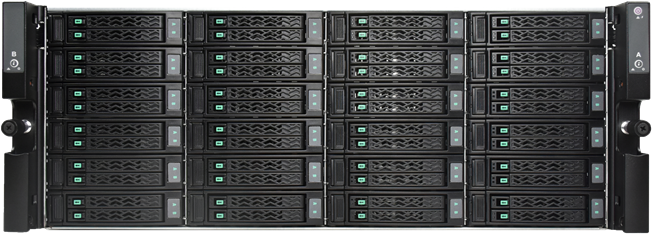

(Base array, 4U; all 24 bays hold Dual Flash Carriers with Small Form Factor SSDs)

Notes:

- ¹ For details on the HPE Nimble Storage 6-nines guarantee, refer to https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00018503enw.

- ² For details on the HPE Store More Guarantee for HPE Nimble Storage, refer to http://h20195.www2.hpe.com/V2/GetDocument.aspx?docname=a00039975enw

HPE InfoSight predictive analytics

• Automatically predicts and resolves 86% of problems before you even know there is an issue³.
• Transforms the support experience through cloud-based predictive analytics and Level 3-only support.
• Sees across the infrastructure stack and resolves problems beyond storage.
• Simplifies planning with prescriptive forecasts into capacity, performance, and bandwidth needs.
• Makes infrastructure smarter and more reliable by learning from the installed base.

Notes: ³ Based on actual customer data collected by the HPE Nimble Storage Support organization. See also

https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00018503ENW.

Radical Simplicity

• Simple to deploy. Simple to use. Simple to manage.
• Cloud-ready. Deploy flash on-premises or in the cloud with common data services and mobility between all-flash, adaptive flash, and HPE Cloud Volumes.
• Timeless storage means no worries today or tomorrow. Flash arrays are future-proofed for NVMe and SCM and come with a satisfaction guarantee, all-inclusive software licensing, flat support pricing, no forklift upgrades, and an option to receive a free faster controller upgrade after three years.
• Radically easy to integrate with many ecosystems. Deep integration with VMware, MS applications, Oracle, Veeam, and others.

Fast and Reliable

• Scale-to-fit: Scale-up performance and capacity independently and non-disruptively. Scale-out to 4 arrays managed as one.
• Up to 5X or more, data reduction from variable block inline deduplication and compression.
• Backup and DR from all-flash to adaptive flash arrays at one-third the cost.
• Data reduction, snapshots, and Triple+ Parity RAID with no performance impact.
• Sub-millisecond response time for performance-sensitive enterprise workloads.

Absolute Resiliency

• 99.9999% (six-nines) guaranteed availability1.
• Triple+ Parity RAID tolerates 3 simultaneous drive failures plus additional protection through intra-drive parity.
• App-granular, FIPS-certified encryption provides data at rest and over-the-wire protection. Secure data shredding is built in.
• Native application-consistent snapshots and replication plus integration with leading backup software.
• Redundant, hot-swap components including controllers, power supplies, SSDs, and IO cards.

NEBS Level 3 Certified

• HPE Nimble Storage All Flash Arrays are NEBS (Network Equipment Building System) level 3 certified
• Ideal for network equipment providers and communication service providers requiring NEBS certified All Flash storage arrays for their telecom infrastructure
• NEBS Level 3 certified for the following Nimble Storage Adaptive Flash Arrays (AF20, AF20Q, AF40, and AF60)

HPE Nimble Storage All Flash Array models

AF-Series Arrays

AF20Q

AF20

AF40

AF60

AF80

Scale-out¹ 4X AF80

Raw capacity (TB/TiB)^{2, 5}

6-46/
5-42

11-46/
10-42

11-184/
10-167

11-553/
10-502

23-1106/
21-1005

44232/
4023

Usable capacity (TB/TiB)²

3-25/
2-23

8-33/
7-30

8-136/
7-124

8-407/
7-370

17-815/
15-741

3260/
2965

Effective capacity (TB/TiB)^{2, 3}

14-128/
13-116

40-168/
36-153

40-682/
36-620

40-2037/
36-1853

82-4075/
75-3706

16303/
14827

Max. # of expansion shelves

1

1

1

2

2

8

RAID level Triple+ Parity

Onboard iSCSI/Mgmt 1Gb /10Gb ports per array^4,6

4

4

4

4

4

16

Optional iSCSI 1 Gb ports per array⁶

4, 8, 12, 16

4, 8, 12, 16

4, 8, 12, 16, 20, 24

4, 8, 12, 16, 20, 24

4, 8, 12, 16, 20, 24

96

Optional iSCSI 10 Gb ports per array⁶

4, 8, 12, 16

4, 8, 12, 16

4, 8, 12, 16, 20, 24

4, 8, 12, 16, 20, 24

4, 8, 12, 16, 20, 24

96

Optional iSCSI 25 Gb ports per array⁶

4, 8

4, 8

4, 8, 12

4, 8, 12

4, 8, 12

48

Optional FC 16 Gb (8 Gb) ports per array⁶

4, 8, 12, 16

4, 8, 12, 16

4, 8, 12, 16, 20, 24

4, 8, 12, 16, 20, 24

4, 8, 12, 16, 20, 24

96

Optional FC 32 Gb (16 Gb) ports per array⁶

4, 8

4, 8

4, 8, 12

4, 8, 12

4, 8, 12

48

Max. power requirement (watts/kVA)

600/0.667

650/0.722

800/0.889

850/0.944

1200/1.333

4800/5.332

Thermal (BTU)

1968

2132

2624

2788

3936

15744

Notes: Specifications are subject to change without notice.

- 1 Scale-out configuration consists of 4x AF80 arrays, each with two all-flash shelves.

- ² Raw, usable, and effective capacities are shown in TB (10¹² bytes) and TiB (2⁴⁰ bytes). Usable and effective capacities take into account space used for parity, spares, and system overhead.

- ³ Effective capacity is the capacity of the base array and maximum number of expansion shelves. Assumes data reduction of five to one (5:1) from deduplication and compression.

- ⁴ Each array controller has 2 x 10GbaseT ports built in. Optional ports are 1GbaseT, 10GbaseT, 10GbE SFP+, 25GbE SFP28, 16Gb (8Gb) FC, and 32Gb (16Gb) FC.

- ⁵ The Total Max Raw Capacity per system is limited by the architecture of the system and is not to be exceeded, even if it may be possible to configure a system that exceeds this limit.

- ⁶ Array port counts shown include both active and standby controllers; active ports are half value shown.

Notes: Specifications are subject to change without notice.

- 1 Raw, usable, and effective capacities are shown in TB (10¹² bytes) and TiB (2⁴⁰ bytes).

- ² Effective capacity is the capacity of the base array and maximum number of expansion shelves. Assumes data reduction of five to one (5:1) from deduplication and compression.

- ³ The Total Max Raw Capacity per system is limited by the architecture of the system and is not to be exceeded, even if it may be possible to configure a system that exceeds this limit.

Host OS Support

Microsoft® Windows® Server, including Microsoft® Hyper-V^TM | VMware vSphere^TM | HP-UX® | Ubuntu

SUSE® Linux Enterprise | SUSE® Linux Virtualization | Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization

CentOS | Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris | Citrix® XenServer | IBM® AIX®

Notes: For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge (SPOCK) for HPE Storage products, including HPE Nimble Storage: http://www.hpe.com/storage/spock

Warranty

HPE Nimble Storage arrays come with the following warranties:

• 1 year; parts-only warranty for hardware components, including SSDs
• 90 day, software updates for defects

Additionally, HPE Nimble Storage will provide phone support for replacing a defective part. Additional support coverage is required for HPE Nimble Storage Arrays.

Notes:

- For hardware warranty claims, defective part must be received before replacement parts are shipped.

- Warranty is provided by HPE Nimble Storage.

- Link to HPE Global Limited Warranty and Technical Support.

Service and Support

Support is required for all HPE Nimble Storage arrays. Support SKUs provide up to five years of 24x7 telephone and email support for the arrays and hardware components (Including SSDs reaching the write wear limit) with a choice of Next Business Day (NBD) parts exchange, 4-hour parts delivery, or 4-hour onsite support, access to the HPE InfoSight predictive analytics platform and software updates.

HPE Services Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Services Tech Carehas been reimagined from the ground up to support a customer-centric, AI-driven, and digitally enabled customer experience to move your business forward.

Notes: Support contract is mandatory for all HPE Nimble Storage products.

Installation Services

Installation Services are intended to guide you from start to finish and to help make your installation a success. Our engagement includes:

• Inventory and verify HPE Nimble Storage equipment against the sales order
• Physically rack and cable all HPE Nimble Storge equipment, including connecting network cables provided by the customer
• Conduct power-on tests and verify operation
• Add the array to an existing HPE Nimble Storage Group, if applicable
• Configure array's basic management, monitoring, & reporting capabilities
• Configure array for additional data networks / SAN connectivity as needed
• Upgrade the array to the latest recommended HPE Nimble OS version as needed.

HPE Tier 1 Storage Array Start-up service - HA114A1#5MR

Provides full hardware and software installation of a new HPE Nimble Storage array in a data center with up to six (6) shelves.

HPE Tier 1 Storage Array Start-up service - HA113A1#5MR

Provides on-site hardware installation only of a new HPE Nimble Storage array in a data center with up to six (6) shelves.

HPE Tier 1 Storage Upgrade service - HA124A1#5MS

On-site installation of upgrades kits or for an existing HPE Nimble Storage array.

HPE Tier 1 Storage Cross Family Offline Upgrade service - HA124A1#V0R

Provides the on-site hardware upgrade and disk migration from your exiting array to the new family array chassis

Notes: All Installation and upgrade services are optional for all HPE Nimble Storage products.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Step 2 - Choose Head SSD Capacity

All HPE Nimble Storage All Flash Arrays come with one or two of the following SSD capacity options. Additional capacity can be added by connecting up to (2) flash expansion shelves to the base array - depending on the model.

Notes: R2 and non-R2 SKUs are functionally equivalent. The OCA quote tool will guide to the appropriate SKU option when configuring a model.

Table below shows All Flash Array compatibilities with SSD Options.

Step 3 - Choose Head Networking Option

Up to three (3) of the following options can be selected.  Please refer to configuration guidelines for specific support of networking options on AF-Series arrays. The AF20 and AF20Q arrays support up to two (2) head networking options.

Notes:

- The following minimum ports are recommended for best performance:

o AF20: at least 2-ports

o AF40: at least 4-ports

o AF60: at least 8-ports

o AF80: at least 8-ports

- Max One (1) Storage Class Memory kit (R0P46A or R0P48A) per AF60/AF80 array

- All 10GbE, 25GbE, 16Gb FC, and 32Gb FC cards include SFP optical transceivers

- The 25GbE NICs include SFP28 transceivers for 25G environments

- Each Head networking option includes two (2x) cards which are evenly populated in the two controllers.

Notes:

- *AF20Q must be fully populated in the head before an AFS3 shelf can be added as an upgrade.

- *Quantity one (1) R0N80A cable kit required per AFS3 Expansion Shelf (Q8B53B).

Notes: Maximum capacity of "SSD Capacity Bundles" and "All Flash Expansion Shelf Chassis:"

- AF20Q = 46TB

- AF20 = 46TB

- AF40 = 184TB

- AF60 = 553TB

- AF80 = 1106TB

Step 6 - Add Support (Mandatory)

Support recommendations are designed to help you enhance technology operations, lower risk and make it easier for you to seek the right balance between affordability and service-level commitments. Depending on your individual support needs, choose from four levels of care that cover the entire lifecycle to better address your needs from 3, 4 and 5 year durations for service levels ranging from Basic Exchange (Next Business Day parts exchange) to Essential (4 hour onsite response).

Description

SKU

HPE Tech Care Basic Exchange SVC

HPE Tech Care Basic Exchange w/DMR SVC

HPE Tech Care Basic Exchange w/CDMR SVC

HPE Tech Care Basic SVC

HPE Tech Care Basic w/DMR SVC

HPE Tech Care Basic w/CDMR SVC

HPE Tech Care Essential Exchange SVC

HPE Tech Care Essential Exchange w/DMR SVC

HPE Tech Care Essential Exchange w/CDMR SVC

HU4B5A3/4/5

HU4B6A3/4/5

HU4B7A3/4/5

HU4B2A3/4/5

HU4B3A3/4/5

HU4B4A3/4/5

HU4A9A3/4/5

HU4B0A3/4/5

HU4B1A3/4/5

HPE Tech Care Essential SVC

HPE Tech Care Essential w/DMR SVC

HPE Tech Care Essential w/CDMR SVC

HU4A6A3/4/5

HU4A7A3/4/5

HU4A8A3/4/5

Notes: Minimum support required 3-year HPE Tech Care Basic Exchange

Controller Refresh

The Controller Refresh program provides customers with a new controller after three years provided they meet the terms of the Controller Refresh program. To add Controller Refresh it needs to be configured with the initial Nimble array order. For more details on the Controller Refresh program, please see the timeless storage brochure.

HPE NS 5Y FC NBD PExch L2 CtrlRfr Supp

HT7H6A5

HPE NS 5Y FC NBD PExchDMR L2CtrlRfr Supp

HT7H7A5

HPE NS 5Y NBD Ons L2 CtrlRfr Supp

HT7J2A5

HPE NS 5Y NBD OnsDMRL2CtrlRfr Supp

HT7J3A5

HPE NS 5Y FC 4H PExch L2 CtrlRfr Supp

HT7H8A5

HPE NS 5Y FC 4H PExch DMR L2CtrlRfr Supp

HT7H9A5

HPE NS 5Y FC 4H Onsite L2 CtrlRfr Supp

HT7J0A5

HPE NS 5Y FC 4H OnsiteDMR L2CtrlRfr Supp

HT7J1A5

HPE NS 3Y NBD PExch L2 CtrlRfr PP Supp

HU2K6A3

HPE NS 3Y NBD PExchDMR L2CtrlRfr PP Supp

HU2K7A3

HPE NS 3Y 4H PExch L2 CtrlRfr PP Supp

HU2K8A3

HPE NS 3Y 4H PExchDMR L2CtrlRfr PP Supp

HU2K9A3

HPE NS 3Y 4H Onsite L2 CtrlRfr PP Supp

HU2L0A3

HPE NS 3Y 4H OnsiteDMR L2CtrlRfr PP Supp

HU2L1A3

HPE NS 3Y NBD Onsite Controller Refresh Level 2 PP SVC

HU2L2A3

HPE NS 3Y NBD Onsite with DMR Controller Refresh Level 2 PP SVC

HU2L3A3

Notes: Controller Refresh is available as 3-year or 5-year support offerings

Installation Services

Installation Services are intended to guide you from start to finish and to help make your installation a success.

Notes: Installation services are optional.

Description

SKU

HPE Tier 1 Storage Array Start-up service

HA114A1#5MR

HPE Tier 1 Storage Array Hardware Installation service

HA113A1#5MR

HPE Tier 1 Storage Array Upgrade service

HA124A1#5MS

HPE Tier 1 Storage Cross Family Offline Upgrade service

HA124A1#V0R

Racks

HPE Nimble Storage arrays and expansion shelves are compatible with industry standard 4-post EIA 19-inch racks with square mounting holes, including HPE 36U, 42U and 48U Enterprise Shock Racks. HPE recommends HPE racks with a depth of 1200mm to best accommodate the length of the Nimble Storage chassis; the HPE 1200mm rack provides ample room for cabling and ease of serviceability. HPE racks with a depth of 1075mm can be used but may have limited space for cabling and component access. If a 3^rd party rack with a depth less than 1075mm is used, the rear doors cannot be fully closed.

Recommended Racks:

HPE G2 Enterprise Series Racks

• HPE 48U 600mmx1200mm G2 Enterprise Rack
• HPE 48U 800mmx1200mm G2 Enterprise Rack
• HPE 42U 600mmx1200mm G2 Enterprise Rack
• HPE 42U 800mmx1200mm G2 Enterprise Rack

HPE G2 Advanced Series Racks

• HPE 48U 600mmx1200mm G2 Advanced Rack
• HPE 48U 800mmx1200mm G2 Advanced Rack
• HPE 42U 600mmx1200mm G2 Advanced Rack
• HPE 42U 800mmx1200mm G2 Advanced Rack
• HPE 36U 600mmx1200mm G2 Advanced Rack
• HPE 36U 800mmx1200mm G2 Advanced Rack

Notes:

- For more information on the HPE rack offerings, please see the following URL: https://www.hpe.com/info/rackandpower

- For more information on PDUs, see: http://www.hpe.com/servers/pdu

Step 7: Required and additional power cords

HPE Nimble Storage Arrays and expansion shelves do not ship with any power cords by default and require a minimum of 2 power cords per system.  Please ensure these are selected at time of quoting. A pair of power cords are required when connecting base arrays (C19/C14 or C19/C20) or expansion shelves (C13/C14) to Rack-Mounted Power Distribution Units (PDU). A pair of country/region specific power cords are required when connecting base arrays or expansion shelves to standard office wall power outlets.

Description

SKU

HPE Nimble Storage NEMA 5-15P to C19 125V 15Amp 2.5m US FIO Power Cord

R0P83A

HPE Nimble Storage IEC 60320 C14 to C19 250V 15Amp 1.8m FIO Power Cord

R0P84A

HPE Nimble Storage AS3112 to C19 250V 16Amp 1.8m AU FIO Power Cord

Q8J02A

HPE Nimble Storage Schuko to C19 250V 16Amp 1.8m EU FIO Power Cord

Q8J03A

HPE Nimble Storage BS 1363 UK10 to C19 250V 16Amp 1.8m UK FIO Power Cord

Q8J04A

Description

SKU

HPE Nimble Storage NEMA L5-20P to C19 125V 20Amp 2.5m US FIO Power Cord

Q8J05A

HPE Nimble Storage GB2099 to C19 250V 16Amp 1.8m CN FIO Power Cord

Q8J06A

HPE Nimble Storage KSC8305 to C19 250V 16Amp 1.8m KR FIO Power Cord

Q8J07A

HPE Nimble Storage JIS8303 to C19 125V 15Amp 1.8m TW/JP FIO Power Cord

Q8J08A

HPE Nimble Storage JIS8303 6-30 to C19 250V 15Amp 1.8m JP FIO Power Cord

Q8J09A

HPE Nimble Storage IS1293 to LS-60 250V 16Amp 1.8m IN FIO Power Cord

Q8J10A

HPE Nimble Storage SAN164-1 to C19 250V 16Amp 1.8m ZA FIO Power Cord

Q8J11A

HPE Nimble Storage SI32 to C19 250V 16Amp 1.8m IL FIO Power Cord

Q8J12A

HPE Nimble Storage CEI 23-16 to C19 250V 16Amp 1.8m IT FIO Power Cord

Q8J13A

HPE Nimble Storage C19 to C20 250V 16Amp 1.8m PDU Base Array FIO Power Cord

Q8J14A

HPE Nimble Storage AS 3112 to C13 250V 10Amp 1.8m AU FIO Power Cord

Q8J15A

HPE Nimble Storage Schuko to C13 250V 10Amp 1.8m EU FIO Power Cord

Q8J16A

HPE Nimble Storage BS1363 UK10 to C13 250V 10Amp 1.8m UK FIO Power Cord

Q8J17A

HPE Nimble Storage NEMA 5-15P to C13 125V 10Amp 1.8m US FIO Power Cord

Q8J18A

HPE Nimble Storage GB2099 to C13 250V 10Amp 1.8m CN FIO Power Cord

Q8J19A

HPE Nimble Storage KSC8305 to C13 250V 10Amp 1.8m KR FIO Power Cord

Q8J20A

HPE Nimble Storage JIS8303 to C13 125V 12Amp 1.8m TW/JP FIO Power Cord

Q8J21A

HPE Nimble Storage JIS8303 to C13 250V 15Amp 2.5m JP FIO Power Cord

Q8J22A

HPE Nimble Storage IS1293 to C13 250V 10Amp 1.8m IN FIO Power Cord

Q8J23A

HPE Nimble Storage SANS164-1 to C13 250V 10Amp 1.8m ZA FIO Power Cord

Q8J24A

HPE Nimble Storage SI32 to C13 250V 10Amp 1.8m IL FIO Power Cord

Q8J25A

HPE Nimble Storage CEI23-16 to C13 250V 10Amp 1.8m IT FIO Power Cord

Q8J26A

HPE Nimble Storage C13 to C14 250V 10Amp 1.8m Universal FIO Power Cord

Q8J27A

Field Upgrade Options

The following product options are to upgrade currently installed All Flash Arrays.

Notes:

- AF80 is not support with 100-120V

- AF20/40 currently only ship with 1200W PSU

- The 1200W AC and 3000W AC power supplies are 80 PLUS Platinum

Notes: ¹ Specifications are subject to change without notice.

Electromagnetic Compatibility

• Subpart B of Part 15 of FCC Rules for Class A digital devices
• ICES-003, Issue 6, dated January 2016 (Class A)
• VCCI V-3: April 2014 (Class A)
• EN 55022:2010
• CISPR 22:2008
• AS/NZS CISPR 22:2009 +A1:2010
• EN55032:2012
• CISPR 32:2012
• EN 55024:2010
• CISPR 24:2010 +A1:2015

• TCVN 7189:2009
• NBTC TS 3001-2555
• TP TC 020/2011

Safety

• EN60950-1:2005 (Second Edition); Am1:2009 + Am2:2013
• IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013
• EN60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
• UL/IEC 60960-1 2nd Ed. Am1 + Am2
• CNS14336-1 ('99)
• CNS13438 ('95)
• NOM-019-SCFI-1998
• NBTC TS 4001-2550
• TP TC 004/2011
• IS 13252 (PART 1):2010 +A1:2013 + A2:2-15
• SANS IEC 60950-1

Certifications / Markings

• UL
• cUL
• CE
• FCC Class A
• IC Class A
• VCCI Class A
• RCM
• BSMI Class A
• KC
• CCC Exemption
• NOM
• MoEc
• NBTC SDoC
• CITC/CoC*
• EAC
• BIS
• LOA (S. Africa)
• RoHS 2011/65/EU, EN50581:2012
• WEEE

Date

Version History

Action

Description of Change

13-Nov-2023

Version 31

Changed

HPE Services Rebranding

06-Jun-2022

Version 30

Changed

Configuration Information section was updated.

07-Feb-2022

Version 29

Changed

Configuration Information, and Technical Specifications were updated.

06-Dec-2021

Version 28

Changed

Service and Support and Configuration Information sections were updated

17-May-2021

Version 27

Changed

Standard Features, Service and Support and Configuration Information sections were updated

01-Feb-2021

Version 26

Changed

Service and Support section was updated.

04-Jan-2021

Version 25

Changed

Configuration Information section was updated.

07-Dec-2020

Version 24

Changed

Overview, Standard Features and Configuration Information sections were revised

04-May-2020

Version 23

Changed

Standard Features and Configuration Information sections were revised

02-Mar-2020

Version 22

Changed

Configuration Information section was updated.

04-Nov-2019

Version 21

Changed

Technical Specifications section was updated.

07-Oct-2019

Version 20

Changed

Configuration Information section was updated.

03-Sep-2019

Version 19

Changed

Configuration Information section was updated.

05-Aug-2019

Version 18

Added

Overview and Configuration Information were updated.

01-Jul-2019

Version 17

Changed

Configuration Information and Technical Specifications were updated.

03-Jun-2019

Version 16

Changed

Technical Specifications section was updated.

02-Apr-2019

Version 15

Changed

Configuration Information section was updated.

04-Mar-2019

Version 14

Changed

Configuration Information section was updated.

04-Feb-2019

Version 13

Changed

Overview and Configuration Information sections were updated.

07-Jan-2019

Version 12

Changed

Overview and Configuration Information sections were updated

5-Nov-2018

Version 11

Changed

Overview, Service and Support and Warranty Information and Configuration Information sections were revised

01-Oct-2018

Version 10

Changed

Overview and Configuration Information sections were revised.

13-Aug-2018

Version 9

Changed

Configuration Information section was revised.

06-Aug-2018

Version 8

Changed

Configuration Information section was updated.

04-Jun-2018

Version 7

Changed

Raw capacity for the AF20 array was revised.

14-May-2018

Version 6

Changed

Overview section was revised.

07-May-2018

Version 5

Changed

Overview, Configuration Information, and Technical Specifications were revised.

13-Nov-2017

Version 4

Changed

Overview and Configuration Information were revised.

06-Nov-2017

Version 3

Changed

Changes made to the entire document including the new Branding changes.

12-Jun-2017

Version 2

Changed

Detail on included power cords and SAS cables.

05-Jun-2017

Version 1

New

New QuickSpecs.

© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

a00008273enw - 15932 - Worldwide  - V31 - 13-November-2023
