HPE Nimble Storage Adaptive Flash Arrays

Like having two flash arrays in one

The HPE Nimble Storage Adaptive Flash array is truly adaptive. It is designed for both Primary and Secondary flash workloads. It is a Hybrid Flash array for mixed, primary workloads, where cost-efficient flash performance is important. It is a Secondary Flash array for backup and DR while allowing you to put your backup data to work.

Experience the Power of Predictive

HPE Nimble Storage Adaptive Flash Arrays combine a flash-efficient architecture with HPE InfoSight predictive analytics to achieve fast, reliable access to data and 99.9999% guaranteed availability¹. Your storage investment made today will support you well into the future, thanks to our technology and business-model innovations.

What's new

Now HPE Nimble Storage Adaptive Flash Arrays are NEBS (Network Equipment Building System) certified.

The HPE Nimble Storage family of adaptive flash arrays deliver the functionality of two cost-effective flash arrays in one - Hybrid flash and Secondary flash. The new arrays are up to 65% faster than and more than twice as scalable as previous adaptive flash arrays. The arrays use inline variable block deduplication and compression for maximum data reduction. Adaptive arrays are designed to deliver business value today and tomorrow as demonstrated by our timeless storage.

Notes:  For more information about the entire HPE Nimble Storage product portfolio, go to

https://www.hpe.com/us/en/storage/nimble.html.

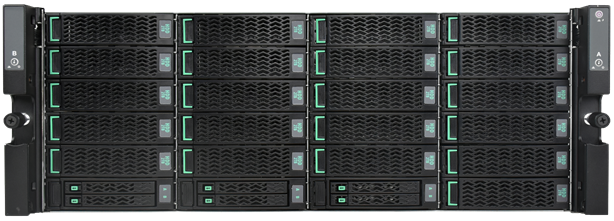

HPE Nimble Storage Adaptive Flash Array

(Base array, 4U; 21 bays hold carriers with Large Form Factor HDDs,3 bays hold Dual Flash Carriers with Small Form Factor SSDs)

HPE InfoSight predictive analytics

• Automatically predicts and resolves 86% of problems before you even know there is an issue.
• Transforms the support experience through predictive automation and Level 3-only support.
• Sees across the infrastructure stack and resolves problems beyond storage.
• Simplifies planning with prescriptive forecasts into capacity, performance, and bandwidth needs.
• Makes infrastructure smarter and more reliable by learning from the installed base.

Radical Simplicity

• Simple to deploy. Simple to use. Simple to manage.
• Cloud-ready. Deploy flash on-premises or in the cloud with common data services and mobility between all-flash, hybrid flash, and HPE Cloud Volumes.
• Timeless Storage means no worries today or tomorrow. Flash arrays come with a satisfaction guarantee, all-inclusive software licensing, flat support pricing, no forklift upgrades, and an option to receive a free faster controller upgrade after three years.
• Radically easy to integrate with many ecosystems. Deep integration with VMware, MS applications, Oracle, Veeam, and others.
• No data worries. 99.9999% (six-nines) guaranteed availability1. Triple+ Parity RAID tolerates 3 simultaneous drive failures plus additional protection through intra-drive parity.

Flash Performance for Mixed, Mainstream Workloads

• Speed and efficiency for mixed workloads with sub-millisecond response and greater efficiency than other hybrid arrays3.
• Write to cost-optimized disk at flash speeds through write serialization - defying the physics of mechanical spindles.
• Assign and change the service level of any volume at the click of a button ("Auto Flash", "All Flash", or "Minimal Flash").
• Always-on data reduction delivers up to 5X or more space savings without performance penalty4^.

Put Your Backup Data to Work

• Secondary storage that does real work: Flash performance lets you use your backup data for development/test, QA, analytics, and more.
• Eliminates the need for full backups: And speeds synthetic full backups from hours to minutes. Native application-consistent snapshots and replication plus integration with leading backup software.
• Restore backup data instantly. Fast backup verification - test backups more often. Eliminate the need to restore by running workloads directly.
• Deep integration with Veeam availability software.  Array capabilities accessible through the Veeam GUI.
• Backup and DR at a third of the cost, when replicating from all-flash to adaptive flash.
• Very cost-effective with powerful dedupe and compression. App-granular, FIPS-certified encryption provides data at-rest and over-the-wire protection. Secure data shredding is built-in.
• Redundant, hot-swap components including controllers, power supplies, SSDs, HDDs, and IO cards.

NEBS Level 3 Certified

• HPE Nimble Storage Adaptive Flash Arrays are NEBS (Network Equipment Building System) level 3 certified
• Ideal for network equipment providers and communication service providers requiring NEBS certified Hybrid Flash storage arrays for their telecom infrastructure
• NEBS Level 3 certified for all Nimble Storage Adaptive Flash Arrays (HF20, HF20C, HF20H, HF40, HF40C, HF60, and HF60C)

Notes:

- Specifications are subject to change without notice.

o ¹ HPE Nimble Storage HF20/HF20C and HF40/HF40C Adaptive Flash array support scale up to any model within the HF family. HF20H Adaptive Flash array supports scale up to the HF40 Adaptive Flash array.

o ² The HF20H Adaptive Flash array consists of up to 22 HDDs and 2 Dual Flash Carriers (DFCs). All other HF-Series models consist of up to 21 HDD drives and 3 DFCs (holding up to 6 SSDs).

o ³ Scale-out configuration consists of 4X HF60 Adaptive Flash arrays, each with maximum supported capacity.

o ⁴ Raw, usable, and effective capacities are shown in TB (10¹² bytes) and TiB (2⁴⁰ bytes). Usable and effective capacities take into account space used for parity, spares, SSD cache, and system overhead.

o ⁵ Effective capacity is the capacity of the base array and maximum number of expansion shelves. Assumes data reduction of five to one (5:1) from deduplication and compression. Deduplication currently supported on HF20H, HF20, HF40, and HF60; the HF20C, HF40C, and HF60C does not support dedupe and is capacity optimized to scale to over 1PB.

o ⁶ Each array controller has 2 x 10GbaseT ports built in. Optional ports are 1GbaseT, 10GbaseT, 10GbE SFP+, 25GbE SFP28, 16Gb (8Gb) FC, and 32Gb (16Gb) FC.

o ⁷ The Total Max Raw Capacity/Flash Capacity per system is limited by the architecture of the system and is not to be exceeded, even if it may be possible to configure a system that exceeds this limit.

o ⁸ Array port counts shown include both active and standby controllers; active ports are half value shown.

Expansion Shelves for HPE Nimble Storage Adaptive Flash Arrays

Notes:

- Specifications are subject to change without notice.

o ¹ Raw, usable, and effective capacities are shown in TB (10¹² bytes) and TiB (2⁴⁰ bytes). Usable and effective capacities take into account space used for parity, spares, SSD cache, and system overhead.

o ² Scale-out configuration consists of 4X HF60 Adaptive Flash arrays, each with maximum supported capacity.

o ³ When attached to a HF20H Adaptive Flash array, capacity is 16-167/14-152.

o ⁴ The Total Max Raw Capacity per system is limited by the architecture of the system and is not to be exceeded, even if it may be possible to configure a system that exceeds this limit.

Host OS Support

Microsoft® Windows® Server, including Microsoft® Hyper-V^TM | VMware vSphere^TM | HP-UX® | Ubuntu

SUSE® Linux Enterprise | SUSE® Linux Virtualization | Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization

CentOS | Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris Citrix® | IBM® AIX®

Notes: For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge (SPOCK) for HPE Storage products, including HPE Nimble Storage: http://www.hpe.com/storage/spock

Warranty

HPE Nimble Storage arrays come with the following warranties:

• 1 year; parts-only warranty for hardware components, including SSDs
• 90 day; software updates for defects

Additionally, HPE Nimble Storage will provide phone support for replacing a defective part. Additional support coverage is required for HPE Nimble Storage Arrays.

Notes:

- For hardware warranty claims, defective part must be received before replacement parts are shipped

- Warranty is provided by HPE Nimble Storage.

- Link to HPE Global Limited Warranty and Technical Support

Service and Support

Support is required for all HPE Nimble Storage Arrays. Support SKUs provide up to five years of 24x7 telephone and email support for the arrays and hardware components (Including SSDs reaching the write wear limit) with a choice of Next Business Day (NBD) parts exchange, 4-hour parts delivery, or 4 hour onsite support, access to the HPE InfoSight predictive analytics platform and software updates.

Notes: Support contract is mandatory for all HPE Nimble Storage products.

Installation Services

Installation Services are intended to guide you from start to finish and to help make your installation a success. Our engagement includes:

• Inventory and verify HPE Nimble Storage equipment against the sales order
• Physically rack and cable all HPE Nimble Storge equipment, including connecting network cables provided by the customer
• Conduct power-on tests and verify operation
• Add the array to an existing HPE Nimble Storage Group, if applicable
• Configure array's basic management, monitoring, & reporting capabilities
• Configure array for additional data networks / SAN connectivity as needed
• Upgrade the array to the latest recommended HPE Nimble OS version as needed.

HPE Tier 1 Storage Array Start-up service - HA114A1#5MR

Provides full hardware and software installation of a new HPE Nimble Storage array in a data center with up to six (6) shelves.

HPE Tier 1 Storage Array Start-up service - HA113A1#5MR

Provides on-site hardware installation only of a new HPE Nimble Storage array in a data center with up to six (6) shelves.

HPE Tier 1 Storage Upgrade service - HA124A1#5MS

On-site installation of upgrades kits or for an existing HPE Nimble Storage array.

HPE Tier 1 Storage Cross Family Offline Upgrade service - HA124A1#V0R

Provides the on-site hardware upgrade and disk migration from your exiting array to the new family array chassis.

Notes: All Installation and upgrade services are optional for all HPE Nimble Storage products.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

Step 1 - Choose a Base configuration

All HPE Nimble Storage Adaptive Flash Arrays come in a 4U form-factor chassis with

(2) controllers with fans and NVDIMM, and

(4) 1GbE/10GbE network ports, i.e. (2) per controller for iSCSI or management traffic, and

(2) power supplies and

All-inclusive software including HPE InfoSight predictive analytics

Additional host connectivity per controller is indicated in the product descriptions below.

Flash Cache upgrades, network upgrades and expansion shelves are available for integration in the field. Upgrade information will be supplied in the next QuickSpecs update.

HPE Nimble Storage HF-Series Adaptive Flash Arrays - Base Configuration Base Array

SKU Description

SKU

HPE Nimble Storage HF20C Adaptive Dual Controller 10GBASE-T 2-port Configure-to-order Base Array

Q8H70A

HPE Nimble Storage HF20H Adaptive Dual Controller 10GBASE-T 2-port Configure-to-order Base Array

Q8H71A

HPE Nimble Storage HF20 Adaptive Dual Controller 10GBASE-T 2-port Configure-to-order Base Array

Q8H72A

HPE Nimble Storage HF40 Adaptive Dual Controller 10GBASE-T 2-port Configure-to-order Base Array

Q8H39A

HPE Nimble Storage HF40C Adaptive Dual Controller 10GBASE-T 2-port Configure-to-order Base Array

R0P42A

HPE Nimble Storage HF60 Adaptive Dual Controller 10GBASE-T 2-port Configure-to-order Base Array

Q8H40A

HPE Nimble Storage HF60C Adaptive Dual Controller 10GBASE-T 2-port Configure-to-order Base Array

R0P43A

Step 2 - Choose Head HDD Capacity

All HPE Nimble Storage Adaptive Flash Arrays come with (21) LFF Hard Drives included as standard and supports (3) Dual Flash Carriers with SFF Solid State Drives. The configurations below include three SFF SSDs and accept one optional Flash Upgrade Kit to increase the Flash Cache. Additional capacity can be added by connecting up to (6) expansion shelves to the base array.

Notes: R2 and non-R2 SKUs are functionally equivalent.  The OCA quote tool will guide to the appropriate SKU option when configuring a model. Table below shows Adaptive Flash Array compatibilities with SSD Options.

Step 3 - Choose Head SSD Cache Capacity

Head SSD Capacity Options

For combinations of Bank A and Bank B of the DFC: When both banks are populated, adjacent banks should not differ by more than one step function in SSD capacity e.g. 3x480GB can have 3x240GB or 3x480GB or 3x960GB in the adjacent bank. Not allowed in the adjacent bank would be 3x1920GB or 3x3840GB.

Step 4 - Choose Head Networking Option

Up to three (3) of the following options can be selected.  Please refer to configuration guidelines for specific support of networking options on HF-Series arrays. The HF20, HF20C, and HF20Q support up to two (2) head networking options.

Notes:

- The following minimum ports are recommended for best performance:

o HF20: at least 2-ports

o HF40: at least 4-ports

o HF60: at least 8-ports

- All 10GbE, 25GbE, 16Gb FC, and 32Gb FC cards include SFP optical transceivers

- The 25GbE NICs include SFP28 transceivers for 25G environments

- Head networking options include a total of two (2x) cards which are evenly populated in the two controllers.

Step 5 - Add Expansion Shelves

ES3 Adaptive Expansion Shelves

Add up to six (6) ES3 Adaptive expansion shelves to each HF-Series array.  Mix any options below up to array maximum capacity.

Please refer to configuration guidelines for specific array capacity limits.

Optional Cache for ES3 Expansion Shelves

Only ONE of the following options can be selected per shelf.

Please refer to configuration guidelines for specific array cache capacity limits.

Step 6 - Add Support (Mandatory)

Support recommendations are designed to help you enhance technology operations, lower risk and make it easier for you to seek the right balance between affordability and service-level commitments. Depending on your individual support needs, choose from four levels of care that cover the entire lifecycle to better address your needs from 3, 4 and 5 year durations for service levels ranging from Basic Exchange (Next Business Day parts exchange) to Essential (4 hour onsite response).

Description

SKU

HPE Tech Care Basic Exchange SVC

HPE Tech Care Basic Exchange w/DMR SVC

HPE Tech Care Basic Exchange w/CDMR SVC

HPE Tech Care Basic SVC

HPE Tech Care Basic w/DMR SVC

HU4B5A3/4/5

HU4B6A3/4/5

HU4B7A3/4/5

HU4B2A3/4/5

HU4B3A3/4/5

HPE Tech Care Basic w/CDMR SVC

HPE Tech Care Essential Exchange SVC

HPE Tech Care Essential Exchange w/DMR SVC

HPE Tech Care Essential Exchange w/CDMR SVC

HPE Tech Care Essential SVC

HPE Tech Care Essential w/DMR SVC

HPE Tech Care Essential w/CDMR SVC

HU4B4A3/4/5

HU4A9A3/4/5

HU4B0A3/4/5

HU4B1A3/4/5

HU4A6A3/4/5

HU4A7A3/4/5

HU4A8A3/4/5

Notes: Minimum support required 3-year HPE Tech Care Basic Exchange

Timeless Technology Refresh

The Timeless Technology Refresh program provides customers with a new controller after three years provided they meet the terms of the  program. To add the optional Timeless Technology Refresh it needs to be configured with the initial HPE Nimble Storage array order. For more details on the Timeless Techno Refresh program, please see the timeless storage brochure.

HPE 3Y Technology Refresh SVC

HU2J4A3

HPE 5Y Technology Refresh SVC

HU2J4A5

Notes: Timeless Technology Refresh is available as 3-year or 5-year support offerings.

Installation Services

Installation Services are intended to guide you from start to finish and to help make your installation a success.

Notes: Installation services are optional.

Description

SKU

HPE Tier 1 Storage Array Start-up service

HA114A1#5MR

HPE Tier 1 Storage Array Hardware Installation service

HA113A1#5MR

HPE Tier 1 Storage Array Upgrade service

HA124A1#5MS

HPE Tier 1 Storage Cross Family Offline Upgrade service

HA124A1#V0R

Racks

HPE Nimble Storage arrays and expansion shelves are compatible with industry standard 4-post EIA 19 inch racks with square mounting holes, including HPE 36U, 42U and 48U Enterprise Shock Racks. HPE recommends HPE racks with a depth of 1200mm to best accommodate the length of the Nimble Storage chassis; the HPE 1200mm rack provides ample room for cabling and ease of serviceability. HPE racks with a depth of 1075mm can be used but may have limited space for cabling and component access. If a 3^rd party rack with a depth less than 1075mm is used, the rear doors cannot be fully closed.

Recommended Racks:

HPE G2 Enterprise Series Racks

• HPE 48U 600mmx1200mm G2 Enterprise Rack
• HPE 48U 800mmx1200mm G2 Enterprise Rack
• HPE 42U 600mmx1200mm G2 Enterprise Rack
• HPE 42U 800mmx1200mm G2 Enterprise Rack

HPE G2 Advanced Series Racks

• HPE 48U 600mmx1200mm G2 Advanced Rack
• HPE 48U 800mmx1200mm G2 Advanced Rack
• HPE 42U 600mmx1200mm G2 Advanced Rack
• HPE 42U 800mmx1200mm G2 Advanced Rack
• HPE 36U 600mmx1200mm G2 Advanced Rack
• HPE 36U 800mmx1200mm G2 Advanced Rack

For more information on the HPE rack offerings, please see the following URL: https://www.hpe.com/info/rackandpower

For more information on rack options, see: http://www.hpe.com/products/rackoptions

For more information on PDUs, see: http://www.hpe.com/servers/pdu

Required and additional power cords

HPE Nimble Storage Arrays and expansion shelves do not ship with any power cords by default and require a minimum of two power cords per system. Please ensure these are selected at time of quoting. A pair of power cords are required when connecting base arrays (C19/C14 or C19/C20) or expansion shelves (C13/C14) to Rack-Mounted Power Distribution Units (PDU). A pair of country/region specific power cords are required when connecting base arrays or expansion shelves to standard office wall power outlets.

HPE Nimble Storage NEMA 5-15P to C19 125V 15Amp 2.5m US FIO Power Cord

R0P83A

HPE Nimble Storage IEC 60320 C14 to C19 250V 15Amp 1.8m FIO Power Cord

R0P84A

HPE Nimble Storage AS3112 to C19 250V 16Amp 1.8m AU FIO Power Cord

Q8J02A

HPE Nimble Storage Schuko to C19 250V 16Amp 1.8m EU FIO Power Cord

Q8J03A

HPE Nimble Storage BS 1363 UK10 to C19 250V 16Amp 1.8m UK FIO Power Cord

Q8J04A

HPE Nimble Storage NEMA L5-20P to C19 125V 20Amp 2.5m US FIO Power Cord

Q8J05A

HPE Nimble Storage GB2099 to C19 250V 16Amp 1.8m CN FIO Power Cord

Q8J06A

Description

SKU

HPE Nimble Storage KSC8305 to C19 250V 16Amp 1.8m KR FIO Power Cord

Q8J07A

HPE Nimble Storage JIS8303 to C19 125V 15Amp 1.8m TW/JP FIO Power Cord

Q8J08A

HPE Nimble Storage JIS8303 6-30 to C19 250V 15Amp 1.8m JP FIO Power Cord

Q8J09A

HPE Nimble Storage IS1293 to LS-60 250V 16Amp 1.8m IN FIO Power Cord

Q8J10A

HPE Nimble Storage SAN164-1 to C19 250V 16Amp 1.8m ZA FIO Power Cord

Q8J11A

HPE Nimble Storage SI32 to C19 250V 16Amp 1.8m IL FIO Power Cord

Q8J12A

HPE Nimble Storage CEI 23-16 to C19 250V 16Amp 1.8m IT FIO Power Cord

Q8J13A

HPE Nimble Storage C19 to C20 250V 16Amp 1.8m PDU Base Array FIO Power Cord

Q8J14A

HPE Nimble Storage AS 3112 to C13 250V 10Amp 1.8m AU FIO Power Cord

Q8J15A

HPE Nimble Storage Schuko to C13 250V 10Amp 1.8m EU FIO Power Cord

Q8J16A

HPE Nimble Storage BS1363 UK10 to C13 250V 10Amp 1.8m UK FIO Power Cord

Q8J17A

HPE Nimble Storage NEMA 5-15P to C13 125V 10Amp 1.8m US FIO Power Cord

Q8J18A

HPE Nimble Storage GB2099 to C13 250V 10Amp 1.8m CN FIO Power Cord

Q8J19A

HPE Nimble Storage KSC8305 to C13 250V 10Amp 1.8m KR FIO Power Cord

Q8J20A

HPE Nimble Storage JIS8303 to C13 125V 12Amp 1.8m TW/JP FIO Power Cord

Q8J21A

HPE Nimble Storage JIS8303 to C13 250V 15Amp 2.5m JP FIO Power Cord

Q8J22A

HPE Nimble Storage IS1293 to C13 250V 10Amp 1.8m IN FIO Power Cord

Q8J23A

HPE Nimble Storage SANS164-1 to C13 250V 10Amp 1.8m ZA FIO Power Cord

Q8J24A

HPE Nimble Storage SI32 to C13 250V 10Amp 1.8m IL FIO Power Cord

Q8J25A

HPE Nimble Storage CEI23-16 to C13 250V 10Amp 1.8m IT FIO Power Cord

Q8J26A

HPE Nimble Storage C13 to C14 250V 10Amp 1.8m Universal FIO Power Cord

Q8J27A

Field Upgrade Options

The following product options are to upgrade currently installed Adaptive Flash Arrays

Notes:

- The DC PSU kit includes two (2) DC PSUs; one (1) DC PSU kit per array or shelf should be ordered for systems to be installed in environments utilizing DC power infrastructure

- If NEBS compliance is required, the DC PSU kit should only be ordered with new arrays (which include DC grounding posts)

Notes: The 1200W AC and 3000W AC power supplies are 80 PLUS Platinum

HF20/20C/20H/40/40C currently only ship with 1200W PSU

Environmental Specifications⁴

Electromagnetic Compatibility

• Subpart B of Part 15 of FCC Rules for Class A digital devices
• ICES-003, Issue 6, dated January 2016 (Class A)
• VCCI V-3: April 2014 (Class A)
• EN 55022:2010
• CISPR 22:2008
• AS/NZS CISPR 22:2009 +A1:2010
• EN55032:2012
• CISPR 32:2012
• EN 55024:2010
• CISPR 24:2010 +A1:2015
• TCVN 7189:2009
• NBTC TS 3001-2555
• TP TC 020/2011

Safety

• EN60950-1:2005 (Second Edition); Am1:2009 + Am2:2013
• IEC 60950-1:2005 (Second Edition); Am1:2009 + Am2:2013
• EN60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
• UL/IEC 60960-1 2nd Ed. Am1 + Am2
• CNS14336-1 ('99)
• CNS13438 ('95)
• NOM-019-SCFI-1998
• NBTC TS 4001-2550
• TP TC 004/2011
• IS 13252 (PART 1):2010 +A1:2013 + A2:2-15
• SANS IEC 60950-1

Notes:  Specifications are subject to change without notice.

Certifications / Markings

• UL
• cUL
• CE
• FCC Class A
• IC Class A
• VCCI Class A
• RCM
• BSMI Class A
• KC
• CCC Exemption
• NOM
• MoEc
• NBTC SDoC
• CITC/CoC
• EAC
• BIS
• LOA (S. Africa)
• RoHS 2011/65/EU, EN50581:2012
• WEEE

Date

Version History

Action

Description of Change

13-Nov-2023

Version 32

Changed

HPE Services Rebranding

06-Jun-2022

Version 31

Changed

Technical Specifications section was updated.

07-Feb-202

Version 30

Changed

Configuration Information section was updated.

06-Dec-2021

Version 29

Changed

Service and Support and Configuration Information sections were updated

17-May-2021

Version 28

Changed

Standard Features, Service and Support and Configuration Information sections were updated

01-Feb-2021

Version 27

Changed

Service and Support section was updated.

04-Jan-2021

Version 26

Changed

Configuration Information section was updated.

07-Dec-2020

Version 25

Changed

Overview, Standard Features, Configuration Information and Technical Specifications sections were updated

04-May-2020

Version 24

Changed

Overview, Standard Features and Configuration Information sections were updated

02-Mar-2020

Version 23

Changed

Configuration Information and Technical Specifications were updated.

03-Feb-2020

Version 22

Changed

Q8B95B SKU description was updated.

04-Nov-2019

Version 21

Changed

Technical Specifications section was updated.

07-Oct-2019

Version 20

Changed

Configuration Information section was updated.

05-Aug-2019

Version 19

Changed

Overview and Configuration Information sections were updated.

01-Jul-2019

Version 18

Changed

Overview, Configuration Information and Technical Specifications sections were updated.

03-Jun-2019

Version 17

Changed

Overview and Technical Specifications sections were updated.

02-Apr-2019

Version 16

Changed

Configuration Information section was updated.

04-Mar-2019

Version 15

Changed

Configuration Information section was updated.

04-Feb-2019

Version 14

Changed

Overview and Configuration Information sections were updated.

07-Jan-2019

Version 13

Changed

Overview and Configuration Information sections were updated

03-Dec-2018

Version 12

Added

Added HF40C Array and HF60C Array

Changed

Overview and Configuration Information sections were updated.

05-Nov-2018

Version 11

Changed

Description of Change

Overview, Service and Support and Configuration Information sections were revised

01-Oct-2018

Version 10

Changed

Overview and Configuration Information sections were updated

13-Aug-2018

Version 9

Changed

Configuration Information section was revised

06-Aug-2018

Version 8

Added

New upgrade options were added.

Changed

Configuration Information section was updated.

04-Jun-2018

Version 7

Changed

HPE Nimble Storage Adaptive Flash Array models and Configuration Information were revised.

14-May-2018

Version 6

Changed

Overview section was revised.

07-May-2018

Version 5

Changed

Overview, Configuration Information, and Technical Specifications were revised.

13-Nov-2017

Version 4

Changed

Overview and Configuration Information were revised.

06-Nov-2017

Version 3

Changed

Added information on the entire HPE Nimble Storage CS-Series portfolio.

12-Jun-2017

Version 2

Changed

Detail on included power cords and SAS cables.

05-Jun-2017

Version 1

Created

Created first version, including CS1000 and CS1000H.

© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

a00008274enw - 15933 - Worldwide  - V32 - 13-November-2023
