HPE ProLiant Moonshot Server

As a dedicated hosting company are you using large numbers of traditionally architected servers? Are you hitting the wall for power, cooling and space?
The HPE Moonshot System uses an innovative new architecture that results from one simple design tenet: to align purpose-built modules with the right workload to provide optimal results for your dedicated hosting environment. Traditional servers rely on dedicated components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot system share these chassis components and are capable of supporting 45 servers per 4.3U chassis.
This gives you the ability to generate greater revenue from a smaller footprint while driving down your operational costs. The HPE ProLiant Moonshot Servers use low-energy processors and direct attached disk drives to provide an ideal solution for dedicated hosting.

+

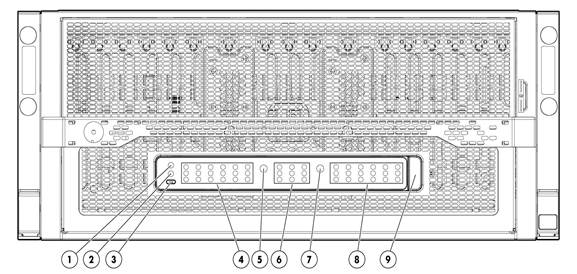

Front View:

1.

Chassis Power LED

2.

System health LED

3.

Chassis UID/LED/button

4.

Front Panel Display LED, Moonshot server 1-18

5.

Switch Module A Health LED

6.

Front Panel Display LED, Moonshot server 19-27

7.

Switch module B health LED

8.

Front Panel Display LED, Moonshot server 28-45

9.

Front Panel Display release

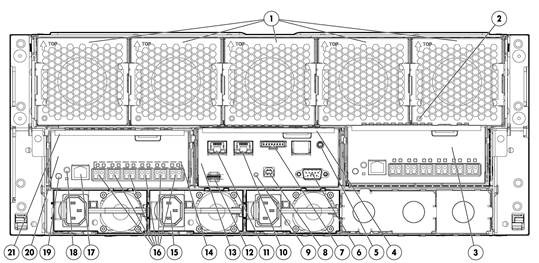

Back View:

What's New

• Starter System offering a Moonshot 1500 Chassis with fifteen (15) HPE ProLiant Moonshot Server
• Support for purchasing incremental fifteen (15) Server Multipacks
• Support for HPE Cloud OS for Moonshot

Standard Features - Server

Processor

Intel® Atom^TM Processor S1260, 2.0 GHz

Cache Memory

1 MB

Chipset

Intel^TM Atom^TM Processor S1200 Series for Servers

On System Management Processor

via HPE Moonshot 1500 Chassis Management module

Memory Protection

Advanced ECC (multi-bit error protection)

Memory

Type

Unbuffered (UDIMM), ECC @ 1333 MHz

DIMM Slots Available

1 SO-DIMM Slot

Configuration

8GB (1x8GB)

Network Controller

Network Controller Broadcom 5720 Dual-port 1Gb Ethernet Controller

Storage Controller

Marvell 9125

Storage Device

Hard Drive

Each cartridge will ship with a SATA HDD or SATA SSD

Maximum Internal Storage (per Moonshot Server)

Quick Release SATA 2.5"

1TB

1 x 1TB SATA

500 GB

1 x 500 GB SATA

Interfaces

Network RJ-45 for Management

Two RJ-45 are located on the HPE Moonshot 1500 Chassis Management Module. One is for the HPE Moonshot iLO Chassis Management and one is for future use

SFP+ connector

Six 10GbE SFP+ connectors per HPE Moonshot-6SFP Uplink.
NOTE: SFP+ connectors are not included as standard option.
NOTE: See the HPE Moonshot-6SFP Uplink Module QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/QuickSpecs/14734_div/
14734_div.html

Health LED

47 front for server/switch health, one per server and switch when access panel is removed

Power

1 front and one per server and switch when access panel is removed

UID for node

1 front and 1 rear (on management module) and one per server and switch when access panel is removed

Drive health LED

One per server and switch when access panel is removed

Industry Standard Compliance

ACPI 2.0b Compliant

SMBIOS 2.6.1

PXE Support

Operating Systems and Virtualization Software Support for ProLiant Servers

Canonical Ubuntu
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)

NOTE: Only 64-bit versions of these operating systems are supported.
NOTE: For more information on Hewlett Packard Enterprise's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from Hewlett Packard Enterprise, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/go/servers/Moonshot/download

Server Form Factor

HPE ProLiant Moonshot Servers are constructed to allow for 45 servers to fit vertically and exclusively into the HPE Moonshot 1500 chassis
HPE Moonshot-45G Switch Modules - up to two switches install vertically and exclusively into the chassis. An HPE Moonshot-6SFP Uplink Module is required per switch.
NOTE: See the HPE Moonshot-45G Switch Module QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111342
NOTE: See the HPE Moonshot-6SFP Uplink Module QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111340

Standard Features - HPE Moonshot 1500 Chassis

Chassis Form Factor

4.3U

HPE Interconnect modules

NOTE: Up to two identical pairs of Switch and Uplink modules are supported in the Moonshot 1500 Chassis. Dual switch modules are required for network redundancy, regardless of cartridge configuration.

HPE Moonshot-45G Switch Module
Switch with 45 1 GbE downlink ports.
Compatible with HPE Moonshot-6SFP Uplink Module in the Moonshot 1500 Chassis.
For more information, please visit:
HPE Moonshot-45G Switch Module
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111342

HPE Moonshot-6SFP Uplink Module
Networking faceplate module with 6 10GbE SFP+ uplink ports.
Compatible with HPE Moonshot-45G Switch Module in the Moonshot 1500 Chassis.
For more information, please visit:
HPE Moonshot-6SFP Uplink Module
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111340

HPE Moonshot 1500 Chassis Management Module

HPE Moonshot 1500 Chassis Management module, complete with support for SL-APM.

The HPE Moonshot 1500 Chassis Management module manages the health of the chassis and servers and includes a command-line interface accessible via SSH to configure the chassis and server settings and control server power and UID lights, use Virtual Serial Port to servers, and to flash firmware in the chassis. It also supports IPMI management.

On System Management

HPE Moonshot iLO Chassis Management Firmware is the gateway for aggregated chassis management on HPE Moonshot. Moonshot iLO CM firmware reduces cost and power by sharing four iLO modules across the nodes and other system components. As a single point of access to the chassis, Moonshot iLO CM firmware allows you to configure, update, and operate HPE Moonshot via CLI, IPMI, and remote serial console access.

For more information, see the HPE Moonshot iLO Chassis Management Firmware User Guide on the HPE Project Moonshot Information Library (http://www.hp.com/go/moonshot/docs).

System Fans

5 Dual-Rotor, Hot-Plug Fans, N+1

Power Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor.
NOTE: Power Specification and Technical Content for supported power supplies can be found at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541

Common Slot Power Supply

Each Moonshot Chassis comes with a minimum of two (2) HPE Common slot power supplies.
HPE's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HPE Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HPE CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HPE CS power supply options provide efficiency ratings of up to 94% and are available in only a 1200W configuration for this platform which is "right-sized" for this specific solution. All HPE Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations. HPE Power Advisor can be accessed at:
http://www.hp.com/go/hppoweradvisor.

NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.

NOTE: Redundant Power: Optional redundant power supplies can be purchased through power supply option kits (see Power Supplies for part numbers).

HPE Cloud OS for Moonshot

Based on HPE Cloud OS, Cloud OS for Moonshot brings the power and extensibility of OpenStack to the Moonshot platform. It is enterprise-grade OpenStack, enhanced and supported by Hewlett Packard Enterprise. It brings the capabilities of OpenStack and HPE Cloud OS to Moonshot; helping enterprises and service providers avoid lock in, minimize complexity, and support massive scale in cloud environments:

• Simplified OpenStack® installation, management, and updates
• Rapid bare metal provisioning
• Automate deployment of single and multi-tier workloads with topology modeling

For enterprises who want to leverage OpenStack technology for rapid innovation and the beneficial economics of an open source approach, there's HPE Cloud OS. As a leader and a top contributor in the OpenStack community, HPE brings industry-leading innovation, expertise and best practices with HPE Cloud OS technology to help you drive better business outcomes.

For more information on Hewlett Packard Enterprise Cloud OS for Moonshot, please contact your sales representative or visit:
http://www.hp.com/go/moonshot
http://www.hp.com/go/cloudos

HPE Insight management

HPE Insight Control

HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see http://www.hp.com/go/insightcontrol.
HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates. For more information about this service, see: http://www.hp.com/services/insight

High Performance Clusters

HPE Insight Cluster Management Utility

HPE Insight Cluster Management Utility (CMU) is an Hewlett Packard Enterprise-licended and Hewlett Packard Enterprise-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Services and Support

HPE Technology Services for Moonshot
Capitalizing on the Moonshot 1500 System requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know Hewlett Packard Enterprise infrastructure hardware and software best - the experienced professionals at HPE Technology Services.

Hewlett Packard Enterprise is pleased to include full software support for Ubuntu Linux as part of your Moonshot chassis purchase. For chassis supporting revenue-generating or production level workloads, consider purchasing a level of support that matches your requirements.

Protect your business beyond warranty with HPE Pointnext operational services
HPE sells support in easy-to-buy, preconfigured packages with the combination of services, coverage and duration to fit your needs and budget. With Moonshot, we are introducing a new, simpler set of services. Simply choose the service level that best fits the criticality of your hardware.

HPE Foundation Care
HPE introduces new Foundation Care services offer scalable reactive support-packages for HPE Moonshot and software. You can choose the type and level of service that is most suitable for your IT and business needs. The Moonshot 1500 Care Pack services cover the Moonshot 1500 Chassis and the Moonshot servers with one single Care Pack SKU. Entitlement of support requires the customer to provide the 1500 chassis serial number. All HPE components structured to the Moonshot System are covered by Care Pack services inclusive of switches, power supplies, and fans. HPE Foundation Care services include hardware support, basic software support and collaborative call handling for software questions related to industry leading operating systems and software. For a complete list of software products covered, refer to: www.hp.com/services/collaborativesupport.

Full software support, including call management and ownership thru to resolution is available for select third party software. As stated earlier, support for Ubuntu software is included in the purchase of your Moonshot chassis.

HPE Datacenter Care
HPE Datacenter Care offers you a flexible, tailored, relationship-based approach to support the most demanding data centers handling the demands of hyperscale computing. This is an environment level service, purchased once to support your Moonshot environment. Other equipment may be included in this agreement for holistic datacenter coverage. With HPE Datacenter Care, you still have the choice of HPE Foundation Care reactive support which you purchase with each chassis.

HPE Datacenter Care is flexible enough to deliver exactly what you need in one relationship. All Datacenter Care support is tailored to your needs, based on our experience with hyperscale customers:

• Assigned account team, led by an account support manager (ASM) who knows your business and your IT environment and is responsible for the quality service delivery and experience.
• Enhanced call handling for the best call experience with rapid escalation and incident resolution through the HPE Hyperscale Center of Excellence
• Proactive and reactive support, configured to deliver the level of support needed by the different data center components and meeting both service-level agreement (SLA) and cost targets

Then add on other services that are tailored to your specific needs, including:

HPE Self-Service Spares Service answers the question: What do you do when you need parts? We can set it up so that you get spare parts onsite through our automated self-service spares. You simply go to the part of your data center where the parts live, scan them out, scan in the broken one, and you're done. We maintain your inventory of good spares, so that what you need is ready to go when you need it. And we provide monthly service excellence reports illustrating onsite inventory performance.

To obtain further information or to order HPE Datacenter Care Service as described above, contact a local Hewlett Packard Enterprise sales representative. Please see the Additional Options section of this QuickSpecs for additional information.

HPE Moonshot Installation & Startup Service
HPE Installation and Startup Service for the Moonshot System provides for the installation of one system and its associated Moonshot servers and network switches, as well as operating system deployment and basic configuration of OS network parameters to establish network connectivity

In response to the needs of the majority of HPE Moonshot System customers, this fixed-price/fixed deliverable service targets new hardware installation and software deployments for the 1500 infrastructure. For more advanced installation, configuration, and integration requirements, custom deployments are available through a customized Statement of Work. . Please see the Additional Options section of this QuickSpecs for additional information.

For more information on Hewlett Packard Enterprise Services, contact any of our worldwide sales offices or visit one of the following websites:
HPE support services: http://www.hp.com/services/alwayson
HPE Pointnext operational services: http://www.hp.com/services/carepack

Recommended HPE Pointnext operational services for your HPE product

Optimized Care

3-Year HPE Foundation Care Call to Repair
This is HPE's highest level of reactive support giving you our commitment to have the hardware operational within six hours of opening the call with us. This service level includes hardware coverage plus software diagnosis support with collaborative call management for a broad spectrum of third party software products including O/S and hypervisors.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa4-8877enw.pdf

Standard Care

3-Year HPE Foundation Care 24x7
This service level provides consistent, reliable reactive support with the broadest coverage window which is recommended when maintenance must be performed outside business hours. Calls may be opened 24x7. Should an onsite visit be needed, our commitment is to respond onsite within four hours. Software call back commitment is two hours.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa4-8877enw.pdf

Basic Care

3- Year HPE Foundation Care Next Business Day
This service level provides the most economical support coverage and is designed for non-revenue impacting systems. Calls may be opened 24x7. Should an onsite visit be needed, our commitment is to respond onsite the next business day. Software call back commitment is two hours, during regular business hours.

For more information on Hewlett Packard Enterprise Care Pack services, contact any of our worldwide sales offices or resellers or visit our website at: http://www.hp.com/go/carepack

Defective Media Retention (DMR) and Comprehensive Defective Material Retention

If your business deals with sensitive or legally protected data, you know that it's not a simple matter to return a defective hardware component, but keeping it conflicts with the terms and conditions of many standard warranty agreements. If you don't return the component, you'll be charged for the replacement part.

HPE Foundation Care services are available with defective media retention of failed hard drives and comprehensive defective material retention of those other data-retentive components, such as memory, switches, processors and more. This may be purchased as an optional add-on to your HPE Foundation Care service purchase. This service is critical for customers who:

• Need to control and secure their classified, proprietary and confidential data.
• Are subject to current data privacy regulations.
• Want a simpler, more cost-effective solution when choosing not to return a malfunctioning disk drive or other data retentive component.

For more information on our data privacy services, see: www.hp.com/services/dataprivacy.

HPE Support Center

Hewlett Packard Enterprise provides several tools that make it simpler to get help from HPE:

HPE Support Center is personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more: http://www.hp.com/go/hpsc

The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.
HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

NOTE: HPE Support Center Mobile App is subject to local availability.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

To learn more on HPE Moonshot System, please contact your Hewlett Packard Enterprise sales representative.

Starter Systems

HPE Moonshot 1500 S1260 x15 1P CPU 500GB 1x45G Starter System
757645-B21

Chassis

One (1) HPE Moonshot 1500 Chassis
NOTE: The chassis includes five (5) dual-rotor fans and one (1) HPE Moonshot 1500 Chassis Management Module as standard.

Cartridges

Fifteen (15) HPE ProLiant Moonshot Servers
NOTE: Thirty (30) cartridge blanks are delivered with the system. Additional cartridge multipacks must be purchased separately (P/N 758855-B21)

Storage

One (1) 500GB 6G SATA 7.2k 2.5in HDD per cartridge

Switch

One (1) HPE Moonshot-45G Switch Module

Uplink

One (1) HPE Moonshot-6SFP Uplink Module
NOTE: Transceivers for the Moonshot-6SFP are not included with the
System and must be purchased separately.

Power Supply

Two (2) HPE 1200W Common Slot Platinum Plus Power Supplies

Form Factor

4.3 RU
NOTE: 0.66U Spacer Blank Kit included for data center airflow management purposes.
NOTE: The HPE 4.3U Rail Kit is included to properly install the chassis into a rack.

Warranty

Chassis Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response.
Cartridge Warranty includes 1-Year Parts, no Labor, no Onsite support.

Upgrade Kits

HPE ProLiant Moonshot x15 1P S1260 CPU 500GB Server Multipack
758855-B21

Cartridges

Fifteen (15) HPE ProLiant Moonshot Servers

Storage

One (1) 500GB 6G SATA 7.2k 2.5in HDD per cartridge

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Factory Integrated Models must start with an HPE Moonshot 1500 Chassis. Each Moonshot Chassis will be ordered with minimum configurations as follows:

Forty Five (45) identically configured Moonshot servers per chassis.
NOTE: This means that each of the 45 servers in the chassis will contain an identically sized HDD, whether it be the 500 GB or the 1 TB SATA
Two (2) 1200W Common Slot Platinum Plus Power Supplies
NOTE: Additional power supply kits may be ordered to achieve N+1 or N+N redundancy.
One (1) HPE Moonshot-45G Switch Module
And
One (1) HPE Moonshot-6SFP Uplink Module
NOTE: A second Switch and Uplink Module Kit may be ordered to give a redundant network configuration or to enable two separate networks utilizing different Moonshot servers.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

Step 1: Base Configuration (Choose one HPE Moonshot 1500 Chassis)

Step 1A: Configure Moonshot Servers (one of each unless otherwise noted)

HPE Hard drives

6G SATA Quick Release SFF (2.5-inch) Midline (MDL) Drives

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) Quick Release Midline 1yr Warranty Hard Drive

632078-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111725

6G SATA Value Endurance Quick Release SFF (2.5-inch) Enterprise Value Solid State Drives

Step 2: Choose Required Options (one of each unless otherwise noted)

Power Supplies

HPE Common Slot Platinum Plus Power Supply Kits
NOTE: 94% efficiency with support for HPE Power Discovery Services.

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

656364-B21

NOTE: Power Specification and Technical Content for supported power supplies can be found at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541

NOTE: Minimum of two and maximum of four power supplies per chassis when configured with the HPE Moonshot Server (PN 700352-B21).

Networking

HPE Moonshot-45G Switch Module Kit

704644-B21

HPE Moonshot 6SFP Uplink Module Kit

704646-B21

NOTE: Must order one of each the Switch Kit and Uplink Kit per chassis.
NOTE: Maximum of two of each the Switch Kit and Uplink Kit per chassis to allow configurations with redundant or dual networks.

Step 3: Choose additional options

HPE Insight Software

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A

HPE Power Cords

HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord

AF556A

HPE C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord

AF557A

HPE C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord

AF558A

HPE C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord

AF559A

HPE C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord

AF561A

HPE C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord

AF562A

HPE C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord

AF560A

HPE C13 - SI-32 IL 250V 10Amp 1.83m Power Cord

AF564A

HPE C13 - SEV 1011 CH  250V 10Amp 1.83m Power Cord

AF565A

HPE C13 - DK-2.5A DK  250V 10Amp 1.83m Power Cord

AF566A

HPE C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord

AF567A

HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord

AF568A

HPE C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord

AF569A

HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

AF570A

HPE C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord

AF571A

HPE C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord

AF572A

HPE C13 - IS-1293 IN 250V 10Amp HV 2.5m Power Cord

SG579A

HPE C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord

AF573A

HPE C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord

AF591A

HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord

A0K02A

HPE C13 - C14 WW 250V 10A Gray 0.7m Jumper Cord

A0K03A

HPE C13 - C14 WW 250V 10A Gray 1.37m Jumper Cord

A0K04A

HPE C13 - C14 WW 250V 10A Gray 3.0m Jumper Cord

A0K06A

HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord

A0N33A

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Insight Software

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Control including 1yr 24x7 TSU E-LTU

C6N28ABE

HPE Insight Management Media Kit

C6N31A

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO E-LTU

C6N36ABE

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HPE Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391

High Performance Clusters

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

D9Y33A

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU

D9Y34A

HPE Insight Cluster Management Utility Media
NOTE: For additional license kits please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735

BD477A

SFP Options

HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver

453151-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP RJ-45 Transceiver

453154-B21

SFP+ Options

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

Direct Attach Cables

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 0.5m Direct Attach Copper Cable

487649-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 1m Direct Attach Copper Cable

487652-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 7m Direct Attach Copper Cable

487658-B21

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable

AP818A

HPE B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable

AP819A

HPE B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable

AP820A

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver

453151-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP RJ-45 Transceiver

453154-B21

HPE Rail Kits
(Chassis Specific)

HPE 4.3U Server Rail Kit

681254-B21

HP 0.66U Spacer Blank Kit

681260-B21

NOTE: For data center airflow management purposes, it is recommended that either the .66U Spacer Blank or the 13U FIO Rack Adapter Kit can be ordered.
NOTE: The HPE 4.3U Rail Kit is required to be ordered for every chassis to properly install the chassis into a rack.
NOTE: The .66U Spacer Blank kit may be ordered and will give an even 5U (4.3U+0.66U) spacing in a rack. This would enable installing up to 8 chassis in a 42U rack. It is also possible to stack up to 9 chassis in a 42U rack using the 13U FIO Rack Adapter Kit. If the 13U kit is used, the .66U spacer would not be used and vice versa.

Rack Adapter

HP 13U FIO Rack Adapter Kit for 3X4.3U Chassis
NOTE:NOTE: Groups Moonshot 1500 Chassis units into a 13U space. Order one per three enclosures. The 0.66U spacer is not used when selecting this option.

681677-B21

HPE Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hp.com/go/tape. For hardware and software compatibility of HPE tape backup products see: http://www.hp.com/storage/SPOCK

HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit

C0L99A

HPE StoreEver LTO-6 Ultrium 6650 SAS Internal Tape Drive

EH963A

HPE StoreEver LTO-6 Ultrium 6650 SAS External Tape Drive

EH964A

HPE StoreEver LTO-6 Ultrium 6250 Internal Tape Drive

EH969A

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE Uninterruptible Power Systems

HPE Rack-mountable UPS

HPE R1500 G3 Uninterruptible Power Supply (UPS)

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154376 (Worldwide)

R5000 Uninterruptible Power System (UPS)

HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154372 (Worldwide)

R7000 Uninterruptible Power System (UPS)

HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

NOTE: Please see the QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123199 (Worldwide)

NOTE: For additional information on Hewlett Packard Enterprise Uninterruptible Power Systems please go to: http://www.hp.com/servers/rackups.
NOTE: For additional information on sizing your server, please reference:
http://www.upssizer.com.
NOTE: Please see the UPS and PDU cable matrix's on the HPE Power Protection and Management page. Under Power Cords, click on the "HPE Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: http://www.hp.com/products/powercords.

HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HPE Power Distribution Units

HPE Monitored Power Distribution Unit: Half Rack Version

NOTE: Please see the following QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04283209
(Worldwide)

Modular Power Distribution Units 1U/0U (Up to 32 outlets)

NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

HPE Basic Modular 2.8kVA/L5-30P 24A/120V Outlets (4) C19/Horizontal NA/JP PDU

252663-D71

NOTE: This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.

NOTE: Please see the following QuickSpecs for additional options including shorter jumper cables and country specific power cords:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123438 (Worldwide)
NOTE: For additional information on Hewlett Packard Enterprise Power Distribution Units including accessories please go to: http://www.hp.com/go/pduwww.hp.com/go/pdu.
NOTE: Please see the UPS and PDU cable matrix's on the HPE Power Protection and Management page. Under Power Cords, click on the "HPE Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: http://www.hp.com/products/powercords.

HPE Basic Modular 2.8kVA/L5-30P 24A/120V Outlets (4) C19/Horizontal NA/JP PDU

252663-D71

iPDU Core Units

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF520A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF522A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF525A

HPE Intelligent Power Distribution Units (iPDU)

HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF526A

iPDU Extension Bars

HPE 5xC13 Intelligent PDU Extension Bars G2 Kit

AF547A

HPE 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123329 (Worldwide)

HPE 5xC13 Intelligent PDU Extension Bars G2 Kit

AF547A

HPE Basic 1.9kVA/L5-20P 16A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU

H5M54A

HPE Basic 2.8kVA/L5-30P 24A/120V Outlets (18) 5-20R/Vertical NA/JP PDU

H5M55A

HPE Basic 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU

H5M56A

HPE Basic Power Distribution Units

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (20) C13/Vertical NA/JP PDU

H5M58A

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M59A

HPE Basic 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA PDU

H5M60A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13/Vertical NA/JP PDU

H5M61A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M62A

HPE Basic 3Ph 5.7kVA/ L21-20P 16A/120-208V Outlets (24) C13 (3) 5-20R/Vertical NA/JP PDU

H5M63A

HPE Basic 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (24) C13 (3) C19 (3) 5-20R/Vertical NA/JP PDU

H5M64A

HPE Basic 3Ph 11kVA/60309 16A/240V Outlets (36) C13 (6) C19/Vertical NA PDU

H5M67A

HPE Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL PDU

H5M68A

HPE Basic 7.3kVA/60309 3-wire 32A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M70A

HPE Basic 11kVA/60309 63A 3-wire 48A/230V Outlets (30) C13 (6) C19/Vertical INTL PDU

H5M71A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M72A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (36) C13 (6) C19/Vertical INTL PDU

H5M73A

HPE Basic 9.2kVA/50A Terminal Block 40A/230V Outlets (30) C13 (6) C19/Vertical WW PDU

H5M75A

HPE 277 Volt options for H3X07A and H3X08A

HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111392 (Worldwide)
NOTE: Additional HPE Power Distribution Units are available. For a complete list of all HPE PDUs and additional information please visit: http://www.hp.com/go/rackandpower.

HPE 277 Volt options for H3X07A and H3X08A

HPE Rack Series

HPE Intelligent Series Rack

HP 36U 600mm x 1200mm Enterprise Pallet Rack

BW899A

HP 36U 600mm x 1200mm Enterprise Shock Rack

BW900A

HP 42U 600mm x 1200mm Enterprise Pallet Rack

BW907A

HP 42U 600mm x 1200mm Enterprise Shock Rack

BW908A

HP 47U 600mm x 1200mm Enterprise Pallet Rack

BW913A

HP 47U 600mm x 1200mm Enterprise Shock Rack

BW914A

NOTE: Rack chosen is required to have 1200mm to provide space for cable management arm at the rear of the chassis and host PDU in the rear of the rack.
NOTE: Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123237 (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HPE Rack Options

HPE TFT7600 G2 KVM Console and Monitor (TFT7600 G2)

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154398(Worldwide)

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123433 (Worldwide)

HPE Server Console Switch G2 with Virtual Media & CAC

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04168373 (Worldwide)

HPE IP Console Switch G2 with Virtual Media & CAC

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04168374
(Worldwide)

HPE Moonshot 1500 Chassis

Dimensions
(H x W x D)

7.47 x 17.45 x 35.34in (18.96 x 44.33 x 89.97cm)
NOTE: Rack chosen is required to have 1200mm to provide space for cable management arm at the rear of the chassis and host PDU in the rear of the rack.)

Weight
(approximate)

Maximum
(all hard drives, power supplies, and processors installed)

180 lbs.

Network Ports (per switch & uplink pair)

Forty-five (45) 10/100/1000 downlink ports
Six (6) 10Gb SFP+ uplink ports

NOTE: See the HPE Moonshot-45G Switch Module QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/QuickSpecs/14732_div/
14732_div.html
NOTE: See the HPE Moonshot-6SFP Uplink Module QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/QuickSpecs/14734_div/
14734_div.html

Input Requirements
(per power supply)

Rated Line Voltage

90 to 140 VAC
180 to 264 VAC

Rated Input Current

7.31A at 115VAC
3.6A at 230VAC

Rated Input Frequency

47 to 63 Hz

Rated Input Power

855W (at 100 VAC),
840.72W (at 200 VAC)

Power Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL:
http://www.hp.com/go/proliant-energy-efficient

Power Supply Output (per power supply)

Rated Steady-State Power

653.10W (at 100 VAC),
653.08W (at 200 VAC)

System Inlet Temperature

Operating

50° to 95° F (10° to 35° C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 304.8 m) above sea level to a maximum of 10,000 ft (3048 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 86°F (30°C).

Non-operating

-22° to 140° F (-30° to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

10,000 ft (3048 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Non-operating

30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

L WAd

7.1 Bels

L pAm

54 dB

Operating

L WAd

7.3 Bels

L pAm

57 dB

Emissions Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Broadcom 5720 Adapter

Network Interface

Compatibility

IEEE 1588, IEEE 802.1AS

IEEE 802.3az

Data Transfer Method

PCI Express v 2.1, 5.0 GT/s and 2.5 GT/s bus speeds and supports for x1, x2, x4 links widths (Lanes)

Controller

Network Transfer Rate

10Mb(Half-Duplex)

10 Mb/s per port, 20 Mb/s Combined

10Mb (Full-Duplex)

20 Mb/s per port, 40 Mb/S Combined

100Mb (Half-Duplex)

100 Mb/s per port, 200 Mb/s Combined

100Mb(Full-Duplex)

200 Mb/s per port, 400 Mb/s Combined

1Gb(Half and Full-Duplex)

1000Mb/s per port, 2000 Mb/s Combined

Connector

Internal

Cable Support

N/A

Marvell 9125

Disk Drive and Enclosure
Interface - Transfer rate

6Gb/s SATA (Serial ATA)

Connectors

N/A

Server Interface

X1 PCIe 2.0 provides 5GB/s maximum bandwidth

Speed

6Gb/s SAS links provide 4.8GB/s maximum bandwidth

Cache Memory

None

Physical Drives Supported

Up to 1 physical drives

Hot Plug Support

No

RAID Support

None

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

23-Oct-2017

Version 13

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

21-Oct-2016

From version 11 to 12

Updated

Update rebranding QuickSpecs

1-Jun-2015

From version 10 to 11

Changed

Update configuration section

05-May-2015

From Version 9 to 10

Changed

Add power supply SKU

10-Jun-2014

From Version 9 to 9

Changed

HPE Hard Drives SKUs updated.

Direct Attach Cables SKUs updated.

HPE Power Distribution Units updated on Additional Options.

HPE Basic Power Distribution Units descriptions updated.

09-May-2014

From Version 6 to 8

Changed

Product descriptions were revised and Cloud Management Software was added to Additional Options.

18-Feb-2014

From Version 5 to 6

Changed

Changes made to overview, configuration information and Tech Specs.

13-Sep-2013

From Version 4 to 5

Changed

Hard Drives, HPE Insight Management, High Performance Clusters, HPE Tape Drives, HPE Power Distribution Units, HPE Basic Power Distribution Units, and HPE Rack Options were revised.

14-Jun-2013

From Version 3 to 4

Changed

High Performance Clusters was revised in Additional Options

HPE Cable Options was added to Additional Options

Quick Release SATA 2.5" SSD was removed from Maximum Internal Storage

HPE SL Advanced Power Manager was removed from Additional Options

17-May-2013

From Version 2 to 3

Added

Optional Features: Added HPE Insight management and High Performance Clusters sections.

Configuration Information-Factory Integrated Models: Added HPE Insight Software to Step 3.

Additional Options: Added HPE Insight Software, HPE Performance Clusters, HPE Tape Backup, HPE Basic Power Distribution Units and HPE Rack Options sections.

Technical Specifications: Added HPE Moonshot 45G Switch Module section.

Removed

Switch Characteristics: Removed Switch Ports section.

Changed

Standard Features: Updated Maximum Internal Storage (per Moonshot Server), Operating Systems and Virtualization Software Support for ProLiant Servers

Configuration Information-Factory Integrated Models: Updated Step1A HPE Hard Drives section.

Technical Specifications: Updated System Unit section.

19-Apr-2013

From Version 1 to 2

Changed

Overview: Updated image information.

Standard Features: Updated Operating Systems and Virtualization Software Support for ProLiant Servers section.

Additional Options: Updated Rack Adapter section.
