HPE ProLiant m710p Server Cartridge

HPE Moonshot System with the HPE ProLiant m710p server cartridge is designed to enhance the performance of Rich Application Streaming and Video Transcoding.  The ProLiant m710p server cartridge has one Intel® Xeon® E3-1284L v4 four-core processor with Intel® Iris^TM Pro P6300 graphics, 32GB of ECC protected memory, 10Gb Ethernet along with one M.2 flash storage module for local OS booting.

The HPE Moonshot System uses an innovative new architecture that results from one simple design tenet: to align purpose-built modules with the right workload to provide optimal results for your environment. Traditional servers rely on dedicated components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot system shares these chassis components and is capable of supporting 45 servers cartridge per 4.3U chassis.
This gives you the ability to generate greater revenue from a smaller footprint while driving down your operational costs.

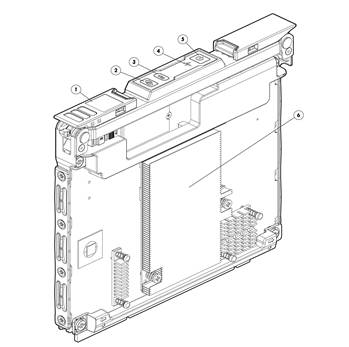

Front View:

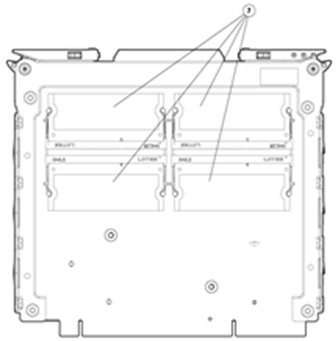

Rear View:

1.

QR Code label

7.

Four (4) DDR3 SODIMM memory slots

2.

Cartridge Link LED/button

3.

Cartridge UID LED/button

4.

Drive LED

5.

Cartridge power LED/button

6.

One (1) Intel® Xeon E3-1284Lv4™ Processor

NOTE: For information on Hewlett Packard Enterprise Moonshot Chassis, Switch and Uplink Modules, please see the following:

Chassis:

HPE Moonshot 1500 Chassis Opt OS

http://www8.hp.com/us/en/products/servers/moonshot/index.html

Switch:

FastPATH

HPE Moonshot-45G Switch Module

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111070

HPE Moonshot-180G Switch Module

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111290

Comware

HPE Moonshot-45Gc Switch Module

http://www8.hp.com/us/en/products/servers/moonshot/index.html

HPE Moonshot-45XGc Switch Module

https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04384058

Uplink:

HPE Moonshot-6SFP+ Uplink Module
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111292

HPE Moonshot-16SFP+ Uplink Module

https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04499458

HPE Moonshot-4QSFP+ Uplink Module

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111291

Processor

Intel® Xeon® E3-1284L v4 (2.9-3.8GHz/4-core/6MB/47W)

Integrated Intel® Iris^TM Pro P6300 graphics and 128MB of embedded DRAM

Cache Memory

6MB shared Level 3

Memory Protection

ECC

Memory

Type

HPE 8GB (1x8GB) PC3L-12800 (DDR3-1600) SODIMM Low Voltage Memory

DIMM Slots Available

Four (4) SODIMM Slots

Maximum Configuration

32GB (4x8GB)

Network Controller

Mellanox Connect-X3 Pro
Dual 10GbE NIC. Supports RDMA over Converged Ethernet (RoCE)

Storage Controller

Integrated into the Intel® QM87 chipset

M.2 2280 solid state device

765479-B21

120GB

765481-B21

240GB

765483-B21

827245-B21

480GB

960GB

NOTE: m710p cartridge may be purchased with zero M.2 storage (i.e. network/diskless boot).

Interfaces

Cartridge Link LED/button

Cartridge UID LED/button

Drive LED

Cartridge health LED

HDMI 1.4b compliant connector for external monitor

Micro-USB 2.0 connector

NOTE: HDMI and Micro-USB connectors are for diagnostic usage only and may require removal of any adjacent cartridge.

NOTE: To connect a standard USB device to the cartridge, connect a USB on-the-go adapter to the cartridge Micro-USB connector, and then connect the USB device to the adapter.

Industry Standard Compliance

PXE Support

PCIe 3.0

iSCSI Boot (with supported operating systems)

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server 2012 / 2012 R2, Windows 2008 R2, Client OS Windows 7, 8.1

SUSE Linux Enterprise Server (SLES) 11.4, 12

Canonical Ubuntu 15.04, 14.04.3 LTS

CentOS 6.7, 7.2

NOTE: Only 64-bit versions of these operating systems are supported.
NOTE: For more information on Hewlett Packard Enterprise's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from Hewlett Packard Enterprise, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/go/servers/Moonshot/download

Security

Serial interface control

Power switch security

Administrator's password

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE Server Cartridge Warranty includes 3-Year Parts, 0-Year Labor, 0-Year Onsite support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility (CMU) is an Hewlett Packard Enterprise-licended and Hewlett Packard Enterprise-supported suite of tools that are used to manage large-scale systems. Insight CMU includes software for the centralized provisioning, management and monitoring of nodes. Insight CMU makes the administration of clusters more user friendly, efficient, and error free than if they were being managed by scripts, or on a node-by-node basis. For more information on Hewlett Packard Enterprise Insight Cluster Management Utility, please contact your sales representative or go to: http://www.hp.com/go/cmu

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Moonshot, HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, and HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Service and Support

To see recommended HPE Care Pack Services for your HPE product

 (4 and 5 year Service offerings are also available)

 See HPE Moonshot 1500 Chassis Opt OS Quick Specs.

http://www8.hp.com/us/en/products/servers/moonshot/index.html

For more information

To learn more on HPE Moonshot System, please contact your Hewlett Packard Enterprise sales representative.

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements

NOTE:  If you want to configure the HPE Moonshot 1500 Chassis Opt OS with cartridges, proceed to the HPE Moonshot 1500 Chassis Opt OS Quick Specs

http://www8.hp.com/us/en/products/servers/moonshot/index.html

NOTE:  If you want to configure a cartridge only, proceed to Step 1

Step 1: Base Configuration (Choose upgrade kit)

HPE Moonshot Server Upgrade Kit

HPE Moonshot Server Multipack

NOTE: up to 15 cartridges of any kind fit in this multipack

814659-B21

NOTE:  Mixed Cartridge configuration is supported

Step 2: Pick Moonshot Server

HPE Moonshot Server

HPE ProLiant m710p Server Cartridge
NOTE:  Mixed Cartridge configuration is supported
NOTE: Each Moonshot server comes preconfigured with four 8 GB SODIMM pre-installed. This is the only memory configuration available on this server.
NOTE: Each Moonshot cartridge is pre-configured with a single Intel® Xeon® E3-1284L v4 (x86-64) processor running at 2.9-3.8GHz. This processor is four-core and contains 6MB of shared L3 cache. The same processor package also contains an Integrated Intel® Iris^TM Pro P6300 graphics controller and 128MB of embedded DRAM.

808915-B21

Step 4: To Select a different cartridge see details:

http://www8.hp.com/us/en/products/servers/moonshot/index.html

Server Cartridge

HPE Moonshot m710p Server Cartridge Dimensions
(H x W x D)

6.57 x 7.23 x 0.78in (16.71 x 18.37 x 1.98cm)

Typical Power

58.0W

Max Power

82.9W

System Inlet Temperature

Operating

50° to 95° F (10° to 35° C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 304.8 m) above sea level to a maximum of 10,000 ft (3048 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 86°F (30°C).

Non-operating

-22° to 140° F (-30° to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

10,000 ft (3048 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Non-operating

30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

L WAd

7.1 Bels

L pAm

54 dB

Operating

L WAd

7.3 Bels

L pAm

57 dB

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

28-Oct-2016

Fron version 3 to 4

Updated

Update QuickSpecs for Rebranding

9-Oct-2015

From version 2 to 3

Updated

Update the Standard Features section

28-Sept-2015

From version 1 to 2

Updated

Update all the sections throughout the QS

17-Aug-2015

Version 1

Created

Create QS for HPE ProLiant m710p Sever Cartridge
