HPE ProLiant m700 Server Cartridge | |
|
HPE Moonshot System with the HPE ProLiant m700 server cartridge was created for cost-effective Hosted Desktop Infrastructure (HDI) and other graphics enabled applications. The ProLiant m700 server cartridge has four AMD OpteronTM X2150 APU System on a Chip (SoC), each having up to four x86 cores with integrated Graphics Processing Unit (GPU), supporting up to 8GB of memory and 120GB SATA M.2 storage. HPE Moonshot System uses an innovative new architecture that results from one simple design tenet: to align purpose-built modules with the right workload to provide optimal results for your environment. Traditional servers rely on dedicated components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot system shares these chassis components and is capable of supporting 45 cartridges per 4.3U chassis. | |
|
| |
|

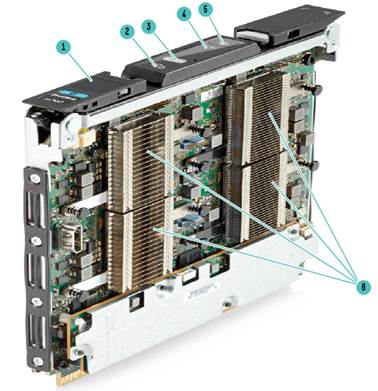

Front View: | |
|
1. |
QR Code label |
|
2. |
Cartridge link LED/button |
|
3. |
Cartridge UID LED/button |
|
4. |
Cartridge health LED |
|
5. |
Cartridge power LED/button |
|
6. |
Four (4) AMD OpteronTM X2150 APU Processors |
|
| |
|

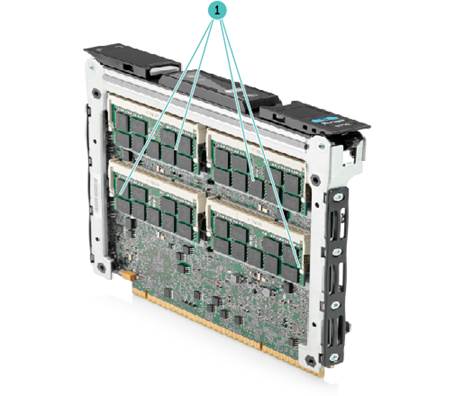

Back View | |
|
1. |
Four (4) DDR3 ECC SODIMM memory slots |
|
What's New |
|
Service and Support
|
Models | ||
|
HP ProLiant m700 4x1P X2150 APU 4x8GB Configure-to-order Server Cartidge NOTE:NOTE: For ordering the HPE ProLiant m700 Server Cartridge, please see Step 1 of the Configuration to Order section of this QuickSpecs. |
733747-B21 | |
|
Processor |
AMD OpteronTM X2150 APU, 1.5Ghz | |
|
Cache Memory |
2MB L2 cache |
|
Chipset |
N/A |
|
Memory Protection |
ECC |
|
Graphics |
128 Radeon HD 8000 Cores (up to 500Mhz) |
|
Memory |
Type |
DDR3 PC3-12800 SDRAM (1600 MHz) |
|
DIMM Slots Available |
Four (4) ECC SODIMM Slots (One per SoC) | |
|
Maximum Configuration |
32GB (1x8GB per SoC) |
|
Network Controller |
Broadcom BCM5720 Ethernet Controller |
|
Storage Controller |
Integrated SATA controller on the System on a Chip (SoC) |
|
Maximum Internal Storage |
Up to 120 GB per SoC (using M.2 SSD mezzanine card) |
|
| |
|
Interfaces |
Power LED/button |
One per server cartridge |
|
UID for node |
One per server cartridge | |
|
Drive health LED/button |
N/A | |
|
Cartridge health LED |
One per server cartridge | |
|
| ||
|
Industry Standard Compliance |
ACPI 2.0 and 3.0a Compliant |
|
SMBIOS 2.6+ | |
|
PXE Support | |
|
| |
|
Operating Systems |
Microsoft Windows 7 Enterprise SP1 NOTE: Both 32 and 64-bit versions of this operating system are supported. |
|
Microsoft Windows 8.1 64-bit | |
|
Microsoft Windows 10 64-bit | |
|
|
NOTE: For more information on Hewlett Packard Enterprise's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from Hewlett Packard Enterprise, please visit our OS Support Site at: http://www8.hp.com/us/en/products/servers/management/operating-environments/os-support-matrix.html and access the Moonshot supporting software/driver download page via: http://www.hpe.com/info/moonshot |
|
|
|
|
Form Factor |
HPE ProLiant m700 server cartridge plugs only into the HPE Moonshot 1500 Chassis. |
|
Warranty |
This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Partner Ready Resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to the warranty services are available through HPE services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details. NOTE: Server Cartridge Warranty includes 3-Year Parts, 0-Year Labor, 0-Year Onsite support.
|
|
HPE Insight Cluster Management Utility |
HPE Insight Cluster Management Utility (CMU) is an Hewlett Packard Enterprise-licended and Hewlett Packard Enterprise-supported suite of tools that are used to manage large-scale systems. Insight CMU includes software for the centralized provisioning, management and monitoring of nodes. Insight CMU makes the administration of clusters more user friendly, efficient, and error free than if they were being managed by scripts, or on a node-by-node basis. For more information on Hewlett Packard Enterprise Insight Cluster Management Utility, please contact your sales representative or go to: http://www8.hp.com/us/en/products/server-software/product-detail.html?oid=3296361
|
|
Factory Express Portfolio for Servers and Storage |
HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. |
|
Service and Support |
To see recommended HPE Services for your HPE product See HPE Moonshot 1500 Chassis Quick Specs. http://www.hpe.com/info/moonshot |
Configuration Information
Step 1: Base Configuration (Choose upgrade kit) | ||||||
|
HPE ProLiant Server Cartridge Upgrade Kit |
HP Moonshot Server Multipack NOTE:NOTE: Up to 15 cartridges of any kind fit in this multipack NOTE:NOTE: Mixed Server Cartridge configuration is supported
|
814659-B21 | ||||
|
Step 2: Pick ProLiant Server Cartridge | ||||||
|
HPE ProLiant Server Cartridge |
HP ProLiant m700 4x1P X2150 APU 4x8GB Configure-to-order Server Cartidge
|
733747-B21 | ||||
|
|
NOTE: The ProLiant m700 server cartridge is pre-configured with Four (4) independent AMD Opteron X2150 APUs, each connected to One (1) 8 GB ECC SODIMM. These are the only APU and memory types available and cannot be changed after ordering. | |||||
|
Step 3: Configure ProLiant Server Cartridge (Choose appropriate Option) |
| |||||
|
HPE Solid State Drives |
HPE ProLiant m700 4x64GB M.2 SSD Mezzanine Kit |
838736-B21 | ||||
|
(Min:1, Max:1) |
HPE ProLiant m700 4x120GB M.2 SSD Mezzanine FIO Kit |
830163-B21 | ||||
|
|
NOTE: This kit includes a M.2 mezzanine along with Four (4) M.2 2242 SSDs. Mixing of different types of M.2 kits is not supported NOTE: Each node on the server cartridge is connected to one M.2 SSD (64 or 120 GB). The M.2 SSD storage is not shared between nodes. | |||||
|
Step 4: To Select a different cartridge see details: http://www.hpe.com/info/moonshot | ||||||
|
| ||||||
Other Infrastructure Components
|
NOTE: For information on Hewlett Packard Enterprise Moonshot Chassis, Switch and Uplink Modules, please see the following:
HPE Moonshot 1500 Chassis http://www.hpe.com/info/moonshot
Switch:
Fast PATH HPE Moonshot-180G Switch Module http://www8.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111290
Comware HPE Moonshot-180XGc Switch Module https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04923651
Uplink: HPE Moonshot-16SFP+ Uplink Module http://www8.hpe.com/h20195/v2/gethtml.aspx?docname=c04499458
HPE Moonshot-4QSFP+ Uplink Module http://www8.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111291
|
Technical Specifications
|
HPE Moonshot m700 Server Cartridge |
Dimensions |
6.57 in x 7.23 in x 0.78 in (16.71 cm x 18.37 cm x 1.98cm) |
|
Idle Power |
20W | |
|
Max Power |
78W | |
|
Typical Power |
49W | |
|
System Inlet Temperature |
Operating |
50° to 95° F (10° to 35° C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 304.8 m) above sea level to a maximum of 10,000 ft (3048 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
|
|
Non-operating |
-22° to 140° F (-30° to 60° C)
| |
|
Relative Humidity |
Operating |
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. |
|
Non-operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.
| |
|
Altitude |
Operating |
10,000 ft. (3048 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft./min (457 m/min). |
|
Non-operating |
30,000 ft. (9144 m). Maximum allowable altitude change rate is 1500 ft./min (457 m/min). | |
|
| ||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. |
|
| ||
