HPE ProLiant m510 Server Blade

HPE ProLiant m510 Server cartridge is a compute workhorse designed to enhance the performance of workloads such as analytics, machine learning and extreme user density application delivery when installed in HPE Moonshot or HPE Edgeline Systems. The ProLiant m510 Server cartridge has one Intel® Xeon® D-1548 (8-core) or D-1587 (16-core) CPU with up to 128GB of ECC protected memory, dual 10Gb Ethernet along with up to Two (2) 2TB NVMe M.2 flash storage modules, and up to (1) 240GB SATA M.2 for local OS booting. The server cartridge will be available in two versions (both with CPU fixed on board and not changeable): m510 (8 core SoC) and m510-16c (16 core SoC).

The HPE Moonshot System uses an innovative new architecture that results from one simple design tenet: to align purpose-built modules with the right workload to provide optimal results for your environment. Traditional servers rely on dedicated components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot system shares these chassis components and is capable of supporting up to 45 server cartridges with the 8-core CPU model or up to 30 server cartridges with the 16-core CPU model per 4.3U chassis. This gives you the ability to generate greater revenue from a smaller footprint while driving down your operational costs.

HPE Edgeline is the industry's first "Converged Edge System" - converging compute, storage, data capture, control and enterprise-class systems and device management --- built to thrive in hardened environments and handle shock, vibration and extreme temperatures. HPE Edgeline Systems allow deployment 1 to 4 HPE ProLiant m510 servers, along with associated storage and I/O options to locations both inside and outside the traditional datacenter (e.g. factories, branch office and retail outlet).

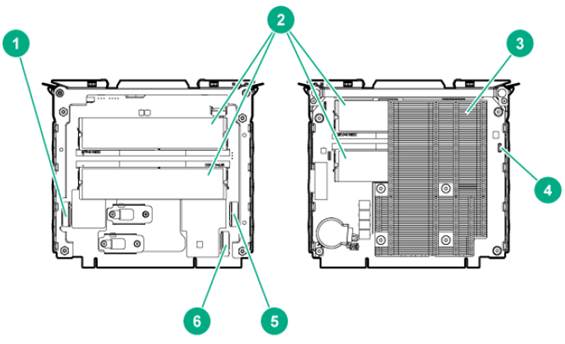

Server Cartridge Bottom and Top Side View

1.

2242 M.2 SSD Connector (SATA)

4.

Micro USB Connector

2.

Four (4) DDR4 RDIMM Memory Slots

5.

2280 or 22110 M.2 SSD Connector (NVMe)

3.

Intel® Xeon® D Processor and Heat Sink

6.

2280 or 22110 M.2 SSD Connector (NVMe)

Server Cartridge LEDs and Buttons

1.

Server Cartridge Power LED/Button

3.

Server Cartridge UID LED/Button

2.

Server Cartridge Health LED

4.

Server Cartridge Link LED/Button

Processor

Notes: For more information regarding Intel® Xeon® D, please see the following URL: http://www.intel.com/content/www/us/en/processors/xeon/xeon-processor-d-family.html

Chipset

Intel® Xeon® D Chipset (integrated with SoC)

Intel® Xeon® D Processor Family

Graphics

No integrated graphics apart from iLO remote console (2D).

Expansion I/O slots for selected 3D graphics cards are available in the HPE Edgeline System. Refer to the chassis documentation for details.

On System Management Chipset

HPE iLO (Firmware HPE iLO4 2.4 or later) 4GB NAND

Notes: 1GB USB user space configurable via UEFI and accessible via iLO is available only on HPE Edgeline System. Read and learn more in the iLO QuickSpecs: http://www.hpe.com/info/ilo

Memory

Type

HPE SmartMemory DDR4 ECC Registered (RDIMM)

Supported DIMMs

• DDR4-2400
• 8GB (1R x 8),
• 16GB (1R x 4),
• 32GB (2R x 4)

DIMM Slots Available

• 4 (4 DIMM slots per processor, 2 channels per processor, 2 DIMMs per channel)

Maximum Capacity (RDIMM)

• 128GB (4 x 32GB RDIMM)

Notes:

- Rules under "Memory" section must be followed for Configuring and Mixing of DIMMs.

- Intel® Xeon® D-1587 (16 core) processors will run memory at the maximum of DDR-2133 only, even if 2400MHz capable DIMMs are populated.

- Load Reduced DIMMs (LRDIMMs) and Non Volatile DIMMs (NVDIMMs) are not supported.

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Patrol/Demand scrubbing

Patrol and Demand scrubbing detect and correct memory errors by periodically inspecting the entire memory space or when the data is accessed during normal operation.

Expansion slots

Expansion I/O slot options are available in the HPE Edgeline System. Refer to the chassis documentation for details.

Network Controller

Mellanox Connect-X3

Pro Dual 10GbE NIC. Supports RDMA over Converged Ethernet (RoCE)

Notes:

- The HPE m510 server cartridge may be purchased with zero M.2 storage (i.e. network/diskless boot).

- SATA and NVMe M.2 SSDs can both be used as an OS boot drive

- The SATA M.2 2242 SSDs (120GB, 240GB) devices should be deployed for "High Read" environments. For "High Write" environments NVMe M.2 2280 or 22110 SSDs (256GB, 512GB, 1024GB) should be deployed.

Maximum Internal Storage

Power Supply

Power supply options depend on the chassis used. Refer to the chassis documentation for details.

System Fans

System fan options depend on the chassis used. Refer to the chassis documentation for details.

Interfaces

• Server Cartridge Link LED/button
• Server Cartridge UID LED/button
• Drive LED
• Server Cartridge Health LED
• Micro-USB 2.0 connector

Notes: To connect a standard USB device to the server cartridge, connect a Micro-USB to USB Type-A adapter (e.g. from the orderable m710x cable kit) to the cartridge Micro-USB connector, and then connect the USB device to the adapter.

Operating Systems and Virtualization Software

Support for ProLiant Servers

• Microsoft Windows Server
• RedHat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Citrix XenServer
• VMware ESXi

Notes:

- Only 64-bit versions of these operating systems are supported

- For more information on Hewlett Packard Enterprise's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our OS Support Site

http://www.hpe.com/support/hpesc

Industry Standard Compliance

• PXE Support
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• USB 2.0 and 3.0 Support
• ACPI 2.0 Compliant

HPE Server

UEFI ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. The HPE ProLiant m510 Server defaults to UEFI and does not support Legacy BIOS Boot Mode.

Notes: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack (only used in HPE Edgeline System)
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using RESTful API for iLO 4
• PXE boot support for IPv6 networks

• Boot support for option cards that only support a UEFI option ROM (only used in HPE Edgeline System)
• Network Stack configurations

Notes: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

Form Factor

HPE ProLiant m510 Server Cartridge plugs into the HPE Moonshot 1500 and HPE Edgeline EL1000/EL4000 Systems.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at

http://www.hpe.com/info/ilo

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at

http://www.hpe.com/servers/uefi

RESTful API

RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management such as configuration and maintenance tasks based on modern industry standards. Learn more at

http://www.hpe.com/info/restfulapi

Notes: Full REST API is available when the server is installed in a HPE Edgeline System

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning. Learn more at

http://www.hpe.com/servers/intelligentprovisioning

Notes:

- Intelligent provisioning is only supported when the server is installed in a HPE Edgeline System

- HPE iLO provides only Remote Console and Virtual Media capabilities when the server is installed in a HPE Moonshot 1500 System.

- HPE iLO provides the full set of ProLiant features when the server is installed in a HPE Edgeline System. Advanced Pack licenses will be required for enhanced capabilities, including Remote Console and Virtual Media.

Server Utilities

Moonshot Component Pack

The HPE Moonshot Component Pack is a comprehensive firmware solution tested on the HPE Moonshot System and delivered as a compressed file. The compressed file includes all the component files needed to update a Moonshot System. Users deploy the firmware updates contained in the Moonshot Component Pack via the iLO Chassis Manager CLI or HPE Moonshot-45G/180G Switch Module CLI. This can be accomplished using HPE Smart Update Manager, which is included with the files, or manually.

Access the Moonshot supporting software/driver download page via:

https://www.hpe.com/us/en/servers/moonshot.html

Notes: The Moonshot Component Pack is only supported when the server is installed in a HPE Moonshot 1500 System.

Edgeline Component Pack

The HPE Edgeline Component Pack, is the delivery mechanism for firmware updates on the HPE Edgeline System. Before using your system for the first time, verify that you have the latest drivers, firmware, and system software installed.

For more information, see the Edgeline Component Pack Update Guide on the Hewlett Packard Enterprise website:

http://www.hpe.com/info/edgeline-docs

Notes: The Edgeline Component Pack is only supported when the server is installed in a HPE Edgeline System.

Scripting Tool Kit and Windows PowerShell

Provision 1 to many servers using your own scripts to discover and deploy them with Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

Notes: This Feature will be available when the server is installed in a HPE Edgeline System.

RESTful Interface Tool

RESTful Interface tool is a scripting tool to provision using RESTful API for iLO4 to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool

Notes: This Feature will be available when the server is installed in a HPE Edgeline System.

HPE Insight

Online

HPE Insight Online, available at no additional cost as part of your Hewlett Packard Enterprise warranty or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hpe.com/info/insightonline/explore.

Security

• Serial interface control
• Administrator's password
• Power-on password
• TPM2.0
• UEFI
• iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption ¹
• iLO 4 can be disabled via a Global Setting ²
• iLO Advanced supports directory services integration ³

Notes:

- ^{1 2, 3}are delivered by iLO Chassis Manager in HPE Moonshot 1500 System and HPE m510's embedded iLO4 in the HPE Edgeline System.

- For ^{1 2, 3} require an HPE iLO Advanced License when the HPE m510 is installed in a HPE Edgeline System.

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is embedded on the Server Cartridge, and can be enabled and disabled using the BIOS.

Notes:

- The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008, 2012/2012 R2. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 2.0. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to:

httphttps://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04939549

- ProLiant OS pre-installed units will come with the partition required for TPM deployment.

- The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Optional CSR parts are designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 2) No CSR parts are also designed for requiring a Hewlett Packard Enterprise authorized service provider replace the part. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility (CMU) is a Hewlett Packard Enterprise-licensed and Hewlett Packard Enterprise-supported suite of tools that are used to manage large-scale systems. Insight CMU includes software for the centralized provisioning, management and monitoring of nodes. Insight CMU makes the administration of clusters more user friendly, efficient, and error free than if they were being managed by scripts, or on a node-by-node basis. For more information on Hewlett Packard Enterprise Insight Cluster Management Utility, please contact your sales representative or go to:

 https://www.hpe.com/us/en/servers/server-management.html

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Moonshot, HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, and HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to:

https://www.hpe.com/us/en/services/factory-express.html

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Service and Support

To see recommended HPE Support Services for your HPE product (4 and 5 year Service offerings are also available)

See HPE Moonshot 1500 System Quick Specs: https://www.hpe.com/us/en/servers/moonshot.html

See HPE Edgeline System Quick Specs: http://www.hpe.com/info/edgeline-docs

For more information

To learn more on HPE Moonshot or HPE Edgeline Systems, please contact your Hewlett Packard Enterprise sales representative.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements

• If you want to configure the HPE Moonshot 1500 System with server cartridges, proceed to the HPE Moonshot 1500 System Quick Specs: https://www.hpe.com/us/en/servers/moonshot.html
• If you want to configure the HPE Edgeline EL1000/EL4000 System with server cartridges, proceed to the HPE Edgeline QuickSpecs: http://www.hpe.com/info/edgeline-docs
• If you want to configure a server cartridge only, proceed to Step 1

Step 1: Base Configuration

Choose upgrade kit

HPE ProLiant Server Upgrade Kit

HPE Moonshot Server Multipack

814659-B21

Notes:

- Up to 15 server cartridges of any kind fit in this multipack

- Mixed Cartridge configuration is supported

Step 2: Pick ProLiant Server Cartridge

HPE ProLiant m510 Server Cartridge

HPE ProLiant m510 Xeon D-1587 1.7GHz 16-core Configure-to-order Server Cartridge

858545-B21

Notes:

- The processor on each server is fixed and cannot be changed after ordering. DIMMs and SSDs are configurable.

- Each ProLiant server cartridge is pre-configured with a single Intel® Xeon® D-1587 (x86-64) processor running at 1.7-2.3GHz. This processor is Sixteen-core and contains 24MB of shared L3 cache with Memory configurable up to 128GB

- Mixing of different server cartridges within the same chassis is supported

- The m510-16c server model has special configuration requirements when installed in a HPE Moonshot 1500 System. Refer to Section "m510 Server Cartridge Population Rules for HPE Moonshot 1500 System" for detailed population rules

- There are no special configuration requirements in a HPE Edgeline EL1000/4000 System.

Step 3: Configure ProLiant Server Cartridge

Choose appropriate Option

Notes:

- Additional options are not configurable for server upgrade kits.

- Must order identical quantity on all configured ProLiant server cartridges.

- Part numbers provided below can be used to order upgrades as well

HPE Memory

Select 1 to 4 of the following:

HPE 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

854594-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

854596-B21

HPE Solid State Drives

Select 0 to 1 of the following

HPE Edgeline 240GB SATA 6G Read Intensive M.2 2242 Power Loss Protection Multi Vendor SSD

P44368-B21

HPE Edgeline 480GB SATA 6G Read Intensive M.2 2242 Power Loss Protection Multi Vendor SSD

P44196-B21

Select 0 to 2 of the following

HPE Edgeline 960GB NVMe Gen4 Mainstream Performance Mixed Use M.2 22110 Extended Temp PM9A3 SSD

P49021-B21

HPE Edgeline 1.92TB NVMe Gen4 Mainstream Performance Mixed Use M.2 22110 Extended Temp PM9A3 SSD

P49023-B21

HPE Edgeline 3.84TB NVMe Gen4 Mainstream Performance Mixed Use M.2 22110 Extended Temp PM9A3 SSD

P49025-B21

HPE Video Processing Unit (VPU)

Notes:

- SATA M.2 2242 SSDs are designed for "Read Intensive" environments.

- Configuring Extended Temperature (XTemp) M.2 SSDs allows the m510 to operate in a full configuration up to 55C inlet ambient temperature in an Edgeline EL1000/4000 chassis.

- For additional M.2 SSD information please visit the Edgeline M.2 SSD QuickSpecs.

Step 4: To Select a different server cartridge see details

HPE Moonshot 1500 System: https://www.hpe.com/us/en/servers/moonshot.html

HPE Edgeline EL1000/EL4000 System: http://www.hpe.com/info/edgeline-docs

Step 5: Choose Additional Options

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Embedded Management

HPE Integrated Lights Out (iLO) Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

Notes:

- If the server cartridge will be installed in a Moonshot 1500 system, do NOT order any iLO Advanced pack licenses (it's not supported). If the server will be installed in an Edgeline system, 1 optional iLO Advanced license can be ordered for each configured server.

- For more details on iLO Advanced, refer to: http://www.hpe.com/info/ilo

HPE Insight Control

Notes:

- Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

- Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24x7 HPE Software Technical Support and Update Service.

- Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately.

- For additional license options please see the QuickSpecs at:

http://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04123391

The following configuration rules must be followed when installing the HPE ProLiant m510 Server Cartridge in a Moonshot 1500 System, in order to maintain an optimum thermal environment.

There are no special rules when the HPE m510 server is installed in a Edgeline EL1000/EL4000 System.

If your configuration has

• m510 (8-core CPU)

Grey in diagrams

- No restriction in number of servers per chassis (i.e. 1 up to maximum of 45)

- Mixing with other ProLiant server cartridges is allowed, provided loading rules specified by other server cartridges (if any) are also fulfilled.

•   m510-16c (16-core CPU)

Blue in diagrams

- Install m510-16c before any other servers. Start from slot 1 and move down the column to slot 2, then slot 4, 5 etc.

- Any column that has a m510-16c must leave two slots blank in Row 3 (one slot in its own column and another slot in the adjacent right column).

- Mixing with other ProLiant server cartridges is allowed, provided loading rules specified by other server cartridges (if any) are also fulfilled.

Notes: Pictures 3.1-3.4 show some example scenarios. Blue represents a m510-16c server, Grey is any other server (including m510 8-core) and Purple is an Empty slot.

FANS, I/O, Power Supplies

FANS, I/O, Power Supplies

DIMM Population Order for HPE m510 Server Cartridge

Total Memory

Slot #

DIMM 1 (GB)

DIMM 2 (GB)

DIMM 3 (GB)

DIMM 4 (GB)

8 GB^#

8

16 GB^#

16

16 GB^#

8

8

24 GB

16

8

24 GB^#

8

8

8

32 GB^#

32

32 GB^#

16

16

32 GB

16

8

8

32 GB^#

8

8

8

8

40 GB

32

8

40 GB

16

8

16

40 GB

16

8

8

48 GB

32

16

48 GB

32

8

8

48 GB^#

16

16

16

48 GB^#

16

8

16

8

56 GB

32

8

16

56 GB

32

8

8

8

56 GB

16

16

16

8

64 GB^#

32

32

64 GB

32

16

16

64 GB

32

8

16

8

64 GB^#

16

16

16

16

72 GB

32

8

32

72 GB

32

16

16

8

80 GB

32

16

32

80 GB^#

32

8

32

8

80 GB

32

16

16

16

88 GB

32

16

32

8

96 GB^#

32

32

32

96 GB^#

32

16

32

16

104 GB

32

32

32

8

112 GB

32

32

32

16

128 GB^#

32

32

32

32

Notes:

- These rows show recommended HPE m510 server memory configurations that have been optimized by HPE.

- DIMM slots are not color coded on this server. Refer to the picture below for the locations.

- Do not use Load Reduced DIMMs (LRDIMMs) and Non-Volatile DIMMs (NVDIMMs)

General Memory Population Rules and Guidelines:

• There are two (2) Memory channels per processor. This server only has 1 processor.
• There are two (2) DIMM slots for each memory channel; four (4) total slots per processor.
• A minimum of one DIMM is required per processor.
• DIMM 1 and DIMM 2 belong to CPU Channel 1. DIMM 3 and DIMM 4 belong to Channel 2. Recommended configurations are designed to optimize performance.
• When mixing DIMMs of different sizes, load the heaviest load (DIMM with most ranks) DIMM first.
• Load DIMMS in this sequence: DIMM 1 -> DIMM 3 -> DIMM 2 -> DIMM 4. See the diagram above.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• Use only HPE memory specified in this document. Although HPE memory from other ProLiant Gen9 servers may work, they may not have been qualified for the operating environments of this product.

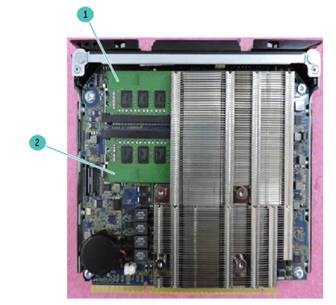

Top Side

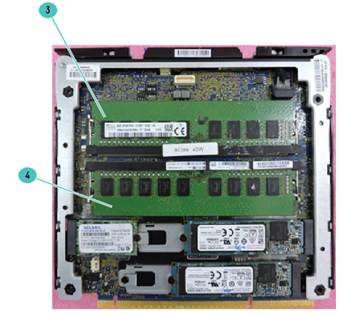

Bottom Side

DIMM Locations on the HPE m510 Server

DIMM 1 / DIMM 2 = Channel 1

DIMM 3 / DIMM 4 = Channel 2

1.

DIMM 1

3.

DIMM 3

2.

DIMM2

4.

DIMM 4

Intel Supported Memory Bandwidth for Intel® Xeon® D-1548 Series Processor (HPE ProLiant m510)

Memory Bandwidth and Capacity

[DIMM Type]

ECC Registered DIMMs (RDIMMs)

HPE P/N

854592-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

854596-B21

DIMM Rank

Single Rank

Single Rank

Dual Rank

DIMM Capacity

8GB

16GB

32GB

Voltage

Std Voltage
1.2V

Std Voltage
1.2V

Std Voltage
1.2V

DRAM Depth [bit]

1G

2G

2G

DRAM Width [bit]

x8

x4

x4

DRAM Density

8Gb

8Gb

8Gb

CAS Latency

17-17-17

17-17-17

17-17-17

DIMM Native Speed (MT/s)

2400

2400

2400

Slots that can be populated

4

4

4

Maximum Capacity (GB)

32

64

128

Populated DIMM Speed (MT/s)

1 DIMM Per Channel

2400

2400

2400

2 DIMM Per Channel

2400

2400

2400

Intel Supported Memory Bandwidth for Intel® Xeon® D-1587 Series Processor (HPE ProLiant m510-16c)

Memory Bandwidth and Capacity

[DIMM Type]

ECC Registered DIMMs (RDIMMs)

HPE P/N

854592-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

854596-B21

DIMM Rank

Single Rank

Single Rank

Dual Rank

DIMM Capacity

8GB

16GB

32GB

Voltage

Std Voltage
1.2V

Std Voltage
1.2V

Std Voltage
1.2V

DRAM Depth [bit]

1G

2G

2G

DRAM Width [bit]

x8

x4

x4

DRAM Density

8Gb

8Gb

8Gb

CAS Latency

17-17-17

17-17-17

17-17-17

DIMM Native Speed (MT/s)

2400

2400

2400

Slots that can be populated

4

4

4

Maximum Capacity (GB)

32

64

128

Populated DIMM Speed (MT/s)

1 DIMM Per Channel

2133

2133

2133

2 DIMM Per Channel

2133

2133

2133

Memory Speed by

Processor Model

Processor Model

Supported Memory Speeds

D-1548

2400 MT/s

D-1587

2133 MT/s

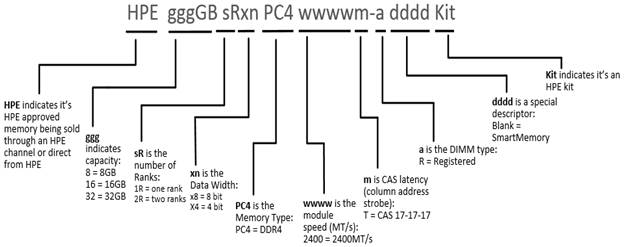

DDR4 memory options part number decoder

Notes:

- Capacity references are rounded to the common gigabyte (GB) values.

o 8GB = 8,192MB

o 16GB = 16,384MB

o 32GB = 32,768MB

Other Infrastructure Components

Notes: For information on supported Chassis, Switch and Uplink Modules, please see the following:

System Types

• HPE Moonshot
• HPE Moonshot 1500 System

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04111337

• HPE Edgeline
• HPE Edgeline EL1000 System

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05211199

• HPE Edgeline EL4000 System

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05211200

Switch

(Moonshot 1500 Only)

FastPATH

• HPE Moonshot-45Gc Switch Module

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04773032

• HPE Moonshot-45XGc Switch Module

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04384058

• HPE Moonshot-180XGc Switch Module

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04923651

Uplink Module

(Moonshot 1500 Only)

• HPE Moonshot-6SFP+ Uplink Module
• https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04111340

HPE Moonshot-16SFP+ Uplink Module

• https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04499458

HPE Moonshot-4QSFP+ Uplink Module

• https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04111341

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site.

These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

02-May-2022

Version 14

Changed

HPE Solid State Drives was updated.

Configuration Information section was updated.

29-Nov-2021

Version 13

Changed

Technical Specifications section was updated

04-Oct-2021

Version 12

Changed

Configuration Information section was updated.

Obsolete SKUs were removed,

07-Sep-2021

Version 11

Changed

Added new 480GB SSD with PLP. Configuration Information section was updated. DISC SKUs were removed.

Standard Features section was updated

06-Jul-2021

Version 10

Changed

Added new 120GB and 240GB SSDs with PLP

Configuration Information section was updated.

Obsolete SKUs were removed,

05-Oct-2020

Version 9

Changed

Configuration Information section was updated.

02-Apr-2019

Version 8

Changed

Obsolete SKUs were removed,

SKUs were added in Configuration Information section

03-Dec-2018

Version 7

Changed

Obsolete SKUs were removed

Configuration Information section was updated

04-Dec-2017

Version 6

Changed

Added NVMe SSD X Temp, Removed EOL MS1500 Switches and Uplinks, added Notes for M.2 2242 SATA SSDs

25-Sep-2017

Version 5

Changed

Update memory section and SKUs in the QuickSpecs

16-Dec-2016

Version 4

Changed

Added iLO licensing and clarified some notes

09-Sep-2016

Version 3

Changed

Update formatting and correct all the sections in the document

15-Jul-2016

Version 2

Changed

Updated m510 specific details

06-Jun-2016

Version 1

New

New QuickSpecs

© Copyright 2022 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

c05069171 - 15594 - Worldwide  - V14 - 02-May-2022
