HPE Moonshot-6SFP Uplink Module

The HPE Moonshot system's modular design dramatically simplifies and future-proofs your datacenter for a variety of workloads.

The HPE Moonshot-6SFP Uplink Module, along with the HPE Moonshot-45G Switch Module, provides the Ethernet networking functionality for the new HPE Moonshot 1500 chassis. Each chassis supports up to two Moonshot-6SFP Uplink Modules which can be configured for redundancy or traffic isolation. Each uplink module delivers 60 GbE of bandwidth to connect the HPE Moonshot system to an external network.

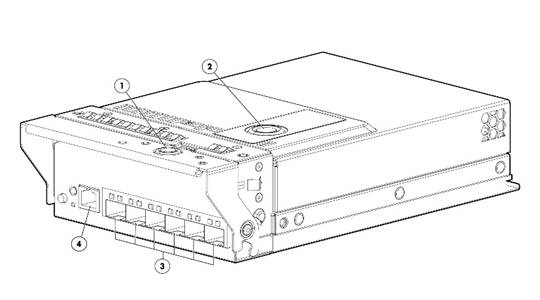

Figure 1 6SFP Uplink Module Components

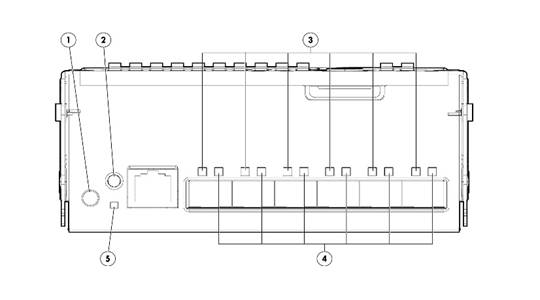

Figure 2 6SFP Uplink Module buttons and LED

1.

Release Button - Chassis

1.

UnitID (UID) LED / Button

2.

Release Button - Top Lid

2.

Health LED

3.

Serial console port

3.

Link LED

4.

Six (6) SFP+ ports

4.

Activity LED

5.

Reset button

Models

HPE Moonshot 6SFP Uplink Module Kit

704646-B21

Standard Features

• SFP+ ports support either 10Gb or 1Gb depending on pluggable module inserted
• Serial port for out-of-band management
• Link connectivity and activity LEDs
• UnitID (UID) LED / Button for serviceability
• Reset button

Moonshot Switch compatibility

NOTE: Up to two identical pairs of Switch and Uplink modules are supported in the Moonshot 1500 Chassis. Dual switch modules are required for network redundancy, regardless of cartridge configuration.

NOTE: Check Compatibility matrix below for supported switch and uplink modules

NOTE: For information HPE Moonshot Chassis, Cartridges and Switches please see the following:

Cartridge:

HPE ProLiant m700pServer Cartridge

https://psnow.ext.hpe.com/doc/PSN1009308110USEN.pdf

HPE ProLiant m510 Server Cartridge

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069171

HPE ProLiant m710x Server Cartridge

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069173

Switch:

HPE Moonshot-45Gc Switch Module

https://www.hpe.com/us/en/servers/moonshot.html

HPE Moonshot-45XGc Switch Module

https://h20195.www2.hpe.com/v2/GetPDF.aspx/c04384058.pdf

HPE Moonshot-180XGc Switch Module

https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=c04923651

HPE ProLiant Cartridges

Uplink

Switch

Speed

m700p

m710x

m510

Moonshot-6SFP+ Uplink

704646-B21

Moonshot-16SFP+ Uplink

783263-B21

Moonshot-4QSFP+ Uplink

704652-B21

Moonshot 45Gc

Switch

1Gb

X

X

X

Moonshot 45XGc

Switch

10Gb

X

X

X

X

Moonshot-180XGc Switch

1Gb

X

X

X

X

X

10Gb

X

X

X

X

Recommended HPE Pointnext operational services for your HPE product

(4 and 5 year Service offerings are also available)

HPE Technology Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the selected support.

Recommended HPE Pointnext operational services for your HPE product.

(4 and 5 year Service offerings are also available)

Optimized Care

Foundation Care 24x7, three-year Care Pack Service

HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours  if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server.  Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Standard Care

Foundation Care NBD, three-year Care Pack Service

HPE Foundation Care Next Business Day connects you to Hewlett Packard Enterprise during business hours for assistance on resolving issues - features next business day hardware onsite response if needed and software call back within two hours. Collaborative software support is included and provides troubleshooting assistance on industry leading software running on your server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Related Services

HPE Moonshot Installation & Startup Service

HPE Installation and Startup Service for the Moonshot System provides for the installation of one system and its associated Moonshot servers and network switches, as well as operating system deployment and basic configuration of OS network parameters to establish network connectivity

HPE Datacenter Care service

HPE Datacenter Care helps you improve IT stability and security, increase the value of IT, and enable agility and innovation.  It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with Hewlett Packard Enterprise via a single point of accountability for Hewlett Packard Enterprise and others' products.  For more information, visit http://www.hp.com/services/datacentercare

HPE Self-Service Spares Service answers the question: What do you do when you need parts? We can set it up so that you get spare parts onsite through our automated self-service spares. You simply go to the part of your data center where the parts live, scan them out, scan in the broken one, and you're done. We maintain your inventory of good spares, so that what you need is ready to go when you need it. And we provide monthly service excellence reports illustrating onsite inventory performance.

Connect your devices to HPE

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise.  Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support.

Defective Media Retention (DMR) and Comprehensive Defective Material Retention

If your business deals with sensitive or legally protected data, you know that it's not a simple matter to return a defective hardware component, but keeping it conflicts with the terms and conditions of many standard warranty agreements. If you don't return the component, you'll be charged for the replacement part.

HPE Foundation Care services are available with defective media retention of failed hard drives and comprehensive defective material retention of those other data-retentive components, such as memory, switches, processors and more. This may be purchased as an optional add-on to your HPE Foundation Care service purchase. This service is critical for customers who:

• Need to control and secure their classified, proprietary and confidential data.
• Are subject to current data privacy regulations.
• Want a simpler, more cost-effective solution when choosing not to return a malfunctioning disk drive or other data retentive component.

For more information on our data privacy services, see: https://www.hpe.com/us/en/services/platform-consulting-services.html

HPE Support Center

Hewlett Packard Enterprise provides several tools that make it simpler to get help from HPE:

HPE Support Center is personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more: http://h20565.www2.hpe.com/portal/site/hpsc/

The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.

HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Pointnext operational or Hewlett Packard Enterprise contractual support agreement.

NOTE: HPE Support Center Mobile App is subject to local availability.

For more information

To learn more on HPE Moonshot, please contact your Hewlett Packard Enterprise sales representative

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Supported Cables

SFP Options

HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver

453151-B21

HPE BladeSystem c-Class Virtual Connect 1G SFP RJ-45 Transceiver

453154-B21

SFP+ Options

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

HPE 10GBase-T SFP+ Transceiver

813874-B21

Direct Attach Cables

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

HPE StoreFabric C-series 3M Passive Copper SFP+ Cable

K2Q21A

HPE StoreFabric C-series 5M Passive Copper SFP+ Cable

K2Q22A

HPE B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable

AP818A

HPE B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable

AP819A

HPE B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable

AP820A

NOTE: The transceivers and cables listed above have been qualified and certified to work with this product. Transceiver and DAC cables from any manufacturer will be accepted, but they will not be supported by Hewlett Packard Enterprise.

Serial Console Cable

RJ45 to (F) DB-9 serial console port cable

5188-6699

Product Specifications Hardware

Ports

Six (6) 10 Gb SFP+ uplink ports

One (1) RJ-45 Serial Console Port for management

Indicators/Buttons

Module health, red/amber/green

Module locator (UID), blue (LED & push button switch)

Port link indicator, green

Port activity indicator, green

Recessed push button reset switch

Physical Characteristics

Length

5.40 in (13.71 cm)

Width

8.83 in (24.96 cm)

Height

2.22 in (5.64 cm)

Weight

0.95 kg (2.09 lbs)

Environmental Ranges

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-operating

-22° to 140° F (-30° to 60° C)

Operating

10% to 90%

Non-operating

5% to 95%

Operating

10,000 ft. (3048 m)

Non-operating

30,000 ft. (9144 m)

Power Consumption

Typical

8W

Maximum

15W

Safety and Compliance

Safety Certifications

Complies with UL 60950-1, CAN/CSA C22.2 No. 60950-1 and EN 60950-1. UL certified.

CE Marking

RoHS 6/6 compliant

Emissions Classifications (EMC)

Class A

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:

 https://www.hpe.com/us/en/about/environment/product-recycling.html.

To recycle your product, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: https://www.hpe.com/us/en/about/environment/product-recycling.html. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

04-Mar-2019

Version 10

Changed

Standard Features, Compatibility and Related Options sections were updated

07-Jan-2019

Version 9

Changed

Standard Features, Compatibility and Service and Support sections were updated

07-May-2018

Version 8

Updated

Update SKU in the related options section

23-Oct-2017

Version 7

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

26-Oct-2016

Version 6

Updated

Update QuickSpecs for Rebranding

28-Sept-2015

Version 5

Changed

Changed the standard features section

17-Aug-2015

Version 4

Updated

Update several sections on the QS

03-Oct-2014

Version 3

Changed

Changes made throughout the QS

28-Feb-2014

Version 2

Added

A part number was added to the Related Options section.
