HPE Moonshot-45XGc Switch Module The HPE Moonshot-45XGc Switch Module is designed to provide high speed, low-latency connectivity while dramatically reducing cost and complexity of deploying solutions at scale. The 45XGc Switch Module, together with the HPE Moonshot-4QSFP+ Uplink Module, provides 10GbE network connections to cartridges within the HPE Moonshot 1500 chassis and 40GbE/10GbE connectivity external to the chassis. This switch is based on the HPE Comware v7 network operating system, which provides enterprise-grade features and resiliency. Up to two switch modules are supported in each chassis, and they can be combined and managed as a single entity with the HPE Intelligent Resilient Framework (IRF). | ||||
|
| ||||
|

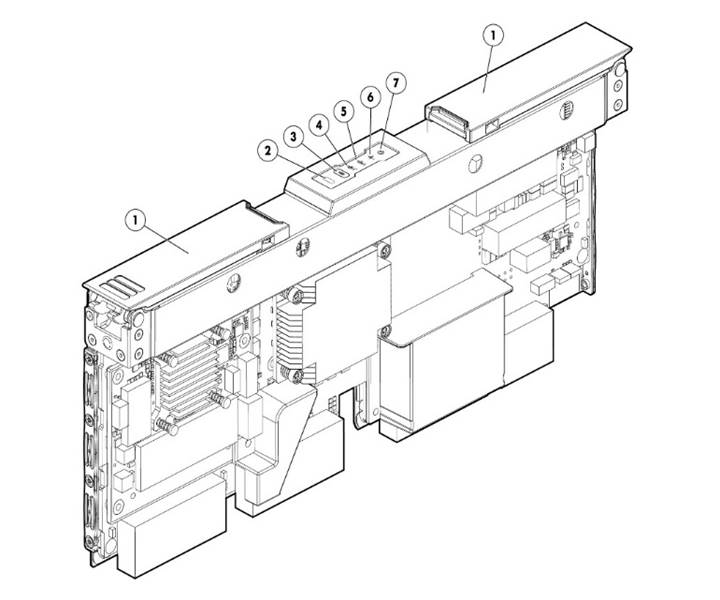

Figure 1 HPE Moonshot-45XGc Switch Module | ||||
|
1. |
Release Latch |
5. |
Uplink Activity LED | |
|
2. |
Access Panel Sensor |
6. |
Health Status LED | |
|
3. |
Unit ID (UID) LED / Button |
7. |
Power LED | |
|
4. |
Downlink Activity LED |
|||
|
| ||||
|
Models | ||||
|
HPE Moonshot-45XGc Switch Module Kit |
704654-B21 | |||
|
Notes: Must order one each of the Switch Module Kit per chassis. | ||||
|
| ||||
|
Chassis HPE Moonshot 1500 Chassis | |||||||
|
| |||||||
|
HPE ProLiant Servers
|
|||||||
|
| |||||||
|
HPE Moonshot Uplink Modules
|
|||||||
|
| |||||||
|
|
|
HPE ProLiant Cartridges |
Uplink | ||||
|
Switch |
Speed |
m700p |
m710x |
m510 |
Moonshot-6SFP+ Uplink 704646-B21 |
Moonshot-16SFP+ Uplink 783263-B21 |
Moonshot-4QSFP+ Uplink 704652-B21 |
|
Moonshot 45Gc Switch |
1Gb |
|
X |
X |
X |
|
|
|
Moonshot 45XGc Switch |
10Gb |
|
X |
X |
|
X |
X |
|
Moonshot-180XGc Switch |
1Gb |
X |
X |
X |
|
X |
X |
|
10Gb |
|
X |
X |
|
X |
X | |
|
| |||||||
Standard Features
|
Performance
|
|
|
|
Management
|
|
|
|
Security
|
|
|
|
Layer 2 Switching
|
|
|
|
Layer 3 Routing
|
|
|
|
Quality of Service (QoS)
|
|
|
|
Resiliency and High Availability
|
|
|
|
Monitoring and Diagnostics
|
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Recommended Services HPE Pointnext Tech Care. HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare |
|
|
|
HPE Technology Services for Moonshot Capitalizing on the Moonshot 1500 System requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know Hewlett Packard Enterprise infrastructure hardware and software best - the experienced professionals at HPE Technology Services.
Hewlett Packard Enterprise is pleased to include full software support for Ubuntu Linux as part of your Moonshot chassis purchase. For chassis supporting revenue-generating or production level workloads, consider purchasing a level of support that matches your requirements. |
|
|
|
Protect your business beyond warranty with HPE Pointnext operational services HPE sells support in easy-to-buy, preconfigured packages with the combination of services, coverage and duration to fit your needs and budget. With Moonshot, we are introducing a new, simpler set of services. Simply choose the service level that best fits the criticality of your hardware. |
|
|
|
HPE Self-Service Spares Service answers the question: What do you do when you need parts? We can set it up so that you get spare parts onsite through our automated self-service spares. You simply go to the part of your data center where the parts live, scan them out, scan in the broken one, and you're done. We maintain your inventory of good spares, so that what you need is ready to go when you need it. And we provide monthly service excellence reports illustrating onsite inventory performance.
To obtain further information or to order HPE Complete Care Service as described above, contact a local Hewlett Packard Enterprise sales representative. Please see the Additional Options section of this QuickSpecs for additional information. |
|
|
|
HPE Moonshot Installation & Startup Service HPE Installation and Startup Service for the Moonshot System provides for the installation of one system and its associated Moonshot servers and network switches, as well as operating system deployment and basic configuration of OS network parameters to establish network connectivity In response to the needs of the majority of HPE Moonshot System customers, this fixed-price/fixed deliverable service targets new hardware installation and software deployments for the 1500 infrastructure. For more advanced installation, configuration, and integration requirements, custom deployments are available through a customized Statement of Work. Please see the Additional Options section of this QuickSpecs for additional information. For more information on Hewlett Packard Enterprise Services, contact any of our worldwide sales offices or visit one of the following websites: HPE support services: https://www.hpe.com/us/en/support.html HPE Pointnext operational services: https://www.hpe.com/us/en/services/operational.html |
|
|
|
Defective Media Retention (DMR) and Comprehensive Defective Material Retention If your business deals with sensitive or legally protected data, you know that it's not a simple matter to return a defective hardware component, but keeping it conflicts with the terms and conditions of many standard warranty agreements. If you don't return the component, you'll be charged for the replacement part. HPE Tech Care services are available with defective media retention of failed hard drives and comprehensive defective material retention of those other data-retentive components, such as memory, switches, processors and more. This may be purchased as an optional add-on to your HPE Tech Care service purchase. This service is critical for customers who:
For more information on our data privacy services, see https://www.hpe.com/us/en/services/platform-consulting-services.html. |
|
|
|
HPE Support Center Hewlett Packard Enterprise provides several tools that make it simpler to get help from HPE: HPE Support Center is personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more: https://www.hpe.com/us/en/services/datacenter-hybrid-services.html
The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime. HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Pointnext operational or Hewlett Packard Enterprise contractual support agreement. Notes: HPE Support Center Mobile App is subject to local availability. |
|
|
|
For more information To learn more on HPE Moonshot System, please contact your Hewlett Packard Enterprise sales representative. |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
Technical Specifications
|
Product Specifications Hardware |
Ports |
Forty-five (45) 10 Gb Ethernet downlink ports Four (4) 40 Gb Ethernet uplink ports One (1) serial console interface accessible through the uplink module One (1) internal serial interfaces to iLO Chassis Manager for use through the Virtual Serial Port (VSP) |
|
Performance |
Throughput |
14.8 million pps per 10G port; 59.2 million pps per 40G port |
|
Switching Capacity |
640 Gbps | |
|
Memory |
2 GB SDRAM; 128 MB flash; 9 MB packet buffer | |
|
Indicators / Switch |
Module power, green/amber Module health, red/amber/green Module locator (UID), blue (LED & push button switch) Aggregated Uplink ports link/activity, green Aggregated Downlink ports link/activity, green | |
|
Physical Characteristics |
Length |
14.82 in (376 mm) |
|
Width |
6.75 in (141 mm) | |
|
Height |
1.44 in (37 mm) | |
|
Weight |
1.707 kg (3.76 lbs) | |
|
Environmental Ranges |
Temperature Range |
|
|
Operating |
50° to 95° F (10° to 35° C) | |
|
Non-operating |
-22° to 140° F (-30° to 60° C) | |
|
Power Consumption |
Relative Humidity (non-condensing) |
|
|
Operating |
10% to 90% | |
|
Non-operating |
5% to 95% | |
|
Altitude |
| |
|
Operating |
10,000 ft. (3048 m) | |
|
Non-operating |
30,000 ft. (9144 m) | |
|
Typical |
60W | |
|
Maximum |
100W | |
|
| ||
|
Standards Support General Protocols
|
|
|
|
DCB
|
|
|
|
IP Multicast
|
|
|
|
IPv6
|
|
|
|
Layer 3
|
|
|
|
MIBs
|
|
|
|
Safety and Compliance Safety Certifications
|
|
|
|
Emissions Classifications (EMC) Class A |
|
|
|
Environment-friendly Products and Approach End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html.
To recycle your product, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: https://www.hpe.com/us/en/about/environment/product-recycling.html. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 8 |
Changed |
Service and Support section was updated. |
|
07-Oct-2019 |
Version 7 |
Changed |
Overview section was updated. |
|
04-Mar-2019 |
Version 6 |
Changed |
Standard Features and Compatibility sections were updated |
|
07-Jan-2019 |
Version 5 |
Changed |
Overview and Service and Support sections were updated |
|
23-Oct-2017 |
Version 4 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. |
|
21-Oct-2016 |
Version 3 |
Changed |
Update for Rebranding |
|
30-Sep-2014 |
Version 2 |
Changed |
Changes Made throughout the QuickSpecs |
|
29-Sep-2014 |
Version 1 |
New |
New QuickSpecs |
|
Copyright
|
|
| ||||||||||||
|
|
|
© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
c04384058 - 15071 - Worldwide - V8 - 15-November-2021 | ||||||||||||
