HPE Moonshot-45Gc Switch Module: технические характеристики и документация
В архивеOverview
|
Moonshot-45Gc Switch Module The HPE Moonshot-45Gc Switch Module is designed to provide high speed, low-latency connectivity while dramatically reducing cost and complexity of deploying solutions at scale. The 45Gc Switch Module, together with the HPE Moonshot-6SFP+ Uplink Module, provides 1GbE network connections to cartridges within the HPE Moonshot 1500 chassis and 10Gb connectivity external to the chassis. Up to two switch modules are supported in each chassis. IRFmay be used to eliminate the cost of TOR switches and provide failover in the event of a switch or uplink failure. | ||||
|
| ||||
|

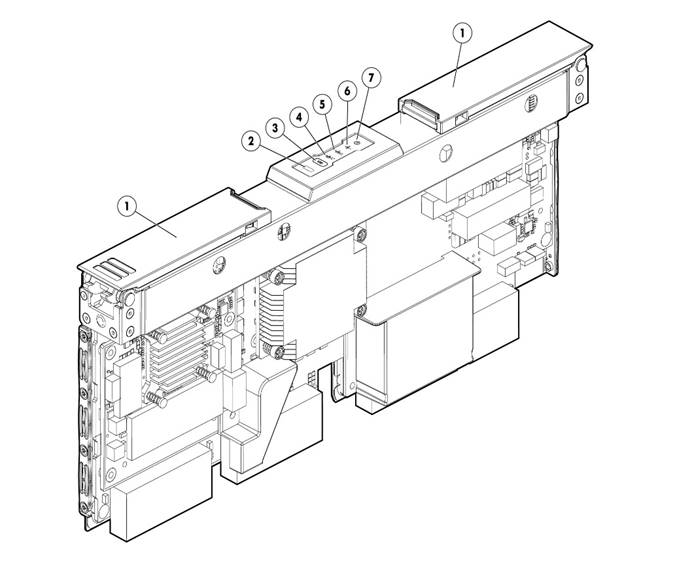

Figure 1 HPE Moonshot-45Gc Switch Module | ||||
|
1. |
Release Latch |
6. |
Health Status LED | |
|
2. |
Access Panel Sensor |
7. |
Power LED | |
|
3. |
Unit ID (UID) LED / Button |
|
| |
|
4. |
Downlink Activity LED |
|
| |
|
5. |
Uplink Activity LED |
|
| |
|
| ||||
|
Models | ||||
|
HPE Moonshot-45Gc Switch Module Kit |
786617-B21 | |||
|
| ||||
Standard Features
|
Performance
|
|
|
|
Management
|
|
|
|
Security
|
|
|
|
Level 2 Switching
|
|
|
|
Level 3 Routing
|
|
|
|
Quality of Service (QoS)
|
|
|
|
Resiliency and High Availability
|
|
|
|
Monitoring and Diagnostics
|
|
|
Compatibility
|
HPE Interconnect modules NOTE: Up to two identical pairs of Switch and Uplink modules are supported in the Moonshot 1500 Chassis. Dual switch modules are required for network redundancy, regardless of cartridge configuration. NOTE: Check Compatibility matrix below for supported switch and uplink modules NOTE: For information HPE Moonshot Cartridges and Uplink Modules, please see the following: | |||||||
|
Cartridge: HPE ProLiant m700pServer Cartridge https://psnow.ext.hpe.com/doc/PSN1009308110USEN.pdf | |||||||
|
| |||||||
|
HPE ProLiant m510 Server Cartridge https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069171 | |||||||
|
| |||||||
|
HPE ProLiant m710x Server Cartridge https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069173 | |||||||
|
| |||||||
|
Switch: HPE Moonshot-45Gc Switch Module https://www.hpe.com/us/en/servers/moonshot.html | |||||||
|
| |||||||
|
HPE Moonshot-45XGc Switch Module https://h20195.www2.hpe.com/v2/GetPDF.aspx/c04384058.pdf | |||||||
|
| |||||||
|
HPE Moonshot-180XGc Switch Module https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=c04923651 | |||||||
|
| |||||||
|
|
|
HPE ProLiant Cartridges |
Uplink |
|
| ||
|
Switch |
Speed |
m700p |
m710x |
m510 |
Moonshot-6SFP+ Uplink 704646-B21 |
Moonshot-16SFP+ Uplink 783263-B21 |
Moonshot-4QSFP+ Uplink 704652-B21 |
|
Moonshot 45Gc Switch |
1Gb |
|
X |
X |
X |
|
|
|
Moonshot 45XGc Switch |
10Gb |
|
X |
X |
|
X |
X |
|
Moonshot-180XGc Switch |
1Gb |
X |
X |
X |
|
X |
X |
|
10Gb |
|
X |
X |
|
X |
X | |
|
| |||||||
Service and Support
|
Service and Support Recommended HPE Pointnext operational Services for your HPE product (4 and 5 year Service offerings are also available) HPE Technology Services HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. Protect your business beyond warranty with HPE Pointnext operational Services HPE Pointnext operational Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the selected support. |
|
|
|
Recommended HPE Pointnext operational Services for your HPE product (4 and 5 year Service offerings are also available) |
|
|
|
Optimized Care Foundation Care 24x7, three-year Care Pack Service HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en |
|
|
|
Standard Care Foundation Care NBD, three-year Care Pack Service HPE Foundation Care Next Business Day connects you to Hewlett Packard Enterprise during business hours for assistance on resolving issues - features next business day hardware onsite response if needed and software call back within two hours. Collaborative software support is included and provides troubleshooting assistance on industry leading software running on your server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en |
|
|
|
Related Services HPE Moonshot Installation & Startup Service HPE Installation and Startup Service for the Moonshot System provides for the installation of one system and its associated Moonshot servers and network switches, as well as operating system deployment and basic configuration of OS network parameters to establish network connectivity. HPE Datacenter Care service HPE Datacenter Care helps you improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with Hewlett Packard Enterprise via a single point of accountability for Hewlett Packard Enterprise and others' products. For more information, visit http://www.hp.com/services/datacentercare HPE Self-Service Spares Service answers the question: What do you do when you need parts? We can set it up so that you get spare parts onsite through our automated self-service spares. You simply go to the part of your data center where the parts live, scan them out, scan in the broken one, and you're done. We maintain your inventory of good spares, so that what you need is ready to go when you need it. And we provide monthly service excellence reports illustrating onsite inventory performance. |
|
|
|
Connect your devices to HPE Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support. |
|
|
|
Defective Media Retention (DMR) and Comprehensive Defective Material Retention If your business deals with sensitive or legally protected data, you know that it's not a simple matter to return a defective hardware component, but keeping it conflicts with the terms and conditions of many standard warranty agreements. If you don't return the component, you'll be charged for the replacement part. HPE Foundation Care services are available with defective media retention of failed hard drives and comprehensive defective material retention of those other data-retentive components, such as memory, switches, processors and more. This may be purchased as an optional add-on to your HPE Foundation Care service purchase. This service is critical for customers who:
For more information on our data privacy services, see https://www.hpe.com/us/en/services/platform-consulting-services.html |
|
|
|
HPE Support Center Hewlett Packard Enterprise provides several tools that make it simpler to get help from HPE: HPE Support Center is personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more: http://h20565.www2.hpe.com/portal/site/hpsc/ The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.
HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Pointnext operational or Hewlett Packard Enterprise contractual support agreement. NOTE: HPE Support Center Mobile App is subject to local availability. |
|
|
|
For more information To learn more on HPE Moonshot System, please contact your Hewlett Packard Enterprise sales representative. |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
Technical Specifications
|
Product Specifications Hardware | ||
|
Ports |
Forty-five (45) 1Gb Ethernet downlink ports Six (6) 10 Gb Ethernet uplink ports One (1) serial console interface accessible through the uplink module One (1) internal serial interfaces to iLO Chassis Manager for use through the Virtual Serial Port (VSP) | |
|
Performance |
Throughput |
1.5 million pps (64-byte packets) per 1G port; 14.8 million pps per 10G port |
|
Switching Capacity |
480 Gbps | |
|
Memory |
2 GB SDRAM; 128 MB flash; 9 MB packet buffer | |
|
Indicators / Switch |
Module power, green/amber Module health, red/amber/green Module locator (UID), blue (LED & push button switch) Aggregated Uplink ports link/activity, green Aggregated Downlink ports link/activity, green | |
|
Physical Characteristics |
Length |
14.82 in (376 mm) |
|
Width |
6.75 in (141 mm) | |
|
Height |
1.44 in (37 mm) | |
|
Weight |
1.707 kg (3.76 lbs) | |
|
Environmental Ranges |
Temperature Range |
|
|
Operating |
50° to 95° F (10° to 35° C) | |
|
Non-operating |
-22° to 140° F (-30° to 60° C) | |
|
Power Consumption |
Relative Humidity (non-condensing) |
|
|
Operating |
10% to 90% | |
|
Non-operating |
5% to 95% | |
|
Altitude |
| |
|
Operating |
10,000 ft. (3048 m) | |
|
Non-operating |
30,000 ft. (9144 m) | |
|
Typical |
60W | |
|
Maximum |
100W | |
|
| ||
|
Standards Support General Protocols
|
|
|
|
DCB
|
|
|
|
IP Multicast
|
|
|
|
IPv6
|
|
|
|
Layer 3
|
|
|
|
MIBs
|
|
|
|
Safety and Compliance Safety Certifications Complies with UL 60950-1, CAN/CSA C22.2 No. 60950-1 and EN 60950-1. UL certified. CE Marking RoHS 6/6 compliant |
|
|
|
Emissions Classifications (EMC) Class A |
|
|
|
Environment-friendly Products and Approach End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html. To recycle your product, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change | ||||||||||||||||||
|
04-Mar-2019 |
Version 3 |
Updated |
Compatibility and Technical Specifications sections were updated | ||||||||||||||||||
|
26-Oct-2016 |
Version 2 |
Updated |
Update Quick Specs for the Rebranding | ||||||||||||||||||
|
28-Sept-2015 |
Version 1 |
Created |
HPE Moonshot-45Gc Switch Module | ||||||||||||||||||
|
| |||||||||||||||||||||
| |||||||||||||||||||||
