HPE Moonshot-180G Switch Module | |||
|
The HPE Moonshot-180G Switch Module is designed to provide high speed, low-latency connectivity while dramatically reducing cost and complexity of deploying solutions at scale. The 180G Switch Module provides 1GbE network connections to up to 180 nodes in the HPE Moonshot 1500 chassis. Up to two switch modules are supported in each chassis. Failover can be enabled by stacking two switches within a single chassis or across multiple chassis. | |||
|
| |||
|

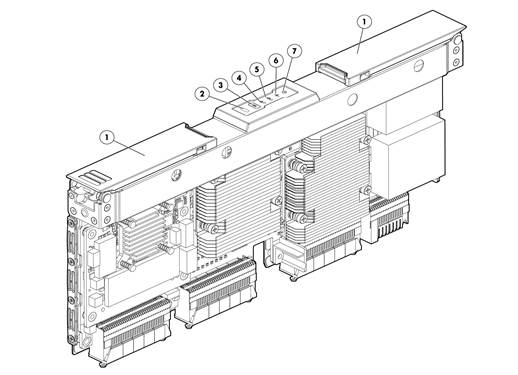

HPE Moonshot-180G Switch Module | |||
|
1. |
Release Latch |
5. |
Uplink Activity LED |
|
2. |
Access Panel Sensor |
6. |
Health Status LED |
|
3. |
Unit ID (UID) LED / Button |
7. |
Power LED |
|
4. |
Downlink Activity LED |
|
|
|
5. |
Cartridge health LED |
|
|
|
| |||
|
Models | |
|
HP Moonshot-180G Switch Module Kit |
704642-B21 |
Standard Features
|
Standard Features | |
|
Performance |
|
|
Management |
|
|
Stacking |
|
|
Switching |
|
|
Routing |
|
|
Quality of Service (QoS) & DiffServ Module |
|
Compatibility
|
HPE Interconnect modules |
NOTE: Up to two identical pairs of Switch and Uplink modules are supported in the Moonshot 1500 Chassis. Dual switch modules are required for network redundancy, regardless of cartridge configuration. NOTE: Check Compatibility matrix below for supported switch and uplink modules NOTE: For information HPE Moonshot Cartridges and Uplink Modules, please see the following: Cartridge: HPE ProLiant m300 Server Cartridge https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04111351
HPE ProLiant m350 Server Cartridge https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04384060
HPE ProLiant m400 Server Cartridge https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04384048
HPE ProLiant m700 Server Cartridge https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04111350
HPE ProLiant m710 Server Cartridge https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04384063
HPE ProLiant m800 Server Cartridge https://www.hpe.com/h20195/v2/GetHtml.aspx?docname=c04384065
Uplink HPE Moonshot-16SFP+ Uplink Module https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04499458
HPE Moonshot-4QSFP+ Uplink Module https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111341 |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Service and Support
|
Service and Support |
Recommended HPE Pointnext operational services for your HPE product (4 and 5 year Service offerings are also available) HPE Technology Services HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. Protect your business beyond warranty with HPE Pointnext operational services HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the selected support. | |
|
Recommended HPE Pointnext operational services for your HPE product (4 and 5 year Service offerings are also available) | ||
|
Optimized Care |
Foundation Care 24x7, three-year Care Pack Service HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en | |
|
Standard Care |
Foundation Care NBD, three-year Care Pack Service HPE Foundation Care Next Business Day connects you to Hewlett Packard Enterprise during business hours for assistance on resolving issues - features next business day hardware onsite response if needed and software call back within two hours. Collaborative software support is included and provides troubleshooting assistance on industry leading software running on your server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en | |
|
Related Services |
HPE
Moonshot Installation & Startup Service
HPE Datacenter Care service HPE Datacenter Care helps you improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with Hewlett Packard Enterprise via a single point of accountability for Hewlett Packard Enterprise and others' products. For more information, visit http://www.hp.com/services/datacentercare
HPE Self-Service Spares Service answers the question: What do you do when you need parts? We can set it up so that you get spare parts onsite through our automated self-service spares. You simply go to the part of your data center where the parts live, scan them out, scan in the broken one, and you're done. We maintain your inventory of good spares, so that what you need is ready to go when you need it. And we provide monthly service excellence reports illustrating onsite inventory performance. | |
|
Connect your devices to HPE |
Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support. | |
|
Defective Media Retention (DMR) and Comprehensive Defective Material Retention |
If your business deals with sensitive or legally protected data, you know that it's not a simple matter to return a defective hardware component, but keeping it conflicts with the terms and conditions of many standard warranty agreements. If you don't return the component, you'll be charged for the replacement part.
For more information on our data privacy services, see: http://www.hp.com/services/dataprivacy. |
|
| |
|
HPE Support Center |
Hewlett Packard Enterprise provides several tools that make it simpler to get help from HPE: |
|
| |
|
For more information |
To learn more on HPE Moonshot System, please contact your Hewlett Packard Enterprise sales representative. |
|
| |
|
Parts and Materials |
Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
Technical Specifications
|
Product Specifications Hardware |
Ports |
One hundred eighty (180) 1 Gb Ethernet downlink ports | |
|
Performance |
Throughput |
1.5 million pps (64-byte packets) per 1G port; 59.2 million pps per 40G port | |
|
Switching Capacity |
660 Gbps | ||
|
Memory |
2 GB SDRAM, 128 MB, 22MB packet buffer per switch chip | ||
|
Indicators / Switch |
Module power, green/amber | ||
|
Physical Characteristics |
Length |
14.82 in (376 mm) | |
|
Width |
6.75 in (141 mm) | ||
|
Height |
1.44 in (37 mm) | ||
|
|
Weight |
2.298 kg (5.07 lbs) | |
|
Environmental Ranges |
Temperature Range |
| |
|
Operating |
50° to 95° F (10° to 35° C) | ||
|
Non-operating |
-22° to 140° F (-30° to 60° C) | ||
|
Relative Humidity |
| ||
|
Operating |
10% to 90% | ||
|
Non-operating |
5% to 95% | ||
|
Altitude |
| ||
|
Operating |
10,000 ft. (3048 m) | ||
|
Non-operating |
30,000 ft. (9144 m) | ||
|
Power Consumption |
Typical |
200W | |
|
Maximum |
280W | ||
|
| |||
|
Standards Support |
Switching |
|
| |
|
Safety and Compliance |
Complies with UL 60950-1, CAN/CSA C22.2 No. 60950-1 and EN 60950-1. UL certified. |
|
CE Marking | |
|
RoHS 6/6 compliant | |
|
| |
|
Emissions Classifications (EMC) |
Class A |
|
| |
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett
Packard Enterprise offers end-of-life Hewlett Packard Enterprise product
return, trade-in, and recycling programs in many geographic areas. For
trade-in information, please go to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest Hewlett Packard Enterprise sales office. Products
returned to Hewlett Packard Enterprise will be recycled, recovered or
disposed of in a responsible manner. |
