HPE Moonshot 1500 Chassis

The HPE Moonshot System uses an innovative architecture that results from one simple design tenet: to align purpose-built servers with the right workload to provide optimal results for your environment. Traditional servers rely on dedicated components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot system shares these chassis components and is capable of supporting up to 45 workload-optimized ProLiant Server Blades (each offering up to 16 Intel® Xeon® cores, 128GB RAM and 16TB NVMe SSD storage) in a compact 4.3U chassis. This gives you the ability to generate greater revenue from a smaller footprint while driving down your operational costs.

The HPE Moonshot System with its portfolio of ProLiant Server Blades and modular Switches excels in a variety of uses:

• Performance intensive Trader Workstations at top financial firms worldwide
• Mission critical Engineering Workstations for Computer Aided Design (CAD) and Digital Content Creation (DCC)
• Extreme density Hosted Desktop Infrastructure (HDI) and Application Delivery, but with excellent user experience
• Efficient Video Transcoding and Content Delivery Network (CDN) caching for major multimedia providers
• High Performance Computing (HPC CFD) farm helping to build better racing cars and many more.

 Notes:  New for 2020, is the HPE Moonshot 1500 Chassis 2.0.   This new chassis model includes the new HPE Moonshot Chassis Manager 2.0 (CM2.0) which is required to support operation of HPE ProLiant m750 Server Blades.

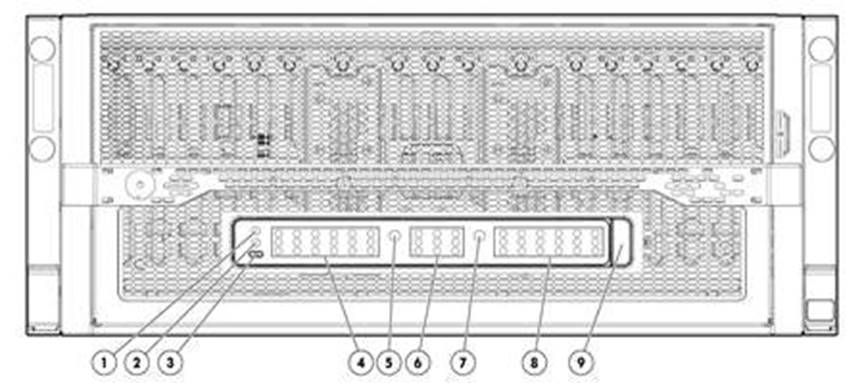

Front View (HPE Moonshot 1500 Chassis)

1.

Chassis Power LED

6.

Front Panel Display LED, ProLiant server 19-27

2.

System Health LED

7.

Switch module B health LED

3.

Chassis UID/LED/button

8.

Front Panel Display LED, ProLiant server 28-45

4.

Front Panel Display LED, ProLiant server 1-18

9.

Front Panel Display release

5.

Switch Module A Health LED

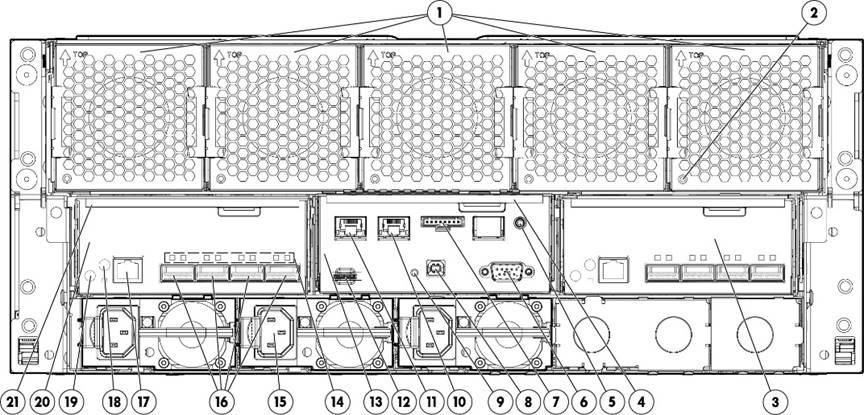

Back View (with Chassis Manager 1.0 Module shown)

1.

Fans

12.

HPE Moonshot 1500 CM Module MicroSD slot

2.

Fan LED

13.

HPE Moonshot 1500 Chassis Management (CM) Module

3.

Uplink Module A

14.

Switch Module uplink/downlink activity LEDs

4.

HPE Moonshot 1500 CM Module release lever

15.

Power supply connector

5.

HPE Moonshot 1500 CM Module UID/LED button

16.

Four (4) 40GbE QSFP+ connectors

6.

HPE Moonshot 1500 CM Module serial port

17.

Serial connector

7.

HPE Moonshot 1500 CM Module SL-APM port

18.

Uplink Module UID/LED button

8.

HPE Moonshot 1500 CM Module USB connector

19.

Uplink Module health LED

9.

HPE Moonshot 1500 CM Module LED

20.

Uplink Module B

10.

iLO CM link port (disabled by default)

21.

Uplink Module release lever

11.

iLO CM RJ45 Management port

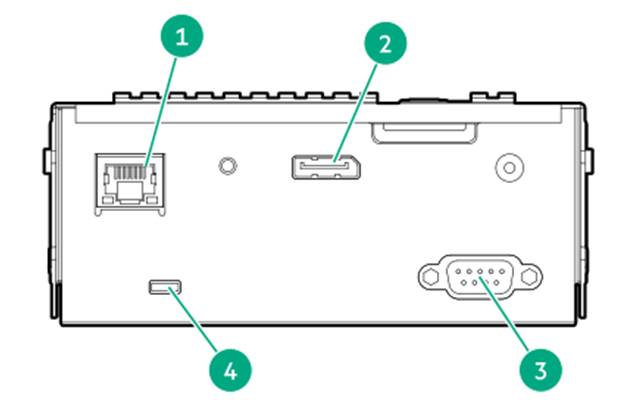

NEW HPE Moonshot 1500 Chassis Management 2.0 Module

1.

HPE Moonshot CM 2.0 iLO Management port

3.

HPE Moonshot CM 2.0 Serial port

2.

HPE Moonshot CM 2.0 APM Port

4.

HPE Moonshot CM 2.0 USB OTG Port

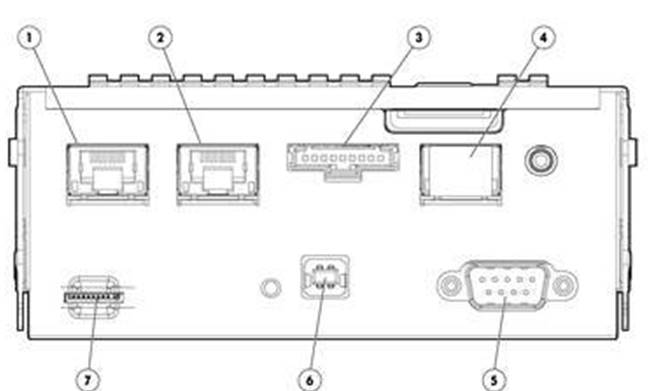

HPE Moonshot 1500 Chassis Management  1.0 Module

1.

iLO CM 1.0 RJ45 Management port

5.

HPE Moonshot 1500 CM 1.0 Module serial port

2.

iLO CM 1.0 link port (disabled by default)

6.

HPE Moonshot 1500 CM 1.0 Module USB connector

3.

HPE Moonshot 1500 CM 1.0 Module HPE APM port

7.

HPE Moonshot 1500 CM 1.0 Module MicroSD slot

4.

HPE Moonshot 1500 CM 1.0 Module diagnostic port

Chassis Management

Included in HPE Moonshot, the HPE Moonshot 1500 Chassis Management module manages the health of the chassis and servers via a command-line interface accessible via SSH as well as a web-based Graphical User Interface (GUI). Customers can configure the chassis, set server settings, and flash firmware in the HPE Moonshot 1500 System. The HPE Moonshot 1500 Chassis Management module also supports Intelligent Platform Management Interface (IPMI).

The HPE Moonshot 1500 Chassis Management module supports the HPE RESTful Interface Tool, this tool provides mass scripting configuration for rapid deployment of multiple HPE Moonshot Systems.

HPE Moonshot 1500 Chassis Management Module 2.0 is a next generation Moonshot management offering and is required to support the HPE ProLiant m750 Server Blade (P17342-B21).   The HPE Moonshot 1500 CM 2.0 module is a standard feature of the HPE Moonshot 1500 Chassis 2.0 (P18680-B21).  In addition, the HPE Moonshot 1500 CM 2.0 module can be purchased as an option kit (P17347-B21) to upgrade an existing HPE Moonshot 1500 Chassis to CM2.0.

For more information on the HPE Moonshot 1500 Chassis Management Module, please contact your sales representative or go to: http://www.hpe.com/info/moonshot

HPE Moonshot Component Pack

The HPE Moonshot Component Pack, is the delivery mechanism for firmware updates on the HPE Moonshot System.

To download the HPE Moonshot Component Pack, please reference: http://www.hpe.com/info/moonshot

HPE ProLiant Server Blades

Based on Intel® Xeon®

• HPE ProLiant m750 Server Blade

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=a00073555enw

• HPE ProLiant m510 Server Blade
  https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069171
• HPE ProLiant m710x Server Blade
  https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069173

Network Switch

Comware

• HPE Moonshot-45XGc Switch Module

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04384058

Network Uplink

• HPE Moonshot-16SFP+ Uplink Module

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04499458

• HPE Moonshot-4QSFP+ Uplink Module

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04111341

Enclosure

The HPE Moonshot 1500 System is 4.3U high and holds up to forty-five (45) ProLiant Server Blades. Switches, uplinks, power supplies, fans, and a chassis management module are all designed to fit into the HPE Moonshot 1500 System.

Notes: Can be racked as either a 5U tall chassis or as three chassis in 13U.

HPE Common Slot Power Supply

HPE Moonshot 1500 System can accommodate up to four (4) HPE Common slot power supplies listed in Step 4 of the Configure to Order section of this QuickSpecs.

The HPE Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HPE Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HPE CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HPE CS power supply options provide efficiency ratings of up to 94% and are available in a 1500W configuration for this platform. All HPE Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations. HPE Power Advisor can be accessed at: https://paonline56.itcs.hpe.com/?Page=Index

Notes: Redundant Power: Optional redundant power supplies will vary based on configurations. Please refer to specific HPE Proliant server cartridge for details.

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Partner Ready Resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

Enhancements to the warranty services are available through HPE services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Chassis Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home

HPE Moonshot 1500 Chassis

The HPE Moonshot 1500 Chassis holds up to 45 ProLiant Server Blades plus redundant network switches. It includes a shared base-plane with three multi-terabit high-speed fabrics: to connect Server Blades to the network, to connect Server Blades to neighboring Server Blades. Power is delivered through a pooled-power back-plane that ensures the full capacity of the hot-plug power supplies is available to all Server Blades.

Each HPE Moonshot 1500 Chassis is built with the following functions:

• Up to 45 ProLiant Server Blades per chassis.
• Up to 2 independently paired network and uplink modules supported simultaneously within the chassis.
• Five dual-rotor, hot-plug, redundant fans as standard.
• Optionally redundant hot-plug power supplies
• Optionally redundant interconnect modules
• The HPE Moonshot 1500 Chassis Management (CM) module manages the health of the Chassis and Server Blades.   HPE Moonshot 1500 Chassis 2.0 includes the next generation CM 2.0 as a standard feature which provides exclusive support for the HPE ProLiant m750 Server Blade

An HPE Moonshot System provides the following benefits:

• Optimum performance and utilization by using servers tailored to specific workloads
• Lowest cost of ownership.
• With local and remote hardware management integrated across the solution, one full enclosure can be managed as easily as one server.
• Investment protection: Accommodates multiple server and network designs in one enclosure.
• Lower costs per server, in comparison to rack-mounted servers
• Lower power consumption, in comparison to rack-mounted servers.

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as asset tagging, and custom packaging.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hpe.com/us/en/services/factory-express.html

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Other related services from HPE Pointnext

Defective Media Retention

Is an option available with HPE Complete Care, HPE Tech Care, Tech Care Advanced, and HPE Tech Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

HPE Installation and Startup Service

For the HPE Moonshot System infrastructure provides for the installation of one HPE Moonshot 1500 Chassis and its associated Moonshot servers and network switches, as well as operating system deployment and basic configuration of OS network parameters to establish network connectivity. https://h20195.www2.hpe.com/V2/GetPDF.aspx/4aa4-5260enw.pdf

HPE Service Credits

Offers flexible services and technical skills to meet your IT demands as your business   evolves. With a menu of services, you can access additional resources and specialist skills to help you maintain peak performance of your IT. HPE Service Credits help you proactively respond to your dynamic IT and business needs.

HPE Education Services

Provides comprehensive training designed to expand the skills of your IT staff and keep them up to speed with the latest technologies.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options

For more information

To learn more on HPE Moonshot System, please contact your Hewlett Packard Enterprise sales representative.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Factory Integrated Models must start with an HPE Moonshot 1500 Chassis. The recommended minimum functional configuration for a HPE Moonshot System is as follows:

• One (1) ProLiant Server Blade
• Three (3) Power Supplies
• One (1) Switch
• One (1) Uplink

Notes:

- A second Switch and Uplink Module Kit may be ordered to give a redundant network configuration or to enable two separate networks utilizing different ProLiant server cartridges.

- Some options may not be integrated at the factory.

Step 1: Base Configuration (Choose chassis)

HPE Moonshot 1500 Chassis

HPE Moonshot 1500 Chassis OS Option

755372-B21

HPE Moonshot 1500 Configure-to-order 2.0 Chassis

P18680-B21

Notes:

- The HPE Moonshot 1500 Chassis (755372-B21) supports the HPE ProLiant m710x, m710x-L, and m510 Server Blades.   It does not support the new HPE ProLiant m750 Server Blade.

- Only HPE ProLiant m750 Server Blades are supported in the Moonshot 1500 Chassis 2.0 (P18680-B21),

- Mixed Server Blade configurations are supported (excluding the m750) in HPE Moonshot 1500 Chassis 1.- See Network section in step 3 for restrictions

Step 2: Configure ProLiant Server Blades

HPE ProLiant Server Blades  (Min:1, Max: 45)

Notes:

- Mixed Server Blade configuration is supported in the Moonshot 1500 Chassis 1.0 - See Network section in step 3 and the special populations rules section for restrictions

- See Server Blade Quick Specs for Blade configurations

HPE ProLiant m510-16c Server Blade

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069171

Notes:

- The HPE ProLiant m510 Server Blades are ONLY supported in the original Moonshot Chassis (755372-B21)

- Due to thermal constraints, a maximum of 30 m510-16c servers can be configured in a chassis. Mixed configurations may allow more servers to be installed in a chassis. Please refer to the special population rules section of this document for details.

HPE ProLiant m510 Xeon D-1587 1.7GHz 16-core Configure-to-order Server Cartridge

858545-B21

HPE ProLiant m750 Server Blade

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=a00073555enw

Notes:  The HPE ProLiant m750 Server Blade is only supported in New Moonshot Chassis 2.0  (P18680-B21)

HPE ProLiant m750 E-2286M 5.0GHz 8-core 45W Configure-to-order Blade Server

P17342-B21

HPE ProLiant m710x Server Blade

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069173

Notes:  The HPE ProLiant m710x Server Blade is ONLY supported in the original Moonshot Chassis (755372-B21)

Step 3: Choose Required Networking Options

Networking

Notes:

- Recommended to order a minimum of One (1) Switch Kit and One (1) Uplink Kit per chassis.

- Maximum of Two (2) Switch Kits and Two Uplink Kits (2) per chassis to allow configurations with redundant or dual networks.

Moonshot-45XGc Switch Module (10G Switch - 45 port)

• Moonshot 16SFP+ Uplink Module
• Moonshot 4QSFP+ Uplink Module

Step 3A: Switches (Min:1, Max: 2)

Comware Switch

HPE Moonshot-45XGc Switch Module Kit

704654-B21

Step 3B: Uplinks (Min:1, Max: 2)

HPE Moonshot-16SFP+ Uplink Module Kit

783263-B21

HPE Moonshot-4QSFP+ Uplink Module Kit

704652-B21

Step 4: Choose Required Power options

Power Supplies (Min:3, Max: 4)

HPE Common Slot Platinum Plus Power Supply Kits

Notes:

- Minimum of Three (3) power supplies must be installed for a functional configuration. The chassis can accommodate a maximum of Four (4) power supplies.

- N+N power redundancy is supported, as long as total max power is below the total power of the remaining 2 power supplies.

- Intel based X86 cartridges use power capping to reduce the amount of power used during this degraded state.

HPE 1500W Common Slot Platinum Plus Power Supply Kit

684532-B21

HPE 1500W Common Slot 48VDC Hot Plug Power Supply Kit

746708-B21

Step 5: Choose Additional Chassis Factory Integration Options

HPE Rail Kits (Chassis Specific)

HPE 4.3U Server Rail Kit

681254-B21

HPE 0.66U Spacer Blank Kit

681260-B21

Notes:

- For data center airflow management purposes, it is recommended that either the .66U Spacer Blank or the 13U FIO Rack Adapter Kit can be ordered.

- The HPE 4.3U Rail Kit is required to be ordered for every chassis to properly install the chassis into a rack.

- The .66U Spacer Blank kit may be ordered and will give an even 5U (4.3U+0.66U) spacing in a rack. This would enable installing up to 8 chassis in a 42U rack. It is also possible to stack up to 9 chassis in a 42U rack using the 13U FIO Rack Adapter Kit.

HPE Rack Adapter

Notes:

- Group the HPE Moonshot 1500 Chassis units into a 13U space. Order one per three chassis.

- HPE 4.3U Server Rail Kit (PN 681254-B21) is still required

- The 0.66U spacer is not used when selecting this option.

Step 6: Choose Additional Chassis Options

HPE Moonshot 1500 Chassis Management 2.0 Module (CM 2.0)

The HPE Moonshot 1500 Chassis Management 2.0 Module (CM2.0) is an optional solution intended for upgrading existing HPE Moonshot 1500 Chassis 1.0 to support new HPE ProLiant m750 Server Blades.

HPE Moonshot 1500 2.0 Chassis Manager Module

P17347-B21

Notes: The CM2.0 option is a standard feature in the HPE Moonshot 1500 Chassis 2.0

Specific Chassis Population Rules for the HPE ProLiant m510 Server Blade

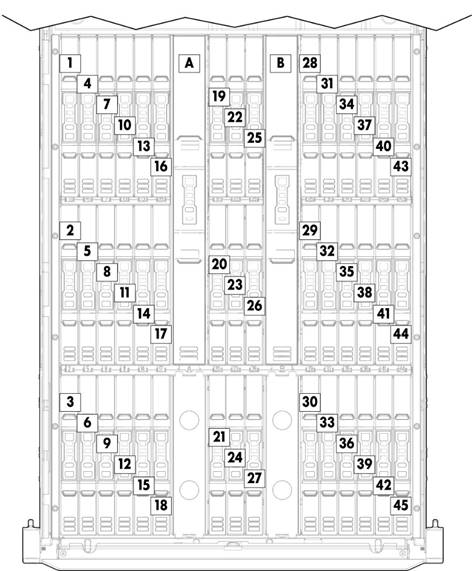

Server blade slot and switch module bay identification

The chassis provides 45 server blade slots (1-45) and two switch module bays (A-B).

Notes:

­ Factory Integrated Models must start with a HPE Moonshot 1500 Chassis.

­ The following configuration rules must be followed when installing the HPE ProLiant m510 Server Blade in a Moonshot 1500 System, in order to maintain an optimum thermal environment.

 If your configuration has  m510 (8-core model) Grey in diagrams

• No restriction in number of servers per chassis (i.e. 1 up to maximum of 45)
• Mixing with other ProLiant server blades is allowed, provided loading rules specified by other server blades (if any) are also fulfilled.

If your configuration has  m510-16c (16-core model) Blue in diagrams

• Install m510-16c before any other servers. Start from slot 1 and move down the column to slot 2, then slot 4, 5 etc.
• Any column that has a m510-16c must leave two slots blank in Row 3 (one slot in its own column and another slot in the adjacent right column).
• Mixing with other ProLiant server blades is allowed, provided loading rules specified by other server blades (if any) are also fulfilled.

Notes: Pictures 3.1-3.4 show some example scenarios. Blue represents a m510-16c server, Grey is any other server (including m510 8-core) and Purple is an Empty slot.

FANS, I/O, Power Supplies

FANS, I/O, Power Supplies

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

Additional options are not configurable for server upgrade kits.

Support Services

3 year Care

HPE 3 year Foundation Care Next business day Moonshot 1500 Opt OS Service

U8K89E

HPE 3 year Foundation Care Next business day with DMR Moonshot 1500 Opt OS Service

U8K90E

HPE 3 year Foundation Care Next business day with CDMR Moonshot 1500 Opt OS Service

U8K91E

HPE 3 year Foundation Care 24x7 Moonshot 1500 Opt OS Service

U8K92E

HPE 3 year Foundation Care 24x7 wDMR Moonshot 1500 Opt OS Service

U8K93E

HPE 3 year Foundation Care 24x7 wCDMR Moonshot 1500 Opt OS Service

U8K94E

HPE 3 year Foundation Care Call to Repair Moonshot 1500 Opt OS Service

U8K95E

HPE 3 year Foundation Care Call to Repair wDMR Moonshot 1500 Opt OS Service

U8K96E

HPE 3 year Foundation Care Call to Repair wCDMR Moonshot 1500 Opt OS Service

U8K97E

4 year Care

HPE 4 year Foundation Care Next business day Moonshot 1500 Opt OS Service

U8AT3E

HPE 4 year Foundation Care Next business day with DMR Moonshot 1500 Opt OS Service

U8AT4E

HPE 4 year Foundation Care Next business day with CDMR Moonshot 1500 Opt OS Service

U8AT5E

HPE 4 year Foundation Care 24x7 Moonshot 1500 Opt OS Service

U8AT6E

HPE 4 year Foundation Care 24x7 wDMR Moonshot 1500 Opt OS Service

U8AT7E

HPE 4 year Foundation Care 24x7 wCDMR Moonshot 1500 Opt OS Service

U8AT8E

HPE 4 year Foundation Care Call to Repair Moonshot 1500 Opt OS Service

U8AT9E

HPE 4 year Foundation Care Call to Repair wDMR Moonshot 1500 Opt OS Service

U8AU0E

HPE 4 year Foundation Care Call to Repair wCDMR Moonshot 1500 Opt OS Service

U8AU1E

5 year Care

HPE 5 year Foundation Care Next business day Moonshot 1500 Opt OS Service

U8AU2E

HPE 5 year Foundation Care Next business day with DMR Moonshot 1500 Opt OS Service

U8AU3E

HPE 5 year Foundation Care Next business day with CDMR Moonshot 1500 Opt OS Service

U8AU4E

HPE 5 year Foundation Care 24x7 Moonshot 1500 Opt OS Service

U8AU5E

HPE 5 year Foundation Care 24x7 wDMR Moonshot 1500 Opt OS Service

U8AU6E

HPE 5 year Foundation Care 24x7 wCDMR Moonshot 1500 Opt OS Service

U8AU7E

HPE 5 year Foundation Care Call to Repair Moonshot 1500 Opt OS Service

U8AU8E

HPE 5 year Foundation Care Call to Repair wDMR Moonshot 1500 Opt OS Service

U8AU9E

HPE 5 year Foundation Care Call to Repair wCDMR Moonshot 1500 Opt OS Service

U8AV0E

Notes: See HPE Support Services Central for additional services at http://ssc.hpe.com

HPE Power Cords

HPE C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord

AF573A

HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord

A0K02A

HPE C13-C14 IN 250V 10Amp 2m Black Jumper Cord

R1C65A

HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord

AF556A

HPE C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord

AF557A

HPE C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord

AF558A

HPE C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord

AF559A

HPE C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord

AF561A

HPE C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord

AF562A

HPE C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord

AF560A

HPE C13 - SI-32 IL 250V 10Amp 1.83m Power Cord

AF564A

HPE C13 - SEV 1011 CH  250V 10Amp 1.83m Power Cord

AF565A

HPE C13 - DK-2.5A DK  250V 10Amp 1.83m Power Cord

AF566A

HPE C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord

AF567A

HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord

AF568A

HPE C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord

AF569A

HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

AF570A

HPE C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord

AF572A

HPE C13 - IS-1293 IN 250V 10Amp HV 2.5m Power Cord

SG579A

HPE C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord

AF591A

HPE C13 - C14 WW 250V 10A Gray 0.7m Jumper Cord

A0K03A

HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord

A0N33A

HPE Advanced Power Manager

The HPE Advanced Power Manager is an optional rack level solution for the HPE Moonshot System which enables server-level DC (or hardware) power on and off and server-level monitoring. In addition, the HPE APM will automatically discover hardware components, dynamic rack power capping, provides efficient Rack management, manages shared infrastructure, and participates in federation with other HPE APM units.

The HPE APM does not replace rack PDUs, but is designed to enable the utilization of basic, low cost, rack PDUs while providing the functionality of 'switched' PDUs (which provide hardware power on/off of individual servers by turning off the AC power to the power supplies of a given server).

Because the HPE Moonshot System shares power supplies to optimize power efficiency, using 'switched' PDUs to turn off all the power supplies in the chassis will result in the loss of all server nodes in that chassis. The HPE APM solves this by allowing server node-level hardware power on/off of the DC power to the individual server node motherboards.

HPE Apollo Platform Manager Kit

741192-B21

Notes: Each HPE APM can connect to 2 HPE SL Advanced Power Manager Distribution (SL APMD) modules

HPE Apollo Platform Manager Distribution Module Kit

620002-B21

Notes:

- Each SL APMD can connect up to 10 chassis

- HPE Advanced Power Manager support for HPE CM 2.0 will be available in a future release

HPE Networking Options

SFP Options

HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver

453151-B21

HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver

453154-B21

Transceivers

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

HPE BladeSystem c-Class 40Gb QSFP+ MPO SR4 100m Transceiver

720187-B21

HPE 10GBase-T SFP+ Transceiver

813874-B21

Notes:  These SKUs are orderable as a BTO option only. These options are not restricted by blade model.

Direct Attach Cables

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable

AP820A

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

QSFP+ Options

Transceivers

HPE X140 40G QSFP+ MPO SR4 Transceiver

JG325B

HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver

JL251A

Direct Attach Cables

HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

JG326A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

JG327A

HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

JG328A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

JG329A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

Optical cables

HPE BladeSystem c-Class QSFP+ to 4x10G SFP+ 15m Active Optical Cable

721076-B21

HPE BladeSystem c-Class 40G QSFP+ to QSFP+ 15m Active Optical Cable

720211-B21

Notes: The Optical cables must be ordered as a standalone parts

Adaptors

HPE QSFP/SFP+ Adapter Kit

655874-B21

Power Supply Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL:

HPE Power Advisor

Notes: Power Specification and Technical Content for supported power supplies can be found at:

 https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=4aa6-2925enw

HPE Basic Power Distribution Units

HPE 277 Volt options for H3X07A and H3X08A

HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

656364-B21

HPE 1500W Common Slot Platinum Plus Power Supply Kit

684532-B21

HPE 1500W Common Slot 48VDC Hot Plug Power Supply Kit

746708-B21

Notes: Please see the QuickSpecs for Technical Specifications and additional information:

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04111392

HPE 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

Input Voltage Range (Vrms)

100 - 240

Frequency Range (Nominal) (Hz)

50 - 60

Nominal Input Voltage (Vrms)

100

120

200

208

220

230

240

Maximum Rated Output Wattage

800

900

1200

1200

1200

1200

1200

Nominal Input Current (A rms)

9.1

8.4

6.7

6.4

6.1

5.8

5.5

Maximum Rated Input Wattage Rating (Watts)

897

999

1321

1319

1317

1315

1314

Maximum Rated VA (Volt-Amp)

909

1012

1338

1337

1334

1332

1331

Efficiency (%) at Max. Rated Output Wattage

89.2

90.1

90.9

91.0

91.1

91.2

91.3

Power Factor

0.998

Leakage Current (mA)

0.42

0.50

0.83

0.87

0.92

0.96

1.00

Maximum Inrush Current (A peak)

30

Maximum Inrush Current duration (mS)

20

Maximum British Thermal Unit Rating

(BTU-Hr)

3061

3408

4506

4501

4493

4487

4483

Notes:

- Due to restricted airflow at 110VAC max power is 600W per power supply

- Due to restricted airflow at 220VAC max power is 850W per power supply

HPE 1500W Common Slot Platinum Plus Power Supply Kit

Input Voltage Range (Vrms)

200 - 240

Frequency Range (Nominal) (Hz)

50 - 60

Nominal Input Voltage (Vrms)

200

208

220

230

240

Maximum Rated Output Wattage

1500

1500

1500

1500

1500

Nominal Input Current (A rms)

8.4

8.1

7.6

7.3

7.0

Maximum Rated Input Wattage Rating (Watts)

1661

1659

1655

1652

1649

Maximum Rated VA (Volt-Amp)

1681

1679

1675

1672

1669

Efficiency (%) at Max. Rated Output Wattage

90.3

90.4

90.6

90.8

91.0

Power Factor

0.999

0.999

0.999

0.999

0.999

Leakage Current (mA)

0.50

0.75

0.79

0.83

1.00

Maximum Inrush Current (A peak)

40

Maximum Inrush Current duration (mS)

0.2

Maximum British Thermal Unit Rating

(BTU-Hr)

5667

5661

5648

5637

5627

HPE 1500W Common Slot 48VDC Hot Plug Power Supply Kit

Input Voltage Range (VDC)

-40 to -72

Frequency Range (Nominal) (Hz)

DC

Nominal Input Voltage (VDC)

-40

-48

-72

Maximum Rated Output Wattage

1500

1500

1500

Nominal Input Current (ADC)

40.5

33.5

22.2

Maximum Rated Input Wattage Rating (Watts)

1621

1607

1598

Maximum Rated VA (Volt-Amp)

1621

1607

1598

Efficiency (%) at Max. Rated Output Wattage

92.6

93.3

93.9

Power Factor

N/A

Leakage Current (mA)

N/A

Maximum Inrush Current (A peak)

63

Maximum Inrush Current duration (mS)

10

Maximum British Thermal Unit Rating

(BTU-Hr)

5530

5484

5451

Environment friendly Products and Approach  End-of life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site.

These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

15-Nov-2021

Version 21

Changed

Service and Support section was updated

Obsolete SKUs were removed

20-Sep-2021

Version 20

Changed

Technical Specifications section was updated.

Obsolete SKUs were removed

10-May-2021

Version 19

Changed

Additional Options section was updated.

Obsolete SKUs were removed

05-Oct-2020

Version 18

Changed

Service and Support and Additional Options sections were updated

06-Jul-2020

Version 17

Changed

Technical Specifications section was updated

06-Apr-2020

Version 16

Changed

Overview, Standards Features, Optional Features, Configuration Information, Additional Options and Technical Specifications sections were updated

16-Mar-2020

Version 15

Changed

Obsolete SKU was removed

17-Feb-2020

Version 14

Changed

Overview, Standard Features, Service and Support, Configuration Information and Additional Options Features were updated.

03-Feb-2020

Version 13

Changed

Overview, Standards Features, Optional Features , Configuration Information and Additional Options sections were updated.

03-Dec-2018

Version 12

Changed

Standard Features, Configuration Information and Additional Options sections were updated.

SKU was added in Configuration Information section

01-Oct-2018

Version 11

Changed

Configuration Information and Aditional Options were updated.

06-Aug-2018

Version 10

Changed

SKUs and descriptions were updated on Configuration Information and Additional Options Sections

05-Feb-2018

Version 9

Changed

Additional Options Section was updated

18-Dec-2017

Version 8

Changed

Standard Features Section was updated

16-Dec-2016

Version 7

Changed

Added information on new servers and switches

08-Jul-2016

Version 6

Changed

The whole QuickSpecs , formatting and SKUs were updated

09-Oct-2015

Version 5

Changed

Unarchive version and update with the latet info and specs of the HPE Moonshot 1500 Chassis

10-Jun-2014

Version 4

Changed

HPE Hard Drives, Direct Attach Cables SKUs updated.

18-Feb-2014

Version 3

Changed

Added the What's New and the Pre-Configured Models sections. Changes made in the Configuration Information section.

14-Dec-2013

Version 2

Changed

Corrected a part number in the Configuration Information section.

09-Dec-2013

Version 1

New

New QuickSpecs

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

AMD Opteron^TM is a US registered trademark of AMD Corporation.

c04111337 - 14757 - Worldwide  - V21 - 15-November-2021
