HP ProLiant m710 Server Cartridge

HP Moonshot System with the HP ProLiant m710 server cartridge is designed to enhance the performance of Rich Application Streaming and Video Transcoding.  The ProLiant m710 server cartridge has one Intel® Xeon® E3-1284L v3 four-core processor with Intel® Iris^TM Pro P5200 graphics, 32GB of ECC protected memory, 10Gb Ethernet along with one M.2 flash storage module for local OS booting.

The HP Moonshot System uses an innovative new architecture that results from one simple design tenet: to align purpose-built modules with the right workload to provide optimal results for your environment. Traditional servers rely on dedicated components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot system shares these chassis components and is capable of supporting 45 servers cartridge per 4.3U chassis.
This gives you the ability to generate greater revenue from a smaller footprint while driving down your operational costs.

Front View:

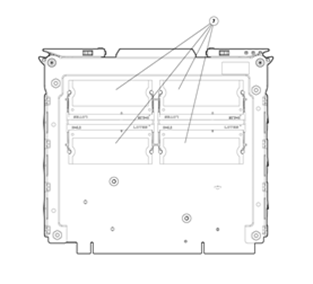

Rear View:

1.

QR Code label

7.

Four (4) DDR3 SODIMM memory slots

2.

Cartridge Link LED/button

3.

Cartridge UID LED/button

4.

Drive LED

5.

Cartridge power LED/button

6.

One (1) Intel® Xeon E3-1284Lv3™ Processor

NOTE: For information on HP Moonshot Chassis, Switch and Uplink Modules, please see the following:

Chassis:

HP Moonshot 1500 Chassis Opt OS

http://www8.hp.com/us/en/products/servers/moonshot/index.html

Switch:

FastPATH

HP Moonshot-45G Switch Module

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111070

HP Moonshot-180G Switch Module

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111290

Comware

HP Moonshot-45Gc Switch Module

http://www8.hp.com/us/en/products/servers/moonshot/index.html

HP Moonshot-45XGc Switch Module

http://www8.hp.com/h20195/v2/GetHtml.aspx?docname=c04384058

Uplink:

HP Moonshot-6SFP+ Uplink Module
http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111292

HP Moonshot-16SFP+ Uplink Module

http://www8.hp.com/h20195/v2/gethtml.aspx?docname=c04499458

HP Moonshot-4QSFP+ Uplink Module

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111291

Processor

Intel® Xeon® E3-1284L v3 (1.8-3.2GHz/4-core/6MB/47W)

Integrated Intel® Iris^TM Pro P5200 graphics and 128MB of embedded DRAM

Cache Memory

6MB shared Level 3

Memory Protection

ECC

Memory

Type

HP 8GB (1x8GB) PC3L-12800 (DDR3-1600) SODIMM Low Voltage Memory

DIMM Slots Available

Four (4) SODIMM Slots

Maximum Configuration

32GB (4x8GB)

Network Controller

Mellanox Connect-X3
Dual 10GbE NIC. Supports RDMA over Converged Ethernet (RoCE)

Storage Controller

Integrated into the Intel® QM87 chipset

M.2 2280 solid state device

765479-B21

120GB

765481-B21

240GB

765483-B21

480GB

NOTE: m710 cartridge may be purchased with zero M.2 storage (i.e. network/diskless boot).

Interfaces

Cartridge Link LED/button

Cartridge UID LED/button

Drive LED

Cartridge health LED

HDMI 1.4b compliant connector for external monitor

Micro-USB 2.0 connector

NOTE: HDMI and Micro-USB connectors are for diagnostic usage only and may require removal of any adjacent cartridge.

NOTE: To connect a standard USB device to the cartridge, connect a USB on-the-go adapter to the cartridge Micro-USB connector, and then connect the USB device to the adapter.

Industry Standard Compliance

PXE Support

PCIe 3.0

iSCSI Boot (with supported operating systems)

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server 2012 / 2012 R2, Windows 2008 R2, Client OS Windows 7, 8.1

Red Hat Enterprise Linux (RHEL) 6.5 and 7.0

SUSE Linux Enterprise Server (SLES) 11 SP3

Canonical Ubuntu 14.04

NOTE: Only 64-bit versions of these operating systems are supported.
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/go/servers/Moonshot/download

Form Factor

HP ProLiant m710 Server Cartridge is a server cartridge that plugs into the HP Moonshot 1500 Chassis.

Security

Serial interface control

Power switch security

Administrator's password

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE
Server Cartridge Warranty includes 3-Year Parts, 0-Year Labor, 0-Year Onsite support. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

HP Insight Cluster Management Utility (CMU)

HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP-supported suite of tools that are used to manage large-scale systems. Insight CMU includes software for the centralized provisioning, management and monitoring of nodes. Insight CMU makes the administration of clusters more user friendly, efficient, and error free than if they were being managed by scripts, or on a node-by-node basis. For more information on HP Insight Cluster Management Utility, please contact your sales representative or go to: http://www.hp.com/go/cmu

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Moonshot, HP Integrity, HP ProLiant, HP ProLiant Server Blades, and HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Service and Support

To see recommended HP Care Pack Services for your HP product

(4 and 5 year Service offerings are also available)

see HP Moonshot 1500 Chassis Opt OS Quick Specs.

http://www8.hp.com/us/en/products/servers/moonshot/index.html

For more information

To learn more on HP Moonshot System, please contact your HP sales representative.

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

NOTE:  If you want to configure the HP Moonshot 1500 Chassis Opt OS with cartridges, proceed to the HP Moonshot 1500 Chassis Opt OS Quick Specs

http://www8.hp.com/us/en/products/servers/moonshot/index.html

NOTE:  If you want to configure a cartridge only, proceed to Step 1

Step 1: Base Configuration (Choose upgrade kit)

HP Moonshot Server Upgrade Kit

HP Moonshot Server Multipack

NOTE: up to 15 cartridges of any kind fit in this multipack

814659-B21

NOTE:  Mixed Cartridge configuration is supported

Step 2: Pick Moonshot Server

HP Moonshot Server

HP ProLiant m710 1P E3-1284L CPU 32GB Configure-to-order Server Cartridge
NOTE:  Mixed Cartridge configuration is supported
NOTE: Each Moonshot server comes preconfigured with four 8 GB SODIMM pre-installed. This is the only memory configuration available on this server.
NOTE: Each Moonshot cartridge is pre-configured with a single Intel® Xeon® E3-1284L v3 (x86-64) processor running at 1.8-3.2GHz. This processor is four-core and contains 6MB of shared L3 cache. The same processor package also contains an Integrated Intel® Iris^TM Pro P5200 graphics controller and 128MB of embedded DRAM.

755860-B21

Step 3: Configure Moonshot Server (Choose appropriate Option)

Step 4: To Select a different cartridge see details:

http://www8.hp.com/us/en/products/servers/moonshot/index.html

Server Cartridge

HP Moonshot m710 Server Cartridge Dimensions
(H x W x D)

6.57 x 7.23 x 0.78in (16.71 x 18.37 x 1.98cm)

Typical Power

50.4W

Max Power

68.5W

System Inlet Temperature

Operating

50° to 95° F (10° to 35° C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 304.8 m) above sea level to a maximum of 10,000 ft (3048 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 86°F (30°C).

Non-operating

-22° to 140° F (-30° to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

10,000 ft (3048 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Non-operating

30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

L WAd

7.1 Bels

L pAm

54 dB

Operating

L WAd

7.3 Bels

L pAm

57 dB

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Date

Version History

Action

Description of Change

28-Sept-2015

From version 12 to 13

Updated

Update information throughout the QuickSpecs

17-Aug-2015

From version 11 to 12

Changed

Changes trough the QuickSpecs

17-Jul-2015

From version 10 to 11

Changed

Changes trough the QuickSpecs

1-Jun-2015

From version 9 to 10

Update

Update the configuration section

5-May-2015

From version 8 to 9

Update

Add chassis part number

9-Apr-2015

From version 7 to 8

Update

Add power supply

3-Feb-2015

From Version  6 to 7

Changed

Changes throughout the QuickSpecs

21-Jan-2015

From Version 4 to 6

Changed

Changes made in the configuration section

01-Dec-2014

From Version 3 to 4

Changed

Changes troughout the QuickSpecs

05-Nov-2014

From Version 1 to 3

Changed

Change Images and verbiage

09-Sept-2014

Create Version 1

Created

Create QS for HP ProLiant m710 Sever Cartridge

© Copyright 2015 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
