HP ProLiant m300 Server Cartridge

HP Moonshot System with the HP ProLiant m300 server cartridge was created for cost-effective Dynamic Content Delivery, front-end Web and online analytics. The ProLiant m300 server cartridge has one Intel Avoton-based System on a Chip (SoC) server having eight cores with integrated Ethernet along with one 2.5" hard drive and support for up to 32GB of memory on a compact cartridge.
The HP Moonshot System uses an innovative new architecture that results from one simple design tenet: to align purpose-built modules with the right workload to provide optimal results for your environment. Traditional servers rely on dedicated components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot system shares these chassis components and is capable of supporting 45 servers cartridge per 4.3U chassis.
This gives you the ability to generate greater revenue from a smaller footprint while driving down your operational costs.

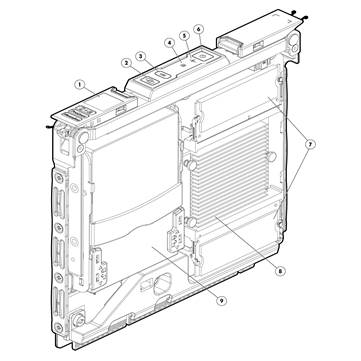

Front View:

Rear View:

1.

QR Code label

10.

Two (2) DDR3 SODIMM memory slots

2.

Cartridge Link LED/button

3.

Cartridge UID LED/button

4.

Drive LED

5.

Cartridge health LED

6.

Cartridge power LED/button

7.

Two (2) DDR3 SODIMM memory slots

8.

One (1) Intel® Atom™ Processor C2750

9.

One (1) small form factor (SFF) drive

Models

HP ProLiant m300 1P C2750 CPU 32GB Configure-to-order Server Cartridge

734619-B21

NOTE: For ordering the HP ProLiant m300 Server Cartridge, please see Step 1 of the Configuration to Order section of this QuickSpecs.

NOTE: For information on HP Moonshot Chassis, Switch and Uplink Modules, please see the following:
Chassis:

HP Moonshot 1500 Chassis Opt OS

http://www8.hp.com/us/en/products/servers/moonshot/index.html

Switch:

Comware

HP Moonshot-45Gc Switch Module

http://www8.hp.com/us/en/products/servers/moonshot/index.html

HP Moonshot-45XGc Switch Module

http://www8.hp.com/h20195/v2/GetHtml.aspx?docname=c04384058

FastPATH

HP Moonshot-45G Switch Module

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111070

HP Moonshot-180G Switch Module

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111290

Uplink:

HP Moonshot-6SFP+ Uplink Module
http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111292

HP Moonshot-16SFP+ Uplink Module

http://www8.hp.com/h20195/v2/gethtml.aspx?docname=c04499458

HP Moonshot-4QSFP+ Uplink Module

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111291

Processor

Intel® Atom™ Processor C2750 , 2.4 GHz

Cache Memory

1MB shared per 2 cores

Memory Protection

ECC

Memory

Type

HP 8GB (1x8GB) PC3L-12800 (DDR3-1600) SODIMM Low Voltage Memory

DIMM Slots Available

Four (4) SODIMM Slots

Maximum Configuration

32GB (4x8GB)

Network Controller

Integrated into the System on a Chip (SoC)
Dual 1Gbe NIC

Storage Controller

Integrated into the System on a Chip (SoC)

Maximum Internal Storage (per Moonshot Server)

Quick Release SFF SATA

1TB

1 x 1TB

500GB

1 x 500GB

Quick Release SFF SATA SSD

240GB

1 x 240GB

M.2

32GB

1 x 32GB

64GB

1 x 64GB

NOTE: Each cartridge will ship with one (1) SATA HDD or SATA SSD hard drive.

Interfaces

Cartridge Link LED/button

Cartridge UID LED/button

Drive LED

Cartridge health LED

Industry Standard Compliance

PXE Support

PCIe 3.0

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Canonical Ubuntu

NOTE: Only 64-bit versions of these operating systems are supported.
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/go/servers/Moonshot/download

Security

Power-on password

Setup password

Serial interface control

Power switch security

Administrator's password

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: Warranty includes 3-Year Parts, 0-Year Labor, 0-Year Onsite support.
Warranty terms may vary by region. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Moonshot, HP Integrity, HP ProLiant, HP ProLiant Server Blades, and HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

Service and Support

To see recommended HP Care Pack Services for your HP product

 (4 and 5 year Service offerings are also available)

http://www8.hp.com/us/en/products/servers/moonshot/index.html

For more information

To learn more on HP Moonshot System, please contact your HP sales representative.

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

NOTE:  If you want to configure the HP Moonshot 1500 Chassis Opt OS with cartridges, proceed to the HP Moonshot 1500 Chassis Opt OS Quick Specs

http://www8.hp.com/us/en/products/servers/moonshot/index.html

NOTE:  If you want to configure a cartridge only, proceed to Step 1

Step 1: Base Configuration (Choose upgrade kit)

HP Moonshot Server Upgrade Kit

HP Moonshot Server Multipack

NOTE: up to 15 cartridges of any kind fit in this multipack

814659-B21

NOTE:  Mixed Cartridge configuration is supported

Step 2: Pick Moonshot Server

HP Moonshot Server

HP ProLiant m300 1P C2750 CPU 32GB Configure-to-order Server Cartridge

NOTE:  Mixed Cartridge configuration is supported

NOTE: Each Moonshot server comes preconfigured with four 8 GB SODIMM pre-installed. This is the only memory configuration available on this server.
NOTE: Each Moonshot cartridge is pre-configured with a single Intel® Atom™ Processor C2750 running at 2.4 GHz. This processor is eight-core and contains 1 MB Cache shared per two cores. The C2750 is the only processor option available and represents a balance of performance and energy efficiency.

734619-B21

Step 3: Configure Moonshot Servers (Choose appropriate Option)

M.2

HP Moonshot 32G SATA VE M.2 2242 FIO Kit

749892-B21

HP Moonshot 64G SATA VE M.2 2242 FIO Kit

765849-B21

HP Hard drives

6G SATA Quick Release SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) Quick Release Midline 1yr Warranty Hard Drive

632080-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) Quick Release Midline 1yr Warranty Hard Drive

632078-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

6G SATA Value Endurance Quick Release SFF (2.5-inch) Enterprise Value Solid State Drives

HP 240GB 6G SATA Value Endurance SFF 2.5-in Quick-release Enterprise Value 3yr Wty Solid State Drive

718180-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html
NOTE: The non-hot plug hard drives use a quick release carrier.

Step 4: To Select a different cartridge see details:

http://www8.hp.com/us/en/products/servers/moonshot/index.html

Server Cartridge

HP Moonshot m300 Server Cartridge Dimensions
(H x W x D)

6.57 x 7.23 x 0.78in (16.71 x 18.37 x 1.98cm)

Typical Power

27.5W

Max Power

44.0W

System Inlet Temperature

Operating

50° to 95° F (10° to 35° C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 304.8 m) above sea level to a maximum of 10,000 ft (3048 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 86°F (30°C).

Non-operating

-22° to 140° F (-30° to 60° C)
Maximum rate of change is 36°F/hr (20°C/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

10,000 ft (3048 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Non-operating

30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
