HPE Integrity rx2800 i6 Server | |||||
|
Is your branch office or data center server infrastructure challenged to support more users and applications within a constrained budget, smaller IT staff and limited space or energy footprint? Is downtime not an option, security paramount and IT dynamics mandate a flexible Converged Infrastructure (CI) that scales with your business? | |||||
|
|
| ||||
|
HPE Integrity rx2800 i6 Server: Front View |
HPE Integrity rx2800 i6 Server: Rear View | ||||
|
1. |
Systems Insight Display |
1. |
2x Power Supplies | ||
|
2. |
1 DVD & 8 SFF HDDs |
2. |
Rear VGA & USB | ||
|
3. |
Front Panel Console (KVM) |
3. |
4x 1G LANs | ||
|
|
|
4. |
RS232 port | ||
|
|
|
5. |
iLO3 LAN | ||
|
|
|
6. |
6x I/O Slots | ||
| |||||
|

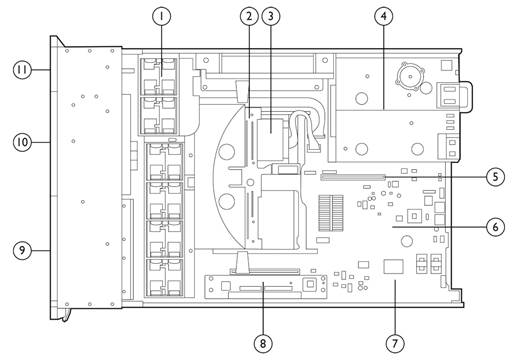

HPE Integrity rx2800 i6 Server: Inside View | |||||
|
1. |
6 system fans |
7. |
2 low profile PCIe above p410i RAID controller | ||
|
2. |
Internal USB |
8. |
24 DDR3 Memory Modules | ||
|
3. |
2 Processor Sockets |
9. |
8 Hard Disk Drive Slots | ||
|
4. |
2 PSUs over ICH10, Gromit XE & RN50 video controller |
10. |
DVD-ROM or DVD+RW slot | ||
|
5. |
Chipset |
11. |
Front IO & Systems Insight Display | ||
|
6. |
2 full-length PCIe slots over 2 half-length PCIe slots |
||||
|
| |||||
|
What's New | |||||
| |||||
|
| |||||
Standard Features
|
Models HPE rx2800 i6 server comes in the following model: 2U Rack-Optimized Server (can be installed in tower form factor with pedestal kit) Processors
Key features:
Memory Expansion
|
|
Memory Modules
32GB (2 x 16GB) PC3L-12800 Registered CAS 11 Memory Kit Key features:
Internal Storage
Embedded Storage Controller
Notes: Please refer to configuration information below for additional components that are required for RAID 5, 5+0, 6, 6+0
Internal Hard Disk Drives
Internal Solid State Drives
Optical Media Drive
Embedded Network Controller
Graphics, VGA, USB and Serial ports
Four (4) USB 2.0 ports I/O Expansion slots
2-Slot Riser Card (1 FL/FH x8 speed/x16 connector and 1 HL/FH x8 speed/x16 connector) |
|
Network
Adapters
Converged
Network Adapters
Fibre
Channel Host Bus Adapters
SAS RAID Controllers and Host Bus Adapters Support for 6 Gb/s SAS RAID Controllers
Support for 12 Gb/s SAS RAID Controller
Graphics
Adapter
InfiniBand
Host Channel Adapters
PCIe Workload Accelerator Support for Inte's 3DXPoint P4800X adapter
Hardware
Security
Power
& Cooling
Up to six (6) hot-plug fans (N+1 redundancy)
Key Power & Cooling Features:
The hot swap design allows for the online replacement of a power supply when N+N=2 supplies are configured in the server. |
|
Embedded Manageability and Serviceability
HPE Integrity Integrated Lights-Out (iLO) 3 (factory integrated) Key features:
Notes: HPE Integrity iLO 3 ships with a built in Advanced Pack License. No additional iLO licensing is needed. For more information, please see http://www.hpe.com/info/integrityilo
Systems Insight Display
Accessories Rack Kits
Notes: For non-HPE cabinets, please adhere to the following instructions to ensure that HPE can support the rack environment.
|
|
Operating System
Notes: - For detailed information on HP-UX support and features, please visit the following links: o QuickSpecs: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111649 o Overview: https://www.hpe.com/us/en/servers/hp-ux.html - For detailed information on VSI OpenVMS platform requirements, please visit the following pages: o OpenVMS Partner Platform Statements: https://vmssoftware.com/docs/VSI_IO_REF.pdf - Software Product Descriptions and QuickSpecs: https://vmssoftware.com/products/why-openvms/ |
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Configuration Information
|
Server product numbers | |
|
HPE Integrity rx2800 Rack-optimized Server |
AT101A |
|
Minimum additional components required:
Notes: - Supports High Line Power (1200W) and Low Line Power (800W) - Low Line Power (800W) is supported in limited configurations. One processor with up to 12 memory DIMMs or two processor sockets with up to 8 memory DIMMs - With HPE Smart Array P410i 6 Gb/s SAS RAID Controller: o HPE rx2800 512MB FBWC Kit (AM252A) is required for RAID 5 and RAID 5+0 o HPE rx2800 512MB FBWC kit (AM252A) AND HPE rx2800 i4 Smart Array Advance Pack (SAAP) License (AM305A) is required for RAID 6 and RAID 6+0. |
|
|
| |
|
Processors | |
|
Intel Itanium 9720 (1.73GHz/4-core/20MB/130W) Processor Kit for HPE Integrity rx2800 i6 |
AT104B |
|
Intel Itanium 9750 (2.53GHz/4-core/32MB/170W) Processor Kit for HPE Integrity rx2800 i6 |
AT138B |
|
Intel Itanium 9740 (2.13GHz/8-core/24MB/170W) Processor Kit for HPE Integrity rx2800 i6 |
AT105B |
|
Intel Itanium 9760 (2.66GHz/8-core/32MB/170W) Processor Kit for HPE Integrity rx2800 i6 |
AT106B |
|
Notes: Processor frequencies cannot be mixed in a server. |
|
|
| |
|
Memory Exp Board | |
|
HPE Integrity rx2800 6-slot Memory Expansion Board |
AT103A |
|
Notes: - Each memory expansion board contains six (6) memory DIMM slots - The server supports a maximum of four (4) memory expansion boards or 24 DIMM slots. - For one processor in system, maximum of two (2) memory expansion boards are supported. |
|
|
System Memory | |
|
HPE rx2800 32GB (2x16GB) Dual Rank PC3L 12800 (DDR3-1600) Registered CAS-9 Memory Kit |
AT110A |
|
Notes: - Memory must be installed in groups of two DIMMs, also known as pairs or modules. - For best performance, all DIMM slots should be populated with the same size DIMM. - Each memory pair must consist of DIMMs of the same type: same capacity/density, same organization, same number of ranks, and same speed. - Alternate DIMM pairs between memory risers. If both processor sockets are populated, alternate DIMMs between processors. |
|
|
| |
|
I/O Riser Boards | |
|
HPE Integrity rx2800 PCIe 3-slot Riser Board |
AM228A |
|
Notes: - I/O Riser Boards can be mixed in the system - Last two slots on second I/O riser board (secondary riser board) supports only Low Profile form factor for some I/O cards. |
|
|
| |
|
Network Adapters | |
|
HPE PCIe 2-port 1000Base-T LAN Adapter |
AD337A |
|
Converged Network Adapters | |
|
Notes: - Transceivers (HPE Integrity 10Gb SR SFP+ Opt) must be ordered separately. - For more details, please visit: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04164534 |
|
|
Fibre Channel Host Bus Adapters | |
|
HPE Integrity SN1000Q 2-port 16Gb Fibre Channel Host Bus Adapter |
B9F24A |
|
Transceivers | |
|
HPE Integrity 10Gb SR SFP+ Transceiver |
AT139A |
|
InfiniBand Host Channel Adapters | |
|
Notes: - Maximum of two cards are supported. - For more details, please visit: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154382 | |
|
| |
|
Hardware Security Support | |
|
Notes: - Maximum of one (1) module is supported. - Module is not shipped to China and Russia. |
|
|
| |
|
Internal Hard Disk Drives (HDDs) | |
|
HPE Integrity 1.2TB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F36B |
|
HPE Integrity 600GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F32B |
|
Notes: HPE rx2800 RAID 5 Factory Config is not allowed. |
|
|
Solid State Drives (SSDs) | |
|
| |
|
Factory RAID Options | |
|
Notes: Requires minimum 1 drive |
|
|
HPE Integrity RAID 1 Factory Configuration |
AM239A |
|
Notes: Requires minimum 2 drives |
|
|
HPE Integrity rx2800 RAID 5 Factory Configuration |
AM240A |
|
Notes: - Requires minimum 3 drives - If RAID is selected, all hard drives must be identical |
|
|
| |
|
Internal Optical Drives | |
|
HPE Integrity rx2800 Slimline DVD-ROM Internal Optical Drive |
AM242A |
|
HPE Integrity rx2800 Slimline DVD+RW Internal Optical Drive |
AM243A |
|
| |
|
Keyboard and Mouse Kits | |
|
HPE USB US Keyboard/Mouse Kit |
631341-B21 |
|
HPE USB JP Keyboard/Mouse Kit |
631360-B21 |
|
HPE USB AP/INTL Keyboard/Mouse Kit |
672097-373 |
|
| |
|
Power Supplies | |
|
HPE Integrity rx2800 Redundant Power Supply |
AT133A |
|
Notes: - The server provides an independent power input receptacle for each power supply (c13/C14 type). The independent design provides protection against losing the connection from a power cord or breaker. - Power cords should always be plugged into separate breakers whenever possible. - If the N+N power supply is ordered standalone the power supply will ship with two cords; one connects the system to the rack PDU and one enables connection to a wall socket. The cord that connects the system power supply to the PDU has an IEC 13 end, which plugs into the system power supply's IEC 14 socket, and an IEC 14 end, which plugs into the PDU's IEC 13 socket. The localized cord that connects the system power supply directly to the wall socket has an IEC 13 end, which plugs into the system power supply's IEC 14 socket, and a country specific end, which plus into the wall socket. This localized cord is included at the distribution site. | |
|
| |
|
Racking Options | |
|
HPE Integrity rx2800 Racking Kit |
AM227A |
|
HPE Integrity rx26/2800 Rack Support Shelf Kit |
AB469A |
|
Notes: Required for factory racked order. One shelf kit needed per every 10 servers in the rack and one for every gap left between servers |
|
|
Notes: Can be ordered separately for tower form deployment of HPE Integrity rx2800 Rack-Optimized Server (AT101A) |
|
|
| |
Technical Specifications
|
Site Planning and Installation - Not Included (system is customer installable) | ||
|
Dimensions |
Height |
89 mm (3.5") (2U) |
|
Width |
482mm (19") | |
|
Depth |
692 mm (27.3") | |
|
Weight |
Maximum |
30 kg (66 lbs) (fully populated) |
|
| ||
|
30 kg (66 lbs) (fully populated) |
Voltage Range |
100 - 120 VAC |
|
Maximum Current |
9.2 Amps @ 100VAC, 6.6 Amps @ 200VAC | |
|
Frequency Range |
50 - 60 Hz | |
|
Rated Input Power |
1015W @ 115 VAC | |
|
BTU Rating |
Maximum |
4800 BTU/hr (at 240 VAC) |
|
Power Supply Output |
Maximum |
800w maximum @ 100 - 120VAC |
|
| ||
|
System Inlet Temperature |
Recommended Operating Temperature |
18°C - 27°C (64°F - 81°F)* |
|
Allowable Operating Temperature |
5°C - 35°C (41°F - 95°F)* | |
|
Non-Operating Temperature |
-40°C - 80°C (-40°F - 175°F) | |
|
Notes: Operating limits apply from sea level to 1500m (4900 ft), above 1500m (4900 ft), derate maximum temperature by 2°C per every 300 m (3.6°F per every 985 ft) above sea level to a maximum of 3050 m (10,000 ft). No direct sustained sunlight. Maximum rate of change is 20°C (36°F ) per hour. The Recommended Operating Range is recommended for continuous operation. Operating within the Allowable Operating Range is supported but may result in a decrease in system performance. | ||
|
Humidity (non-condensing) |
Recommended Operating Humidity |
5.5°C (42°F) DP - 60% RH or 15°C (50°F) DP |
|
Allowable Operating Humidity |
20% RH - 80% RH and 21°C (70°F) DP | |
|
Non-operating Installed |
8% RH - 90% RH and 29°C (84°F) DP | |
|
Non-operating Storage |
8% RH - 90% RH and 32°C (90°F) DP | |
|
Altitude |
Operating |
3050m (10,000 ft) maximum |
|
Non-operating |
4500m (15,000 ft) maximum | |
|
Air Quality |
Airborne contaminants must be at the G1 level or less as defined in ISA Standard ISA-71.04-1985 | |
|
Airflow |
Minimum |
1360 CMH (800 CFM) |
|
Maximum |
3230 CMH (1900 CFM) | |
|
Acoustics (sound power) |
Rack Mount |
<= 7.0 bels LwAd |
|
Regulatory Compliance |
Regulatory Model Number |
RSVLA-RC01 |
|
Electromagnetic interference |
Complies with FCC Rules and Regulations, Part 15, as a Class A digital device. Manufacturer's Declaration to EN55022 Class A, VCCI Registered, Class A, KC (Korea Certification), BMSI Taiwan, CSA Certified, compliant with IEC 60950, UL 60950, EN 60950 and EN41003 | |
|
Safety |
UL Listed, CSA Certified, TUV GS Mark | |
|
| ||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
04-Dec-2023 |
Version 13 |
Changed |
Service and Support section was updated |
|
15-Nov-2021 |
Version 12 |
Changed |
Service and Support Pointnext Tech Care and Complete Care information updated |
|
03-Feb-2020 |
Version 11 |
Changed |
Overview, Standard Features, and Configuration Information sections were updated. |
|
02-Dec-2019 |
Version 10 |
Changed |
Service and Support and Configuration Information sections were updated. |
|
02-Apr-2019 |
Version 9 |
Added |
Standard Features section was updated. |
|
Removed |
Obsolete SKU was deleted: AH423A | ||
|
03-Dec-2018 |
Version 8 |
Changed |
Overview, Standard Features, and Ordering and Configuration sections were updated. |
|
Added |
SKUs added in Ordering and Configuration section: P04558-B21, P04562-B21. | ||
|
01-Oct-2018 |
Version 7 |
Changed |
Configuration sections were updated. |
|
2-Jul-2018 |
Version 6 |
Changed |
Standard Features and Ordering and Configuration sections were updated. |
|
Added |
SKUs added: 878038-H21, Q9X08A. | ||
|
25-Sep-2017 |
Version 5 |
Changed |
Standard Features and Ordering and Configuration sections were updated. |
|
Added |
SKUs added in Ordering and Configuration section: B9F51B, B9F52B. | ||
|
Removed |
SKUS deleted in Ordering and Configuration section: B9F50A, B9F51A, B9F52A. | ||
|
14-Aug-2017 |
Version 4 |
Changed |
Standard Features and Ordering and Configuration section were updated. |
|
Added |
SKUs added in Ordering and Configuration section: 803197-B21, 803195-B21. | ||
|
18-Aug-2017 |
Version 3 |
Changed |
Standard Features section was updated. |
|
11-Jul-2017 |
Version 2 |
Changed |
Standard Features and Ordering and Configuration sections were updated. |
|
Added |
SKUs added in Ordering and Configuration section: AD337A, AD338A and AD339A. | ||
|
05-Jun-2017 |
Version 1 |
Created |
New QuickSpecs |
