HPE Integrity rx2800 i4 Server: технические характеристики и документация
В архивеOverview
|
HPE Integrity rx2800 i4 Server | |||
|
Is your branch office or data center server infrastructure challenged to support more users and applications within constrained budget, smaller IT staff and limited space or energy footprint? In your environment is downtime not an option, security is paramount and IT dynamics mandate a flexible converged infrastructure that scales with your business? The HPE Integrity rx2800 i4 Server, a reliable and secure 2U two-socket UNIX server, is a great fit for branch offices and rack-mount server data centers supporting a range of mission-critical workloads. With up to 3.5X performance, 21 percent less energy consumption, and 33 percent lower TCO, the Integrity rx2800 i4 Server does more with less. It enables workload consolidation and software licensing cost savings through HPE Virtual Partitions (vPars) or Virtual Machines (VMs), while HPE Insight software and HPE Integrated Lights-Out 3 (iLO 3) increase staff productivity. HPE-UX 11i v3 and HPE Serviceguard support provides always-on resiliency and disaster recovery capability. The Integrity rx2800 i4 Server offers exceptional configuration flexibility and also comes in tower configurations with reduced acoustics for deployment in infrastructure challenged office environments. | |||
|
| |||
|
|
| ||
|
HPE Integrity rx2800 i4 Server: Front View |

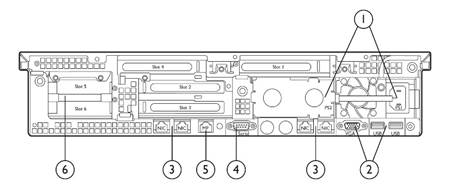

HPE Integrity rx2800 i4 Server: Rear View | ||
|
1. |
Systems Insight Display |
1. |
2x Power Supplies |
|
2. |
1 DVD & 8 SFF HDDs |
2. |
Rear VGA & USB |
|
3. |
Front Panel Console (KVM) |
3. |
4x 1G LANs |
|
|
|
4. |
RS232 port |
|
|
|
5. |
iLO3 LAN |
|
|
|
6. |
6x I/O Slots |
|
| |||
|
| |||
|

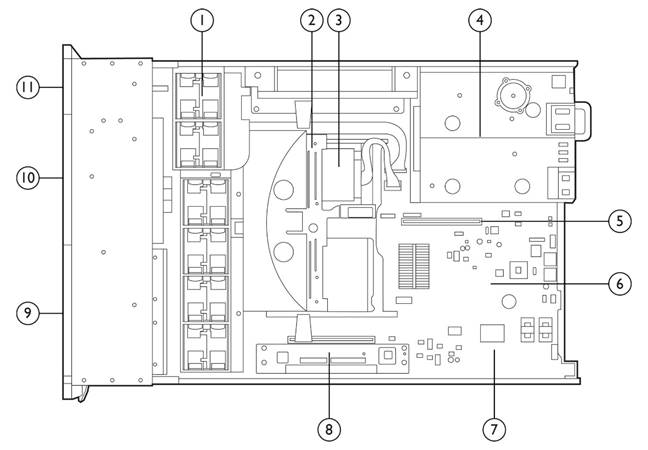

HPE Integrity rx2800 i4 Server: Inside View | |||
|
1. |
6 system fans |
7. |
2 low profile PCIe above p410i RAID controller |
|
2. |
Internal USB |
8. |
24 DDR3 Memory Modules |
|
3. |
2 Processor Sockets |
9. |
8 Hard Disk Drive Slots |
|
4. |
2 PSUs over ICH10, Gromit XE & RN50 video controller |
10. |
DVD-ROM or DVD+RW slot |
|
5. |
Chipset |
11. |
Front IO & Systems Insight Display |
|
6. |
2 full-length PCIe slots over 2 half-length PCIe slots |
|
|
|
| |||
|
What's New | |||
| |||
Standard Features
|
Models HPE rx2800 i4 server comes in two (2) models:
Processors
Key features:
Memory Expansion
Memory
Modules
Key features:
Internal Storage
Embedded
Storage Controller
NOTE: Please refer to configuration information below for additional components that are required for RAID 5, 5+0, 6, 6+0
Internal
Hard Disk Drives
Internal
Solid State Drives
Optical
Media Drive
Embedded
Network Controller
Graphics,
VGA, USB and Serial ports
I/O
Expansion slots
Network
Adapters
Converged
Network Adapters
Fibre
Channel Host Bus Adapters
SAS RAID Controllers and Host Bus Adapters Support for 6 Gb/s SAS RAID Controllers
Support for 12 Gb/s SAS RAID Controller
Graphics
Adapter
InfiniBand
Host Channel Adapters
Hardware
Security
Power
& Cooling
Key Power & Cooling Features:
Emedded Manageability and Serviceability HPE
Integrity Integrated Lights-Out (iLO) 3 (factory integrated) Key features:
NOTE:
HPE
Integrity iLO 3 ships with a built in Advanced Pack License. No additional
iLO licensing is needed.
Systems
Insight Display
Accessories Rack
Kits
NOTE:
For non-HPE cabinets, please adhere to the following instructions to
ensure that HPE can support the rack environment.
Operating System
Getting Started
Deploy
Monitor
Control
Protect
Optimize
Provision
Integrate
Virtualization
Availability
Protecting System
Protecting Data
Protecting Identity:
NOTE: For detailed information on HPE-UX support and features, please visit the following links:
|
|
|
|
Warranty |
|
Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. |
Services and Support
|
Support Services |
|
Protect your business beyond warranty with HPE Support Services |
|
HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple. |
|
Connect your devices: |
|
Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support. IDC 2 - HP CSC reports 2014 - 2015 Learn more about getting connected at http://www.hpe.com/services/getconnected |
|
HPE Proactive Care Advanced* - Call to Repair, three year Support Service |
|
This service helps achieve a higher return on your product investment with personalized support from a local assigned Account Support Manager who will share best practice advice and personalized recommendations designed to help improve availability and performance to increase stability and reduce unplanned downtime. Leverage your system's ability to connect to HPE for pre-failure alerts, automatic call logging, and parts dispatch. For business critical incidents, this service offers critical event management to reduce mean time to resolution. This recommendation provides a local customer engineer for onsite hardware repair if required within 6 hours and two-hour callback for supported software. Collaborative software management is included with independent software vendors unless you have your software support from HPE where we own all cases from start through to resolution. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en
|
|
HPE Proactive Care Advanced* - 24x7 coverage, three year Support Service |
|
This service helps achieve a higher return on your product investment with personalized support from a local assigned Account Support Manager who will share best practice advice and personalized recommendations designed to help improve availability and performance to increase stability and reduce unplanned downtime. Leverage your system's ability to connect to HPE for pre-failure alerts, automatic call logging and parts dispatch. For business critical incidents, this service offers critical event management to reduce mean time to resolution. This recommendation provides 24x7 coverage with four-hour response for hardware and collaborative support that offers two-hour callback for supported software issues. Collaborative software management is included with independent software vendors unless you have your software support from HPE where we own all cases from start through to resolution. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en
|
|
HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service |
|
HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This Service combines three years' proactive reporting and advice with our highest level of hardware support - HPE's 24x7, six hour hardware call-to-repair. HPE is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
|
|
HPE Proactive Care* with 24x7 coverage, three year Support Service |
|
HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf
NOTE: *HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.
|
|
HPE Foundation Care 24x7, three-year Support Service |
|
HPE Foundation Care 24x7 gives you access to HPE 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.
|
|
Parts and Materials |
|
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
|
|
|
|
Other related Services
|
|
HPE Installation and Startup Service |
|
Provides for the installation and startup of HPE technology including BladeSystems, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).
|
|
HPE Datacenter Care service |
|
HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others' products. For more information, visit http://www.hpe.com/services/datacentercare
|
|
HPE Factory Express for Servers and storage |
|
HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches. HPE Technology Services Support Credits offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.
|
|
HPE Education Services |
|
Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn
For more information: http://www.hpe.com/services |
Ordering and Configuration
|
Recommended Offering the best combination of performance, value and availability, Recommended Options have been selected by Hewlett Packard Enterprise experts to provide the right technology for a range of workloads and market segments. Fully integrated into the ProLiant management and security experience, Recommended Options provide the best fit with timely availability. | ||
|
Extended Extended Options provide an extended catalog of products tailored for customers in specific markets or with specific workloads, requiring the utmost in performance or value. Fully integrated into the ProLiant management and security experience, Extended Options represent great value and performance but typically have a longer lead-time. | ||
|
Server product numbers |
HPE Integrity rx2800 Rack-optimized Server |
AT101A |
|
Minimum additional components required:
NOTE: Supports High Line Power (1200W) and Low Line Power (800W) NOTE: Low Line Power (800W) is supported in limited configurations. One processor with up to 12 memory DIMMs or two processor sockets with up to 8 memory DIMMs. |
||
|
HPE Integrity rx2800 i4 Office Friendly Server |
AT102A | |
|
Minimum additional component required:
NOTE: OFS configuration does not support hot-swap redundancy in cooling fans NOTE: Supports both High Line Power (1200W) and Low Line Power (800W). NOTE: Low line power is supported in limited configurations. One processor with up to 12 memory DIMMs or two processor sockets with up to 8 memory DIMMs. |
||
|
NOTE: With HPE Smart Array P410i 6 Gb/s SAS RAID Controller:
|
||
|
| ||
|
Processors |
HPE Integrity rx2800 i4 Itanium 9520 (1.73GHz/4-core/20MB/130W) Processor Kit |
AT104A |
|
HPE rx2800 i4 Itanium 9550 (2.4GHz/4-core/32MB/130W) Processor Kit |
AT138A | |
|
HPE Integrity rx2800 i4 Itanium 9540 (2.13GHz/8-core/24MB/170W) Processor Kit |
AT105A | |
|
HPE Integrity rx2800 i4 Itanium 9560 (2.53GHz/8-core/32MB/170W) Processor Kit |
AT106A | |
|
NOTE: Processor frequencies cannot be mixed in a server. |
||
|
| ||
|
Memory Exp Board |
HPE Integrity rx2800 6-slot Memory Expansion Board |
AT103A |
|
NOTE: Each memory expansion board contains six (6) memory DIMM slots NOTE: The server supports a maximum of four (4) memory expansion boards or 24 DIMM slots. NOTE: For one processor in system, maximum of two (2) memory expansion boards are supported. |
| |
|
System Memory |
HPE rx2800 i4 16GB (2x8G) Dual Rank PC3L 10600 (DDR3-1333) Registered CAS-9 Memory Kit |
AT109A |
|
HPE rx2800 16GB (2x8GB) Single Rank PC3L-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
AT109B | |
|
HPE rx2800 32GB (2x16GB) Dual Rank PC3L 12800 (DDR3-1333) Registered CAS-9 Memory Kit |
AT110A | |
|
NOTE: Memory must be installed in groups of two DIMMs, also known as pairs or modules. NOTE: For best performance, all DIMM slots should be populated with the same size DIMM. NOTE: Each memory pair must consist of DIMMs of the same type: same capacity/density, same organization, same number of ranks, and same speed. NOTE: Alternate DIMM pairs between memory risers. If both processor sockets are populated, alternate DIMMs between processors. |
||
|
| ||
|
I/O Riser Boards |
HPE Integrity rx2800 PCIe 3-slot Riser Board |
AM228A |
|
HPE Integrity rx2800 PCIe 2-slot Riser Board |
AM245A | |
|
NOTE: I/O Riser Boards can be mixed in the system NOTE: Last two slots on second I/O riser board (secondary riser board) supports only NOTE: Low Profile form factor for some I/O cards. |
| |
|
| ||
|
Network Adapters |
HPE PCIe 2-port 1000Base-T LAN Adapter |
AD337A |
|
HPE Integrity PCIe 2-port 10GbE-SR Fabric Adapter |
AM225A | |
|
NOTE: For more details, please visit: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123309 |
| |
|
HPE Integrity PCIe 2-port 10GbE-CR Copper Adapter |
AM233A | |
|
HPE Ethernet 10Gb 2-port 561T Adapter for Integrity Servers |
B9F25A | |
|
HPE PCIe 2-port 1000Base-SX LAN Adapter |
AD338A | |
|
HPE Integrity PCIe 2-port 10GbE-LR Fabric Adapter |
AM232A | |
|
| ||
|
Converged Network Adapters |
HPE Integrity CN1100E Dual Port Converged Network Adapter |
AT111A |
|
NOTE: Transceivers (HPE Integrity 10Gb SR SFP+ Opt) must be ordered separately. NOTE: For more details, please visit: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04164534 |
| |
|
| ||
|
| ||
|
Fibre Channel Host Bus Adapters |
HPE PCI Express 1-port 8Gb Fibre Channel SR (QLogic) Adapter |
AH400A |
|
HPE PCI Express 2-port 8Gb Fibre Channel SR (QLogic) Adapter |
AH401A | |
|
HPE Integrity SN1000Q 1-port 16Gb Fibre Channel Host Bus Adapter |
B9F23A | |
|
HPE Integrity SN1000Q 2-port 16Gb Fibre Channel Host Bus Adapter |
B9F24A | |
|
| ||
|
Transceivers |
HPE Integrity 10Gb SR SFP+ Opt (Recommended) |
AT139A |
|
HPE Integrity 1Gb RJ-45 SFP Opt (Recommended) |
AT140A | |
|
HPE Integrity 8Gb SW FC SFP+ Opt (Recommended) |
AT141A | |
|
| ||
|
Graphics Adapter |
HPE Integrity rx2800 2D Graphics Adapter |
AH423A |
|
NOTE: Maximum of two cards are supported NOTE:For more details, please visit: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111594 |
| |
|
| ||
|
InfiniBand Host Channel Adapters |
HPE Integrity PCIe 2-port 4X QDR Infiniband Host Channel Adapter |
AT083A |
|
NOTE: Maximum of two cards are supported. NOTE: For more details, please visit: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154382 |
| |
|
| ||
|
Hardware Security Support |
HPE Integrity rx2800 Trusted Platform Module Kit |
AM237A |
|
NOTE: Maximum of one (1) module is supported. NOTE: Module is not shipped to China and Russia. |
| |
|
| ||
|
SAS RAID Controllers and Host Bus Adapters |
HPE Integrity Smart Array P411/256 2-port External PCIe 6Gb SAS Controller |
AM311A |
|
NOTE: Only supported in primary I/O riser board NOTE: Maximum of three (3) HPE Integrity PCIe 2P P411/256MB SAS Ctlr (AM311A) cards are supported. |
| |
|
HPE Integrity Smart Array P812/1GB PCIe SAS Controller |
AM312A | |
|
NOTE: Maximum of one (1) card is supported. |
||
|
NOTE: For more information, please visit: |
| |
|
HPE Integrity Smart Array P441 12Gb 2-port External SAS Controller |
Q9X08A | |
|
NOTE: Maximum of three (3) cards are supported. NOTE: For more information, please visit: |
||
|
| ||
|
Internal Hard Disk Drives (HDDs) |
HPE Integrity 300GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F30B |
|
HPE Integrity 600GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F32B | |
|
HPE Integrity 900GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
Q2C47A | |
|
HPE Integrity 300GB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F33B | |
|
HPE Integrity 600GB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F34B | |
|
HPE Integrity 1.2TB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F36B | |
|
| ||
|
Solid State Drives (SSDs) |
HPE rx2800 400GB SAS 12G Write Intensive SFF (2.5in) ST 3yr Wty Digitally Signed Firmware SSD |
B9F51B |
|
HPE rx2800 800GB SAS 12G Write Intensive SFF (2.5in) ST 3yr Wty Digitally Signed Firmware SSD |
B9F52B | |
|
| ||
|
Factory RAID Options |
HPE Integrity RAID 0 Factory Configuration |
AM238A |
|
NOTE: Requires minimum 1 drive |
| |
|
HPE Integrity RAID 1 Factory Configuration |
AM239A | |
|
NOTE: Requires minimum 2 drives |
| |
|
HPE rx2800 RAID 5 Factory Config (Recommended) |
AM240A | |
|
NOTE: Requires minimum 3 drives NOTE: If RAID is selected, all hard drives must be identical |
||
|
| ||
|
Internal Optical Drives |
HPE Integrity rx2800 Slimline DVD-ROM Internal Optical Drive |
AM242A |
|
HPE Integrity rx2800 Slimline DVD+RW External Optical Drive |
AM243A | |
|
| ||
|
Power Supplies |
HPE Integrity rx2800 Redundant Power Supply |
AT133A |
|
NOTE: The server provides an independent power input receptacle for each power supply (c13/C14 type). The independent design provides protection against losing the connection from a power cord or breaker. |
||
|
| ||
|
Racking |
HPE Integrity rx2800 Racking Kit |
AM227A |
|
NOTE: Required with HPE Integrity rx2800 i4 Rack-Optimized Server and HPE Integrity rx2800 i4 Carrier-Grade Server with DC Power |
| |
|
HPE Integrity rx26/2800 Rack Support Shelf Kit |
AB469A | |
|
NOTE: Required for factory racked order. One shelf kit needed per every 10 servers in the rack and one for every gap left between servers |
| |
|
HPE Integrity rx2800 Stand Alone Pedestal Kit |
AM251A | |
|
NOTE: Ships by default with HPE Integrity rx2800 i4 Office Friendly Base Server NOTE: Can be ordered separately for tower form deployment of HPE Integrity rx2800 i4 Rack-Optimized Server (AT101A) |
| |
Technical Specifications
|
Site Planning and Installation - Not Included (system is customer installable) | ||
|
Dimensions |
Height |
89 mm (3.5") (2U) |
|
Width |
482mm (19") | |
|
Depth |
692 mm (27.3") | |
|
Weight |
Maximum |
30 kg (66 lbs) (fully populated) |
|
| ||
|
30 kg (66 lbs) (fully populated) |
Voltage Range |
100 - 120 VAC |
|
Maximum Current |
9.2 Amps @ 100VAC, 6.6 Amps @ 200VAC | |
|
Frequency Range |
50 - 60 Hz | |
|
Rated Input Power |
1015W @ 115 VAC | |
|
BTU Rating |
Maximum |
4800 BTU/hr (at 240 VAC) |
|
Power Supply Output |
Maximum |
800w maximum @ 100 - 120VAC |
|
| ||
|
System Inlet Temperature |
Recommended Operating Temperature |
18°C - 27°C (64°F - 81°F)* |
|
Allowable Operating Temperature |
5°C - 35°C (41°F - 95°F)* | |
|
Non-Operating Temperature |
-40°C - 80°C (-40°F - 175°F) | |
|
NOTE:* Operating limits apply from sea level to 1500m (4900 ft), above 1500m (4900 ft), derate maximum temperature by 2°C per every 300 m (3.6°F per every 985 ft) above sea level to a maximum of 3050 m (10,000 ft). No direct sustained sunlight. Maximum rate of change is 20°C (36°F ) per hour. The Recommended Operating Range is recommended for continuous operation. Operating within the Allowable Operating Range is supported but may result in a decrease in system performance. | ||
|
| ||
|
Humidity (non-condensing) |
Recommended Operating Humidity |
5.5°C (42°F) DP - 60% RH or 15°C (50°F) DP |
|
Allowable Operating Humidity |
20% RH - 80% RH and 21°C (70°F) DP | |
|
Non-operating Installed |
8% RH - 90% RH and 29°C (84°F) DP | |
|
Non-operating Storage |
8% RH - 90% RH and 32°C (90°F) DP | |
|
| ||
|
Altitude |
Operating |
3050m (10,000 ft) maximum |
|
Non-operating |
4500m (15,000 ft) maximum | |
|
Air Quality |
Airborne contaminants must be at the G1 level or less as defined in ISA Standard ISA-71.04-1985 | |
|
Airflow |
Minimum |
1360 CMH (800 CFM) |
|
Maximum |
3230 CMH (1900 CFM) | |
|
Acoustics (sound power) |
Rack Mount |
<= 7.0 bels LwAd |
|
Office Friendly |
<= 6.0 bels LwAd | |
|
| ||
|
Regulatory Compliance |
Regulatory Model Number |
RSVLA-RC01 |
|
Electromagnetic interference |
Complies with FCC Rules and Regulations, Part 15, as a Class A digital device. Manufacturer's Declaration to EN55022 Class A, VCCI Registered, Class A, KC (Korea Certification), BMSI Taiwan, CSA Certified, compliant with IEC 60950, UL 60950, EN 60950 and EN41003 | |
|
Safety |
UL Listed, CSA Certified, TUV GS Mark | |
Summary of Changes
|
Date |
Version History |
Action |
Description of Change | ||||||||||||||||||
|
02-Jul-2018 |
Version 16 |
Changed |
Standard Features and Ordering and Configuration sections were updated. | ||||||||||||||||||
|
Added |
SKU was added: Q9X08A | ||||||||||||||||||||
|
02-Apr-2018 |
Version 15 |
Changed |
Ordering and Configuration section was updated. | ||||||||||||||||||
|
23-Oct-2017 |
Version 14 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. | ||||||||||||||||||
|
25-Sep-2017 |
Version 13 |
Changed |
Standard Features and Ordering and Configuration sections were updated. | ||||||||||||||||||
|
Added |
SKUs were added in Ordering and Configuration sections: | ||||||||||||||||||||
|
Removed |
SKUs were deleted in Ordering and Configuration sections: | ||||||||||||||||||||
|
17-Jul-2017 |
Version 12 |
Changed |
Standard Features, Service and Support, and Ordering and Configuration sections were updated. | ||||||||||||||||||
|
Removed |
Obsolete SKU was removed: B9F51A | ||||||||||||||||||||
|
27-Mar-2017 |
Version 11 |
Changed |
Standard Features, Services and Support, Ordering and Configuration, and Technical Specifications sections were updated. | ||||||||||||||||||
|
Added |
SKUs added in Ordering and Configuration section: | ||||||||||||||||||||
|
Removed |
OBS SKUs were deleted: | ||||||||||||||||||||
|
11-Dec-2015 |
Version 10 |
Changed |
Standard Features and Ordering and Configuration sections were updated. | ||||||||||||||||||
|
10-Jul-2015 |
Version 9 |
Added |
SKU added in Ordering and Configuration section: B9F25A | ||||||||||||||||||
|
Changed |
Information in Standard Features section was updated. | ||||||||||||||||||||
|
1-Jun-2015 |
Version 8 |
Added |
SKUs added in Configuration Information - Factory Integrated Models and Core options: 802576-B21, 802580-B21, 802584-B21 | ||||||||||||||||||
|
Removed |
SKUs removed in configuration Information - Factory Integrated Models and Core options: 632492-B21, 632494-B21 | ||||||||||||||||||||
|
Changed |
Information updated in storage section. | ||||||||||||||||||||
|
1-Dec-2014 |
Version 7 |
Changed |
Standard Features section was updated | ||||||||||||||||||
|
Added |
Technology Services for Integrity Servers and Protect your business beyond warranty with HPE Pointnext operational services sections were added to Support Services SKUs added to Internal Hard Disk Drives: B9F30A, B9F31A, B9F32A | ||||||||||||||||||||
|
14-Feb-2014 |
Version 6 |
Changed |
Revision made in the Standard Features section. | ||||||||||||||||||
|
10-Dec-2013 |
Version 5 |
Added |
HPE Integrity 1.2TB 10K SAS SFF HDD was added to Internal Hard Disk Drives. | ||||||||||||||||||
|
30-Sep-2013 |
Version 4 |
Changed |
Revised the Fibre Channel Host Bus Adapters section of Ordering and Configuration. | ||||||||||||||||||
|
31-May-2013 |
Version 2 to 3 |
Changed |
Revised the Technical Specifications section. | ||||||||||||||||||
|
15-Mar-2013 |
Version 2 |
Changed |
Updated the Standard Features Section and Ordering and Configuration Section- corrected spelling. | ||||||||||||||||||
|
04-Dec-2012 |
Version 1 |
Created |
New QuickSpecs | ||||||||||||||||||
| |||||||||||||||||||||
