HPE Integrity MC990 X for SAP HANA |
|
The HPE Integrity MC990 X Scale-up for SAP HANA is based on the HPE Integrity MC990 X Server, a scalable, rack-mounted platform optimized to support your data-intensive workloads. It features enterprise-class Intel® Xeon® processor E7-88xxv4 and E7-48xxv4 family, with built-in reliability, to help protect your applications from downtime. The HPE Integrity MC990 X for SAP HANA Solution is certified as a compute block for SAP HANA TDI. All of the configuration rules of the standard MC990 X Server apply to the MC990 X for SAP HANA Solution unless otherwise noted below. Use the same rack and rack options as the standard MC990 X server. This platform is purposefully designed for data-intensive, I/O heavy workloads and comes with up to 20TB of memory to provide a magnitude of performance gains with SAP HANA Workloads. With a maximum of 480 cores of powerful Xeon compute, the MC990 X for SAP HANA TDI is ideal to deploy your large SAP HANA Environment, and realize all the benefits of scaling-up. These include lower IT infrastructure costs for footprint, power, cooling, patching, and firmware - ideal when IT resources are thin. A broad portfolio of mission critical HPE Services gives you peace of mind and confidence as you deploy your SAP HANA workloads on the MC990 X for SAP HANA TDI. |
|
|
|
|
|
MC990 X Base Chassis (without bezel) |
MC990 X Expansion Chassis (without bezel) |
|

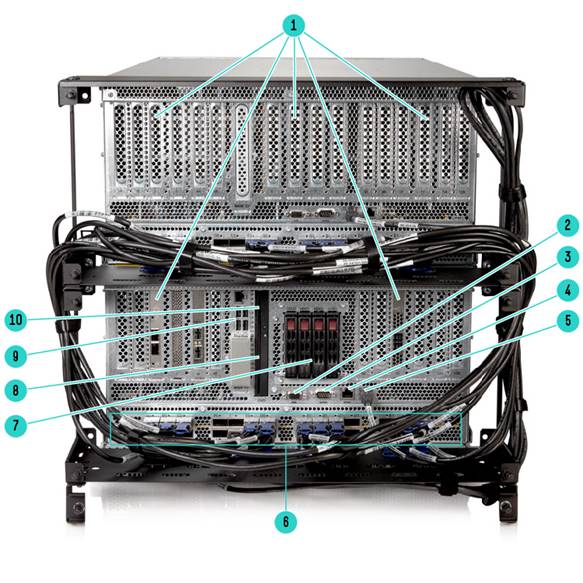

1. 20x PCIe 3.0 slots (8x base chassis, 12x expansion chassis) 2. VGA port 3. Serial port 4. Management connector 5. RMC connector |
6. 6. 28x NUMAlink ports (per chassis) 7. 4x Internal drive-bays (SSD or HDD) 8. 2x 1.8-inch SSD drive bays 9. 4x USB ports & 1x Ethernet port 10. DVD-R or DVD-RW Drive |
|
| |
|
| |
|

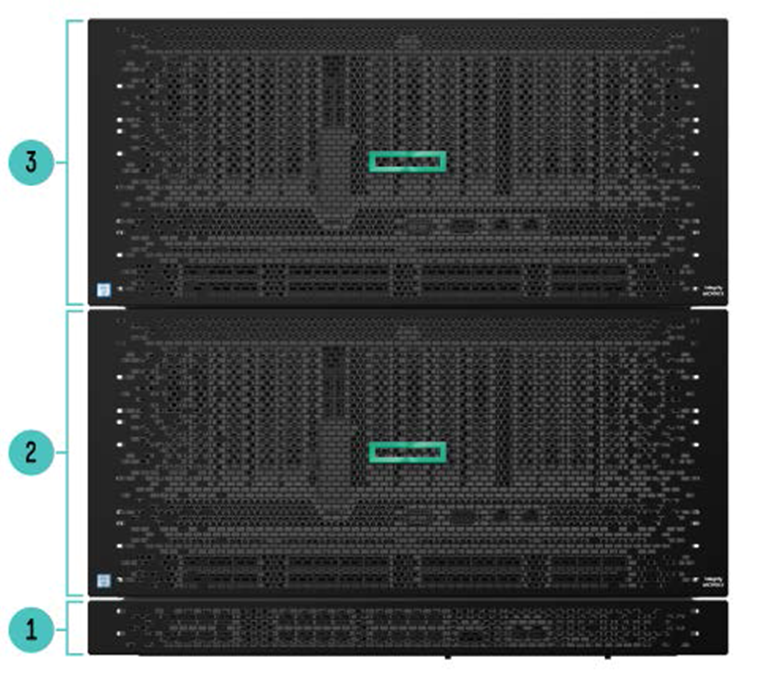

HPE Integrity MC990 X Server | |
|
1. HPE Integrity Rack Management Controller (RMC) 2. MC990 X Base Chassis 3. MC990 X Expansion Chassis
| |
|
| |
Standard Features
|
Models |
|
The HPE Integrity MC990 X for SAP HANA TDI Scale-up is available in two (2) base configurations:
Notes: Servers can be configured up to 20-sockets; using 4-socket Expansion servers when scaling |
|
|
|
Processors |
|
Four (4) to Twenty (20) Intel® Xeon® E7-4800/8800 v4 processors are configured in increments of four (4) in each server:
Notes: Servers can be configured up to 20-sockets; using 4-socket Expansion servers when scaling |
|
|
|
Memory Modules |
|
DDR4 Registered (R) DIMMs in 8GB, 16GB, 32GB and 64GB capacities. Memory kits sold in quantities of 32 DIMMs.
|
|
|
|
Internal Storage
|
|
Internal drives: Base Server: Two (2) 1.8" SATA solid state drives (SSDs) for boot.
Internal drives: Base Server: Zero (0), two (2) or four (4) 2.5" SAS HDDs or SSDs for boot and/or data
|
|
|
|
Internal SAS Controller |
|
HPE MC990 6Gb 4p Internal SAS Controller is required when ordering 2.5" internal drives
Notes: Internal SAS Controller occupies 2 PCIe slots, one for e the card and a second one for a Supercap/BBU |
|
|
|
Optical Media Drive |
|
One (1) of either the HPE MC990 DVD-R Optical Drive or the HPE MC990 DVD-RW Optical Drive |
|
|
|
Embedded Ethernet |
|
Embedded 10/100/1000 Base-T LAN (auto sensing; RJ 45 connector). The system auto-selects the Ethernet port speed and type (duplex vs. half-duplex) when the server is booted, based on to what it is connected. |
|
|
|
Embedded VGA, USB and Serial ports |
|
15-pin VGA port supports:
Four (4) USB Type A ports to support general USB applications and optional keyboard and mouse configurations
|
|
|
|
I/O Expansion slots |
|
The Integrity MC990 X Server supports up to fifty-six (56) PCIe Gen3 slots
|
|
|
|
Network Adapters |
|
Support for PCIe Gen3 1 Gb/s and 10 Gb/s network adapters for Local Area Network (LAN)
Notes: - All Optical network adapters include transceivers unless otherwise stated. - SAP HANA TDI requires a minimum of one 10/’40 GbE (Fiber or Base-T) for each Base or Expansion Server. |
|
|
|
Fibre Channel Host Bus Adapters |
|
Support for 16 Gb/s Fibre Channel Host Bus Adapters
- Avago Tech (Emulex) LPe16002B 2-port Fibre Channel Host Bus Adapter - C8R39A Notes: - The Fibre Channel HBAs include transceivers - SAP HANA TDI Requires a minimum of one (1) for Each Base and Expansion Server - The MC990 X does support Boot from SAN. Please see white paper for details: https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=a00006145enw&doctype=Technical white paper&doclang=EN_US&searchquery=&cc=us&lc=en |
|
|
|
SAS RAID Controllers |
|
Support for 6 Gb/s and 12 Gb/s SAS RAID Controllers
|
|
|
|
Host Channel Adapters |
|
Support for FDR and EDR InfiniBand and 40/100 Gb/s Ethernet Adapter and Intel OmniPath Architecture
|
|
|
|
IO Accelerator Cards |
|
Support for Solid State Drive (SSD) IO accelerator cards (PCIe form factor)
|
|
|
|
GPU Modules |
|
Support for GPU modules
Notes: - When a GPU module is used the power on the overall system may be N+1 depending on specific configuration parameters - The P100 GPU Module will require an ambient temperature of 25 °C (77 °F) |
|
|
|
Power & Cooling |
|
Each of the MC990 X chassis include four (4) power supplies and four (4) cooling fans
|
|
|
|
Key Power & Cooling Features: |
|
|
|
|
Rack Management Controller (RMC) |
|
Each Integrity MC990 X system requires a rack management controller (RMC) located directly below the MC990 X enclosures in a rack-a system consists of 1 to 5 MC990 X chassis The RMC supports powering up and down of the system motherboards and environmental monitoring of all Integrity MC990 X chassis units within the server. In addition, the RMC provides the top layer of system control for Integrity MC990 X system.
One GigE port from each MC990 X chassis connects to the RMC via Cat-5 cable.
|
|
|
|
Adding Additional Chassis to Existing system |
|
The MC990 is modular in design and as such is capable of being upgrading with additional chassis with field upgrades. The Upgrade would include an Instruction code, Scale Activation kit(s) and a set of NUMAlink Cables |
|
|
|
Certified Operating Environments |
Notes: - For more information on SAP Certification for HPE Integrity MC990 X please visit the SAP Certified and Supported SAP HANA Hardware Directory: SAP HANA Hardware Directory - For specific VMware information please refer to the HPE Support page http://h17007.www1.hpe.com/us/en/enterprise/servers/supportmatrix/vmware.aspx#.WZ8doellBaR |
|
|
|
HPE Serviceguard for Linux |
|
HPE Serviceguard for Linux x86 is high availability clustering software designed to protect applications and services from planned and unplanned downtime. Serviceguard for Linux (SGLX) ensures 24x7 application availability by packaging an application or service with its associated resources, and moving that package to other servers as needed. Packages can be moved automatically when Serviceguard detects a failure in a resource, or manually in order to perform system maintenance or upgrades. By monitoring the health of each server (node) within a cluster, Serviceguard for Linux quickly responds to failures such as those that affect processes, memory, LAN media and adapters, disk, operating environments, and more. Serviceguard for Linux also includes many out-of-the-box features that ensure scalability and allow intricate control over cluster configuration, and optimizes in-house expertise for businesses already running Serviceguard for HP-UX. Application Integration Toolkits are also available, and serve to quickly integrate complex applications into a Serviceguard for Linux cluster. The Application Integration Toolkit portfolio includes the Serviceguard Toolkit for NFS and the Serviceguard Contributed Toolkit Suite which are available at no charge. In addition to high availability within a data center, the Serviceguard for Linux offers a powerful and comprehensive suite of disaster recovery solutions. Notes: For more information on HPE Serviceguard for Linux (SGLX) reference the SGLX QuickSpecs. |
|
|
|
Warranty |
|
Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Protected by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. |
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Free up resources with Operational Services from HPE Pointnext Services HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller. Services are quoted using Hewlett Packard Enterprise order configuration tools. HPE Pointnext Tech Care HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare
|
|
|
|
Other related services from HPE Pointnext
|
|
HPE Server Hardware Installation |
|
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf |
|
HPE Installation and Startup of HPE Servers |
|
Provides for the installation of your new server and operating system. This service will assist in bringing your new HPE server and operating system into operation in a timely and professional manner. This service provides a trained Hewlett Packard Enterprise service specialist to perform an installation that meets Hewlett Packard Enterprise quality standards. The service highlights include: planning, deployment on site, Installation verification tests, and customer orientation session. For more information: http://www.hpe.com/services |
|
HPE Custom Deployment Services |
|
HPE Pointnext Consulting has been delivering SAP Infrastructure solutions to customers for over 20 years. Utilizing the HPE framework for deploying custom SAP HANA Solutions, HPE Pointnext help customers quickly realize return on investment and reduce total cost of ownership from a customized SAP HANA TDI landscape. These services are tailored to meet specific customer needs that reduce risks and empower IT organizations to own and manage their SAP HANA environments. The HPE Pointnext Deployment Services framework is delivered uniformly globally, offering customers scale and uniformity of the same experience at any and all locations worldwide. The SAP HANA Tailored Data Center Integration model provides flexibility, but it also introduces new considerations and risks that must be mitigated. HPE Pointnext Consulting provides guidance to customers to tackle these risks proactively and helps customers optimize the benefits of adopting SAP HANA. The framework is comprised of 5 phases and each phase has activities and deliverables to ensure your technical and business requirements are met. For more information, visit: http://www.hpe.com/services/consulting |
|
|
|
Protect your business beyond warranty with HPE Support Services |
|
HPE Pointnext delivers confidence, reduces risk and helps customers realize agility and stability. HPE Support Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the selected support.
|
|
HPE Technology Services Support Credits |
|
Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.
|
|
|
|
Parts and Materials |
|
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
For more information: http://www.hpe.com/services
|
|
|
|
Integrity MC990 X TDI Services and Support
|
|
Hardware Installation and Startup Services for Integrity MC990 X TDI |
|
An experienced service partner like Hewlett Packard Enterprise can help you quickly and cost-effectively get your TDI infrastructure up and running at peak performance to quickly realize a return on your investment. Hewlett Packard Enterprise provides the same Installation and Startup Services for TDI Compute Blocks as are available for the Integrity MC990 X Server.
Hewlett Packard Enterprise provides hardware installation and startup services to assist in bringing your new HPE server and operating system into operation in a timely and professional manner. |
|
|
|
Deployment and Integration Services for Integrity MC990 X for SAP HANA TDI |
|
Hewlett Packard Enterprise has deployed over 2000 SAP HANA systems for our customers. Who better than SAP's Pinnacle Award recipient for "Rapid Deployment Partner of the Year" to maximize the time-to-value of your Integrity MC990 X investment? Engage the HPE Pointnext Consulting Services for SAP TDI to deploy and rapidly integrate the MC990 X systems into your SAP HANA TDI environment.
Talk with your account representative to include these services with your system. |
|
|
|
Support Services for HPE Integrity MC990 X for SAP HANA TDI |
|
HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select. HPE provides the same support offering for Integrity
MC990 X for SAP TDI as the MC990 X server:
See the HPE Pointnext section of this document for more details on Integrity MC990 X support services.
|
|
Notes: - Support for the SAP HANA software requires a separate support agreement with SAP. - Each of these support levels include hardware and software reactive support, as applicable, and are available with DMR (defective media retention). Support services are available in 3, 4 or 5 year durations. Support durations should match the support duration of the Linux subscription. |
|
|
Configuration Information
|
Integrity MC990 X for SAP HANA TDI
| |
|
MC990 X Racks
| |
|
MC990 X can be racked in many of the HPE G2 Enterprise Series and Advanced Series racks, and the HPE D-Rack. If the MC990 X will be configured as 16-sockets (4-chassis) or more the HPE 800mm wide racks or D-Rack are required. Complete ordering rules can be found in the MC990 X server menu and in the ordering & configuration tools. The MC990 X can also be rack mounted in 3rd party rack. Specific rules and guidelines for this are available here: http://h20565.www2.hpe.com/hpsc/doc/public/display?docId=a00008634en_us
| |
|
The following HPE racks are supported with MC990 X:: | |
|
| |
|
HPE 22U 600x1075mm Adv G2 Shck Rack |
P9K04A |
|
HPE 36U 600x1075mm Adv G2 Kit Shock Rack |
P9K06A |
|
HPE 42U 600x1200mm Adv G2 Kit Shock Rack |
P9K10A |
|
HPE 42U 600x1075mm Adv G2 Kit Shck Rack |
P9K08A |
|
HPE 42U 800x1075mm Adv G2 Shock Rack |
P9K12A |
|
HPE 42U 800x1200mm Adv G2 Kit Shock Rack |
P9K16A |
|
HPE 42U 600x1075 Ent G2 Shock Rack |
P9K38A |
|
HPE 42U 600x1200 Ent G2 Shock Rack |
P9K40A |
|
HPE 42U 800x1075 Ent G2 Shock Rack |
P9K42A |
|
HPE 42U 800x1200 Ent G2 Shock Rack |
P9K46A |
|
HPE 48U 600x1075 Ent G2 Shock Rack |
P9K50A |
|
HPE 48U 600x1200 Ent G2 Shock Rack |
P9K52A |
|
HPE 48U 800x1075 Ent G2 Shock Rack |
P9K54A |
|
HPE 48U 800x1200 Ent G2 Shock Rack |
P9K58A |
|
HPE 42U 610mm x 1156mm D-Rack |
H7C27A |
|
HPE D-Rack 42U 610mm x 1156mm Extended |
Q2T97A |
|
| |
|
Additional information on HPE Racks can be found here: HPE G2 Enterprise Series Racks QuickSpecs: https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=a00002907enw HPE G2 Advanced Series Racks QuickSpecs: https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c05324689
| |
|
MC990 X Power Distribution Options The following PDUs are supported with MC990 X-refer to the server menu for ordering & configuration rules. | |
|
HPE G2 Basic Mdlr 14.4kVA/C19 INTL PDU |
P9Q51A |
|
HPE G2 Basic Mdlr 3Ph 17.3kVA/NA/JP PDU |
P9Q60A |
|
HPE G2 Basic Mdlr 3Ph 22kVA/C19 INTL PDU |
P9Q63A |
|
HPE G2 Basic Mdlr 4.9kVA/C19 NA/JP PDU |
P9Q39A |
|
HPE G2 Basic 7.3kVA/(12) C13 INTL PDU |
P9Q44A |
|
Two C13 PDU Power Bar Kit |
P9Q66A |
|
HPE D-Rack 21 x 3-Phase 240V NA/JP PDU |
H7C28A |
|
HPE D-Rack 21 x 3-Phase 400V INTL PDU |
H7C29A |
|
HPE D-Rack 8 x Single-Phase 240V NA PDU |
H7C30A |
|
HPE D-Rack 8 x Single-Phase 240V INTL PDU |
H7C31A |
|
HPE D-Rack 8 x Single-Phase 240V AU PDU |
H7C32A |
|
HPE G2 Basic 4.9kVA/(20) C13 NA/JP PDU |
P9Q41A |
|
HPE G2 Basic 7.3kVA/(20) C13 INTL PDU |
P9Q45A |
|
HPE G2 Basic 11kVA/C13 C19 INTL PDU |
P9Q50A |
|
HPE G2 Basic 3Ph 17.3kVA/C13 NA/JP PDU |
P9Q61A | ||||||||||||||
|
HPE G2 Basic 3Ph 17.3kVA/C19 NA/JP PDU |
P9Q62A | ||||||||||||||
|
HPE G2 Basic 3PH 22Kk VA/C13 INTL PDU |
P9Q64A | ||||||||||||||
|
HPE G2 Basic 3Ph 22kVA/(36) C13 INTL PDU |
P9Q65A | ||||||||||||||
|
| |||||||||||||||
|
HPE D-Rack | |||||||||||||||
|
The HPE D-Rack is available for MC990 X in two models:
| |||||||||||||||
| |||||||||||||||
|
| |||||||||||||||
|
Integrity MC990 X Servers | |||||||||||||||
|
HPE Integrity MC990 X for SAP HANA TDI 4-socket E7-8880 v4 Base Server |
Q2F37A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-8890 v4 Base Server |
Q2F38A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI4-socket E7-8891 v4 Base Server |
Q7E94A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-8867 v4 Base Server |
Q7E95A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-4830 v4 Base Server |
Q7E96A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-4850 v4 Base Server |
Q7E97A | ||||||||||||||
|
HPE Integrity MC990 X for SAP HANA TDI 4-socket E7-8880 v4 Expansion Server |
Q2F39A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-8890 v4 Expansion Server |
Q2F40A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-8891 v4 Expansion Server |
Q7E99A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-8867 v4 Expansion Server |
Q7F00A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-4830 v4 Expansion Server |
Q7F01A | ||||||||||||||
|
HPE Integrity MC990 HANA TDI 4-socket E7-4850 v4 Expansion Server |
Q7F02A | ||||||||||||||
|
Notes: - Max 3x MC990 X 8-socket servers per 42U rack; each MC990 X 8S server = 10U plus 1U RMC - Max 4x MC990 X 4-socket base servers per MC990 42U rack; each MC990 X 4S base server = 5U plus 1U RMC - MC990 X 4S base servers plus MC990 X 4S expansion servers plus RMC(s) must equal 42U or less per 42U rack | |||||||||||||||
|
| |||||||||||||||
|
Rack Management Controller (RMC) | |||||||||||||||
|
Notes: When ordering MC990 X Servers one RMC must be ordered per MC990 X Server. |
| ||||||||||||||
|
| |||||||||||||||
|
Scale activation kits | |
|
HPE MC990 8-socket Interconnect and Scale Activation Kit |
H7C10A |
|
HPE MC990 12-socket Interconnect and Scale Activation Kit |
H7C11A |
|
HPE MC990 16-socket Interconnect and Scale Activation Kit |
H7C12A |
|
HPE MC990 20-socket Interconnect and Scale Activation Kit |
H7C13A |
|
Notes: When configuring MC990 X 4S servers as 4-socket to 20-socket systems, the appropriate scale activation kit must be ordered. |
|
|
| |
|
MC990 X Bulkhead options | |
|
HPE MC990 12-slot PCIe Module |
H7C23A |
|
HPE MC990 Disk Riser and 8-slot PCIe Module |
H7C24A |
|
HPE MC990 Compute Only Module (no PCIe slots) |
H7C25A |
|
Notes: Each MC990 X 4S Expansion chassis requires one of the above bulkhead options.. |
|
|
| |
|
System Memory | |
|
HPE MC990 DDR4 256GB (32x8GB) Memory Kit |
H7C06A |
|
HPE MC990 DDR4 512GB (32x16GB) Memory Kit |
H7C07A |
|
HPE MC990 DDR4 1TB (32x32GB) Memory Kit |
H7C08A |
|
HPE MC990 DDR4 2TB (32x64GB) Memory Kit |
H7C09A |
|
Notes: - Memory must be installed in groups of 32 DIMMs for 4S base servers and expansion servers; each memory kit includes 32 DIMMs. - All DIMM slots to be populated with the same DIMM type/capacity. | |
|
| |
|
Base IO Drives | |
|
Notes: If booting from disk the MC990 X Server requires either the Base IO 1.8" SSD drives or the internal 2.5" drives listed in a later section.
| |
|
HPE MC990 400GB Base SATA (1.8in) Solid State Drive |
H7B55C |
|
HPE MC990 800GB Base SATA (1.8in) Solid State Drive |
H7B56C |
|
Notes: - Base IO 1.8" SSDs are ordered in quantities of zero (0) or two (2) - If Base IO SSDs are ordered, both need to be of the same capacity - Base IO SSDs will be configured as software RAID 1 - If Base IO SSDs are not ordered, internal 2.5" drives are required for boot |
|
|
| |
|
Network Adapters | |
|
HPE MC990 10GbE Fiber 2-port Adapter |
H7B72A |
|
HPE MC990 10BASE-T 2-port Adapter |
H7B74A |
|
HPE MC990 1000BASE-T 4-port 5719 Adapter |
H7B75A |
|
HPE MC990 1000BASE-T 4-port Adapter |
H7B76A |
|
HPE MC990 2P 10GbE Copper I71 Adapter |
Q2T98A |
|
HPE MC990 4P 10GbE Copper I71 Adapter |
Q2T99A |
|
HPE MC990 2P 10GbE Copper X710 Adapter |
Q2U00A |
|
HPE MC990 2P 10GbE SFP+ I71 Adapter |
Q2U01A |
|
HPE MC990 4P 10GbE SFP+ I71 Adapter |
Q2U02A |
|
HPE MC990 2P 1GbE Copper I35 Adapter |
Q2U03A |
|
HPE MC990 2P 1GbE SFP+ I35 Adapter |
Q2U04A |
|
HPE MC990 1P 40GbE Copper I71 Adapter |
Q2U05A |
|
HPE MC990 2P 40GbE Copper I71 Adapter |
Q2U06A |
|
HPE MC990 1P 40GbE SFP+ I71 Adapter |
Q2U07A |
|
HPE MC990 2P 40GbE SFP+ I71 Adapter |
Q2U08A |
|
Notes: SAP HANA TDI requires a minimum of one 10/40 GbE (Fiber or Base-T) for each Base or Expansion Server |
|
|
| |
|
Fibre Channel Host Bus Adapters | |
|
HPE MC990 X HANA TDI SN1100E 16Gb FC HBA |
Q0D73A |
|
Notes: - The Q0D73A and H7B97A are the same card as LPe16002B FC HBA - C8R39A - SAP HANA TDI Requires a minimum of one (1) for Each Base and Expansion Server for FC connected storage |
|
|
| |
|
Host Channel Adapters | |
|
HPE MC990 InfiniBand FDR/Ethernet 40Gb 2-port QSFP Adapter |
H7B79A |
|
HPE MC990 InfiniBand EDR/Ethernet 100Gb 1P QSFP Adapter |
Q2U09A |
|
HPE MC990 Infiniband EDR/Ethernet 100Gb 2P QSFP Adapter |
Q2U10A |
|
HPE MC990 1-port Omni-Path Architecture Adapter |
Q6L32A |
|
| |
|
IO Accelerators | |
|
HPE MC990 800GB P3700 PCIe Accelerator |
H7B80A |
|
HPE MC990 2TB P3700 PCIe Accelerator |
H7B81A |
|
HPE MC990 1.6TB NVMe PCIe Accelerator |
Q2U11A |
|
HPE MC990 3.2TB NVMe PCIe Accelerator |
Q2U12A |
|
| |
|
GPU Modules | |
|
HPE MC990 NVIDIA Tesla K80 Dual GPU Module |
H7B98A |
|
HPE MC990 NVIDIA M40 24GB GPU Module |
Q2T80A |
|
HPE MC990 NVIDIA M40 12GB GPU Module |
Q2T81A |
|
HPE MC990 NVIDIA M60 16GB GPU Module |
Q2T82A |
|
HPE MC990 NVIDIA P100 16GB GPU Module |
Q2T83A |
|
HPE MC990 NVIDIA M4000 GPU Module |
Q2T91A |
|
HPE MC990 NVIDIA M6000 GPU Module |
Q2T92A |
|
Notes: - When a GPU module is used the power on the overall system may be N+1 depending on specific configuration parameters - The P100 GPU Module will require an ambient temperature of 25 °C (77 °F) |
|
|
| |
|
SAS RAID Controllers | |
|
HPE MC990 6Gb 16-port External SAS Controller |
H7B69A |
|
HPE MC990 12Gb 8-port External SAS Controller |
H7B70A |
|
HPE MC990 4P Internal 9361 SAS/RAID Controller |
Q2U17A |
|
Notes: The Q2U17A internal SAS controller is required when internal 2.5" drives are ordered. Occupies 2 PCIe slots |
|
|
Internal 2.5" Hard Disk Drives (HDDs) | |
|
HPE MC990 600GB 12G SAS 10K SFF (2.5in) Hard Disk Drive |
H7B57B |
|
HPE MC990 900GB 12G SAS 10K SFF (2.5in) Hard Disk Drive |
H7B58B |
|
HPE MC990 1TB 12G SAS 7.2K 2.5" Hard Disk Drive |
Q2T62A |
|
HPE MC990 2TB 12G SAS 7.2K 2.5" Hard Disk Drive |
Q2T63A |
|
HPE MC990 1.2TB 12G SAS 10K 2.5" Hard Disk Drive |
Q2T61A |
|
HPE MC990 2TB 6G SATA 7.2K 2.5" Hard Disk Drive |
Q2T60A |
|
Notes: - Must order in quantities of zero (0), two (2), or four (4) drives - All drives must be of the same type and capacity - The Q2U17A internal SAS controller is required when internal 2.5" drives are. Occupies 2 PCIe slots ordered - Drives will be configured as RAID 1 when shipped; can be reconfigured in the field or onsite | |
|
| |
|
Solid State Drives (SSDs) | |
|
HPE MC990 200GB 12G SAS SFF (2.5in) MLC Solid State Drive |
H7B59A |
|
HPE MC990 400GB 12G SAS SFF (2.5in) MLC Solid State Drive |
H7B60A |
|
HPE MC990 800GB 12G SAS SFF (2.5in) MLC Solid State Drive |
H7B61A |
|
HPE MC990 1.6TB 12G SAS SFF (2.5in) MLC Solid State Drive |
H7B62A |
|
HPE MC990 1.6TB 6G SATA MLC 2.5" Solid State Drive |
Q2U13A |
|
HPE MC990 1.9TB 6G SATA MLC 2.5" Solid State Drive |
Q2U14A |
|
HPE MC990 3.8TB 6G SATA MLC 2.5" Solid State Drive |
Q2U15A |
|
Notes: - Must order in quantities of zero (0), two (2), or four (4) drives - All drives must be of the same type and capacity - The Q2U17A internal SAS controller is required when internal 2.5" drives are ordered. Occupies 2 PCIe slots - Drives will be configured as RAID 1 when shipped; can be reconfigured in the field or onsite | |
|
| |
|
Internal Optical Drives | |
|
HPE MC990 DVD-Read-Write Drive |
H7B66A |
|
HPE MC990 DVD-Read Drive |
H7B67A |
|
Notes: Min one (1), max one (1) |
|
|
| |
|
Additional Chassis for Upgrade | |
|
The MC990 is modular in design and as such is capable of being upgrading with additional chassis with field upgrades. | |
|
HPE MC990 Upgrade Flag |
Q2T94A |
|
HPE MC990 8S Scale Activation Kit |
H7C10A |
|
Notes: (utilized when growing for a 4 socket to 8 socket system i.e. adding one chassis) |
|
|
HPE MC990 4S Upg Scale Activation Kit |
Q2U16A |
|
Notes: (utilized when expanding beyond 8 sockets, Quantity 1 required for each 4 socket chassis added to system) |
|
|
HPE MC990 NUMAlink 7 copper .75m cable |
Q2T85A |
|
HPE MC990 NUMAlink 7 copper 1.5m cable |
Q2T86A |
|
HPE MC990 NUMAlink 7 copper 1m cable |
Q2T87A |
|
HPE MC990 NUMAlink 7 copper 2m cable |
Q2T88A |
|
HPE MC990 NUMAlink 7 copper 3m cable |
Q2T89A |
|
Notes: - H7C10A is utilized when growing a 4 socket system to an 8 socket system - Q2U16A is utilized for growing a system beyond 8 sockets. Quantity of 1 Q2U16A is required for each 4 socket chassis added to a system - Quantity and Length of NUMAlink cables is determined by the ending size of your system. Please refer to quoting tools for quantities required | |
|
| |
Additional Options
|
Foundation Software | |
|
Foundation software is required for all MC990 X systems where SUSE or RedHat Linux is used.. the version selected must match the operating system environment
| |
|
HPE Foundation SW 2 RHEL Lic RTU |
Q7N11A |
|
HPE Foundation SW 2 SLES Lic RTU |
Q7N12A |
|
HPE Foundation SW 2 Oracle Lic RTU |
Q7N16A |
|
HPE Foundation SW 2 FIO RHEL |
Q7N13A |
|
HPE Foundation SW 2 FIO SLES |
Q7N14A |
|
HPE Foundation SW 2 FIO Oracle |
Q7N15A |
|
HPE Foundation SW 2 RHEL Media |
Q7Y82A |
|
HPE Foundation SW 2 SLES Media |
Q7Y83A |
|
HPE Foundation SW 2 Oracle Media |
Q7Y84A |
|
Notes: One RTU license is required per system. Additionally 1 of either the FIO or Media kits are also required. It is permissible to order both Media and FIO | |
|
| |
|
Supported Operating Systems | |
|
SUSE Linux Enterprise Server SAP 2 Sockets or 1-2 VM 3yr Subscription 24x7 Support Flexible LTU |
N0U73A |
|
SUSE Linux Enterprise Server SAP 2 Sockets or 1-2 VM 5yr Subscription 24x7 Support Flexible LTU |
N0U75A |
|
RHEL SAP 1-2 Sckt Phscl 3yr 24x7 LTU |
L5P71A |
|
RHEL SAP 1-2 Sckt Phscl 5yr 24x7 LTU |
L5P72A |
|
VMware vSphere Standard 1 Processor 3yr Software |
BD711A |
|
VMware vSphere Standard 1 Processor 5yr Software |
BD512A |
|
VMware vSphere Enterprise 1 Processor 3yr Software |
BD713A |
|
VMware vSphere Enterprise 1 Processor 5yr Software |
BD513A |
|
VMware vSphere Enterprise Plus 1 Processor 3yr Software |
BD715A |
|
VMware vSphere Enterprise Plus 1 Processor 5yr Software |
BD514A |
|
Notes: - For Linux based O/S - Must order 1 x SLES OR RHEL subscription per every 2 sockets to a max of 10 (20 socket system) - For VMware based systems 1 license per socket is required (up to 8 sockets) | |
|
| |
Technical Specifications
| |||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
25-Apr-2022 |
Version 7 |
Changed |
All sections were updated in order to fix some format issues |
|
06-Nov-2017 |
From Version 5 to 6 |
Changed |
Changes made to the entire document |
|
11-Jul-2017 |
From Version 4 to 5 |
Changed |
Changes made to the Standard Features and How to Order Sections |
|
05-Jun-2017 |
From Version 3 to 4 |
Changed |
Changes made to the entire document |
|
27-Mar-2017 |
From Version 2 to 3 |
Changed |
All SKUs updated for 4-Socket Scalable configurations |
|
28-Nov-2016 |
From Version 1 to 2 |
Changed |
Changes made to the entire document |
|
15-Aug-2016 |
Version 1 |
Created |
Document Created |
Copyright
|
|
| |||||
|
|
|
© Copyright 2022 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
SAP and HANA is a US registered trademarks of SAP.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
c05209803 - 15651 - Worldwide - V7 - 25-April-2022 |
