HPE Integrity BL890c i6 Server Blade | |||
|
| |||
|
HPE Integrity BL890c i6 Server Blade | |||
|
1. |

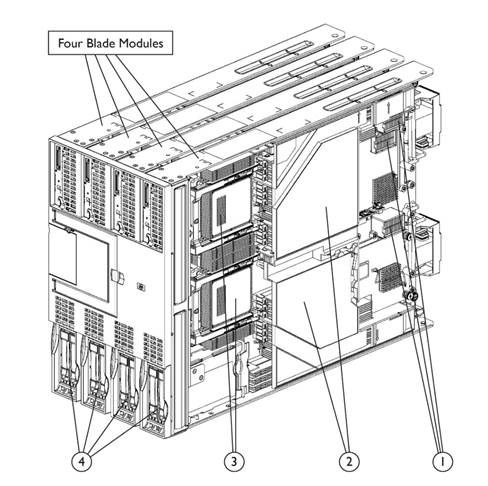

12 x PCIe mezzanine slots (per BL890c i6) |
3. |
8 x Intel® Itanium® processor 9700 series sockets (per BL890c i6) |
|
2. |
96 x DDR3 DIMM slots (per BL890c i6) |
4. |

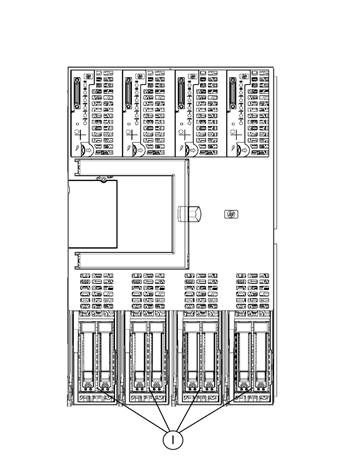

8 x SFF SAS HDDs, hot-swap bays (per BL890c i6) |
|
| |||
|
What's New | |||
| |||
|
|
|
|
At A Glance |
|
This document covers the HPE Integrity BL890c i6 server blade only. For more information on HPE BladeSystem c-Class Enclosure and HPE BladeSystem c-Class Interconnect and Mezzanine Components, please see the following QuickSpecs:
https://www.hpe.com/us/en/product-catalog/servers/server-adapters.hits-12.html The HPE Integrity BL890c i6 delivers the performance, reliability, and availability on HPE's 64-bit operating system HP-UX 11i v3 for the ultimate in scalability and flexibility in deployment. To further enrich your cost-efficient, consolidated Integrity blade infrastructure, Virtual Server OE (VSE-OE) can help with solution components such as HP-UX Virtual Partitions (vPars) v6.4, HPE Integrity Virtual Machines (Integrity VM), HPE Capacity Advisor, HPE Global Workload Manager, and automation through Hewlett Packard Enterprise infrastructure Orchestration. Additionally, High Availability OE (HA-OE) provides high availability via the HPE Serviceguard clustering technology and Data Center OE (DC-OE) brings the best of the virtualization capabilities along with high availability together in one integrated OE.
- Up to eight Intel® Itanium® 9700 Series processors
- Up to 1.5 TB of memory. Supporting (96) DDR3 registered memory modules (R-DIMMs)
- Four (4) Embedded HPE Smart Array p410i SAS Controllers - RAID 1 and RAID 0, and HBA mode configuration options - Four (4) Embedded SAS read only 512MB cache, one per embedded HPE Smart Array p410i SAS controller
- Supports up to (8) eight small form factor (SFF) SAS hot plug hard drives
- Sixteen (16) integrated HPE NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, and TCP/IP offload engine - FlexFabric capability requires OS drivers and the use of an HPE Virtual Connect FlexFabric module. - BL8x0c i6 server blades require Virtual Connect 3.70 or later when used in Virtual Connect configurations |
- Twelve (12) additional I/O expansion slots via mezzanine cards. - Supports up to (12) mezzanine cards o
HPE
NC553m Dual Port 10Gb FlexFabric Adapter o HPE Emulex LPe1205 8Gb FC BL-c HBA (2-port 8Gb Emulex FC HBA) o HPE QMH 2562 8Gb FC BL-c HBA (2-port 8Gb QLogic FC HBA) o HPE Smart Array P711m/1G FBWC 6G SAS Controller o
HPE
Smart Array P700m/512 Controller
- Four (4) Internal USB ports on the BL890c i6 -
Two
(2) External USB ports on the BL890c i6 via SUV cable
- HPE Integrity Server Blades Management Software o Integrity Integrated Lights-Out 3 (iLO 3) management processor o HPE Insight Control o HPE System Management Homepage o HP-UX 11i Management Software for Integrity Blades, http://www.hpe.com/servers/integrityblades
- HPE BladeSystem Infrastructure Management Software: o HPE BladeSystem c-Class Onboard Administrator o HPE BladeSystem c-Class Virtual Connect - Enterprise Management Software o Data Protector Software o GlancePlus Pak o Performance Manager and Agent - HPE nPartitions (nPars) for BL8x0c i6 servers: o Provide improved scalability, availability, and fault isolation, and a rich set of virtualization options for the BL890c i6. nPartions are seamlessly integrated into the converged infrastructure environment, including Virtual Connect and HPE Insight management tools, such as HPE SIM. System administrators will find nPartitions configuration management quick and easy to use o Provide electrically isolated hard partitions at the hardware level
- Scale up to one (1) 8-socket nPartition or - Scale out to two (2) 4-socket nPartitions - Scale out to four (4) 2-socket nPartitions - Reboot required when re-configuring - Fault isolation cannot be serviced independently o Each nPartition is managed just like a similarly sized server
|
|
o Each nPartition in a BL890c i6 can be further partitioned through software virtualization tools:
- Up to 256 HPE Virtual Machines per nPartition
- Advanced Infrastructure Management o HPE Capacity Advisor (which includes HPE Virtualization Manager) o HPE Virtualization Manager o HPE Global Workload Manager and HP-UX Workload Manager o HPE Matrix OE infrastructure orchestration o HPE Systems Insight Manager - Virtualization Continuum o HP-UX Virtual Partitions (vPars) v6.1 o HPE Integrity Virtual Machines (with HP-UX Guest OS's) o HPE Process Resource Manager/pSets o HP-UX Containers - Continuous availability o HPE Serviceguard for HP-UX 11i o HPE Serviceguard Extensions for SAP o HPE Serviceguard Extensions for Oracle o
HPE
Continentalclusters
-
HPE
Integrity BL890c i6 server blade is a full-height, quadruple wide (occupies
4 slots) BladeSystem c-Class form factor. The BL890c i6 server blade
plugs into the BladeSystem enclosure. In the c7000 enclosure, 2 server
blades are supported per 10U enclosure. 4 enclosures can be configured
to a standard 42U rack; 8 BL890c i6 server blades can be configured
in a fully populated rack. In the c3000 enclosure, 1 BL890c i6 server
blade is supported per 6U enclosure.
- Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs: o The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to 2 HPE Integrity BL890c i6 servers plugged vertically. Four (4) enclosures can be configured to a standard 42U rack o The HPE BladeSystem c3000 rack enclosure is 6U high and holds 1 HPE Integrity BL890c i6 server plugged horizontally. Up to 7 enclosures can be configured to a standard 42U rack o The HPE BladeSystem c3000 Enclosure targets three separate market segments:
-
Server
blades, storage blades, and interconnect modules are all designed to
fit into the c7000 and c3000 enclosures. For additional enclosure information,
please see: https://www.hpe.com/in/en/product-catalog/servers/bladesystem-enclosures.hits-12.html
.
- Protected by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Three-year parts, 3 Year Labor and 3 Year on-site limited global warranty. Certain restrictions and exclusions apply. |
|
|
|
Models
| ||
|
HPE BL890c i6 Base Models | ||
|
HPE Integrity BL890c c7000 Server Blade |
AM380A | |
|
HPE Integrity BL890c c3000 Server Blade |
AM381A | |
|
|
| |
|
Processor(s) |
Eight (8) processor sockets, processor modules are configured to order Notes: Supports up to eight (8) processors | |
|
Cache Memory |
Included with processor Notes: All processor models | |
|
Memory |
Ninety six (96) DIMM sockets; memory DIMMs are configured to order | |
|
Network Adapter |
- FlexFabric capability requires OS drivers and the use of an HPE Virtual Connect FlexFabric module. - BL8x0c i6 server blades require Virtual Connect 3.70 or later when used in Virtual Connect configurations
|
|
|
Storage Controller |
|
|
|
Hard Drives |
Eight SFF SAS drive bays; hard disk drives are configured to order | |
|
IO expansion |
Twelve (12) PCIe Mezzanine card slots (PCIe Gen2 x8 interface); mezzanine cards are configured to order | |
|
Optical Drive |
None internal to blade server | |
|
Integrity iLO 3 |
Integrity iLO 3 and Integrity iLO 3 Advanced Pack license included | |
|
Form Factor |
|
|
|
| ||
Standard Features
|
Processor |
Octo-Core Processors | |
|
||
|
||
|
Quad-Core Processor | ||
|
||
|
||
|
Upgradeability |
Upgradeable to eight (8) processors | |
|
Notes: The HPE Integrity BL890c i6 supports 4, 5, 6, 7, or 8 processor configurations. Processors must be identical. | ||
|
Cache Memory |
|
|
|
||
|
All Processors support |
|
|
|
Chipset |
Intel Boxboro | |
|
Memory |
Type |
DDR3 registered memory modules (R-DIMMs) |
|
Minimum |
32 GB (4 x 8 GB DIMMs) | |
|
Maximum |
1.5 TB (96 x 16 GB DIMMs) | |
|
Notes: - Memory kits consist of two (2) DIMMs. - Double Chip Spare is enabled in a pairs DIMMs. - Memory must be loaded in quads (two memory kits, 4 DIMMs) - Each hard partition (nPar) requires at least one (1) quad of memory DIMMs | ||
|
Network Adapter |
- FlexFabric capability requires OS drivers and the use of an HPE Virtual Connect FlexFabric module - BL8x0c i6 server blades require Virtual Connect 3.70 or later when used in Virtual Connect configurations |
|
|
Network Adapter |
|
||
|
Expansion Slots |
Twelve Mezzanine slots, eight (8) Type II and four (4) Type I, PCIe x8 Gen2 | ||
|
Integrated Manageability |
|
||
|
|||
|
|||
|
|||
|
Storage Controller |
Four (4) HPE Smart Array p410i 3Gb SAS Controller |
8 SAS Channels (one to each HDD) | |
|
Maximum Internal Storage |
Hot Plug SAS |
9.6TB SAS |
8 x 1.2TB SAS |
|
Graphics |
Integrated ATI RN50 1280 x 1024 x 16M color (128 MB DDR memory) | ||
|
Resolution Color Depths |
Depths 1280 x 1024, 16.7M , 64k, 256,16 | ||
|
FlexFabric Support |
|
||
|
|||
|
Notes: - BL8x0c i6 server blades require Virtual Connect 3.70 or later - Each port supports 10GbE Ethernet or 8Gb FCoE traffic. | |||
|
- Please see the QuickSpecs for Technical Specifications and additional information and for HP-UX support. - HPE NC553m: | |||
|
InfiniBand Support |
|
||
|
InfiniBand Support |
- Negotiates to DDR/QDR speeds - Dual ports for redundant path connections - Support for HP-UX 11i v3
|
|
Fibre Channel Support |
- QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem ( PN B9F53A) - Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem ( PN B9F54A)
- 8/4/2Gb/s auto negotiating speeds - Dual ports for redundant path connections - Optimized for HPE Storage and supported by third party SAN vendors - Support for HP-UX 11i v3, Microsoft® Windows for Integrity (6.2) |
|
Compatible SAN |
HPE Integrity BL890c i6 server blades are optimized for HPE Storage MSA, 3PAR, and XP7 products. |
|
Smart Array Controller Support |
- Provides support for HPE Zoned Storage for BladeSystem - Zoned Storage solution requires compatible HPE Storage 600 Modular Disk System and HPE Storage 3Gb SAS BL Switch - Supports RAID 6 with Advanced Data Guarding (ADG) - Provides support for HPE P2000 G3 MSA - Support for HPE P2000 G3 MSA requires HPE Storage 6Gb SAS BL Switch Notes: For additional details please see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111558 |
|
HP Monster 700 A-A 7ft USB Extension Cable |
- External USB DVD drive with 9-inch USB cable - Power adaptor, power cable and USB Y-connector - 6-foot USB extension cable Notes: - The USB Y-connector goes between the extension cable (SH046AA) and the 9-inch USB cable fixed with DVD drive. - The Y-connector should NOT be placed between the server blade and the 6-foot Extension cable. |
|
Integrity Server Blades Management Software and HPE Integrity Essentials Software Plug-ins |
- Getting Started o HPE Systems Insight Manager o HPE Insight Control for HP-UX 11i o HP-UX 11i System Management o HPE BladeSystem Integrated Manager in HPE System Insight Manager o HPE Onboard Administrator o HPE BladeSystem c-Class Onboard Administrator Firmware o HPE BladeSystem c-Class Virtual Connect Firmware o HPE Insight Control for HP-UX 11i v3 (included in BASE OE) - Deploy o HPE Ignite-UX o Software Distributor-UX o Software Package Builder o Dynamic Root Disk (DRD) - Monitor o HPE Systems Insight Manager o HPE System Management Homepage o Glance Plus Pak o Performance Manager and Agent o HPE Serviceguard Manager - Control o HPE Integrity Integrated Lights-Out (iLO) 3 (standard with BL890c i6 servers) o Integrity iLO Advanced 3 Pack License (included with BL890c i6 servers - Protect o HP-UX Bastille o HPE Containers o Data Protector Software o Software Assistant (SWA) - Optimize o HPE Capacity Advisory o HPE Global Workload Manager o Process Resource Manager o HPE Insight Power Manager o HP-UX 11i v3 power management - Provision o HPE Matrix OE - Matrix OE infrastructure orchestration - Integrate o HPE Business Technology Optimization o IT Management Software o HPE Matrix OE - Matrix OE for HPE Integrity server blade - Learn More o For additional information on HPE Integrity server blade management software please visit: http://h20566.www2.hpe.com/hpsc/doc/public/display?sp4ts.oid=5330442 |
|
Glossary of Integrity Server Blades Management Software Product Description |
HPE BladeSystem Integrated Manager in HPE Systems Insight Manager The HPE BladeSystem Integrated Manager is a component in HPE Systems Insight Manager (SIM) that provides streamlined management for the entire HPE BladeSystem product family. The HPE BladeSystem Integrated Manager enables users to quickly navigate their HPE blade environments including blade servers, enclosure infrastructures, racks, and integrated switches, via automatically generated blade rack picture views and hierarchical trees. Users are able to conveniently configure, deploy, and manage individual or groups of blade systems. Additionally, users are able to quickly set up logical collections of blade systems for convenient management and control. |
|
HPE Blades Visualization Used by System Administrators to identify, associate and group blades into collections, using tables, trees, and picture views, and it can also be used to monitor performance and launch Integrity Essentials. | |
|
HPE GlancePlus Pak HPE GlancePlus Pak provides you with a single product for managing a system's availability and performance. It is an integrated product that includes HPE GlancePlus. As an integrated product, the GlancePlus Pak includes the real-time diagnostic capabilities of GlancePlus and the historical data collection capabilities of the Performance Agent. The performance agent is used with other availability and performance management products, thus providing an integrated real-time and historical performance management solution. | |
|
HPE Ignite-UX for HP-UX Deployments HPE Ignite-UX is a free toolset that enables a network install of HP-UX onto multiple PA-RISC and/or Integrity servers on a network. It can also be used to create custom install configurations, or golden images, recover systems remotely, create custom recovery media including tape, CD and DVD, and manage and monitor multiple client installation sessions. | |
|
HPE Capacity Advisor The capacity planning component of HPE Matrix OE - , HPE Capacity Advisor offers the industry's first lightweight, integrated tool for ongoing capacity planning by simulating the placement of application workloads to help IT administrators improve server utilization. It captures real-world server utilization data to pre-test different scenarios before making changes to critical applications. HPE Virtualization Manager, which is included with Capacity Advisor and Global Workload Manager, provides a central point of control that allows you to manage all the resources in your virtualized environment and a powerful way to connect IT resources to real business needs. | |
|
HPE Integrity Integrated Lights-Out (iLO) 3 (factory integrated with BL890c i2) HPE Integrity Integrated Lights-Out (iLO) management processors make it simpler, faster, and less costly to remotely manage your Integrity servers. HPE iLO functions without additional software and can be accessed from any location via a web browser. HPE Integrity systems with iLO 3 ships with a built in Advanced Pack License so your Integrity blade is instantly ready to use iLO Virtual Media and iLO power measurement. Integrity iLO Advanced features enabled in this release: Virtual Media, LDAP directory services, nPartitions management, iLO power measurement, and integration with Insight Power Manager. No additional iLO licensing is needed. |
|
Glossary of Integrity Server Blades Management Software Product Description |
HPE Onboard Administrator The Onboard Administrator for the HPE BladeSystem enclosure is the brains of the c-Class infrastructure. Together with the enclosure's HPE Insight Display, the Onboard Administrator has been designed for both local and remote administration of HPE BladeSystem c-Class. This module and its firmware provides:
Notes: Please see: https://www.hpe.com/us/en/product-catalog/servers/bladesystem-enclosures/pip.hpe-onboard-administrator.3188465.html for more information. |
|
HPE Serviceguard Manager HPE Serviceguard Manager (included with the Serviceguard product) is a graphical user interface (GUI) that provides configuration, administration, and monitoring capabilities for Serviceguard, Serviceguard Extension for Oracle RAC, Metrocluster, and Continentalclusters. Using Serviceguard Manager, operators see color-coded icons that provide a big-picture view of multiple clusters. From this big-picture view, operators can drill down and proactively manage clusters, systems (nodes), and packages that run applications. | |
|
HPE Systems Insight Manager HPE Systems Insight Manager (HPE SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms. | |
|
HPE System Management Homepage HPE System Management Homepage is a web-based interface that consolidates and simplifies the management of individual ProLiant servers running Microsoft Windows or Linux operating systems, or HPE 9000 and HPE Integrity servers running HP-UX 11i. By aggregating data from HPE Insight Management Agents and other management tools, the System Management Homepage provides a secure and intuitive interface to review in-depth hardware configuration and status data, performance metrics, system thresholds and software version control information. The System Management Homepage can also be used to access the HPE Lights-Out Management processor on ProLiant and Integrity servers. | |
|
HPE Matrix OE for HPE Integrity servers HPE Matrix OE is advanced lifecycle management software for HPE Integrity servers which enables you to instantly adjust to dynamic business demands - with the new addition of infrastructure orchestration, not only can you easily plan, configure, and automate your physical and virtual resources in the same way, but now you can also provision and modify a complex infrastructure in minutes. | |
|
HP-UX Software Assistant (SWA) HP-UX Software Assistant (SWA) is a command-line based tool that consolidates and simplifies patch management and security bulletin management on HP-UX systems. The SWA tool is new for HP-UX releases as of January 2007, includes Security Patch Check (SPC), and is the HPE-recommended utility to use to maintain currency with HPE-published security bulletins for HP-UX software. |
|
Glossary of Integrity Server Blades Management Software Product Description |
HP-UX Workload Manager HP-UX Workload Manager (HP-UX WLM) is a resource management tool that provides automatic processor resource allocation and application performance management based on your service-level objectives (SLOs) and business priorities. WLM is most effective managing applications that are processor-bound. It automatically adapts system or partition CPU resources (cores) to the demands, SLOs, and priorities of the running applications. (A core is the actual data processing engine within a processor, where a single processor can have multiple cores, and a core can support multiple execution threads through Hyper-Threading, introduced with HP-UX 11i v3, as discussed below.) It adjusts the CPU allocation of a group of processes known as a workload, basing adjustment on the current needs and performance of the applications in that workload. |
|
HPE Global Workload Manager The workload management capability for HPE Integrity servers is provided by the HPE Global Workload Manager component of HPE Insight Dynamics - VSE. HPE Global Workload Manager (gWLM) is an intelligent policy engine that automatically allocates resources among multiple workloads to increase server utilization while meeting service levels for high-priority applications. Designed to work across multiple HP-UX 11i, OpenVMS and Linux environments, the workload management features are ideal for large, centralized IT environments that host applications for many departments. | |
|
HPE Matrix OE HPE Matrix OE capabilities let you provision infrastructure in minutes to automatically activate physical and virtual servers, storage, and networking from pools of shared resources. Whether you need a single virtual machine or infrastructure for a complex three-tier application, Matrix OE finds available resources, streamlines the approval process, and automatically provisions and configures what's needed across infrastructure silos. Delivering infrastructure to the business becomes faster, more efficient, and more reliable. | |
|
Performance Manager and Agent HPE Performance Manager, Agents, and Monitor combine to provide a powerful and flexible distributed management solution. This solution is a single interface for centrally monitoring, analyzing, and forecasting resource utilization for distributed multi-vendor environments, enabling you to offer the best possible level of service in a cost-effective manner. | |
|
Process Resource Manager HPE Process Resource Manager (HPE PRM) is a resource management tool used to control the amount of resources that processes use during peak system load. HPE PRM can manage allocation of the following resources:
|
|
Glossary of Integrity Server Blades Management Software Product Description |
HPE Containers One method that Matrix OE uses to improve server resource utilization is to consolidate multiple applications within a single operating system image. HP-UX Containers combine kernel level security and prove resource management to stack multiple applications within the same operating system. HP-UX Containers and HP-UX Workload Manager can dedicate specific resources to specific applications within an operating system image, avoiding resource contention issues. Using HP-UX Containers11i v3 Security Containment, organizations can ensure that application instances cannot access processes or file from other applications or the system. This ensures that multiple application instances run securely in a consolidated environment, providing the benefits of consolidation while preserving the security of a scale out environment. For software licensing purposes, the maximum number of CPUs in HP-UX Containers can be capped. This capability is part of the HP-UX Base Operating Environment (BOE). |
|
Software Distributor-UX Software Distributor (SD) is the HP-UX administration tool set used to deliver and maintain HP-UX operating systems and layered software applications. SD is delivered as part of HP-UX; you do not need to download it separately. | |
|
Insight Control for BladeSystem Management |
Insight Control for BladeSystem delivers foundation management for HPE BladeSystem lifecycles, including hardware resource deployment, health monitoring, software version control, performance monitoring, and power management.
Notes: - For Licensing and Packaging Options please see the options section of this QuickSpecs. - Insight Control Environment for BladeSystem is delivered with HPE BladeSystem c-Class enclosures with either 8 or16-server licenses, or 8 server evaluation licenses (30-days). For additional information on HPE BladeSystem c-Class Infrastructure please visit: HPE BladeSystem c-Class Infrastructure QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04284202 - For additional product and licensing information about Insight Control Environment, HPE Systems Insight Manager and Essentials software refer to: https://www.hpe.com/us/en/software/servers-insight-control.html. |
|
OS Support |
|
|
| |
|
Supported Software Options |
HPE Matrix OE for HPE Integrity servers (which is included in HP-UX VSE-OE and DC-OE) includes the following capabilities:
|
|
Intelligent Manageability |
|
- Virtual Media - Virtual Power Button Control - LDAP Directory Services - iLO 3 power management integration with Insight Power Manager
- Virtual front panel - Log access to Integrity System Event Log - Forward Progress Log Blade power consumption reading
| |
|
Notes: iLO 3 Advanced Pack license is included with every BL890c i6 server blade. | |
|
Availability |
Dual-Port
Fibre Channel Mezzanine Card for redundant SAN connection
|
|
Availability |
Notes: *Fee based software products |
|
Security |
Hardware Security
Platform security fundamentals
|
|
Security |
Protecting data:
Protecting Identity:
Notes: Hewlett Packard Enterprise also offers many additional security features available through open source software for HP-UX.
|
|
Common Criteria certification |
|
Security |
Certification evaluations are only conducted by the evaluation agency after release of the product. HP-UX 11i v3 has been actively evaluated to the Common Criteria (CC) Security standards for many years. A history of our achievements include:
Common Criteria certifications continue to be an integral part of our HP-UX comprehensive security portfolio. HP-UX 11i v3 has successfully completed a new Commercial off the Shelf (COTS) Compartmentalized Operations Protection Profile (CCOPP) evaluation. This new CCOPP evaluation encompasses the extensive range of security solution for HP-UX 11i v3 including soft partitioning or Virtual partitions (vPars) as well as the previously certified hard partitions (nPars) |
|
HPE Simple Configurator |
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HPE's Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome |
|
| |
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Configuration Information
|
Notes: - This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. - Hewlett Packard Enterprise does not allow factory integration of options into standard models listed above. - FIO indicates that this option is a Factory Installable Option. | |
|
Step 1: Choose Required Base Server Blade Configuration | |
|
HPE Models | |
|
HPE Integrity BL890c c7000 Server Blade |
AM380A |
|
Notes: - Choose the base models. - Adding Option code "#0D1" to the Server Blade P/N will integrate the configured blade into the enclosure (which must be on the same order) - When adding Option code "#0D1," must select whether server blade should be installed in an odd slot of the c7000 enclosure (AM380A#001) or in an even slot (AM380A#002). |
|
|
HPE Integrity BL890c c3000 Server Blade |
AM381A |
|
Notes: - Choose the base models. - Adding Option code "#0D1" to the Server Blade P/N will integrate the configured blade into the enclosure (which must be on the same order) - When adding Option code "#0D1," must select whether server blade should be installed in an odd slot of the c3000 enclosure (AM381A#001) or in an even slot (AM381A#002). |
|
|
Base unit standard features: |
|
|
|
|
|
|
|
|
|
|
| |
|
Step 2: Choose Required Options (one of the following from each list unless otherwise noted) | |
|
HPE Processors | |
|
Notes: Select minimum four (4) and maximum eight (8) processors. |
|
|
Octo-Core Processors |
|
|
Intel Itanium 9740 (2.13GHz/8-core/24MB/170W) Processor Kit for HPE Integrity BL8x0c i6 |
AM383B |
|
Intel Itanium 9760 (2.67GHz/8-core/32MB/170W) Processor Kit for HPE Integrity BL8x0c i6 |
AM382B |
|
Quad-Core Processor |
|
|
Intel Itanium 9720 (1.73GHz/4-core/20MB/130W) Processor Kit for HPE Integrity BL8x0c i6 |
AM385B |
|
Intel Itanium 9750 (2.53GHz/4-core/32MB/170W) Processor Kit for HPE Integrity BL8x0c i6 |
AM384B |
|
HPE Memory | |
|
Notes: Select minimum four (4) and maximum forty eight (48) memory kits. |
|
|
HPE BL8x0c 32GB (2x16GB) Dual Rank PC3L-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
AM388A |
|
Notes: - Memory kits consist of two individual DIMMs. - DIMMs must be installed in quads. Therefore, memory kits must be ordered two (2) at a time, to reach quads (4 DIMMS) to be installed. |
|
|
| |
|
Step 3: Choose Additional Options for Factory Integration | |
|
HPE Hard Drives | |
|
Notes: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
|
|
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives |
|
|
HPE Integrity 600GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F32B |
|
HPE Integrity 1.2TB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F36B |
|
Notes: Though the disks are 6Gb/12Gb, implementation of the embedded HPE Smart Array SAS RAID controller limits performance of disks. |
|
|
12G SAS Hot Plug Enterprise Performance Solid State Drives |
|
|
Notes: BL890c i6 supports HPE Virtual Connect Fibre Channel Interconnect Modules. |
|
|
HPE Security - TPM | |
|
Notes: The TPM must be installed by the factory. |
|
|
| |
|
Step 4: Choose Additional Options for Field Upgrades | |
|
Notes: - For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following: - HPE BladeSystem c-Class Enclosures QuickSpecs: - HPE BladeSystem c3000 Enclosure QuickSpecs: - HPE BladeSystem c7000 Enclosure QuickSpecs: - HPE BladeSystem c-Class Interconnect and Mezzanine Components: https://www.hpe.com/us/en/product-catalog/servers/server-adapters.hits-12.html - HPE Virtual Connect - HPE Server Interconnects - HPE Server Adapters | |
Additional Options
|
HPE Integrity Upgrade Kits | ||
|
HPE Integrity BL8x0c i6 Upgrade BL4 Blade Link |
Q8A00A | |
|
Notes: Required for BL890c i6 server blade used in c7000. |
| |
|
| ||
|
HPE Ethernet Interconnects | ||
|
Notes: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154400 |
| |
|
| ||
|
HPE USB Options | ||
|
Notes: - The HPE Integrity USB External DVD-RW drive solution includes the External DVD drive (AT120B) with 9 inch USB cable, power adaptor, power cable and Y-connector and 6-foot USB extension cable. - The USB Y-connector goes between the extension cable (SH046AA) and the 9-inch USB cable fixed with DVD drive. - The Y-connector should NOT be placed between the server blade and the 6-foot Extension cable. |
||
|
| ||
|
HPE Services operational services | ||
|
Notes: Hewlett Packard Enterprise offers a range of support services and additional services. For a complete listing of services, see: HPE.com external site: http://www.hpe.com/info/support | ||
|
HPE Critical Service | ||
|
HPE 1Y Critical SVC |
HA112A1 | |
|
HPE 3Y Critical SVC |
HA112A3 | |
|
Installation Services |
| |
|
HPE Installation SVC |
HA113A1 | |
|
Notes: For more information: http://www.hpe.com/info/support. |
| |
|
| ||
Memory
|
DIMM installation guidelines:
|
|
HPE Integrity BL890c i6 Server Blade |
- 32 GB - HPE BL8x0c 32GB (4 x 8GB DIMMs) - Memory Bus Bandwidth: 6.4GT/s
- Up to 1.5 TB of DDR3 registered (R-DIMMs) memory is available. |
|
|
Storage
|
| ||||
|
1. |
8 x SFF SAS Hot Plug Hard Drives | |||
|
| ||||
|
Hard Drives | ||||
|
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives | ||||
|
Quantity |
Position |
Controller | ||
|
1.2TB 12G 10K SFF 600GB 12G 10K SFF 600GB 12G 15K SFF 900GB 12G 15K SFF |
8 |
1-8 |
HPE Smart Array p410i Controller | |
|
12G SAS Hot Plug Enterprise Performance Solid State Drives | ||||
|
Quantity |
Position |
Controller | ||
|
400GB/800GB 12G SAS SLC |
8 |
1-8 |
HPE Smart Array p410i Controller | |
|
| ||||
Technical Specifications
|
Power Specifications | |||
|
Notes: The HPE Power Advisor is a tool provided by Hewlett Packard Enterprise to assist in the estimation of power consumption and proper selection of components including power supplies at a system, rack, and multi-rack level. A variety of additional features are also provided including a condensed bill of materials, a cost of owner ship calculator, and a power report. For additional information please visit: HPE Power Advisor: https://www.hpe.com/in/en/integrated-systems/rack-power-cooling.html | |||
|
System Unit |
Dimensions |
Height |
14.42 in (36.63 cm) |
|
Depth |
19.10 in (48.51 cm) | ||
|
Width |
8.29 in (20.82 cm) | ||
|
Shipping Dimensions |
Height |
20.50 in (54.61 cm) | |
|
Depth |
26.00 in (66.04 cm) | ||
|
Width |
15.94 in (40.49 cm) | ||
|
Weight |
Maximum |
106lbs. (48.08 kg) | |
|
Temperature Range* |
Operating |
10° to 35° C (50° to 95° F) | |
|
Non-Operating |
-40° to 60° C (-40° to 140° F) | ||
|
Storage |
-20° to 60° C (-4° to 140° F) | ||
|
Maximum Wet Bulb |
30° C (86° F) | ||
|
Relative Humidity** |
Operating |
15% to 80% | |
|
Shipping |
10% to 90% | ||
|
Storage |
10% to 90% | ||
|
Notes: - *All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. - **Storage maximum humidity of 90% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa. | |||
|
SAS RAID HPE p410e Controller |
Disk Drive and Enclosure Interface |
3Gb SAS (Serial Attached SCSI) | |
|
SAS Connectors |
8 internal (SFF8484) x4 wide port connector | ||
|
Cache Memory Speed |
DDR2-800 memory provides up to 4.2 GB/s maximum bandwidth | ||
|
Server Interface |
X1 5.0Gbps PCIe provides 1GB/s maximum bandwidth | ||
|
SAS Speed |
Eight x 1 3G SAS provides 2400MB/s maximum bandwidth | ||
|
Cache Memory |
Four (4) integrated SAS read only 512MB cache, one per HPE Smart Array p410i SAS controller | ||
|
Logical Drives Supported |
Up to 32 logical volumes | ||
|
Maximum Logical Drive Capacity |
Up to 64 logical | ||
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | ||
|
SAS RAID HPE p410e Controller |
RAID Support |
RAID 0 (striping) and 1 (Mirroring), and RAID 0+1 (mirrored and striped) (not supported with BL8x0c i6 blades) |
|
Upgradeable Firmware |
Upgradeable Firmware with Recovery ROM features Online Drive Flash requires 256MB, 512MB, or 1GB cache module | |
|
Embedded Dual NC553i 10Gb 2-port FlexFabric NICs with Flex-10 support |
Network Interface |
10000Base-Sx |
|
Compatibility |
IEEE 802.3ib QoS 802.3x flow control, and 802.3ap 10GBase-KR | |
|
Data Transfer Method |
PCI Express, four lanes (x4) | |
|
Network Transfer Rate |
1 Dual 10Gb ports offer up to 40Gb/s bidirectional theoretical throughput | |
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. |
|
Regulatory Compliance |
Regulatory Model Number |
RSVLA-BC11 |
|
Electromagnetic Interference |
Complies with FCC Rules and Regulations, Part 15, as a Class A digital device. Manufacturer's Declaration to EN55022 Class A, VCCI Registered, Class A, KC (Korea Certification), BMSI Taiwan, CSA Certified, compliant with IEC 60950, UL 60950, EN 60950 and EN41003 | |
|
Safety |
UL Listed, CSA Certified, TUV GS Mark | |
|
More detailed regulatory documents and certifications |
https://www.hpe.com/us/en/about/environment/msds-specs-more.html | |
|
| ||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
04-Dec-2023 |
Version 11 |
Changed |
Service and Support section was updated |
|
15-Nov-2021 |
Version10 |
Changed |
Service and Support Pointnext Tech Care and Complete Care information updated |
|
02-Dec-2019 |
Version9 |
Changed |
Overview and Configuration Information sections were updated. |
|
03-Dec-2018 |
Version 8 |
Changed |
Overview, Standard Features, and Ordering and Configuration sections were updated. |
|
Added |
SKUs added in Ordering and Configuration section: P04558-B21, P04562-B21 | ||
|
01-Oct-2018 |
Version 7 |
Changed |
Configuration Information - Factory Integrated Models, Additional Options and Memory were updated. |
|
04-Sep-2018 |
Version 6 |
Changed |
QuickSpecs Updated. |
|
08-Jan-2018 |
Version 5 |
Changed |
Configuration Information - Factory Integrated Models and Storage sections were updated. |
|
Added |
SKUs added in Configuration Information - Factory Integrated Models section: B9F30B, B9F32B, Q2C47A, B9F33B, B9F34B, B9F36B. | ||
|
Removed |
SKUs removed in Configuration Information - Factory Integrated Models section: 872842-B21, 872848-B21, 872846-B21, 873008-B21, 873010-B21, 873012-B21 | ||
|
23-Oct-2017 |
Version 4 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. |
|
25-Sep-2017 |
Version 3 |
Changed |
Configuration Information - Factory Integrated Models, Core Options, and Memory sections were updated. |
|
Added |
SKUs added in Configuration Information - Factory Integrated Models and Core Options sections: 873349-B21, 873460-H21, Q7Z99A, Q8A00A. | ||
|
Removed |
SKUs removed in Configuration Information - Factory Integrated Models and Core Options sections: 802576-B21, 802580-B21, 802584-B21, AM395A, AM398A. | ||
|
11-Jul-2017 |
Version 2 |
Changed |
Standard Features, Configuration Information - Factory Integrated Models, Memory, and Storage sections were updated. |
|
Removed |
SKUs were removed: 785079-B21, 785075-B21, 785073-B21, 785099-B21, 785101-B21, 785103-B21, 785071-B21, 512547-B21. | ||
|
05-Jun-2017 |
Version 1 |
Created |
New QuickSpecs. |
Copyright
|
|
| |||||
|
|
|
© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less. a00005205enw - 15892 - Worldwide - V11 - 04-December-2023 |
