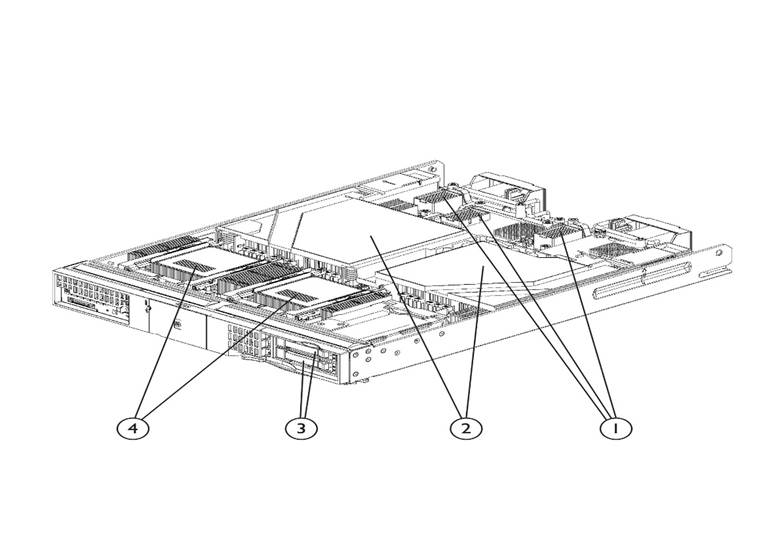

HPE Integrity BL860c i6 Server Blade | |||
|
| |||
|
1. |
3 x PCIe Mezzanine Slots |
3. |

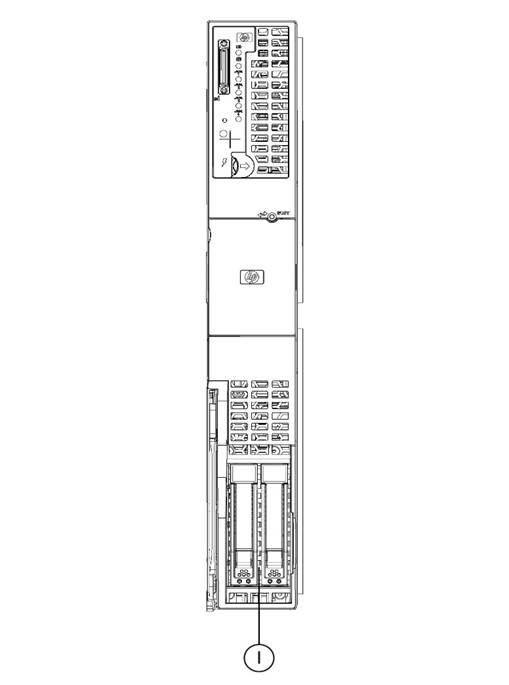

2 x SFF SAS HDDs, hot-swap bays |
|
2. |
24 x DDR3 DIMM Slots |
4. |
Two Intel® Itanium® processor 9700 series sockets |
|
| |||
|
What's New | |||
| |||
|
| |||
|
At A Glance |
|
This document covers the HPE Integrity BL860c i6 server blade only. For more information on HPE BladeSystem c-Class Enclosures and HPE BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:
The
HPE Integrity BL860c i6 delivers the performance, reliability, and availability
on the HPE 64-bit operating system HP-UX 11i v3 for the ultimate in
scalability and flexibility in deployment. To further enrich your cost-efficient,
consolidated Integrity blade infrastructure, Virtual Server OE (VSE-OE)
can help with solution components such as HP-UX Virtual Partitions (vPars)
v6.4, HPE Integrity Virtual Machines (Integrity VM), HPE Capacity Advisor,
HPE Global Workload Manager, and automation through Hewlett Packard
Enterprise infrastructure Orchestration. Additionally, High Availability
OE (HA-OE) provides high availability via the HPE Serviceguard clustering
technology and Data Center OE (DC-OE) brings the best of the virtualization
capabilities along with high availability together in one integrated
OE
-
Up
to two Intel® Itanium® 9700 Series processors
-
Up
to 384 GB of memory. Supporting (24) DDR3 registered memory modules
(R-DIMMs)
- Embedded HPE Smart Array p410i SAS Controller - RAID 1, RAID 0, and HBA mode configuration options -
Embedded
SAS read only 512MB cache
-
Supports
up to (2) two small form factor (SFF) SAS hot plug hard drives
-
Four
(4) integrated HPE NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb
autosensing Ethernet, FCoE, Flex-10, and TCP/IP offload engine - FlexFabric capability requires OS drivers and the use of an HPE Virtual Connect FlexFabric module. Learn more at: http://www.hpe.com/info/virtualconnect - BL8x0c i6 server blades require Virtual Connect 3.70 or later when used in Virtual Connect configurations - Plus one (1) additional 10/100 NIC dedicated to Integrity iLO 3 Management |
- Three (3) additional I/O expansion slots via mezzanine cards. - Supports up to (3) mezzanine cards o HPE NC553m Dual Port 10Gb FlexFabric Adapter o HPE Emulex LPe1205 8Gb FC BL-c HBA (2-Port 8Gb Emulex FC HBA) o HPE QMH 2562 8Gb FC BL-c HBA (2-Port 8Gb QLogic FC HBA) o HPE Smart Array P711m/1G FBWC 6G SAS Controller
- One (1) internal USB port on the BL860c i6 - Two (2) External USB ports on the BL860c i6 via SUV cable
- HPE Integrity Server Blades Management Software o Integrity Integrated Lights-Out 3 (iLO 3) management processor o HPE Insight Control o HPE System Management Homepage o HP-UX 11i Management Software for Integrity Blades, http://www.hpe.com/servers/integrityblades
- HPE BladeSystem Infrastructure Management Software: o HPE BladeSystem c-Class Onboard Administrator o HPE BladeSystem c-Class Virtual Connect - Enterprise Management Software o Data Protector Software o GlancePlus Pak o Performance Manager and Agent
- Advanced Infrastructure Management o HPE Capacity Advisor (which includes HPE Virtualization Manager)) o HPE Matrix OE infrastructure orchestration o HPE Systems Insight Manager - Virtualization Continuum o HP-UX Virtual Partitions (vPars) v6.4 o HPE Integrity Virtual Machines (with HP-UX Guest OS's) o HPE Process Resource Manager/pSets o HP-UX Containers - HPE Matrix OE - Matrix OE Reference Architectures
- HPE Serviceguard for HP-UX 11i - HPE Serviceguard Extensions for SAP - HPE Serviceguard Extensions for Oracle - HPE Continentalclusters |
- HPE Integrity BL860c i6 server blade is a full-height, BladeSystem c-Class form factor. The BL860c i6 server blade plugs into the BladeSystem enclosure. In the c7000 enclosure, 8 server blades are supported per 10U enclosure. 4 enclosures can be configured to a standard 42U rack; 32 BL860c i6 server blades can be configured in a fully populated rack. In the c3000 enclosure, 4 BL860c i6 server blades are supported per 6U enclosure.
- Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs: o The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to 8 HPE Integrity BL860c i6 servers plugged vertically. Four (4) enclosures can be configured to a standard 42U rack o The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to 4 HPE Integrity BL860c i6 servers plugged horizontally. Up to 7 enclosures can be configured to a standard 42U rack o The HPE BladeSystem c3000 Enclosure targets three separate market segments:
- Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000 enclosures. - For additional enclosure information, please see:
| ||
|
| ||
|
Models | ||
|
HPE Integrity BL860c i6 Base Model | ||
|
HPE Integrity BL860c i6 |
Processor(s) |
Two (2) processor sockets; processor modules are configured to order |
|
Cache Memory |
Included with processors | |
|
Memory |
Twenty four (24) DIMM sockets; memory DIMMs are configured to order. | |
|
Network Adapter |
Four (4) integrated HPE NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, and TCP/IP offload engine | |
|
Storage Controller |
One (1) additional 10/100 NIC dedicated to Integrity iLO 3 Management | |
|
Hard Drives |
Two SFF SAS drive bays; hard disk drives are configured to order | |
|
IO expansion |
Three PCIe mezzanine card slots (PCIe Gen2 x8 interface); mezzanine cards are configured to order. | |
|
Optical Drive |
None internal to blade server | |
|
Integrity iLO 3 |
Integrity iLO 3 and Integrity iLO 3 Advance Pack license included. | |
|
Form Factor |
Up to 8 supported in HPE BladeSystem c7000 Enclosure | |
|
| ||
Standard Features
|
Processor |
Octo-Core Processors | |
|
Intel® Itanium® 9760 2.66GHz/8-core/32MB/170W Processor | ||
|
Intel® Itanium® 9740 2.13GHz/8-core/24MB/170W Processor | ||
|
Quad-Core Processor | ||
|
Intel® Itanium® 9750 2.53GHz/4-core/32MB/170W Processor | ||
|
Intel® Itanium® 9720 1.73GHz/4-core/20MB/130W Processor | ||
|
| ||
|
Upgradeability |
Upgradeable to two (2) processors | |
|
| ||
|
Cache Memory |
L3 cache; up to 32MB, see processor specifics | |
|
All Processors support |
Single bit cache error correction | |
|
| ||
|
Chipset |
Intel Boxboro | |
|
| ||
|
Memory |
Type |
DDR3 registered memory modules (R-DIMMs) |
|
Minimum |
16 GB (2 x 8 GB DIMMs) | |
|
Maximum |
384 GB (24 x 16 GB) | |
|
Notes: Memory kits are DIMM pairs. | ||
|
| ||
|
Network Adapter |
Four (4) integrated HPE NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, and TCP/IP offload engine | |
|
One (1) additional 10/100 NIC dedicated to Integrity iLO 3 Management | ||
|
Up to six additional 10 Gigabit Ethernet ports via the NC532m dual-port mezzanine adapters. | ||
|
| ||
|
Expansion Slots |
Three Mezzanine slots, two (2) Type II and one (1) Type I, PCIe x8 Gen2 | ||
|
| |||
|
Integrated Manageability |
Integrity Integrated Lights-Out 3 (iLO 3) | ||
|
Factory installed Integrity iLO 3 Advanced Pack license | |||
|
HPE BladeSystem c-Class Onboard Administrator | |||
|
HPE BladeSystem c-Class Virtual Connect | |||
|
| |||
|
Storage Controller |
HPE Smart Array p410i 3Gb SAS Controller |
2 SAS Channels (one to each HDD) | |
|
| |||
|
Maximum Internal Storage |
Hot Plug SAS |
2.4TB SAS |
2 x 1.2TB SAS |
|
| |||
|
Graphics |
Integrated ATI RN-50 1280 x 1024 x 16M color (128 MB DDR memory) | ||
|
Resolution Color Depths |
Depths 1280 x 1024, 16.7M , 64k, 256,16 | ||
|
| |||
|
FlexFabric Support |
Four (4) ports via Two HPE NC553i 10Gb 2-port FlexFabric Converged Network Adapters integrated on system motherboard | ||
|
Notes: BL8x0c i6 server blades require Virtual Connect 3.70 or later | |||
|
Notes: Please see the QuickSpecs for Technical Specifications and additional information and for HP-UX support. | |||
|
| |||
|
Fibre Channel Support |
Optional Fibre Channel HBAs are supported by the HPE Integrity BL860c i6. The mezzanine circuit board connects directly to the server blade system board.
8Gb Fibre Channel HBAs feature:
| ||
|
| |||
|
Compatible SAN |
HPE Integrity BL860c i6 server blades are optimized for HPE Storage MSA, 3PAR, and XP7 products. | ||
|
| |||
|
Smart Array Controller Support |
Optional Smart Array Controller is supported by BL860c i6. The mezzanine circuit board connects directly to the server blade system board, and provides connection to off-blade SAS storage via a SAS interconnect switch module in the HPE BladeSystem enclosure.
Notes: For additional details please see: | ||
|
| |||
|
HPE USB Options |
External USB DVD drive with 6 ft USB extension cable is supported with c7000 enclosures.
Notes: The USB Y-connector goes between the extension cable and the 9-inch USB cable fixed with DVD drive. | ||
|
| |||
|
Integrity Server Blades Management Software and HPE Integrity Essentials Software Plug-ins |
HP-UX 11i Management Software for HPE Integrity BL860c i6 Server Blade and HPE BladeSystem |
- HPE Systems Insight Manager - HPE Insight Control for HP-UX 11i - HP-UX 11i System Management - HPE BladeSystem Integrated Manager in HPE System Insight Manager - HPE Onboard Administrator - HPE BladeSystem c-Class Onboard Administrator Firmware - HPE BladeSystem c-Class Virtual Connect Firmware - HPE Insight Control for HP-UX 11i v3 (Included in Base OE)
- HPE Ignite-UX - Software Distributor-UX - Software Package Builder - Dynamic Root Disk (DRD)
- HPE Systems Insight Manager - HPE System Management Homepage - Glance Plus Pak - Performance Manager and Agent - HPE Serviceguard Manager
- HPE Integrity Integrated Lights-Out (iLO) 3 (standard with BL860c i6 servers) - Integrity iLO 3 Advanced Pack license (included with BL860c i6 servers
- HP-UX Bastille - HP-UX Containers - Data Protector Software - Software Assistant (SWA)
- HPE Capacity Advisory - HPE Global Workload Manager - Process Resource Manager - HPE Insight Power Manager - HP-UX 11i v3 power management
- HPE Matrix OE infrastructure orchestration
- HPE Business Technology Optimization - IT Management Software - HPE Matrix OE for HPE Integrity server blades
-
For
additional information on HPE Integrity server blade management software
please visit: http://h20566.www2.hpe.com/hpsc/doc/public/display?sp4ts. | |
|
| |||
|
Glossary of Integrity Server Blades Management Software Product Description |
HPE BladeSystem Integrated Manager in HPE Systems Insight Manager |
The HPE BladeSystem Integrated Manager is a component in HPE Systems Insight Manager (SIM) that provides streamlined management for the entire HPE BladeSystem product family. The HPE BladeSystem Integrated Manager enables users to quickly navigate their HPE blade environments including blade servers, enclosure infrastructures, racks, and integrated switches, via automatically generated blade rack picture views and hierarchical trees. Users are able to conveniently configure, deploy, and manage individual or groups of blade systems. Additionally, users are able to quickly set up logical collections of blade systems for convenient management and control. | |
|
HPE Blades Visualization |
Used by System Administrators to identify, associate and group blades into collections, using tables, trees, and picture views, and it can also be used to monitor performance and launch Integrity Essentials. | ||
|
HPE GlancePlus Pack |
HPE GlancePlus Pak provides you with a single product for managing a system's availability and performance. It is an integrated product that includes HPE GlancePlus and HPE OpenView Performance Agent. As an integrated product, the GlancePlus Pak includes the real-time diagnostic capabilities of GlancePlus and the historical data collection capabilities of the Performance Agent. The performance agent is used with other availability and performance management products, thus providing an integrated real-time and historical performance management solution. | ||
|
HPE Ignite-UX for HP-UX Deployments |
HPE Ignite-UX is a free toolset that enables a network install of HP-UX onto multiple PA-RISC and/or Integrity servers on a network. It can also be used to create custom install configurations, or golden images, recover systems remotely, create custom recovery media including tape, CD and DVD, and manage and monitor multiple client installation sessions. | ||
|
HPE Capacity Advisor |
The capacity planning component of HPE Capacity Advisor offers the industry's first lightweight, integrated tool for ongoing capacity planning by simulating the placement of application workloads to help IT administrators improve server utilization. It captures real-world server utilization data to pre-test different scenarios before making changes to critical applications. HPE Virtualization Manager, which is included with Capacity Advisor and Global Workload Manager, provides a central point of control that allows you to manage all the resources in your virtualized environment and a powerful way to connect IT resources to real business needs. | ||
|
HPE Integrity Integrated Lights-Out (iLO) 3 (factory integrated with BL860c i6) |
HPE Integrity Integrated Lights-Out (iLO) management processors make it simpler, faster, and less costly to remotely manage your Integrity servers. HPE iLO functions without additional software and can be accessed from any location via a web browser. HPE Integrity systems with iLO 3 ships with a built in Advanced Pack License so your Integrity blade is instantly ready to use iLO Virtual Media and iLO power measurement. iLO Advanced features enabled in this release: Virtual Media, LDAP directory services, iLO power measurement, and integration with Insight Power Manager. No additional iLO licensing is needed. | ||
|
HPE Onboard Administrator |
The Onboard Administrator for the HPE BladeSystem enclosure is the brains of the new c-Class infrastructure. Together with the enclosure's HPE Insight Display, the Onboard Administrator has been designed for both local and remote administration of HPE BladeSystem c-Class. This module and its firmware provides:
Notes: Please see https://www.hpe.com/us/en/product-catalog/servers/bladesystem-enclosures/pip.hpe-onboard-administrator.3188465.html for more information. | ||
|
HPE Serviceguard Manager |
HPE Serviceguard Manager is a graphical user interface (GUI) that provides configuration, administration, and monitoring capabilities for Serviceguard, Serviceguard Extension for RAC, Metrocluster, and Continentalclusters. Using Serviceguard Manager, operators see color-coded icons that provide a big-picture view of multiple clusters. From this big-picture view, operators can drill down and proactively manage clusters, systems (nodes), and packages that run applications. | ||
|
HPE Systems Insight |
HPE Systems Insight Manager (HPE SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms. | ||
|
HPE System Management Homepage |
HPE System Management Homepage is a web-based interface that consolidates and simplifies the management of individual ProLiant and Integrity servers running Microsoft Windows or Linux operating systems, or HPE 9000 and HPE Integrity servers running HP-UX 11i. By aggregating data from HPE Insight Management Agents and other management tools, the System Management Homepage provides a secure and intuitive interface to review in-depth hardware configuration and status data, performance metrics, system thresholds and software version control information. The System Management Homepage can also be used to access the HPE Lights-Out Management processor on ProLiant and Integrity servers. | ||
|
HPE Matrix OE for HPE Integrity servers |
HPE Matrix OE is advanced lifecycle management software for HPE Integrity servers which enable you to instantly adjust to dynamic business demands - with the new addition of infrastructure orchestration, not only can you easily plan, configure, and automate your physical and virtual resources in the same way, but now you can also provision and modify a complex infrastructure in minutes. | ||
|
HP-UX Software Assistant (SWA) |
HP-UX Software Assistant (SWA) is a command-line based tool that consolidates and simplifies patch management and security bulletin management on HP-UX systems. The SWA tool is new for HP-UX releases as of January 2007, includes Security Patch Check (SPC), and is the HPE-recommended utility to use to maintain currency with HPE-published security bulletins for HP-UX software. | ||
|
HP-UX Workload Manager |
HP-UX Workload Manager (HP-UX WLM) is a resource management tool that provides automatic CPU resource allocation and application performance management based on your service-level objectives (SLOs) and business priorities. WLM is most effective managing applications that are CPU-bound. It automatically adapts system or partition CPU resources (cores) to the demands, SLOs, and priorities of the running applications. (A core is the actual data processing engine within a processor, where a single processor can have multiple cores, and a core can support multiple execution threads through Hyper-Threading, introduced with HP-UX 11i v3, as discussed below.) It adjusts the CPU allocation of a group of processes known as a workload, basing adjustment on the current needs and performance of the applications in that workload. | ||
|
HPE Global Workload Manager |
The workload management capability for HP-UX Integrity servers is provided by the HPE Global Workload Manager component of HPE Matrix OEInsight Dynamics -- Matrix OEVSE. HPE Global Workload Manager (gWLM) is an intelligent policy engine that automatically allocates resources among multiple workloads to increase server utilization while meeting service levels for high-priority applications. Designed to work across multiple HP-UX 11i, OpenVMS and Linux environments, the workload management features are ideal for large, centralized IT environments that host applications for many departments. | ||
|
HPE Matrix |
HPE Matrix OE capabilities let you provision infrastructure in minutes to automatically activate physical and virtual servers, storage, and networking from pools of shared resources. Whether you need a single virtual machine or infrastructure for a complex three-tier application, Matrix OE finds available resources, streamlines the approval process, and automatically provisions and configures what's needed across infrastructure silos. Delivering infrastructure to the business becomes faster, more efficient, and more reliable. | ||
|
Performance Manager and Agent |
HPE Performance Manager, Agents, and Monitor combine to provide a powerful and flexible distributed management solution. This solution is a single interface for centrally monitoring, analyzing, and forecasting resource utilization for distributed multi-vendor environments, enabling you to offer the best possible level of service in a cost-effective manner. | ||
|
Process Resource Manager |
HPE Process Resource Manager (HPE PRM) is a resource management tool used to control the amount of resources that processes use during peak system load. HPE PRM can manage allocation of the following resources:
| ||
|
HP-UX Containers |
One method that Matrix OE uses to improve server resource utilization is to consolidate multiple applications within a single operating system image. HP-UX Containers combine kernel level security and prove resource management to stack multiple applications within the same operating system. HP-UX Containers and HP-UX Workload Manager can dedicate specific resources to specific applications within an operating system image, avoiding resource contention issues. Using HP-UX Containers11i v3 Security Containment, organizations can ensure that application instances cannot access processes or file from other applications or the system. This ensures that multiple application instances run securely in a consolidated environment, providing the benefits of consolidation while preserving the security of a scale out environment. For software licensing purposes, the maximum number of CPUs in HP-UX Containers can be capped. This capability is part of the HP-UX Base Operating Environment (BOE). | ||
|
Software Distributor-UX |
Software Distributor (SD) is the HP-UX administration tool set used to deliver and maintain HP-UX operating systems and layered software applications. SD is delivered as part of HP-UX; you do not need to download it separately. | ||
|
| |||
|
OS Support |
HP-UX 11i v3 Data Center Operating Environment (DC-OE) VSI OpenVMS V8.4-2L1 Notes: For complete and up to date information on HP-UX 11i support, please visit the HP-UX11i website at: http://www.hpe.com/info/hpux | ||
|
| |||
|
Supported Software Options |
HPE Matrix OE - Matrix OE for HPE Integrity servers (included within both the VSE-OE and DC-OE), which includes the following capabilities for Integrity blades: | ||
|
| |||
|
Intelligent Manageability |
HPE Integrity Integrated Lights-Out 3 (iLO 3) Remote Management | ||
|
Virtual serial console (Multiple, mirrored sessions, with previous context and console log buffer)
Embedded system health and Integrity fault management Diagnostics and troubleshooting:
Dedicated
LAN Connectivity |
|||
|
Notes: iLO 3 Advanced Pack license is included with every BL860c i6 server blade | |||
|
| |||
|
Availability |
Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Notes: *Fee based software products. | ||
|
| |||
|
Industry Standard Compliance |
| ||
|
| |||
|
Security |
Hardware Security
Platform security fundamentals
Protecting data
Protecting Identity:
Hewlett Packard Enterprise also offers many additional security features available through open source software for HP-UX. | ||
|
Common Criteria certification
Common Criteria certifications continue to be an integral part of our HP-UX comprehensive security portfolio. HP-UX 11i v3 has successfully completed a new Commercial off the Shelf (COTS) Compartmentalized Operations Protection Profile (CCOPP) evaluation. This new CCOPP evaluation encompasses the extensive range of security solution for HP-UX 11i v3 including soft partitioning or Virtual partitions (vPars) as well as the previously certified hard partitions (nPars). | |||
|
| |||
|
Factory Express Portfolio for Servers and Storage |
HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hpe.com/us/en/services/factory-express.html | ||
|
| |||
|
HPE Simple Configurator |
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact the HPE Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome | ||
|
| |||
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Configuration Information
|
Factory Integrated or Field Upgrade Models | ||
|
Notes: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. | ||
|
Step 1: Base Server Blade Configuration | ||
|
HPE Models |
HPE Integrity BL860c Server Blade |
AM377A |
|
Notes: Adding Option code "#0D1" to the Server Blade PN will integrate the configured blade into the enclosure (which must be on the same order). |
| |
|
Configurable Model ships with: |
| |
|
Four (4) integrated HPE NC553i 10Gb FlexFabric adapter ports supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, and TCP/IP offload engine plus (1) additional 10/100 NIC dedicated to Integrity iLO 3 Management |
| |
|
Integrated HPE Smart Array p410i SAS Controller for internal HDDs |
| |
|
Integrated SAS read only 512MB cache |
| |
|
HPE Integrity Integrated Lights-Out 3 |
| |
|
| ||
|
Step 2: Choose Required Options (one of the following from each list unless otherwise noted): | ||
|
HPE Processors |
Notes: Select minimum one (1) and maximum two (2) processors. |
|
|
Octo-Core Processors |
| |
|
Intel Itanium 9740 (2.13GHz/8-core/24MB/170W) Processor Kit for HPE Integrity BL8x0c i6 |
AM383B | |
|
Intel Itanium 9760 (2.67GHz/8-core/32MB/170W) Processor Kit for HPE Integrity BL8x0c i6 |
AM382B | |
|
Quad-Core Processor |
| |
|
Intel Itanium 9720 (1.73GHz/4-core/20MB/130W) Processor Kit for HPE Integrity BL8x0c i6 |
AM385B | |
|
Intel Itanium 9750 (2.53GHz/4-core/32MB/170W) Processor Kit for HPE Integrity BL8x0c i6 |
AM384B | |
|
HPE Memory |
Notes: Select minimum one (1) (2x8GB DIMMs) memory kit per server, and maximum of six (6) memory kits per server (12 memory kits if 2 processors ordered) |
|
|
HPE BL8x0c 32GB (2x16GB) Dual Rank PC3L-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
AM388A | |
|
Notes: Memory kits consist of pairs of DIMMs. |
||
|
Notes: DIMMs must be installed in pairs. |
||
|
| ||
|
Step 3: Choose Additional Options for Factory Integration | ||
|
HPE Hard Drives |
Notes: Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details. |
|
|
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives |
||
|
HPE Integrity 600GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F32B | |
|
HPE Integrity 1.2TB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty Digitally Signed Firmware HDD |
B9F36B | |
|
Notes: Though the disks are 12Gb, implementation of the embedded HPE Smart Array p SAS RAID controller limits performance of disks. |
| |
|
12G SAS Hot Plug Enterprise Performance Solid State Drives |
||
|
HPE 400GB SAS 12G Write Intensive SFF (2.5in) ST 3yr Wty Digitally Signed Firmware SSD |
P04558- B21 | |
|
Notes: Provides four additional Gigabit Ethernet ports per I/O expansion slot. |
| |
|
Notes: Provides two additional Gigabit Ethernet ports per I/O expansion slot. |
| |
|
| ||
|
Step 4: Choose Additional Options for Field Upgrades | ||
|
Notes: - For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following HPE BladeSystem c-Class Enclosures QuickSpecs: o HPE BladeSystem c3000 Enclosure QuickSpecs: o HPE BladeSystem c7000 Enclosure QuickSpecs: o HPE BladeSystem c-Class Interconnect and Mezzanine Components: o HPE Virtual Connect o HPE Server Interconnects o HPE Server Adapters https://www.hpe.com/us/en/product-catalog/servers/server-adapters.hits-12.html | ||
|
| ||
Additional Options
|
HPE Services operational services |
Notes: Hewlett Packard Enterprise offers a range of support services and additional services. For a complete listing of services, see: HPE.com external site: https://ssc.hpe.com/portal/site/ssc/ |
|
|
HPE Critical Service |
||
|
HPE 1Y Critical SVC |
HA112A1 | |
|
HPE 3Y Critical SVC |
HA112A3 | |
|
Installation Services |
| |
|
HPE Installation SVC |
HA113A1 | |
|
Notes: For more information: https://ssc.hpe.com/portal/site/ssc/ |
| |
|
| ||
Memory
|
DIMM installation guidelines: | ||
| ||
|
HPE Integrity BL860c i6 Server Blade |
Standard Memory Standard Memory Plus Optional Memory | |
|
| ||
|
BCS Blades Options |
HPE BL8x0c 32GB (2x16GB) Dual Rank PC3L-12800 (DDR3-1600) Registered CAS-11 Memory Kit |
AM388A |
|
| ||
Storage
|
| ||||
|
1. |
2 x SFF SAS Hot Plug Hard Drives | |||
|
| ||||
|
Hard Drives | ||||
|
SAS Hot Plug SFF Enterprise (ENT) Drives | ||||
|
Quantity |
Position |
Controller | ||
|
1.2TB 12G 10K SFF 600GB 12G 15K SFF 900GB 12G 15K SFF |
2 |
1-2 |
HPE Smart Array P410i Controller | |
|
6G SAS Hot Plug Enterprise Performance Solid State Drives | ||||
|
Notes: Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details. | ||||
|
Quantity |
Position |
Controller | ||
|
400GB/800GB 12G SLC SFF |
2 |
1-2 |
HPE Smart Array P410i Controller | |
|
| ||||
Technical Specifications
|
Power Specifications | |||
|
Notes: The HPE Power Advisor is a tool provided by Hewlett Packard Enterprise to assist in the estimation of power consumption and proper selection of components including power supplies at a system, rack, and multi-rack level. A variety of additional features are also provided including a condensed bill of materials, a cost of owner ship calculator, and a power report. For additional information please visit: HPE Power Advisor: https://www.hpe.com/in/en/integrated-systems/rack-power-cooling.html | |||
|
System Unit |
Dimensions |
Height |
14.42 in (36.63 cm) |
|
Depth |
19.1 in (48.51 cm) | ||
|
Width |
2.025 in (5.14 cm) | ||
|
Shipping Dimensions |
Height |
21.50 in (54.61 cm) | |
|
Depth |
26.0 in (66.04 cm) | ||
|
Width |
10.00 in (25.4 cm) | ||
|
Weight |
Maximum |
25.0 lbs (11.3 kg) | |
|
Temperature Range* |
Operating |
10° to 35° C (50° to 95° F) | |
|
Non-Operating |
-40° to 60° C (-40° to 140° F) | ||
|
Storage |
-20° to 60° C (-4° to 140° F) | ||
|
Maximum Wet Bulb |
30° C (86° F) | ||
|
Relative Humidity** |
Operating |
15% to 80% RH non-condensing | |
|
Shipping |
5% to 95% RH non-condensing | ||
|
Storage |
5% to 95% RH non-condensing | ||
|
*Notes: All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. | |||
|
| |||
|
Embedded SAS RAID HPE Smart Array p410i Controller |
Disk Drive and Enclosure Interface |
3Gb SAS (Serial Attached SCSI) | |
|
SAS Connectors |
2 internal (SFF8484) x4 wide part connectors | ||
|
Cache Memory Speed |
DDR2-800 memory provides up to 4.2 GB/s maximum bandwidth | ||
|
Server Interface |
X1 5.0Gbps PCIe provides 1GB/s maximum bandwidth. | ||
|
SAS Speed |
Two x1 3G SAS provide 600MB/s maximum bandwidth. | ||
|
Cache Memory |
Embedded SAS read only 512MB. | ||
|
Logical Drives Supported |
Up to 2 logical volumes | ||
|
Maximum Logical Drive Capacity |
Up to 64 logical | ||
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | ||
|
RAID Support |
RAID 0 (Striping), RAID 1 (mirroring), and1+0 (Mirrored and Striped) (not supported with BL8x0c i6 blades) | ||
|
Upgradeable Firmware |
Upgradeable Firmware with Recovery ROM features | ||
|
| |||
|
Embedded NC553i 10 Gb 2-port FlexFabric NICs with Flex-10 support |
Network Interface |
1000Base-Sx | |
|
Compatibility |
IEEE 802.ip QoS 802.3x flow control, and 802.3ap 10GBase-KR | ||
|
Data Transfer Method |
PCI Express, four lanes (x4) | ||
|
Network Transfer Rate |
1Dual 10Gb parts offer up to 40Gb/s bidirectional theoretical throughput | ||
|
| |||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. | |
|
| |||
|
Regulatory Compliance |
Regulatory Model Number |
RSVLA-BC11 | |
|
Electromagnetic Interference |
Complies with FCC Rules and Regulations, Part 15, as a Class A digital device. Manufacturer's Declaration to EN55022 Class A, VCCI Registered, Class A, KC (Korea Certification), BMSI Taiwan, CSA Certified, compliant with IEC 60950, UL 60950, EN 60950 and EN41003 | ||
|
Safety |
UL Listed, CSA Certified, TUV GS Mark compliant with EN 60950 and EN 41003 | ||
|
More detailed regulatory documents and certifications |
https://www.hpe.com/us/en/about/environment/msds-specs-more.html | ||
|
| |||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
04-Dec-2023 |
Version 12 |
Changed |
Service and Support section was updated |
|
15-Nov-2021 |
Version 11 |
Changed |
Service and Support Pointnext Tech Care and Complete Care information were updated |
|
02-Dec-2019 |
Version 10 |
Changed |
Configuration Informaiton section was updated. |
|
03-Dec-2018 |
Version 9 |
Changed |
Overview, Standard Features, and Ordering and Configuration sections were updated. |
|
Added |
SKUs added in Ordering and Configuration section: P04558-B21, P04562-B21 | ||
|
01-Oct-2018 |
Version 8 |
Changed |
Configuration Information - Factory Integrated Models, Additional Options and Memory were updated. |
|
04-Sep-2018 |
Version 7 |
Changed |
Overview, Standard Features, Configuration Information - Factory Integrated or Field Upgrade Models, and Additional Options sections were updated. |
|
Removed |
SKUs were deleted: P9R63BC, P9R63BCE, P9R63BCE#888, P9R65BC, P9R65BCE. | ||
|
02-Jul-2018 |
Version 6 |
Changed |
Configuration Information - Factory Integrated section and Additional Options sections were updated. |
|
Removed |
Obsolete SKUs were deleted: 467799-B21, 451871-B21, 456972-B21, 513778-B21. | ||
|
08-Jan-2017 |
Version 5 |
Changed |
Configuration Information - Factory Integrated or Field Upgrade Models and Storage sections were updated. |
|
Added |
SKUs added in Configuration Information - Factory Integrated or Field Upgrade Models section: B9F30B, B9F32B, Q2C47A, B9F33B, B9F34B, B9F36B. | ||
|
Removed |
SKUs deleted in Configuration Information - Factory Integrated or Field Upgrade Models section: 872842-B21, 872844-B21, 872846-B21, 873008-B21, 873010-B21. | ||
|
23-Oct-2017 |
Version 4 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. |
|
25-Sep-2017 |
Version 3 |
Changed |
Configuration Information - Factory Integrated or Field Upgrade Models and Memory sections were updated. |
|
Added |
SKUs added in Configuration Information - Factory Integrated or Field Upgrade Models section: 873349-B21, 873460-H21. | ||
|
Removed |
SKUs removed in Configuration Information - Factory Integrated or Field Upgrade Models section: 802576-B21, 802580-B21, 802584-B21. | ||
|
11-Jul-2017 |
Version 2 |
Changed |
Standard Features, Configuration Information - Factory Integrated or Field Upgrade Models, and Storage sections were updated. |
|
Added |
SKU added in Configuration Information - Factory Integrated or Field Upgrade Models section: AM387B | ||
|
Removed |
SKUs added in Configuration Information - Factory Integrated or Field Upgrade Models section: 785079-B21, 785075-B21, 785073-B21, 785099-B21, 785071-B21, 785101-B21, 785103-B21, AM387A. | ||
|
05-Jun-2017 |
Version 1 |
Created |
New QuickSpecs |
Copyright
|
|
| |||||
|
|
|
© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries. For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
a00005203enw - 15890 - Worldwide - V12 - 04-December-2023 |
