HPE 8Gb PCIe FC HBAs

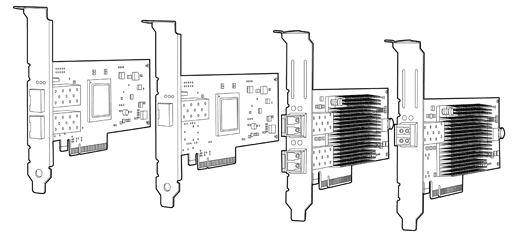

Models

Description

Part Number

HPE PCI Express 1-port 8Gb Fibre Channel SR (QLogic) Adapter

AH400A

HPE PCI Express 2-port 8Gb Fibre Channel SR (QLogic) Adapter

AH401A

HPE 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AH402A

HPE 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AH403A

Product Description

The introduction of the HPE 8Gb PCIe Fibre Channel Host Bus Adapters brings datacenter infrastructure components to a higher level of performance and efficiency. The HPE 8Gb PCIe FC Host Bus Adapters are priced only slightly higher than equivalent 4 Gb HBAs, yet, they have the ability to deliver twice the I/O performance. In addition, an 8 Gb FC HBA purchased today will protect your investment longer than if you were to purchase an equivalent 4 Gb HBA. If you are using storage intensive applications, such as rich media, the increased performance of the 8 Gb infrastructure allows you to store and retrieve critical information faster.

The virtualization of servers has become an important capability for most datacenters. The ability to improve overall server utilization, resulting in significant cost savings, has made server virtualization a "must-have" for most enterprises. By having an HBA that supports and maximizes your server virtualization efforts, you are protecting your significant investments in virtualization technology.

Since most of today's datacenters are required to be available 24 X 7, it is critical that infrastructure components have failover capabilities. By installing redundant HBAs into your servers, you can feel confident that your servers will remain connected to mission-critical stored data.

Finally, today's enterprises are becoming more and more sensitive to the power consumption within the datacenter. The 8 Gb PCIe FC Host Bus Adapters provide a number of features that work together to reduce power consumption, thus delivering a "green" benefit within the server.

Key Features

First step into the 8 Gb future

• Better performance at a competitive price
• Well positioned for the future with 8 Gb technology
• Enhanced for storage intensive applications

Redundant HBAs for high availability

• Failover of HBAs to prevent single point of failure
• Two single port cards are more reliable than one dual port card

Reduced power consumption

• Latest generation technology saves power
• Reduced number of components on each FC HBA reduces overall power consumption
• Lower power consumption means HBA requires lower airflow

Automatic host bus sensing and automatic speed negotiation provide investment protection

• With automatic host bus sensing, all 8Gb HPE HBAs will operate in either PCIe Gen2 (x4 lanes) or PCIe Gen1 (x8 lanes) speed, providing ample bandwidth to support one or two 8 Gb Fibre Channel ports per HBA.
• Automatic Fibre Channel speed negotiation to 2, 4 or 8 Gb per second provides compatibility with and investment protection for older equipment.

Advanced embedded support for virtualized environments

• HPE 8 Gb HBAs support leading edge HBA virtualization, Node Port Identification Virtualization (NPIV) which virtualizes the HBA ports in the SAN in support of Virtual Operating Systems.
  • Allows unique virtual port names to be assigned on a per virtual machine basis.
  • Supports best zoning practice of a single HBA port per zone.
  • Supports Selective Storage Presentation for all virtual machines within a server.
  • Support for QoS and improved diagnostics through association of virtual port names and virtual machines.

Support for Boot-from-SAN provides high reliability

• Multipath Boot from SAN (BFS) capability is fully supported across all platforms. Even if a path to storage fails, servers can still boot using an alternate path.

MSI-X support for increased efficiency

• Message Signal Interrupt eXtended (MSI-X) support improves processor utilization and interrupt handling efficiency.

Data path protection

• Internal end-to-end data path protection using hardware parity, CRC and ECC.

MSI-X support improves processor utilization and interrupt handling efficiency.

• Message Signal Interrupt eXtended (MSI-X) support improves processor utilization and interrupt handling efficiency.

Benefits At a Glance

Get better performance at a competitive price

The 8 Gb series of fibre channel host bus adapters are priced only slightly higher than equivalent 4 Gb HBAs, yet they have the ability to deliver twice the I/O performance.

Be well positioned for the future with 8 Gb technology

Customers have the opportunity to move to 8 Gb technology which is backward compatible with 4 Gb and 2 Gb and will serve them for a much longer period than 4 Gb technology.

Evolving HBA technology keeps pace with the effective bandwidth of server busses.

The new 8 Gb Fibre Channel technology is a natural complement to the PCIe 2.0 bus architecture and will provide servers with ample bandwidth and throughput performance.

Redundant HBAs for high availability

Two single port cards have higher data availability than one dual port card.

Latest generation technology saves power

Results in reduced power consumption and waste.

Warranty

3-0-0 Three-year parts exchange warranty. Additional Warranty protection can be purchased.

HPE Global Services provides a three-year, limited warranty, fully supported by a worldwide network of resellers and service providers toll-free 7 x 24 hardware technical phone support for the duration of the warranty. In addition, available service offerings include a full range of HPE Pointnext operational packaged hardware and software services.

NOTE: Certain restrictions and exclusions apply. Consult the HPE Customer Support Center for details.

Software Product Services

Stand-alone telephone support

Rights to new license version

Media and documentation updates

Hardware Product Services

Installation services

On-site maintenance (includes warranty support)

Response time upgrades during the warranty period

Post-warranty coverage

RAID setup and performance consulting via statement of work

For additional hardware installation and maintenance information, please refer to the URL listed below:
http://h20565.www2.hpe.com/portal/site/hpsc/.

Warranty Upgrade Options

Response - Upgrade on-site response from next business day to same day 4 hours

Coverage - Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours

Duration - Select duration of coverage for a period of 1, 3, or 5 years

Additional Warranty protection and/or HPE Installation packages can be purchased.

HPE Pointnext operational Information

Sample part numbers:

3 years, uplift to 5 x 9, Next Day Response

FM-**XHW-36

3 years, uplift to 5 x 9, 4-hour Response

FM-**4HR-36

3 years, uplift to 7 x 24, 4-hour Response

FM-**724-36

Hardware Installation

FM-**INS-IN

** Represents a two-digit, product-specific code

HPE Pointnext operational is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of coverage.

HPE Pointnext operational is not available for less than the product's warranty duration.

HPE Pointnext operational is available for sale anytime during the warranty period for most products, but the commencement date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be required.

HPE Pointnext operational services are prepaid.

If ordering this HBA for a non-HPE server, manually add package band 8D4 and Installation HA113A1 band 527. If ordering this HBA as an add-on to an existing HPE server, manually add Installation HA113A1 band 527.

For additional HPE Pointnext operational (hardware & software) information, as well as orderable part numbers, please refer to the URL: http://h20565.www2.hpe.com/portal/site/hpsc/

NOTE: Certain restrictions and exclusions apply. Consult the HPE Customer Support Center for details.

81E PCIe

82E PCIe
Dual Port

81Q PCIe

82Q PCIe
Dual Port

Number of channels

Single

Dual

Single

Dual

Port Speed

8 Gb

8 Gb

8 Gb

8 Gb

Slot type supported

PCIe backplane

PCIe backplane

PCIe backplane

PCIe backplane

OS Supported

HP-UX 11i v3; Integrity Windows

HP-UX 11i v3; Integrity Windows

HP-UX 11i v3; Integrity Windows

HP-UX 11i v3; Integrity Windows

Servers Supported

All Integrity servers

All Integrity servers

All Integrity servers

All Integrity servers

What's Included in the Box?

8 Gb HBA with standard bracket, one 8 Gb SFP, low-profile bracket, Quick-Install Guide

8 Gb HBA with standard bracket, one 8 Gb SFP, low-profile bracket, Quick-Install Guide

8 Gb HBA with standard bracket, one 8 Gb SFP, low-profile bracket, Quick-Install Guide

8 Gb HBA with standard bracket, one 8 Gb SFP, low-profile bracket, Quick-Install Guide

Environmental - Operating Temperature

32° to 131°F
(0° to 55°C)

32° to 131°F
(0° to 55°C)

32° to 131°F
(0° to 55°C)

32° to 131°F
(0° to 55°C)

Environmental - Storage Temperature

-20° to 158°F
(-40° to 70°C)

-20° to 158°F
(-40° to 70°C)

-20° to 158°F
(-40° to 70°C)

-20° to 158°F
(-40° to 70°C)

Environmental - Relative Humidity - Operating

5% to 95% non-condensing

5% to 95% non-condensing

10% to 90% non-condensing

10% to 90% non-condensing

Product Dimensions (HxW)

6.60 x 2.71 in (167.64 x 2.71 mm)

6.60 x 2.71 in (167.64 x 2.71 mm)

6.60 x 2.54 in
(167.64 x 64.4 mm)

6.60 x 2.54 in
(167.64 x 64.4 mm)

Media

Multi-mode Optic (SFP+)

Multi-mode Optic (SFP+)

Multi-mode Optic (SFP+)

Multi-mode Optic (SFP+)

Connector

Short wave laser with LC type connector

Short wave laser with LC type connector

Short wave laser with LC type connector

Short wave laser with LC type connector

PCIe Connector

PCIe x8
Max x4 lanes Gen2
Max x8 lanes Gen1

PCIe x8
Max x4 lanes Gen2
Max x8 lanes Gen1

PCIe x8
Max x4 lanes Gen2
Max x8 lanes Gen1

PCIe x8
Max x4 lanes Gen2
Max x8 lanes Gen1

Auto-negotiation

8 Gb/4 Gb/2 Gb

8 Gb/4 Gb/2 Gb

8 Gb/4 Gb/2 Gb

8 Gb/4 Gb/2 Gb

Brackets

Shipped with both ½ height and full-height brackets

Shipped with both ½ height and full-height brackets

Shipped with both ½ height and full-height brackets

Shipped with both ½ height and full-height brackets

Date

Version History

Action

Description of Change

24-Oct-2018

Version 3

Changed

Rebranding

Updates were done in all sections.

01-May-2009

Version 2

Changed

Completely revised the Model Descriptions in the Overview section

Minor editing changes were made to Key Features and to Benefits At A Glance in the Features and Benefits section

OpenVMS, Linux were removed from OS Supported and replaced with HP-UX 11i v3; Integrity Windows in the Technical Specifications chart

Enhanced for storage intensive applications and Supports virtualized servers for overall effective server utilization were removed from Benefits At A Glance in the Features and Benefits section and Array Platforms Supported was removed from the Technical Specifications chart

24-Oct-2008

Version 1

Created

New QuickSpecs
