HPE ProLiant DL145 Gen11 QuickSpecs

Ready to Experience Exceptional Performance, Affordability, and Versatility with HPE's Latest Edge Computing Server Solution?

HPE ProLiant DL145 Gen11 server is a 2U, single processor, robust edge computing server designed to cater to the needs of Retail, Manufacturing, Telecommunications, and various other industries. It offers a compelling alternative to traditional servers with its sleek design, affordable pricing, and quiet operation.

Key Features

Powered by the 4^th and 5^th generation AMD® EPYC^TM 8004/8005 Zen4c/Zen5 architecture, this server provides up to 84 energy-efficient cores, PCIe Gen5 speed, and high-performance EDSFF storage. It can operate continuously in temperatures ranging up to 55°C and withstand high-dust and high-vibration environments. It is engineered for today's hybrid world, allowing enterprises to virtualize traditional IT applications to power their businesses and accelerate AI success.

Get Robust Edge Processing Power with a Small Server Footprint

The HPE ProLiant DL145 Gen11 reduces the reliance on cloud infrastructure by tackling a variety of low-latency workloads with efficient processing powered by AMD Siena Processors. The server supports up to 64 cores and offers support for 3x single-wide GPUs or 1x double-wide GPU, customizing its performance for edge workloads while simultaneously delivering more energy efficiency through new EDSFF performance drives. Additionally, the HPE Integrated Lights Out and Compute Ops Management allows for ease of management in a variety of locations. The HPE ProLiant DL145 Gen11 small server footprint puts sustainability efforts top-of-mind for users.

Customized for Diverse Portfolio of Edge Computing Environments

The HPE ProLiant DL145 leverages a 2U form factor, providing better cooling operation, airflow, and quiet acoustics. Measuring approximately 15 inches wide and 16 inches deep, the HPE ProLiant DL145 Gen11 can be rack, wall, or desk mounted, providing flexibility for your unique business environment. Designed to accommodate a variety of environmental constraints, this server can handle up to 55°C operating temperature and can withstand moderate to high shocks and vibration. In locations with heavy amounts of dust and debris, the HPE ProLiant DL145 Gen11's large air filter is able to filter out harmful airborne material, keeping your server running efficiently.

Keeping your Data and Property Safe with Enhanced Security Features

Hewlett Packard Enterprise cares about keeping your property and data safe, especially at the edge, where data and property is more vulnerable to attack. The HPE ProLiant DL145 Gen11 has the high-quality security features needed to ensure your peace of mind. Built on the Hewlett Packard Enterprise signature Silicon Root of Trust, Integrated Lights Out 6, IDevID, and Platform Certificates, you can be sure your data is being protected from outside threats. Chassis Intrusion detection with Bezel and Kensington locks keep your device safe from unwarranted theft or intrusions.

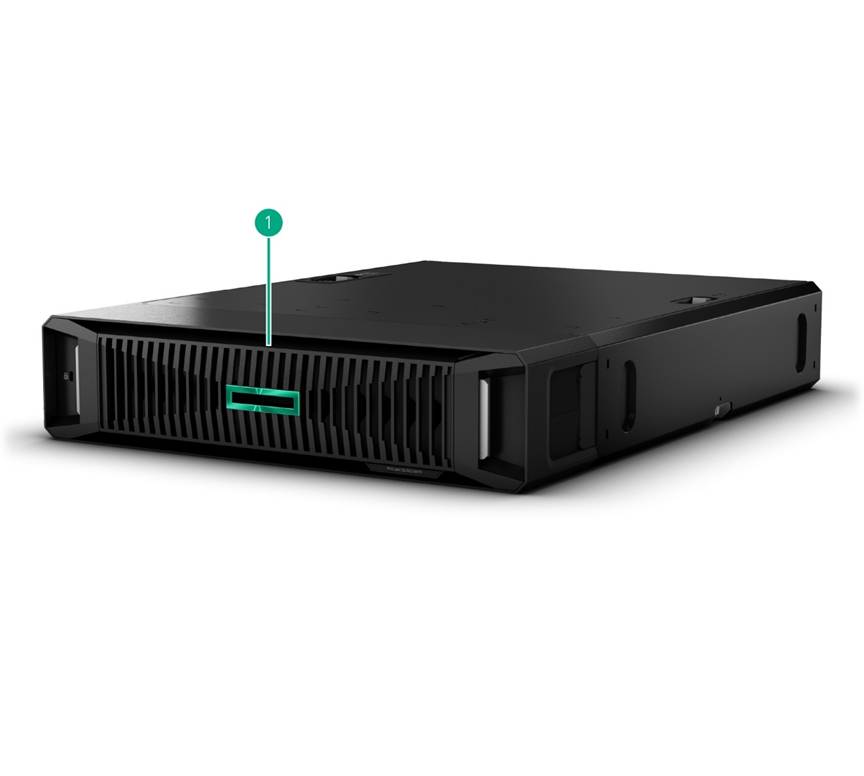

HPE ProLiant DL145 Gen11 Server - Front View (Bezel)

Item

Description

1.

Bezel Filter

Front View

Item

Description

Item

Description

1.

Quick Removal Access Panel

11.

NIC Status LED

2.

Slot 1: PCIe 5.0 x16 Full Height Full Length (Optional)

Slot 2: PCIe 5.0 x16 Full Height Full Length (Optional)

Slot 3: PCIe 5.0 x16 Full Height Half Length Base Riser

12.

Optional: Serial Port

3.

Flex-Slot Power Supply 1

Flex-Slot Power Supply 2 (Optional)

13.

Drive Support Label

4.

Slot 21 OCP 3.0 PCIe 5.0 x16

14.

iLO Service Port

5.

DisplayPort

15.

Serial Number/iLO Information Pull Tab

6.

iLO Management Port

16.

Optional: NS204i-u Boot Device

7.

USB 3.2 Gen1 Ports

17.

Drive Bays

Option 1: Up to 2 SFF HDD/SSD SAS/SATA/NVMe

Option 2: Up to 6 EDSFF E3.S EC1 NVMe (shown)

8.

Health LED

9.

Power On/Standby Button and System Power LED

10.

Unit ID Button/LED

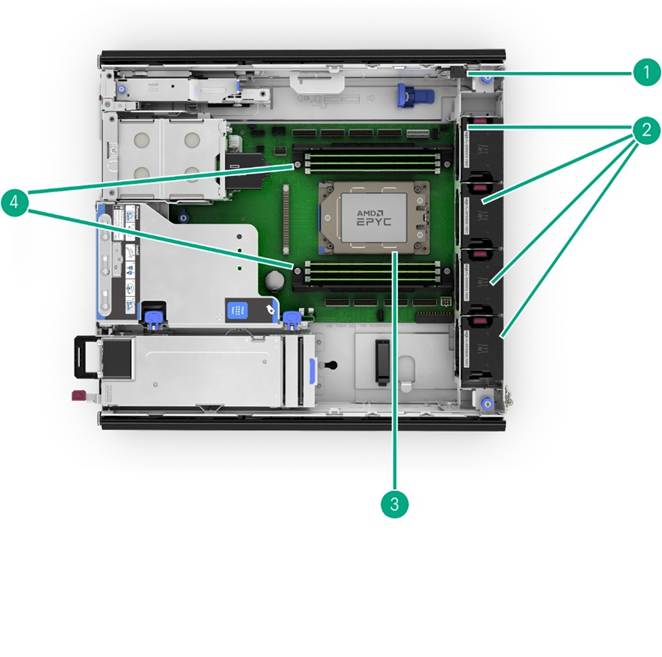

Internal View

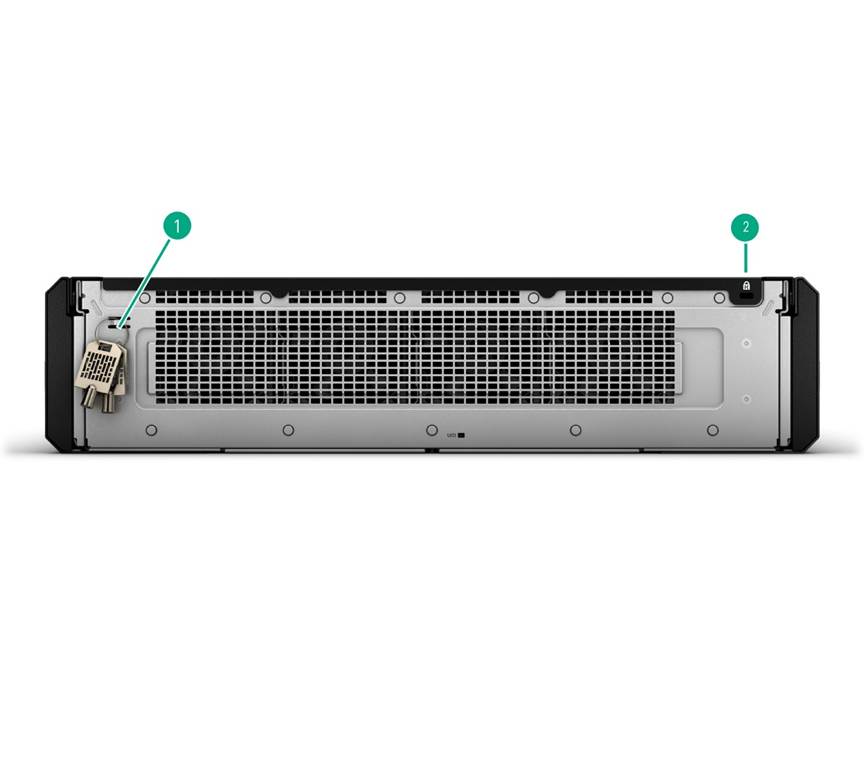

Rear View

- Compact Size, 15-inch wide, 16-inch deep (without Bezel Filter), 20-inch (with Bezel Filter).

- Powered by AMD 8004/8005 EPYC^TM Model Support for 8 to 84 cores and TDP rating of up to 225W.

- HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device.

- Up to 2 SFF HDD/SSD or 6 EDSFF E3.S Drive, Self-Encrypting Drives.

- DDR5 4800 or 6400 MT/s, 6 DIMM Slots, up to 768 GB memory capacity (using 128 GB DIMMs).

- 3x PCIe Gen 5 slots for GPU/Accelerator and other full-size cards.

- Support for NVIDIA L4 and NVIDIA L40S GPU.

- OCP 3.0 PCIe Gen 5 slot to support various Network Adapters.

- Operating Temp support from -5° to 55° Celsius.

- Bezel with large air filter for dust protection.

- HPE's Silicon Root of Trust, iDevID, Platform Certificates, TPM 2.0.

- Chassis Intrusion detection, Bezel lock, Kensington lock.

- Support for Wall, Desk, 2-post or 4-post rack.

- Up to two redundant AC or DC power supply units.

- iLO Standard with Intelligent Provisioning, HPE OneView Standard, HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced, HPE Compute Ops Management.

- OpenBMC Capable through iLO 6 Transfer of Ownership Process.

- HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device.

- HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device.

- HPE ProLiant DL145 Gen11 Military Ruggedization FIO Kit (To support MIL-STD-810H).

- NVIDIA RTX PRO 4500 Blackwell Server Edition 32GB PCIe Accelerator for HPE.

- HPE 61.44TB NVMe VRO EC1 (SED) 6550 SSD, HPE 16W Smart Hybrid Cap w/145mm Cbl and -F21 memory SKUs

- HPE EDSFF E3.S and SFF BC Multi Vendor SSD.

Platform Information

Form Factor

- 2U rack.

Chassis Types

- Front cabled chassis.

System Fans

- Standard Fans and Performance Fans.

Notes:

- The DL145 Gen11 supports up to 4 fans with fan redundancy built in. One fan rotor failure will place the server in degraded mode, but remain fully functional. Two fan rotor failures could provide a warning and imminent server shutdown.

- Each Fan kit is designated to operate under different configurations. Please refer to the cooling option message in the unique option section for more information.

Heat Sink

- 2U Heat Sink (Standard).

- Optional 1U Heat Sink.

Notes:

- 1U Heat Sink is required for full length card.

- Ambient temperature support is <= 45°C.

- Processor with TDP <= 150W.

- Acoustic mode cannot be selected in the configurator.

- Limitation on certain components (see Operating temperature 1U Heat sink table under configuration section).

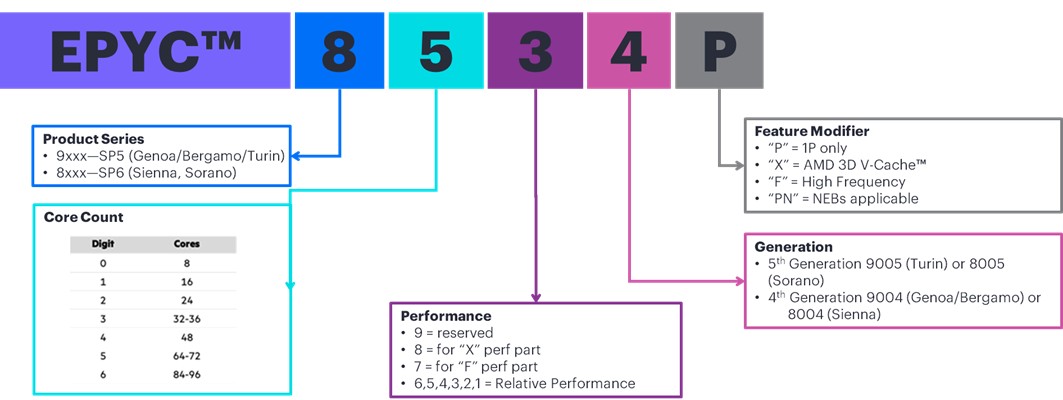

Processors - One of the following, depending on the model.

Notes: For more information regarding AMD EPYC^TM processors, refer to the following:
https://www.amd.com/en/products/processors/server/epyc.html

8004 EPYC^TM Model

Cores

Base Frequency

Max Frequency

DDR5 Channels

Default TDP

L3 Cache (MB)

Memory

8534P

64

2.3 GHz

3.1 GHz

6

200 W

128 MB

4800 MT/s

8434P

48

2.5 GHz

3.1 GHz

6

200 W

128 MB

4800 MT/s

8324P

32

2.65 GHz

3 GHz

6

180 W

128 MB

4800 MT/s

8224P

24

2.55 GHz

3 GHz

6

160 W

64 MB

4800 MT/s

8124P

16

2.45 GHz

3 GHz

6

125 W

64 MB

4800 MT/s

8024P

8

2.4 GHz

3 GHz

6

90 W

32 MB

4800 MT/s

8534PN

64

2 GHz

3.1 GHz

6

175 W

128 MB

4800 MT/s

8434PN

48

2 GHz

3 GHz

6

155 W

128 MB

4800 MT/s

8324PN

32

2.05 GHz

3 GHz

6

130 W

128 MB

4800 MT/s

8224PN

24

2 GHz

3 GHz

6

120 W

64 MB

4800 MT/s

8124PN

16

2 GHz

3 GHz

6

100 W

64 MB

4800 MT/s

8024PN

8

2.05 GHz

3 GHz

6

80 W

32 MB

4800 MT/s

8005

EPYC^TM Model

Cores

Base Frequency

Max Frequency

DDR5 Channels

Default TDP

L3 Cache (MB)

Memory

8635P

84

1.6 GHz

4.5 GHz

6

225 W

384 MB

6400 MT/s

8535P*

64

2.0 GHz

4.5 GHz

6

210 W

256 MB

6400 MT/s

8435P*

48

2.45 GHz

4.5 GHz

6

200 W

256 MB

6400 MT/s

8325P*

32

2.7 GHz

4.5 GHz

6

175 W

256 MB

6400 MT/s

8225P*

24

2.95 GHz

4.5 GHz

6

160 W

128 MB

6400 MT/s

8125P*

16

2.65 GHz

4.5 GHz

6

125 W

128 MB

6400 MT/s

8025P

8

2.9 GHz

4.5 GHz

6

95 W

64 MB

6400 MT/s

Notes:

- The wattage information indicates the processor's default cTDP (Configurable TDP).

- Selected 8005 EPYC models will be available in June 2026.

Chipset

No chipset - System on Chip (SoC) design.

On System Management Chipset

HPE iLO 6 ASIC

Notes: Read and learn more in the iLO QuickSpecs.

Memory

Notes:

- LRDIMM and Persistent Memory are not supported.

- For additional information, refer to the HPE DDR5 Smart Memory QuickSpecs

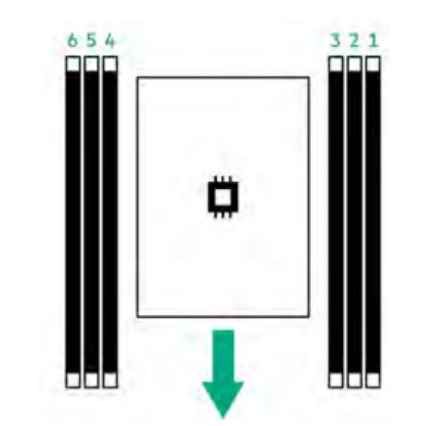

- For the Memory Population Rules and Guidelines with AMD EPYC^TM 8004/8005 series processors, see details here: https://www.hpe.com/psnow/doc/a50007481enw.

Memory Protection

Advanced ECC

Advanced ECC uses single-device data correction to detect and correct single and all multibit errors that occur within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Notes: For more information see our Memory RAS feature technical whitepaper.

Expansion Slots

Storage Devices

Storage Controllers

Boot Device

- HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device.

- HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device.

- HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device.

- HPE ProLiant DL145 Gen11 NS204i-u Enablement Kit.

Notes:

- Externally accessible but does not occupy a PCIe slot.

- For additional information, refer to the HPE OS Boot Device QuickSpecs.

MR Gen11 Storage Controller

- HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller.

- HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller.

- HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller.

- HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller.

For more information on HPE Compute MRGen11 Controllers, please refer to the QuickSpecs.

For more information on the HPE Smart Array E208i-p SR Gen10 Controller, please refer to the QuickSpecs.

Graphics

Integrated Video Standard

- Video modes up to 1920 x 1200 @60Hz (24 bpp).

- 16MB Video Memory.

HPE iLO 6 on system management memory

- 64 MB Flash.

- 8 Gbit DDR4 with ECC protection.

Bezel Filter

HPE ProLiant DL145 Gen11 FIO Bezel Filter Kit.

Notes:

- The Bezel filter kit includes one bezel and one air filter.

- The air filter is a consumable part and is not covered under HPE warranty.

- HPE highly recommends replacing the air filter every three to six months. For detailed maintenance, please refer to the HPE ProLiant DL145 User Guide and Maintenance Service Guide

- Additional replacement air filters are orderable.

HPE ProLiant DL145 Gen11 Filter Replacement Kit.

Notes: Includes two individual air filters.

Mounting Options

HPE ProLiant DL145 Gen11 Desk/Wall Mounting Kit.

Notes: The Desk/Wall Mounting Kit allows system installation on a wall/desk instead of a rack.

HPE ProLiant DL145 Gen11 Rack Enablement Kit.

Notes: The rack enablement kit allows system installation in a 2-post and 4-post rack.

HPE ProLiant DL145 Gen11 2-post Rail Kit.

Notes: The 2-post rail kit and rack enablement kit allows system installation in a 2-post rack.

Power Supply

HPE ProLiant 700W Flex Slot -48VDC Hot Plug Low Halogen Reverse Air Flow Power Supply Kit.

Notes: Available in 94% efficiency.

HPE ProLiant 700W Flex Slot Platinum Hot Plug Low Halogen Reverse Air Flow AC Power Supply Kit.

Notes: Available in 94% efficiency.

HPE ProLiant 900W-1000W Flex Slot Titanium Hot Plug Reverse Air Flow AC Power Supply Kit.

Notes: Available in 96% efficiency.

All power supply kits have reverse airflow to support front cabled design of DL145.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, and tool-less installation into HPE ProLiant Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

Industry Standard Compliance

- ACPI 6.1 Compliant.

- PCIe 5.0 Compliant.

- WOL Support.

- Microsoft® Logo certifications.

- PXE Support.

- VGA/DisplayPort.

- USB 3.2 Gen1 Compliant.

- USB 2.0 Compliant.

- ENERGY STAR® 4.0.

- SMBIOS 3.1.

- UEFI 2.7.

- UEFI Class 3.

- Redfish API.

- IPMI 2.0.

- Secure Digital 2.0.

- Advanced Encryption Standard (AES).

- Triple Data Encryption Standard (3DES).

- SNMP v3.

- TLS 1.2.

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).

- Active Directory v1.0.

- UEFI (Unified Extensible Firmware Interface Forum).

- APML 1.0.

- ASHRAE A3/A4.

- UL 62368-1.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting, and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Intelligent Provisioning

Hassle-free server and OS provisioning for one or more servers with Intelligent Provisioning.

Learn more at https://support.hpe.com/hpesc/public/docDisplay?docId=c04465280&docLocale=en_US

iLO RESTful API

iLO RESTful API is DMTF Redfish API implementation and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

OpenBMC Support

OpenBMC Capable through iLO 6 Transfer of Ownership Process.

Learn more at OpenBMC Support

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secure configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen11 servers have a UEFI Class 3 implementation.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as

- Secure Boot and Secure Start enable enhanced security.

- Operating system specific functionality.

- Support for > 2.2 TB (using GPT) boot drives.

- USB 3.1 Gen1 Stack.

- Embedded UEFI Shell.

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.

- PXE boot support for IPv6 networks.

- Workload Profiles for simple performance optimization.

- TPM 2.0 Support.

UEFI Boot Mode only

- NVMe Boot Support.

- iSCSI Software Initiator Support.

- HTTP/HTTPs Boot support as a PXE alternative.

- Boot support for option cards that only support a UEFI option ROM.

Notes: For UEFI Boot Mode, boot environment and OS image installation should be configured properly to support UEFI.

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

https://www.hpe.com/us/en/servers/smart-update.html

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on-premises, multi-generational server monitoring, and management solution.  HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees.  Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at http://www.hpe.com/info/oneview.

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the fully integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template-driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It builds upon the base features of HPE OneView Standard and provides full-featured licenses which can be purchased for managing multiple HPE server generations. To learn more visit http://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen11 rack, tower, or micro server.

For more information, visit the HPE Compute Ops Management QuickSpecs:

https://www.hpe.com/psnow/doc/a50004263enw

Security

- UEFI Secure Boot and Secure Start support.

- Immutable Silicon Root of Trust.

- FIPS 140-3 validation (iLO 6 certification in progress).

- Common Criteria certification (iLO 6 certification in progress).

- Configurable for PCI DSS compliance.

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser.

- Support for Commercial National Security Algorithms (CNSA).

- Tamper-free updates - components digitally signed and verified.

- Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware.

- Ability to rollback firmware.

- Secure erase of NAND/User data.

- Chassis Intrusion detection.

- TPM (Trusted Platform Module) 2.0 option.

- Kensington Lock.

- Bezel Locking Kit option.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup is available for 90 days (or about 3 months) from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, and 3-Year Onsite support with next business day response. Warranty repairs may be done through Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:
https://www.hpe.com/support/ProLiantServers-Warranties

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We have reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we have created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management, and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10-year Warranty to support higher-density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments, and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type of workload. Some UPSs include options for remote management and extended runtime modules, so your critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We have a cost-effective KVM switch for your first rack and multiple-connection IP switches with remote management and security capabilities to keep your data center rack up and running.

We have a cost-effective KVM switch. Learn more about HPE Racks, PDUs, and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (OCS/SCE)

OCS/SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help or use it in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

- Factory Integrated Models must start with a CTO Server.

- FIO indicates that this option is only available as a factory installable option.

- Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration

Notes:

- DL145 CTO Server requires the selection of Processor, Memory and Power Supply.

- HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed into a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

- TAA compliant configuration requires TAA versions of the CTO Server SKUs.

- All CTO servers are ENERGY STAR® 4.0 compliant.

Step 2: Acoustics - Quiet Operation

HPE ProLiant DL145 supports a quiet acoustics operating mode designed for noise-sensitive environments. This mode is enabled through an acoustics optimization trigger SKU, which constrains option selection to ensure operation within the available cooling capacity while meeting acoustic targets.

 Supported acoustics mode (select one):

Range: 50 to 55dBA at

23°C ± 2°C

HPE ProLiant DL145 Gen11 Optimized Acoustics FIO Configuration

P73006-B21

Notes:

- The configurator limits option selection to meet the acoustic target.

- If the acoustics optimization trigger SKU is not selected, the quiet acoustics mode is disabled.

- Sound pressure levels are declared with ambient temperature ≤25°C.

- Higher ambient temperatures may increase fan speeds and system noise.

The following table lists the options that are supported for low acoustics.

Notes: Options listed as "No Support" in the table below may generate excessive heat under sustained load, resulting in increased fan speed and system noise. Quieter operation may be achievable only under light workloads.

DL145 with standard 2U Heat Sink

Description

SKU

Optimized Acoustics

AMD EPYC 8024P 2.4GHz 8-core 90W Processor for HPE

P69258-B21

Support

AMD EPYC 8124P 2.45GHz 16-core 125W Processor for HPE

P69259-B21

Support

AMD EPYC 8224P 2.55GHz 24-core 160W Processor for HPE

P69260-B21

Support

AMD EPYC 8324P 2.65GHz 32-core 180W Processor for HPE

P69261-B21

Support

AMD EPYC 8434P 2.5GHz 48-core 200W Processor for HPE

P69262-B21

No support

AMD EPYC 8534P 2.3GHz 64-core 200W Processor for HPE

P69263-B21

No support

AMD EPYC 8024PN 2.05GHz 8-core 80W Processor for HPE

P71859-B21

Support

AMD EPYC 8124PN 2.0GHz 16-core 100W Processor for HPE

P71862-B21

Support

AMD EPYC 8224PN 2.0GHz 24-core 120W Processor for HPE

P71865-B21

Support

AMD EPYC 8324PN 2.05GHz 32-core 130W Processor for HPE

P71868-B21

Support

AMD EPYC 8434PN 2.0GHz 48-core 155W Processor for HPE

P71871-B21

Support

AMD EPYC 8534PN 2.0GHz 64-core 175W Processor for HPE

P71874-B21

Support

AMD EPYC 8025P 2.9GHz 8-core 95W Processor for HPE

P88852-B21

Support

AMD EPYC 8125P 2.65GHz 16-core 125W Processor for HPE

P88850-B21

Support

AMD EPYC 8225P 2.95GHz 24-core 160W Processor for HPE

P88848-B21

Support

AMD EPYC 8325P 2.7GHz 32-core 175W Processor for HPE

P88846-B21

Support

AMD EPYC 8435P 2.45GHz 48-core 200W Processor for HPE

P88844-B21

Not support

AMD EPYC 8535P 2.0GHz 64-core 210W Processor for HPE

P88842-B21

Not support

AMD EPYC 8635P 1.6GHz 84-core 225W Processor for HPE

P88840-B21

Not support

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50309-B21

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50311-B21

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50312-B21

Support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66676-B21

Support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69982-B21

Support

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P50309-F21

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P50311-F21

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P50312-F21

Support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart FIO Memory Kit

P66676-F21

Support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart FIO Memory Kit

P69982-F21

Support

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64984-B21

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64985-B21

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64986-B21

Support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64987-B21

Support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64988-B21

Support

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64984-F21

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64985-F21

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64986-F21

Support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64987-F21

Support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64988-F21

Support

DL145 with standard 2U Heat Sink

Description

SKU

Optimized Acoustics

NVIDIA L4 24GB PCIe Accelerator for HPE

S0K89C

Support* (QTY 1, Limited to location - Slot 2 or 3)

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

Support

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Support

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

Support

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Support

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Support

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Support

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

Support

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Support

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Support

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

Support

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Support

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Support

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Support

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Support

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Support

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

Support

DL145 with standard 2U Heat Sink

Description

SKU

Optimized Acoustics

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

Support

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

Support

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Support

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Support

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Support

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Support

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Support

DL145 with standard 2U Heat Sink

Type

Description

SKU

Optimized Acoustics

SFF SAS HDD

HPE 300GB SAS 10K SFF BC MV HDD

P40430-B21

Support

HPE 600GB SAS 10K SFF BC MV HDD

P53561-B21

Support

HPE 1.2TB SAS 10K SFF BC MV HDD

P28586-B21

Support

HPE 1.2TB SAS 10K SFF BC FIPS HDD

P28622-B21

Support

HPE 1.8TB SAS 10K SFF BC 512e MV HDD

P53562-B21

Support

HPE 2.4TB SAS 10K SFF BC 512e MV HDD

P28352-B21

Support

HPE 2.4TB SAS 10K SFF BC 512e FIPS HDD

P28618-B21

Support

SFF SATA

HPE 480GB SATA RI SFF BC MV SSD

P40497-B21

Support

HPE 960GB SATA RI SFF BC MV SSD

P40498-B21

Support

HPE 1.92TB SATA RI SFF BC MV SSD

P40499-B21

Support

HPE 3.84TB SATA RI SFF BC MV SSD

P40500-B21

Support

HPE 7.68TB SATA RI SFF BC MV SSD

P40501-B21

Support

HPE 480GB SATA MU SFF BC MV SSD

P40502-B21

Support

HPE 960GB SATA MU SFF BC MV SSD

P40503-B21

Support

HPE 1.92TB SATA MU SFF BC MV SSD

P40504-B21

Support

HPE 480GB SATA RI SFF BC SED 5400P SSD

P58236-B21

Support

HPE 960GB SATA MU SFF BC SED 5400M SSD

P58244-B21

Support

HPE 1.92TB SATA MU SFF BC SED 5400M SSD

P58248-B21

Support

SFF NVMe

HPE 1.6TB NVMe MU SFF BC U.3ST MV SPDM SSD

P65007-B21

No support

HPE 3.2TB NVMe MU SFF BC U.3ST MV SPDM SSD

P65015-B21

No support

HPE 6.4TB NVMe MU SFF BC U.3ST MV SPDM SSD

P65023-B21

No support

HPE 1.92TB NVMe RI SFF BC U.3ST MV SPDM SSD

P64844-B21

No support

HPE 3.84TB NVMe RI SFF BC U.3ST MV SPDM SSD

P64846-B21

No support

HPE 7.68TB NVMe RI SFF BC U.3ST MV SPDM SSD

P64848-B21

No support

HPE 15.36TB NVMe RI BC U.3ST SPDM MV SSD

P69255-B21

No support

HPE 960GB NVMe RI SFF BC U.3ST MV SPDM SSD

P64842-B21

Support

HPE 1.92TB NVMe RI BC FIPS U.3 CM7 SSD

P61019-B21

Support

HPE 3.84TB NVMe RI BC FIPS U.3 CM7 SSD

P61027-B21

Support

HPE 7.68TB NVMe RI BC FIPS U.3 CM7 SSD

P61035-B21

Support

HPE 1.92TB NVMe RI BC U.3 PM1733a SSD

P50216-B21

Support

HPE 3.84TB NVMe RI BC U.3 PM1733a SSD

P50219-B21

Support

HPE 7.68TB NVMe RI BC U.3 PM1733a SSD

P50222-B21

Support

HPE 15.36TB NVMe RI BC U.3 PM1733a SSD

P50224-B21

Support

HPE 7.68T NVMe RI SFF BC U.3 PS1010 SSD

P70434-B21

Support

HPE 15.36T NVMe RI SFF BC U.3 PS1010 SSD

P70436-B21

Support

HPE 800GB NVMe MU SFF BC U.3ST MV SPDM SSD

P64999-B21

Support

HPE 1.6TB NVMe MU BC FIPS U.3 CM7 SSD

P61043-B21

Support

HPE 3.2TB NVMe MU BC FIPS U.3 CM7 SSD

P61051-B21

Support

HPE 6.4TB NVMe MU BC FIPS U.3 CM7 SSD

P61059-B21

Support

HPE 1.6TB NVMe MU SFF BC U.3 PM1735a SSD

P50227-B21

Support

HPE 3.2TB NVMe MU SFF BC U.3 PM1735a SSD

P50230-B21

Support

HPE 6.4TB NVMe MU SFF BC U.3 PM1735a SSD

P50233-B21

Support

HPE 3.2TB NVMe MU SFF BC U.3 PS1030 SSD

P70426-B21

Support

HPE 6.4TB NVMe MU SFF BC U.3 PS1030 SSD

P70428-B21

Support

HPE 15.36TB NVMe RI BC U.3ST V2 MV SSD

P84236-B21

Support

HPE 3.84TB NVMe RI BC U.3 7500 SSD

P84244-B21

Support

HPE 7.68TB NVMe RI BC U.3 7500 SSD

P84242-B21

Support

HPE 15.36TB NVMe RI BC U.3 7500b SSD

P84239-B21

Support

HPE 3.2TB NVMe MU BC U.3ST PM1755 SSD

P78801-B21

Support

HPE 6.4TB NVMe MU BC U.3ST PM1755 SSD

P78804-B21

Support

HPE 3.84TB NVMe RI BC U.3ST PM1753 SSD

P78806-B21

Support

HPE 7.68TB NVMe RI BC U.3ST PM1753 SSD

P78808-B21

Support

HPE 15.36TB NVMe RI BC U.3ST PM1753 SSD

P78810-B21

Support

HPE 1.6TB NVMe MU SFF BC U.3 MV SSD

P91237-B21

Support

HPE 3.2TB NVMe MU SFF BC U.3 MV SSD

P91239-B21

Support

HPE 6.4TB NVMe MU SFF BC U.3 MV SSD

P91241-B21

Support

HPE 1.92TB NVMe RI SFF BC U.3 MV SSD

P91243-B21

Support

HPE 3.84TB NVMe RI SFF BC U.3 MV SSD

P91245-B21

Support

HPE 7.68TB NVMe RI SFF BC U.3 MV SSD

P91247-B21

Support

HPE 15.36TB NVMe RI SFF BC U.3 MV SSD

P91249-B21

Support

HPE 1.6TB NVMe MU SFF BC U.3 CM9 SSD

P85662-B21

Support

HPE 3.2TB NVMe MU SFF BC U.3 CM9 SSD

P85664-B21

Support

HPE 6.4TB NVMe MU SFF BC U.3 CM9 SSD

P85666-B21

Support

HPE 1.92TB NVMe RI SFF BC U.3 CM9 SSD

P85668-B21

Support

HPE 3.84TB NVMe RI SFF BC U.3 CM9 SSD

P85670-B21

Support

HPE 7.68TB NVMe RI SFF BC U.3 CM9 SSD

P85672-B21

Support

HPE 15.36TB NVMe RI BC U.3 CM9 SSD

P85674-B21

Support

HPE 30.72TB NVMe RI SFF BC U.3 CM9 SSD

P85676-B21

Support

EDSFF NVMe

HPE 30.72TB NVMe VRO E3S EC1 P5430 SSD

P79065-B21

No support

No support

HPE 3.84TB NVMe RI E3S EC1 CM7 SSD

P61179-B21

No support

No support

HPE 7.68TB NVMe RI E3S EC1 CM7 SSD

P61183-B21

No support

No support

HPE 15.36TB NVMe RI E3S EC1 CM7 SSD

P61187-B21

No support

No support

HPE 1.92TB NVMe RI E3S EC1 CD8P SSD

P69234-B21

No support

No support

HPE 3.84TB NVMe RI E3S EC1 CD8P SSD

P69237-B21

No support

No support

HPE 7.68TB NVMe RI E3S EC1 CD8P SSD

P69239-B21

No support

No support

HPE 1.6TB NVMe MU E3S EC1 CD8P SSD

P69241-B21

No support

No support

HPE 3.2TB NVMe MU E3S EC1 CD8P SSD

P69243-B21

No support

No support

HPE 6.4TB NVMe MU E3S EC1 CD8P SSD

P69245-B21

No support

No support

HPE 7.68TB NVMe RI E3S EC1 FIPS CM7 SSD

P70674-B21

No support

No support

HPE 15.36TB NVMe RI E3S EC1 FIPS CM7 SSD

P79122-B21

No support

No support

HPE 3.2TB NVMe MU E3S EC1 CM7 SSD

P61191-B21

No support

No support

HPE 6.4TB NVMe MU E3S EC1 CM7 SSD

P61195-B21

No support

No support

HPE 3.2TB NVMe MU E3S EC1 FIPS CM7 SSD

P70669-B21

No support

No support

HPE 6.4TB NVMe MU E3S EC1 FIPS CM7 SSD

P70672-B21

No support

No support

HPE 15.36TB NVMe RI E3S EC1 CD8P SSD

P69546-B21

No support

No support

HPE 15.36TB NVMe VRO E3S EC1 P5430 SSD

P63938-B21

No support

Support

HPE 3.84TB NVMe RI E3S EC1 PM1743 SSD

P57799-B21

No support

Support

HPE 7.68TB NVMe RI E3S EC1 PM1743 SSD

P57803-B21

No support

Support

HPE 15.36TB NVMe RI E3S EC1 PM1743 SSD

P57807-B21

No support

Support

HPE 3.84TB NVMe VRO E3S EC1 P5430 SSD

P63930-B21

Support

Support

HPE 7.68TB NVMe VRO E3S EC1 P5430 SSD

P63934-B21

Support

Support

HPE 1.92TB NVMe RI E3S EC1 PE1010 SSD

P77269-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 PE1010 SSD

P77271-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 PE1010 SSD

P77273-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 PE1010 SSD

P77275-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 PS1010 SSD

P70392-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 PS1010 SSD

P70395-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 PS1010 SSD

P70397-B21

Support

Support

HPE 6.4TB NVMe MU E3S EC1 PS1030 SSD

P70401-B21

Support

Support

HPE 12.8TB NVMe MU E3S EC1 PS1030 SSD

P70403-B21

Support

Support

HPE 1.6TB NVMe MU E3S EC1 PE1030 SSD

P77262-B21

Support

Support

HPE 3.2TB NVMe MU E3S EC1 PE1030 SSD

P77265-B21

Support

Support

HPE 6.4TB NVMe MU E3S EC1 PE1030 SSD

P77267-B21

Support

Support

HPE 3.2TB NVMe MU E3S EC1 PS1030 SSD

P70399-B21

Support

Support

HPE 30.72TB NVMe RI E3S EC1 9550 SSD

P79965-B21

Support

Support

HPE 1.6TB NVMe MU E3S EC1 SED 7600 SSD

P87715-B21

Support

Support

HPE 3.2TB NVMe MU E3S EC1 SED 7600 SSD

P87717-B21

Support

Support

HPE 1.92TB NVMe RI E3S EC1 SED 7600 SSD

P87719-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 SED 7600 SSD

P87721-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 SED 7600 SSD

P87723-B21

Support

Support

HPE 1.6TB NVMe MU E3S EC1 7600 SSD

P85114-B21

Support

Support

HPE 3.2TB NVMe MU E3S EC1 7600 SSD

P85117-B21

Support

Support

HPE 6.4TB NVMe MU E3S EC1 7600 SSD

P85119-B21

Support

Support

HPE 1.92TB NVMe RI E3S EC1 7600 SSD

P85121-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 7600 SSD

P85124-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 7600 SSD

P85126-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 7600 SSD

P85128-B21

Support

Support

HPE 3.2TB NVMe MU E3S EC1 9550 SSD

P77050-B21

Support

Support

HPE 6.4TB NVMe MU E3S EC1 9550 SSD

P77053-B21

Support

Support

HPE 12.8TB NVMe MU E3S EC1 9550 SSD

P77055-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 9550 SSD

P77057-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 9550 SSD

P77059-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 9550 SSD

P77061-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 PM1753 SSD

P78789-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 PM1753 SSD

P78791-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 PM1753 SSD

P78793-B21

Support

Support

HPE 30.72TB NVMe RI E3S EC1 PM9D3a SSD

P78923-B21

Support

Support

HPE 30.72TB NVMe RI EC1 SED PM9D3a SSD

P79147-B21

Support

Support

HPE 1.92TB NVMe RI E3S EC1 PM9D3a SSD

P78914-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 PM9D3a SSD

P78917-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 PM9D3a SSD

P78919-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 PM9D3a SSD

P78921-B21

Support

Support

HPE 3.2TB NVMe Perf MU E3S EC1 MV SSD

P91098-B21

No support

No support

HPE 6.4TB NVMe Perf MU E3S EC1 MV SSD

P91100-B21

No support

No support

HPE 12.8TB NVMe Perf MU E3S EC1 MV SSD

P91102-B21

No support

No support

HPE 3.84TB NVMe Perf RI E3S EC1 MV SSD

P91229-B21

No support

No support

HPE 7.68TB NVMe Perf RI E3S EC1 MV SSD

P91231-B21

No support

No support

HPE 15.36TB NVMe Perf RI E3S EC1 MV SSD

P91233-B21

No support

No support

HPE 1.6TB NVMe MU E3S EC1 MV SSD

P91084-B21

No support

No support

HPE 3.2TB NVMe MU E3S EC1 MV SSD

P91086-B21

No support

No support

HPE 6.4TB NVMe MU E3S EC1 MV SSD

P91088-B21

No support

No support

HPE 1.92TB NVMe RI E3S EC1 MV SSD

P91090-B21

No support

No support

HPE 3.84TB NVMe RI E3S EC1 MV SSD

P91092-B21

No support

No support

HPE 7.68TB NVMe RI E3S EC1 MV SSD

P91094-B21

No support

No support

HPE 15.36TB NVMe RI E3S EC1 MV SSD

P91096-B21

No support

No support

HPE 3.2TB NVMe MU E3S EC1 CM9 SSD

P85731-B21

Support

Support

HPE 6.4TB NVMe MU E3S EC1 CM9 SSD

P85733-B21

Support

Support

HPE 12.8TB NVMe MU E3S EC1 CM9 SSD

P85735-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 CM9 SSD

P85739-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 CM9 SSD

P85741-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 CM9 SSD

P85743-B21

Support

Support

HPE 30.72TB NVMe RI E3S EC1 CM9 SSD

P85745-B21

Support

Support

HPE 1.6TB NVMe MU E3S EC1 SED 7600 SSD

P87715-B21

Support

Support

HPE 3.2TB NVMe MU E3S EC1 SED 7600 SSD

P87717-B21

Support

Support

HPE 1.92TB NVMe RI E3S EC1 SED 7600 SSD

P87719-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 SED 7600 SSD

P87721-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 SED 7600 SSD

P87723-B21

Support

Support

HPE 1.6TB NVMe MU E3S EC1 7600 SSD

P85114-B21

Support

Support

HPE 3.2TB NVMe MU E3S EC1 7600 SSD

P85117-B21

Support

Support

HPE 6.4TB NVMe MU E3S EC1 7600 SSD

P85119-B21

Support

Support

HPE 1.92TB NVMe RI E3S EC1 7600 SSD

P85121-B21

Support

Support

HPE 3.84TB NVMe RI E3S EC1 7600 SSD

P85124-B21

Support

Support

HPE 7.68TB NVMe RI E3S EC1 7600 SSD

P85126-B21

Support

Support

HPE 15.36TB NVMe RI E3S EC1 7600 SSD

P85128-B21

Support

Support

Step 3: Operating Temperature

HPE ProLiant DL145 Gen11 supports multiple operational temperature ranges. Selection of an operating temperature configuration determines the supported ambient temperature range and automatically applies the appropriate system thermal controls.

Supported Operating Temperature Configurations:

Standard and Extended Ambient Operation:

HPE ProLiant DL145 Gen11 5C-35C/41F-95F Degrees Operational Temperature FIO Configuration

P73015-B21

HPE ProLiant DL145 Gen11 -5C-40C/23F-104F Degrees Operational Temperature FIO Configuration

P73018-B21

HPE ProLiant DL145 Gen11 -5C-45C/23F - 113F Degrees Operational Temperature FIO Configuration

P73021-B21

High Ambient Temperature Operation:

HPE ProLiant DL145 Gen11 -5C-50C/23F-122F Degrees Operational Temperature FIO Configuration

P73024-B21

HPE ProLiant DL145 Gen11 -5C-55C/23F-131F Degrees Operational Temperature FIO Configuration

P73027-B21

HPE ProLiant DL145 Gen11 High Temperature Support FIO Configuration

P72891-B21

Notes:

- Selection of high ambient temperature configurations may limit available options to maintain system reliability.

- *Extended Ambient Temperature Configuration (BIOS Requirement):

• When either of the following operating temperature configurations is selected:

- -5C - 40C/23F-104F, or

- -5C - 45C/23F-113F.

• Extended Ambient Temperature Support must be enabled in system BIOS.
• BIOS Configuration Path:

- From the System Utilities screen, select System Configuration

- Select BIOS/Platform Configuration (RBSU)

- Navigate to Advanced Options > Fan and Thermal Options.

- Set Extended Ambient Temperature Support to one of the following:

• Disabled.
• Enabled for 40°C Ambient (ASHRAE Class 3): Enables operation up to 40°C ambient temperature.
• Enabled for 45°C Ambient (ASHRAE Class 4): Enables operation up to 45°C ambient temperature.

- **High Ambient Temperature Configuration:

• When either of the following operating temperature configurations is selected:

- -5°C - 50°C/23°F-122°F, or

- -5°C - 55°C/23°F-131°F.

• The HPE ProLiant DL145 Gen11 High Temperature Support FIO Configuration trigger SKU must also be selected.

The following table lists the options that are recommended in the Operating Temperature.

DL145 with standard 2U Heat Sink

Description

SKU

35°C

40°C

45°C

50°C

55°C

AMD EPYC 8024P 2.4GHz 8-core 90W Processor for HPE

P69258-B21

Support

Support

Support

Support

Support

AMD EPYC 8124P 2.45GHz 16-core 125W Processor for HPE

P69259-B21

Support

Support

Support

Support

Support

AMD EPYC 8224P 2.55GHz 24-core 160W Processor for HPE

P69260-B21

Support

Support

Support

Support

Support

AMD EPYC 8324P 2.65GHz 32-core 180W Processor for HPE

P69261-B21

Support

Support

Support

Support

No support

AMD EPYC 8434P 2.5GHz 48-core 200W Processor for HPE

P69262-B21

Support

Support

Support

No support

No support

AMD EPYC 8534P 2.3GHz 64-core 200W Processor for HPE

P69263-B21

Support

Support

Support

No support

No support

AMD EPYC 8024PN 2.05GHz 8-core 80W Processor for HPE

P71859-B21

Support

Support

Support

Support

Support

AMD EPYC 8124PN 2.0GHz 16-core 100W Processor for HPE

P71862-B21

Support

Support

Support

Support

Support

AMD EPYC 8224PN 2.0GHz 24-core 120W Processor for HPE

P71865-B21

Support

Support

Support

Support

Support

AMD EPYC 8324PN 2.05GHz 32-core 130W Processor for HPE

P71868-B21

Support

Support

Support

Support

Support

AMD EPYC 8434PN 2.0GHz 48-core 155W Processor for HPE

P71871-B21

Support

Support

Support

Support

Support

AMD EPYC 8534PN 2.0GHz 64-core 175W Processor for HPE

P71874-B21

Support

Support

Support

Support

Support

AMD EPYC 8025P 2.9GHz 8-core 95W Processor for HPE

P88852-B21

Support

Support

Support

Support

Support

AMD EPYC 8125P 2.65GHz 16-core 125W Processor for HPE

P88850-B21

Support

Support

Support

Support

Support

AMD EPYC 8225P 2.95GHz 24-core 160W Processor for HPE

P88848-B21

Support

Support

Support

Support

Support

AMD EPYC 8325P 2.7GHz 32-core 175W Processor for HPE

P88846-B21

Support

Support

Support

Support

Support

AMD EPYC 8435P 2.45GHz 48-core 200W Processor for HPE

P88844-B21

Support

Support

Support

Support

Support

AMD EPYC 8535P 2.0GHz 64-core 210W Processor for HPE

P88842-B21

Support

Support

Support

Support

Support

AMD EPYC 8635P 1.6GHz 84-core 225W Processor for HPE

P88840-B21

Support

Support

Support

Support

Support

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50309-B21

Support

Support

Support

Support

Support

HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P50309-F21

Support

Support

Support

Support

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50311-B21

Support

Support

Support

Support

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P50311-F21

Support

Support

Support

Support

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50312-B21

Support

Support

Support

Support

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart FIO Memory Kit

P50312-F21

Support

Support

Support

Support

Support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66676-B21

Support

Support

Support

*Partial support

No support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart FIO Memory Kit

P66676-F21

Support

Support

Support

*Partial support

No support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P69982-B21

Support

Support

Support

*Partial support

No support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart FIO Memory Kit

P69982-F21

Support

Support

Support

*Partial support

No support

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64984-B21

Support

Support

Support

Support

Support

HPE 16GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64984-F21

Support

Support

Support

Support

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64985-B21

Support

Support

Support

Support

Support

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64985-F21

Support

Support

Support

Support

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64986-B21

Support

Support

Support

Support

Support

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64986-F21

Support

Support

Support

Support

Support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64987-B21

Support

Support

Support

Support

Support

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64987-F21

Support

Support

Support

Support

Support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64988-B21

Support

Support

Support

Support

Support

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart FIO Memory Kit

P64988-F21

Support

Support

Support

Support

Support

DL145 with standard 2U Heat Sink

Description

SKU

35°C

40°C

45°C

50°C

55°C

NVIDIA L4 24GB PCIe Accelerator for HPE

S0K89C

Support

Support

Support

Support

No support

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P51178-B21

Support

Support

Support

Support

Support

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE

P26253-B21

Support

Support

Support

Support

Support

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE

P26259-B21

Support

Support

Support

Support

Support

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P26262-B21

Support

Support

Support

Support

Support

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P26264-B21

Support

Support

Support

Support

Support

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Support

Support

Support

Support

Support

Mellanox MCX631102AS-ADAT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P42044-B21

Support

Support

Support

Support

Support

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Support

Support

Support

Support

Support

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Support

Support

Support

Support

Support

Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

Support

Support

Support

Support

Support

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Support

Support

Support

Support

Support

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Support

Support

Support

Support

Support

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Support

Support

Support

Support

Support

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Support

Support

Support

Support

Support

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Support

Support

Support

Support

Support

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

Support

Support

Support

Support

Support

DL145 with standard 2U Heat Sink

Description

SKU

35°C

40°C

45°C

50°C

55°C

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

Support

Support

Support

Support

Support

HPE NS204i-u v2 960GB NVMe Hot Plug Boot Optimized Storage Device

P81160-B21

Support

Support

Support

Support

Support

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Support

Support

Support

Support

Support

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Support

Support

Support

Support

Support

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

Support

Support

Support

Support

Support

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

Support

Support

Support

Support

Support

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Support

Support

Support

Support

Support

Description

SKU

35°C

40°C

45°C

50°C

55°C

HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P40430-B21

Support

Support

Support

Support

No support

HPE 600GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P53561-B21

Support

Support

Support

Support

No support

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD

P28586-B21

Support

Support

Support

Support

No support

HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3yr Wty FIPS 140-2 TAA-compliant HDD

P28622-B21

Support

Support

Support

Support

No support

HPE 1.8TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P53562-B21

Support

Support

Support

Support

No support

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD

P28352-B21

Support

Support

Support

Support

No support

HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3yr Wty 512e FIPS 140-2 TAA-compliant HDD

P28618-B21

Support

Support

Support

Support

No support

HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40497-B21

Support

Support

Support

Support

Support

HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40498-B21

Support

Support

Support

Support

Support

HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40499-B21

Support

Support

Support

Support

Support

HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40500-B21

Support

Support

Support

Support

Support

HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-B21

Support

Support

Support

Support

Support

HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40502-B21

Support

Support

Support

Support

Support

HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40503-B21

Support

Support

Support

Support

Support

HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD

P40504-B21

Support

Support

Support

Support

Support

HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD

P58236-B21

Support

Support

Support

Support

Support

HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD

P58244-B21

Support

Support

Support

Support

Support

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64842-B21

Support

Support

Only DA

No support

No support

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64844-B21

Support

Support

Only DA

No support

No support

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-B21

Support

Only DA

No support

No support

No support

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-B21

Support

Only DA

No support

No support

No support

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-B21

Support

Support

Support

Support

Only DA

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-B21

Support

Support

Support

Support

Only DA

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-B21

Support

Support

Support

Support

Only DA

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD

P50216-B21

Support

Support

Support

Support

Only DA

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-B21

Support

Support

Support

Support

Only DA

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-B21

Support

Support

Support

Support

Only DA

HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P64999-B21

Support

Support

Only DA

No support

No support

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65007-B21

Support

Support

Only DA

No support

No support

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65015-B21

Support

Only DA

No support

No support

No support

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-B21

Support

No support

No support

No support

No support

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-B21

Support

Support

Support

Support

Only DA

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-B21

Support

Support

Support

Support

Only DA

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-B21

Support

Support

Support

Support

Only DA

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50227-B21

Support

Support

Support

Support

Only DA

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50230-B21

Support

Support

Support

Support

Only DA

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD

P50233-B21

Support

Support

Support

Support

Only DA

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-B21

Support

Support

Support

Support

Only DA

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-B21

Support

Support

Support

Support

Only DA

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive BC U.3 Static V2 SPDM Multi Vendor SSD

P84236-B21

Support

Support

Support

Support

No support

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84244-B21

Support

Support

Support

Support

Only DA

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD

P84242-B21

Support

Support

Support

Support

Only DA

HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD

P84239-B21

Support

Support

Support

Support

Only DA

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78801-B21

Support

Support

Support

Support

Only DA

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD

P78804-B21

Support

Support

Support

Support

Only DA

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78806-B21

Support

Support

Support

Support

Only DA

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78808-B21

Support

Support

Support

Support

Only DA

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD

P78810-B21

Support

Support

Support

Support

Only DA

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91237-B21

Support

Support

Support

Support

Only DA

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91239-B21

Support

Support

Support

Support

Only DA

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD

P91241-B21

Support

Support

Support

Support

Only DA

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91243-B21

Support

Support

Support

Support

Only DA

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91245-B21

Support

Support

Support

Support

Only DA

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91247-B21

Support

Support

Support

Support

Only DA

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD

P91249-B21

Support

Support

Support

Support

Only DA

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85662-B21

Support

Support

Support

Support

Only DA

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD

P85664-B21

Support

Support

Support

Support

Only DA
