HPE ProLiant Compute DL110 Gen12

QuickSpecs

Performant, Secure and Purpose-built for Telco

Customized for edge applications requiring high bandwidth and low latency, such as vRAN, and the 6G future, the HPE ProLiant Compute DL110 Gen12 server is based on open, standards-compliant infrastructure and offers dense I/O capabilities with PCIe Gen5 speed, acceleration, and powerful compute driven by Intel® Xeon® 6 SoC processors

HPE ProLiant Compute DL110 Gen12

New for this generation are 8x25GbE onboard networking and optional HPE Global Navigation Satellite System (GNSS) with up to a four-hour Digital Phase Lock Loop feature for precision time. HPE ProLiant Compute DL110 Gen12 reduced footprint features a compact, short-depth, 1U/1P front-accessible chassis ruggedized with NEBS^* Level 3 compliance for harsh environments. Delivering the trusted HPE ProLiant experience with embedded HPE iLO management and security through HPE silicon root of trust, the HPE ProLiant Compute DL110 Gen12 is ready for communication service providers 5G edge deployments.

Notes: *Typical NEBS certification is 90 days post-production manufacture

Front View

Item

Description

Item

Description

1.

(8) 10/25Gbps Onboard Network ports

6.

USB 3.0 Type-A.

2.

Quick removal access panels.

7.

USB Type-C iLO Service Port.

3.

Optional adapters - Dual Slot OCP and single slot OCP. ¹

8.

5x Subminiature Version A (SMA) coaxial connectors:  10 MHz in/out, 1PPS in/out, GNSS antenna.

4.

Redundant M-CRPS Power Supply Units.

9.

Power On/Standby button and System Power LED.

5.

RJ45 iLO7 Management Port.

10.

Health LED.

Notes: ¹Optional I/O slots:  Dual Slot DSFF OCP and single slot SFF OCP, or 2x PCIe Full Height Half Length (FHHL)

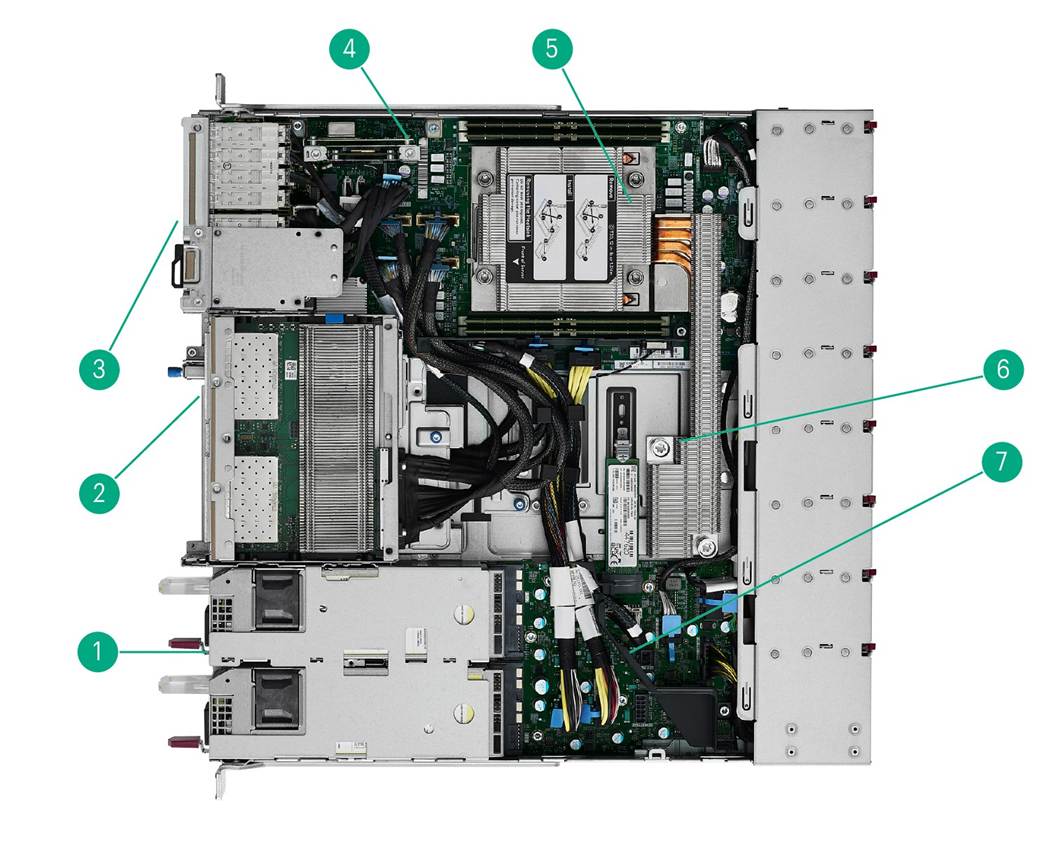

Internal View

Item

Description

Item

Description

1.

Dual M-CPRPS Power Supplies. ²

5.

Intel Xeon 6 SoC Processor

2.

Double wide OCP riser. ³

6.

Dual M.2 SSD. ¹

3.

8 x 25 Gbps Onboard NIC.

7.

Power Distribution Board.

4.

M.2 slots for optional GNSS and DPLL modules.

Notes:

- ¹Supports 2280 and 22110 form factor

- ²Up to 2 for redundant power

- ³Supports various NICs up to 200GbE (8X 25Gbps)

Rear View

Item

Description

Item

Description

1.

Kensington Lock, standard 7x3 mm.

2.

8 dual rotor hot-plug fans.

What's New

- Intel® Xeon® 6 SoC processors with Intel® vRAN Boost, media acceleration, and networking

- HPE DDR5 Smart Memory 6400 MT/s

- Support for up to 20 10/25 GbE network ports

- Intel® Advanced Matrix Extensions (AMX) in every core, delivers up to 3.2x increase in RAN AI Perf/core

- HPE iLO 7 and O-RAN security support

- M.2 DPLL timing module and M.2 GNSS receiver module

Platform Information

Form Factor

- 1U rack, reverse airflow system (front to rear) with 17" depth

Chassis Types

- Front cabled chassis

System Fans

- 8 dual rotor, hot plug fans included (individually serviceable)

Processors - Up to 1 of the following

For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Chipset

- N/A

For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

- HPE iLO 7 ASIC

Read and learn more in the iLO QuickSpecs.

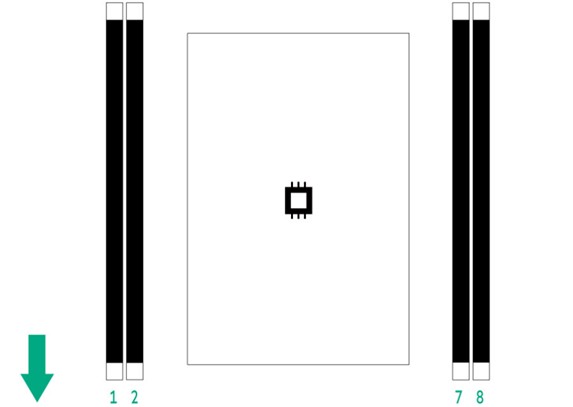

Memory

One of the following depending on the model.

Notes:

- For new Gen12 memory population rule whitepaper and optimal memory performance guidelines, please go to: http://www.hpe.com/docs/memory-population-rules

- To realize the performance memory capabilities listed in this document, HPE DDR5 Smart Memory is required.

- The -B21 memory SKUs shown in this document are to be used when ordering stand-alone memory only. For each -B21 SKU, there is a corresponding -F21 SKU which is to be used when configuring servers with integrated memory DIMMs.

- For additional information, please see the  HPE DDR5 Smart Memory QuickSpecs.

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: Memory RAS technologies for HPE ProLiant Gen11

Expansion Slots

Notes: If the 2x16 riser, P86620-B21, is selected then the OCP IO options are not supported

Maximum Internal Storage

Notes:

- 2x M.2 drives are supported on the Motherboard

- 2280 or 22110 form factor supported

Internal Storage Devices

- M.2 SSDs

None are shipped as standard

Power Supply

HPE 1300W M-CRPS Titanium Hot Plug Reverse Air Flow AC Power Supply Kit

P79068-B21

Notes: Available in 96% efficiency (Lot 9 Compliant)

HPE 1000W M-CRPS -48VDC Hot Plug Reverse Air Flow Power Supply Kit

P79329-B21

Notes: All power supply kits have reverse airflow (front to rear) to support front cabled design of DL110

To review the power requirements for your selected system, please use the HPE Power Advisor Tool, and to review the power cord requirements please check the ProLiant Power Cables web page.

Software RAID Controller

- Intel® Virtual RAID on CPU (Intel® VROC)

- Intel® VROC NVMe is disabled by default. Requires licensing.

- RAID support - 0/1, depending on licensing options.

- For additional details refer to: Intel VROC for HPE ProLiant QuickSpecs

Operating Systems and Virtualization Software Support for HPE Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

Access the certified and supported servers for each of the OS and Virtualization software: HPE Servers Support & Certification Matrices

HPE Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry-standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen12 servers have a UEFI Class 3 implementation to support UEFI Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://www.hpe.com/support/hpeuefisystemutilities-quicklinks.

UEFI enables numerous new capabilities specific to HPE ProLiant servers, such as:

- Secure Boot and Secure Start enabled for enhanced security.

- Embedded UEFI Shell − Operating system-specific functionality

- Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

- Support for > 2.2 TB (using GPT) boot drives.

- PXE boot support for IPv6 networks − USB 3.0 Stack

- Workload Profiles for simple performance optimization

- Embedded TPM Support

- UEFI Boot Mode only:

- iSCSI Software Initiator Support

- NVMe Boot Support

- HTTP/HTTPs Boot support as a PXE alternative

- Boot support for option cards that only support a UEFI option ROM

Industry Standard Compliance

- ACPI 6.3 Compliant

- Advanced Encryption Standard (AES)

- ASHRAE A3/A4

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit https://www.hpe.com/support/ASHRAEGen11

- DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

- Energy Star

- EU Lot9 Compliant

- IPMI 2.0

- PCIe 3.0 Compliant

- PCIe 4.0 Compliant

- PCIe 5.0 Compliant

- PXE Support

- Redfish API

- Secure Digital 4.0

- SMBIOS 3.2

- SNMP v3

- TLS 1.2

- TPM 2.0 Support

- Triple Data Encryption Standard (3DES)

- UEFI (Unified Extensible Firmware Interface Forum) 2.7

- USB 2.0 Compliant

- USB 3.0 Compliant

Notes: For additional technical, thermal details regarding ambient temperature, humidity, and feature support, please visit: Extended Ambient Temperature Guidelines for HPE Gen12 Servers

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning.

Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

https://buy.hpe.com/us/en/software/infrastructure-management-software/system-server-management-software/smart-update-manager-sum/p/5182020

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9, Gen10, Gen10 Plus, Gen11, and Gen12 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities.

Learn more at http://www.hpe.com/servers/iLOamplifierpack.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell.

HPE OneView Standard

HPE OneView is an on premises, multi-generational server monitoring and management solution. HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees.  Customers can upgrade their management experience with an HPE OneView Advanced license, all provided by the same tool. Learn more at: http://www.hpe.com/info/oneview.

HPE Compute Ops Management

Transform compute lifecycle management with a cloud experience that delivers greater simplicity, agility, and speed across your entire server environment, wherever it lives. This software-as-a-service tool provides a dashboard with global visibility and intuitive management of server health, security and compliance status to help you easily identify areas that need immediate attention. Users can update tens to thousands of servers faster through intelligent delta-based firmware downloads and on-demand HPE iLO firmware updates.

HPE Compute Ops Management is cloud-native software that is continually updated with new services, features, patches, and firmware packs. The management application resides in GreenLake cloud (access via https://common.cloud.hpe.com) and leverages the GreenLake architecture, security, and unified operations.

A 3-year subscription to HPE Compute Ops Management is added by default when ordering an HPE ProLiant Gen11 rack, tower, or micro server.

For more information, visit the HPE Compute Ops Management QuickSpecs:

https://www.hpe.com/psnow/doc/a50004263enw

Security

Experience unparalleled security benefits with HPE ProLiant Compute Gen12 servers, designed to enhance your infrastructure's security and performance. These servers come equipped with cutting-edge embedded security features, ensuring robust protection for your critical data and applications. Key features include:

- HPE Integrated Lights-Out (HPE iLO7): This product offers advanced embedded security features for monitoring, service alerting, reporting, and remote management.

- Enhanced Server Data Security: Encryption and key management, iLO Managed Encryption, UEFI-managed encryption, and self-encrypting drives (SED) for enhanced data-at-rest protection.

- Sanitize Data with One-Button Secure Erase: This method complies with NIST SP 800-88 guidelines for media sanitization, ensuring the secure decommissioning of servers.

- Expanded Industry Security Compliance: Adherence to standards such as FIPS 140-3, NIST SP 800-53, NIST SP 800-171, and NIST SP 800-88.

- HPE Compute Ops Management: Provides an intuitive cloud operating experience, ensuring streamlined and highly secure operations.

- Physical Security Options: System maintenance switch, USB security, Kensington lock, rack and power security, and chassis intrusion detection switch

Please refer to the HPE ProLiant Compute Gen12 Embedded Security QuickSpecs document for more detailed information at https://www.hpe.com/psnow/doc/a50009218enw

HPE Trusted Platform Module

HPE Trusted Platform Module 2.0 is embedded on the server motherboard and can be enabled and disabled using the BIOS.

Notes: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be completed by Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available https://www.hpe.com/support/ProLiantServers-Warranties
