HPE SimpliVity 2600: технические характеристики и документация

В архиве

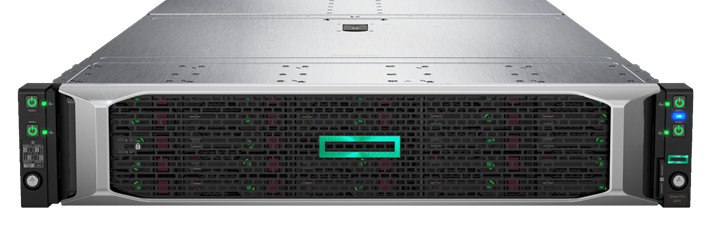

HPE SimpliVity 2600

Overview

HPE SimpliVity 2600



The HPE SimpliVity 2600 solution dramatically simplifies IT by combining infrastructure and advanced data services for virtualized workloads into a building block that delivers server, storage, and storage networking services. It also delivers a complete set of advanced functionalities that enables dramatic improvements to the efficiency, management, protection, and performance of virtualized workloads at a fraction of the cost and complexity of today's traditional infrastructure stack.





What's New

  • HPE SimpliVity now offers support for VMware ESXi 7.0 deployments and upgrades along with many exciting new features in its latest software release
  • HPE Cloud Volumes Backup support
  • HPE StoreOnce integration enhancements
  • Container Storage Interface (CSI) Plugin 1.0




Hardware Overview

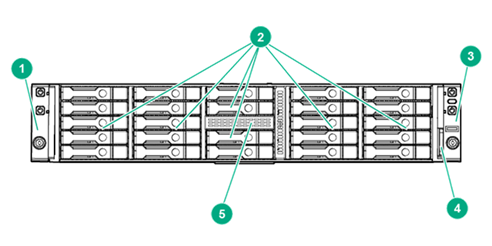

https://h20195.www2.hpe.com/v2/PDF/a00019876enw/image003.png

1.

Left bezel ear

2.

SFF hot-plug drives

3.

Right bezel ear

4.

Chassis serial label pull tab

5.

Non-removable bezel blank

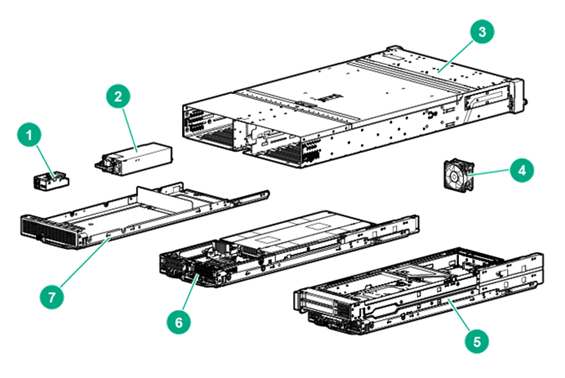

https://h20195.www2.hpe.com/v2/PDF/a00019876enw/image001.png

1.

RCM module (optional)

2.

Power Supply

3.

HPE SimpliVity 2600 Chassis

4.

Chassis Fan

5.

HPE SimpliVity 190

6.

HPE SimpliVity 170

7.

Server tray blank

Standard Features

Scalable and Configurable

  • Processor - Choice of 1-2P Intel® Xeon® 8-26 Core Scalable Processors
  • Memory - 128GB - 1024GB
  • Network - 10/25Gb, 1Gb
  • Power - Redundant
  • Virtualization Software and Licensing
  • All in a compact 2U form factor

Notes:

- Single cluster support up to 16 nodes, single federation support up to 96 nodes, and 48 clusters in one federation.

- VDI Optimized Hyperconverged Solution only supports memory in the range: 192GB - 1024GB.

Software Features

  • VMware vSphere
  • HPE SimpliVity management plugin for VMware vCenter
  • Optional Data Encryption support
  • Optional RapidDR support- HPE SimpliVity RapidDR is targeted to address SMB and Edge IT generalist persona DR orchestration needs with stringent SLAs around Recovery Point Objectives (RPOs) and Recovery Time Objectives (RTOs)
  • General-purpose Virtualization & VDI Optimized Hyperconverged Solution
  • Orchestrated upgrades of SimpliVity software, and hypervisor
  • HPE Cloud Volumes Backup support
  • HPE StoreOnce integration enhancements
  • Container Storage Interface (CSI) Plugin 1.0

Notes:

- For RapidDR information, please see the HPE SimpliVity RapidDR Data Sheet and QuickSpecs

- QuickSpecs: https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00018755enw

- The HPE SimpliVity 2600 supports VMware vSphere 6.5, 6.7 and 7.0

- For VMware and HW compatibility and the latest software compatibility, please see the HPE SimpliVity OmniStack Interoperability Guide
https://support.hpe.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_na-a00080626en_us&withFrame or HPE Support Center portal

Hardware Availability Features

  • HPE SimpliVity 2600 now offers support for the latest 2nd Generation Intel® Xeon® Scalable Processors
  • Supports up to four individual server nodes in each 2U chassis for 4x more density
  • HPE SimpliVity 2600 supports 16 node stretch cluster scale (8+8)
  • HPE SimpliVity 2600 supports 16 nodes in a cluster for general purpose virtualization
  • Cluster expansion without downtime
  • Hot-pluggable SSD
  • Redundant power supplies
  • Integrated storage controller with battery-backed cache
  • HPE ProLiant Integrated Lights-Out Advanced (iLO) 5 Remote Management




Services

  • HPE Pointnext full suite of support offerings (Tech Care and Complete Care).
  • Remote support technology to provide 24x7 secure remote support

More information is available at http://www.hpe.com/info/SimpliVity

Notes:

- For the best support experience, HPE Pointnext Installation Services and 24x7x365 support recommended.

- 3rd party software licenses not included

Features

HPE SimpliVity 2600

Chassis Size

2U; Up to 4 nodes per chassis

System Fans

Ships standard with 4 single rotor fan modules, an additional 4 can be added for redundancy.

Processors

2x Intel® Xeon® Scalable Processors 8 to 26 cores selectable

Memory

128GB to 1024GB per node selectable

Storage

480GB M.2 SSD boot device per node

6 x 1.92TB SSD Kit (1 kit per node)

Network Ports

Dual port 1GbE Media Module Adapter (standard)
Dual port 10/25GbE PCIe NIC (default)

Quad port 1GbE PCIe NIC (optional)

Power Supplies



Dual power supplies provide highly available power

HPE 1600W FlexSlot Platinum Hot Plug LH Power Supply Kit (standard)

HPE 1800W - 2200W FlexSlot Platinum Hot Plug LH Power Supply Kit (optional)

HPE 800W FlexSlot Hot Plug LH Power Supply Kit (48VDC, 110V, 110V/220V models optional)

Hardware Warranty1

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

Hardware Support

3-year HPE SimpliVity 2600 solution support (required)



Notes:

- 1Warranty for SSDs is subject to maximum usage limitations.  Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for replacement.

- VDI Optimized Hyperconverged Solution only supports memory in the range: 192GB - 768GB

Benefits



Superior User Experience

The HPE SimpliVity 2600 enables high performance even at high user density. It eliminates the performance impact of client login storms, delivering a superior user experience through unmatched client virtualization performance.


The HPE SimpliVity 2600 brings hyperconvergence to the edge. The compact form factor is ideal for virtualized workloads in space-constrained environments.



Linear Scalability from Pilot to Production

The HPE SimpliVity 2600 delivers a scale-out architecture which reduces initial capital expense and tightly aligns investments with business requirements.


Allows building blocks to be added incrementally, providing a massively-scalable pool of shared resources.





Enterprise-grade Data Protection and Resiliency for Virtualization Workloads

The HPE SimpliVity 2600 provides built-in backup and disaster recovery capabilities for the entire client virtualization infrastructure, as well as for supporting management workloads.


The solution enables a resilient, highly available, desktop operations and the ability to withstand node failures with no loss of desktops and minimal increase in latency.



Automate disaster recovery with HPE SimpliVity RapidDR

HPE SimpliVity RapidDR simplifies and accelerates off-site DR through automation. The solution extends the inherent data efficiencies of HPE SimpliVity hyperconverged infrastructure, slashing recovery point objectives (RPOs) and recovery time objectives (RTOs) from days or hours to minutes.



Cloud backup

HPE SimpliVity with HPE Cloud Volumes Backup enables simple, efficient, flexible backup directly to the cloud from data center or multiple, on-premises edge sites



Secondary, centralized backup

HPE SimpliVity with HPE StoreOnce protects data center and distributed edge sites by easily and efficiently replicating applications and data directly to a centralized HPE StoreOnce appliance for compliance and long-term retention requirements

Software Overview



Pre-integrated software

  • HPE SimpliVity Startup Wizard



Virtualization Platform Software and Licenses

  • VMware vSphere installation is performed by HPE when ordering the HPE SimpliVity 2600
  • Valid licenses for the following VMware software components are available when ordering the HPE SimpliVity 2600

- (2)  VMware vSphere licenses per node depending on CPU count

- (1) VMware vCenter license

Notes:

- The HPE SimpliVity 2600 supports VMware vSphere 6.5 , 6.7 and 7.0

- For VMware and HW compatibility, please see the HPE SimpliVity OmniStack Interoperability Guide
https://support.hpe.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_na-a00080626en_us&withFrame
or HPE Support Center portal

- HPE SimpliVity 2600 for VMware vSphere requires valid VMware vSphere, and vCenter licenses. VMware licenses should only be removed from the order if it is confirmed that the end-customer has a valid licenses in place (Enterprise License Agreement (ELA), vCloud Air Partner or unused Enterprise Purchasing Program tokens).

- Purchasing VMware licenses from Hewlett Packard Enterprise allows Hewlett Packard Enterprise to be the single point of contact for the entire solution inclusive of the virtualization software and is recommended.



Management

  • VMware vCenter
  • HPE SimpliVity management plugin for VMware vCenter

Notes:

- The HPE SimpliVity 2600 supports VMware vCenter 6.5 , 6.7 and 7.0

- For VMware and HW compatibility, please see the HPE SimpliVity OmniStack Interoperability Guide
https://support.hpe.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_na-a00080626en_us&withFrame
or HPE Support Center portal (https://www.hpe.com/support/hpesc)

Service and Support

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..

  • Get Faster time to market
  • Save on TCO, align costs to business
  • Scale quickly, meet unpredictable demand
  • Simplify IT operations across your data centers and clouds



Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services



HPE Pointnext Tech Care*.

Notes: *Minimum required level of support is 3yr Tech Care Basic

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.



https://www.hpe.com/services/techcare



HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

  • A complete coverage approach -- edge to cloud
  • An assigned HPE team
  • Modular and fully personalized engagement
  • Enhanced Incident Management experience with priority access
  • Digitally enabled and AI Driven customer experience



https://www.hpe.com/services/completecare





Technology Services for increased uptime, productivity and ROI



At Hewlett Packard Enterprise, our priority is to maximize your workload uptime, avoiding problems before they occur. As the experts for the HPE SimpliVity 2600, HPE Pointnext support will be your 24x7x 365 single point-of-contact for all of your support needs with HPE Pointnext Tech Care Support. This means you can spend more time developing apps and adding value to the business rather than maintaining your infrastructure.



If there is a potential risk in your infrastructure, our remote support technology will proactively notify Hewlett Packard Enterprise and initiate the resolution process. If you are experiencing any issue with your solution, HPE Pointnext Tech Care will provide you immediate access to our team of solution experts, whose first priority is to ensure your workloads are up and running, and then immediately start diagnosing the failure.



HPE Pointnext offers its full portfolio of support services.  This includes Tech Care and Complete Care.  Flexible Capacity and Operational Support Services are also available.

HPE SimpliVity 2600 is supported by the power of HPE, in 30+ different languages, with local presence across 140 countries.



Please consult your HPE Sales Representative for any additional questions and support options.





Installation and Startup Services

HPE Pointnext provides a full set of installation and startup services to meet your unique requirements.





Action

Description

Part #

Hardware install service

HPE SVT 2600 Hardware Install service

HA114A1#5KV

Remote software install service

HPE SVT Remote software install service

HA124A1#5LZ

Onsite software install service

HPE SVT Onsite Software install service

HA124A1#5MF

Update your firmware and SVT/VMware software

HPE SVT Software and Firmware update service.

HA124A1#5MK



Notes:

- Please contact your HPE Sales Representative for more information.

- For more information on Technology Services please visit: https://www.hpe.com/us/en/services.html





Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Pointnext and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.



This hardware warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge.





Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.


Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.


Defective Media Retention

An option available with HPE Pointnext Complete Care and HPE Pointnext Tech Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.





For more information

  • www.hpe.com/services
  • https://www.hpe.com/us/en/services/operational.html



To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html



HPE Support Services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:

  • Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
  • Customers purchasing from a commercial reseller can find HPE Support Services at https://ssc.hpe.com/portal/site/ssc/



Configuration Information

Configuration Process

Step 1: Start with HPE SimpliVity 2600 Chassis

Step 2: Select node type and quantity

Step 3: Select the hardware options to add to the base node: processors, memory, networking, power, HW options

Step 4: Auto add of storage based on node quantity

Step 5: Auto add of SW that correlates to node configuration

Step 6: Add: from the software catalog ex. RapidDR, VMware vSphere

Step 7: Select services and support

Step 1: Start with HPE SimpliVity 2600 Chassis

Base Chassis

Select the node type and Quantity

Description

SKU

HPE SimpliVity for Apollo Chassis

Q9Y46A

HPE r2x00 Gen10 Redundant Fan Module Kit

874308-B21

Step 2: Select Node Type and Quantity

Select the node type and Quantity

Description

SKU

HPE SimpliVity 170r Gen10 Server

Q9Y47A

HPE SimpliVity 190r Gen10 Server

Q9Y48A

Notes:

- All nodes in a single chassis must be the same type. Mixed node types are not supported in the same chassis.

- Min/Max Rules, 170r Gen10 Server (min 2, max 4). 190r Gen10 Server (min 2, max 2)

Step 3: Select Hardware Options

1st Generation Intel® Xeon® Scalable Processors

CPU Configurations

Select single or dual CPUs


In the case of dual CPU: both the L21 and the B21 SKU will be included by the configurator



Remarks

Description

SKU

14c 1.9GHz 85W

Intel Xeon-Gold 5119T (1.9GHz/14-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

882040-L21

8c 1.8GHz 85W

Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

879591-B21

8c 1.8GHz 85W

Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

879591-L21

12c 2.3GHz 105W

Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) Processor Kit for HPE ProLiant XL1x0r Gen10

879581-B21

12c 2.3GHz 105W

Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

879581-L21

12c 2.6GHz 125W

Intel Xeon-Gold 6126 (2.6GHz/12-core/125W) Processor Kit for HPE ProLiant XL1x0r Gen10

874283-B21

12c 2.6GHz 125W

Intel Xeon-Gold 6126 (2.6GHz/12-core/125W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

874283-L21

8c 3.2GHz 130W

Intel Xeon-Gold 6134 (3.2GHz/8-core/130W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

874290-L21

24c 2.1GHz 150W

Intel Xeon-Platinum 8160 (2.1GHz/24-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

874294-B21

24c 2.1GHz 150W

Intel Xeon-Platinum 8160 (2.1GHz/24-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

874294-L21

8c 3.5GHz 150W

Intel Xeon-Gold 6144 (3.5GHz/8-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

880671-B21

8c 3.5GHz 150W

Intel Xeon-Gold 6144 (3.5GHz/8-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

880671-L21

2nd Generation Intel® Xeon® Scalable Processors

CPU Configurations

Select single or dual CPUs



In the case of dual CPU: both the L21 and the B21 SKU will be included by the configurator



Remarks

Description

SKU

6c 1.9GHz 85W

Intel Xeon-Bronze 3204 (1.9GHz/6-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10314-B21

6c 1.9GHz 85W

Intel Xeon-Bronze 3204 (1.9GHz/6-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10314-L21

16c 2.1Ghz 100W

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10319-B21

16c 2.1Ghz 100W

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P10319-L21

8c 2.5GHz 85W

Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10318-B21

8c 2.5GHz 85W

Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10318-L21

12c 2.2GHz 85W

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10317-B21

12c 2.2GHz 85W

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10317-L21

10c 2.2GHz 85W

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10316-B21

10c 2.2GHz 85W

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10316-L21

8c 2.1GHz 85W

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10315-B21

8c 2.1GHz 85W

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10315-L21

4c 3.8GHz 105W

Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) Processor Kit for HPE ProLiant XL1x0r Gen10

P11834-B21

4c 3.8GHz 105W

Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P11834-L21

18c 2.2GHz 125W

Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10323-B21

18c 2.2GHz 125W

Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10323-L21

16c 2.3GHz 125W

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10322-B21

16c 2.3GHz 125W

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10322-L21

8c 3.0GHz 115W

Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10321-B21

8c 3.0GHz 115W

Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P10321-L21

10c 2.5GHz 85W

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10320-B21

10c 2.5GHz 85W

Intel Xeon-Gold 5215M (2.5GHz/10-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P10320-L21

24c 2.1GHz 150W

Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10329-B21

24c 2.1GHz 150W

Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P10329-L21



Remarks

Description

SKU

20c 2.5GHz 150W

Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10328-B21

20c 2.5GHz 150W

Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P10328-L21

8c 3.6GHz 150W

Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10327-B21

8c 3.6GHz 150W

Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P10327-L21

16c 2.8GHz 150W

Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10326-B21

16c 2.8GHz 150W

Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P10326-L21

18c 2.6GHz 150W

Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10325-B21

18c 2.6GHz 150W

Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10325-L21

22c 2.1GHz 140W

Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) Processor Kit for HPE ProLiant XL1x0r Gen10

P12326-B21

22c 2.1GHz 140W

Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P12326-L21

8c 3.3GHz 130W

Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) Processor Kit for HPE ProLiant XL1x0r Gen10

P12325-B21

8c 3.3GHz 130W

Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10.

P12325-L21

20c 2.1GHz 125W

Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) Processor Kit for HPE ProLiant XL1x0r Gen10

P10324-B21

20c 2.1GHz 125W

Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P10324-L21

12c 2.7GHz 125W

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) Processor Kit for HPE ProLiant XL1x0r Gen10

P12324-B21

12c 2.7GHz 125W

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P12324-L21

8c 1.9GHz 85W

Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) Processor Kit for HPE ProLiant XL1x0r Gen10

P19263-B21

8c 1.9GHz 85W

Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P19263-L21

10c 2.4GHz 100W

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) Processor Kit for HPE ProLiant XL1x0r Gen10

P19265-B21

10c 2.4GHz 100W

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P19265-L21

12c 2.4GHz 100W

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) Processor Kit for HPE ProLiant XL1x0r Gen10

P19266-B21

12c 2.4GHz 100W

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P19266-L21

8c 3.2GHz 130W

Intel Xeon-Silver 4215R (3.2GHz/8-core/130W) Processor Kit for HPE ProLiant XL1x0r Gen10

P25128-B21

8c 3.2GHz 130W

Intel Xeon-Silver 4215R (3.2GHz/8-core/130W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P25128-L21

20c 2.1GHz 125W

Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) Processor Kit for HPE ProLiant XL1x0r Gen10

P19269-B21



Remarks

Description

SKU

20c 2.1GHz 125W

Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P19269-L21

24c 2.2GHz 150W

Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P19270-B21

24c 2.2GHz 150W

Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P19270-L21

16c 2.9GHz 150W

Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P25126-B21

16c 2.9GHz 150W

Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P25126-L21

26c 2.1GHz 150W

Intel Xeon-Gold 6230R (2.1GHz/26-core/150W) Processor Kit for HPE ProLiant XL1x0r Gen10

P25127-B21

26c 2.1GHz 150W

Intel Xeon-Gold 6230R (2.1GHz/26-core/150W) FIO Processor Kit for HPE ProLiant XL1x0r Gen10

P25127-L21

Step 3: Select the hardware options to add to the base node:



Memory

Select Memory Kit:

  • 1 DIMM Kit required per CPU



Remarks

Description

SKU

4x 32GB RDIMMs

HPE SimpliVity 128G 4 DIMM Slots Memory FIO Kit

Q9Y50A

8x 16GB RDIMMs

HPE SimpliVity 128GB (8x16GB) DDR4-2933 Registered Memory Kit

R4C17A

6x 32GB RDIMMs

HPE SimpliVity 192GB (6x32GB) DDR4-2933 Registered Memory Kit

R4C20A

4x 64GB RDIMMs

HPE SimpliVity 256G 4 DIMM Slots Memory FIO Kit

Q9Y51A

4x 64GB RDIMMs

HPE SimpliVity 256GB (4x64GB) DDR4-2933 Registered Memory Kit

R4C22A

8x 32GB RDIMMs

HPE SimpliVity 256GB (8x32GB) DDR4-2933 Registered Memory Kit

R4C23A

8x 32GB RDIMMs

HPE SimpliVity 384GB (6x64GB) DDR4-2933 Registered Memory Kit

R4C28A

8x 64GB RDIMMs

HPE SimpliVity 512GB (8x64GB) DDR4-2933 Registered Memory Kit

R4C24A

Notes: For more information go to: http://www.hpe.com/docs/memory-population-rules

Graphics Modules

1 GPU is optional per SimpliVity 190 node, up to 2 optional for T4

Remarks

Description

SKU





NVIDIA M10 Quad GPU Module for HPE

Q0J62A





NVIDIA T4 16GB Computational Accelerator for HPE

R0W29C



Networking

Media Module is required (does not consume a PCIe slot)

Remarks

Description

SKU



HPE Ethernet 1Gb 2-port 368T Media Module Adapter

866464-B21

PCI Adapter

1 Adapter per server must be added, up to 1 additional adapter may be selected when ordering 190 servers



Remarks

Description

SKU



HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter

647594-B21



Remarks

Description

SKU



HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter

811546-B21



HPE Ethernet 10Gb 2-port SFP+ 57810S Adapter

652503-B21



HPE Ethernet 10Gb 2-port BASE-T 57810S Adapter

656596-B21



HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter

817753-B21

Power Supplies

Two matched power supplies are required

Remarks

Description

SKU



HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21



HPE 1800W-2200W Flex Slot Platinum Hot Plug Power Supply Kit

876935-B21



HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21



HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21



HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21



HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

Notes:

- The power supply requirement can vary based configuration and environment. Please refer to HPE Power Advisor for proper power sizing.

- 1600W power supply ships with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). If a different power cord is required, please check the ProLiant Power Cables web page:

https://h20195.www2.hpe.com/v2/getpdf.aspx/4AA6-6836ENW.pdf

- 1800W - 2200W power supply requires the selection of a C15/C16 cord per power supply.



Power Cords
Additional power options are available

Remarks

Description

SKU



HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

AF570A



HPE C13 - C14 WW 250V 10A Gray 0.7m Jumper Cord

A0K03A



HPE C15 - NEMA 6-20P 250V 15Amp Black 2.5m US Power Cord

Q7F42A



HPE C15 EU 250V 10Amp 2.5m Black Power Cord

Q7F45A



HPE C15 UK 250V 10Amp 2.5m Black Power Cord

Q7F46A



HPE C15 CN 250V 10Amp 2.5m Black Power Cord

Q7F53A



HPE C15 US 250V 10Amp 2.5m Black Jumper Cord

Q7F57A



HPE C15 EU 250V 10Amp 2.5m Black Jumper Cord

Q7F58A



HPE C15 US 250V 10Amp 0.76m Black Jumper Cord

Q7F59A



HPE C15 EU 250V 10Amp 0.76m Black Jumper Cord

Q7F60A



HPE C15 US 250V 10Amp 1m Black Jumper Cord

Q7F61A



HPE C15 EU 250V 10Amp 1m Black Jumper Cord

Q7F62A



HPE 1.83m C13-NEMA 6-15P Power Cord

SK792A



HPE C13-C14 IN 250V 10Amp 2m Black Jumper Cord

R1C65A



HPE C15-C14 IN 250V 10Amp 2.5m Black Jumper Cord

R1C67A



HPE C15-C14 IN 250V 10Amp 1m Black Jumper Cord

R1C68A



HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

AF570A



HPE C13 - C14 WW 250V 10A Gray 0.7m Jumper Cord

A0K03A



HPE C15 - NEMA 6-20P 250V 15Amp Black 2.5m US Power Cord

Q7F42A



HPE C15 EU 250V 10Amp 2.5m Black Power Cord

Q7F45A

Notes: For more information on HPE server components, review the QuickSpecs at:
https://www.hpe.com/us/en/servers/server-options.html



IT Rack Enclosures

All G2 Advanced and G2 Enterprise models are compatible. Rack Options Listed.

Remarks

Description

SKU



HPE 42U 600mmx1075mm G2 Kitted Advanced Pallet Rack with Side Panels and Baying

P9K07A



HPE 42U 600mmx1075mm G2 Kitted Advanced Shock Rack with Side Panels and Baying

P9K08A



HPE 42U 600mmx1200mm G2 Kitted Advanced Pallet Rack with Side Panels and Baying

P9K09A



HPE 42U 600mmx1200mm G2 Kitted Advanced Shock Rack with Side Panels and Baying

P9K10A



HPE Apollo Platform Manager Distribution Module Kit

620002-B21



HPE Strap t2500 Shipping Bracket

740713-B21



HPE 2U Shelf-Mount Adjustable Rail Kit

822731-B21

Notes:

- HPE Apollo 2000 Gen10 Chassis- The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. For maximum cooling, HPE racks are recommended to allow these racks to be fully loaded with servers using the latest processors. For detail information please see Apollo 2000 System User Guide

- For more information on HPE rack enclosures, review the QuickSpecs at:
https://www.hpe.com/us/en/product-catalog/servers/server-racks.hits-12.html.



Cautions:

- If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment.

- Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage.

KVM Switches and Consoles

Remarks

Description

SKU



HPE 36pin Serial/USB/VGA Dongle Cord Kit

676277-B21

Notes:

- Dongle required for direct (non-iLO) KVM access. Each cable provides access to one server, at least 1 per chassis is recommended.



Power Distribution Units (PDU)

Remarks

Description

SKU



HPE G2 Basic 3.6kVA/IEC C20 Detachable 16A/100-240V Outlets (20) C13 (2) C19/Vertical WW PDU

P9Q38A



HPE G2 Metered 3.6kVA/IEC C20 Detachable 16A/100-240V Outlets (12) C13/1U Horizontal WW PDU

P9R50A



HPE G2 Metered/Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

P9S15A



HPE G2 Metered/Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

P9S18A

Notes: For more information on HPE PDU models and accessories, review the quickspec at:

https://www.hpe.com/us/en/product-catalog/servers/power-distribution-units



Step 4: Auto add of storage based on node quantity



Storage

Remarks

Description

SKU

1 Drive Kit is required per node

HPE SimpliVity 6x1.92TB SFF SSD Kit

Q9Y49A

Drive Options available

HPE Apollo 2000 SFF Bezel Enhanced Kit

874793-B21

Remarks:

- 1: 1 Drive Kit is required per node

- 2: Drive Options available


Notes:

- 7-15TB effective capacity.

- Effective capacity varies by dataset and is a function of realized deduplication and compression rates

Step 5: Auto add of SW that correlates to node configuration



HPE OmniStack Software
Based on the hardware configurations in step 1 & 2 the appropriate software will be included by the configurator.


The software is determined by CPU and storage configuration and is required



Remarks

Description

SKU



HPE OmniStack 2P Virtual Desktop Infrastructure SW

Q9Y52A



HPE OmniStack 1P Remote Office Branch Office SW

Q9Y54A



HPE OmniStack 2P Remote Office Branch Office SW

Q9Y55A

Step 6: Add additional software options:

Choose additional options from Additional Options sections below

Step 7: Select services and support

Additional Options

Server Options

Additional hardware options are available

Description

SKU

HPE Trusted Platform Module 2.0 Gen10 Option

864279-B21

HPE Gen10 TPM 1.2 FIO Setting

872108-B21

HPE 36pin Serial/USB/VGA Dongle Cord Kit

676277-B21

HPE Gen10 2U Bezel Kit

867809-B21

HPE Bezel Lock Kit

875519-B21

HPE Apollo Platform Manager Kit

741192-B21

HPE Apollo 2000 Rack Consolidation Module Kit

798211-B21

HPE Apollo 2000 Rack Consolidation Module 2.0-1.0 Adapter Kit

800063-B21

Software Options



VMware Software

vSphere

A valid VMware vSphere license is required for each CPU to complete deployment.


If an order is placed without VMware licenses, the user agrees to supply the necessary license.


Notes:

- The HPE SimpliVity 2600 supports VMware vSphere 6.5 , 6.7 and 7.0

- For VMware and HW compatibility, please see the HPE SimpliVity OmniStack Interoperability Guide
https://support.hpe.com/hpsc/doc/public/display?docLocale=en_US&docId=emr_na-a00080626en_us&withFrame
or HPE Support Center portal

Description

SKU

VMware vSphere Standard 1 Processor 3yr E-LTU

BD711AAE

VMware vSphere Enterprise Plus 1 Processor 3yr Software

BD715A

VMware vSphere Enterprise Plus 1 Processor 3yr E-LTU

BD715AAE

VMware vSphere Remote Office Branch Office Standard 25VM 3yr E-LTU

P9A82AAE

VMware vSphere Remote Office Branch Office Advanced 25VM 3yr E-LTU

P9A85AAE

VMware vSphere Standard 1 Processor 5yr Software

BD512A

HPE Integrated Lights Out Advanced Software (iLO Advanced)

The HPE iLO Advanced license is required and additional options

Description

SKU

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

Encryption Software

The HPE Smart Array Secure Encryption License is required if optional encryption is enabled

Technical Specifications

Chassis Physical Dimensions

2U  17.64" W x 34.62" D

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/recycle. To recycle your product, please go to: http://www.hpe.com/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Summary of Changes

Date

Version History

Action

Description of Change

01-Nov-2021

Version 6

Changed

Service and Support Pointnext Tech Care and Complete Care information updated

Obsolete SKUs were removed

01-Mar-2021

Version 5

Changed

Overview, Standard Features, and Additional Options sections were updated.

03-Aug-2020

Version 4

Changed

Overview, Standard Features, Service and Support, Configuration Information, Additional Options, and Technical Specifications sections were updated.

07-Oct-2019

Version 3

Changed

Overview, Standard Features, Configuration Information, and Technical Specifications sections were updated.

01-Oct-2018

Version 2

Changed

Overview, Standard Features, and Configuration Information sections were updated.

Added

SKUs added in Configuration Information section: 879593-B21, 879593-L21, 879579-B21, 879579-L21, 879591-B21, 879591-, 21, 874286-L21, 874290-B21, 874290-L21, Q9Y50A, Q0J62A, Q0V80A, 647594-B21, 811546-B21, 865434-B21, 865428-B21, 865414-B21, Q9Y52A, Q9Y54A, Q9Y55A, Q9Y53A, Q9Y56A, Q9Y57A.

Removed

Obsolete SKU was deleted: J2R02A

02-Jul-2018

Version 1

Created

New QuickSpecs.

Copyright

Make the right purchase decision. Contact our presales specialists.



Chat

Email

Call









HewlettPackardEnterpriseLogo



© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.



a00043499enw - 16191 - Worldwide  - V6 - 01-November-2021
