HPE ProLiant for Microsoft Azure Stack Gen10: технические характеристики и документация
В архивеOverview
|
HPE ProLiant for Microsoft Azure Stack Hub | |
|
| |
|

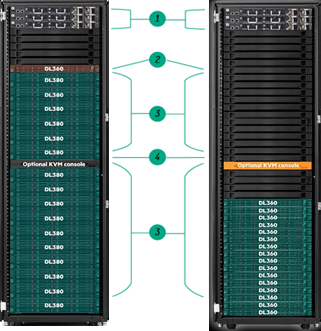

Base Rack - Front/Back View | |
|
1. |
Solution switches (3). Defaults: HPE FlexFabric Switch 5945 48SFP28 8QSFP28 (2) and HPE FlexFabric Switch 5900AF-48 G -4XG-2QSFP+ (1). Customers may optionally select Cisco switches. |
|
2. |
HPE ProLiant DL360 Gen10 with Microsoft Azure Stack Hub hardware lifecycle host (1) |
|
3. |
HPE ProLiant DL380 Gen10 with Microsoft Azure Stack Hub Hybrid or All-Flash Nodes (4-16) |
|
4. |
Optional: 8 or 16 port KVM switch (1) and LCD8500 Rackmount Console (1) |
|
|
Notes: Current solution supports 4-16 hybrid and All-Flash nodes in single server increments. |
|
| |
|
At A Glance |
|
The HPE ProLiant for Microsoft Azure Stack Hub is a hybrid cloud solution that transforms on-premises datacenter resources into flexible hybrid cloud services that provide a simplified development, management and security experience that is consistent with Azure public cloud services. The hybrid cloud solution is co-engineered by HPE and Microsoft to enable the easy movement and deployment of apps to meet security, compliance, cost and performance needs. |
|
|
While cloud architectures are growing fast with enterprises, not all workloads are suitable for public cloud. Data sovereignty, privacy, IP, compliance, performance and cost make public cloud infeasible or impractical for many organizations and applications. Unfortunately, this hasn't stopped many IT users from seeking out public cloud services, putting their companies at risk. Private and hybrid cloud solutions can bridge this gap, but designing, deploying, and operating them can be complicated, risky, and expensive. And if the new cloud doesn't meet the needs of the users, IT can find itself supporting something that no one uses, in addition to what they already support.
Enter HPE ProLiant for Microsoft Azure Stack Hub. HPE and Microsoft are working together to deliver a hybrid cloud solution that delivers on the promised speed and agility benefits of public cloud, in a package that can be quickly and easily deployed in enterprise or service provider datacenters. This allows organizations to reap the benefits associated with cloud operating models, delivered in their own datacenters, by two of the biggest names in the industry. |
|
|
Standard Features
|
Microsoft Azure Stack Hub Software The HPE ProLiant for Microsoft Azure Stack Hub solution allows enterprises to host Azure-consistent services in their data center. This solution supports workload portability between on-premises Azure Stack Hub and Azure public cloud, provides a consistent developer experience and allows you to meet security, compliance, performance and cost requirements. HPE offers a number of optional features including pay-as-you-go pricing, unified billing, single vendor support and analytics-driven, autonomous operations management along with professional services to help you plan and implement your Azure hybrid cloud. For more information, visit: https://azure.microsoft.com/en-us/overview/azure-stack/ |
|
|
|
HPE ProLiant Servers and Infrastructure The HPE ProLiant DL380 Gen10 server delivers the latest in performance, reliability, serviceability and near continuous availability. Designed to reduce cost and complexity, it leverages Intel's latest 6200-series Gold and 8200-series Platinum Xeon processors (10-28 cores), plus the latest 2933 MHz HPE DDR4 SmartMemory supporting up to 1.5 TB in Azure Stack Hub configurations.
For more information, visit: http:/www.hpe.com/qref/dl380gen10 and http:/www.hpe.com/qref/dl360gen10 https://buy.hpe.com/us/en/networking/networking-switches/hpe-flexfabric-5945-switch-series/p/1010907030
The HPE ProLiant DL360 Gen10 Server supports the Intel® Xeon® Scalable Processor Family with up to 28 cores, plus 2933 MT/s HPE DDR4 SmartMemory. The HPE ProLiant DL360 Gen10 server also leverages Intel's latest 6200-series Gold and 8200-series Platinum Xeon Processors (10-28 cores). Deploy this dense platform for diverse workloads in space constrained, rack environments and maintain it with ease by automating the most essential server lifecycle management tasks with HPE OneView and HPE iLO 5.
For more information, visit: http:/www.hpe.com/qref/dl360gen10 and https://buy.hpe.com/us/en/networking/networking-switches/hpe-flexfabric-5945-switch-series/p/1010907030
Better infrastructure means better business. HPE's stronger, smarter, simpler rack and power infrastructure will get you where you need to go-faster.
For more information, visit: http://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html |
|
|
|
HPE Factory Express and Deployment Services Factory integration, on-site installation and deployment services, and end-to-end project management are included as part of the standard offering.
The service starts by gathering details on how the Azure Stack Hub is to be deployed into the data center into a customer deployment worksheet [CDW]. HPE will provide guidance on required information. Upon receipt of the order, factory integration of the infrastructure components commences: servers, storage, switches, and PDUs, are racked and stacked, along with cabling and labeling. After configuring the hardware, the software is loaded. The components are then configured with the correct firmware and BIOS to conform to the latest validated specifications and the solution customized using information contained within the CDW. Tests are conducted, and full diagnostics are performed before solution leaves the factory, customized to the customer's unique Azure Stack Hub requirements. Prior to the delivery of the solution, the following pre-delivery services are completed:
|
|
Following delivery of the solution, the following on-site services are delivered to complete the deployment and integration of the solution into the environment: On-site installation and start-up - Installation of the solution rack into the datacenter - Installation of servers and switches into a customer rack if "onsite racking" into a customer's rack is selected and/or Cisco switches are selected - Hardware check & visual acknowledgment that all hardware components have power - Cabling check to confirm all components are properly connected
- Evaluate and assist with retrofit of host network as necessary - Configure and connect the Azure Stack Hub solution to host network - Install the Microsoft Azure Stack Hub software & apply patches and updates as necessary
- Complete solution validation - Solution registration with a Microsoft Azure subscription - Update the hardware lifecycle host & the HPE OneView configuration as necessary - Update HPE OneView Remote Support configuration as necessary - Integrate Microsoft Azure Stack Hub with Azure Active Directory or Active Directory Federation Services - Conduct a 4-hour orientation session providing an overview of the solution components, accompanying documentation, basic interactions with the Azure Stack Hub Hub portal and the supported configurable aspects of the HPE software components
Additional consulting services are available to cover requirements beyond those listed above.
For additional information, please contact your HPE account team, Pointnext representative, partner account manager, or visit:
|
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Free up resources with Operational Services from HPE Pointnext Services HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller. Services are quoted using Hewlett Packard Enterprise order configuration tools.
HPE Pointnext Tech Care HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Support Services Extensive collaboration between HPE and Microsoft means access to fast, professional support when you need it. Azure Stack Hub core software support is provided through the Cloud Solution Provider program or via Microsoft Enterprise Agreement in one of three ways:
For additional information on the Microsoft Cloud Solution Provider program, visit: https://partner.microsoft.com/en-US/cloud-solution-provider
HPE Add-node Service When adding a compute node (Gen10 - Q8N42A#101) to an existing HPE ProLiant for Microsoft Azure Stack Hub appliance; the mandatory Add Node service (HA124A1#5RA) provides onsite node hardware install into rack, and requisite updates to HPE Management tools & switch configurations; the customer however, is responsible for the logical addition of the new compute node via the Azure Stack Hub user interface.
|
|
|
|
The service includes an assigned account team led by a trained Hewlett Packard Enterprise Account Support Manager (ASM). The team's goal is to form a close working relationship with designated members of your IT staff and gain a clear understanding of your business objectives, key service-level agreements (SLAs), and the key performance indicators (KPIs) you need to meet. Delivery of the various support options you have chosen will be overseen by the ASM and directed at meeting your goals
HPE ProLiant for Microsoft Azure Stack Hub Update Bundle Startup Service Solution update bundles for HPE ProLiant for Microsoft Azure Stack Hub are released periodically by Hewlett Packard Enterprise to Customers who have active HPE support service coverage for their HPE ProLiant for Microsoft Azure Stack Hub. These update bundles may include firmware and driver updates for the Azure Stack nodes and the hardware lifecycle host (HLH) management node, HPE OneView updates, security fixes, new solution management tools, and supported third-party tools. This service provides for a choice of either remote or on-site deployment of one HPE solution update bundle for HPE ProLiant for Microsoft Azure Stack Hub.
For additional information please visit: https://psnow.ext.hpe.com/doc/a50001227ENW.pdf
HPE GreenLake Capacity Analytics with Microsoft Azure This "best of both worlds" solution combines all the benefits of on-premises IT and public cloud to deliver a true Hybrid IT consumption model. Using the ProLiant for Azure Stack Hub with HPE GreenLake Capacity Analytics delivers consumption-based economics and scalability within the boundaries of Microsoft Azure Stack Hub. Unlike product financing offers, HPE GreenLake Flex Capacity provides active capacity management, variable monthly payments based on metered usage, and services to make Hybrid IT simpler.
|
HPE
also highly recommends HPE
Education Services,
for customer training and education. Depending
upon network integration requirements, optional HPE
Network Integration services
may be needed.
|
|
|
|
Warranty Services The HPE ProLiant for Microsoft Azure Stack Hub infrastructure is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. As the HPE ProLiant for Microsoft Azure Stack Hub is a solution made up of many components, the warranty across the different components will vary. The HPE ProLiant for Microsoft Azure Stack Hub requires customers to purchase a minimum of 3 year HPE Tech Care Basic bringing the support service level of all components to a consistent level |
|
|
|
HPE Financial Services To support customers' transition, HPE Financial Services (HPFS) can help in a way that you may not have considered. HPFS can help you invest in your business while preserving precious capital.
For more information please visit: http://www.hpe.com/solutions/hpefinancialservices for links to HPE Financial Services around the world. |
|
|
Configuration Information
|
How to order HPE ProLiant for Microsoft Azure Stack Hub |
|
Start by determining the workloads and services you plan to host on Azure Stack Hub. Your HPE account rep or channel partner can help guide you through the options regarding node count, node configuration, racking, services and support to arrive at a solution tailored to the specific needs of your business.
|
|
Complete solutions include: |
Notes: - The solution supports scaling in single server increments. Any number of nodes between the min/max range can be ordered. - Customers can also order a single HPE ProLiant DL360 Gen10 POC node for POC purposes. Production workloads are not supported on POC node. |
|
Factory Integrated Models |
|
Notes: The software image will be installed at the factory. Client licenses are not included for VM- or container-based Azure Stack Hub Services. Azure Stack Hub service pricing is based on usage and billed by HPE, Microsoft, or the CSP of record. |
|
|
|
Step 1: Configure the compute nodes | |
|
HPE DL380 Gen10 with Microsoft Azure Stack Node |
Q8N42A |
|
Minimum quantity 4, maximum 16. Each node will include the following:
Notes: Compute node configurations are identical for all nodes in a cluster.
|
|
|
HPE DL380 Gen10 with Microsoft Azure Stack All Flash Node |
R1D93A |
|
Minimum quantity 4, maximum 16. Each node will include the following:
Notes: Compute node configurations are identical for all nodes in a cluster. |
|
|
HPE ProLiant DL360 Gen10 with Microsoft Azure Stack All Flash Node |
R4C79A |
|
Minimum quantity 4, maximum 16. Each node will include the following:
Notes: Compute node configurations are identical for all nodes in a cluster.
|
|
|
|
|
|
|
One of the following choices: Notes: - Memory configurations up to and including 768GB require 480GB mirrored boot drives. Larger memory configurations over 768GB (including 768GB "upgradable") require 960GB mirrored boot drives. - 256GB memory option offers 33% less memory throughput as compared to other options. For details see: http://www.hpe.com/docs/memory-population-rules |
|
|
| |||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||
|
One of the following choices: (DL380 Gen10 Hybrid) | ||||||||||||||||||
|
| ||||||||||||||||||
|
|
| ||||||||||||||||
|
One of the following choices: (DL380 Gen10 All Flash) | ||||||||||||||||
|
| ||||||||||||||||
|
|
| |||||||||||||||||||||
|
One of the following choices: (DL360 Gen10 All Flash) | |||||||||||||||||||||
|
| |||||||||||||||||||||
| |||||||||||||||||||||
|
Optional CPU choices for DL380 Gen10 All Flash: | |||||||||||||||||||||
|
| |||||||||||||||||||||
| |||||||||||||||||||||
|
| |||||||||||||||||||||
|
Additional memory requirement considerations for GPU workloads: | |||||||||||||||||||||
|
| |||||||||||||||||||||
| |||||||||||||||||||||
|
After making the selections above, select the required number of compute nodes and proceed to step 2. | |||||||||||||||||||||
|
|
|
Step 2: Select Rack and Power Options | |
|
HPE G2 Series Racks are designed specifically to support a wide range of HPE IT equipment (servers, storage, and networking) as well the entire portfolio of HPE Rack and Power Infrastructure solutions (PDU, UPS and KVM) A choice of HPE G2 Advanced Series of racks or customer alternate racking models is offered: | |
|
HPE G2 Advanced Series Rack Models | |
|
HPE 42U 600mmx1075mm G2 Kitted Advanced Shock Rack with Side Panels and Baying |
P9K08A |
|
HPE 42U 600mmx1200mm G2 Kitted Advanced Shock Rack with Side Panels and Baying |
P9K10A |
|
| |
|
Alternate Rack Choices | |
|
HPE understands that datacenters sometimes have predefined standards for racks. As a result, we offer and support alternate racking choices - please contact your HPE account team for more details as there may be additional services required. | |
|
| |
|
Power Distribution Units
| |
|
Select the Power Distribution Units for the Rack | |
|
Choice of vertically mounted three phase or single phase G2 standard and metered Power Distribution Unit (PDU)
| |
|
A major concern for IT administrators and facility managers is their ability to quickly diagnose and service power related problems in their IT racks. The HPE G2 PDU portfolio addresses this problem by, first, offering a wide range of models and mounting options that promote flexible power configuration in IT racks. Serviceability is further enhanced with features such as color-coded outlets and low-profile form factors, allowing for simple and quick access to IT equipment and power cables in the rear of the rack.
HPE G2 Metered PDU features are also directly focused on other pain points in the data center by providing a highly accurate (billing grade accuracy) power distribution and metering solution. 1Gb Ethernet alleviates the need to maintain older switch solutions that have been traditionally required for PDU network connectivity. High-density outlet configurations that provide up to 48 power outlets in a full-height vertical form factor allow for simple access to power in the rack while minimizing physical cable requirements. Support for up to eight sensors per PDU provides a cost-effective and exhaustive solution for monitoring the environmental elements (temperature, humidity, and leakage) in both the front and rear of the rack.
Available models range from 24A to 60A current ratings, in the half-height, mid-height, and full-height vertical form factors. The default PDU choices have been selected to support the maximum of devices to be powered within a 42U rack. Should alternate choices be required - please contact your HPE account team. | |
|
| |
|
Step 3: Select Network Switch Options | |
|
A choice between pre-configured solution certified sets of HPE Flex Fabric and Cisco switches is offered to act as the solution Top-of-Rack and management switches. | |
|
HPE Flex Fabric Switch Set (default) | |
|
The HPE FlexFabric 5945 Switch Series is a family of high performance and low-latency top-of-rack (ToR) datacenter switches. The HPE FlexFabric 5945 is optimized to meet the increasing requirements for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and low-latency. | |
|
HPE FlexFabric 5945 48SFP28 8QSFP28 Switch |
JQ074A |
|
HPE FlexFabric 5900AF 48G 4XG 2QSFP+ Switch |
JG510A |
|
Notes: - Switch quantities are fixed at 2 TOR and 1 management switches per solution - Networking cable and transceivers are fixed with exception of transceivers for external connectivity with options noted below | |
|
TOR external connection options | |
|
HPE X120 1G SFP RJ45 T Transceiver |
JD089B |
|
HPE X190 25G SFP28 LC SR 100m MM Transceiver |
JL293A |
|
Notes: 4 Transceivers from supported list (above) must be selected for HPE TORs. Transceivers and fiber that are respectively supported by the customer provided border/edge switch must be purchased separately. | |
|
Cisco Datacenter Switch Set | |
|
The platforms provide investment protection for customers, delivering large buffers, highly flexible Layer 2 and Layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments. Used in the Microsoft Azure Cloud they are now available in Microsoft Azure Stack Hub configurations. Cisco switches are also US TAA (Trade Agreements Act) compliant that is required to sell products into the US Federal market. For additional information around Cisco, please visit: https://www.cisco.com/c/en/us/products/collateral/switches/nexus-9000-series-switches/datasheet-c78-736651.html | |
Notes: - Switch quantities are fixed at 2 TOR and 1 management switches per solution - Networking cable and transceivers are fixed with exception of transceivers for external connectivity with options noted below - For customers ordering the Cisco Networking option, the quote will include HPE Pointnext onsite switch hardware installation SKU HM9R3A1#003 at quantity per switch. - It is the responsibility of the customer to order hardware support for their Cisco switches from their switch vendor at time of purchase |
|
|
TOR and BMC required parts | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TOR external connection options |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SFP-10G-SR Cisco SFP-10G-SR Compatible 10GBASE-SR SFP+ 850nm 300m DOM Transceiver |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SFP-25G-SR-S Cisco SFP-25G-SR-S Compatible 25G SFP28 850nm 100m DOM Transceiver |
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Notes: 4 Transceivers from supported list (above) must be selected for Cisco TORs. Transceivers and fiber that are respectively supported by the customer provided border/edge switch must be purchased separately. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Configuring Expansion Nodes | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HPE DL380 Gen10 MAS Exp Node |
Q8N42A#101 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hewlett Packard Enterprise recommends that you consider the CPU, memory, and storage growth rates of your workload when performing solution sizing and purchasing sufficient capacity in each scale unit to meet future workload demands. Adding nodes to an existing scale unit is supported subject to the following limitations:
The maximum number of compute nodes is limited to the current maximum for your system (16).
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HPE ProLiant DL360 Gen10 Single Microsoft Azure Stack Hub POC node | |
|
For customers wanting to have a "try before buy" Microsoft Azure Stack Hub experience.
| |
|
HPE DL360 Gen10 with Microsoft Azure Stack Single POC Node |
R2D99A |
|
For customers wanting to get an Azure Stack Hub experience before making the investment on a multi-node solution, HPE offers a single POC Azure Stack Hub node. Microsoft provides the Azure Stack Hub Development Kit (ASDK) that can be customer installed to evaluate and learn about Azure Stack Hub. You can also use ASDK as a developer environment to build apps using the APIs and tooling that's consistent with Azure. The POC node details are below. The single POC Azure Stack Hub node is covered by Foundation Care hardware support only. ASDK is supported by Microsoft.
Microsoft has more information on the ASDK at: https://docs.microsoft.com/en-us/azure/azure-stack/azure-stack-poc
|
|
|
| |
Technical Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
Environmental-friendly products and approach
End-of-life management and recycling Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For more information, visit: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
04-Oct-2021 |
Version 16 |
Changed |
Service and Support Pointnext Tech Care and Complete Care information updated |
|
02-Aug-2021 |
Version 15 |
Changed |
Service and Support Pointnext information added |
|
21-Jun-2021 |
Version 14 |
Changed |
Added GPU details Configuration Information section was updated |
|
04-May-2021 |
Version 13 |
Changed |
Rebranding applied |
|
03-Feb-2020 |
Version 12 |
Changed |
Overview and Configuration Information sections were updated. |
|
06-Jan-2020 |
Version 11 |
Changed |
Added DL360 Gen10 content for description, order, storage. |
|
04-Nov-2019 |
Version 10 |
Changed |
Overview, Standard Features, and Configuration Information sections were updated. |
|
10-Jul-2019 |
Version 9 |
Changed |
Overview, Standard Features and Configuration Information sections were updated. |
|
06-May-2019 |
Version 8 |
Added |
Overview and Configuration Information - Factory Integrated Models sections were updated: added support for Cisco switches |
|
04-Mar-2019 |
Version 7 |
Changed |
Overview, How to Order, Standard Features, and Configuration Information - Factory Integrated Models sections were updated. SKU added in Configuration Information - Factory Integrated Models section: R2D99A. |
|
09-Dec-2018 |
Version 6 |
Added |
Overview, How to Order, and Configuration Information - Factory Integrated Models SKU added in Configuration Information - Factory Integrated Models section: R1D93A. |
|
05-Nov-2018 |
Version 5 |
Changed |
Overview, How to Order, Standard Features, Configuration Information - Factory Integrated Models, and Technical Specifications sections were updated. SKUs added in Configuration Information - Factory Integrated Models section: JH402A, JG510A, JD089B, JL437A, JL293A, JH948A, JQ085A, JH650A, JH645A, JH647A, JH991A, JH992A. |
|
01-Oct-2018 |
Version 4 |
Changed |
Overview, How to Order, Standard Features, and Configuration Information - Factory Integrated Models sections were updated. |
|
06-Aug-2018 |
Version 3 |
Changed |
How to Order; Standard Features; Services and Support; and Configuration Information - Factory integrated Models sections were updated. SKUs added: Q8N42A#101, Q8N42A |
|
02-Jul-2018 |
Version 2 |
Changed
|
Overview, How to Order, Standard Features, Configuration Information - Factory Integrated Models, and Technical Specifications sections were updated SKU added: Q8N42A SKU deleted: Q2B51A |
|
04-Jun-2018 |
Version 1 |
Created |
New QuickSpecs |
Copyright
|
|
| ||||||||||||
|
|
|
© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.
a00043500enw - 16192 - Worldwide - V16 - 04-October-2021 | ||||||||||||
