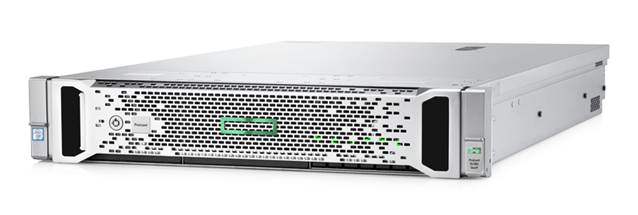

HPE Hyper Converged 380

For customers who are looking for a configurable, scalable, agile and highly available hyper converged virtualization system, the new HPE Hyper Converged 380 (HC 380) delivers a simple solution stack with extended flexibility and manageability.  It builds on the powerful, industry standard HPE ProLiant DL 380 Gen9 server platform and is combined with VMware vSphere.  Using the new HPE HC 380 Management UI to add full lifecycle management, VM provisioning and updates in a single pane of glass provides a unified, global experience.  The HPE Hyper Converged 380 delivers a turn-key virtualization solution for medium-sized businesses, enterprises, and IaaS providers.

Designed from the ground up for the software-defined data center, the HC 380 enables a standardized approach to virtual server deployment, available in three workload configurations: General Virtualization, CloudSystem and a Virtual Desktop Infrastructure (VDI).  VDI is offered as a reference architecture.  Unlike many hyper converged systems, the HC 380 can be customized at the time of order and will be ready for virtualized workloads in a few simple clicks.

All hardware and software components are pre-installed and pre-integrated by at the factory. A quick customization using the HPE HC 380 Management UI software enables faster time to value unique to the HC 380. After the initial installation, IT administrators manage their virtualized environment within HPE HC 380 Management UI and VMware vCenter Server.

What's New

• Intel® Xeon® E5-2600 v4 Processor (Broadwell) support
• Heterogeneous Processor Support*
• All Flash Storage Blocks
• NVIDIA M60 GPU

NOTE:*Broadwell (v4) processors and Haswell (v3) processors can be mixed at the cluster level, however nodes must remain homogeneous. It is recommended that core count is kept similar if intermixing.

HPE Hyper Converged 380 Product Information

Scalable

• 2-node starter kit (appliance)
• Expandable in 1 node increments up to 16 total nodes
• Flexible pre-integrated Use Case choice points
• HC 380 General Virtualization for development environments, Web/App servers and lightweight applications
• HC 380 with HPE CloudSystem
• HC 380 Virtual Desktop Integration (VDI) Persistent/non-persistent, graphics enabled
• Configurable
• Processor - Choice of Intel Xeon E5 processors (Haswell and Broadwell)
• Memory - 128GB to 1536GB (Per Node)
• Storage - 3.5 TB to 40.2 TB usable (Per Node)
• Graphics - selection by workload
• Network - 10Gb, 1Gb
• Power - Redundancy
• Virtualization Software and Licensing

Compact form factor - A 2-node  hyper converged computing system in a 4U form-factor with single 2U node expansions up to 16 total HPE Hyper Converged 380 nodes in a single cluster

Software

• VMware vSphere
• Cloud System 9
• HPE HC 380 Management UI

Easy to Install, use and upgrade

• Pre-integrated virtualization platform powered with VMware vSphere 6
• Data services from HPE StoreVirtual
• HPE HPE HC 380 Management UI for full lifecycle management and monitoring
• VMware vCenter for day to day management

Hardware Availability features

• Cluster expansion without downtime
• Hot-pluggable HDD and SSD
• Redundant power supplies
• Integrated storage controller with battery-backed cache
• HPE ProLiant Integrated Lights-Out (iLO) 4 Remote Management

Services

• HPE Insight Remote Support delivers 24x7 secure remote support
• Product is customer-installable and partner-serviceable*
• 3-year Hyper Converged 380 solution support included for best support experience*

HPE Hyper Converged 380 At-a-Glance

Use Case

Virtualization

CloudSystem

VDI (Reference Configuration)

Node Size

4U, 2-node Starter Appliance+2U, 1-node expansion

System Scalability

14 expansion nodes for total of 16 identical nodes per resource pool

Processors

2x Intel Xeon E5 processors per node, selectable

Memory

128GB to 1536GB per node

256GB to 1536GB per node

256GB to 1536GB per node

Storage

Up to three storage blocks, each with 3.4 to 13.4 TB usable capacity per block

8 drives either SSD/HDD hybrid, all-HDD, or all- SSD

Maximum  of 40.2TB per node, usable

Network Ports

4X 1Gb ports (x 2)

6x 10Gb plus 4x 1Gb ports

2x 10Gb ports plus 4x1Gb ports

Power supplies

 See Options in the Power Table Below

2 x 1400Watt Platinum Plus Power Supplies for VDI graphics

Hardware Warranty¹

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

Hardware support

3-year HPE Hyper Converged 380 solution support (required)

NOTE:  ¹ Warranty for SSDs is subject to maximum usage limitations.  Maximum usage limit is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.

*For the best support experience, HPE TS Installation Services and 24x7x365 support recommended.

Features and Benefits

Scalable Performance

• Purchase only what you need today
  Avoid up-front cost and potential performance constraints. Purchase only what's needed today, then grow the performance, capacity, and redundancy of your HC 380 online as your requirements evolve. Simplify planning and budgeting processes by purchasing what you need, when you need it.
• Scale performance and capacity simultaneously.
  Each time a new node is added to an HC 380 environment, the capacity, performance, and redundancy of the entire storage solution increases.
• Avoid disruptive upgrades
  Add resources to the HC 380 cluster non-disruptively. Applications remain online during maintenance events (adding nodes, updating software or firmware) for best in class availability.

Easy to manage virtualized environment

The new HPE HC 380 Management UI integrates virtual machine management and provisioning, live automated server firmware updates and operations analytics

Easy installation of entire vSphere environment

Full lifecycle management

Day 0 provisioning:  Customize the HC 380 to make it fit your environment with just a few mouse clicks: Setup host names, IP address and networking configuration

Unified, single pane of glass system alerts, relationships cluster, infrastructure associations and alerts

Automated Scalability - flex and grow hardware automatically

System level compliance validation and reporting

VMware vCenter for day to day provisioning

Software Overview

Pre-integrated software

VMware vSphere  6

(1) VMware vSphere ESXi 6

 (1) VMware vCenter 6 (on HC 380, or use a licensed, existing instance)

(1) HPE Cloud System 9 (Cloud use case only)

(1) HPE HC 380 Management UI

NOTE: CloudSystem requires each of the managed Hyper Converged 380 node(s) to be licensed. The HC 380 node(s) that run the CloudSystem management appliances (HC 380 CloudSystem management nodes) do not require a CloudSystem license.

Virtualization Platform

VMware vSphere, vCenter; Enterprise+

Licenses

Valid licenses for the following VMware software components are required:

(2) VMware vSphere licenses per Node

(1) VMware vCenter 6 license (when using the pre-integrated vCenter instance on the HPE Hyper Converged 380)

NOTE: HPE Hyper Converged 380 for VMware vSphere requires valid VMware vSphere Enterprise, and vCenter licenses. VMware licenses can only be removed from the order if it is confirmed that the end-customer has a valid licenses in place (Enterprise License Agreement (ELA), vCloud Air Partner or unused Enterprise Purchasing Program tokens).

Hewlett Packard Enterprise supports vSphere Enterprise Plus and Horizon on the HPE Hyper Converged 380.

Purchasing VMware licenses from Hewlett Packard Enterprise allows Hewlett Packard Enterprise to be the single point of contact for the entire solution inclusive of the virtualization software and is recommended.

Management

HPE HC 380 Management UI, VMware vCenter for day-to-day management,  StoreVirtual VSA, CMC

Step 1: Base Configuration (choose one of the following configurable models)

One easy part number to order.

Base Appliance Node

HPE HC 380 Cluster Appliance (Node)

P9D74A

HPE HC 380 General Virtualization Software

P9D74A#001

HPE HC 380 VDI Software

P9D74A#002

HPE HC 380 Cloud Software

P9D74A#003

Expansion Node

HPE HC 380 Cluster Appliance (Node)

P9D74A

HPE HC 380 General Virtualization Node Expansion

 P9D74A#101

HPE HC 380 VDI Node Expansion

P9D74A#102

HPE HC 380 Cloud Node Expansion

P9D74A#103

Step 2: Software and Licensing

Use Case

Software Title

General Virt.

Cloud

VDI¹

License Supported

Order Number

HPE HC 380 Base Software

HPE Hyper Converged 380 Base Software Image 6.0 FIO Kit

P9D85A

VMware vSphere 6

VMware vSphere Enterprise or Enterprise Plus

3 year LTU

BD715AAE          VMware vSphere Enterprise Plus 1 Processor 3yr E-LTU

5-year LTU

- BD514AAE       VMware vSphere Enterprise Plus 1 Processor 5yr E-LTU

VMware vCenter 6

Purchase or customer can provide own licenses.

P9U41AAE          VMw vCenter Server Std for vSph 3y E-LTU

P9U42AAE          VMw vCenter Server Std for vSph 5y E-LTU

VMware Horizon 6.2

Standard, Advanced, Enterprise

Optional

HPE OneView   User Experience (UX)

Included

Included

HPE Cloud System 9

Foundation, Enterprise

F9D70BAE Foundation

F9D69BAE Enterprise

HPE iLO Advanced

Included, 1 per node

E6U64ABE LTU

- Available

¹ Reference Architecture

Step 4: Service and Support

Service and Support

Technology Services for increased uptime, productivity and ROI
At HPE, our priority is to maximize your workload uptime, avoiding problems before they occur. As the experts for the HC380, TS support will be your 24x7x 365 single point-of-contact for all of your support needs. This means you can spend more time developing apps and adding value to the business rather than maintaining your infrastructure.

If there is a potential risk in your infrastructure, our remote support technology will proactively notify HPE and initiate the resolution process. If you are experiencing any issue with your solution you will have immediate access to our team of solution experts, whose first priority is to ensure your workloads are up and running, and then immediately start diagnosing the failure.

HC380 is supported by the power of HPE, in 30+ different languages, with local presence across 140 countries.

 Please consult your HPE Sales Representative for any additional questions and support options.

Installation and Startup services

Recommended.  Please contact your HPE Sales Representative for more information.

For more information

https://www.hpe.com/us/en/services.html
To learn more on HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. HPE Pointnext operational services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners.

Services for customers purchasing from Hewlett Packard Enterprise or an enterprise reseller are quoted using Hewlett Packard Enterprise order configuration tools.

Additional Services Information

For more information about HPE Support Services, please visit: http://ssc.hpe.com/portal/site/ssc?selectedCountry=EE

If you have specific questions, contact your local Hewlett Packard Enterprise representative. Contact information for a representative in your area can be found at "Contact HPE" http://www.hpe.com

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Hyper Converged Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h20565.www2.hpe.com/portal/site/hpsc/public/psi/home/?sp4ts.oid=5169096&ac.
admitted=1475092149062.125225703.1851288163

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: www.hpe.com/us/en/living-progress.html. To recycle your product, please go to: www.hpe.com/us/en/living-progress.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: www.hpe.com/us/en/living-progress.html. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Form Factor

One of the following depending on model

2U Rack form factor

24SFF Drive Bay Version (racked):
Unboxed Weight & Dimensions:

35 (min) - 57 (max) lbs

26.75in (L) x 17.54in (W) x 3.44in (D)  -  (8.73 x 44.55 x 67.94 cm)

NOTE: Dimensions without bezel.

Boxed Weight & Dimensions:

62 (min) - 80 (max) lbs

36.13in (L) x 23.63in (W) x 10.63in (D)  (including packaging)

Date

Version History

Action

Description of Change

23-Oct-2017

Version 8

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

24-Feb-2017

From Version 6 to 7

Changed

Updated some link in the Tech Specs Section.

27-Jan-2017

From Version 5 to 6

Changed

Changes made to the entire document

14-Oct-2016

From Version 4 to 5

Changed

Changes made to the entire document

26-Sept-2016

From Version 3 to 4

Changed

Updates for 1.1.

15-Aug-2016

From Version 2 to 3

Changed

Changes made to the How to Order and Standard Features Sections.

13-May-2016

From version 1 to 2

Changed

Changes made to the entire document

31-Mar-2016

Version 1

New

Initial version
