HPE Hyper Converged 250 System

For customers who are looking for a simple, agile and highly available virtualization system, the Hyper Converged 250 family eliminates complex solution stacks. It combines a powerful Apollo server platform and mature StoreVirtual data services from Hewlett Packard Enterprise into one building block to simplify the delivery of virtualized servers and desktops. The Hyper Converged 250 family supports VMware and Microsoft virtualization technologies, and continues to provide a turn-key virtualization solution for medium-sized businesses, enterprises, and IaaS providers.

Designed from the ground up for the software-defined data center, the HC 250 enables a standardized, appliance approach to virtual server deployment, regardless of whether it is used as a primary virtualization platform in medium-sized businesses or as a dedicated resource pool for specific applications in the enterprise.

All hardware and software components are pre-installed and pre-integrated by Hewlett Packard Enterprise  and quick customization using the OneView InstantOn software enables faster time to value. After the initial installation, IT administrators manage their virtualized environment within VMware vCenter Server and OneView for vCenter, or with Microsoft System Center user interfaces and HPE OneView for System Center management integrations.

StoreVirtual technology that is built into the HC 250 matches the high-availability features of the hypervisor (VMware Fault Tolerance, VMware High Availability, or Windows Failover Cluster) from a storage perspective to provide enterprise-level availability for virtualized applications and services. HC 250 provides superior high-availability beyond a single system, rack and even data center. As the storage components are vSphere Metro Storage Cluster (vMSC) certified, the HC 250 is a great fit for stretched VMware vSphere clusters.

At a glance - HPE Hyper Converged 250

• HPE Hyper Converged 250 System comprises two products that support VMware or Microsoft virtualization technologies
  Hyper Converged 250 for VMware vSphere and Hyper Converged 250 for Microsoft Cloud Platform System Standard
• Compact form factor: Hyper-converged computing solutions in 2U form-factor with up to 4 nodes in a system chassis
• Grow by adding single nodes to a chassis with empty slots on the HC 250 for VMware vSphere
• Easy to install and use for medium-sized businesses and in the enterprise

- Simple guided setup with HPE OneView InstantOn

- Day to day management

HC 250 for VMware vSphere:
VMware vCenter Server with HPE OneView for vCenter Server plug-ins

HC 250 for Microsoft Cloud Platform System Standard:
Microsoft System Center with HPE OneView for Microsoft System Center plug-ins

• Pre-integrated virtualization platform powered by industry-leading virtualization software
  with data services from HPE StoreVirtual

- Built with VMware vSphere 5.5 or 6.0

Pre-integrated components: VMware vSphere, VMware vCenter

Valid VMware vSphere Enterprise or higher and vCenter Standard licenses are required; see notes below

- Built with Microsoft Cloud System Platform Standard

Pre-integrated components: Microsoft Windows Server 2012 R2 Datacenter, Hyper-V, System Center, System Center Operations Manager, System Center Virtual Machine Manager

Valid Microsoft Windows Server 2012 R2 Datacenter and System Center 2012 R2 licenses are required and available separately

• Intel® Xeon® E5-2600v3 or v4 family processors for fast and efficient operation
• Superior high-availability and disaster recovery capabilities, powered by HPE StoreVirtual technology on top of the Microsoft virtualization platform; built-in features:

- Adaptive Optimization for workload acceleration (only with Hybrid Storage option)

- Network RAID 0, 5, 6, 10, 10+1, and 10+2¹

- Integrated Thin Provisioning

- Virtual machine- and application-consistent snapshots

- Multi-Site HA² (Synchronous Replication across several locations)

- Remote Copy (Snapshot-based, asynchronous Replication with Bandwidth Throttling)

- Storage federation with Hewlett Packard Enterprise  Storage products

• Hardware Availability features

- Hot-pluggable HDD and SSD (SSD in Hybrid Storage Configurations only)

- Redundant power supplies

- Integrated storage controller with battery-backed cache

- Hyper-redundant clustered storage

• HPE ProLiant Integrated Lights-Out 4 Remote Management
• HPE Insight Remote Support delivers 24x7 secure remote support³
• Product is customer-installable and partner-serviceable;
  Hewlett Packard Enterprise requires minimum 3 years Proactive Care Next Business Day (NBD) support

NOTES:¹ Network RAID 10 requires two or more HC 250 nodes, Network RAID 5, 10, 10+1 require three or more nodes.
² Multi-site or stretched cluster configuration requires additional setup in the StoreVirtual management software and may require additional planning and configuration for the VMware or Microsoft virtualization software.
³ Configured for embedded Remote Support only (iLO 4) in Insight Remote Support; requires an external server for monitoring.

NOTE:  ¹ HPE OneView InstantOn automates the setup of four systems (16 nodes) in one management zone. Adding additional four systems (total of 32 nodes in the same management zone) is a manual operation and not recommended in standard installations.
² Hewlett Packard Enterprise recommends Network RAID 10 protected volumes for production workloads. 4-node HC 250 systems with 5.6TB Hybrid Storage Configuration yields about 7.5TB usable Network RAID 10 protected capacity, or 11.5TB in a 4-node HC 250 for VMware vSphere with 7.2TB Capacity Storage Configuration; up to 500GB of storage pool capacity is pre-allocated for system management.
³ SFP+ transceivers or DAC options not included for flexibility; can be purchased separately on the same order.
⁴ One 1GbE port will be required for initial installation of the system.Customers are advised against changing the configuration of the pre-configured virtual switches. Secondary network connectivity cannot be used instead of primary network ports.
⁵ Warranty for SSDs is subject to maximum usage limitations. Maximum usage limit: This is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage.

NOTE: HPE recommends 10GbE connectivity for HC 250 models and IPv6 capable switching infrastructure. In an advanced configuration, customers can use configure secondary network ports for additional virtual machine networks; these ports are not intended and configured in a standard installation. Customers are advised against changing the configuration of the virtual switches. Hewlett Packard Enterprise recommends HPE Networking 5700 and 5900CP series switches for best results.

Unmatched ease of use for server virtualization

• Storage Clustering simplifies scalability
  Storage Clustering allows a customer to consolidate multiple storage nodes into pools of storage. All available capacity and performance is aggregated and available to every volume in the cluster. As storage needs increase the HC 250 can scale performance and capacity on-line.
• Network RAID delivers new levels of data availability
  Network RAID stripes and protects multiple copies of data across a cluster of storage nodes, eliminating any single point of failure in the HC 250. Applications have continuous data availability in the event of a disk, controller, storage node, power, network, or site failure. Choose the right Network RAID level for each data store containing virtualized workloads in the resource pool based on capacity and performance needs.
• Thin Provisioning reduces costs by increasing storage efficiency
  Thin Provisioning allocates space only as data is actually written without requiring pre-allocation of storage. This raises the overall utilization and efficiency of the HC 250, reduces costs and ultimately increases the ROI.
• Application Integrated Snapshots
  Snapshots create thinly provisioned, instant point-in-time copies of data on a per-volume basis. Administrators access snapshots to recover individual files from the volume, or rollback an entire volume. Built-in application integration provides automated quiescing for virtual machines on Microsoft Hyper-V or VMware vSphere: using the Application Aware Snapshot Manager, consistency can be extended from VM-consistent to application-consistent snapshots for VMs with Microsoft Windows.
• Remote Copy reduces costs for disaster recovery
  Remote Copy replicates snapshots between HC 250 and StoreVirtual-based devices arrays at primary and remote locations. Copies are thinly provisioned with no space reservation required. Remote Copy enables centralized backup and disaster recovery on a per-volume basis and leverages application integrated snapshots for faster recovery. Remote Copy makes the HC 250 the perfect fit for regional data centers. With additional StoreVirtual VSA licenses, turn any server with a hypervisor in a central site into a replication target for the HC 250 for enhanced business continuity. Using StoreVirtual VSA as replication target, allows for custom disaster recovery sits and failover can also be integrated with VMware Site Recovery Manager.
• Adaptive Optimization provides SSD performance without SSD cost (available with Hybrid Storage only)
  Auto-tiering technology for hybrid storage configurations on the HC 250 helps optimize cost and performance of clusters. By utilizing Adaptive Optimization technology to migrate data between storage tiers within individual storage systems, the HC 250 provides a unique method for balancing performance versus capacity within a storage pool and lowering overall cost.
• Adding more storage resources on demand
  Any StoreVirtual device (StoreVirtual VSA, StoreVirtual 4000) can be added to the same environment as HC 250. This allows for more flexibility when additional storage capacity, or storage with different performance characteristics is needed. Adding another storage pool is easy with the StoreVirtual's Centralized Management Console and HPE OneView integration into hypervisor management: External storage resources are provisioned the same way as resources internal to the HC 250 platform. Hewlett Packard Enterprise  recommends StoreVirtual VSA Software or StoreVirtual 4335 Storage for additional storage.

Superior disaster recovery and flexibility

• Integrated replication for disaster recovery
  The Hyper Converged 250 includes integrated replication at no additional cost that simplifies management with simple failover and failback between primary production and a standby disaster recovery site. Additionally, the HC 250 for VMware vSphere includes the Site Recovery Adapter that integrates Remote Copy with VMware Site Recovery Manager.
• Change configurations without incurring downtime
  Administrators can add capacity, increase performance, grow and migrate volumes between HC 250 clusters on the fly with no application downtime.

Scalable Performance

• Purchase only what you need today
  Avoid up-front cost and potential performance constraints. Purchase only what's needed today, then grow the performance, capacity, and redundancy of your HC 250 online as your requirements evolve. Simplify planning and budgeting processes by purchasing what you need, when you need it.
• Scale performance and capacity simultaneously
  Each time new nodes or systems are added to an HC 250 environment, the capacity, performance, and redundancy of the entire storage solution increases.
• Avoid disruptive upgrades
  Add resources to the HC 250 cluster non-disruptively as capacity and performance requirements increase. Applications remain online during maintenance events (adding nodes, updating software or firmware) for best in class availability.

Easy to manage virtualized environment

• On-premise Azure cloud environments installed in record time
  Customize the HC 250 for Microsoft CPS Standard to make it fit your environment with just a few mouse clicks. Using HPE OneView InstantOn software, you can set up host names, IP addresses, networking configuration, and Microsoft Azure Services.
• Simple configuration of vSphere environment
  Customize the HC 250 for VMware vSphere to make it fit your environment with just a few mouse clicks: Setup host names, IP address and networking configuration using the easy-to-use HPE OneView InstantOn software.
• Easy day-to-day management with HPE OneView for System Center
  With HPE OneView for System Center, virtualization administrators stay within the familiar hypervisor management interface. Provision new virtual machines, clone virtual machines and storage resources in the same interface that you use every day.
• Centralized Management Console to manage the full range of StoreVirtual features
  Multiple data centers and sites can be managed from an all-inclusive "single pane-of-glass." All of the HC 250 advanced data services are managed from the Centralized Management Console (CMC) for simple, easy-to-manage storage components in the HC 250.
• Business continuity with integrated HA and DR
  Every HC 250 includes integrated synchronous and asynchronous replication at no additional cost. This reduces costs and simplifies management of high availability/fault tolerant and disaster recovery storage solutions.

Configuration overview

HPE Hyper Converged 250

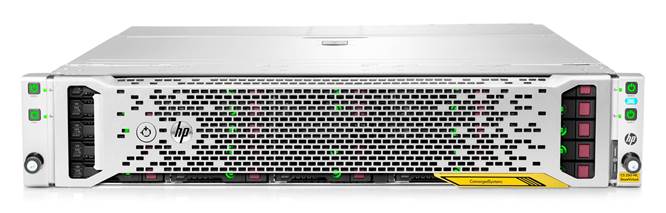

Chassis, front view with 24 drives

Chassis, back view with 4 nodes

HPE Hyper Converged 250 System

System Hardware:

• Base chassis:
  (1) HPE Hyper Converged 250 System
  with (2) 1400W power supplies, power cables, redundant fans, rack rail kit and backup battery for storage controllers
  NOTE: For more detail, see configuration section for  "HC 250 System for Microsoft Cloud Platform System Standard" for Microsoft virtualization, or "HC 250 for VMware vSphere" for environments with VMware vSphere.
  and up to (4) identically configured compute/storage nodes:
  Each node includes a SmartArray P440 Controller with 4GB cache and Advanced Pack, management ports with Integrated Lights-Out 4 with Advanced Management Pack, and 2x 1GbE ports. Each node requires (1) HPE Hyper Converged 250 Software LTU for Microsoft Cloud Platform System.

• Processor options per node, depending on configuration:

- (2) Intel Xeon E5-2680v3 or v4 CPUs

- (2) Intel Xeon E5-2640v3 or v4 CPUs

- (1) Intel Xeon E5-2660v3 or v4 CPUs
(HC 250 for VMware vSphere only)

• Memory options per node:

- 128 GB dual-rank x4 DDR4 (4 x 32 GB)

- 256 GB dual-rank x4 DDR4 (8 x 32 GB)

- 512 GB dual-rank x4 DDR4 (16 x 32 GB)

• Networking per node:

- (2) 10GbE 2P SFP+ Network Adapter
NOTE:10GbE networking is recommended (required for HC 250 for Microsoft CPS) and
must be IPv6 capable. Cables and/or transceivers not included.

- (1) 1GbE 4P RJ45 Network Adapter (HC 250 for VMware vSphere only)

• Storage options per node:

- All Flash Storage
Capacity Storage

- Hybrid Storage:

What's in the Box:
(1) HPE Hyper Converged 250 System with pre-integrated components (see above),
Included accessories with system: Rail kit, HPE HC 250 Software licenses, EULA and supporting documentation.

NOTE: NOTE: HPE Hyper Converged 250 for VMware vSphere requires valid VMware vSphere Essentials Plus or higher, and vCenter Standard licenses. VMware licenses can only be removed from the order if it is confirmed that the end-customer has a valid licenses in place (Enterprise License Agreement (ELA), vCloud Air Partner or unused Enterprise Purchasing Program tokens). Hewlett Packard Enterprise supports vSphere Essentials Plus, Standard, Enterprise Plus or Horizon on the HPE Hyper Converged 250. When quoting VMware Horizon for Hyper Converged 250 for VMware vSphere, only the vSphere hypervisor components are pre-integrated. By default, when neither vSphere Essentials Plus, VMware Horizon or vSphere Desktop are selected, ordering systems will add vSphere Enterprise Plus licenses for each processor and a single vCenter license per system.

NOTE: HPE Hyper Converged 250 System for Microsoft Cloud System Platform System Standard requires valid Microsoft Windows Server 2012 R2 Datacenter and Microsoft System Center licenses.

HPE Hyper Converged 250 System Product Information

Backup Options

HPE StoreOnce Backup System

Backup for hyper-converged environments

When combining HPE Hyper Converged 250 with HPE StoreOnce Backup systems users can create an affordable end-to-end solution from virtualization platform to data protection, from remote office to data center, that is both easy to implement and easy to maintain. From entry-level solutions for a remote or branch office, to enterprise solutions that scale across multiple sites and data centers, HPE StoreOnce provides disk-based backup with a single, unified deduplication engine for the optimal balance of affordability, manageability, scalability, and reliability to handle the data protection needs of your virtualized infrastructure.

HPE StoreOnce Backup

The HPE StoreOnce Backup family with StoreOnce deduplication provides consolidated, automated backup and DR operations that span enterprise data centers, regional, and remote or branch offices. With StoreOnce Backup you can:

• Meet shrinking backup windows - with a broad range of price/performance points spanning from 1TB/hour to 100 TB/hour. Optimize dedupe performance with HPE StoreOnce Catalyst, enabling Federated Deduplication across the StoreOnce Backup range.
• Simplify data protection for even the most complex environments - with our single StoreOnce deduplication technology managing the movement of data between remote offices and enterprise data centers has never been easier.
• Enhance the manageability of DR and Remote Office backup operations - automate backup and DR processes and use a single pane of glass to manage the data movement between HPE StoreOnce appliances in remote offices and enterprise data centers using your current backup application.
• Be confident in your data protection - HPE StoreOnce Backup systems have been specifically designed with backup in mind.

For more information on HPE StoreOnce Backup Systems, please go to: https://www.hpe.com/us/en/storage/storeonce.html

Microsoft Data Protection Manager

For Microsoft Cloud Platform System Standard

Microsoft System Center 2012 - Data Protection Manager (DPM) is an enterprise backup system included with System Center. If original data is unavailable because of planned or unexpected issues, data may be restored from a secondary location. Using DPM, back up application data from Microsoft servers and workloads, and file data from servers and client computers. Full backups, incremental backups, differential backups, and bare-metal backups may be used to completely restore a system.

Service and Support

Technology Services for increased uptime, productivity and ROI
Trust Hewlett Packard Enterprise technology experts for every level of service and support. Our integrated portfolio of services for help customers reduce costs, optimize data, streamline management, and improve backup and recovery. Capitalizing on HPE Hyper Converged 250 capabilities requires a service partner who understands to simplify increasingly complex environments. Team with the people who know Hewlett Packard Enterprise  infrastructure hardware and software best-the experienced professionals at HPE Services.

Hewlett Packard Enterprise support recommendations are designed to help you enhance technology operations and lower risk-and make it easier for you to seek the right balance between affordability and service-level commitments. Depending on your individual support needs, choose from the choices outlined below.

NOTE: Each of these support levels include hardware and software reactive support and are available with DMR (defective media retention).

NOTE: HPE Insight Remote Support is required for Proactive Care.  Continuously monitoring your environment, HPE Insight Remote Support alerts you and provides up to 66% faster problem resolution and up to 95% first time fix rate.

HPE Proactive Care Advanced
HPE Proactive Care Advanced builds on HPE Proactive Care, providing additional benefits such as the assignment of a dedicated, local account support manager (ASM) for collaboration and best practices and critical event management that provides 24x7 fast response and IT service restoration with incident follow-up to prevent a repeat. All of this is designed to give you an incredibly personalized, high-touch support experience that keeps your system fully available and running at peak performance.

HPE Proactive Care
HPE Proactive Care begins with providing all of the benefits of proactive monitoring and reporting along with rapid reactive care to put in place the fundamentals needed for stability and availability of the environment. Customers can customize their reactive support level by selecting either 6-hour call-to-repair or 24x7 with 4-hour onsite response.

HPE Proactive Care Advanced Service
This service expands on HPE Proactive Care Service and is designed to help you maximize the benefits of IT investments, maintain IT infrastructure stability, achieve business and IT project objectives, reduce operational costs, and freeyour IT staff for other priority tasks. Your assigned HPE Account Support Manager (ASM)provides personalized technical and operational advice, including HPE best practices gleaned from HPE's broad support experience. HPE Proactive Care Advanced can help to save you time with real-time monitoring and analysis of your devices that are connected to HPE, creating personalized proactive reports with recommendations to help prevent problems in your IT infrastructure. Your ASM can also arrange specialist technical advice and assistance to complement your IT skills to assist with specific projects, performance improvements, or other technical needs.

For more information

https://www.hpe.com/us/en/services.html
To learn more on HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. HPE Proactive Care Pack Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from Hewlett Packard Enterprise or an enterprise reseller are quoted using Hewlett Packard Enterprise order configuration tools.
• Customers purchasing from a commercial reseller can find more information at HPE Support Services Central at http://ssc.hpe.com/portal/site/ssc/

HPE Services

HPE Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. To learn more, please visit:
https://www.hpe.com/us/en/services.html

Additional Information

If you have specific questions, contact your local Hewlett Packard Enterprise representative. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

HPE Hyper Converged 250 System

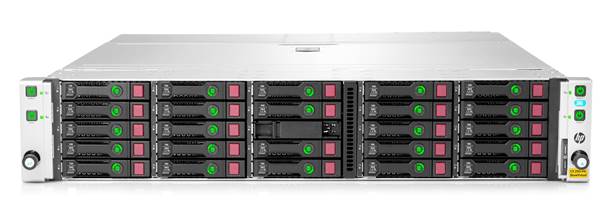

Front View:

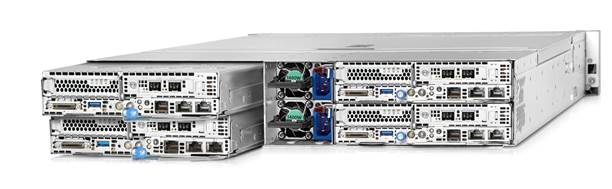

Rear View with 4 compute/storage nodes:

1.

Left ear with power buttons for nodes 1 and 2

1.

Node 4

3.

24 SFF drives (middle bay in middle column not used)

2.

SmartArray RAID controller

2.

Right ear with power buttons for nodes 3 and 4

3.

Primary network option on node 2
(10GbE SFP+ option shown)

4.

Node 2

5.

Node 1

6.

Secondary network ports (Admin/Installation only)

7.

Dedicated iLO port on node 1

8.

Redundant power supplies

9.

Node 3

HPE Hyper Converged 250 for VMware vSphere

Base System

Part Number

HPE Hyper Converged 250 for VMware vSphere System
Base chassis for (2) to (4) HPE Hyper Converged 250 Nodes,
includes (2) 1400W power supplies, power cables, redundant fans, rack rail kit and
backup battery for storage controllers

M0T03B

HPE Hyper Converged 250 Nodes
Includes (1) HPE Hyper Converged 250 Node; can be ordered a single node.
Requires (1) HPE Hyper Converged 250 Software LTU for VMware vSphere as well as a valid processor, memory, networking and storage option from the menu below.

M0T04B

Software package

HPE Hyper Converged 250 Software LTU for VMware vSphere 5.5
Required per (1) HPE Hyper Converged 250 Node, included LTU for StoreVirtual Software and other HPE software components. Pre-integrates VMware vSphere 5.5 on HC 250 node; valid VMware vSphere and vCenter licenses are required; see note below.

P9B50A

HPE Hyper Converged 250 Software LTU for VMware vSphere 6.0
Required per (1) HPE Hyper Converged 250 Node, included LTU for StoreVirtual Software and other HPE software components. Pre-integrates VMware vSphere 6.0 on HC 250 node; valid VMware vSphere and vCenter licenses are required; see note below.

P9B51A

Processor options

(2) HP XL1x0r Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) Processors

for (1) HPE HC 250 Node

850314-L21
+850314-B21

(2) HP XL1x0r Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) Processors

for (1) HPE HC 250 Node

850300-L21
+850300-B21

(1) HP XL1x0r Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) Processors

for (1) HPE HC 250 Node

850308-L21

(2) HP XL1x0r Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) Processors

for (1) HPE HC 250 Node

793028-L21
+793028-B21

(2) HP XL1x0r Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processors

for (1) HPE HC 250 Node

793020-L21
+793020-B21

(1) HP XL1x0r Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) Processors

for (1) HPE HC 250 Node

793024-L21

Memory options

(4, 8, or 16) HP 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17  Registered Memory Kit

For use with E5-2600v4 series processors. Quantity (4) for128GB memory, quantity (8) for 256GB memory or quantity (16) for 512GB memory per node.

805351-B21

(4, 8, or 16) HP 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15  Registered Memory Kit

For use with E5-2600v3 series processors. Quantity (4) for128GB memory, quantity (8) for 256GB memory or quantity (16) for 512GB memory per node.

728629-B21

Network options

HP Ethernet 10Gb 2P 560FLR-SFP+ Adapter

Contains one network card with (2) SFP+ connectors for (1) HPE HC 250 Node,
cables and/or transceivers not included.

665243-B21

HP 1Gb Ethernet 4P 331FLR Adapter

Contains one network card with (4) RJ 45 connectors for (1) HPE HC 250 Node, cables not included.

629135-B22

Storage options¹

HC 250 9.6TB All-Flash Storage

Contains one storage tier of (6) 1.6TB SSD drives for 9.6TB raw capacity per node.

(6) 817011-B21

HC 250 6.4TB Hybrid Storage

Contains one storage tier of (4) 1.2TB SAS 10K RPM drives and one storage tier of (2) 800GB SSD drives for 6.4TB raw capacity per node.

(4) 781518-B21

+ (2) 816995-B21

HC 250 5.6TB Hybrid Storage

Contains one storage tier of (4) 1.2TB SAS 10K RPM drives and one storage tier of (2) 400GB SSD drives for 9.6TB raw capacity per node.

(4) 781518-B21

+ (2) 816985-B21

HC 250 7.2TB Capacity Storage

Contains one storage tier of (6) 1.2TB SAS 10K RPM drives for 7.2TB raw capacity per node.

(6) 781518-B21

NOTE: ¹  1.92TB SSD device used to deliver 1.6TB capacity. 960GB SSD device used to delivery 800GB capacity. 480GB SSD device is used to deliver 400GB capacity. Maximum usage limitation of the SSD is 2200TB or three (3) drive writes per day for 5 years (JEDS219 workload). Warranty for the SDD is subject to the maximum usage limitation.

NOTE: HPE Hyper Converged 250 for VMware vSphere requires valid VMware vSphere Essentials Plus or higher, and vCenter Standard licenses. VMware licenses can only be removed from the order if it is confirmed that the end-customer has a valid licenses in place (Enterprise License Agreement (ELA), vCloud Air Partner or unused Enterprise Purchasing Program tokens). Hewlett Packard Enterprise supports vSphere Essentials Plus, Standard, Enterprise Plus or Horizon on the HPE Hyper Converged 250. When quoting VMware Horizon for Hyper Converged 250 for VMware vSphere, only the vSphere hypervisor components are pre-integrated. By default, when neither vSphere Essentials Plus, VMware Horizon or vSphere Desktop are selected, ordering systems will add vSphere Enterprise Plus licenses for each processor and a single vCenter license per system.

NOTE: IPv6-capable networking infrastructure is required and 10GbE networking is recommended for HC 250 for VMware vSphere. Network cables must be purchased separately for fiber and copper environments. Please refer to the Related Options for the 10GbE SFP+ network option in http://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04111435

HPE Hyper Converged 250 for Microsoft Cloud Platform System Standard

Base System

Part Number

HPE Hyper Converged 250 for Microsoft Cloud Platform System Standard
Base chassis for 3- or 4-node configurations. includes 1400W power supplies power cables, redundant fans, rack rail kit and backup battery for storage controllers

N9X97A

HPE Hyper Converged 250 Node
Includes (1) HPE Hyper Converged 250 Node, requires (1) HPE Hyper Converged 250 Software LTU

M0T04B

Software package

HPE Hyper Converged 250 Software for Microsoft Cloud Platform System Standard LTU
Required per (1) HPE Hyper Converged 250 Node. Includes node software image.

P8Z24A

Processor options

(2) HPE XL1x0r Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) Processors

contains (2) 12-core Intel Xeon E5-2680v3 processors per node¹

850314-L21
+850314-B21

(2) HPE XL1x0r Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) Processors

contains (2) 8-core Intel Xeon E5-2640v4 processors per HC 250 node¹

850300-L21
+850300-B21

(2) HPE XL1x0r Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) Processors

contains (2) 12-core Intel Xeon E5-2680v3 processors per node

793028-L21
+793028-B21

(2) HPE XL1x0r Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processors

contains (2) 8-core Intel Xeon E5-2640v3 processors per node

793020-L21
+793020-B21

Memory options

(4, 8, or 16) HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17  Registered Memory Kit

For use with E5-2600v4 series processors. Quantity (4) for128GB memory, quantity (8) for 256GB memory or quantity (16) for 512GB memory per node.

805351-B21

(4, 8, or 16) HPE 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15  Registered Memory Kit

For use with E5-2600v3 series processors. Quantity (4) for128GB memory, quantity (8) for 256GB memory or quantity (16) for 512GB memory per node.

728629-B21

Network options

HP Ethernet 10Gb 2P 560FLR-SFP+ Adapter

Contains one network card with SFP+ connectors for (1) HPE HC 250 Node,
cables and/or transceivers not included.

665243-B21

Storage options¹

HC 250 9.6TB All-Flash Storage

Contains one storage tier of (6) 1.6TB SSD drives for 9.6TB raw capacity per node.

(6) 817011-B21

HC 250 8.8TB Hybrid Storage

Contains one storage tier of (4) 1.8TB SAS 10K RPM drives and one storage tier of (2) 800GB SSD drives for 9.6TB raw capacity per node.

(4) 791034-B21

+ (2) 816995-B21

HC 250 5.6TB Hybrid Storage

Contains one storage tier of (4) 1.2TB SAS 10K RPM drives and one storage tier of (2) 400GB SSD drives for 9.6TB raw capacity per node.

(4) 781518-B21

+ (2) 816985-B21

HC 250 10.8TB Capacity Storage

Contains one storage tier of (6) 1.8TB SAS 10K RPM drives for 10.8TB raw capacity per node.

(6) 791034-B21

HC 250 7.2TB Capacity Storage

Contains one storage tier of (6) 1.2TB SAS 10K RPM drives for 7.2TB raw capacity per node.

(6) 781518-B21

NOTE: ¹ 1.92TB SSD device used to deliver 1.6TB capacity. 960GB SSD device used to delivery 800GB capacity. 480GB SSD device is used to deliver 400GB capacity. Maximum usage limitation of the
SSD is 2200TB or three (3) drive writes per day for 5 years (JEDS219 workload). Warranty for
the SDD is subject to the maximum usage limitation.

NOTE: HPE Hyper Converged 250 for Microsoft Cloud System Platform Standard requires
Microsoft Windows Server 2012 R2 Datacenter licenses and System Center 2012 R2 licenses.  Contact your Hewlett Packard Enterprise  account team or authorized reseller for details.

NOTE: IPv6-capable 10GbE networking infrastructure is required for HC 250 for Microsoft Cloud Platform System. Network cables must be purchased separately for fiber and copper environments.
Please refer to the Related Options for the 10GbE SFP+ network option in http://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04111435

Power Options

Description

Two 6' Highline (IEC-IEC) power cords ship standard. The system requires two high-line AC (200-240V) power sources.

NOTE: HPE Hyper Converged 250 System is primarily connected to PDU's in data center racks so they ship standard with only a PDU power cord (416151-B21).

To learn more about HPE cable descriptions, requirements, and specifications for UPS and PDU units please refer to: https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html

HPE Hyper Converged 250 System
(4-node configuration)

Dimensions (with bezel)

2U

8.73 x 44.81 x 82.27 cm (H x W x D; 3.44 x 17.64 x 32.4 in)

Weight

35.52kg (78.31 lbs)

Power/Cooling

Redundant Hot-Plug Common Slot Power Supplies, Redundant Fans

High-line AC only; 200-240 Volts, 50-60Hz

200-240V/50Hz

2300 BTU/hr

Per power supply @ 240V: 1554A, 1570VAC, 6.5A rms (30A peak; 10ms duration)

Environmental

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level, no direct sunlight. Maximum rate of change is 20°C/hr (36°F/hr). System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30°to 60°C (-22°to 140°F), no direct sunlight.

Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating 3048 m (10,000 ft)

Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating 9144 m (30,000 ft)

Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Regulatory

FCC Rating: Class A

Normative Standards: CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

Additional information online

HC250 for VMware product page: http://www.hpe.com/products/HC250

HC250 for MSFT CPS S product page: http://www.hpe.com/products/HC250CPS-S

Hyperconverged marketing page: http://www.hpe.com/info/hyperconverged

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: : http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html To recycle your product, please go to: : http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: : http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

27-Mar-2017

From version 9 to 10

Changed

Changes made throughout the QuickSpecs

11-Nov-2016

From Version 8 to 9

Changed

Changes made throughout the QuickSpecs

01-Jul-2016

From Version 7 to 8

Changed

Changes made throughout the QuickSpecs

06-Jun-2016

From Version 6 to 7

Changed

Changes made to the service and support section

25-Mar-2016

From Version 5 to 6

Changed

Changes made throughout the QuickSpecs

16-Feb-2016

From Version 4 to 5

Changed

Added new HPE Hyper Converged 250 for VMware vSphere

01-Dec-2015

From Version 3 to 4

Changed

Changes made throughout the entire Document, name changes to HPE Hyper Converged 250 System.

28-Sept-2015

From Version 2 to 3

Changed

Changes made to the Overview Features and Benefits, Family Info and Configuration information Sections.

21-Aug-2015

From Version 1 to 2

Changed

Corrected statements about SSD capacity, clarified warranty coverage for SSD

17-Aug-2015

Version 1

New

Initial version
