HPE Edgeline EL4000 Converged Edge System: технические характеристики и документация

HPE Edgeline EL4000 Converged Edge System

HPE Edgeline EL4000 is one of the industry's first "Converged Edge System" - integrating unprecedented levels of edge compute, precision data capture and control, data center class security, device and systems managements, as well as large and blazingly fast storage capability - all in one converged box. This rugged and compact system is designed to perform in harsher edge environments with higher shock, vibration and temperature levels. It is perfect for expanding your IoT infrastructure beyond traditional data center confines and can also help break cloud vendor lock-in to enable true edge computing.

HPE Edgeline Converged Edge Systems are also designed to greatly accelerate the speed at which IoT data can be acquired, analyzed and actioned upon. This enables your business to make real-time decisions that can add value to your operations and result in better business outcomes. This is achieved through three points of convergence in one box:

1. Unprecedented deep edge compute and high capacity storage based on open standards

Traditional data center or cloud solutions for IoT require data to be transferred from the edge - exposing them to potential issues of latency, bandwidth, cost, security, duplication, corruption and compliance. HPE Edgeline Converged Edge Systems can acquire data with precision, analyze it on an industry-standard x86 deep compute platform with GPU Accelerators, drive high-performance Human Machine Interface (HMI) displays for operators and initiate control actions from the edge itself, in real-time, removing transfer issues and resulting in faster insights for better business agility.

The HPE Edgeline EL4000 System runs unmodified enterprise-class analytics software such as HPE Vertica, and each server is engineered to deliver very high performance. For example, The HPE EL4000 can ingest, repair and load millions of Smart Meter datasets per second, with just nanoseconds of latency. That's the equivalent performance of a typical 2-processor rack server, yet the EL4000 is out at the edge!

The slim, 1U HPE Edgeline EL4000 Converged Edge System can be configured with a combination of one to four HPE ProLiant m510 (Intel® Xeon® D - 8 or 16 core) or HPE ProLiant m710x (Intel® Xeon® E3 - 4 core with workstation-class GPU) or HPE ProLiant m750 (Intel® E-2286M - 8 cores with integrated GPU) compute nodes. Solid State Drive (SSD) options in the M.2 form factor with different interface types (SATA or NVMe), can also be selected to help deliver the perfect balance between cost efficiency and extreme storage performance.

2. Unique integration of precision data acquisition, measurement and control systems based on open standards

The I/O capabilities of HPE Edgeline EL4000 Converged Edge System is built on open industry standards such as PCI Express and PXIe. Select models also include a wide variety of option I/O cards to support 10-40 Gb Ethernet, InfiniBand or Fiber Channel.

Precision data capture and control capabilities are achieved through open PXI standards, and when coupled with automated machine learning, they open up new horizons for equipment monitoring and management, predictive analytics to detect impending failures and augmented reality for manual-less servicing - key facets of Smart Factory initiatives such as Industry 4.0.

The HPE Edgeline EL4000 also supports I/O expansion using up to four PCIe cards (one per compute node) or up to four PXIe modules (one to four assignable to any compute node). A choice of two switched 10Gb (SFP+) or two pass-through 4x10Gb (QSFP+) network uplink ports is also available.

3. Data center class security, device and remote systems management

HPE Edgeline Converged Edge Systems bring our industry leading HPE Integrated Lights Out (iLO) systems management and security technology to the edge - the same HPE iLO found in our industry standard HPE ProLiant servers used in traditional datacenters. A single HPE iLO RJ45 management Ethernet port enables you to deploy, monitor and support your HPE Edgeline EL4000 System - even when it's located at a remote site. These systems have a modular design that enables easy subsystem replacements and upgrades.

HPE Edgeline - Engineered for Edge Environments

The HPE Edgeline EL4000 Converged Edge System is designed to reside where the data is created, often in environmentally harsh, space-constrained and/or dusty environments. This compact, ruggedized system is designed to withstand increased shock and vibration and can also tolerate high ambient operating temperatures up to 55°C (131°F) - well beyond what traditional servers can typically endure. Telco specific options such as NEBS Level 3 certification, are also available. When floor space options are limited, a wide range of wall, rack, or shelf mounting options open up a multitude of placement possibilities. Finally, you can easily connect HPE Edgeline Converged Edge Systems to your electrical infrastructure by selecting AC or -48V DC hot-pluggable power supplies.

HPE Edgeline - It's more than just IoT!

Powering the Intelligent Workspace at the Enterprise Edge

When coupled with Citrix technology, the HPE Edgeline EL4000 Converged Edge System is a perfect solution for secure, simple, smart and scalable delivery of applications, desktops and user data at the enterprise edge. This solution enables your enterprise or SMB to enhance worker productivity from anywhere, at any time, from any device. Take advantage of HPE's world-class data center technology at the enterprise IT edge with HPE ProLiant m710x or m750 compute nodes to enable workstation-class graphics, accelerated desktops and rich applications. Or use HPE ProLiant m510 compute nodes to support up to 660 office workers, using just 0.61W of power per user. Have a specific need? This proven mobility solution can be scaled and adapted to meet your specific needs to enable you to take advantage of the same benefits of security, compliance and system performance found in traditional datacenters.

The HPE Edgeline EL4000 also is the foundation for customers requiring robust virtual storage based on VMware vSAN, current and future HPE certified VMware vSAN offerings can be located at http://www.vwmare.com

Processing and Caching of Rich Media at the Media Edge

The HPE Edgeline EL4000 Converged Edge System provides a high performance, easy to manage platform for Multiple System Operators (MSO) and Over-The-Top (OTT) providers to enable processing, integration and caching of video, audio and other rich media content nearer to the consumer. It also helps perform compute and bandwidth intensive tasks, such as video transcoding and caching at the media edge site (e.g. a distribution center in a building/town). This greatly reduces demand on the core network back to the datacenter and improves responsiveness for content consumers. Configure your ruggedized system with HPE ProLiant m710x compute nodes to enjoy up to 108 AVC/h.264 (1080p @ 30fps) or 8 HEVC/h.265 (4K @ 60fps) simultaneous hardware accelerated video transcodes. Then, cache the data using high-performance memory and SSDs on the HPE ProLiant m510 compute nodes to deliver a superior and differentiated experience to your end users.

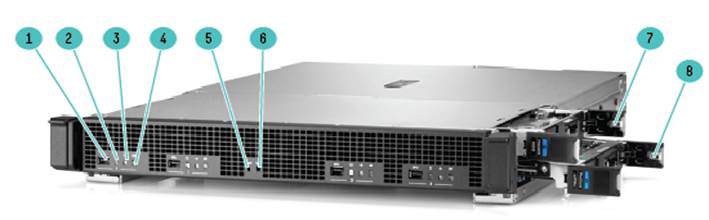

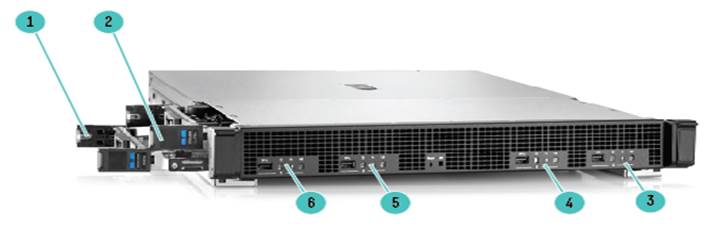

HPE Edgeline EL4000 Front View

Item

Description

Item

Description

1.

USB 2.0 Port

5.

Management Reset Button (Pinhole)

2

Server Blade Power LED/Button

6.

Chassis System Health LED

3

Server Blade Health LED

7.

ProLiant server blade 3

4

Server Blade UID LED

8.

ProLiant server blade 4

HPE Edgeline EL4000 Front View

Item

Description

Item

Description

1.

ProLiant server blade 2

4.

Blade 3 lights indicator

2

ProLiant server blade 1

5.

Blade 2 lights indicator

3

Blade 4 lights indicator

6.

Blade 1 lights indicator

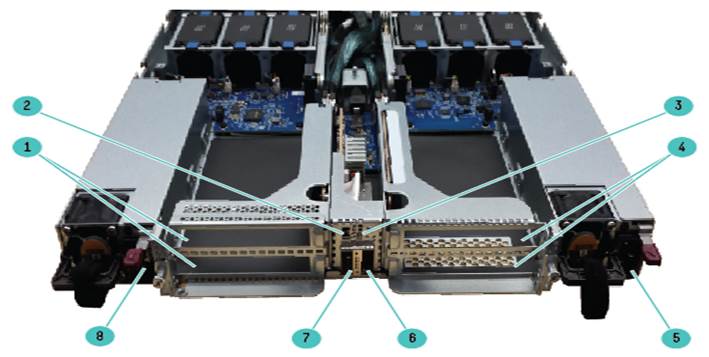

HPE Edgeline EL4000 Rear View

Item

Description

Item

Description

1.

Two (2) PCIe I/O Card Slots -or- PXIe^# modules

(3 - Top, 4- Bottom)

5.

Power Supply 1

2

iLO Network Port - 1GbE RJ45

6.

Network Port B* - 10GbE SFP+ or 4x10GbE QSFP+

3

Chassis UID Indicator

7.

Network Port A* - 10GbE SFP+ or 4x10GbE QSFP+

4

Two (2) PCIe I/O Card Slots -or- PXIe^# modules

(1 - Top, 2- Bottom)

8.

Power Supply 2

Notes:

- Network connections are available in Edgeline EL4000 10GbE SFP+ (switched) or 4x10GbE QSFP+ (pass-thru) models. Only the 10GbE SFP+ option is shown.

- The EL4000 PXIe model has two (2) 10GbE SFP+ (switched) ports on the front of the chassis instead of the rear.

Enclosure

The HPE Edgeline EL4000 System holds 1-4 HPE ProLiant server blades (supported types are listed in this document). The base system is available in a variety of models:

• PCIe I/O with 10GbE Switched networking
• PCIe I/O with 10GbE Pass-Through networking
• PXIe modules with 10GbE Switched networking^# (Data Capture and Control)

The EL4000 v1 PCIe models support 1-4 Full-Height Half-Length PCIe I/O cards (x8 electrical) - 1 I/O card connected to each installed server.

The EL4000 v2 PCIe models are designed to support 1-4 Full-Height Half Length PCIe I/O cards (x8 electrical) with higher wattage requirements (i.e. up to 75w) such as HPE NVIDIA T4 Graphic Accelerator (R0W29A) and HPE NVIDIA Quadro P1000 Graphic Accelerator (R3K70A). Each of the PCI cards connect to each installed server.

The EL4000 PXIe model supports 1-4 PXIe modules, all of which are connected to server blade 1 for precision data capture and control. The remaining three blades are not connected to a PXIe module slot.

The core network can be Layer 2 switched (unmanaged) or pass-through depending on the system option selected A separate 1G RJ45 network port is provided for access to the iLO management network.

All HPE Edgeline EL4000 models support 4 ports for USB 3.0 (1 for each installed server). Six cold swappable fans are used for cooling airflow. Two redundant hot-swappable HPE Flex Slot power supplies can be installed per system.

The HPE Edgeline EL4000 System is rated for extended operating temperatures of up to 55°C, which allows it to be in environments unsuitable for traditional servers. It is also compliant with ASHRAE Class A3 and A4 specifications and is NEBS Level 3 certified.

Notes: Actual allowable system operating temperature will be determined by the options (I/O cards, drives etc.) selected. Refer to the appendix for details.

Server Blades

HPE Edgeline EL4000 System uses proven HPE ProLiant server blades from the HPE Moonshot family. One (1) to Four (4) modular hot-pluggable servers of a supported type can be installed in each system. Examples:

• HPE ProLiant m510 Server Blade (Intel® Xeon® D - 8 or 16 cores, up to 128GB RAM)
• HPE ProLiant m710x Server Blade (Intel® Xeon® E3 - 4 cores with GPU, up to 64GB RAM)
• HPE ProLiant m750 Server Blade (Intel® Xeon E-2286M - 8 cores with GPU, up to 128GB RAM)

HPE Flexible Slot Power Supply

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant servers. HPE's Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

The HPE Edgeline EL4000 system supports 1-2 HPE Flex Slot power supplies in a 1+1 redundant configuration (both AC and DC input options are available).

Embedded Management

The HPE ProLiant server blade plugged into an HPE Edgeline EL4000 has its own iLO management processor, which can be accessed directly through the management network.

The HPE Edgeline EL4000 System implements a light-weight chassis controller to monitor and control common chassis elements. The iLO on the server blade communicates with the Chassis Controller to gather and report status information on the chassis itself.

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at:

http://www.hpe.com/info/ilo.

HPE Edgeline Component Pack

The HPE Edgeline Component Pack, is the delivery mechanism for firmware updates on the HPE Edgeline System. Before using your system for the first time, verify that you have the latest drivers, firmware, and system software installed. Update your system with the Edgeline Component Pack.

For more information, see the Edgeline Component Pack Update Guide on the Hewlett Packard Enterprise website:

http://www.hpe.com/info/edgeline-docs

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Partner Ready Resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for initial setup is available for 90 days from date of purchase. Enhancements to the warranty services are available through HPE services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details.

Notes:

- Chassis Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge.

- Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Moonshot, HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, and HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Free up resources with Operational Services from HPE Pointnext Services

HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller.  Services are quoted using Hewlett Packard Enterprise order configuration tools.

HPE Pointnext Tech Care

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce down time, increase diagnostic accuracy and have a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support. Learn more about getting connected at http://www.hpe.com/services/getconnected

Other related services from HPE Pointnext

HPE Server Hardware Installation

Provides for the basic hardware installation of your new Edgeline System. It is part of a suite of HPE deployment services that are designed to give you the peace of mind that comes from knowing your HPE products have been installed by an HPE authorized service specialist in accordance with the product's documentation.
https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00062322enw

HPE Installation and Startup Service

Provides for the installation of your new Edgeline System. This service will assist you in bringing your new HPE Edgeline System into operation and make it remotely accessible in a timely and professional manner. The HPE service delivery technician will connect the product to the network as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux). https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00062211enw

HPE Service Credits

Offers flexible services and technical skills to meet your IT demands as your business   evolves. With a menu of services, you can access additional resources and specialist skills to help you maintain peak performance of your IT. HPE Service Credits help you proactively respond to your dynamic IT and business needs.

HPE Education Services

Provides comprehensive training designed to expand the skills of your IT staff and keep them up to speed with the latest technologies.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

Defective Media Retention is an option available with HPE Datacenter Care, HPE Proactive Care, Proactive Care Advanced, and HPE Foundation Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Notes:

- Factory Integrated Models must start with an HPE Edgeline EL4000 System. Each HPE Edgeline System requires the following minimum configuration:

o One (1) HPE ProLiant Server Blade

o One (1) HPE Flex Slot Power Supply

- Networking (10G switched or pass-through) and option I/O type (PCIe or PXIe currently) cannot be changed once the HPE Edgeline EL4000 system has been ordered. However, the server blade and add-in I/O card options can be replaced.

- Standalone server blades (without a chassis) can be ordered as part of a Moonshot multi-pack. Refer to the server blade documentation for details.

Step 1: Base Configuration (Choose System)

HPE Edgeline System

HPE Edgeline EL4000 10GbE 2xSFP+ v2 Switch System

879808-B21

HPE Edgeline EL4000 4x10GbE 2xQSFP+ v2 Pass Thru System

879799-B21

HPE Edgeline EL4000 10GbE 2xSFP+ Switch PXIe System

847536-B21

Notes:

- EL4000 v2 models support up to four (4) 75W PCIe cards e.g. NVIDIA Tesla T4 GPUs

- The EL4000 PXIe System does not support the ProLiant m750 Server Blade

Step 2: Configure ProLiant Server Blade

HPE ProLiant Server Blade

Notes: See ProLiant Server Blade QuickSpecs for Blade Configurations:

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069171

HPE ProLiant m510 Xeon D-1548 2.0GHz 8-core Configure-to-order Server Cartridge

814688-B21

HPE ProLiant m510 Xeon D-1587 1.7GHz 16-core Configure-to-order Server Cartridge

858545-B21

HPE ProLiant m710x E3-1585Lv5  3.1GHz 4-core 45W Configure-to-order Server Cartridge

833105-B21

Notes: See ProLiant Server Blade QuickSpecs for Blade Configurations:

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c05069173

HPE ProLiant m750 E-2286M 5.0GHz 8-core 45W Configure-to-order Blade Server

P17342-B21

Notes:

- Functional systems require at least 1 server blade to be configured. The EL4000 system cannot be ordered without a server blade.

- Each server blade in the EL4000 system operates independently.

- The ProLiant m750 Server Blade is NOT supported in the EL4000 PXIe System.

- The ProLiant m750 Server Blade cannot be mixed with other blades in the same EL4000 Chassis

Step 3: Choose Required Power Options

Power Supplies

HPE Flex Slot Power Supplies (Min:1, Max:2)

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

Notes:

- Refer to the HPE Flexible Slot Power Supply QuickSpecs for additional information:
https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04346217

- Functional systems require at least 1 power supply to be configured. Two (2) power supplies are recommended per system for redundancy.

- All x86 server blades support power-capping.

Step 4: Choose Factory Integration Options

HPE PCIe I/O

Standard PCIe I/O Options

Notes:

- The EL4000 PXIe system does not support any PCIe add-in cards. PXIe is an industry standard specification and modules should be purchased directly from third-party vendors who validate and support their options on this platform.

- The EL4000 PCIe models only support Full-Height Half-Length (FHHL) or smaller cards. Power limit is 75W per card in a PCIe x16 physical slot (x8 Gen3 electrical).

- Each PCIe card is assigned to one server blade. The quantity of PCIe cards ordered cannot exceed the numbers of servers configured in the EL4000 system.

HPE Edgeline Extended Storage Adapter option kit

HPE Edgeline NVMe HHHL M.2 Enablement Kit

P07671-B21

Notes:

- The M.2 enablement kit fits in a chassis PCIe slot and expands the storage capacity of the corresponding server blade. It has two (2) M.2 NVMe slots which can be configured with SSDs.

- Up to four (4) M.2 enablement kits can be installed in an EL4000 system if four (4) corresponding server blades are also configured.

- The M.2 enablement kit option is not supported in an EL4000 system when configured with the ProLiant m750 Server Blade

HPE Networking

HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter

817753-B21

HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter

811546-B21

Mellanox MCX512F-ACHT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P13188-B21

HPE InfiniBand

HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

872726-H21

Notes: The InfiniBand options are not supported in an EL4000 System when configured with the ProLiant m750 Server Blade

HPE Accelerators

HPE NVIDIA Tesla T4 16GB Computational Accelerator

ROW29A

NVIDIA Quadro P1000 Graphics Accelerator for HPE

R3K70A

Notes:

- The EL4000 v2 Models can support up four (4) accelerators. These options are not supported on the EL4000 v1 systems.

- The T4 GPU option is not supported in an EL4000 System when configured with the ProLiant m750 Server Blade

HPE Storage

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

HPE Networking Options

Direct Attach Copper Cables

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable

AP820A

Choose Additional Options

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

Rail Kit

HPE Edgeline EL4000 Short Rack Rail Kit

868575-B21

Notes: The Short Rack Rail kit is for a standard (19" wide) server rack, but only extends but only extends half of the Edgeline system depth. This rail is adjustable for rack depths of 22" - 34.5".

HPE Edgeline EL4000 Full Rack Rail Kit

868577-B21

Notes: The Full Rack Rail kit is for a standard (19" wide) server rack and extends the entire depth of the Edgeline system. This rail is adjustable for rack depths of 24" - 36". This kit does not come with a Cable Management Arm (CMA), which must be ordered separately.

HPE 1U Cable Management Arm for Rail Kit

734811-B21

Notes: The optional Cable Management Arm (CMA) requires a Full Rack Rail kit to be ordered.

HPE Edgeline EL4000 Wall Rack Kit

Third-Party

Notes: This third-party (non HPE) kit allows up to 2 Edgeline EL4000 systems to be installed on a wall. For more details contact RackSolutions® and request P/N 101-5302: http://www.racksolutions.com/

Cable Kits

HPE Edgeline EL1000/EL4000 System Console USB to RS232 Cable Kit

871947-B21

Notes:

- The system console kit plugs into the Edgeline USB port corresponding to a server blade and allows serial port access to its boot-time BIOS ROM Based Setup Utility (RBSU) console. The RBSU can be used to set various server configuration parameters such as an iLO Static IP address.

- This cable can also be used for connecting the server to any RS232 compliant serial device (e.g. UPS). In this scenario, BIOS console redirection to serial port should be turned off in RBSU to prevent boot-time messages from going to the attached serial device.

- Sys Console Cbl Kit cable is required in some environments to set static IP as well as other functions when the Edgeline system is present in non DHCP serving environments

HPE m710x Front I/O Cable Kit

867893-B21

Notes:

- This optional kit provides the following cables for connecting the HPE ProLiant m710x server directly to a monitor, keyboard, mouse or other accessories.

o Mini DisplayPort (DP) to DisplayPort (DP) Female Adapter

o Mini DisplayPort (DP) to HDMI Adapter

o Micro-USB to USB Type-A Female Adapter (this cable can also be used with m510 servers)

- Installing this cable will require partial extraction of the EL4000 chassis from the rack to access the server blade ports on the sides

HPE Embedded Management

HPE Integrated Lights Out (iLO) Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

Notes:

- One (1) optional iLO Advanced license can be ordered for each configured server in the system.

- iLO Advanced provides additional remote system management capabilities such as Remote Console and Virtual Media.

- For more details on iLO Advanced, refer to: http://www.hpe.com/info/ilo

Install and Startup Services

HPE Installation Edgeline 4000 Service

H2EL2E

HPE Installation and Startup Edgeline EL4000 Service

H2US8E

HPE Installation ProLiant Blade Server Service

UE493E

Notes: This service is for the basic hardware installation by HPE of a newly ordered HPE ProLiant Server Blade into an existing Edgeline chassis

HPE Installation AddOn/In Option Service

UH745E

Notes: This service is for the installation by HPE of options such as memory, disk drives, etc on HPE ProLiant Server Blades

Support Services

HPE 3 Year Foundation Care Next Business Day Edgeline 4000 Service

H2ED5E

HPE 3 Year Foundation Care 24x7 Edgeline 4000 Service

H2ED8E

Notes: Enhanced Service Level Agreements (SLAs) and 4-year or 5-year support options are also available. See HPE Support Services Central for additional services at: http://ssc.hpe.com

Power Supply Specifications

To review typical system power ratings, use the HPE Power Advisor which is available via the online tool located at URL:

https://paonline56.itcs.hpe.com/?Page=Index

Notes: Power Specification and Technical Content for supported power supplies can be found at:

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04111541

HPE Edgeline EL4000 System

Chassis Dimensions (H x W x D)

1U, 23" deep, 17" wide, reversible rackmount with slide rails

Weight

• 879808-B21: HPE Edgeline EL4000 10GbE 2xSFP+ v2 Switch System- 17.62 KG (38.85 lbs.)
• 879799-B21: HPE Edgeline EL4000 4x10GbE 2xQSFP+ v2 Pass Thru System- 17.20 KG (37.92 lbs.)

Notes: Configuration used includes 4 server blades, 2 power supplies, 4 PCIe I/O cards

Power

• Typical: 400-600W
• Maximum: 800W

System Inlet Temperature

The Edgeline EL4000 is a ruggedized system designed to operate indefinitely at extended system inlet temperatures of up to 55°C

(131°F) - well beyond the operating temperature limits of typical datacenter servers

Notes: Configuration of peripherals such as I/O cards in the base system will limit operating temperature of the entire

system to that of the lowest rated option.

Extended Operating

Depending on hardware configuration, the supported system inlet range can be extended up to 55°C. Compliance to ASHRAE A3 and A4 standards is also available.

Notes: The approved extended temperature hardware configurations for this system are listed in the appendix.

Standard Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000ft) above sea level to a maximum of 3050m (10,000ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.

Notes: When configured with certain server models, a fan fault when operating above 30°C (86°F) may reduce system performance. Refer to the appendix for details.

Non-Operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr. (36°F/hr.).

Relative Humidify

Operating

Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity

Non-Operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-Operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Base System Mechanical Specifications

Operational Vibration

0.3 Grms, flat random profile, 10 Hz to 300 Hz

Operational Shock

10G, 10ms, half-sine, 3 each axis, positive and negative pulse

Non-operational Vibration

2.0 Grms, flat random profile, 10 Hz to 500 Hz

Non-operational Vibration

40G, 346 cm/sec, square wave, 1 shock to each of the six faces

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Notes: Configuration used includes 4 server blades (each configured with 4 DIMMs and 1 SATA M.2) and 2 power supplies.

Emissions Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; K22;K24; EN61000-3-2; EN 61000-3-3; EN 60950-1; IEC60950-1

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Hewlett Packard Enterprise Extended Ambient Operating Temperature Support

The American Society of Heating Refrigeration and Air-Conditioning Engineers set standards for building systems, energy efficiency, indoor air quality, refrigeration and sustainability. The ASHRAE A3 and A4 classes are the latest classes that have been defined in an effort to support the Fresh Air Data cooling initiative. Hewlett Packard Enterprise Extended Ambient Operating Support is defined below as comparable to an ASHRAE class. For selected system configurations the Hewlett Packard Enterprise Edgeline Extended Ambient Operating Support allows operation even beyond ASHRAE class.

Notes: Actual allowable system operating temperature will be determined by the options (I/O cards, drives etc.) selected. Details are provided in the Edgeline system configuration tables for the desired operating environment shown below.

The following table provides a summary of environmental ranges supported, with altitude de-ratings, by Hewlett Packard Enterprise ProLiant servers. Items in bold are ProLiant features that exceed the ASHRAE comparable class feature set.

Notes:

- ¹Near 55°C inlet ambient AND when the CPU is stressed at 100%, the HPE m510-16c server may reduce performance. There is no impact for other server models.

- ²Upon fan failure the servers in the system may reduce performance

- ³EL4000 PCIe models must be ordered to use PCIe cards. Only HPE provided option cards have been validated.

- ³EL4000 v2 PCIe model must be ordered to use high-power accelerator cards. Only HPE accelerator cards listed as supported on the EL4000 system have been validated.

- ⁴Validation of PXIe thermal performance is by the module vendor. The EL4000 PCIe models do not support PXIe cards.

Date

Version History

Action

Description of Change

15-Sep-2021

Version 23

Changed

Configuration Information section was updated

Obsolete SKUs were removed

Services and Support Pointnext Tech Care and Complete Care information added

06-Jul-2021

Version 22

Changed

Standard Features and Technical Specifications sections were updated

07-Jun-2021

Version 21

Changed

Configuration Information section was updated.

10-May-2021

Version 20

Changed

Configuration Information section was updated.

Obsolete SKU was removed

06-Apr-2021

Version 19

Changed

Update QuickSpecs name according PMaster

15-Mar-2021

Version 18

Changed

Updated options list

Configuration Information and Additional Options were updated

01-Feb-2021

Version 17

Changed

Overview, Standard Features, Configuration Information and Additional Options sections were updated.

SKUs added in Configuration Information and Additional Options sections.

08-Sep-2020

Version 16

Changed

Overview, Standard Features, Configuration Information and Additional Options sections were updated. Rebranding applied to document.

04-May-2020

Version 15

Changed

Updated mechanical and thermal specifications. Removed EOL options.

Standard Features and Configuration Information sections were updated.

17-Feb-2020

Version 14

Changed

Standard Features and Configuration Information sections were updated.

02-Dec-2019

Version 13

Changed

SKUs were updated in the Configuration Information section.

Obsolete SKUs were removed.

03-Jun-2019

Version 12

Changed

Standard Features, Configuration Information, Additional Options and Technical Specifications sections were updated

Added Support for HPE NVIDIA Tesla T4 16GB Computational Accelerator (ROW29A)

Obsolete SKUs were removed

06-May-2019

Version 11

Changed

Configuration Information, Additional Options and Technical Specifications sections were updated.

Obsolete SKUs were removed.

10-Dec-2018

Version 10

Changed

SKU was added in Configuration Information section.

01-Oct-2018

Version 9

Changed

SKU descriptions in Configuration Information and Additional Options were updated, and obsolete SKU  847534-B21 removed.

04-Sep-2018

Version 8

Changed

Configuration Information and Additional Options were updated.

06-Aug-2018

Version 7

Changed

SKU descriptions in Configuration Information and Additional Options were updated.

04-Dec-2017

Version 6

Changed

Updates throughout the QuickSpecs

25-Sep-2017

Version 5

Changed

Change descriptions on the QuickSpecs

27-Mar-2017

Version 4

Changed

Update Technical specifications, features and configuration information

13-Feb-2017

Version 3

Changed

Update several sections throughout the QuickSpecs

18-Nov-2016

Version 2

Changed

Added more option details. Updated thermal and acoustic specifications. Refreshed rack, PDU and other options.

26-Sep-2016

Version 1

New

New QuickSpecs

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

c05211200 - 15653 - WorldWide  - V23 - 15-September-2021
