HPE Edgeline EL1000 Converged Edge System
| |||
|
HPE Edgeline is the industry's first "Converged Edge System" - leading the expansion from data center and cloud computing to the edge, and the integration of precision data capture and control systems, all in one converged box. These rugged and compact systems are designed to thrive in harsh edge environments and can handle extremes of shock, vibration and temperature. They are designed to accelerate IoT insights and control actions in real-time through three points of convergence in one box: 1. Unprecedented deep edge compute and high capacity storage based on open standards Traditional data center or cloud compute solutions for IoT require data to be transferred from the edge - exposing them to issues of latency, bandwidth, cost, security, duplication, corruption and compliance. HPE Edgeline can acquire data with precision, analyze it on an industry-standard x86 deep compute platform with GPU accelerator and initiate a control action from the edge itself - eliminating these concerns, and resulting in faster insight for better business agility. Run full enterprise-class SW stacks at the Edge - close to the source of the data. 2. Unique integration of precision data acquisition, measurement and control systems based on open standards Precision data capture and control capability is achieved through open PXI standards and Edgeline OT Link Platform SW, and when coupled with advanced techniques such as Artificial Intelligence (AI), opens up new horizons for equipment monitoring and management, predictive analytics to detect impending failures and augmented reality for manual-less servicing - key facets of Smart Factory initiatives such as Industry 4.0. 3. Data center class security, device and remote systems management HPE Edgeline brings our industry leading Integrated Lights Out (iLO) systems management and security technology to the edge. Gain visibility and manage infrastructure at the edge using identical IT tools and personnel as the datacenter. The HPE Edgeline EL1000 System allows deployment of 1 HPE ProLiant server blade, along with associated storage and I/O options to locations both inside and outside the traditional datacenter (e.g. factories, branch office and retail outlet). | |||
|
| |||
|
| |||
|

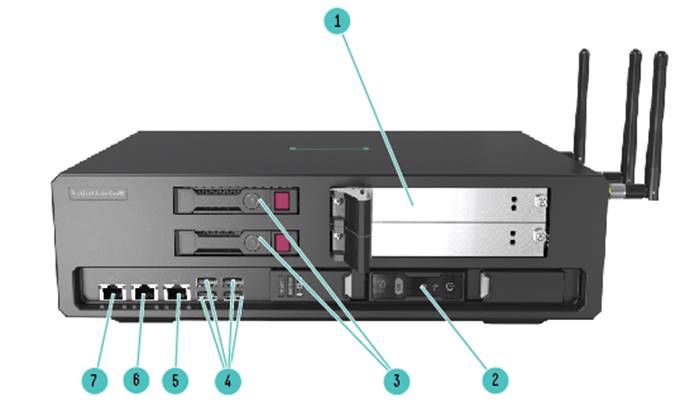

HPE Edgeline EL1000 Front View | |||
|
Item |
Description |
Item |
Description |
|
1. |
Two (2) PXI/PXIe modules (PXI SKU) -or- Blank (PCIe SKU) |
5 |
Network Port 1* - 1GbE RJ45 or 10GbE SFP+ |
|
2 |
HPE ProLiant server blade (selectable option; integrates power, health and UID LEDs/Buttons) |
6 |
Network Port 2* - 1GbE RJ45 or 10GbE SFP+ |
|
3 |
Two (2) 2.5" SFF HDD or SSDs |
7 |
iLO Network Port -1GbE RJ45 |
|
4 |
Four (4) USB 3.0 Ports |
|
|
|
Notes:* Chassis selection available between 1GbE RJ45 and 10GbE SFP+ network. Only the 1GbE option is shown. | |||
|
| |||
|

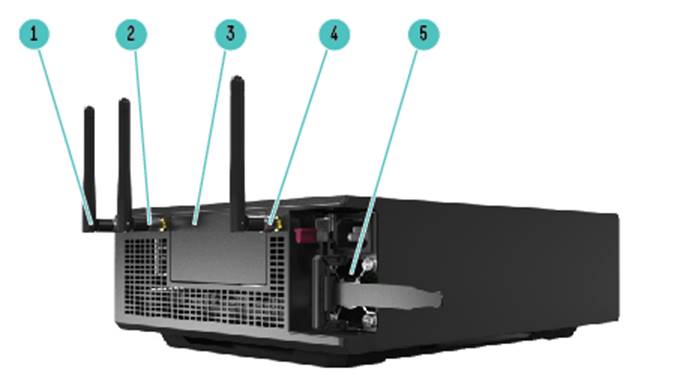

HPE Edgeline EL1000 Right View | |||
|
Item |
Description |
Item |
Description |
|
1. |
Two (2) PXI/PXIe modules (PXI SKU) -or- Blank (PCIe SKU) |
4. |
Antenna 3 Connector |
|
2 |
HPE ProLiant server blade (selectable option; integrates power, health and UID LEDs/Buttons) |
5. |
Power supply |
|
3 |
Two (2) 2.5" SFF HDD or SSDs |
|
|
|
Notes: Only the PXI SKU with blanks is shown in the picture | |||
|
| |||
|

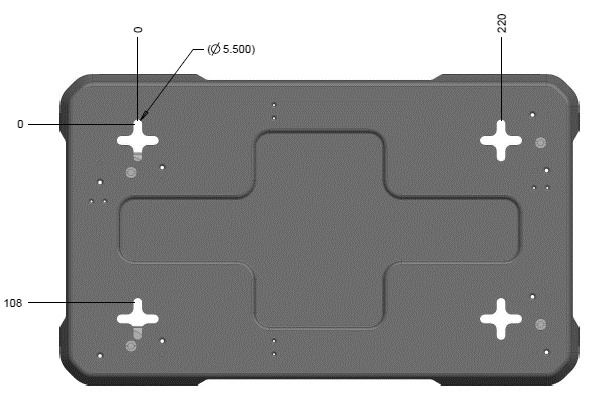

HPE Edgeline EL1000 Wall Mount Kit | |||
|
Notes: Dimensions for the bracket are in millimeters | |||
|
| |||
Standard Features
|
Enclosure The HPE Edgeline EL1000 system holds 1 HPE ProLiant server blade (supported types are listed in this document). The base system is available in a variety of SKUs:
The PCIe SKUs support 1-2 Full-Height Half-Length PCIe I/O cards (x16 physical), while the PXI SKU supports 1-2 PXI or PXIe modules (hybrid slot) for precision data capture and control. The core network is not switched (i.e. pass-through). A separate 1G RJ45 network port is provided for access to the iLO management network. All HPE Edgeline EL1000 SKUs support 2 SFF 2.5" HDDs or SSDs, 2 ports for 1G (RJ45) or 10G (SFP+) network and 4 ports for USB 3.0. An optional carrier supports 2 mini-PCIe cards with SIM slots, and which can be wired to 5 chassis antennas for wireless connectivity. Three non-hot swappable fans are used for left-to-right cooling airflow. One HPE Flex Slot power supply can be installed per system. The system is designed to connect all power and I/O along just 2 sides, and with left-to-right cooling airflow - features which permit shelf placement against a wall. EL1000 v2 supports up to 2 GPUs such as Nvidia Tesla for accelerated deep learning inference at the edge. EL1000 v2 also supports Wi-Fi and LTE simultaneously.
The HPE Edgeline EL1000 System is rated for indefinite operation at extended operating temperatures of up to 55°C ambient, which allows it to be located in environments unsuitable for traditional datacenter servers. Notes: Allowable system operating temperature will be determined by the I/O and drive options selected. Refer to the appendix for details. |
|
|
|
Server Blade HPE Edgeline EL1000 System uses proven HPE ProLiant server blades shared with the HPE Moonshot family. One (1) modular hot-pluggable server blade of a supported type can be installed in each system. Examples:
|
|
|
|
HPE Flexible Slot Power Supply HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant servers. HPE's Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center. The HPE Edgeline EL1000 system supports 1 HPE Flex Slot power supply (both AC and DC input options are available). |
|
|
|
Embedded Management Each HPE ProLiant server blade plugged into a HPE Edgeline EL1000 has its own HPE iLO management processor, which can be accessed directly through the management network. The HPE Edgeline EL1000 System implements a light-weight chassis controller to monitor and control common chassis elements. The iLO on the server blade communicates with the Chassis Controller to gather and report status information on the chassis itself.
Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.
Learn more at http://www.hpe.com/info/ilo. |
|
|
|
HPE Edgeline Component Pack The HPE Edgeline Component Pack, is the delivery mechanism for firmware updates on the HPE Edgeline System. Before using your system for the first time, verify that you have the latest drivers, firmware, and system software installed. Update your system with the Edgeline Component Pack. For more information, see the Edgeline Component Pack Update Guide on the Hewlett Packard Enterprise website: http://www.hpe.com/info/edgeline-docs |
|
|
|
Warranty This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Partner Ready Resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to the warranty services are available through HPE services or customized service agreements. Hard drives have either a one year or three-year warranty; refer to the specific hard drive QuickSpecs for details. Notes: - Chassis Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. - Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/ |
|
|
Optional Features
|
Factory Express Portfolio for Servers and Storage HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Moonshot, HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, and HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches. For more information on Factory Express services for your specific server model please contact your sales representative or go to: https://www.hpe.com/us/en/services/factory-express.html |
|
|
Services and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.
Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world..
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Free up resources with Operational Services from HPE Pointnext Services HPE delivers services for IT by using proven best practices as well as automation and methodologies that have been tested and refined by HPE experts and artificial intelligence through thousands of deployments globally. Choose from the recommended services for customers purchasing from Hewlett Packard Enterprise or an authorized reseller. Services are quoted using Hewlett Packard Enterprise order configuration tools.
HPE Pointnext Tech Care HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.
https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare
|
|
|
|
Other related services from HPE Pointnext
HPE Server Hardware Installation Provides
for the basic hardware installation of your new Edgeline System. It
is part of a suite of HPE deployment services that are designed to give
you the peace of mind that comes from knowing your HPE products have
been installed by an HPE authorized service specialist in accordance
with the product's documentation.
HPE Installation and Startup Service Provides for the installation of your new Edgeline System. This service will assist you in bringing your new HPE Edgeline System into operation and make it remotely accessible in a timely and professional manner. The HPE service delivery technician will connect the product to the network as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux). https://www.hpe.com/h20195/v2/Getdocument.aspx?docname=a00062211enw HPE Service Credits Offers flexible services and technical skills to meet your IT demands as your business evolves. With a menu of services, you can access additional resources and specialist skills to help you maintain peak performance of your IT. HPE Service Credits help you proactively respond to your dynamic IT and business needs. HPE Education Services Provides comprehensive training designed to expand the skills of your IT staff and keep them up to speed with the latest technologies.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. Defective Media Retention An option available with HPE Pointnext Complete Care and HPE Pointnext Tech Care and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
|
|
|
|
For more information
To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html
HPE Support Services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
Configuration Information
|
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
- One (1) HPE ProLiant Server Blade - One (1) HPE Flex Slot Power Supply
|
||
|
| ||
|
Step 1: Base Configuration (Choose System)
| ||
|
HPE Edgeline EL1000 System | ||
|
|
| |
|
HPE Edgeline EL1000 1GbE 2xRJ45 v3 Pass Thru System |
880271-B22 | |
|
HPE Edgeline EL1000 10GbE 2xSFP+ v2 Pass Thru System |
880273-B21 | |
|
HPE Edgeline EL1000 1GbE 2xRJ45 Pass Thru PXIe System |
847555-B21 | |
|
Notes: Edgeline EL1000 v2 models support 2 PCIe cards with wattage up to 75W per card in a PCIe x16 physical slot (x8 Gen3 electrical), such as GPU cards. These models also support WiFi & BT. | ||
|
| ||
|
Step 2: Configure Server Blade (Min:0, Max:1) See HPE ProLiant Server Blade QuickSpecs for Blade Configurations
Notes: - Functional systems require at least 1 server blade to be configured - HPE ProLiant m750 Server Blade is NOT supported with the following options; o PXIe chassis (EL1000/EL4000 common) o NEBS Kit (EL1000/EL4000 common) o NVMe HH M.2 Kit (P07671-B21) (EL1000/EL4000 common)*m750 On-board NVMe SSD options available o InfiniBand NIC options (EL1000/EL4000 common) o m750 integrated EL1000 can support only 10/25 2p NIC (EL1000/EL4000 common)-> Networking section. o H240 RAID Controller related options (EL1000 only) o WiFi/LTE wireless options (EL1000 only)
|
||
|
| ||
|
Step 3: Choose Required Power Options
| ||
|
Power Supplies | ||
|
HPE Flex Slot Power Supplies (Min:0, Max:1) | ||
|
HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
865408-B21 | |
|
HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit |
865434-B21 | |
|
Notes: Functional systems require at least 1 power supply to be configured. Only 1 power supply is supported per system. All current server blades support power-capping. | ||
|
| ||
|
Step 4: Choose Factory Integration Options
| ||
|
HPE I/O Expansion | ||
|
HPE Edgeline EL1000 M.2 Expansion Board Kit |
P40733-B21 | |
|
Notes: - The EL1000 M.2 Expansion Board FIO Kit (P40733-B21) has two slots and can support both 1 WiFI (HPE EL WiFi/BT Intel AC9260 Opt Kit P06088-B21) and 1 LTE (HPE WWAN LTE EM7565 Module Kit P40737-B21). - This option is supported only on EL1000 v3 1GbE model, and EL1000 10GbE v2 model; it is NOT supported on any other EL1000 models. |
| |
|
HPE WiFi & BT, LTE | ||
|
HPE Edgeline IP67 MIMO 3G LTE and Wi-Fi Combo Antenna with 2m Cable |
876592-B21 | |
|
Intel Wireless/Bluetooth AC 9260 Adapter for HPE Edgeline |
P06088-B21 | |
|
Notes: - Min 0, Max 1 - This option is NOT supported with EL1000 1G v2 and EL1000 PXIe models - Requires the selection of HPE EL1000 M.2 Expansion Board FIO Kit | ||
|
HPE Edgeline Wireless WAN LTE EM7565 Option Kit |
P40737-B21 | |
|
Notes: - Min 0, Max 1 - This option is NOT supported with EL1000 1G v2 and EL1000 PXI2 models. - Requires the selection of HPE EL1000 M.2 Expansion Board FIO Kit. | ||
|
HPE Storage Controllers (Internal) Storage Controllers (Min:0, Max:1) | ||
|
Notes: - When an internal storage controller is selected the Edgeline EL1000 specific cable for linking it to the 2 SFF drives in the system will automatically be configured. - If no storage controller is configured in the Edgeline system, the 2 SFF drives will be connected to the SATA HBA integrated on the server blade by default. - These controllers cannot be connected to any M.2 SSDs on the server blade. | ||
|
HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
804394-B21 | |
|
HPE Edgeline Extended Storage Adapter option kit | ||
|
HPE Edgeline NVMe HHHL M.2 Enablement Kit |
P07671-B21 | |
|
Notes: - This M.2 Kit extends m.2 storage by providing two M.2 slots through PCIe SSD card. - The M.2 Kit option is not supported when the EL1000 is configured with the ProLiant m750 Server Blade |
| |
|
Cable Assembly | ||
|
HPE EL1000 CA Assy Pwr H240 |
885017-B21 | |
|
Notes: This cable assembly is required to support the addition of a Smart Array E208i in EL1000. |
| |
|
HPE Edgeline EL1000 PoE Cable Assembly |
880681-B21 | |
|
Notes: This cable assembly is required to support POE card in EL1000. |
| |
|
HPE Edgeline EL1000/EL4000 System Console USB to RS232 Cable Kit |
871947-B21 | |
|
Notes: - The system console kit plugs into the Edgeline USB port corresponding to a server blade and allows serial port access to its boot-time BIOS ROM Based Setup Utility (RBSU) console. The RBSU can be used to set various server configuration parameters such as an iLO Static IP address. | ||
|
- This cable can also be used for connecting the server to any RS232 compliant serial device (e.g. UPS). In this scenario, BIOS console redirection to serial port should be turned off in RBSU to prevent boot-time messages from going to the attached serial device. - Sys Console Cbl Kit cable is required in some environments to set static IP as well as other functions when the Edgeline system is present in non DHCP serving environments | |
|
HPE Drives (Min:0, Max:2) | |
|
HPE 1TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty HDD |
655710-H21 |
|
HPE 2TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD |
765455-H21 |
|
HPE Storage | |
|
HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
804398-B21 |
|
HPE Networking | |
|
HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter |
817753-B21 |
|
HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter |
811546-B21 |
|
HPE Ethernet 10Gb 2-port SFP+ X520-DA2 Adapter |
665249-B21 |
|
HPE InfiniBand | |
|
HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter |
872726-H21 |
|
Notes: The Infiniband options are not supported when the EL1000 is configured with a ProLiant m750 Server Blade |
|
|
HPE Transceivers |
|
|
HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver |
453151-B21 |
|
HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver |
453154-B21 |
|
HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver |
455883-B21 |
|
HPE X120 1G SFP RJ45 T Transceiver |
JD089B |
|
Notes: SFP transceivers are only supported with the EL1000 10GbE SKU. |
|
|
HPE GPU Accelerator | |
|
NVIDIA T4 16GB Computational Accelerator for HPE |
R0W29A |
|
Notes: HPE GPU Accelerator are supported only with Edgeline EL1000 v2 system, and up to 2 Qty can be installed |
|
|
NVIDIA Quadro P1000 Graphics Accelerator for HPE |
R3K70A |
|
Notes: The P1000 GPU accelerator is only supported with the EL1000 when configured with ProLiant m750 Server Blade |
|
|
| |
|
Step 5: Choose Additional Options | |
|
Notes: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information. | |
|
Mounting Kits |
|
|
HPE Edgeline EL1000 Wall Mount Kit |
871652-B21 |
|
Notes: The Wall Mount kit allows system installation on a wall instead of a rack. Please reference the drawing in the overview section. There should be ~15-20cm (6-8 inches) of space around the inlet/outlet sides of the chassis to limit airflow losses. Well ventilated space is recommended for the air to flow through. | |
|
HPE Edgeline EL1000 19inch 2-post Rack Mount Kit |
P00689-B21 |
|
Notes: The rack mount kit should be used for all 19" 2-post racks and ETSI installations. The rack mount has limited space available for PCie card cables. It is front/rear cabled and mounting solution is 10.5 inches deep. | |
|
HPE Edgeline EL1000 23inch 2-post Rack Mount Kit |
P00682-B21 |
|
Notes: The rack mount kit should be used for all 23" 2-post racks. It is Front/rear cabled and mounting solution is 10.5 inches deep. | |
|
HPE Edgeline EL1000 Enterprise Rack Mount Kit |
878576-B21 |
|
Notes: - The rack mount should be used for all HPE and 3rd party 4 post, 19" racks. It provides front to back cooling and for in-rack serviceability. Mounting solution is 34 inches deep including Cable Management Arm (CMA). - This also requires the HPE EL4000 Full Rack Mount Kit 868577-B21 | |
|
Filter Kits | |
|
HPE Edgeline EL1000 Air Filter Replacement Kit |
P40735-B21 |
|
Notes: This dust filter kit includes 10 individual dust filters for an EL1000 chassis |
|
|
Install and Startup Services |
|
|
HPE Installation Edgeline 1000 Service |
H2EL1E |
|
HPE Installation and Startup Edgeline EL1000 Service |
H2US7E |
|
HPE Installation ProLiant Blade Server Service |
UE493E |
|
Notes: This service is for the basic hardware installation by HPE of a newly ordered HPE ProLiant Server Blade into an existing Moonshot or Edgeline chassis |
|
|
HPE Installation AddOn/In Option Service |
UH745E |
|
Notes: This service is for the installation by HPE of options such as memory, disk drives, etc on HPE ProLiant Server Blades |
|
|
Support Services |
|
|
Notes: Enhanced Service Level Agreements (SLAs) and 4-year or 5-year support options are also available. See HPE Support Services Central for additional services at: http://ssc.hpe.com | |
|
| |
Additional Options
|
HPE Power Cords |
|
|
HPE C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord |
AF573A |
|
HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord |
A0K02A |
|
HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord |
AF556A |
|
HPE C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord |
AF557A |
|
HPE C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord |
AF558A |
|
HPE C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord |
AF559A |
|
HPE C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord |
AF561A |
|
HPE C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord |
AF562A |
|
HPE C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord |
AF560A |
|
HPE C13 - SI-32 IL 250V 10Amp 1.83m Power Cord |
AF564A |
|
HPE C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord |
AF565A |
|
HPE C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord |
AF566A |
|
HPE C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord |
AF567A |
|
HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord |
AF568A |
|
HPE C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord |
AF569A |
|
HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord |
AF570A |
|
HPE C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord |
AF572A |
|
HPE C13 - IS-1293 IN 250V 10Amp HV 2.5m Power Cord |
SG579A |
|
HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord |
A0N33A |
|
HPE C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord |
AF591A |
|
HPE C13 - C14 WW 250V 10A Gray 0.7m Jumper Cord |
A0K03A |
|
| |
|
HPE Rack Options |
|
|
HPE 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF620A |
|
HPE 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF621A |
|
HPE 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software |
AF622A |
|
HPE Basic Power Distribution Units |
|
|
HPE 277 Volt options for H3X07A and H3X08A |
|
|
HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer |
H3X09A |
|
Notes: Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111392 | |
|
| |
Technical Specifications
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at: https://paonline56.itcs.hpe.com/?Page=Index Notes: Power Specification and Technical Content for supported power supplies can be found at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111541 |
|
|
|
System Unit
Chassis Dimensions (H x W x D) 87.5mm (3.44") tall, 350.5mm (13.8") wide by 232.6 (9.16") deep. |
|
|
|
Weight 853995-B21: HPE Edgeline EL1000 1Gb System - 8.36 KG (18.43 lbs) Notes: Configuration used includes 1 server blade, 1 power supply, 2 SFF HDDs, 2 PCIe I/O cards |
|
|
|
Power
|
|
|
| ||||||||||||||||||||||
|
| ||||||||||||||||||||||
|
| ||||||||||||||||||||||
| ||||||||||||||||||||||
| ||||||||||||||||||||||
|
| ||||||||||||||||||||||
|
Emissions Classification (EMC) FCC Rating
Normative Standards
Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements. |
| ||||||||||||||||||||||||
|
|
| ||||||||||||||||||||||||
|
Hewlett Packard Enterprise Extended Ambient Operating Temperature Support The American Society of Heating Refrigeration and Air-Conditioning Engineers set standards for building systems, energy efficiency, indoor air quality, refrigeration and sustainability. The ASHRAE A3 and A4 classes are the latest classes that have been defined in an effort to support the Fresh Air Data cooling initiative. Hewlett Packard Enterprise Extended Ambient Operating Support is defined below as comparable to an ASHRAE class.
The following table provides a summary of environmental ranges supported, with altitude de-ratings, by Hewlett Packard Enterprise ProLiant servers. Items in bold are ProLiant features that exceed the ASHRAE comparable class feature set.
| |||||||||||||||||||||||||
| |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
Notes: - *Altitude de-rating assumes no direct sustained sunlight - The maximum rate of change for Inlet Ambient Temperature is 20°C/hr (36°F/hr). The upper limit and rate of change can be limited by the type and number of options selected. | |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
Hewlett Packard Enterprise Operating Support Notes: Edgeline base systems are designed to indefinitely operate at Extended Ambient temperatures of up to 55°C (131°F). Configuration of peripherals such as I/O cards or drives in the base system will limit operating temperature of the entire system to that of the lowest rated option. | ||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
Notes: - 1HPE EL1000 1G 2xRJ45 PThru Sys (853995-B21), HPE EL1000 10G 2xSFP+ PThru Sys (866585-B21), HPE EL1000 Converged PXI Compute System (847555-B21) - 2Near 55°C inlet ambient AND when the CPU is stressed at 100%, the HPE ProLiant m510-16c server may reduce performance. There is no impact for other server models. - 3Upon fan failure the servers in the system may reduce performance | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
Carrier Grade HPE Edgeline EL1000 System Carrier-grade servers are designed to meet the specific needs of network equipment providers (NEPs) and independent software vendors (ISVs) that supply fixed and mobile operators. Typically, such servers host network elements, such as media gateways, signaling gateways, media servers, and soft-switches. Selected configurations of the HPE Edgeline EL1000 System are certified to a carrier grade level E.g. Network Equipment Building Standards (NEBS) Level 3. | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||
|
Environment-friendly Products and Approach- End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. | ||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 23 |
Changed |
Service and Support Pointnext Tech Care and Complete Care information updated |
|
02-Aug-2021 |
Version 22 |
Changed |
Configuration Information and Additional Options sections were updated. Service and Support Pointnext information added |
|
06-Jul-2021 |
Version 21 |
Changed |
Additional Options and Technical Specifications sections were updated |
|
07-Jun-2021 |
Version 20 |
Changed |
Standard Features, Additional Options and Technical Specifications sections were updated |
|
04-May-2021 |
Version 19 |
Changed |
Updated options list Configuration Information and Additional Options sections were updated. |
|
01-Feb-2020 |
Version 18 |
Changed |
Overview, Standard features, Optional Features, Configuration information, Additional optios, and Technical Specifications sections were updated SKUs added in Configuration Information and Additional Options sections. |
|
09-Dec-2019 |
Version 17 |
Changed |
Overview, Standard features, Optional Features, Configuration information and Additional optios sections were updated |
|
02-Dec-2019 |
Version 16 |
Changed |
SKUs were updated in Additional Options sections Obsolete SKUs were removed. |
|
07-Oct-2019 |
Version 15 |
Changed |
Overview, Standard features, Configuration information, Additional options and Technical Specifications sections were updated. |
|
10-Jun-2019 |
Version 14 |
Changed |
Overview , Standard Features , Configuration Information, Additional Options sections were updated Obsolete SKUs were removed |
|
01-Oct-2018 |
Version 13 |
Changed |
SKU and descriptions in Configuration Information, Core Options and Additional Options were updated. |
|
04-Sep-2018 |
Version 12 |
Changed |
Overview, SKU and descriptions in Additional Features, Configuration Information, Core Options and Additional Options were updated. |
|
06-Aug-2018 |
Version 11 |
Changed |
URLs, SKU and descriptions in Additional Features, Configuration Information and Additional Options were updated. |
|
02-Apr-2018 |
Version 10 |
Changed |
Update throughout the QuickSpecs |
|
05-Feb-2018 |
Version 9 |
Changed |
Change the Technical specifications section / dimensions |
|
04-Dec-2017 |
Version 8 |
Changed |
Update throughout the QuickSpecs |
|
16-Oct-2017 |
Version 7 |
Changed |
Update Technical specifications, standard features and configuration information. |
|
25-Sep-2017 |
Version 6 |
Changed |
Updates throughout the QuickSpecs |
|
07-Aug-2017 |
Version 5 |
Changed |
Configuration Information and Environment-friendly Products were updated. |
|
27-Mar-2017 |
Version 4 |
Changed |
Update Technical specifications, standard features and configuration information. |
|
13-Feb-2017 |
Version 3 |
Changed |
Update the QuickSpecs |
|
28-Nov-2016 |
Version 2 |
Changed |
Added more option details. Updated thermal and acoustic specifications. |
|
26-Sep-2016 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| ||||||||||||
|
|
|
© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries. For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less. c05211199 - 15652 - WorldWide - V23 - 15-November-2021 | ||||||||||||
