HPE Cray XD665

HPE is bringing the power of supercomputing to datacenters of any size with the HPE Cray XD665 System .

HPE Cray XD665 System is a top-performing GPU-accelerated server, delivering mixed-HPC/AI workload solutions to rack-scale, in a rack and roll fashion.

HPE Cray XD665 System is a 4U chassis system that contains a single 2x CPU node with 4x Nvidia H100 Tensor Core SXM5 GPUs. It offers a complete, scalable solution for AI & HPC customers everywhere, with flexibility of fabric, memory, storage and operating system. HPE Cray XD665 System provides maximum performance for advanced HPC Simulations, AI Training and Deep Learning.

Built with Exascale-ready networking technologies, integrated storage, extensive software portfolio and management tools, HPE Cray XD665 Systems can enable customers to innovate and prepare for tomorrow's challenges.

HPE Cray XD665 Server System Key Features

• 4U Single-Node Chassis (Air & Liquid-Cooled)
• GPUs: 4x NVIDIA® H100 Tensor Core SXM5 GPUs providing leadership performance for AI Training, Deep Learning and advanced HPC simulations. PCIe GPUs are not supported on Cray XD665.
• CPUs: Support for 4^th Generation AMD® EPYC® Scalable Processors: "Genoa"
• DRAM: Support for up to 24x DDR5 4800MT/s DIMMs
• High-Speed Fabric: 5x PCIe Gen 5.0 Half-Height, Half-Length slots supporting Slingshot 11, Infiband NDR and Ethernet, providing direct switchable connections between High-Speed Fabric, GPUs, NVMe drives and CPUs.
• Storage: Up to 8 SFF NVME U.3 and 2 M.2 RAID SSDs
• Power Supplies: 6x 3,000-Watt capacity per server system, providing full N+N redundancy.
• PCIe Expansion: 1x HHHL PCIe 5.0, 1x OCP 3.0 expansion slot with embedded 2-port 10G Base-T (RJ45), 1 1GbE NIC, 1x BMC Port, 1x VGA, 1x USB3.0, PWR Button/Reset/ID Button/Status LEDs

NVIDIA and NVLink are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. All third-party marks are the property of their respective owners.

AMD and EPYC are trademarks and/or registered trademarks of Advanced Micro Devices, Inc. in the U.S. and other countries. All third-party marks are property of their respective owners

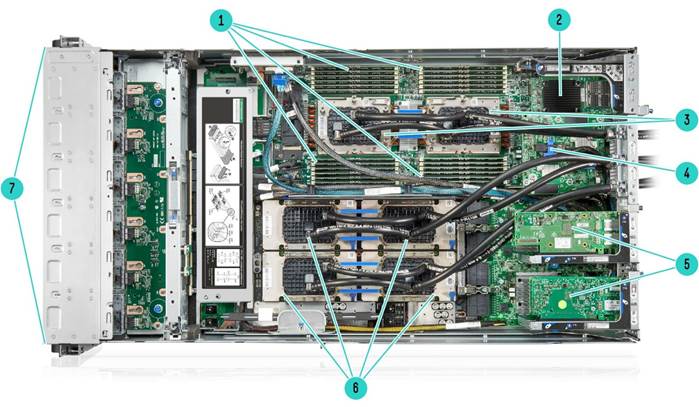

HPE Cray XD665 System Server Top View

Item

Description

Item

Description

1.

DIMMs for CPU 1 & 2

5.

HHHL PCIe Board(s)

2.

PCIe Switch

6.

GPU Module

3.

CPU 1 & 2

7.

12x System Fans

4.

Management I/O board

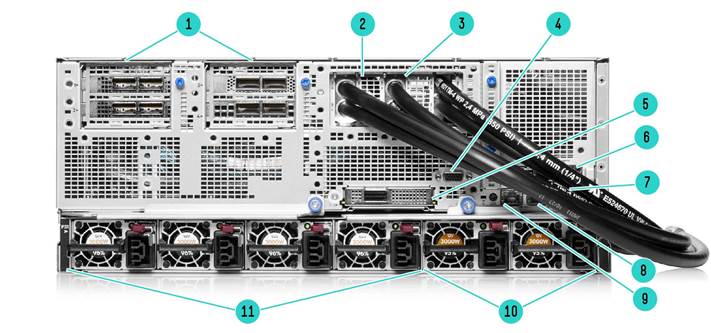

HPE Cray XD665 System Server Rear View

Item

Description

Item

Description

1.

Primary(1-2) & Secondary(3-4) PCIe Slot

7.

USB 3.0 port

2.

Vented blank (air solution)

8.

1G NIC Port

3.

DLC port with Coolant Hose (DLC solution)

9.

BMC port

4.

VGA port

10.

12V PSU units  (x2)

5.

OCP 3.0 Slot

11.

54V PSU units (x4)

6.

PCie Slot

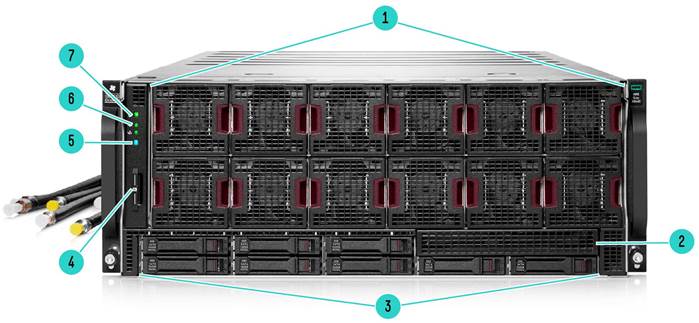

HPE Cray XD665 System Server Front View

Item

1.

System Fan (x12)

5.

UID button

Off

Off

Blue

ID

Blinking blue

Remote management session in progress

2.

Backup battery tray

6.

Health LED

Blinking red

System is on or off, critical (remains latched on power off)

3.

Hard drives (x8)

7.

Power button

Off

No AC

Solid amber

Standby mode

Blinking green

User has requested system

Solid green

Powered on

Blinking amber

Chassis manager is booting

4.

I/O Module and Pull tab

Rack Airflow Requirements

HPE Cray XD665 System

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. For maximum cooling, HPE racks are recommended to allow these racks to be fully loaded with servers using the latest processors. For detail information please see Cray XD665 System User Guide:

https://support.hpe.com/connect/s/search?language=en_US#q=XD6500

Thermal Boundaries

The HPE Cray XD XD665 system offers choices in Direct Liquid Cooling or Liquid-Assisted Air-Cooling. The ability to operate up to 35C will come with limitations on choice of CPU and Memory SKUs. The tables below outline the thermal operating ranges for the CPU and Memory SKUs

Notes:

- If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment.

- When selecting Direct Liquid Cooling (DLC), HPE racks are required for factory integration.

- Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage.

HPE Performance Cluster Manager

Fully integrated system management solution offering all the functionalities you need to manage your HPE Linux®-based high performance computing (HPC) clusters, all day every day.

HPE Performance Cluster Manager aggregates system metrics.

The software provides:

• System setup
• Hardware monitoring and management including GPU management
• Image management and software updates
• Power management
• Integration with ISV & open-source software solutions

Alternatively, to manage heterogeneous clusters or for customers with additional requirements, HPE also offers:

Bright Cluster Manager

Automates process of building cluster in the datacenter and in the cloud. Ideal for heterogeneous clusters or customers with additional requirements.

Software Development Tools (Programming languages, debuggers, libraries)

HPE Cray Programming Environment is a fully integrated software development suite offering programmers comprehensive set of tools for developing, porting, debugging, and tuning of their applications so they can shorten application development time and accelerate their performance. CPE cannot be supported on Ubuntu OS.

Notes: For more information on HPE Cray Programming Environment visit this page

Additional 3^rd party software developmental tools:

• Intel® oneAPI
• GNU Compiler Collection
• Perforce® TotalView®
• Mellanox HPC-X
• Nvidia (Various)

HPE Message Passing Interface (MPI) - an MPI development environment designed by HPE to enable optimization of high-performance computing (HPC) applications on HPE Cray XD665 Systems . The HPE Performance Software-MPI leverages a scalable MPI library and boosts performance of existing applications without requiring recompilation.

Security

• Secure Start - only boot Signed FW
• UEFI Secure Boot
• NIST SP800-193 Protect, Detect, Recover for BIOS and BMC Tamper-free updates - components digitally signed and verified using CNSA strength RSA4096 signing key.
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware. Event recorded in the event log.
• UEFI TPM 2.0 (Trusted Platform Module 2.0) HPE Cray XD665 System  supports OpenSSL 3.0 provide for secure remote connectivity session to system
• SPI BUS monitoring to ensure BIOS and BMC FW are always signed and secure.
• Secure out-of-the-box high-entropy RMC administrator password is unique for each system.
• Support for multiple Redfish role-based access control (RBAC) accounts ensuring that passwords need not be shared and can provide separation of duties.

HPE Services - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Services Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Services Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Services specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Recommended Services

HPE Tech Care Service.

HPE Tech Care Service is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. ForHPE Cray XD665 Systems, HPE Tech Care Service is available in two response levels. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Services Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also include the installation of one supported operating system type (Windows® or Linux).

HPE Service Credits

Offers flexible services and technical skills to meet your IT demands as your business evolves. With a menu of services, you can access additional resources and specialist skills to help you maintain peak performance in your IT. HPE Service Credits help you proactively respond to your dynamic IT and business needs.

HPE Education Services

Provides comprehensive training designed to expand the skills of your IT staff and keep them up to speed with the latest technologies.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration, and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped, and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration, and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Cray EX, HPE Cray XD, HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers, as well as the HPE MSAxxxx, HPE 3PAR suite, HPE XP, rackable tape libraries and configurable network switches.

HPE support high-security system builds at HPE manufacturing facility in Chippewa Falls, Wisconsin. From our Chippewa Falls facility, HPE has built and deployed systems to the most security-conscious government agencies in the world.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 3 years from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements.

Notes: Server Warranty includes 3 years of Parts, Labor and on-site. Warranty repairs may be accomplished using Customer Self Repair (CSR) parts. Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Notes: FIO indicates that this option is only available as a factory installable option.

A Mechanized Lift will be required to accompany the order due to the excessive size and weight of the HPE Cray XD665 Systems. If the customer already confirms that they already have an appropriate Lift in-house, one will not need to be ordered.

Step 1: Choose a Chassis

HPE Cray Supercomputing XD665 Configure-to-order Server Chassis

P52377-B21

Step 2: Select Cooling Method

HPE Cray Supercomputing XD665 FIO Radiator Cooling Kit

P54096-B21

HPE CRAY XD6500 DLC FIO kit

P59457-B21

Step 3: Select M.2 Storage Options (max 2)

HPE Cray Supercomputing 960GB NVMe Read Intensive SFF U.3 7450 SSD

P65375-H21

HPE Cray Supercomputing 1.92TB NVMe Read Intensive SFF U.3 7450 SSD

P65376-H21

HPE Cray Supercomputing 3.84TB NVMe Read Intensive SFF U.3 7450 SSD

P65377-H21

HPE Cray Supercomputing 7.68TB NVMe Read Intensive SFF U.3 7450 SSD

P65378-H21

HPE Cray Supercomputing 800GB NVMe Mixed Use SFF U.3 7450 SSD

P69368-H21

HPE Cray Supercomputing 1.6TB NVMe Mixed Use SFF U.3 7450 SSD

P69369-H21

HPE Cray Supercomputing 3.2TB NVMe Mixed Use SFF U.3 7450 SSD

P69370-H21

HPE Cray Supercomputing 6.4TB NVMe Mixed Use SFF U.3 7450 SSD

P69371-H21

HPE Cray Supercomputing 12.8TB NVMe Mixed Use SFF U.3 7450 SSD

P69372-H21

Notes:

- Maximum quantity of 2 M.2 SSD Drives

- All selected M.2 drive quantity are of the same SKU | capacity

Step 4: Select a Processor (Dual Processor Configuration Only)

AMD EPYC 9224 2.25GHz 24-core 200W Processor Kit for HPE Cray Supercomputing

P61457-B21

AMD EPYC 9654 2.4GHz 96-core 360W Processor Kit for HPE Cray Supercomputing

P56262-B21

AMD EPYC 9174F 3.8GHz 16-core 320W Processor Kit for HPE Cray Supercomputing

P56263-B21

AMD EPYC 9534 2.4GHz 64-core 280W Processor Kit for HPE Cray Supercomputing

P56264-B21

AMD EPYC 9554 2.65GHz 64-core 320W Processor Kit for HPE Cray Supercomputing

P56265-B21

AMD EPYC 9354 2.85GHz 32-core 260W Processor Kit for HPE Cray Supercomputing

P56266-B21

AMD EPYC 9634 2.00GHz 84-core 290W Processor Kit for HPE Cray Supercomputing

P56267-B21

AMD EPYC 9474F 3.4GHz 48-core 360W Processor Kit for HPE Cray Supercomputing

P56268-B21

AMD EPYC 9254 2.55GHz 24-core 200W Processor Kit for HPE Cray Supercomputing

P56269-B21

AMD EPYC 9454 2.35GHz 48-core 290W Processor Kit for HPE Cray Supercomputing

P56270-B21

AMD EPYC 9374F 3.5GHz 32-core 320W Processor Kit for HPE Cray Supercomputing

P56271-B21

AMD EPYC 9274F 3.6GHz 24-core 320W Processor Kit for HPE Cray Supercomputing

P56272-B21

AMD EPYC 9334 2.5GHz 32-core 210W Processor Kit for HPE Cray Supercomputing

P56273-B21

Notes: Certain limitations may apply to select processors.Please refer to the thermal table above or contact your HPE sales representative

Step 5: Select from the following Memory options (minimum 1,028 GB)

HPE Cray XD 32GB (1x32GB) Dual Rank x8 DDR5-4800 Registered Standard Memory Kit

P58356-H21

HPE Cray XD 64GB (1x64GB) Dual Rank x4 DDR5-4800 Registered Standard Memory Kit

P58358-H21

HPE Cray XD 128GB (1x128GB) Quad Rank x4 DDR5-4800 Registered 3DS Standard Memory Kit

P58360-H21

Notes:

- Minimum System Memory of 1,024 GB Required

- Certain limitations may apply to select Memory options.Please refer to the thermal table above or contact your HPE sales representative

Step 6: Choose from the following SFF Storage and RAID options

Hot Plug SFF SSD

HPE Cray Supercomputing 960GB NVMe Read Intensive SFF U.3 7450 SSD

P65375-H21

HPE Cray Supercomputing 1.92TB NVMe Read Intensive SFF U.3 7450 SSD

P65376-H21

HPE Cray Supercomputing 3.84TB NVMe Read Intensive SFF U.3 7450 SSD

P65377-H21

HPE Cray Supercomputing 7.68TB NVMe Read Intensive SFF U.3 7450 SSD

P65378-H21

HPE Cray Supercomputing 800GB NVMe Mixed Use SFF U.3 7450 SSD

P69368-H21

HPE Cray Supercomputing 1.6TB NVMe Mixed Use SFF U.3 7450 SSD

P69369-H21

HPE Cray Supercomputing 3.2TB NVMe Mixed Use SFF U.3 7450 SSD

P69370-H21

HPE Cray Supercomputing 6.4TB NVMe Mixed Use SFF U.3 7450 SSD

P69371-H21

HPE Cray Supercomputing 12.8TB NVMe Mixed Use SFF U.3 7450 SSD

P69372-H21

 SFF Hardware RAID Controller

Notes:Cable Kits are automatically included with the Chassis top-level SKU

Super-Cap option required for > 4 SFF SSDs requiring hardware RAID

2x Controllers required for > 4 SFF SSDs requiring hardware RAID

1x Controller required for 4 or fewer SSDs requiring hardware RAID

HPE Cray Supercomputing XD665 MR9560-16i 8-port 8GB Cache PCIe4 x8 Tri-Mode Controller

P68050-B21

Step 7: Choose Factory Configuration Setting

Cray Compute Node Identifier (no max)

HPE Cray Compute Node FIO Configuration

R9H92A

Step 8: Choose Networking Card Configuration (Max 4)

Ethernet PCIe

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Mellanox MCX623105AS-VDAT Ethernet 200Gb 1-port QSFP56 Adapter for HPE

P10180-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

Mellanox MCX512F-ACHT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P13188-B21

HPE Slingshot SA210S Ethernet 200Gb 1-port PCIe NIC

R4K46A

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

InfiniBand PCIe

HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 MCX653105A-HDAT Adapter

P23664-H21

HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter

P23665-H21

HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter

P23666-H21

HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 OCP3 MCX653435A-HDAI Adapter

P31323-H21

HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 MCX653106A-HDAT Adapter

P31324-H21

HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter

P31348-H21

HPE InfiniBand NDR 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter

P45641-H21

HPE InfiniBand NDR200 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Adapter

P45642-H21

HPE Data Processing Unit InfiniBand NDR/Ethernet 400Gb 1-port QSFP112 HHHL B3140H Adapter

P66387-H21

HPE IB NDR/EN 400G 1p OSFP Adptr

P45641-H23

HPE IB NDR200/EN 200G 1p OSFP Adptr

P45642-H22

Step 9: Select Power  Cables (Max 6)

A power supply kit consisting of 6x Titanium 3,000-Watt Supplies is already embedded within the chassis.

Select Power Cords (required - max 6)

HPE SDG300 - C20 250V 16Amp Black 1m Jumper Cord

P24675-B21

HPE SDG300 - C20 250V 16Amp Black 0.5m Jumper Cord

P24672-B21

HPE SDG300 - C20 250V 16Amp Black 2m Jumper Cord

P24678-B21

HPE SDG23A-SDG23B 277V 0.76m Jumper Cord

P9B75A

HPE SDG23A-SDG23B 277V 0.76m Jumper Cord

P9B75A

Step 10: Select Rack Options

Rack Options (max 1)

HPE 4U Server Rail Kit

878571-B21

Step 11: Select Operating Systems

Red Hat HPC Operating Systems (max 99)

HPE Performance Cluster Manager FIO Software

Q9V61A

Red Hat Enterprise Linux for HPC Head Node 1yr Subscription 24x7 Support E-LTU

R1P34AAE

Red Hat Enterprise Linux for HPC Head Node 3yr Subscription 24x7 Support E-LTU

R1P35AAE

Red Hat Enterprise Linux for HPC Head Node 5yr Subscription 24x7 Support E-LTU

R1P36AAE

Red Hat Enterprise Linux for HPC Head Node 1yr Subscription 9x5 Support E-LTU

R1P37AAE

Red Hat Enterprise Linux for HPC Head Node 3yr Subscription 9x5 Support E-LTU

R1P38AAE

Red Hat Enterprise Linux for HPC Head Node 5yr Subscription 9x5 Support E-LTU

R1P39AAE

Red Hat Enterprise Linux for HPC Compute Node 1yr Subscription E-LTU

R1P40AAE

Red Hat Enterprise Linux for HPC Compute Node 3yr Subscription E-LTU

R1P41AAE

Red Hat Enterprise Linux for HPC Compute Node 5yr Subscription E-LTU

R1P42AAE

Red Hat Operating Systems (max 99)

Red Hat Enterprise Linux Server 2 Sockets or 2 Guests 1 Year Subscription 24x7 Support E-LTU

G3J28AAE

Red Hat Enterprise Linux Server 2 Sockets or 2 Guests 1 Year Subscription 9x5 Support E-LTU

G3J29AAE

Red Hat Enterprise Linux Server 2 Sockets or 2 Guests 3 Year Subscription 24x7 Support E-LTU

G3J30AAE

Red Hat Enterprise Linux Server 2 Sockets or 2 Guests 3 Year Subscription 9x5 Support E-LTU

G3J31AAE

Red Hat Enterprise Linux Server 2 Sockets or 2 Guests 5 Year Subscription 24x7 Support E-LTU

G3J32AAE

Red Hat Enterprise Linux Server 2 Sockets or Guests 5 Year Subscription 9x5 Support E-LTU

G3J33AAE

Red Hat Enterprise Linux 8 FIO Software

R4T04A

HPE Performance Cluster Manager

For additional information, please visit HPE Performance Cluster Manager QuickSpecs here

Description

SKU

HPE Performance Cluster Manager 1 Node 3yr 24x7 Support Perpetual E-LTU

Q9V60AAE

Notes:

- One license per node

- Includes three years of support

- This is an electronic license

- This is a perpetual license. The Software will continue working even when the support term ends

HPE Performance Cluster Manager 1 Node 3yr 24x7 Support Perpetual LTU

Q9V60A

Notes:

- One license per node.

- Includes three years of support.

- This is a perpetual license. The software will continue working even when the support term ends.

HPE Performance Cluster Manager FIO Software

Q9V61A

Notes:

- This SKU does not include the license. Please order Q9V60AAE.

- Order one per node

HPE Performance Cluster Manager Media Kit

Q9V62A

Notes: One media kit per solution.

HPE Power Distribution Units

Power Distribution Units (PDUs) are an integral piece to this data center solution and HPE offers several types. Basic PDUs provide reliable power with 0U or 1U installation options. Metered PDUs have added intelligence to precisely track power usage and switched PDUs provide both local and remote power management. There are additional metered PDUs that are recommended for this solution that are not part of the mainstream PDU product offering. They are as follows:

HPE Switched 3-phase 66.5kVA/60309 5-wire 100A/277V 21-breaker Vertical NA PDU

R8P19A

HPE Metered 3Ph 66.5kVA/60309 100A 5-wire 480/277V Outlets (21) SDG23/Vertical NA PDU

879034-B21

HPE Metered 3Ph 39.9kVA/60309 60A 5-wire 480/277V Outlets (21) SDG23/Vertical NA PDU

880459-B21

HPE Metered 3Ph 57.6kVA/60309 100A 5-wire 80A/230V Outlets (3) C13 (18) C19/Vertical NA PDU

880460-B21

HPE Metered 3Ph 34.5kVA/60309 60A 5-wire 48A/230V Outlets (3) C13 (18) C19/Vertical NA FIO PDU

880461-B21

HPE Cray Supercomputer 60A 415V 3 Phase 24 CX PDU

R4N30A

HPE Mtrd 3P 69.1kVA 125A 96A230V FIO PDU

880462-B21

HPE Metered 3Ph 45.1kVA/60309 63A 5-wire 63A/230V Outlets (3) C13 (18) C19/Vertical INTL FIO PDU

880463-B21

HPE Cray Supercomputer 63A 400V 3 Phase 24 CX PDU

R4N29A

HPE G2 Metered/Switched 3Ph 17.3kVA/60309 4-wire 48A/208V Out (12) C13 (12) C19/Vertical NA/JP PDU

P9S22A

HPE G2 Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

P9R86A

HPE G2 Metered Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (6) C19/1U Horizontal NA/JP PDU

P9R80A

HPE G2 Metered/Switched 3Ph 22kVA/60309 5-wire 32A/230V Out (12) C13 (12) C19/Vertical INTL PDU

P9S24A

HPE G2 Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU

P9R87A

HPE G2 Metered Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/1U Horizontal INTL PDU

P9R81A

Thermal limitations

For a full list of thermal limitations please see the HPE Cray XD665 System thermal guidelines.

https://www.hpe.com/support/xd665-thermal

Date

Version History

Action

Description of Change

02-Dec-2024

Version 11

Changed

Overview section was updated

04-Nov-2024

Version 10

Changed

TCO section was removed

21-Oct-2024

Version 9

Changed

Standard Features section was updated

03-Jun-2024

Version 8

Changed

Configuration Information section was updated

06-May-2024

Version 7

Changed

Series name was updated. Configuration Information section was updated

01-Apr-2024

Version 6

Changed

Standard Features and Configuration Information sections were updated

08-Jan-2024

Version 5

Changed

Overview and Standard Features sections were updated

04-Dec-2023

Version 4

Changed

Added Cooling Options (Air & DLC), Thermal Tables for CPU, Memory

20-Nov-2023

Version 3

Changed

Configuration Information section was updated

16-Oct-2023

Version 2

Changed

Technical Specifications section was updated

05-Sep-2023

Version 1

New

New QuickSpecs Draft - HPE Cray Supercomputing XD665 System

© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

AMD Opteron^TM is a US registered trademark of AMD Corporation.

a50007004enw - 17114 - Worldwide  - V11 - 02-December-2024
