HPE ConvergedSystem 700 2.0: технические характеристики и документация

HPE ConvergedSystem 700 2.0

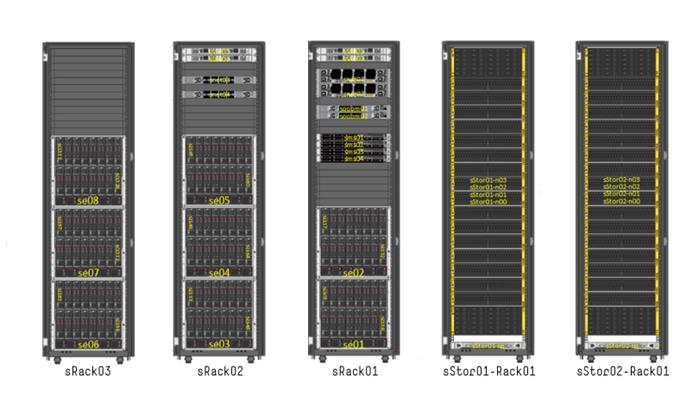

HPE ConvergedSystem 700 2.5 Multi-Rack

Key Components

• Two (2) or four (4) HPE SN6000B 16Gb 48/24 FC Switch or two (2) or four (4) HPE SN6000B 16Gb 48/48 FC switch.
• Three networking options.

- HPE  Networking Option: Two (2) HPE 5900AF-48G-4XG-2QSFP+ switches and two (2) HPE Flex Fabric 5940AF 48SFP+ 6QSFP+ switches. Additional two (2) HPE Flex Fabric 5940AF 48SFP+ 6QSFP+ for a total of four (4) HPE Flex Fabric 5940AF 48SFP+ 6QSFP+ switches if five (5) to eight (8) HPE BladeSystem c7000 enclosures are present.

- Cisco Networking Option: Two (2) Cisco Nexus C3048TP-1GE switches and two (2) Cisco Nexus 56128P2RU switches. Additional (2) two Cisco Nexus 2348UPQ 10GE Fabric Extenders if five (5) to eight (8) HPE BladeSystem c7000 enclosure are present.

or

- Cisco Networking Option: Two (2) Cisco Nexus C3048TP-1GE switches and two (2) Cisco Nexus 9396PX switches. Additional (2) two Cisco Nexus 9396PX if five (5) to eight (8) HPE BladeSystem c7000 enclosure are present.

• Two (2), three (3) or four (4) HPE ProLiant DL360 Gen9 E5v4 management servers.
• One (1) to eight (8) HPE BladeSystem c7000 enclosures, Virtual Connect FlexFabric; two (2) to sixteen (16) HPE ProLiant BL460c Gen9 E5-v4 server blades per enclosure. Mixed configurations are supported. The first enclosure is the base configuration and is mandatory in compute rack 1.
• HPE 3PAR service processor either physical or virtual for each storage array. Physical Service processor is recommended.
• One (1) storage array component of HPE 3PAR StoreServ 8xxx or 9450 series. The HPE 3PAR StoreServ 8440 4-node controller is the recommended option.
• Additional drive shelves that attach to the first storage array.
• HPE 3PAR Physical Processor for second storage array (not shown).
• One (1) storage component of HPE 3PAR StoreServ 8000 or 9000 series (not shown) as the second array. The default is the HPE 3PAR StoreServ 8440 4-node controller, required for enclosures 5-8, optional with fewer enclosures.
• Additional drive shelves that attach to the second storage array (not shown).

NOTE:  The HPE ConvergedSystem 700 2.0 Multi-Rack offering is flexible in its configuration, based on a common, scale-out architecture that scales from 2 to 7 racks, 2 to 128 blade servers, 2 to 4 rack servers, networking, and multiple storage options. This flexibility puts the power of choice in the customer's hands to meet a wide range of requirements. Selection of server, storage and networking components are made at the time of ordering from a number of choices based on validated configurations of HPE Converged Infrastructure components that can be sized and optimized for physical, virtual, or cloud-based application workloads.
NOTE: Blade configurations of BL460c and WS460c are allowed up to the maximum number of slots per BladeSystem enclosure.  Check with your Hewlett Packard Enterprise representative or channel partner for details.

NOTE: HPE 3PAR configurations listed for HPE ConvergedSystem 700 2.0 are based on recommended options.

NOTE: Position Statement on Support for CISCO Top-of-Rack Networking Elements: As part of the top-of-rack networking options available with an HPE Converged System 700 solution, CS700 does allow the choice of certain Cisco-branded networking switches. The purpose of this is to allow options for those customer who, through corporate policy or previous networking design, have a need for CISCO switching elements only in their environment. HPE offers this flexibility to allow maximum choice while providing the best integrated infrastructure offering in the market (the CS700).

• HPE Support Position(s) for Cisco:

- HPE does not provide hardware replacement, Operating systems software updates, or technical support for Cisco switches other than basic troubleshooting utilizing commercially available product information and general industry knowledge for connectivity to CS700 solution components.

- It is highly recommended that the customer purchase cisco SMARTnet Service for each Cisco Nexus switch included in the HPE ConvergedSystem 700.

- Customers may purchase Cisco SMARTnet Service through Cisco's global network of qualified Cisco Partners, or, by contacting their Cisco client service manager. To locate a local partner, use the Cisco partner locator at: www.cisco.com/partnerlocator.

- HPE support engineers will assist you with your reported issue regarding your CS700. If, at the conclusion of the troubleshooting process (including HPE's best efforts to resolve any Cisco networking problem), the HPE support engineer feels that you have a Cisco switch issue, you will be directed to contract the Cisco support team.

- The HPE support team will not initiate the support call to Cisco, however, at the request of the customer, an HPE support engineer may join the conversation with Cisco support. The HPE support engineer would then be available to explain the troubleshooting effort that has been applied, which resulted in the need to engage Cisco support.

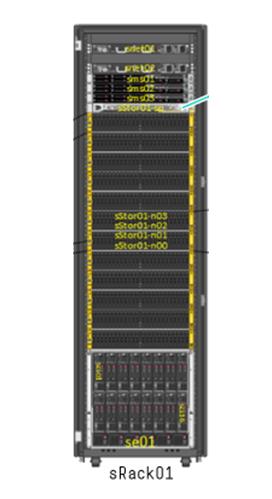

HPE ConvergedSystem 700 2.0 Single-Rack  - Using  Direct-Attached HPE 3PAR StoreServ Storage

• One (1) HPE BladeSystem c7000 enclosure, Virtual Connect FlexFabric; two (2) to sixteen (16) HPE ProLiant BL460c Gen9 E5-v4 server blades per enclosure.  Mixed configurations are supported.
• One (1) HPE 3PAR StoreServ 8200 2-node or StoreServ 8400 or 8440 with 2- or 4-node controllers, with up to ten (10) additional drive shelves are recommended.
• Two (2) or three (3) HPE ProLiant DL360 Gen9 E5-v4 management servers.
• HPE 3PAR virtual or physical service processor for storage array
• Two networking options:

- HPE Networking option: Two (2) HPE 5940AF 48SFP+ 6QSFP+ switches

- Cisco Networking Option: Two (2) Cisco Nexus 56128P2RU switches.

HPE ConvergedSystem 700 2.0 Single-Rack  - Using  SAN-Switched HPE 3PAR StoreServ Storage

• One (1) HPE BladeSystem c7000 enclosure, Virtual Connect FlexFabric; two (2) to sixteen (16) HPE ProLiant BL460c Gen9 E5-v4  server blades or per enclosure. Mixed configurations are supported.
• One (1) HPE 3PAR StoreServ 8200 2-node or StoreServ 8440 with 2- or 4-node controllers, with up to ten (10) additional drive shelves  are recommended.
• Two (2) HPE SN6000B 16Gb 48/24 FC Switch or two (2) SN6000B 16Gb 48/48 FC switch.
• Two (2) or three (3) HPE ProLiant DL360 Gen9 E5-v4  management servers.
• HPE 3PAR virtual or physical service processor for storage array.
• Three networking options:

- HPE Networking option: Two (2) HPE 5900AF-48G-4XG-2QSFP+ switches and two (2) HPE Flex Fabric 5940AF 48SFP+ 6QSFP+ switches.

or

- Cisco Networking Option: Two (2) Cisco Nexus 56128P2RU switches.

or

- Cisco Networking Option: Two (2) Cisco Nexus 9396PX switches.

What's New?

(as of November, 2017)

• Added support for 3PAR 9450
• Added support for 630FLB option in BL460c Servers
• Support for the new HPE G2 Enterprise Series Rack (P9K40A)
• Support for  HPE G2 Metered and switch PDUs
• CS700 Hyper-V Solution now delivered using Foundation platform and Pointnext Consulting
• Expansion options to include Gen10 compute options



(as of March, 2017)

• HPE 5940 48SFP+ HPE Converged Switch option
• HPE CloudSystem E5v4 Management Kit – when configured with CloudSystem 10 (higher CPU core count (18c) server bundle)
• HPE 120GB RI-1 M.2 BL Enablement Kit
• HPE Dual 120GB RI-1 M.2 BL Enablement Kit
• All HPE 3PAR SKUs roll aligning to new HPE 3PAR licensing model
• Support for HPE OneView (HPE OneView 3.00.07 (Advanced LTU))
• Support for optional - HPE Helion CloudSystem 10.0.2



(as of June, 2016)

• Support for Intel Xeon Processor E5-26XX v4  Processors (with ability to continue to choose v3 if desired)
• Ability to configure a Single-Rack solution  - by adding two SN6000 SAN switches instead of direct connect to Storage



(as of April, 2016)

• Support for VMware 6.0
• Support for Microsoft Hyper-V 2012 R2
• Support for OneView 2.0
• NVIDIA M6 Graphics additions
• HPE Flexfabric 5930 2 and 4Slot converged switches
• 3PAR 8000 – With Direct Attached Storage in a Single Rack



At A Glance

HPE ConvergedSystem 700 2.0 provides customers the fastest path to optimized infrastructure, delivered on a common platform that provides broad scalability as well as the flexibility to move to the cloud when ready. The end-to-end solution is covered by HPE Proactive Care support and can be sourced entirely from HPE, inclusive of VMware software licenses. Key features and benefits include:

• Flexible architecture and easy expansion - The system is based on a common architecture of HPE Converged Infrastructure that delivers new levels of flexibility in the configuration of compute and storage components. The variety of combinations provides an ability to uniquely meet a broader set of unique requirements, and expansion to accommodate additional capacity needs is made easy by simply scaling out the system with additional compute and storage nodes.
• Complete, optimized system - HPE ConvergedSystem 700 2.0 is built on the latest HPE Converged Infrastructure technology including HPE BladeSystem servers, HPE 3PAR StoreServ storage, and HPE or Cisco Networking, optimized and pre-integrated, creating an ideal platform for a wide variety of business applications. When ordering HPE ConvergedSystem 700 2.0 for VMware, the system is optimized and pre-integrated with VMware vCenter Server and VMware vSOM Enterprise Plus, creating an ideal virtualization platform for business applications.
• Ready for the Cloud - HPE ConvergedSystem 700 2.0 extends to the cloud with an integration option for HPE Helion CloudSystem 10.
• Integrated storage - HPE 3PAR StoreServ storage and software platforms support multiple levels of integration with VMware vSphere, providing a doubling of VM density to improve performance and scalability, and TCO savings of up to 50%.
• Simplified, consolidated management - HPE OneView integrates the manageability features of HPE Converged Infrastructure products into VMware's vRealize Operations Manager. VMware vRealize Operations Manager provides intelligence and visibility on performance and capacity management via vCenter server to provide analytics to proactively ensure service levels and operational efficiency in dynamic virtualized environments.  This combination of HPE OneView and VMware vRealize Operations Manager provides administrators increased control and insight from a single pane of glass.
• Pre-built system, implement on-site - The system is pre-integrated in the Hewlett Packard Enterprise factory based on extensively tested configuration guidelines. Included implementation services quickly get the system up and running to peak performance, reducing the risk of disruption to the existing
• Solution level support - Personalized and Proactive - Hewlett Packard Enterprise offers Proactive Care with Personalized Support Option and Proactive Select to support the complete solution, including the HPE hardware, software, VMware software and Microsoft software. Proactive Care is designed to accelerate time to access the Call Center of Excellence, bypassing level 1 to get to Converged Systems experts.  These experts are well versed in all aspects of the offering as a total solution.  Customers will be able to select their choice of reactive support from 4 hour response to 6 hour Call to Repair.



The HPE ConvergedSystem 700 2.0 is built on well-established Hewlett Packard Enterprise technologies and services including:

• HPE ProLiant DL360 Gen9 E5-v4  rack mount servers – for redundant management
• HPE BladeSystem c7000 Platinum Enclosure
• HPE ProLiant BL460c Gen9 E5-v4 server blades
• HPE 3PAR StoreServ 8000 or 9450 series storage
• HPE  StoreOnce Recovery Manager Central
• HPE OneView  for VMware vCenter or OneView for System Center
• HPE Networking 5900AF series switches or FlexFabric 5940AF series switches or Cisco Nexus Switches
• HPE StoreFabric SN6000B series SAN switches HPE 600mm x 1200mm Enterprise Series Shock Racks
• HPE Virtual Connect FlexFabric
• HPE OneView
• HPE Factory Integration through HPE Factory Express provides hardware integration, validation, and on-site installation.
• HPE Proactive Care provides a single source support for the HPE ConvergedSystem Foundation system.
• HPE Proactive Care provides a single source support for the complete HPE ConvergedSystem for VMware system, including the VMware software.

For more information about the HPE ConvergedSystem 700 2.0, see: http://www.hpe.com/info/convergedsystems

For more information about HPE OneView see: http://www.hpe.com/info/oneview
For more information about Hewlett Packard Enterprise and VMware see: http://www.hpe.com/info/vmware
For more information about Hewlett Packard Enterprise and Microsoft see: http://www.hpe.com/info/microsoft
For more information about HPE 3PAR StoreServ Storage see: http://www.hpe.com/info/3par
For more information about HPE blades see: http://www.hpe.com/info/bladesystem
For more information about HPE CloudSystem software, see: http://www.hpe.com/info/cloudsystem
For more information about HPE Networking, see: http://www.hpe.com/info/networking

HPE ConvergedSystem 700 2.0 software

The HPE ConvergedSystem 700 2.0 comes standard with HPE OneView software licenses.

HPE ConvergedSystem 700 2.0 for VMware software

The HPE ConvergedSystem 700 2.0 for VMware comes standard with HPE OneView software. HPE OneView for vCenter, VMware vSphere 6.0u3 or 6.5u1,  VMware vCenter Server 6.0u3 or 6.5u1 and  VMware vRealize Operations Manager. HPE OneView and VMware software is factory installed for convenience. VMware license registration and acceptance of the End User License Agreement (EULA) takes place onsite at time of installation. For customers that have existing VMware ELAs (Enterprise License Agreements) - please inform your sales team so that you are able to take advantage of your site license. For a complete Solution Level Support experience from Hewlett Packard Enterprise, customers will need to purchase their VMware licenses from Hewlett Packard Enterprise. This will include Hewlett Packard Enterprise support covering the VMware software. Microsoft Windows Server 2012 R2 Standard Edition is included on virtual machines that reside on the management nodes is provided by Microsoft Windows Server 2016 enabled downgrade licenses. VMWare ESXi is installed on the management nodes, and customers will need to supply OS licensing for the VMs they deploy.

VMware vSphere

Hewlett Packard Enterprise and VMware together provide powerful integrated solutions for customers who want the confidence of deploying VMware virtualization and cloud software on certified systems with comprehensive services and seamless support. The long-standing partnership between Hewlett Packard Enterprise and VMware, based on over 12 years of collaboration in engineering, sales, and marketing, has resulted in leading market positions and customer successes across a wide range of industries including financial services, health care, telecommunications, manufacturing and the public sector.

VMware vSphere and vCenter are preinstalled on the HPE ConvergedSystem 700 2.0 for VMware and necessary licenses are included, unless removed from the order based on an existing customer ELA. For customers that maintain ELAs (Enterprise License Agreements) for VMware software - please inform your sales team that your ConvergedSystem 700 2.0 should take advantage of your site license. For a complete Solution Level Support experience from Hewlett Packard Enterprise, customers will need to purchase their VMware licenses from HPE. When purchasing licenses with HPE ConvergedSystem 700 2.0 for VMware, one (1) VMware vSphere license per socket is included by default. Please ensure that you meet minimum entitlement requirements for your particular configuration. Additional VMware vSphere licenses can be purchased through Hewlett Packard Enterprise at the time of order.

For more information on VMware software licensing and packaging from Hewlett Packard Enterprise, see: http://h20195.www2.hpe.com/v2/redirect.aspx?/products/quickspecs/12307_div/12307_div.HTML#Overview

For more information about VMware vSphere, see: http://www.vmware.com/products/datacenter-virtualization/vsphere/overview.html, http://www.vmware.com/products/vrealize-operations/
For more information about VMware vCenter Server, see: http://www.vmware.com/products/vcenter-server/overview.html, http://www.vmware.com/products/vrealize-operations/.

HPE Helion CloudSystem 10

HPE Helion CloudSystem is the most complete, integrated, and open cloud solution on the market. Powered by OpenStack® technology and developed with an emphasis on automation and ease-of-use, HPE Helion CloudSystem redefines how you build and manage cloud services. Created with enterprises and service providers in mind, our end-to-end service lifecycle management solution gives you the ability to effortlessly provision applications and their corresponding infrastructure resources. With an open-source approach and support for hybrid service delivery, you can run on-premises services in your private cloud while simultaneously managing off-premises services or bursting to external public cloud providers.

For more information HPE Helion Cloudsystem, see: http://www.hpe.com/info/cloudsystem .

HPE management software

HPE OneView

HPE OneView radically simplifies everyday management of server, storage, and network resources. The single, integrated platform in HPE OneView increases the productivity of every member of the IT team by providing a unified user experience - facilitating collaboration, removing friction, and accelerating time to value. When performing an action, you have one tool for all tasks with one operating model that provides a consistent way of viewing your resources and results.

Administrators responsible for different areas (like servers, storage, networks, and virtualization) are empowered with appropriate access to authorized resources using the same tool.  This allows them to collaborate and make authorized decisions without stepping on another's responsibilities. For example, virtualization administrators can automate control of HPE compute, storage, and networking resources without a detailed knowledge of each device.  True convergence gives real productivity.

For more information, see: www.hp.com/go/oneview http://www.hpe.com/info/oneview.

HPE OneView for vCenter & System Center (integration)

HPE OneView for VMware vCenter and HPE OneView for System Center seamlessly integrates the manageability features of HPE ProLiant, BladeSystem, Virtual Connect, and Storage with VMware solutions. Gain deep control of your virtualized HPE Converged Infrastructure environment— reducing the time it takes to make important changes, increase capacity, or manage planned and unplanned downtime. When used with the automation power of HPE OneView, best practices for a Converged Infrastructure can be defined once and reused many times to provision an entire cluster with compute and storage fully configured in five easy steps.

Seamlessly integrate HPE's Converged Management with VMware and Micrsoft management solutions

• Simplify administration with console access to HPE's infrastructure management.
• Reduce overhead by automating responses to hardware events.
• Take control by launching your trusted HPE management tools.
• Proactively manage changes with detailed relationship dashboards.
• Leverage on-demand server and storage capacity.
• Maintain stability and reliability with online firmware inventory and deployment.
• Leverage deep analytics and troubleshooting



OneView extensions for VMware vCenter and Micrsoft System Center are enabled with a right-to-use license for use with both HPE OneView and HPE Insight Control. While only one of these two licenses is required on any given host, the advanced provisioning features are only available with HPE OneView licensed hosts. VMware vRealize Operations Manager integrations are licensed with HPE OneView only. To download, visit: http://www.hpe.com/info/ovvcenter

This integration enables you to provision, modify, and recover complex infrastructure -- both virtual and physical together -- from your preferred management console.

NOTE: VMware vCenter Server and Microsoft Systems Center must be purchased separately and is not included with HPE OneView.

Warranty services

The HPE ConvergedSystem 700 2.0 is covered by a global limited warranty and supported by HPE Services. Beyond the warranty, Proactive Care is the recommended and default offering, providing 24x7 hardware and software support with 6 hour call-to-repair. See Step 2 in "How to Order" section.

NOTE: Warranty varies by component. Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

HPE Financial Services

If the HPE ConvergedSystem 700 2.0 is purchased from and integrated by Hewlett Packard Enterprise: To support customers' transition, HPE Financial Services (HPFS) can help in a way that you may not have considered. HPFS can help you invest in your business while preserving precious capital. For more information, contact your local HPE Financial Services Representative. In the United States, call 1-888-277-5942. In Canada, dial 1-800-HPE-LEASE. For more information please visit: https://www.hpe.com/us/en/services/finance-services.html for links to HPE Financial Services around the world.

If the HPE ConvergedSystem 700 2.0 is purchased and integrated through an Hewlett Packard Enterprise Channel Partner:  For specific financial services, please contact your VAR.

End-of-life management and recycling

If the HPE ConvergedSystem 700 is purchased and integrated by HPE: Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in and recycling information, please go to: https://www.hpe.com/us/en/about/environment/product-recycling.html. or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: https://www.hpe.com/us/en/about/environment/product-recycling.html. These instructions may be used by recyclers and other WEEE treatment facilities as well as HPE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

If the HPE ConvergedSystem 700 2.0 is purchased and integrated by an HPE Channel Partner:  For specific recycling policies, please contact your VAR.

HPE ConvergedSystem 700 2.0 Services

(For those systems purchased and integrated through HPE)

The following services are included with all HPE ConvergedSystem 700 2.0 systems:

• Factory integration services to rack and cable the hardware infrastructure, based in part on customer data collected with the Customer Intent Document (SmartCID) to ensure that system is built and ready for datacenter integration (see NOTE below).
• Installation and Startup Services (via HPE Factory Express service Level 4) start up services, including:

- Unpack system and inspect for damages

- Connection of HPE ConvergedSystem 700 2.0 into customer network environment

NOTE: typically not done for Foundation solution. Basic configuration of the network uplinks to the customer environment and connection verification

NOTE: typically not done for Foundation solutions

- Assistance with license redemption and End User License Agreement (EULA) acceptance assurance

- Review equipment and basic processes, including process for placing calls to request support

• 3yr HPE Proactive Care 6hr Call-to-Repair with Personalized Support Option is the recommended support level. It provides a single source support for the complete HPE ConvergedSystem 700 2.0. Additional support levels and services are available for additional operational and resource assistance and coverage in mission critical environments. See Step 2 in How to Order section below.

NOTE: Customer is required to provide cables for uplinks to the datacenter network core switch.
NOTE: The factory integration services included in this solution require a Customer Intent Document (SmartCID) to assist with the configuration and successful installation and implementation of the solution. The SmartCID Reference ID# is required to be in place prior to sale.
NOTE: HPE ConvergedSystem 700 2.0 does not include advanced data center network integration services. Some customers that do not have networking expertise internally may require Network Integration Services. For these customers, it is highly recommended that a custom network integration service be arranged with HPE TS Consulting. For more information, please contact your TS sales representative.

NOTE: For those systems that are purchased and integrated by an HPE Channel Partner, please see your VAR for specifics on Services.

HPE ConvergedSystem 700 2.0 for VMware Services

(For those systems purchased and integrated through HPE)

The following services are included with all HPE ConvergedSystem 700 2.0 for VMware systems:

• Factory integration services to rack, cable, and configure the hardware and software (including VMware vSphere and vCenter) infrastructure, based in part on Customer Intent Document (SmartCID) to ensure that system is built and ready for datacenter integration (see NOTE below).
• Integration services into customer data center, using customer settings such as IP addresses, hostnames, and other information needed for datacenter integration.
• Installation and Startup Services (via HPE Factory Express service Level 4) start up services, including:

- Unpack system and inspect for damages

- Connection of HPE ConvergedSystem 700 2.0 into customer network environment

- Basic configuration of the network uplinks to the customer environment and connection verification

- Assistance with license redemption and End User License Agreement (EULA) acceptance assurance

- Installation of HPE OneView  (and associated components)

- Basic solution level functionality testing

- Review equipment and basic processes, including process for placing calls to request support

• 3yr HPE Proactive Care 6hr Call-to-Repair with Personalized Support Option is the recommended support level. Additional support levels and services are available. See Step 2 in How to Order section below.

NOTE: Customer is required to provide cables for uplinks to the datacenter network core switch.
NOTE: The factory integration services included in this solution require a Customer Intent Document (SmartCID) to assist with the configuration and successful installation and implementation of the solution. The SmartCID Reference ID# is required to be in place prior to sale. Before issuing a purchase order against this solution, please contact your Hewlett Packard Enterprise sales representative to engage an HPE Engagement Project Manager (EPM) who will manage the SmartCID process.
NOTE: HPE ConvergedSystem 700 2.0 for VMware does not include advanced data center Network Integration Services. Some customers that do not have networking expertise internally may require Network Integration Services. For these customers, it is highly recommended that a custom network integration service be arranged with HPE TS Consulting. For more information, please contact your TS sales representative.

NOTE: For those systems that are purchased and integrated by an Hewlett Packard Enterprise Channel Partner, please see your VAR for specifics on VMware Services.

Connecting the HPE ConvergedSystem 700 2.0 solution in the datacenter

Compute Rack

The multi-rack base solution has two  (2) HPE 5900AF, two (2) HPE FF 5940AF ,  or Cisco Nexus top of rack switches with up to eight (8) network uplinks (four (4) 10GbE per Cisco Nexus 56128P2RU Switch, ) to connect to the datacenter. Transceivers and appropriate cables need to be ordered or provided separately. Both 10Gb and 1Gb options are supported on all switches.

The single-rack base solution can follow the multi-rack base solution if SAN switches are included in the configuration. If no SAN switches are included in the single-rack configuration, Two (2) HPE 5940 or Cisco Nexus top of rack switches with up to eight (8) network uplinks to connect to the datacenter. Transceivers and appropriate cables need to be ordered or provided separately. Both 10Gb and 1Gb options are supported on all switches.

For transceiver options refer to the appropriate  Network Switch QuickSpecs. http://www.hpe.com/info/networking

Storage

There are two connectivity requirements for the storage, connectivity of the Service Processor and connectivity of the management ports on the controllers. There are CAT5 Ethernet cables included in the storage component for this connectivity which may be modified as necessary.

For Multi-Rack solutions and single-rack with SAN-Switching, fibre channel cabling is also required for connectivity back into the SAN switches.  This connectivity is all pre-wired in the factory and will need to be adjusted if the compute and storage racks are not adjacent to each other.

For Single-Rack direct-attached-storage solutions, cabling is required for Flat SAN connectivity from the c7000 to the 3PAR 8200, 8400, 8440, or 9450.  This connectivity is all pre-wired in the factory.

NOTE: The HPE ConvergedSystem 700 2.0 includes all HPE hardware, HPE software, and factory integration, onsite installation and startup, and 3 years of hardware and software support services.
NOTE: The HPE ConvergedSystem 700 2.0 for VMware includes all HPE hardware, HPE software, and VMware software components as well as factory integration, onsite installation and startup, and 3 years of hardware and software support services. All hardware components are factory integrated and have been localized to US English. ConvergedSystem 700 2.0 for VMware comes with either vSphere 6.0u3 or vSphere 6.5u1, VMware vRealize Operations Manager, OneView, Factory configuration and onsite integration as defaults. Customers that have ELAs (Enterprise License Agreements) covering vSphere and vCenter Server are not required to purchase these licenses from Hewlett Packard Enterprise
NOTE: Management servers are mandatory for the HPE ConvergedSystem 700 2.0 for VMware in order to ensure complete provisioning and initial installation and setup.
NOTE: All hardware components are factory integrated by Hewlett Packard Enterprise and have been localized to US English. HPE ConvergedSystem 700 2.0 comes with OneView licenses, Factory configuration and onsite integration as defaults.
NOTE: HPE ConvergedSystem 700 2.0 always uses blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage.
NOTE: Storage part numbers and quantities vary based on configurations chosen. For specific details refer to the HPE 3PAR StoreServ 8000 QS or HPE 3PAR StoreServ 9000 Storage QS.

HPE ConvergedSystem 700 2.0

Dimensions HPE i-Series Shock Rack

Height

42U, 79 in (200.66 cm)

Width

23.54 in (59.8 cm)

Depth

51.19 in (130 cm)

Weight* (approximate for maximum rack configuration)

Per compute rack

Static

1808.33 (819.20kg)

Dynamic Maximum

5000 lb (2268 kg)

Color

Doors

Black

Frame

Black

Clearance (for air flow and access)

Front

48 in (121.9 cm)

Rear

30 in (76.2 cm)

Storage Temperature range

Operating

41° to 104° F (5° to 40° C) 7xx0c

Shipping

32° to 140° F (0° to 60° C) 7xx0c

Storage Relative humidity

Operating

10 to 90% non-condensing

Non-Operating

10 to 90%, non-condensing.

Power Usage* - maximum

Single Rack

13,650.70 watts (at 250V)

Per compute rack for multi-rack solution

16,589.55 watts (at 250V)

BTU rating, maximum

Single Rack

50,057.21 BTU/hour

Per compute rack for multi-rack solution

67,767.79 BTU/hour

NOTE*: Due to storage variability in multi-rack configurations, weight, power usage, and BTU rating for HPE StoreServ 8000 arrays can be found in the StoreServ 8000 QuickSpecs.
StoreServ 8000 QS or HPE 3PAR StoreServ 9000 Storage QS
NOTE: Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No direct sustained sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia.
NOTE: To review maximum server system power ratings for facilities planning purposes use the HPE Power Advisor at: https://paonline56.itcs.hpe.com/?Page=Index.

Date

Version History

Action

Description of Change:

18-Dec-2017

From version 13 to 14

Changed

Overview, Software, Other Services, Installation, Startup and Support Services, and How to Order sections were updated.

Added

SKUs added:
Q8A88A, Q8A94A, Q8A89A, Q8A92A, Q8A93A.

08-May-2017

From version 12 to 13

Changed

Corrections to maintain version nomenclature ("2.0")

27-Mar-2017

From Version 11 to 12

Changed

Changes made throughout the QuickSpecs

06-Jun-2016

From Version 10 to 11

Changed

Changes made throughout the QuickSpecs

31-Mar-2016

From Version 9 to 10

Changed

Added additional NVIDIA information

04-Nov-2015

From Version 8 to 9

Changed

Changes made throughout the QuickSpecs

28-Sept-2015

From Version 7 to 8

Changed

Changes made throughout the QuickSpecs

18 Sept-2015

From Version 6 to 7

Changed

Changed the summary of changes description

04-Sept-2015

From Version 5 to 6

Deleted

Removed unsupported SKUs

17-Aug-2015

From Version 4 to 5

Changed

Updated the Step 3 in the How to Order Section

01-Jun-2015

From Version 3 to 4

Changed

Changes made to the Overview and How to Order Sections

24-Apr-2015

From Version 2 to 3

Added

Added picture for the Single Rack

10-Apr-2015

From Version 1 to 2

Changed

Changes made throughout the QuickSpecs
