HP ConvergedSystem 500 for SAP HANA Scale-out Configurations: технические характеристики и документация

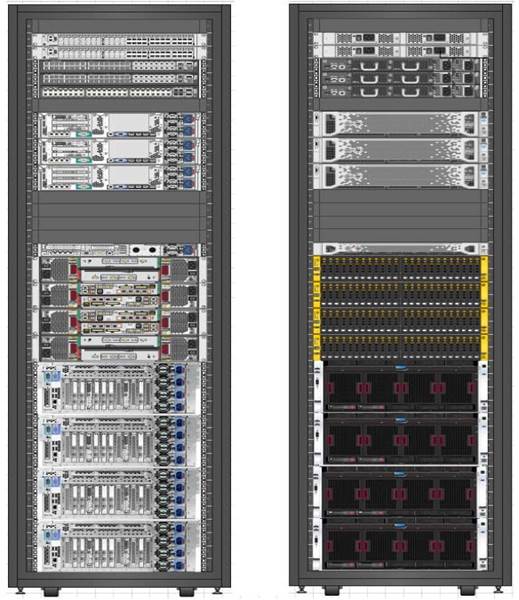

HP ConvergedSystem 500 for SAP HANA Scale-out Configurations with the Intel® Xeon® E7 v2 architecture (RETIRED)

1.

HP CS 500 for SAP HANA SAN Block (2x)

5.

HP CS 500 for SAP HANA CMC Block (1x)

2.

HP CS 500 for SAP HANA LAN Block (2x)

6.

HP CS 500 for SAP HANA 3PAR SP Block (1x)

3.

HP CS 500 for SAP HANA Mgmt Switch Block (1x)

7.

HP CS 500 for SAP HANA 3PAR Base Block (1x)

4.

HP CS 500 for SAP HANA NFS Block (2x)

8.

HP CS 500 for SAP HANA Scale Out Node (4x)

At A Glance

HP ConvergedSystem 500 for SAP HANA Scale-out Configurations with the Intel® Xeon® E7 v2 architecture allows you to simplify IT with systems built on proven, trusted technology-not components. That means your staff has more time for innovation. With HP and SAP you can:

• Make better, faster decisions: SAP HANA is a completely re-imagined platform for real-time business. It converges database and application capabilities in-memory to transform transactions and analytics so you can operate in real time.
• Get real-time, faster: Only HP ConvergedSystem for SAP HANA dramatically simplifies IT through quick deployment, intuitive management, and system-level consulting and support. You can:
  • Order pre-configured solutions in minutes
  • Deploy quickly with seamless, turnkey, tested, and repeatable integration through HP Factory Express
  • Lessen administrative complexity with system-level management
  • Prevent and resolve problems with system-level, integrated support, and single point of accountability for the complete solution
• Amplify performance: Robust HP ConvergedSystems are purpose-built and optimized for SAP HANA with high availability and data protection available only from HP
  • Get proven performance with #1 SAP Netweaver BW-EML standard application benchmark results for HP scale-up and scale-out configurations (Certifications 2013020 and 2013037)
• Protect your data, and reduce downtime: Prevent data loss and recover from outages in seconds with optional HP Serviceguard for SAP HANA, the industry's only unattended, automated failover and disaster tolerance solution for SAP HANA
  • Optional Serviceguard software offers automated, unattended high availability and disaster tolerance capabilities, that ensure that your mission critical data stays protected, in the event of a disaster
  • Optimized for the ConvergedSystem 500 for SAP HANA scale-up and scale-out offerings, HP Serviceguard for SAP HANA is easy to administer and reduces the need for manual intervention, delivering a robust business continuity solution for your mission critical data
  • Available dual purpose configurations with HP Serviceguard maximize flexibility, and reduce your cost of ownership, by allowing you to use the secondary cluster as a test or development instance
• Scale easily: Grow as your data grows and add scale to different SAP HANA workloads --analytics, data warehouse and business applications --to protect investments and expand as needed
  • Scale up and out with modular, standards-based architecture available in scale-up configurations from 256 GB - 2 TB, and scale-out systems that grow from 4 to 16 TB.
  • Handle multiple SAP HANA workloads on the same system with HP StoreServ 3PAR storage thin provisioning (for scale-out configurations)
• Minimize risk: HP remains committed to industry-standard x86 computing and a long-term SAP HANA roadmap.
  • Buy with confidence from HP, the only player with the architecture, expertise, and roadmap to meet your SAP HANA needs today and in the future
  • Leverage expertise built over 25 years of SAP partnership, 77,000+ joint SAP installations and 800 SAP HANA installations worldwide.

Take advantage of the expertise of thousands of HP professionals supporting more than 1.7 million SAP users in over 50 countries and our own experience as one of SAP's 10 largest global customers. If you want a trusted advisor and expert implementer of SAP solutions, turn to HP.

HP ConvergedSystem 500 for SAP HANA Scale-out Configurations are based on the latest Intel® Xeon® E7-4880v2 architecture, and are optimized for SAP HANA systems that are factory-integrated to give you the fastest time to value. Certified up to 16 TB, The HP ConvergedSystem 500 for SAP HANA Scale-out Configurations are based on the following HP technologies and services:

• HP ProLiant DL580 Gen8 Server (Compute Node)
• HP 3PAR StoreServ 7400 (Persistent Storage)
• HP 3PAR 7000 Service Processor (Persistent Storage)
• HP ProLiant DL380p Gen8 Server (File and Management Servers)
• HP SN6000B Series Fibre Channel Switch (Networking Switches)
• HP 5900 Switch Series (Networking Switches)
• HP Integrated Lights-Out
• HP Serviceguard NFS
• HP Insight Remote Support
• HP Systems Insight Manager
• HP Factory Integration through HP Factory Express Deployment Services that provide hardware integration, validation, and on-site installation
• HP Proactive Care provides a single source support for the complete HP ConvergedSystem 500 for SAP HANA system, including the software
• HP ConvergedSystem 500 for SAP HANA Deployment Accelerator Service to get you up and running on SAP HANA quickly

For more information about the HP ConvergedSystem 500 for SAP HANA Scale-out Configurations, see: http://www.hp.com/go/sap/hana
For information about HP services, see: http://www.hp.com/services/sap
For more information about HP ProLiant Dl580 Gen8, see http://www.hp.com/servers/dl580-gen8
For more information about HP 3PAR StoreServ Storage, see: http://www.hp.com/go/3par
For more information about HP Insight Remote Support, see http://www.hp.com/go/insightremotesupport
For more information about HP Serviceguard Software, see http://www.hp.com/info/sglx
For more information about HP Systems Insight Manager, see http://www.hp.com/go/hpsim
For more information about HP Integrated Lights Out, see http://www.hp.com/go/ilo
For more information about HP Factory Express, see: http://www.hp.com/go/factoryexpress
For more information about HP support services, see: http://www.hp.com/go/supportservices

Hardware and Software

HP ConvergedSystem 500 for SAP HANA Scale-out Configurations with the Intel® Xeon® E7 v2 architecture are certified by SAP up to 16 TB.

HP Services

Factory Integration and On-site Installation and Startup
With HP Factory Express Deployment Services, the majority of the integration is performed in the HP factory so that deployment time is reduced with hardware built to customers' exact specifications, then shipped as a turn-key solution from the HP factory and on-site implementation services install hardware on-site. This includes:

• An engagement project manager and an integration engineer who are assigned to manage the solution from start to finish
• The project manager will serve as the single point of contact in the factory for integration status, and will coordinate delivery and on-site installation of the solution
• The integration engineer will work with your technical contact to capture the specific design parameters and prepare a detailed integration package to address your needs
• Custom racking, point-to-point cabling, OS and application software load and configuration
• Configuration of HP ConvergedSystem for SAP HANA with customer network information (IP addresses, virtual local area networks (vLANs), etc.)
• Configuration of HP 3PAR StoreServ storage and storage area network (SAN) setup
• In addition to integration, configuration, and deployment activities, all solutions receive comprehensive testing and backup/recovery media (on request), as well as a complete documentation package that details the configuration and settings of the delivered solution
• On-site installation and startup

NOTE: The factory integration services included in this solution require a Customer Intent Document (CID) to assist with the configuration and successful installation and implementation of the solution. The CID Reference ID# is required to be in place prior to sale. Before issuing a purchase order against this solution, please contact your HP sales representative to engage an HP Engagement Project Manager (EPM) who will manage the CID process.

HP SAP Deployment Accelerator Service
HP SAP HANA Deployment Accelerator Services simplify the process of implementing and configuring HP ConvergedSystem for SAP HANA by providing quick, easy implementation, expert configuration support, and knowledge sharing.

The Deployment Accelerator Service includes the following:

• Prior to solution delivery, a simplified site readiness assessment will be performed to ensure that the customer has enough power, cooling, floor space to accommodate the requirements of the system.
• Integrate HANA server into customers environment, power, network cabling
• Configure and verity the network connections into the customer environment
• Conduct basic appliance level functionality testing
• Familiarize the customer with the equipment and with basic processes
• Perform knowledge sharing, including instruct you on how to place support calls

HP SAP HANA High Availability and Disaster Tolerance Services
For Serviceguard for SAP HANA High Availability (HA) Scenarios and Serviceguard for SAP HANA High Availability/Disaster Tolerance (HA/DT) Scenarios, additional services will be included to ease the effort of Serviceguard and system replication implementation for SAP HANA. These services will accelerate your time to value and thus positively impact ROI and TCO.

The HP consultant will collect the necessary technical information and configure the HP ConvergedSystem for SAP HANA in a HA or HA/DT environment. Key core deliverables that set HP apart include:

• HP consultant acts as the Single Point of contact during the HA or HA/DT implementation of the HP ConvergedSystem 500 for SAP HANA
• System Replication solution configured according to your requirements and in line with HP’s and SAP’s recommendations
• A Service Guard HA or HA/DT solution configured according to customer’s requirements and in line with HP’s and SAP’s recommendations
• Correctly configured Highly Available SAP HANA appliance
• Customer knowledge sharing

NOTE:  For HA or HA/DT configurations with dual purposing, additional services will be required. Please contact your sales representative for more information.

HP Support
HP Proactive Care - Required minimum support for the system, providing a single point of contact for the support of all components including SAP software and operating systems. HP Proactive Care in SAP environments helps customers identify and address IT issues before they cause performance problems. HP offers enhanced call experience with advanced technical expertise, and end-to-end case ownership, which improves availability and helps optimize IT infrastructure. Customers can customize their reactive support level by selecting either 6-hour call-to-repair, 24x7 with 4-hour onsite response or next-business day onsite response.

NOTE: While support for the SAP HANA software requires a separate support agreement with SAP, HP and SAP collaborate to resolve issues around SAP HANA, leveraging specially aligned collaborative processes between HP and SAP.

NOTE: Additional support options are available. See Step 2 of How to Order below.

Warranty Services

The HP ConvergedSystem 500 for SAP HANA is covered by a global limited warranty and supported by HP Services. Beyond the warranty, HP Proactive Care is the minimum support with a choice of reactive response of 24x7 4hr onsite response or 6 hour call-to-repair. See Step 2 in "How to Order" section.

NOTE: Warranty varies by component. Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

HP Financial Services

To support customers' transition, HP Financial Services (HPFS) can help in a way that you may not have considered. HPFS can help you invest in your business while preserving precious capital.

For more information, contact your local HP Financial Services Representative. In the United States, call 1-888-277-5942. In Canada, dial 1-800-HP-LEASE. For more information please visit: http://www.hp.com/hpfinancialservices for links to HP Financial Services around the world.

End-of-life management
and recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Certified up to 16 TB, The HP ConvergedSystem 500 for SAP HANA Scale-out Configurations with the Intel® Xeon® E7 v2 architecture comprise of the following HP technologies and services that are included as part of the ordering process:

• Hardware and software: Includes all hardware components for the compute nodes, persistent storage, file and management servers, networking switches, base and expansion racks, and HP and third party software
• HP Factory Express: For system integration, customer-specific customization, and comprehensive system quality assurance. Included as part of the ordering process.
• HP Deployment Accelerator Service: For on-site installation and deployment. Included as part of the ordering process.
• HP Support Services: Proactive Care Support is the minimum support level.

Step 1: Choose your scale-out size

HP ConvergedSystem 500 for SAP HANA

Scale-out configurations are available in steps of one, 1 TB increments starting at 2 TB.

Refer to the configuration chart below to select the quantity of the hardware and software required:

NOTE: For upgrade scenarios, or if this scale-out system is being added as an additional test, development or production instance, to an already existing HP ConvergedSystem 500 for SAP HANA scale-out environment, then ensure that the persistent storage across all HP ConvergedSystem 500 for SAP HANA scale-out systems in your environment is the same. Consult with your HP sales representative for special ordering instructions.

Choose the HP Power Distribution Unit(s) for the HP CS 500 for SAP HANA Base Rack (HP Part Number H6X91B):
H6X91B#001 HP Intelligent Modular 24A North America/Japan Core PDU
H6X91B#002 HP Intelligent 40A North America/Japan Core PDU
H6X91B#003 HP Intelligent Modular 32A International Core PDU
H6X91B#004 HP Intelligent Modular 3PH 40A North America/Japan PDU
H6X91B#005 HP Intelligent Modular 3PH 24A North America/Japan Core PDU
H6X91B#006 HP Intelligent Modular 3PH 32A International Core PDU
H6X91B#007 HP Intelligent Modular 3PH 48A North America/Japan Core PDU

Choose the HP Power Distribution Unit(s) for every HP CS 500 for SAP HANA Expansion Rack (HP Part Number H6X92B):
H6X92B#001 HP Intelligent Modular 24A North America/Japan Core PDU
H6X92B#002 HP Intelligent 40A North America/Japan Core PDU
H6X92B#003 HP Intelligent Modular 32A International Core PDU
H6X92B#004 HP Intelligent Modular 3PH 40A North America/Japan PDU
H6X92B#005 HP Intelligent Modular 3PH 24A North America/Japan Core PDU
H6X92B#006 HP Intelligent Modular 3PH 32A International Core PDU
H6X92B#007 HP Intelligent Modular 3PH 48A North America/Japan Core PDU

Step 2: Select optional configurations

HP Serviceguard for SAP HANA

HP Serviceguard for SAP HANA offers protection against unplanned downtime and automated, unattended failover for SAP HANA scale-up and scale-out configurations. With HP Serviceguard for SAP HANA, you can rest assured that your data is safe, with the industry's only automated failover and disaster tolerant solution for SAP HANA.

NOTE:  At this time, Serviceguard for automated and unattended High Availability and Disaster Tolerance for SAP HANA is only available with the SUSE Linux Enterprise Server for SAP Applications Operating System installed on the HP ConvergedSystem 500 for SAP HANA Scale-out configurations.

HP Serviceguard for SAP HANA is offered in two variants, depending on your needs:

• Local High Availability Scenarios
• Disaster Tolerance Scenarios across data-centers

The Serviceguard solution for SAP HANA is comprised of the following HP technologies:

• HP Serviceguard for SAP HANA software
• HP ConvergedSystem Quorum Server: Based on the ProLiant DL320e Gen8 Server that enables powerful quad-core processor computing performance with larger memory and storage capacity, all in a small package. A single HP ConvergedSystem Quorum server (HP Part Number H6X90A) can be used for multiple Serviceguard Scale-up or Scale-out clusters
• HP ConvergedSystem 500 for SAP HANA Switch Block: Based on the HP 2920 Switch series, which offers static and RIP routing, robust security and management, enterprise-class features, and is a cost-effective, scalable solution for building high-performance networks. The switch blocks are required in local high availability scenarios

Additionally, the HP ConvergedSystem Quorum Server comes preinstalled with SUSE Linux Enterprise Server for SAP Applications operating system, and HP Integrated Lights-Out Advanced software.

Serviceguard for SAP HANA High Availability Scenarios

• For each scale-out cluster, order four licenses of HP Serviceguard for ConvergedSystem for SAP HANA Scale-out HA Flex Software (HP Part Number: G2H73A) for every scale-out node in the cluster
• One HP ConvergedSystem Quorum Server (HP Part Number H6X90A)
• Two HP ConvergedSystem 500 for SAP HANA Switch Block (HP Part Number H6X98A)
• One SUSE Linux Enterprise Server SAP 1-2 Sockets Physical 3 Year Subscription 24x7 Support License (HP Part Number G6F47A)
• One HP iLO Advanced 1 Server with 3yr 24x7 Technical Support and Updates License (HP Part Number G6F49A)

Serviceguard for SAP HANA High Availability/Disaster Tolerance Scenarios

• For each scale-out cluster, order four licenses of HP Serviceguard for ConvergedSystem for SAP HANA Scale-out HA/DT Flex Software (HP Part Number: G2H74A) for every scale-out node in the cluster
• One HP ConvergedSystem Quorum Server (HP Part Number H6X90A)
• One SUSE Linux Enterprise Server SAP 1-2 Sockets Physical 3 Year Subscription 24x7 Support License (HP Part Number G6F47A)
• One HP iLO Advanced 1 Server with 3yr 24x7 Technical Support and Updates License (HP Part Number G6F49A)

Dual Purpose Storage

For either the Serviceguard for SAP HANA High Availability, or the Serviceguard for SAP HANA High Availability/Disaster Tolerance scenarios, if a dual role configuration is desired, then the following additional components need to be ordered for the dual purpose storage:

• One HP ConvergedSystem 500 for SAP HANA Dual Purpose Rack (HP Part Number: H6Y43A)
• Power Distribution Unit(s) for the rack, which can be chosen from the following options:
  • H6Y43A#001 HP Intelligent Modular 24A North America/Japan Core PDU
  • H6Y43A#002 HP Intelligent 40A North America/Japan Core PDU
  • H6Y43A#003 HP Intelligent Modular 32A International Core PDU
  • H6Y43A#004 HP Intelligent Modular 3PH 40A North America/Japan PDU
  • H6Y43A#005 HP Intelligent Modular 3PH 24A North America/Japan Core PDU
  • H6Y43A#006 HP Intelligent Modular 3PH 32A International Core PDU
  • H6Y43A#007 HP Intelligent Modular 3PH 48A North America/Japan Core PDU
• One HP ConvergedSystem 500 for SAP HANA 3PAR Service Processor Block (HP Part Number: H6X99A)
• One  HP SAP HANA 3PAR 1.2 Base Block (HP Part Number: A2E93A)
• Add the following additional components, depending on the total number of the base and expansion racks (HP Part Numbers H6X91B or H6X92B) in the secondary site / secondary cluster:
• Two HP ConvergedSystem 500 for SAP HANA Drive Enclosure (HP Part Number: H6Y05A) and Forty Eight HP ConvergedSystem 3PAR 7400 Operating System Suite Drive License To Use (HP Part Number: D4U46A), if there are a total of two racks in the secondary site / secondary cluster
• Four HP ConvergedSystem 500 for SAP HANA Drive Enclosure (HP Part Number: H6Y05A) and Ninety Six HP ConvergedSystem 3PAR 7400 Operating System Suite Drive License To Use (HP Part Number: D4U46A), if there are a total of three racks in the secondary site / secondary cluster
• Six HP ConvergedSystem 500 for SAP HANA Drive Enclosure (HP Part Number: H6Y05A) and One Hundred Twenty HP ConvergedSystem 3PAR 7400 Operating System Suite Drive License To Use (HP Part Number: D4U46A), if there are a total of four racks in the secondary site / secondary cluster

NOTE:  For HA or HA/DT configurations with dual purposing, additional services will be required. Please contact your sales representative for more information
NOTE:  At this time, Dual Purpose Storage is only available with the SUSE Linux Enterprise Server for SAP Applications Operating System installed on the HP ConvergedSystem 500 for SAP HANA Scale-out configurations
NOTE: When ordering Serviceguard or the Dual Purpose storage, rack upgrades kits may need to be added to the order. Consult with your HP sales representative for special ordering instructions

Step 3: Choose Support and Services

HP ConvergedSystem 500 for SAP HANA Scale-out orders will include Factory Express Deployment Services, HANA Deployment Accelerator Services and a choice of support services to meet your needs.

HP Factory Express Deployment Services

HP ConvergedSystem 500 for SAP HANA Scale-out order will include FE Deployment Services covering the factory integration and onsite installation and startup services

HP SAP Deployment Accelerator Service

HP ConvergedSystem 500 for SAP HANA Scale-out order will include the HP SAP Deployment Accelerator Service providing quick, easy implementation, expert configuration support, and knowledge sharing.

HP Care Pack Support

HP and SAP collaborate to resolve issues around SAP HANA. Customers get a dedicated, single point of contact for the whole solution-ConvergedSystem 500 for SAP HANA, Operating System, and SAP HANA. HP offers enhanced call experience with advanced technical expertise, and end-to-end case ownership, which improves availability and helps optimize their infrastructure. Support for the ConvergedSystem 500 for SAP HANA requires both support from HP from the choices outlined below and a separate software support agreement with SAP. The recommended HP support level is HP Proactive Care Advanced or HP Proactive Care plus the HP Personalized Support Option. The minimum required support level is HP Proactive Care. In addition, customers may choose HP Critical Service.

NOTE:  While support for the SAP HANA software requires a separate support agreement with SAP, HP and SAP collaborate to resolve issues around SAP HANA, leveraging specially aligned collaborative processes between HP and SAP.

NOTE: Each of these support levels include hardware and software reactive support and are available with DMR (defective media retention). Support for the SAP software has to be purchased separately from SAP.

HP Proactive Care Advanced – 3 or 5 year

HP Proactive Care Advanced is the recommended support for CS SAP HANA environments. It builds on HP Proactive Care, providing additional benefits such as the assignment of a dedicated, local account support manager (ASM) for collaboration and best practices and critical event management that provides 24x7 fast response and IT service restoration with incident follow-up to prevent a repeat. All of this is designed to give you an incredibly personalized, high-touch support experience that keeps your system fully available and running at peak performance.

HP Proactive Care -3 or 5 Year
HP Proactive Care in SAP environments begins with providing all of the benefits of proactive monitoring and reporting along with rapid reactive care to put in place the fundamentals needed for stability and availability of the SAP environment. Customers also receive enhanced reactive support for HP SAP issues, through access to HP's Center of Expertise and specially aligned, collaborative reactive processes between HP and SAP. Customers can customize their reactive support level by selecting either 6-hour call-to-repair or 24x7 with 4-hour onsite response. Only for non-production systems, Proactive Care with next-business day onsite response may be selected.



HP Proactive Select -3 or 5 Year
Addresses on-going operational and staffing needs of SAP HANA environments. The customers can buy HP Proactive Select credits upfront, and choose from around 100 services to consume the required level of expertise and resources throughout a year. A vast array of services-health checks, optimization, performance, and security-help customers address their skills and staffing requirements with flexibility. These credits may also be used for assistance in implementing HP HANA appliance updates.

HP Critical Service with the SAP option -3 or 5 Year
Provides direct access to HP's mission-critical call center and fast reactive and proactive deliverables For customers running mission-critical IT applications. Call-to-repair reactive support gives access to the HP Global Mission Critical Solution Center for quick resolution.

HP Datacenter Care
For large, complex environments where a more personalized, customized approach to support is needed. This is a contractual sale and provides one contract for all a customer's reactive and proactive needs.

Technical specifications for the major components for the HP ConvergedSystem 500 for SAP HANA Scale-out Configurations are provide below.

HP ProLiant DL580 Gen8 Compute Node

Dimensions (H x W x D)
(with bezel)

6.94" x 19.0" x 27.55" (17.6cm x 48.3cm x 70.0cm)

Weight
(approximate)

Maximum
(all hard drives, power supplies, DIMMs and processors installed)

100.0 lb (45.4 kg)

Minimum
(one hard drive, two power supplies, four DIMMs, and two processors installed)

66.0 lb (30.0 kg)

Input Requirements
(per power supply)

Rated Line Voltage

100 - 127 VAC,
200 - 240 VAC

Rated Input Current

12 A (at 100 VAC),
8 A (at 200 VAC)

Rated Input Frequency

50 to 60 Hz

Rated Input Power

1161 W (at 100 VAC),
1598 W (at 240 VAC)

BTU Rating

Maximum

3960 BTU/hr (at 100 VAC),
5450 BTU/hr (at 200 VAC)

Power Specifications

NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: http://www.hp.com/go/proliant-energy-efficient or http://www.hp.com/go/hppoweradvisor
- Click on the system of interest. Example: DL580 Gen8
- Follow the instructions of the next screens.

Power Supply Output (per power supply)

Rated Steady-State Power

910 W (low line),
1300 W (high line)

Maximum Peak Power

910 W (low line),
1300 W (high line)

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

L WAd

6.4 B (with PCI-E)

L pAm

NA dBA

Operating

L WAd

6.8 B (with PCI-E)

L pAm

NA dBA

Emissions Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

3PAR StoreServ File Controller

Dimensions (H x W x D)
(with bezel)

SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm)

Weight
(approximate)

Maximum
(all hard drives, power supply, and processor installed)

61.00 lb (27.66 kg)

Minimum
(one hard drive, power supply, and processor installed)

41.0 lb (18.59 kg)

Input Requirements
(per power supply)

Rated Line Voltage

100 to 120 VAC
200 to 240 VAC

Rated Input Current

For 1200 W Power Supply:
10 A (at 100 VAC),
4.9 A (at 200 VAC)
For 750 W Power Supply:
8.9 A (at 100 VAC),
4.3 A (at 200 VAC)
For 460 W Power Supply:
5.5 A (at 100 VAC),
2.6 A (at 200 VAC)

Rated Input Frequency

50 to 60 Hz

Rated Input Power

For 1200 W Power Supply:
930 W (at 100 VAC),
1348 W (at 200 VAC)
For 750 W Power Supply:
857 W (at 100 VAC),
824 W (at 200 VAC)
For 460 W Power Supply:
526 W (at 100 VAC),
505 W (at 200 VAC)

BTU Rating

Maximum

For 1200 W Power Supply:
3530 BTU/hr (at 100 VAC),
4600 BTU/hr (at 200 VAC)
For 750 W Power Supply:
2925 BTU/hr (at 100 VAC),
2812 BTU/hr (at 200 VAC)
For 460 W Power Supply:
1794 BTU/hr (at 100 VAC),
1725 BTU/hr (at 200 VAC)

Power Supply Output (per power supply)

Rated Steady-State Power

For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)

Maximum Peak Power

For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

Idle

L WAd

4.1 B

L pAm

25 dBA

Operating

L WAd

4.3 B

L pAm

27 dBA

Emissions Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS14336-1; CNS13438; GB4943; GB9254; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

Rack space requirements for all regions

Floor plan and dimensions
There is a Rack delivered with your HANA server(s). The following graphic shows requirements in regards to floor space and dimensions of a single 42U rack with extension. If multiple racks are used for the HANA system (i.e. more than eight server nodes), each additional rack is configured identically.

Environment-friendly Products and Approach

End-of-life management and recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Date

Version History

Action

Description of Change:

17-Jun-2016

From Version 6 to 7

Retire

Document Retired

01-Jun-2015

From Version 5 to 6

Changed

Changed the name to HP ConvergedSystem 500 for SAP HANA Scale-out Configurations with the Intel® Xeon® E7 v2 architecture.

30-Mar-2015

From Version 4 to 5

Changed

Changes made to the Standard Features and How to Order Sections.

09-Feb-2015

From Version 3 to 4

Changed

Changes made to the Standard Features and How to Order Sections.

01-Dec-2014

From Version 2 to 3

Changed

Changes made to the Overview, Standard Features and How to Order Sections.

21-May-2014

From version 1 to 2

Changed

Text in How to Order section was updated

© Copyright 2016 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.
SAP and HANA is a US registered trademarks of SAP.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
