HP ConvergedSystem 200-HC StoreVirtual System: технические характеристики и документация

¹ Configured for embedded Remote Support only (iLO 4) in Insight Remote Support;
requires an external server to monitor the system.
² HP OneView InstantOn automates the expansion of one management zone to up to 4 appliances;
additional 4 appliances can be integrated manually.
³ Network RAID 10 protected volumes; HP recommends Network RAID 10 for production volumes.
Up to 500GB capacity is pre-allocated for system management.
⁴ SFP+ transceivers or DAC options to be purchased separately for flexibility
⁵ One 1GbE port will be required for initial installation of the appliance; 1GbE ports are not intended for use. Customers are advised against changing the configuration of the pre-configured virtual switches. 1GbE connectivity cannot be used instead of 10GbE.

NOTE: The CS 200-HC models require 10GbE connectivity and IPv6 capable network switching infrastructure. 1GbE connectivity cannot replace the 10GbE connectivity and is not intended for use. Customers are advised against changing the configuration of the virtual switches. HP recommends HP Networking 5700 and 5900CP series switches for best results.

Unmatched ease of use for server virtualization

• Storage Clustering simplifies scalability
  Storage Clustering allows a customer to consolidate multiple storage nodes into pools of storage. All available capacity and performance is aggregated and available to every volume in the cluster. As storage needs increase the CS 200-HC StoreVirtual can scale performance and capacity on-line.
• Network RAID delivers new levels of data availability
  Network RAID stripes and protects multiple copies of data across a cluster of storage nodes, eliminating any single point of failure in the CS 200-HC StoreVirtual array. Applications have continuous data availability in the event of a disk, controller, storage node, power, network, or site failure. Choose the right Network RAID level for each volume in the cluster based on capacity and performance needs.
• Thin Provisioning reduces costs by increasing storage efficiency
  Thin Provisioning allocates space only as data is actually written without requiring pre-allocation of storage. This raises the overall utilization and efficiency of the CS 200-HC StoreVirtual, reduces costs and ultimately increases the ROI.
• Application Integrated Snapshots
  Snapshots create thinly provisioned, instant point-in-time copies of data on a per-volume basis. Administrators access snapshots to recover individual files from the volume, or rollback an entire volume. Built-in application integration provides automated quiescing for virtual machines on VMware vSphere: using VMtools, consistency can be extended from VM-consistent to application-consistent snapshots for VMs with Microsoft Windows.
• Remote Copy reduces costs for disaster recovery
  Remote Copy replicates snapshots between CS 200-HC StoreVirtual arrays at primary/remote locations. Copies are thinly provisioned with no space reservation required. Remote Copy enables centralized backup and disaster recovery on a per-volume basis and leverages application integrated snapshots for faster recovery. Remote Copy makes the CS 200-HC StoreVirtual the perfect fit for regional data centers.
• Adaptive Optimization provides SSD performance without SSD cost (available on CS 242-HC only)
  With new auto-tiering technologies for CS-242-HC StoreVirtual, comes opportunities to optimize the cost and performance of clusters. By utilizing Adaptive Optimization technology to migrate data between storage tiers within individual storage systems, the CS 242-HC StoreVirtual provides a unique method for balancing performance versus capacity within a storage pool and lowering overall cost.
• Adding more storage resources as needed
  Any StoreVirtual product can be added to the management zone of a ConvergedSystem 200-HC StoreVirtual. This allows for more flexibility when additional storage capacity, or storage with different performance characteristics is needed. Adding another storage pool is easy with the StoreVirtual’s Centralized Management Console and HP OneView for vCenter Storage Portal. HP recommends StoreVirtual VSA Software or StoreVirtual 4335 Storage for additional storage.

Superior disaster recovery and flexibility

• Integrated replication for disaster recovery
  The CS 200-HC StoreVirtual includes integrated replication at no additional cost that simplifies management with simple failover and failback.  Additionally, the CS200-HC StoreVirtual includes the Site Recovery Adapter that integrates Remote Copy with VMware Site Recovery Manager.
• Change configurations without incurring downtime
  Administrators can add capacity, increase performance, grow and migrate volumes between CS 200-HC StoreVirtual clusters on the fly with no application downtime.

Scalable Performance

• Purchase only what you need today
  Avoid up-front cost and the potential performance constraints. Purchase only what's needed today, then grow the performance, capacity, and redundancy of your CS 200-HC StoreVirtual system online as storage requirements evolve. Buying storage only when needed simplifies planning and relieves budget pressures.
• Scale performance and capacity simultaneously
  Each time a storage node is added to the CS 200-HC StoreVirtual management group, the capacity, performance, and redundancy of the entire storage solution increases.
• Avoid disruptive upgrades
  Add resources to the CS 200-HC StoreVirtual cluster non-disruptively as capacity and performance requirements increase. Applications remain online during maintenance events (adding nodes, updating software or firmware) for best in class availability.

Easy to manage virtualized environment

• Easy installation within 15 minutes with HP OneView InstantOn
  Customize the CS 200-HC to make it fit your environment with just a few mouse clicks: Setup host names, IP address and networking configuration using the easy-to-use HP OneView InstantOn software.
• Easy day-to-day management with with HP OneView for vCenter
  With HP OneView for vCenter, VMware administrators stay within the familiar vCenter interface. Provision new VMs and storage resources in the same interface that you use every day.
• Centralized Management Console to manage the full range of StoreVirtual features
  Multiple data centers and sites can be managed from an all-inclusive "single pane-of-glass." All of the CS 200-HC StoreVirtual system features are managed from the Centralized Management Console (CMC) for simple, easy-to-manage storage components in the CS 200-HC StoreVirtual.
• Business continuity with integrated HA and DR
  Every CS 200-HC StoreVirtual system includes integrated synchronous and asynchronous replication at no additional cost. This reduces costs and simplifies management of high availability/fault tolerant and disaster recovery storage solutions.
• StoreVirtual technology provides industry leading VMware integration
  vStorage / VAAI array offload integration and data path optimizations, vMSC certification and Site Recovery Manager integration provide the best integration of hyper-converged platform with virtualized workloads.

Models

HP ConvergedSystem 200-HC StoreVirtual System family

HP ConvergedSystem 240-HC StoreVirtual System

K2Q48A

System Hardware:

• (8) Intel E5-2640v2 Processors (2.0GHz, 8-core, 20MB cache)
• (32) 16GB Dual Rank x4 PC3L-12800R (DDR3-1600)
  Registered CAS-11 Low Voltage Memory Kit
• (24) Hard drives, 1.2TB, 6GB SAS, 10,000 RPM
• (4) 2GB Flash-backed on HP Smart Array P430 Controller, 6GB SAS
• (8) 10GbE ports (primary network connectivity, network must be IPv6 capable)
• (8) 1GbE port (1 port used during the installation, not intended for use)
• (4) iLO4 management ports
• (4) HP iLO4 Advanced Pack Management
• HP Smart Array Advanced Pack 2.0
• (2) 1500W Common Slot Plus Hot Plug Power Supply
  (High-line AC only, 240V)
• Rail kit

What's in the Box:

• (1) HP ConvergedSystem 240-HC StoreVirtual System
• Rail kit, StoreVirtual licenses, EULA and supporting documentation

NOTE: VMware license must be purchased as part of the same order as HP ConvergedSystem 200-HC StoreVirtual unless provided by the customer through an existing VMware Enterprise License Agreement (ELA) or VMware vCloud Air Network Program. HP supports vSphere Enterprise, vSphere Enterprise Plus and Horizon on the CS 200-HC StoreVirtual.

Purchasing VMware licenses from HP allows HP to be the single point of contact for the entire solution inclusive of the virtualization software.

HP ConvergedSystem 242-HC StoreVirtual System

K2Q49A

System Hardware:

• (8) Intel E5-2680v2 Processors (2.8GHz, 10-core, 20MB cache)
• (64) 16GB Dual Rank x4 PC3L-12800R (DDR3-1600)
  Registered CAS-11 Low Voltage Memory Kit
• (16) Hard drives, 1.2TB, 6GB SAS, 10,000 RPM
• (8) Solid state disks, 400GB, 6GB SATA
• (4) 2GB Flash-backed on HP Smart Array P430 Controller, 6GB SAS
• (8) 10GbE ports (primary network connectivity, network must be IPv6 capable)
• (8) 1GbE port (1 port used during the installation, not intended for use)
• (4) iLO4 management ports
• (4) HP iLO4 Advanced Pack Management
• HP Smart Array Advanced Pack 2.0
• (2) 1500W Common Slot Plus Hot Plug Power Supply
  (High-line AC only, 240V)
• Rail kit

What's in the Box:

• (1) HP ConvergedSystem 242-HC StoreVirtual System
• Rail kit, StoreVirtual licenses, EULA and supporting documentation

NOTE: VMware license must be purchased as part of the same order as HP ConvergedSystem 200-HC StoreVirtual, or may come out an existing VMware Enterprise License Agreement (ELA) or VMware vCloud Air Network Program. HP supports vSphere Enterprise, vSphere Enterprise Plus and Horizon on the CS 200-HC StoreVirtual.

Purchasing VMware licenses from HP allows HP to be the single point of contact for the entire solution inclusive of the virtualization software.

HP ConvergedSystem 200-HC StoreVirtual System Product Information

Backup Options

HP StoreOnce Backup System

Backup for hyper-converged environments

When combining HP ConvergedSystem 200-HC StoreVirtual with HP StoreOnce Backup systems users can create an affordable end-to-end solution from virtualization platform to data protection, from remote office to data center, that is both easy to implement and easy to maintain. From entry-level solutions for a remote or branch office, to enterprise solutions that scale across multiple sites and data centers, HP StoreOnce provides disk-based backup with a single, unified deduplication engine for the optimal balance of affordability, manageability, scalability, and reliability to handle the data protection needs of your virtualized infrastructure.

HP StoreOnce Backup

The HP StoreOnce Backup family with StoreOnce deduplication provides consolidated, automated backup and DR operations that span enterprise data centers, regional, and remote or branch offices. With StoreOnce Backup you can:

• Meet shrinking backup windows - with a broad range of price/performance points spanning from 1TB/hour to 100 TB/hour. Optimize dedupe performance with HP StoreOnce Catalyst, enabling Federated Deduplication across the StoreOnce Backup range.
• Simplify data protection for even the most complex environments - with our single StoreOnce deduplication technology managing the movement of data between remote offices and enterprise data centers has never been easier.
• Enhance the manageability of DR and Remote Office backup operations - automate backup and DR processes and use a single pane of glass to manage the data movement between HP StoreOnce appliances in remote offices and enterprise data centers using your current backup application.
• Be confident in your data protection - HP StoreOnce Backup systems have been specifically designed with backup in mind.

For more information on HP StoreOnce Backup Systems, please go to: http://www.hp.com/go/storeonce

Service and Support

Technology Services for increased uptime, productivity and ROI
Trust HP technology experts for every level of service and support. Our integrated portfolio of services for help customers reduce costs, optimize data, streamline management, and improve backup and recovery. Capitalizing on HP ConvergedSystems' capabilities requires a service partner who understands your increasingly complex environment. Team with the people who know HP infrastructure hardware and software best-the experienced professionals at HP Services.

HP support recommendations are designed to help you enhance technology operations and lower risk-and make it easier for you to seek the right balance between affordability and service-level commitments. Depending on your individual support needs, choose from the choices outlined below.

NOTE: Each of these support levels include hardware and software reactive support and are available with DMR (defective media retention).

NOTE: Support for VMware is available from HP, providing a single point of contact across the entire solution. However, if VMware support is not purchased from HP, then customer will need to manage multiple support contracts.

NOTE: HP Insight Remote Support is required for Proactive Care.  Continuously monitoring your environment, HP Insight Remote Support alerts you and provides up to 66% faster problem resolution and up to 95% first time fix rate.

HP Proactive Care Advanced
HP Proactive Care Advanced builds on HP Proactive Care, providing additional benefits such as the assignment of a dedicated, local account support manager (ASM) for collaboration and best practices and critical event management that provides 24x7 fast response and IT service restoration with incident follow-up to prevent a repeat. All of this is designed to give you an incredibly personalized, high-touch support experience that keeps your system fully available and running at peak performance.

HP Proactive Care
HP Proactive Care begins with providing all of the benefits of proactive monitoring and reporting along with rapid reactive care to put in place the fundamentals needed for stability and availability of the environment. Customers can customize their reactive support level by selecting either 6-hour call-to-repair or 24x7 with 4-hour onsite response.

HP Proactive Care Personalized Support Option
Adding the HP Personalized Support Option for HP Proactive Care is highly recommended. The HP Personalized Support option builds on the benefits of HP Proactive Care service by providing an assigned Account Support Manager who knows the environment and delivers support planning, regular reviews, and technical and operational advice specific to each environment. A one-time purchase covers the entire HP Proactive Care environment, and additional Personalized Support Days can be added to provide the appropriate service experience for the system or across the entire environment.

HP Foundation Care Call-to-Repair Service—Offers 24x7 service, including on HP holidays, with a six-hour call-to-repair time, where our commitment is to have the hardware operational within six hours after your call is opened. Software support is 24x7 with a 2-hour response time.

HP Foundation Care 24x7 Service—Offers 24x7 service, including on HP holidays, with a four-hour on-site response time for hardware and a two-hour response time for software.

HP Foundation Care Next Business Day Service—Offers a next-business-day on-site response with coverage available nine hours per day between 8:00 a.m. and 5:00 p.m. local time, on business days Monday through Friday, excluding on HP holidays. Software support is provided with a two-hour response time.

HP Proactive Select
Addresses on-going operational and staffing needs of Converged Systems environments. The customers can buy HP Proactive Select credits upfront, and choose from around 100 services to consume the required level of expertise and resources throughout a year. A vast array of services-health checks, optimization, performance, and security-help customers address their skills and staffing requirements with flexibility.

For more information

http://www.hp.com/services
To learn more on HP Services, please contact your HP sales representative or HP Authorized Channel Partner. HP Care Pack Services are sold by HP and HP Authorized Service Partners:

• Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
• Customers purchasing from a commercial reseller can find HP Care Pack Services at www.hp.com/go/lookuptool

HP Services Awards

HP Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit:
http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.htm

Additional Services Information

For more information about HP Care Pack Services, please visit: http://www.hp.com/hps/storage

If you have specific questions, contact your local HP representative. Contact information for a representative in your area can be found at "Contact HP" http://www.hp.com

HP ConvergedSystem 200-HC StoreVirtual System

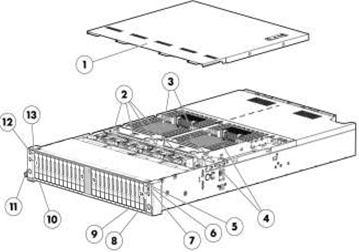

Front View:

Rear View with 4 compute/storage nodes:

1.

Quick removal access panel

1.

Power supply 2

2.

System Fans

2.

Power supply 1

3.

Processor

3.

Built-in RAID controller

4.

DIMM Slots

4.

Network card with  two 10GbE SFP+ ports

5.

Health LED for node 4

5.

NIC 2 port (1GbE)

6.

UID LED button

6.

NIC 1 port (1GbE)

7.

Power button/LED for node 4

7.

Node serial number pull tab (not for warranty

8.

Power button/LED for node 3

8.

iLO Management  port

9.

Health LED for node 3

9.

Unit ID LED

10.

Health LED for node 1

10.

Server health

11.

Power button/LED for node 1

11.

Power LED

12.

Power button/LED for node 2

12.

SUV connector (Serial/USB 2.0/Video)

13.

Health LED for node 2

13.

Serial connector (RJ-45)

14.

RCM module

HP ConvergedSystem 200-HC StoreVirtual System family

Model Description

Part Number

HP ConvergedSystem 240-HC StoreVirtual System

K2Q48A

HP ConvergedSystem 242-HC StoreVirtual System

K2Q49A

NOTE: VMware vSphere and VMware vCenter licenses must be purchases with HP ConvergedSystem 200-HC StoreVirtual System products; HP ordering systems will automatically add 8x BD715A (vSphere Enterprise Plus 1P 3yr Service and Subscription) and 1x BD723A (VMware vCenter). These SKUs may be replaced with other licenses covering 8 CPUs. Licenses may only be removed if the end-customer has an active and valid Enterprise License Agreement with VMware, or is vCloud Air Network partner. HP supports vSphere Enterprise, vSphere Enterprise Plus and Horizon on the CS 200-HC StoreVirtual.

NOTE: IPv6-capable 10GbE networking infrastructure is required. Network cables must be purchased separately for fiber and copper environments. Please refer to the Related Options section in http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c04111435

Power Options

Description

Two 6' Highline (IEC-IEC) power cord ships standard. The system requires two 240V power sources.

NOTE: HP ConvergedSystem 200-HC StoreVirtual System is primarily connected to PDU's in data center racks so they ship standard with only a PDU power cord (416151-B21).

Please see the UPS and PDU cable matrix's on the Power Protection page under Power Cords that lists cable descriptions, requirements, and specifications for UPS and PDU units at the new HP Power Cord Link @ HP.com. Use the following new link: http://www.hp.com/products/powercords

ConvergedSystem 240-HC StoreVirtual

ConvergedSystem 242-HC StoreVirtual

Dimensions (with bezel)

2U

8.74 x 44.81 x 82 cm (3.44 x 17.64 x 32.28 in)

Weight

35.52kg (78.31 lbs)

Power/Cooling

Redundant Hot-Plug Common Slot Power Supplies

High-line AC only, 240 Volts

220V/50Hz

2174 BTU/hr

648 W, 3.0 A rms, 657 VAC, (37 A inrush current)

Environmental

System Inlet Temperature

Operating

10° to 30°C (50° to 86°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-40°to 60°C (-40°to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating 3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Regulatory

FCC Rating: Class A
Normative Standards: CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

Additional information online

StoreVirtual home page

http://www.hp.com/go/ConvergedSystem

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Date

Version History

Action

Description of Change:

21-Aug-2015

From Version 3 to 4

Changed

Changes made to the Overview and Family Information Sections.

20-Feb-2015

From Version 2 to 3

Changed

Changed the 1GbE ports are not intended for use
New: VMware Horizon can be used on the system
New: Add more capacity by adding another StoreVirtual system to an installation
Added: Usable capacity in specification overview

09-Jan-2015

From Version 1 to 2

Changed

Updated solution summary
Corrections on power requirements and specifications

© Copyright 2015 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. Unix is a registered trademark of The Open Group. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
