HPE ProLiant Compute EL9000

QuickSpecs

HPE ProLiant Compute EL9000 delivers data-intensive, low-latency compute based on open standards and advanced remote manageability.

Designed to enable communication service providers (CSPs) to capitalize on data-intensive, low-latency services for media delivery, connected mobility, and smart cities, the HPE ProLiant Compute EL9000 can process vast amounts of data in real time directly at the edge, based on open standards to boost flexibility and reduce costs.

To deliver new services that tap into the massive growth of real-time data, CSPs must transform their telecommunications network edge towards standard IT systems and software-defined architectures, such as virtual radio access networks (vRAN) and virtual cable modem termination systems (vCMTS). The open-standards based HPE ProLiant Compute EL9000 provides a cost-effective replacement for proprietary edge systems, with enhanced performance and versatility for data-intensive real-time digital services.

Additionally, the unique design of the HPE ProLiant Compute EL9000 delivers high performance and ultra-low latency for the most demanding use cases, including media streaming, IoT, artificial intelligence, and video analytics in a compact and ruggedized form factor, equipped with edge-optimized serviceability and remote systems management. It shortens the time taken to make an enterprise IT system ready for deployment, provides access at the edge to the same applications used in the core and consequently accelerates the agility of defense, law enforcement and civilian agencies.

The compact and rugged design of the HPE ProLiant Compute EL9000 allows deployment of multi-tenant workloads in hostile edge environments.

Exceeding the requirements of industry standards NEBS Level 3 and ASHRAE class 3 and 4, the system is resistant to hazardous environmental influences such as heat, shock and vibration, as well as failure, supporting continuous operation between 0 and 55 degrees Celsius.

The single-socket design of companion EL140 servers, equipped with high-end Intel® Xeon® SoC, reduces latency and energy consumption. System components can be combined, scaled and hot-swapped to meet changing demands.

Proven HPE iLO 7 technology enables remote provisioning, ongoing system health monitoring, updates, management and security of servers installed in a HPE ProLiant Compute EL9000 from cell towers to oil rigs, without needing IT expertise on site.

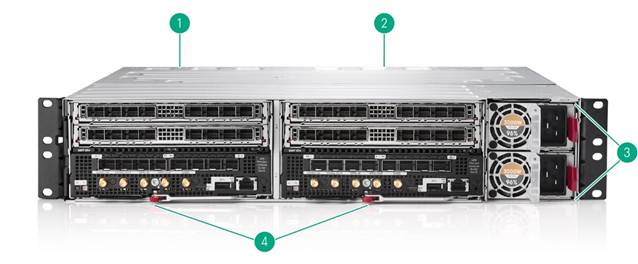

HPE Edgeline EL8000t 2U Front Cabling Chassis View

Item

Description

Item

Description

1

Node 1*

3

Redundant Power Supplies (1 required, 2 optional)

2

Node 2*

4

Quick Release Latches

* Shown with (2) OCP DSFF Slots and can be configured with (2) FHHL PCIe Slots as well

Enclosure

The HPE ProLiant Compute EL9000 chassis supports the following ProLiant Server configuration

- HPE ProLiant Compute EL140 Gen12 Server Blades

- Min 1, Max 2

Notes:

- Please visit the HPE ProLiant Compute EL140 Gen12 QuickSpecs at the following URL for detailed information and configuration possibilities
https://www.HPE.com/psnow/doc/a50002574enw?jumpid=in_lit-psnow-red

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Factory Integrated Models must start with an HPE ProLiant Compute EL9000 System with the following minimum configuration:

- One (1) HPE ProLiant Compute EL140 Gen12 Server.

- One (1) HPE Power Supply

Step 1: Base Configuration (Choose System)

HPE ProLiant Compute System

SKU

HPE ProLiant Compute EL9000 2U Configure-to-order Front Cabling Chassis

P88817-B21

Step 2: Power Supply

Power Supplies

HPE M-CRPS Power Supplies (Min:2, Max:2)

SKU

HPE 3000W M-CRPS Titanium Hot Plug Reverse Air Flow AC Power Supply Kit

P82622-B21

HPE 2000W M-CRPS -48VDC Hot Plug Reverse Air Flow Power Supply Kit

P82919-B21

Notes:

- Functional systems require at least two power supplies to be configured for redundancy.

- Mixing of AC (P82622-B21) and DC (P82919-B21) power supplies in a chassis is NOT allowed

Step 3: Configure ProLiant Compute Server (Min: 0, Max: 2)

SKU

HPE ProLiant Compute EL140 Gen12 Configure-to-order Server

P88818-B21

Notes:

- Refer to the HPE ProLiant Compute EL140 Gen12 QuickSpecs for server configuration details.

https://www.HPE.com/psnow/doc/a50002574enw?jumpid=in_lit-psnow-red

- Maximum of two (2) servers.

Step 4: Configure Additional Options

Choose additional options for Factory Integration from sections below

Rail Kit

SKU

HPE ProLiant Compute EL140 Gen12 2-post Rack Mount Kit

P88891-B21

HPE ProLiant Compute EL140 Gen12 4-post Rack Mount Kit

P88892-B21

HPE Easy Install Rail 12 Kit

P64576-B21

Notes:

- The 2-post Rack Mount Kit (P41584-B21) includes ear brackets for 19" 2-post rack installations and extension brackets for compatibility with 23" 2-post racks.

- The 4-post Rack Mount Kit (P88892-B21) and Easy Install Rail 12 Kit (P64576-B21) must be purchased together. The 4-post Rack Mount Kit includes racking ears that mount to the server and enable attachment to the rail kit (P64576-B21) installed in a 4-post.

HPE Power Cords

For AC Power Cords options, please refer to "HPE One Config Advance". If any optional Power Cords are ordered, then quantity must be equal to total number of Power Supplies on the order.

Description

SKU

HPE Hardwire -48VDC 3.5m 2000-2200W Power Cord

P73874-B21

HPE 2000-2200W -48VDC Power Lug Kit

P79839-B21

Notes:

- Either the 2000-2200 W Power Cord (P73874-B21) or Power Lug Kit (P79839-B21) is required for the 2000 W DC Power Supply (P82919-B21).

- The 2000-2200 W Power Cord includes pre-installed lugs for direct connection to the DC Power Supply (P82919-B21).

System Unit

Chassis Dimensions

- Height: 8.75 cm / 3.44 in.

- Width: 43.46 cm / 17.11 in.

- Depth (from the rear surface):

• 46.91 cm / 18.5 in. (to the front surface)
• 45.14 cm / 17.77 in. (to the front I/O surface)
• 43.2 cm / 17 in. (to the rear of ear brackets)

Weight (approximate)

- With dual HPE ProLiant Compute EL140 Gen12 servers (heavy load): 22.13 kg / 48.67 lbs.

- With single HPE ProLiant Compute EL140 Gen12 server (heavy load): 17.09 kg / 34.18 lbs.

Input Requirements (per power supply)

Rated Line Voltage

- For 3000 W (Titanium) Power Supply:

• Low-line input voltage: 100 VAC to 120 VAC
• High-line input voltage: 200 VAC to 240 VAC

- For 2000 W (-48VDC) Power Supply: -40 VDC to -72 VDC

British Thermal Unit (BTU) Rating

Maximum

- For 3000 W (Titanium) Power Supply:

• 5151 at 100 VAC
• 5483 at 115 VAC
• 5452 at 127 VAC
• 10580 at 200 VAC
• 10950 at 208 VAC
• 10909 at 230 VAC
• 10893 at 240 VAC
• 10884 at 240 VDC

- For 2000 W (-48VDC) Power Supply: 6026 BTU/hr (at -40 VDC), 6000 BTU/hr (at -48 VDC), 5989 BTU/hr (at -72 VDC)

Power Supply Output (per power supply)

Rated Steady-State Power

- For 3000 W (Titanium) Power Supply: 1500 W (Low-line), 3000 W (High-line)

Maximum Peak Power

- For 3000 W (Titanium) Power Supply: 1500 W (100 VAC to 120 VAC), 2000 W (200 VAC to 240 VAC)

- For 2000 W (-48VDC) Power Supply: 2000 W (at -40 Vdc), 2000 W (at -72Vdc)

System Inlet Temperature

- Standard Operating
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
Notes: When configured with certain server models, a fan fault when operating above 30°C (86°F) may reduce system performance. Refer to the appendix for details.

- Extended Operating
Depending on hardware configuration, the supported system inlet range can be extended up to 55°C. Compliance to NEBS Level 3 and ASHRAE A3 and A4 standards is also available.
Notes: The approved extended temperature hardware configurations for this system are listed in the appendix.

- Non-Operating
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

- Operating
Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity

- Non-Operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

- Operating
3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

- Non-Operating
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Emissions Classification (EMC)

- FCC Rating
Class A

- Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; K22;K24; EN61000-3-2; EN 61000-3-3; EN 60950-1; IEC60950-1

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Date

Version History

Action

Description of Change

20-Jul-2026

Version 2

Changed

- Updated GreenLake references to align with current branding and terminology standards.

- Updated Supplemental Services QuickSpecs content for consistency and accuracy.

16-Mar-2026

Version 1

New

New QuickSpecs
