HPE ProLiant Compute EL140 Gen12 QuickSpecs

HPE ProLiant Compute EL140 Gen12 server - Rugged and Powerful

The HPE ProLiant Compute EL140 Gen12 is a multi-workload powerhouse designed to drive your business into the next generation with workload support for virtualized radio access network (vRAN) for 5G, virtual cable modem termination systems (vCMTS), multi-access edge computing, and AI inferencing at the edge.

Rugged Without Compromise

Installed in the HPE ProLiant Compute EL9000 chassis, the HPE ProLiant Compute EL140 Gen12 server enables Telco operators to support up to 2X the number of users per server over previous generations with enough cores and memory left over to add multi-tenancy workloads such as the HPE Juniper Cloud Native Router. Powered by the Intel Xeon 6 SoC with integrated AI acceleration including Intel vRAN Boost and Intel Advanced Matrix Extensions (AMX), the HPE ProLiant Compute EL140 Gen12 provides a high-performance system optimized for rugged environments. Designed to exceed the rigorous NEBS Level 3 compliance standard and GR-3108 Class 1, the EL140 is efficiently optimized for size, weight, and power with an operating temperature range of 0°C to 55°C.

Designed with TCO in Mind

With support for up to 24 network ports and 72 cores, Telco operators can consolidate vRAN servers up to 2:1, cutting capital hardware expenditures in half. Because the EL140 Gen12 provides enough processing power and memory to support multi-tenancy, a virtual cell site router can be deployed in conjunction with the fronthaul traffic workload to eliminate the need for a standalone cell site router. This reduces not only hardware purchase costs but hardware maintenance costs as well. Integration of the Digital Phase Locked Loop (DPLL) timing and Global Navigation Satellite Systems (GNSS) navigation modules provides a more cost-effective solution for timing holdover and location support than purchasing specialized NICs as in previous generations.

Enhanced Manageability and Security at the Edge

HPE ProLiant Compute EL140 Gen12, with HPE iLO 7 and Silicon Root of Trust, mitigates risk in mission-critical edge environments. With reduced IT skillsets in an increasingly vast edge environment, HPE manageability systems improve the ability to configure, monitor, and update your system from any location. By leveraging iLO 7 capability, managing your system with health monitoring and firmware management is easy. The Solid-State Drives are TCG Opal Compliant Self-Encrypting Drives (SED).

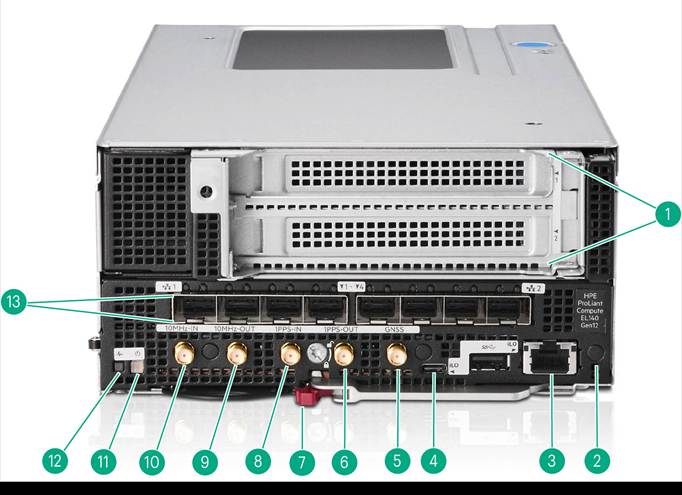

HPE ProLiant Compute EL140

1

(2) PCle FFHL Slots or (2) OCP DSFF Slots

8

1 PPS IN

2

PWR

9

10 MHz Out

3

iLO RJ45

10

10 MHz ON

4

iLO USB-C

11

Power LED

5

GNSS

12

Health LED

6

1PPS OUT

13

Integrated NIC ports

7

Quick Release Latch

Processor

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

If you want to configure a server blade only, proceed to Step 2.

Step 1: Base Configuration (Choose System)

HPE ProLiant Compute EL9000 Chassis

SKU

HPE ProLiant Compute EL9000 2U Configure-to-order Front Cabling Chassis

P88817-B21

Notes:

- Refer to the HPE ProLiant Compute EL9000 documentation for details on how to configure the chassis.
https://www.HPE.com/psnow/doc/a50009257enw

Step 2: Select ProLiant Compute Server and Fan Kit

HPE ProLiant Compute EL140 Gen12 Server (Min:0, Max:2)

SKU

HPE ProLiant Compute EL140 Gen12 Configure-to-order Server

P88818-B21

HPE ProLiant Compute EL140 Gen12 6x Fan Kit

P88814-B21

Notes:

- Each blade operates independently

- The EL140 Gen12 CTO server contains one Intel® Xeon® 6776P-B Processor

- One Fan Kit is required for each server

Step 3: Choose Required Options (per server)

Memory Options (Min: 1, Max: 8)

SKU

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69727-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69728-B21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69729-B21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69730-B21

Notes:

- Quantity of memory DIMMs selected must be 1, 2, 4, 8

- Mixing Single Rank and Dual Rank DIMM is not allowed

- For more detailed information regarding memory population rules, please refer to

https://www.HPE.com/docs/server-memory

- For additional information, please see the HPE DDR5 Smart Memory QuickSpecs

PCIe Riser and OCP Cage Options

SKU

HPE ProLiant Compute EL140 Gen12 2x16 FHHL PCIe Riser Kit

P88802-B21

HPE ProLiant Compute EL140 Gen12 DSFF OCP Cage Kit

P88805-B21

HPE ProLiant Compute EL140 Gen12 DSFF OCP Module Kit

P89056-B21

Notes:

- Either select the PCIe Riser Kit (P88802-B21) to support two (2) PCIe cards, or the DSFF OCP Cage Kit (P88805-B21) with DSFF OCP Module Kit (P89056-B21) to support DSFF OCP cards.

- Up to one (1) PCIe Riser Kit can be supported per server blade.

- Up to two (2) DSFF Module Kitscan be supported per server blade.

- The DSFF Cage Kit is required to support the DSFF OCP Module Kits.

Solid State Drives

SKU

HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80318-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80321-B21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD

P80324-B21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting PE9010 SSD

P80327-B21

HPE Edgeline 1.92TB NVMe Gen4 Mainstream Performance Mixed Use M.2 22110 Extended Temp PM9A3 SSD

P49023-B21

Notes:

- Max QTY = 2

- Both 2280 and 22110 M.2 drives are supported

- Mixing of M.2 is not allowed when VROC is selected

Step 4: Choose Additional Options

Choose additional options from sections below

Factory Configuration Settings

iLO Common Password

SKU

HPE iLO Common Password FIO Setting

P08040-B21

Notes:

- Replaces iLO default randomized password by an HPE defined common password. HPE highly recommends changing this password immediately after the initial onboarding process.

- Customers who want to choose their own custom iLO default password should use the HPE Factory Express Integration Services.

NEBS-Compliant Setting

SKU

HPE NEBS-compliant FIO Trigger System Setting

P40010-B21

Disabling USB Port

SKU

HPE ProLiant Compute EL140 Gen12 USB FIO Trigger System Setting

P88811-B21

Notes: To disable the USB Ports for security purposes, select the USB FIO Trigger System Setting.

CPU-Based RAID Controller (Intel® VROC)

SKU

Intel Virtual RAID on CPU RAID 1 FIO Software for HPE

S3Q19A

Intel Virtual RAID on CPU Premium FIO Software for HPE

R7J57A

Notes: Maximum QTY = 1

RAID Settings

SKU

HPE RAID 0 Drive 1 FIO Setting

339777-B21

HPE RAID 1 Drive 1 FIO Setting

339778-B21

HPE Customer Defined RAID Setting Service

389692-B21

Notes:

- RAID must be selected if both Factory Installed OS and VROC is present.

- If Customer Defined RAID (389692-B21) is selected, then:

• At least one NVMe M.2 drive must be included in the order
• A preinstalled OS must be included in the order
• A Customer Intent Document must be provided, detailing all aspects of the desired custom RAID configuration

GNSS Module and Timing Modules

SKU

HPE M.2 GNSS Module

P83776-B21

HPE M.2 4-hour DPLL Module

P83777-B21

HPE M.2 8-hour DPLL Module

P87250-B21

Notes:

- Max QTY of GNSS Module = 1.

- The GNSS Module (P83776-B21) is required to enable the GNSS receiver functionality via the GNSS SMA connector on the EL140 server.

- Max QTY of Timing Module = 1.

- The Timing Module (P83777-B21 or P87250-B21) is required to enable the DPLL functionality on the EL140 server.

HPE Networking

PCIe Adapters

10/25 Gigabit Ethernet Adapters

SKU

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P08458-B21

Intel E830-XXVDA4F Ethernet 10/25Gb 4-port SFP28 Adapter for HPE

P86491-B21

100 Gigabit Ethernet Adapters

SKU

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P21112-B21

Intel E810-2CQDA2 Ethernet 100Gb 2-port QSFP28 Adapter for HPE

P41611-B21

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

OCP Adapters

SKU

Intel E830 Ethernet 10/25 GB 8-port SFP28 OCP3 Adapter for HPE

84529-B21

Accelerator / GPU Options

SKU

Qualcomm X100 5G RAN GNSS Accelerator for HPE

S1C90C

Qualcomm X100 5G RAN Accelerator for HPE

S1C91C

NVIDIA L4 24GB PCIe Accelerator for HPE

S0K89C

System Unit

Server Dimensions

- Height: 8.33 cm / 3.28 in.

- Width: 17.1 cm / 6.73 in.

- Depth 37.97 cm / 14.95 in:

Weight (approximate)

- Maximum: CTO server with all components installed: 1x processor, 2x DSFF OCP cards, 8x memory DIMMs, 2x M.2 SSDs: 4.34 kg / 9.55 lbs.

System Inlet Temperature

- Standard Operating Temperature
HPE ProLiant Compute EL9000 Chassis with HPE ProLiant Compute EL140 Gen12: Typical range is 10° to 35°C (50° to 95°F) with altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft.) above sea level to a maximum of 3050 m (10,000 ft.), no direct sustained sunlight. Maximum rate of change is 20°C/hr. (36°F/hr.). The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

- Extended Ambient Operating Temperature
HPE ProLiant Compute EL9000 Chassis with HPE ProLiant Compute EL140 Gen12: For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: http://www.HPE.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft.) above 900 m (2953 ft.) to a maximum of 3050 m (10,000 ft.). The approved hardware configurations for this system are listed at the URL: http://www.HPE.com/servers/ashrae

This document will be updated as we achieve certifications for NEBS Level 3 and ETSI with configuration rules for compliant systems.

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

- Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr. (36°F/hr.)

Relative Humidity (non-condensing)

- Operating
8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

- Non-operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing

Altitude

- Operating
3050 m (10,000 ft.). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft./min).

- Non-operating
9144 m (30,000 ft.). Maximum allowable altitude change rate is 457 m/min (1500 ft./min).

Emissions Classification (EMC) - Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage,

Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

https://support.HPE.com/hpesc/public/docDisplay?docLocale=en_US&docId=c03471072

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

20-Jul-2026

Version 2

Changed

- Updated GreenLake references to align with current branding and terminology standards.

- Updated Supplemental Services QuickSpecs content for consistency and accuracy.

16-Mar-2026

Version 1

New

New QuickSpecs
