HPE Edgeline EL8000t Converged Edge System QuickSpecs

HPE Edgeline EL8000t Converged Edge System delivers data-intensive, low-latency compute based on open standards and advanced remote manageability.

Designed to enable communication service providers (CSPs) to capitalize on data-intensive, low-latency services for media delivery, connected mobility, and smart cities, the HPE Edgeline EL8000t Converged Edge System can process vast amounts of data in real time directly at the edge, based on open standards to boost flexibility and reduce costs.

To deliver new services that tap into the massive growth of real-time data, CSPs must transform their telecommunications network edge towards standard IT systems and software-defined architectures, such as virtual radio access networks (vRAN) and virtual cable modem termination systems (vCMTS).

The open-standards based HPE Edgeline EL8000t Converged Edge System was provides a cost-effective replacement for proprietary edge systems, with enhanced performance and versatility for data-intensive real-time digital services.

Additionally, the unique design of the HPE Edgeline EL8000t Converged Edge System delivers high performance and ultra-low latency for the most demanding use cases, including media streaming, IoT, artificial intelligence, and video analytics in a compact and ruggedized form factor, equipped with edge-optimized serviceability and remote systems management. It shortens the time taken to make an enterprise IT system ready for deployment, provides access at the edge to the same applications used in the core and consequently accelerates the agility of defense, law enforcement and civilian agencies.

The compact and rugged design of the HPE Edgeline EL8000t Converged Edge System allows deployment of traditional datacenter software applications in hostile Edge environments.

Exceeding the requirements of industry standards NEBS Level 3 and ASHRAE class 3 and 4, the system is resistant to hazardous environmental influences such as heat, shock and vibration, as well as failure, supporting continuous operation between 0 and 55 degrees Celsius.

The single-socket design of companion e920t blades, equipped with high-end Intel® Xeon® Scalable Processors, reduces latency and energy consumption. System components can be combined, scaled and hot-swapped to meet changing demands, with robust support for accelerators from a variety of vendors. With a range of depth and width options for blades and chassis, the system can be flexibly configured and scaled to meet new or changing use-case requirements.

Proven HPE iLO 5 technology enables remote provisioning, ongoing system health monitoring, updates, management and security of servers installed in a HPE Edgeline EL8000t Converged Edge Systems from cell towers to oil rigs, without needing IT expertise on site.

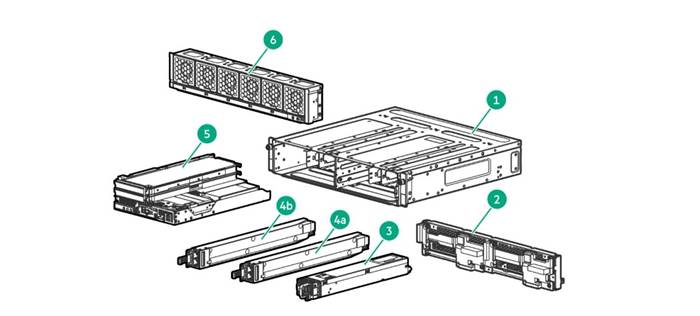

HPE Edgeline EL8000t 2U Front Cabling Chassis View

Item

Description

Item

Description

1

Edgeline EL8000t System

4b

EL8000t Chassis Controller + Network Module (Left Bay)

2

Edgeline EL8000t backplane assembly

5

HPE ProLiant e920t Server Blade (1 or 2 per system)

3

Power supply

6

Fan Assembly

4a

Network Module (Right Bay)

Enclosure

The HPE Edgeline EL8000t Chassis supports the following ProLiant Server Blade configuration

- Server Blade Configurations
ProLiant e920t 2U Blade Server

- EL8000t 2U Front Cabling Chassis
Min: 0, Max: 2

HPE ProLiant Server Blades

HPE Edgeline EL8000t System supports:

- HPE ProLiant e920t 2U Server Blades

Notes:

- Please visit the ProLiant e920t Quickspecs at the following URL for detailed information and configuration possibilities: https://www.hpe.com/psnow/doc/a50002574enw?jumpid=in_lit-psnow-red

- Blades supported on the Edgeline EL8000 system will not fit in an Edgeline EL8000t, and vice versa

HPE EL8000t Systems Power Supply

- The HPE Edgeline EL8000t Systems supports redundant hot-plug power supplies.
Min: 1, Max: 2

- HPE Edgeline EL8000 Front Cabling Chassis 1500W 264VAC Power Supply Kit

- HPE Edgeline EL8000 Front Cabling Chassis 1500W 48VDC Power Supply Kit

Notes: Mixing of AC and DC power supply options in a chassis is allowed

Embedded Management

The HPE ProLiant Blade Servers plugged into an HPE Edgeline EL8000t has its own iLO 5 management processor, which can be accessed directly through the management network port on the blades respective Network module.

The HPE Edgeline EL8000t System has an Edgeline Chassis Controller Module to monitor and control common chassis elements. The iLO 5 on the server blade communicates with the Edgeline Chassis Controller to gather and report status information on the chassis itself. The chassis controller cannot be directly accessed by the user.

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo

HPE Service Pack for Edgeline

The HPE Service Pack for Edgeline is the delivery mechanism for firmware updates on the HPE Edgeline System. Before using your system for the first time, verify that you have the latest drivers, firmware, and system software installed. Update your system with the HPE Service Pack for Edgeline.

For more information, see the HPE Service Pack for Edgelineon the Hewlett Packard Enterprise website: https://support.hpe.com/connect/s/softwaredetails?language=en_US&collectionId=MTX-14e4e074402c43cf

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Factory Integrated Models must start with an HPE Edgeline EL8000t System with the following minimum configuration:

- One (1) HPE Edgeline e920t Blade Server.

- One (1) HPE Edgeline EL8000 Power Supply

Step 1: Base Configuration (Choose System)

HPE Edgeline System

HPE Edgeline EL8000t 2U Configure-to-order 2.0 Front Cabling Chassis

P41382-B21

HPE Edgeline EL8000t Chassis Controller

P27143-B21

Notes: One ECM is required for chassis management of the EL8000t. This kit must be placed in the left hand bay. A second EL8000t Chassis Controller is required to enable iLO networking in the second slot if a second e920t blade server is installed.

Step 2: Power Supply

Power Supplies

HPE Flex Slot Power Supplies (Min:1, Max:2)

HPE Edgeline EL8000 1500W 264VAC Front Cabling Power Supply Kit

P11290-B21

HPE Edgeline EL8000 1500W -48VDC Front Cabling Power Supply Kit

P11291-B21

HPE Edgeline 900W -48VDC Power Supply Kit

P41590-B21

HPE Edgeline 1500W 264VAC Titanium Power Supply Kit

P42206-B21

Notes:

- The Titanium Power Supply Kit (P42206-B21) is available in the EMEA region only and does not support the Ultralife Carry On Enclosure.

- Functional systems require at least 1 power supply to be configured, with 2 power supplies recommended for redundancy

- Mixing of AC (P11290-B21) and DC (P11291-B21) power supplies in a chassis is allowed

- The AC power supply (P11290-B21) supports a nominal input of 100-240Vac. Refer to the appendix for technical details.

- European Union ErP Lot 9 Regulation: Beginning on January 1st, 2024, the EU's Lot 9 eco-design regulations for servers and storage products will enforce minimum efficiency for AC power supplies: 94% for multi-output and 96% for single-output. HPE Edgeline power supplies that meet Lot 9 requirements is: Titanium Power Supply Kit (P42206-B21). HPE configurators are already informing users about the mandate for units going to the European Union (EU), European Economic Area (EEA), the United Kingdom, Ireland, Switzerland, or Turkey to comply with Lot 9 minimum efficiencies that begin on January 1st, 2024. HPE will start enforcing Lot 9 minimum efficiency for AC power supplies on November 6th, 2023; purchase orders placed on or after this date that include AC power supplies that aren't Lot 9 compatible will need rework to replace them.

Step 4: Configure Additional Options

Choose additional options for Factory Integration from sections below

Rail Kit

HPE Edgeline EL8000t 2-post Rack Mount Option Kit

P41584-B21

HPE Edgeline EL8000t 4-post Rail Kit

P27068-B21

HPE Edgeline EL8000t 4-post Rack Mount FIO Option Kit

P41383-B21

Notes:

- 2-post Rack Mount Option Kit (P41584-B21) is not required. The EL8000t chassis arrives standard with a 2-post 19" rack kit.

- The 2-post Rack Mount Option Kit contains additional accessories including lugs, 23" extenders, and cable management to enable remote edge installations using DC power.

- The 4-post Rack Mount Option Kit and 4-post Rail Kit must be purchased together. The option kit (P41383-B21) includes racking ears that will retain and stabilize the chassis on the rails. The 4-post rail kit (P27068-B21) includes the rails themselves.

HPE Power Cords

HPE 48VDC 2.85m Power Cable

Q0H80A

HPE C15 EU 250V 10Amp 2.5m Black Power Cord

Q7F45A

HPE C15 UK 250V 10Amp 2.5m Black Power Cord

Q7F46A

HPE Edgeline C15 125V 15Amp Black 2.5m US Power Cord

P41626-B21

HPE C15 US 250V 10Amp 2.5m Black Jumper Cord

Q7F57A

HPE C15 EU 250V 10Amp 0.76m Black Jumper Cord

Q7F60A

HPE C15 US 250V 10Amp 1m Black Jumper Cord

Q7F61A

HPE C15 EU 250V 10Amp 1m Black Jumper Cord

Q7F62A

HPE Edgeline 300V 3m DC Power Cable Kit

P27698-B21

HPE Support Services

Installation & Startup Services

HPE Installation Edgeline 8000 Chassis Service

HF8S4E

HPE Installation Startup Edgeline EL8000s Service

U8JA4E

Notes: For a full listing of support services available for this server, please visit https://ssc.hpe.com/

Power Supply Specifications

Notes: For the 900W PSU (P41590-B21) , details in the table above use estimates. Contact Murata or an HPE representative for additional details.

Physical Dimensions

- Chassis Dimensions (H x W x D)

• Height 3.455" (2U) (8.75 cm)
• Width 17.48" (44.4 cm)
• Depth 17.008" (43.2 cm)

- Weight: 25 lbs (11.33 kg)

- Power

• Typical: 800W
• Maximum: 3000W (with power supply redundancy)

System Inlet Temperature

- Extended Operating
Depending on hardware configuration, the supported system inlet range can be extended up to 55°C. Compliance to NEBS Level 3 and ASHRAE A3 and A4 standards is also available.
Notes: The approved extended temperature hardware configurations for this system are listed in the appendix.

- Standard Operating
10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000ft) above sea level to a maximum of 3050m (10,000ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.
Notes: When configured with certain server models, a fan fault when operating above 30°C (86°F) may reduce system performance. Refer to the appendix for details.

- Non-Operating
-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidify

- Operating
Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity

- Non-Operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

- Operating
3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

- Non-Operating
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)

Emissions Classification (EMC)

- FCC Rating
Class A

- Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; K22;K24; EN61000-3-2; EN 61000-3-3; EN 60950-1; IEC60950-1

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Hewlett Packard Enterprise Extended Ambient Operating Temperature Support

The American Society of Heating Refrigeration and Air-Conditioning Engineers set standards for building systems, energy efficiency, indoor air quality, refrigeration and sustainability. The ASHRAE A3 and A4 classes are the latest classes that have been defined in an effort to support the Fresh Air Data cooling initiative. Hewlett Packard Enterprise Extended Ambient Operating Support is defined below as comparable to an ASHRAE class. For selected system configurations the Hewlett Packard Enterprise Edgeline Extended Ambient Operating Support allows operation even beyond ASHRAE class.

Notes: Actual allowable system operating temperature will be determined by the options (I/O cards, drives etc.) selected. Details are provided in the Edgeline system configuration tables for the desired operating environment shown below.

The following table provides a summary of environmental ranges supported, with altitude de-ratings, by Hewlett Packard Enterprise ProLiant servers. Items in bold are ProLiant features that exceed the ASHRAE comparable class feature set.

Notes:

- *Altitude de-rating assumes no direct sustained sunlight

- The maximum rate of change for Inlet Ambient Temperature is 20°C/hr (36°F/hr). The upper limit and rate of change can be limited by the type and number of options selected.

Notes:

- ¹Near 55°C inlet ambient AND when the CPU is stressed at 100%.

- ²Upon fan failure the servers in the system may reduce performance

- ³Only HPE PCIe options cards were used in this testing

NEBS Level 3 and ETSI Certified

This section lists some of the steps required to configure a Factory Integrated Model compliant with typically requested telecom carrier NEBS and ETSI requirements. In addition to the worldwide compliance criteria applied to the commercial version of the product, all components listed in this document have been evaluated to the following criteria:

- GR-1089-CORE

- GR-63-CORE

To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.  Factory Integrated Models must start with a CTO Server. FIO indicates that this option is only available as a factory installable option. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Notes: To yield a carrier grade server that is compliant with all the required technical criteria, the product content is limited to what is listed in this document. In addition to this, Select HPE Edgeline NEBS-compliant FIO Enablement Kit PN: P27140-B21 for factory integration.
