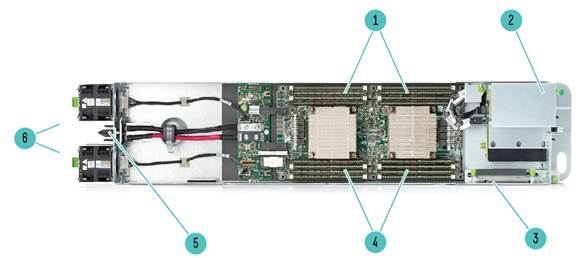

HPE Cloudline CL7100 Server

The HPE Cloudline CL7100 Server is Open Compute Compliant and is designed for service providers that need very high density compute platforms for Open Rack deployment. The CL7100 is based upon the OCPv1 (Open Compute Project) specification and utilizes industry standard Intelligent Platform Management Interface (IPMI). The CL7100 is built on a RackScale Architecture and has a highly efficient rack level power and cooling system. The Cloudline CL7100 is a 2 OU (Open Unit) sled severer featuring Intel® Xeon® E5-2600v4 series processors.

Processor

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

Intel® Xeon® processor E5-2600 v4 product family

Chipset

Intel® C610 Series Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

Upgradeability

Upgradeable to 2 processors (40 Cores)

Up to 16 DIMM slots available for higher Memory capacity

OCP Mezzanine connector for 40 Gigabit networking options

6 SFF Drive Bay

On System Management Processor

iBMC ASPEED AST2400 with KVM Support

Memory

Industry Standard DDR4 Registered (RDIMM)

DIMM Slots Available 16 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)

Maximum Capacity 1024GB (16 x 64GB RDIMM) 8GB/16GB/32GB/64GB DDR4 up to 2400MT/s

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots
depending on

model

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

Internal Storage Devices
depending on

model

Hard DrivesUp to 6 SFF SSD

Maximum Internal Storage

Hot Plug SFF SSD 10.74 TB 6 x 1.79 TB

Power Supply

One of the following depending on model

None

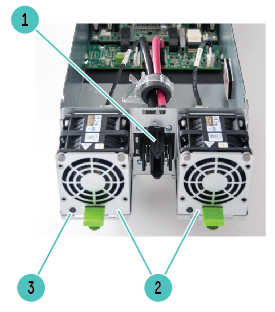

System Fans

2 Fans, hot-swap

Interfaces

Network ports

OCP NIC ports

IPMI management port

USB 3.0 Ports

None embedded

2x ports (for OCP NIC Mezzanine card)

Dedicated 10/100M LAN port and shared 1GbE/10GbE LAN port

1 front

Operating Systems Test

Cent OS

Red Hat Enterprise Linux (RHEL)

RHEL 7.0 (latest version)

CentOS 7.0 (latest version)

Windows Server 2012 R2 (Datacenter, Standard, Essentials, Foundation, HyperV, Storage)

VMware ESXi 5.5.0 U2d

VMware ESXi 6.0 U1

Industry Standard Compliance

ACPI 2.0b Complaint

PCIe 3.0 Complaint

PXE Support

WOL Support

USB 3.0 Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2400 BMC, 1600 x 1200 @ 60Hz (32 bpp)

Form Factor

2OU Rack form factor

3.46" x 6.85"Height x 36.08" (8.8cm) Width x 17.4cm x 91.7cm) Length

Security

Power-on password

Administrator's password

UEFI

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services. The Limited Warranty Period for a Hewlett Packard Enterprise hardware Product is a specified, fixed period commencing on the date of purchase. Your HPE Limited Warranty may include a parts only warranty service. Under the terms of parts only service, Hewlett Packard Enterprise will provide replacement parts free of charge. If Hewlett Packard Enterprise carries out the repair, labor and logistics costs are at your expense.

Hardware support and is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 year five (5) day Parts response time, 0-Years Labor, 0-Years Onsite support. Addition information regarding worldwide limited warranty and technical support is available at http://www.hp.com/support/cloudline_warranty_en

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE Support Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Support Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

 Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For HPE Cloudline spare parts replenishment, see the Hewlett Packard Enterprise website: http://www.hp.com/support/cloudline_parts

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

1. Factory Integrated Models must start with a CTO Server.

2. FIO indicates that this option is only available as a factory installable option.

3. All Factory Integrated Models will be populated with sufficient hard drive blanks

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors 1

NOTE: Select up to two (2) Processors, Processor one and two have the same heatsinks

Segmented Optimized - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2695 v4 (2.1GHz/18-core/120W) FIO Processor Kit

857635-L21

Advanced - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2680 v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

847792-L21

HPE CL G3 Intel Xeon E5-2660 v4 (2.0GHz/14-core/105W) FIO Processor Kit

847798-L21

Standard - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2620 v4 (2.1GHz/8-core/85W) FIO Processor Kit

848499-L21

Basic - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2609 v4 (1.7GHz/8-core/85W) FIO Processor Kit

857634-L21

HPE CL G3 Intel Xeon E5-2603 v4 (1.7GHz/6-core/85W) FIO Processor Kit

847824-L21

NOTE: If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

HPE Processors 2

NOTE: Select up to two (2) Processors , Processor one and two have the same heatsinks

Segmented Optimized - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2695 v4 (2.1GHz/18-core/120W) Processor Kit

857635-B21

Advanced - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2680 v4 (2.4GHz/14-core/35MB/120W) Processor Kit

847792-B21

HPE CL G3 Intel Xeon E5-2660 v4 (2.0GHz/14-core/105W) Processor Kit

847798-B21

Standard - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2620 v4 (2.1GHz/8-core/85W) Processor Kit

848499-B21

Basic - E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2609 v4 (1.7GHz/8-core/85W) Processor Kit

857634-B21

HPE CL G3 Intel Xeon E5-2603 v4 (1.7GHz/6-core/85W) Processor Kit

847824-B21

HPE Heatsink

NOTE: Each processor needs a dedicated heatsink

HPE CL7100 G3 Processor 1 Heat Sink Kit

864856-B21

HPE Memory
DDR4-2400

NOTE: The following memory is supported by the E5-2600v4 series Processors.

HPE CL 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851005-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851007-B21

HPE CL 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

859992-B21

NOTE: Select one or more memory. A minimum of two memory kits are required if server is configured with two processors.

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz or 1866MHz.

Step 3: Choose Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Storage Controllers

HPE CL LSI MegaRAID SAS 9380-4i4e Adapter

860000-B21

HPE CL LSI MegaRAID SAS 9341-8i Adapter Kit

859910-B21

HPE CL LSI Mega RAID SAS 9361-8i Adapter

859912-B21

HPE CL LSI MegaRAID SAS 9300-8i Host Bus Adapter Kit

859916-B21

HPE CL PMC-ASR-8885 RAID Adapter Kit

860004-B21

HPE CL LSI MegaRAID SAS 9300-8e RAID Adapter

851320-B21

HPE CL PMC-AFM-700 Super Capacitor Flash Module Device for 8885e RAID Adapter

860046-B21

HPE Drives

Hot Plug SFF SSD

HPE CL 256GB 6G SATA Value Endurance SFF (2.5in) Enterprise Value Sandisk Solid State Drive Kit

851019-B21

HPE CL 960GB 6G SATA Value Endurance SFF Enterprise Value Samsung PM863 Solid State Drive Kit

858337-B21

HPE CL 1.6TB 6G SATA Read Intensive-2 SFF (2.5in) Intel S3520 3yr Wty Solid State Drive

872624-B21

HPE M.2 Drives

HPE CL 128GB M.2 2280 SATA MLC Hynix Solid State Drive Kit

858311-B21

HPE Networking

HPE CL Eth X520-DA2 10Gb PCIe Adapter Kit

859908-B22

HPE CL Ethernet 25Gb 2-port SFP28 Mellanox ConnectX-4 Lx OCP Mezzanine Adapter

847936-B21

HPE CL 40GbE QSFP28 Dual Port Mellanox OCP Mezzanine Adapter

847934-B21

HPE CL Ethernet 10Gb 2-port SFP+ Intel X520 OCP Mezzanine Adapter

851279-B21

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v4 family processor socket contains four memory channels per installed processor with two DIMM per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

General Memory Population Rules and Guidelines

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed. The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

DIMM slot and configuration diagram

Memory Bandwidth and Capacity

Memory Speed by Processor

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB = 2,048MB
• 4GB = 4,096MB
• 8GB = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB

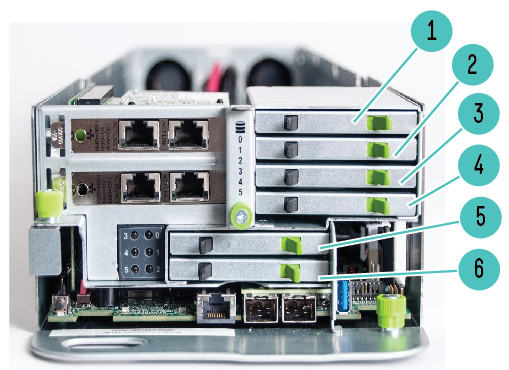

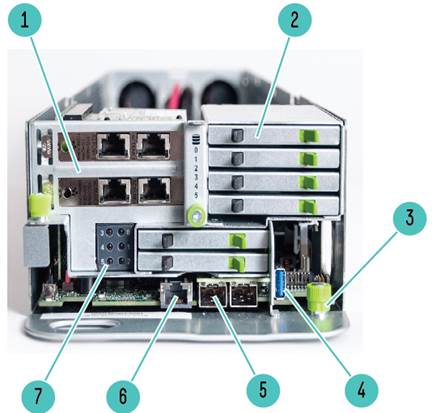

Drive Numbering Front view:

6X SFF Hot Pluggable Drive Bays. Drive 0 is upper right hand side then next drive down is Drive 1, then Drive 2 etc

Date

Version History

Action

Description of Change

23-Oct-2017

Version 6

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

27-Mar-2017

From version 4 to 5

Updated

Updated Configuration Information section

13-Feb-2017

From version 3 to 4

Updated

Add HPE CL 1.6TB 6G SATA Read Intensive solid state drive

9-Dec-2016

From version 2 to 3

Changed

Remove some SKU´s from the QuickSpecs

7-Oct-2016

From version 1 to 2

Updated

Update the entire QuickSpecs sections

6-Jun-2016

Version 1

Created

Create QuickSpecs HPE Cloudline CL7100 Server
